PROPOINT 8843880 User manual

V1.0 8843880
Please read and understand all instructions before use. Retain this manual for future
reference.
AIR IMPACT WRENCH

3/8 IN. BUTTERFLY

8843880 3/8 in. Butterfly Air Impact Wrench V1.0
2 For technical questions call 1-800-665-8685
PECIFICATIONS
Air Inlet 1/4 in.
Square Drive Size
3/8 in.
Pressure Rating 70 to 90 PSI
Average CFM @ 15 Second Run Time
4.75 CFM
CFM @ Full Load 19 CFM
Torque Range
50-130 ft-lb
Max. Torque 180 ft-lb
Blows per Minute 550 BPM
Speed Rating 10,000 RPM
Min. Hose Size 3/8 in.
Material Aluminum housing
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual.
A notice is an alert that there is a possibility of property damage, injury
or death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that
will result in severe personal injury or death if the proper
precautions are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice
that couldresult in severe personal injury or death if the
proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that
may result in minor or moderate injury if proper practices are
not taken.
NOTICE! This notice indicates that a specific hazard or unsafe
practice will result in equipment or property damage, but
not personal injury.

V1.0 3/8 in. Butterfly Air Impact Wrench 8843880
Visit www.princessauto.com for more information 3
INTRODUCTION
The 3/8 in. Butterfly Air Impact Wrench has a built-in air flow regulator
to control the power applied to the fastener. The tool has variable torque
in forward and reverse.
SAFETY
WARNING! Read and understand all instructions before using this
tool. The operator must follow basic precautions to reduce the
risk of personal injury and/or damage to the equipment.
Keep this manual for safety warnings, precautions, operating or
inspection and maintenance instructions.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean,
well-lit and free of distractions. Place lights so you are not working
in a shadow.
2. Keep anyone not wearing the appropriate safety equipment away
from the work area.
3. Store tools properly in a safe and dry location. Keep tools out of
the reach of children.
4. Do not install or use in the presence of flammable gases, dust or
liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the
Canadian Standards Association (CSA) or American National
Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side
protection for the eyes. Eye protection equipment should comply
with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of
work performed.
2. Wear the appropriate type of full-face shield in addition to safety
googles, as the work can create chips, abrasive or particulate matter.
3. Wear gloves that provide protection based on the work materials or
to reduce the effects of tool vibration.

8843880 3/8 in. Butterfly Air Impact Wrench V1.0
4 For technical questions call 1-800-665-8685
4. Wear protective clothing designed for the work environment and
tool.
5. Non-skid footwear is recommended to maintain footing and
balance in the work environment.
6. This tool can cause hearing damage. Wear hearing protection gear
with an appropriate Noise Reduction Rating to withstand the
decibel levels.
7. The tool may contain high pressure. Use safety glasses and gloves
for protection during operation. Keep hands clear of the exposed
rubber portions of the hose.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to the tool.
1. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with
the moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and
balance enables better control in unexpected situations.
4. Keep your fingers away from the trigger/switch while carrying the
tool, attaching an air hose or an accessory. Lock the trigger/switch
safety if available.
5. Avoid unintentional starts. Be sure that the regulator/throttle switch
is in the neutral or OFF position when not in use and before
connecting it to any air source.
6. Never point the air stream or tool at any point of your body, other
people or animals. Debris and dust ejected at high speed can
cause an injury.
7. Serious injury or death may occur from inhaling compressed air.
The air stream may contain carbon monoxide, toxic vapors or solid
particles. Never inhale compressed air directly from the pump or air
tool.
8. Securely hold this tool using both hands. Using a tool with only one
hand can result in loss of control.

V1.0 3/8 in. Butterfly Air Impact Wrench 8843880
Visit www.princessauto.com for more information 5
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to the tool safety rules.
If you use this tool unsafely or incorrectly, you can suffer serious
personal injury.
1. Use the correct tool for the job. This tool was designed for a
specific function. Do not modify or alter this tool or use it for an
unintended purpose.
2. Do not use the tool if any parts are damage broken or misplaced.
Repair or replace the parts.
3. Do not use any power tool with a malfunctioning power switch or
control. A power tool that fails to respond to the controls is dangerous
and can cause an injury. A qualified technician must repair and verify
the power tool is operating correctly before it can be used.
4. Never use a tool with a cracked or worn tool accessory. Change
the tool accessory before using it.
5. Never operate the tool when the safety guard is removed or
broken. Never clamp or tie the guard into the open position.
6. Do not cover the air vents.
7. Only use accessories that are specifically designed for use with the
tool. Ensure the accessory is tightly installed.
8. Only use an accessory that exceeds the speed rating (see
Specifications).
9. Disconnect the power source before installing or servicing the tool.
10. Remove adjusting keys and wrenches before using the tool. The
tool may eject an attached wrench or a key and cause an injury to
you or a bystander.
11. Before using the tool on a workpiece, test the tool by running it at
the highest speed rating for at least 30 seconds in a safe position.
Stop immediately if there is any abnormal vibration or wobbling.
Check the tool to determine the cause.
12. Never force the tool. Excessive pressure could break the tool,
resulting in damage to your workpiece or serious personal injury.
Excessive pressure is the cause if your tool runs smoothly under no
load, but roughly under load.

8843880 3/8 in. Butterfly Air Impact Wrench V1.0
6 For technical questions call 1-800-665-8685
13. Keep hands and fingers away from the work area. Any part of the
body contacting the tool’s working parts could result in an injury.
14. Never touch the tool accessory or workpiece during or immediately
after use. They may be hot and could inflict a burn injury.
15. Do not place the tool down until the tool’s accessory has stopped
moving. The accessory may catch the surface of work material and
wrench itself free, causing injury to the user or others in the work
area.
AIR TOOL PRECAUTIONS
WARNING! To prevent serious injury from accidental operation,
turn off and detach the air supply, safely discharge any residual
air pressure, and release the throttle and/or turn the switch to its
off position before performing any inspection, maintenance, or
cleaning procedures.
1. Use only clean and dry compressed air as a power source.
Contaminated or moist air will gradually damage the tool.
2. Install an in-line shutoff valve or regulator to allow immediate
control over the air supply in an emergency, even if a hose is
ruptured.
3. Discontinue tool use if it does not work properly or air is leaking.
Tag or mark the tool as ‘defective’ or ‘out of service’ until repaired.
4. Check the manufacturer’s maximum pressure rating for air tools
and accessories. Compressor outlet pressure must be regulated to
never exceed the maximum pressure rating of the tool (see
Specifications). Exceeding the maximum PSI rating can create a
bursting hazard, causing injury and property damage.
4.1 Never connect to an air source that is capable of exceeding
tool’s maximum pressure rating (see Specifications).
5. Attach all accessories properly to the tool before connecting the air
supply. A loose accessory may detach or break during operation.
6. Never use oxygen, combustible gas or any other bottled gas as a
power source. Any power source other than an air compressor
could cause an explosion and serious personal injury.
7. Turn OFF the valve and discharge any remaining air pressure after
each use or before adjusting the tool.

V1.0 3/8 in. Butterfly Air Impact Wrench 8843880
Visit www.princessauto.com for more information 7
8. Do not leave the air tool unattended with its compressed air supply
on. Turn off the compressed air supply and bleed the air tool of any
remaining compressed air before leaving the air tool unattended.
9. Serious injury may occur from loose debris being propelled at high
speeds from the compressed air stream. Always wear OSHA
approved safety glasses to protect the eyes during operation of the air
compressor.
10. Always turn off the air compressor and drain tank pressure
completely before attempting maintenance or attaching air tools.
Release pressure slowly from the system.
AIR HOSE PRECAUTIONS
1. Inspect the tool's air hose for cracks, fraying or other faults before
each use. Discontinue use if the air hose is damaged or hissing is
heard from the air hose or couplers. Replace the defective air
hose.
2. Do not allow people, mobile equipment or vehicles to pass over the
unprotected air hose. Position the air hose away from high traffic
areas, in a reinforced conduit or place planks on both sides of the
air hose to create a protective trench.
2.1 The air hose must be long enough to reach the work area with
enough extra length to allow free movement while working.
3. Prevent damage to the air hose by observing the following:
3.1 Never carry the tool by the air hose.
3.2 Keep the air hose behind the tool and out of the tool's work
path.
3.3 Keep the air hose away from heat, oil, sharp edges or moving
parts.
3.4 Do not wrap the air hose around the tool as sharp edges may
pierce or crack the air hose. Gently coil the hose and either
hang on a hook or fasten with a device to keep hose together
when storing.
4. A damaged or disconnected air hose under pressure may whip
around and inflict personal injury or damage the work area. Secure
the compressor's air hose to a fixed or permanent structure with
clamps or cable ties.

8843880 3/8 in. Butterfly Air Impact Wrench V1.0
8 For technical questions call 1-800-665-8685
VIBRATION PRECAUTIONS
1. This tool vibrates during use. Repeated or long-term exposure to
vibration may cause temporary or permanent physical injury. Take
frequent breaks when using the tool.
2. If you feel any medical symptoms related to vibrations (such as
tingling, numbness, and white or blue fingers), seek medical
attention as soon as possible.
3. Wear suitable gloves to reduce the effects of vibration.
4. DO NOT use this tool before consulting a physician if one of the
following applies:
a. Pregnant
b. Impaired blood circulation to
the hands
c. Past hand injuries
d. Nervous system disorders
e. Diabetes
f. Raynaud's Disease
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace
the missing part before operating. Failure to do so could result in
a malfunction and personal injury.
Remove the parts and accessories
from the packaging and inspect for
damage.

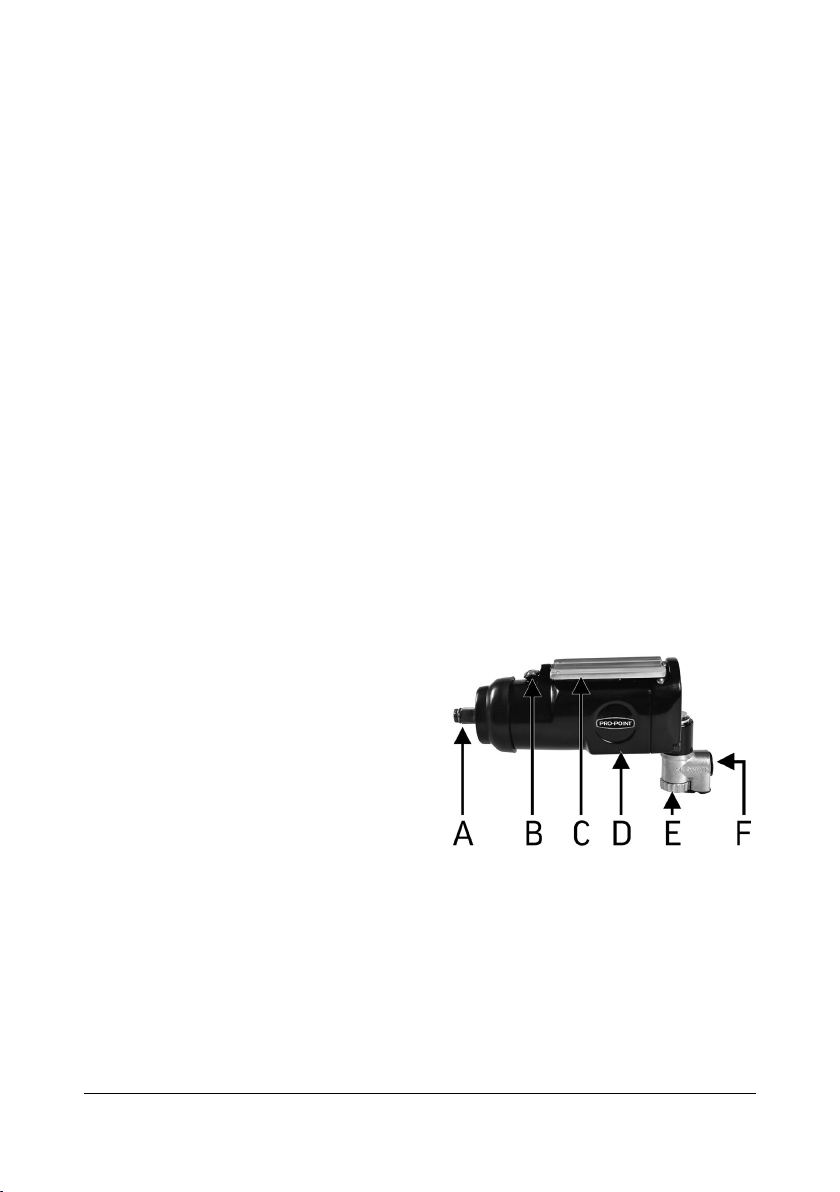

IDENTIFICATION KEY
A Anvil
B Oil Screw
C Air Impact Wrench
D Throttle Paddle
E Air Regulator
F Air inlet

V1.0 3/8 in. Butterfly Air Impact Wrench 8843880
Visit www.princessauto.com for more information 9
ASSEMBLY & INSTALLATION
Letter references in parenthesis (A) refer to the included Identification Key.
INSTALL AIR COUPLER PLUG
Prepare a standard 1/4 in. NPT coupler plug (sold separately) for use
with your tool.
1. Wrap the external threads of the coupler plug with sealant tape.
1.1 Wrap tape in a clockwise direction so it will not unravel.
1.2 Do not tape all the threads. Leave several leading threads
unwrapped for easier alignment.
2. Screw the coupler plug into the tool's air inlet and tighten with a
wrench until snug.
3. Run the compressor at a low volume and check the connection for
air leaks. Do not use the tool until all air leaks are repaired or the
faulty component is replaced.
IMPORTANT! Vibration may cause failure if a quick coupler is
connected directly to the air tool. To overcome this, connect a
leader hose to the tool. A quick coupler may then be used to
connect the leader hose to the air line hose.
OPERATION
1. Disconnect the air supply.
2. Snap the socket or accessory over the retaining ring nested in the
square drive anvil (A).
3. Reconnect the air supply.
4. Set the anvil’s rotational speed by
turning the air regulator dial (E)
(Fig. 1). The dial’s numbers from 1 to
8 indicate range from lowest to
highest speed. Turn the dial to 8 for
maximum power.
5. Place the socket over the fastener,
grip the impact wrench firmly with
both hands and gently push down on
the throttle paddle (D).
Fig. 1

8843880 3/8 in. Butterfly Air Impact Wrench V1.0
10 For technical questions call 1-800-665-8685
5.1 Push on the right side of the paddle to tighten and the left side
to loosen a bolt or nut.
5.2 If the tool stalls while tightening, do not raise the output
pressure of the air compressor above 90 PSI. Pressure above
90 PSI will strip the workpiece and damage the tool,
potentially causing tool failure and serious injury. Use other
appropriate methods and tools to tighten the nut.
6. This tool will stop operation/rotation a few seconds after the trigger
is released.
7. When the fastener is tightened, release the paddle and remove the
tool and socket.
8. Use a mechanical torque wrench to check the fastener torque.
9. When finished with the tool, turn off the air compressor, disconnect
the air hose and discharge any residual air remaining in the tool.
Put the impact wrench away in a safe storage area.
PRESSURE DROP
Apply the air consumption and pressure rate numbers to the tool’s air
inlet, not the compressor’s outlet. Calculate the pressure drop for your
air supply set-up and increase the compressor outlet pressure to
compensate. Make sure you do not exceed the maximum pressure for
any part of your air supply system.
Installing a pressure gauge at the tool inlet is the best way to measure
the air pressure and adjust the compressor’s output.
CARE & MAINTENANCE
WARNING! To prevent serious injury from accidental operation,
turn off and detach the air supply, safely discharge any residual
air pressure, and release the throttle and/or turn the switch to its
off position before performing any inspection, maintenance, or
cleaning procedures.
1. Maintain the tool with care. A tool in good condition is efficient,
easier to control and will have fewer problems.
2. Inspect the tool fittings, alignment and hoses periodically. Have
damaged or worn components repaired or replaced by an authorized
technician. Only use identical replacement parts when servicing.
3. Follow instructions for lubricating and changing accessories.

V1.0 3/8 in. Butterfly Air Impact Wrench 8843880
Visit www.princessauto.com for more information 11
4. Only use accessories intended for use with this tool.
5. Keep the tool clean, dry and free from oil/grease at all times.
6. Maintain the tool’s labels and name plates. These carry important
information. If unreadable or missing, contact Princess Auto Ltd. for
replacements.
7. If the vanes need replacement, replace them all as a set.
WARNING! Only qualified service personnel should repair the
tool. An improperly repaired tool may present a hazard to the
user and/or others.
CLEANING
Clean external surfaces of the tool with a clean, dry cloth, and apply a
thin coat of tool oil to exposed metal to prevent corrosion before storing
the tool. Remove the oil coating before using the tool again.
AIR TOOL LUBRICATION
WARNING! Only use air tool oil to lubricate the tool. Other lubricants
are not suitable and will damage the tool or cause a malfunction
during use, or may be highly flammable, causing an explosion.
NOTICE! Never use a penetrating oil to lubricate an air tool.
Penetrating oil acts as a solvent that will dissolve the tool’s
grease packing and may damage the o-rings, causing the tool to
seize or malfunction.
1. All air tools have an internal coating of grease to prevent corrosion
during shipping and storage. Remove this grease by adding a
generous amount of air tool oil in the air inlet and then run the tool
under no load until the exhaust is clear.
2. Manually add a drop or two of air tool oil into the tool’s coupler
plug before each use and after every hour of continuous use. The
tool will not work properly without lubrication and parts will wear
prematurely.
2.1 Every week, add a high-quality machine oil to the oil inlet by
removing the oil screw (B).
3. Avoid adding too much air tool oil as this can cause premature
power loss and eventual tool failure. A qualified technician will need
to take the tool apart and clean out the excess oil.

8843880 3/8 in. Butterfly Air Impact Wrench V1.0
12 For technical questions call 1-800-665-8685
4. Apply a generous amount of air tool oil to the tool before storing it
for an extended period of time (overnight, weekend, etc.). Run the
tool for approximately 30 seconds to ensure the oil is evenly
distributed throughout the tool. Store it in a clean and dry location.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does not
function properly or parts are missing. If unable to do so, have a
qualified technician service the tool.
PROBLEM(S) POSSIBLE CAUSE(S) SUGGESTED SOLUTION(S)
Tool runs at
normal speed, but
loses power under
load.
Motor parts worn. 1. Have a qualified technician
service the tool.
2. Replace tool or parts.
Tool runs slowly.
Air flows slightly
from exhaust.
Motor parts jammed with
dirt particles.
OR
Airflow blocked by dirt.
1. Check air inlet filter for
blockage.
2. Pour air tool lubricating oil
into air inlet as per
lubrication instructions for
clearing shipping grease.
3. Operate tool in short bursts
to clear debris.
4. If tool still jammed, clean
tool and lubricate per
lubrication instructions.
Tool runs slowly.
Air flows slightly
from exhaust.
1. Air regulator in closed
position.
2. Damage or excessive
wearing of internal
parts.
1. Open the air regulator to
desired airflow.
2a. Have a qualified
technician service the
tool.
2b. Replace tool or parts.
Tools will not run.
Air flows freely
from exhaust.
Damage or excessive
wearing of internal parts.
1. Have a qualified technician
service the tool.
2. Replace tool or parts.

V1.0 3/8 in. Butterfly Air Impact Wrench 8843880
Visit www.princessauto.com for more information 13
PROBLEM(S) POSSIBLE CAUSE(S) SUGGESTED SOLUTION(S)
Tool will not
shut off.
1. Throttle valve o-ring
dislodged from inlet
valve seat.
2. Trigger mechanism
jammed or dirty.
1. Replace throttle valve
o-rings.
2. Clean trigger mechanism and
lubricate.
Loss of power
or erratic
performance.
1. Excessive drain on
the air hose.
Incorrect siz
e or type
of hose connectors.
2. Moisture or
restriction in the air
hose/tank
3. Air compressor has
insufficient flow.
1. Check the air hose and confirm
the hose fitting is correct for the
inlet bushing.
2. Depressurize system and drain
tank and air hose of water.
3. Ensure tool is connected to a
compressor with a rate flow that
matches the tool.
Decreased
output.
1. Obstructed throttle
paddle.
2. Incorrect lubrication
or not enough
lubrication.
3. Air leaking from
loose housing.
1. Clean around the throttle paddle
to ensure free movement
2. Lubricate using air tool oil and
grease according to directions.
3. Make sure housing is properly
assembled and tight.
Housing heats
during use.
1. Incorrect lubrication
or not enough
lubrication.
2. Worn parts.
1. Lubricate using air tool oil
according to directions.
2. Have a qualified technician
inspect internal mechanism and
replace parts as needed.
Severe air
leakage.
(Slight air
leakage is
normal,
especially on
older tools.)
1. Cross-threaded
housing
components.
2. Loose housing.
3. Damaged valve or
housing.
4. Dirty, worn, or
damaged valve.
1. Check for incorrect alignment and
uneven gaps. If cross-threaded,
disassemble and replace
damaged parts before use.
2. Tighten housing assembly. If
housing cannot tighten properly,
internal parts may be misaligned.
3. Replace damaged components.
4. Clean or replace valve
assembly.

8843880 3/8 in. Butterfly Air Impact Wrench V1.0
14 For technical questions call 1-800-665-8685
PARTS BREAKDOWN
PARTS LIST
# DESCRIPTION QTY
1 Housing 1
2
Bushing
1
3 Hammer Assembly 1
3.1
Anvil Assembly
1
3.1.1
Retainer ring 1
3.1.2
O-Ring
1
3.1.3
Anvil 1
3.2
Pin
1
3.3 Hammer Dog 1
3.4
Drive Cam
1
3.5 Hammer Cage 1
4
Trigger Pin
2
5 Trigger 1
6
Screw
1
7 Rubber Mat 1
8
Cylinder Assembly
1
8.1 Bearing 1
8.2
Oil Seal
1
8.3 Front Plate 1
8.4
Rotor
1
8.5 Rotor Blade 6
8.6
Cylinder
1
8.7 Pin 1
8.8
End Plate
1
8.9 Bearing 1
9
Rear Gasket
1
10 Valve seat 2

V1.0 3/8 in. Butterfly Air Impact Wrench 8843880
Visit www.princessauto.com for more information 15
11 Spring 2
12
Rear Cover
1
13
O-Ring
2
14
Spring
2
15
Valve Stem
2
16
Spring Washer
4
17 Screw 4
18
Retainer Ring
1
19
Washer
1
20
O-Ring
1
21 O-Ring 1
22
Air Inlet Block
1
23
Spring
1
24
Steel Ball
1
25
O-Ring
1
26
Air Regulator
1
27 Retainer Plate 1
28
Screw
2
29
Oil Seal
1
30
Rubber
1

V1,0 8843880
Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil. Conservez ce
manuel afin de pouvoir le consulter plus tard.
CLÉ À CHOCS
PNEUMATIQUE

3/8 PO, PAPILLON

8843880 Clé à chocs pneumatique papillon de 3/8 po V1,0
2 En cas de questions techniques, appelez le 1-800-665-8685
SPÉCIFICATIONS
Entrée d’air 1/4 po
Format de prise carrée 3/8 po
Pression nominale 70 à 90 lb/po carré
Débit moyen à un temps de fonctionnement de
15 secondes
4,75 pi cubes/min
Débit à pleine charge 19 pi cubes/min
Plage de couple 50-130 pi-lb
Couple max. 180 pi-lb
Coups par minute 550 coups/min
Vitesse nominale 10 000 tr/min
Diamètre min. de tuyau 3/8 po
Matériau Boîtier en aluminium
DÉFINITIONS DE DANGER
Veuillez-vous familiariser avec les avis de danger qui sont présentés dans
ce manuel. Un avis est une alerte indiquant qu'il existe un risque de
dommage à la propriété, de blessure ou de décès si on ne respecte pas
certaines instructions.
DANGER ! Cet avis indique un risque immédiat et particulier qui
entraînera des blessures corporelles graves ou
même la mort si on omet de prendre les précautions
nécessaires.
AVERTISSEMENT ! Cet avis indique un risque particulier ou une pratique
non sécuritaire qui pourrait entraîner des blessures
corporelles graves ou même la mort si on omet de
prendre les précautions nécessaires.
ATTENTION ! Cet avis indique une situation possiblement
dangereuse qui peut entraîner des blessures
mineures ou modérées si on ne procède pas de la
façon recommandée.
AVIS ! Cet avis indique un risque particulier ou une pratique
non sécuritaire qui entraînera des dommages au
niveau de l'équipement ou des biens, mais non des
blessures corporelles.

V1,0 Clé à chocs pneumatique papillon de 3/8 po 8843880
Visitez www.princessauto.com pour plus d'informations 3
INTRODUCTION
La clé à chocs pneumatique papillon de 3/8 po comprend un
régulateur de débit d’air intégré pour contrôler la puissance appliquée à
la fixation. Cet outil comporte des couples variables en rotation dans le
sens horaire et antihoraire.
SÉCURITÉ
AVERTISSEMENT ! Veuillez lire et comprendre toutes les
instructions avant d'utiliser cet outil. L'utilisateur doit respecter
les précautions de base lorsqu'il utilise cet outil afin de réduire
le risque de blessure ou de dommage à l'équipement.
Conservez ce manuel qui contient les avertissements de sécurité, les
précautions, les instructions de fonctionnement ou d'inspection et
d'entretien.
AIRE DE TRAVAIL
1. Travaillez dans un environnement de travail sécuritaire. Gardez
votre aire de travail propre, bien éclairée et exempte de toute
distraction. Placez les lampes de façon à ne pas travailler dans
l’ombre.
2. Assurez-vous que les personnes qui ne portent pas l'équipement de
sécurité approprié ne se trouvent pas à proximité de l'aire de travail.
3. Rangez les outils correctement dans un lieu sécurisé et sec.
Gardez les outils hors de la portée des enfants.
4. N'installez pas et n'utilisez pas d'outils électriques en présence de
gaz, de poussière ou de liquides inflammables.
SÉCURITÉ PERSONNELLE
AVERTISSEMENT ! Portez de l'équipement de protection personnelle
homologué par l'Association canadienne de normalisation (CSA) ou
l'American National Standards Institute (ANSI).
ÉQUIPEMENT DE PROTECTION PERSONNELLE
1. Portez toujours des lunettes antiprojections qui offrent une
protection frontale et latérale pour les yeux. L'équipement de
protection des yeux devrait être conforme à la norme CSA Z94.3-
07 ou ANSI Z87.1 fonction du type de travail effectué.

8843880 Clé à chocs pneumatique papillon de 3/8 po V1,0
4 En cas de questions techniques, appelez le 1-800-665-8685
2. Portez un écran facial panoramique de type approprié avec les
lunettes de sécurité puisque cette tâche peut créer des copeaux,
des matières abrasives ou des particules.
3. Portez des gants qui protègent en fonction des matériaux de travail
et pour réduire les effets des vibrations de l'outil.
4. Portez des vêtements de protection conçus pour l'environnement
de travail et pour l'outil.
5. Les chaussures antidérapantes sont recommandées pour maintenir
la stabilité et l'équilibre au sein de l'environnement de travail.
6. Cet outil peut causer des dommages à l'ouïe. Portez un dispositif
de protection anti-bruit présentant une cote de réduction du bruit
adéquate en fonction du niveau de décibels.
7. L’outil peut être à haute pression. Portez des lunettes de sécurité et
des gants pour vous protéger au cours de l'opération. Gardez les
mains à l'écart des parties de caoutchouc exposées du tuyau.
PRÉCAUTIONS PERSONNELLES
1. N'utilisez pas l'outil si vous êtes fatigué ou sous l'effet de drogues,
d'alcool ou de médicaments.
2. Évitez de porter des vêtements ou des bijoux pouvant se prendre dans
les pièces mobiles d'un outil. Gardez les cheveux longs recouverts ou
attachés.
3. N'utilisez pas l'outil si vous devez étirer les bras pour vous en
servir. Une stabilité et un équilibre appropriés sont nécessaires afin
d'avoir un meilleur contrôle en cas de situations inattendues.
4. Gardez vos doigts à bonne distance de la gâchette/commutateur
lors du transport de l’outil ou du branchement d’un tuyau à air ou
d’un accessoire. Engagez le verrou de gâchette/interrupteur, le cas
échéant.
5. Évitez les mises en marche involontaires. Assurez-vous que le
régulateur/commutateur est en position neutre ou OFF (arrêt)
lorsque l’outil n’est pas utilisé et avant de le brancher à une source
d’air.
6. Ne dirigez jamais le jet d’air ou les outils vers votre corps, d’autres
individus ou des animaux. Les débris et la poussière projetés à
grande vitesse peuvent causer des blessures.

V1,0 Clé à chocs pneumatique papillon de 3/8 po 8843880
Visitez www.princessauto.com pour plus d'informations 5
7. Des blessures graves ou même la mort peuvent survenir en cas
d’inhalation de l’air comprimé. Le jet d’air peut contenir du
monoxyde de carbone, des vapeurs toxiques ou des particules
solides. N’inhalez jamais l’air comprimé provenant directement de
la pompe ou d’un outil pneumatique.
8. Tenez cet outil solidement à l’aide des deux mains. Un outil tenu
d’une seule main peut causer une perte de contrôle.
CONSIGNES DE SÉCURITÉ SPÉCIFIQUES
AVERTISSEMENT ! Ne permettez PAS au confort ou à votre
familiarisation avec l'outil (obtenus après un emploi répété) de
se substituer à une adhésion stricte aux règles de sécurité de
l'outil. Si vous utilisez cet outil de façon dangereuse ou
incorrecte, vous pouvez subir des blessures corporelles graves.
1. Utilisez le bon outil pour la tâche à effectuer. Cet outil a été conçu
pour une utilisation spécifique. Évitez de modifier ou d'altérer cet outil
ou de l'utiliser à une fin autre que celle pour laquelle il a été conçu.
2. N’utilisez pas l’outil si des pièces présentent des dommages ou
sont déplacées. Réparez ou remplacez les pièces.
3. N’utilisez pas d’outil électrique muni d’un interrupteur d’alimentation
ou d’une commande qui fait défaut. Un outil électrique qui ne réagit
pas aux commandes est dangereux et pourrait provoquer des
blessures graves. Un technicien qualifié doit réparer l’outil
électrique et vérifier s’il fonctionne correctement avant que vous ne
puissiez l’utiliser.
4. N’utilisez jamais un outil avec un accessoire usé ou qui présente
des craquelures. Remplacez l’accessoire de l’outil avant de
l’utiliser.
5. N’utilisez jamais l’outil lorsque la protection de sécurité a été retirée
ou endommagée. Ne fixez jamais le protège-lame en position
ouverte.
6. Ne recouvrez pas les orifices d'aération. Un refroidissement
approprié est requis pour éviter d’endommager le moteur de l’outil.
7. Utilisez uniquement des accessoires qui ont été spécifiquement
conçus en fonction de l’outil. Assurez-vous aussi que l’accessoire
est solidement installé.
