PROPOINT 9028002 User manual

V1.0 9028002
Please read and understand all instructions before use. Retain this manual for future reference.
DRILL PRESS

FLOOR MOUNT

This page is intentionally left blank.

SPECIFICATIONS
Horsepower 1-1/2 HP
Drive Type Drive Belt
Voltage Rating 120V AC
Amperage Rating 13A
Phase 1
Frequency Rating 60 Hz
Number of Speeds Variable-speed
Speed Rating 600 to 2,400 RPM
Chuck Size 5/8 in.
Spindle Travel 6 in.
Spindle to Table 23-3/8 in.
Max. Spindle to Base 42-13/16 in.
Capacity 1 in.
Spindle Taper MT2
Table Size 14 x 14 in.
Number of T Slots 4
Table Slot Size 0.6 in.
Swing 17 in.
Column Diameter 3-1/8 in.
Base Size 20 x 13-13/16 in.
Dimensions (W X D X H) 14-3/16 x 30 x 69 in.
INTRODUCTION
The drill press is ideal for the home or shop. Using the correct drill bit, it
allows you to drill wood, cast iron, steel and aluminum with precision. It
features an adjustable speed.
SAFETY
WARNING! Read and understand all instructions before
using this tool. The operator must follow basic precautions
to reduce the risk of personal injury and/or damage to the
equipment.
V1.0 VARIABLE-SPEED FLOOR-MOUNT DRILL PRESS 9028002
Page 3 Assistance available at www.princessauto.com or 1-800-665-8685

HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual.
A notice is an alert that there is a possibility of property damage, injury
or death if certain instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that will
result in severe personal injury or death if the proper precautions are
not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that could
result in a serious injury if the proper precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may
result in minor or moderate injury if proper practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice will
result in equipment or property damage, but not personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean,
well-lit and free of distractions. Place lights so you are not working
in a shadow.
2. Keep anyone not wearing the appropriate safety equipment away
from the work area.
3. Store unused tools properly in a dry, safe and secure location to
prevent rust, damage or misuse.
4. Do not install or use in the presence of flammable gases, dust or
liquids.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by
the Canadian Standards Association (CSA) or American
National Standards Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Always wear impact safety goggles that provide front and side
protection for the eyes. Eye protection equipment should comply
with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of
work performed.
2. Wear protective clothing and gloves designed for the work
environment, materials and tools.
9028002 VARIABLE-SPEED FLOOR-MOUNT DRILL PRESS V1.0
Assistance available at www.princessauto.com or 1-800-665-8685 Page 4

a. Do not wear gloves when operating a tool that can snag the
material and pull the hand into the tool.
3. Wear the appropriate type of full-face shield in addition to safety
googles, as the work can create chips, abrasive or particulate
matter.
4. Wear the appropriate rated dust mask or respirator. Wear a NIOSH
approved respirator when working on materials that produce
hazardous fumes, dust or particulate matter.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to tool.
1. Avoid wearing clothes or jewelry that can become entangled with
the moving parts of a tool. Keep long hair covered or bound.
2. Hold the workpiece securely against the fence. The drill's torque
will twist an unbraced workpiece out of your hand and may cause
an impact injury or the workpiece may be ejected and strike a
bystander or yourself.
3. Do not operate any tool when tired or under the influence of drugs,
alcohol or medications.
4. Do not overreach when operating a tool. Proper footing and
balance enables better control in unexpected situations.
SPECIFIC SAFETY
WARNING! DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence to the
tool safety rules. If you use this tool unsafely or incorrectly,
you can suffer serious personal injury.
NOTICE! Immediately switch the power off if the drill bit
becomes stuck or jammed. The tool’s torque may damage
the drill press mechanism and/or workpiece.
1. Use the correct tool for the job. This tool was designed for a
specific function. Do not modify or alter this tool or use it for an
unintended purpose.
2. A loose or mismatched bit may be ejected by the tool, causing an
injury to the user or a bystander. It may also fail to penetrate the
V1.0 VARIABLE-SPEED FLOOR-MOUNT DRILL PRESS 9028002
Page 5 Assistance available at www.princessauto.com or 1-800-665-8685

material as the point may move around under pressure, damaging
the workpiece.
a. Ensure the bit shank size matches the tool’s chuck or collet
size.
b. Tighten the chuck so the shank is tightly held with no room to
move.
3. Do not use the drill press as a router or try to elongate or enlarge
holes with the drill bit. The drill bit can break and can cause an
injury.
4. Never attempt to change the rotation direction while the switch is
ON. To do so, may damage the interlock feature built into the
switch. Be sure the switch is OFF and the motor has completely
stopped before changing the rotation direction.
5. Hardened gum and wood pitch on a drill bit slows the drill press
down and increases the potential for binding. Remove the drill bit
from the drill press, then clean it with hot water, kerosene or gum
and pitch remover. Never use gasoline. Allow to dry before using.
Discard the drill bit if the gum or pitch cannot be removed.
6. Clean the drill press's air vents often. The motor’s fan will draw
dust and other particulates into the tool. Excessive accumulation of
wood, plastic or metal particulates can create a fire or electrical
hazard.
7. Do not cool the drill bit with any liquid when hot. This can damage
the the drill bit by weakening the material, making the accessory
unsafe for use.
8. Inspect the tool components periodically. Repair or replace
damaged or worn components. Only use identical replacement
parts when servicing.
9. Do not install or use any drill bit that exceeds 175 mm in length or
extends 150 mm below the chuck jaws. The drill bit can suddenly
bend outward or break.
10. Do not use wire wheels, router bits, shaper cutters, circle cutters or
rotary planers on this drill press.
11. Remove adjusting keys and wrenches before using the tool. The
tool may eject an attached wrench or a key and cause an injury to
you or a bystander.
9028002 VARIABLE-SPEED FLOOR-MOUNT DRILL PRESS V1.0
Assistance available at www.princessauto.com or 1-800-665-8685 Page 6

POWER TOOL PRECAUTIONS
1. Do not use any power tool with a malfunctioning power switch or
control. A power tool that fails to respond to the controls is
dangerous and can cause an injury. A qualified technician must
repair and verify the power tool is operating correctly, before it can
be used.
2. Shut the power off and disconnect the drill press from the power
supply (if possible) before making any adjustments, changing
accessories, cleaning, servicing or when storing. Such preventive
safety measures reduce the risk of starting the tool accidentally.
3. Never force the drill press. Excessive pressure could break the
tool, resulting in damage to your workpiece or serious personal
injury. Excessive pressure is the cause if your tool runs smoothly
under no load, but roughly under load.
4. Check if the drill press's moving parts are misaligned or binding
before each use. Correct the issue before using the drill press to
avoid an injury or damage to the tool.
5. Only use accessories that are specifically designed for use with
the drill press. Ensure the drill bit is tightly installed.
6. The material and the motor housing can get very hot during
operation. Stop work until the drill press and the drill bit both cool
down to a safe temperature.
7. Do not cover the air vents. Proper cooling of the motor is
necessary to ensure normal life of the tool.
8. Make sure any adjustment mechanisms are secure before using
the tool
KICKBACK PRECAUTIONS
•The material can be ejected and inflict a serious injury on the user
or a bystander.
•Kickback can also damage the tool or workpiece.
Kickback can be avoided by taking proper precautions:
1. Maintain a firm grip on the material and position your body and
arms to allow you to resist a kickback. Kickback can propel the
material in the direction of the drill press's rotation.
V1.0 VARIABLE-SPEED FLOOR-MOUNT DRILL PRESS 9028002
Page 7 Assistance available at www.princessauto.com or 1-800-665-8685

a. Use a clamp to hold the material if the tool includes a
clamping system.
2. Use special care when working on corners, sharp edges or flexible
material. The workpiece has a tendency to snag the drill bit.
3. Only use the drill bit designed for the tool.
4. Always make sure the work surface is free from nails and other
foreign objects. Striking a nail can cause the drill bit to jump and
damage the drill bit.
ELECTRICAL SAFETY
WARNING! Do not touch or handle a live tool with any part
of your body that is wet or damp. Wet skin reduces
resistance to electrical current, increasing the danger of a
serious or fatal shock.
WARNING! To reduce risk of electric shock, be certain that
the plug is connected to a properly grounded receptacle.
1. Do not alter any parts of the tool or accessories. All parts and
accessories are designed with built-in safety features that may be
compromised if altered.
2. Protect yourself against electric shocks when working on electrical
equipment. Avoid body contact with grounded surfaces. There is
an increased chance of electrical shock if your body is grounded.
3. Do not expose the drill press to rain, snow, frost or any other damp
or wet conditions. Water entering a tool will increase the risk of
electric shock.
4. Do not disconnect the power cord in place of using the power
switch. This will prevent an accidental start-up when the power
cord is plugged into the power supply.
5. In the event of a power failure, turn off or unplug the machine as
soon as the power is interrupted. The possibility of accidental
injury could occur if the power returns and the unit is not switched
off.
6. Make certain the power source conforms to requirements of your
equipment (see Specifications).
7. This tool is only for use on 120 V (single phase) and is equipped
with a three-prong grounded power supply cord and plug. Check
9028002 VARIABLE-SPEED FLOOR-MOUNT DRILL PRESS V1.0
Assistance available at www.princessauto.com or 1-800-665-8685 Page 8

with a qualified electrician if you are in doubt as to whether the
outlet is properly grounded. If the tool should electronically
malfunction or break down, grounding provides a low resistance
path to carry electricity away from the user.
a. Never remove the grounding prong or modify the plug in any
way, as this will render the tool unsafe.
b. Do not use any adapter plugs.
UNPACKING
WARNING! Do not operate the tool if any part is missing.
Replace the missing part before operating. Failure to do so
could result in a malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect for
damage.
A. Drill Head
B. Table
C. Column
D. Table Support
E. Pedestal Base
F. Table Adjustment Handle
G. Feed Handles (3)
H. Speed Adjusting Handle
I. Hex Wrench (3)
J. Chuck Tool
K. Arbor
L. Chuck
M. Chuck Key
N. Hex Bolt (4)
Fig. 1
V1.0 VARIABLE-SPEED FLOOR-MOUNT DRILL PRESS 9028002
Page 9 Assistance available at www.princessauto.com or 1-800-665-8685

ASSEMBLY&INSTALLATION
BEFORE STARTING
1. Remove the protective coverings from the base, the column and
the head assembly.
2. Strip the protective oil coat from the table and the column using
household grease removers.
3. Apply a coat of paste wax on the table and the column to prevent
rust.
4. Wipe all parts thoroughly with a clean, dry cloth.
5. Clean the chuck’s tapered hole and the spindle nose to ensure that
the chuck will be seated properly. Use cleaning solvents if
necessary.
ASSEMBLING THE BASE AND THE
COLUMN

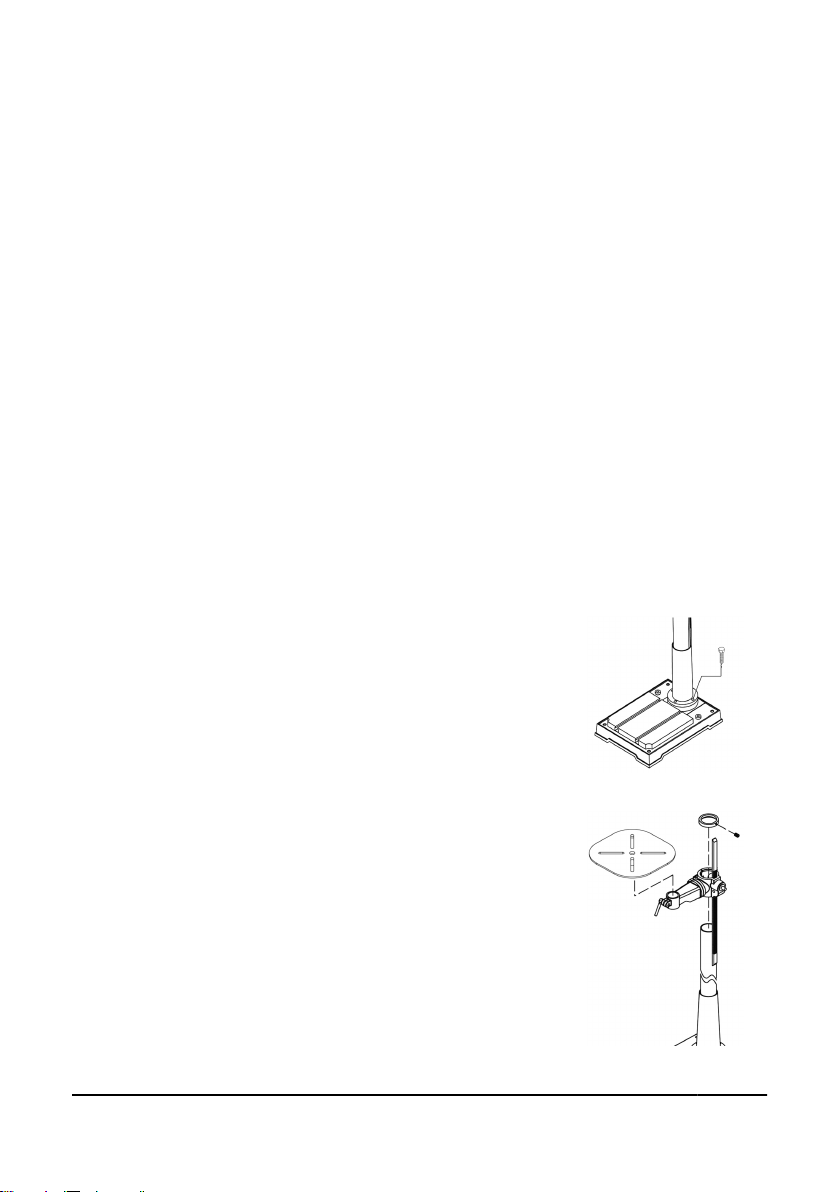

1. Before assembly, bolt the base to a flat, level
and solid floor capable of supporting the
weight of the drill press and any workpieces.
Verify that the installation surface has no
hidden utility lines before drilling or driving
screws.
2. Mount the column onto the base. Align the
holes in the column support with the holes in
the base.
3. Secure in place using the bolts and washers.
Tighten all bolts with a wrench (Fig. 2).
4. Remove the rack from the column by
loosening the collar set screw and removing
the collar. The rack is stowed in this position
only for transit purposes.
5. Lubricate the worm gear with light grease and
insert shaft first into worm gear housing in the
Fig. 2
Fig. 3
9028002 VARIABLE-SPEED FLOOR-MOUNT DRILL PRESS V1.0
Assistance available at www.princessauto.com or 1-800-665-8685 Page 10
