Prorack K1012 User manual

K1012
Fitting Kit
EN Fitting Instructions for Basic Carrier

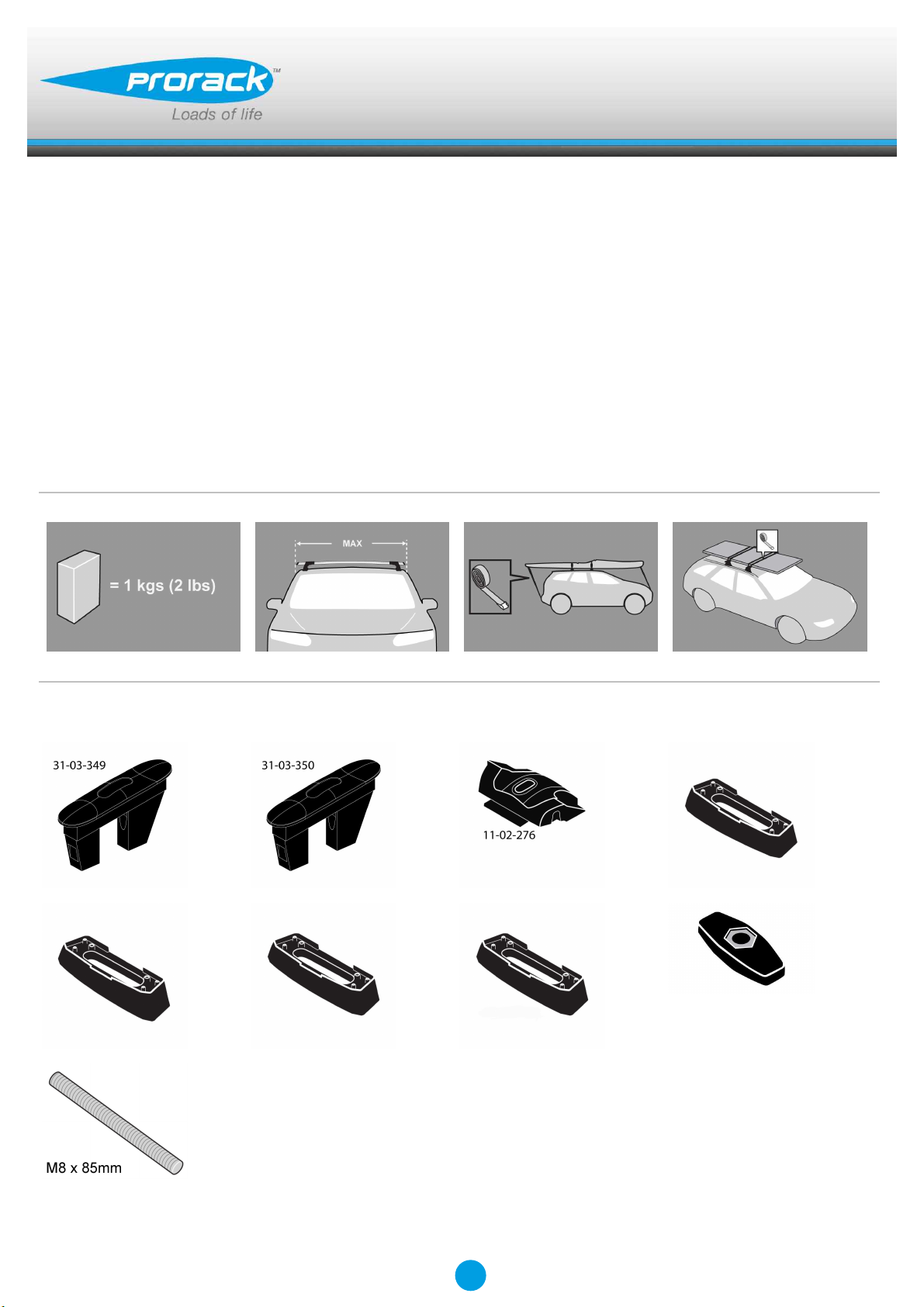

x 2 x 2 x 4 x 1
x 1 x 1 x 1 x 4
x 4
Revision No: 2B 1

Fitting Kit K1012
MAX kgs (lbs)
W/P WHD
Mercedes-Benz
E-Class W213, 4dr Sedan Jun 16-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class W213, 4dr Sedan Jun 16-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class W213, 4dr Sedan Jun 16-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class W213, 4dr Sedan Sep 16-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class W213, 4dr Sedan Sep 16-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
2

Fitting Kit K1012
X
A B C 1 2 3
E-Class W213, 4dr Sedan Jun 16-+ (AU) -375mm 405mm - 927mm 845mm -
-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -
E-Class W213, 4dr Sedan Jun 16-+ (NZ) -375mm 405mm - 927mm 845mm -
-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -
E-Class W213, 4dr Sedan Jun 16-+ (EU) -375mm 405mm - 927mm 845mm -
-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -
E-Class W213, 4dr Sedan Sep 16-+ (ZA) -375mm 405mm - 927mm 845mm -
-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -
E-Class W213, 4dr Sedan Sep 16-+ (CN) -375mm 405mm - 927mm 845mm -
-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -
3

Fitting Kit EN
K1012
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●This kit fits type A, B, C and D.
●Use keys to remove covers.
4

Fitting Kit EN
K1012
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5

Fitting Kit EN
K1012
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6

Fitting Kit EN
K1012
Fitment
●Open or remove fixed-point covers.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
●Letters refer to the load supports numbers
and position.
●It is important to put the load supports in
the correct position on the vehicle.
●Load Support Number:
A = 349F
B = 350F
7

Fitting Kit EN
K1012
●Place load supports as shown
●Place load support over grubscrew as
shown.
●Refer to the underside of the pad for the
part number.
8

Fitting Kit EN
K1012
●Letters refer to the pad part numbers and
position.
●It is important to put the pads in the correct
position on the vehicle.
●Pad Part Number:
A = 11-04-231A
B = 11-04-232A
C = 11-04-235A
D = 11-04-236A
●Ensure the fixed-point covers sit vertically
in the recess in the pads.
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
9

Fitting Kit EN
K1012
●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
