Prorack K446W Operation and installation manual

K446W

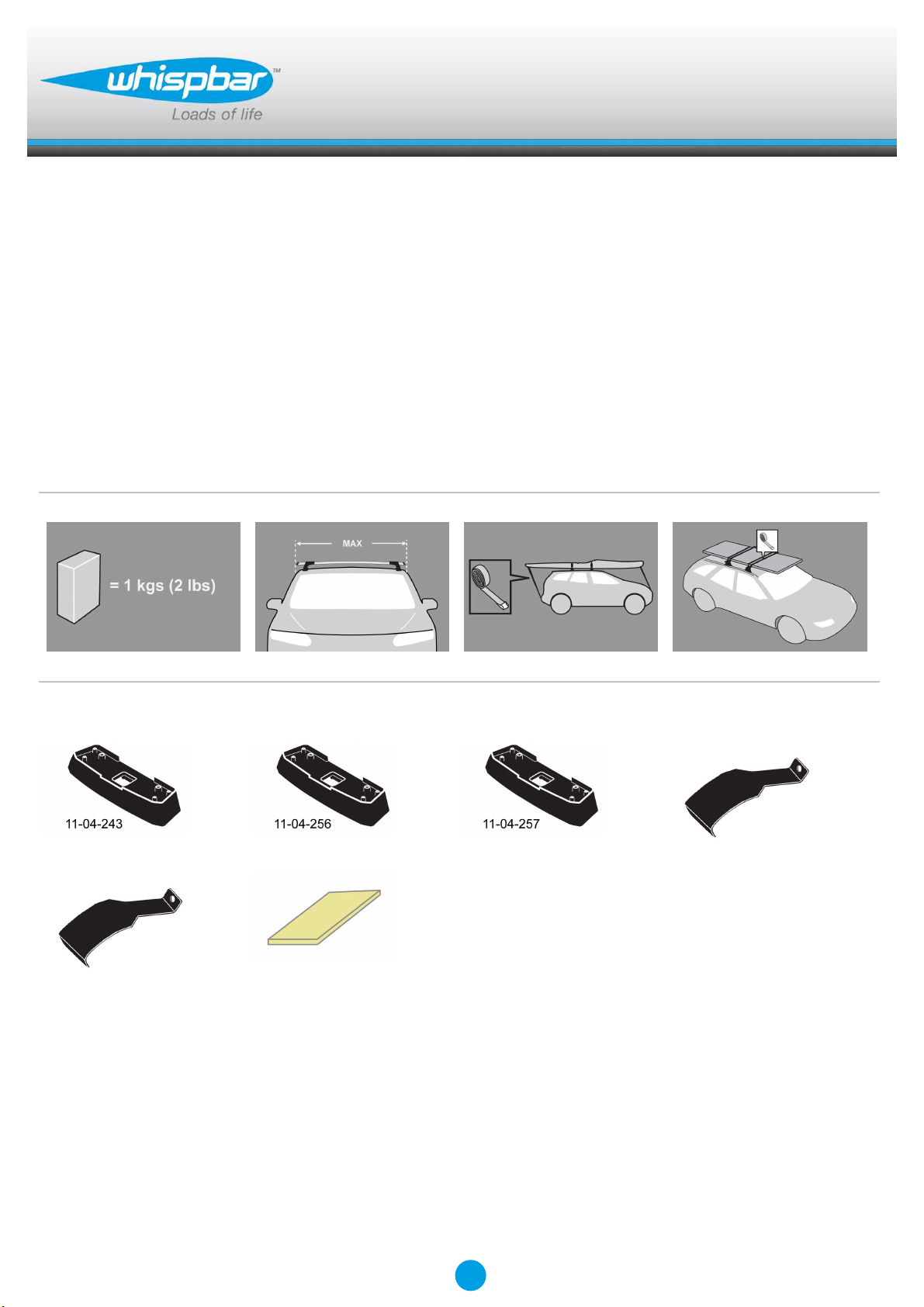

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 1 x 1 x 2
x 2 x 4
Revision No: 5E 1

Fitting Kit K446W
MAX kgs (lbs)
W/P WHD
Honda
Fit, 5dr Hatch 08-14 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
Fit, 5dr Hatch Aug 08-Jun 14 US 50 kgs (110 lbs) 50 kgs (110 lbs)
Fit, 5dr Hatch Aug 08-Jun 14 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
Jazz, 5dr Hatch 09-Jun 14 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
Jazz, 5dr Hatch Aug 08-Jun 14 AU 50 kgs (110 lbs) 50 kgs (110 lbs)
Jazz, 5dr Hatch Jul 08-Jun 14 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
Jazz, 5dr Hatch Oct 08-14 EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Jazz, 5dr Hatch Oct 08-14 CN 50 kgs (110 lbs) 50 kgs (110 lbs)
2

Fitting Kit K446W
X
A B C 1 2 3
Fit, 5dr Hatch 08-14 (ZA) -190mm 410mm - 820mm 785mm -
-7 -1/2ths" 16 1/8ths" - 32 5/16ths" 30 7/8ths" -
Fit, 5dr Hatch Aug 08-Jun 14 (US) -190mm 410mm - 820mm 785mm -
-7 -1/2ths" 16 1/8ths" - 32 5/16ths" 30 7/8ths" -
Fit, 5dr Hatch Aug 08-Jun 14 (NZ) -190mm 410mm - 820mm 785mm -
-7 -1/2ths" 16 1/8ths" - 32 5/16ths" 30 7/8ths" -
Jazz, 5dr Hatch 09-Jun 14 (ZA) -190mm 410mm - 820mm 785mm -
-7 -1/2ths" 16 1/8ths" - 32 5/16ths" 30 7/8ths" -
Jazz, 5dr Hatch Aug 08-Jun 14 (AU) -190mm 410mm - 820mm 785mm -
-7 -1/2ths" 16 1/8ths" - 32 5/16ths" 30 7/8ths" -
Jazz, 5dr Hatch Jul 08-Jun 14 (NZ) -190mm 410mm - 820mm 785mm -
-7 -1/2ths" 16 1/8ths" - 32 5/16ths" 30 7/8ths" -
Jazz, 5dr Hatch Oct 08-14 (EU) -190mm 410mm - 820mm 785mm -
-7 -1/2ths" 16 1/8ths" - 32 5/16ths" 30 7/8ths" -
Jazz, 5dr Hatch Oct 08-14 (CN) -190mm 410mm - 820mm 785mm -
-7 -1/2ths" 16 1/8ths" - 32 5/16ths" 30 7/8ths" -
3

Fitting Kit EN
K446W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4

Fitting Kit EN
K446W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5

Fitting Kit EN
K446W
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 600A
B = 601A
6

Fitting Kit EN
K446W
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
7

Fitting Kit EN
K446W

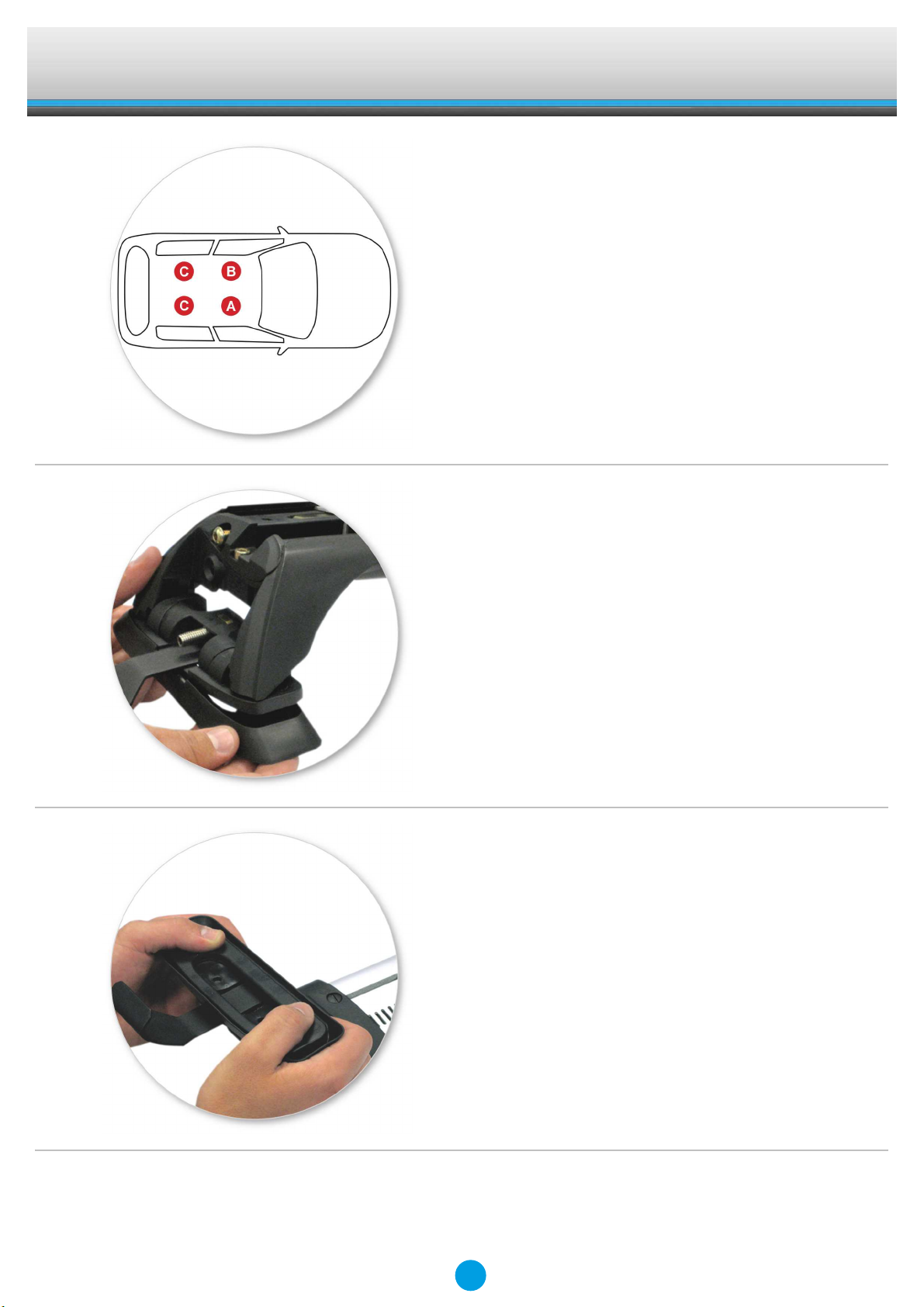

●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-257
B = 11-04-256
C = 11-04-243
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
8

Fitting Kit EN
K446W

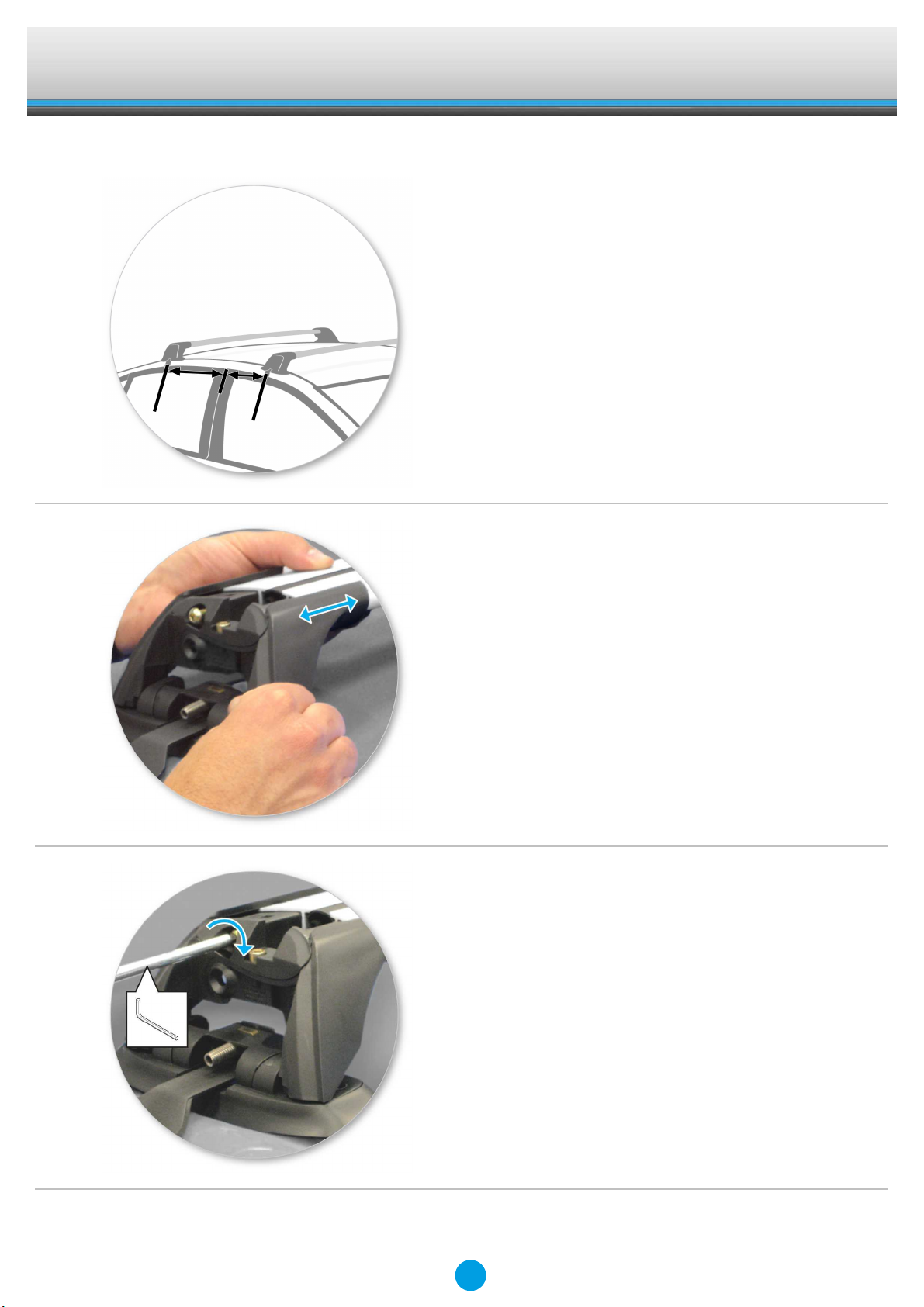

Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
9

Fitting Kit EN
K446W
●Tighten locking screw on both legs evenly,
2.5 Nm (1.8 ft lb).
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
