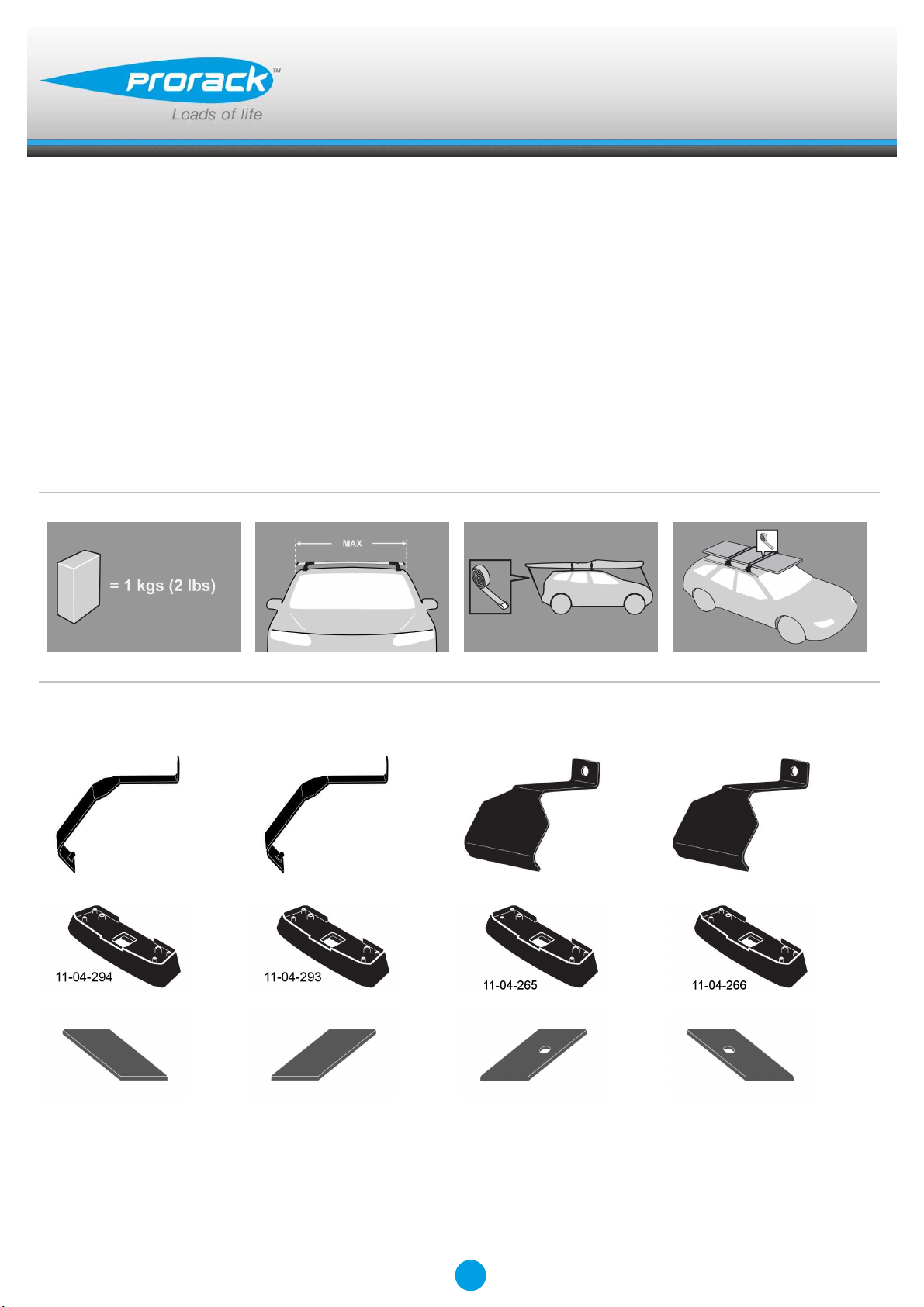

Prorack K855 User manual

K855
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
Revision No: 1A 1

Fitting Kit K855
MAX kgs (lbs)
W/P WHD
Volvo
S40, 4dr Sedan 04-10 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
S40, 4dr Sedan 04-10 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
S40, 4dr Sedan 04-10 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
S40, 4dr Sedan 04-10 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
S40, 4dr Sedan 04-11 US 75 kgs (165 lbs) 75 kgs (165 lbs)
S40, 4dr Sedan 04-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
2

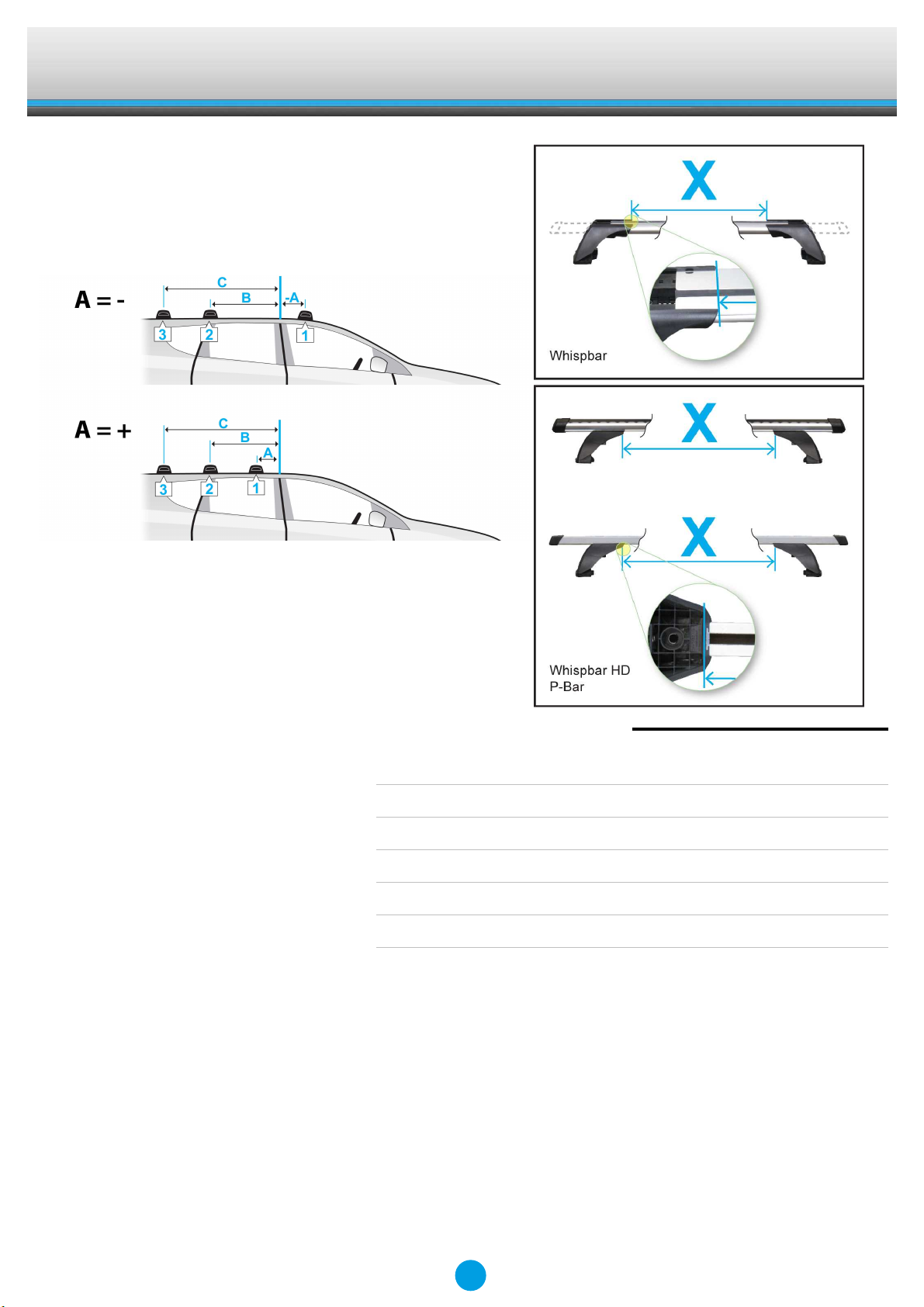

Fitting Kit K855
X
A B C 1 2 3
S40, 4dr Sedan 04-10 (NZ) -340mm 320mm - 902mm 910mm -
-13 -3/8ths" 12 5/8ths" - 35 1/2ths" 35 13/16ths" -
S40, 4dr Sedan 04-10 (AU) -340mm 320mm - 902mm 910mm -
-13 -3/8ths" 12 5/8ths" - 35 1/2ths" 35 13/16ths" -
S40, 4dr Sedan 04-10 (ZA) -340mm 320mm - 902mm 910mm -
-13 -3/8ths" 12 5/8ths" - 35 1/2ths" 35 13/16ths" -
S40, 4dr Sedan 04-10 (CN) -340mm 320mm - 902mm 910mm -
-13 -3/8ths" 12 5/8ths" - 35 1/2ths" 35 13/16ths" -
S40, 4dr Sedan 04-11 (US) -340mm 320mm - 902mm 910mm -
-13 -3/8ths" 12 5/8ths" - 35 1/2ths" 35 13/16ths" -
S40, 4dr Sedan 04-12 (EU) -340mm 320mm - 902mm 910mm -
-13 -3/8ths" 12 5/8ths" - 35 1/2ths" 35 13/16ths" -
3

Fitting Kit EN
K855
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4

Fitting Kit EN
K855

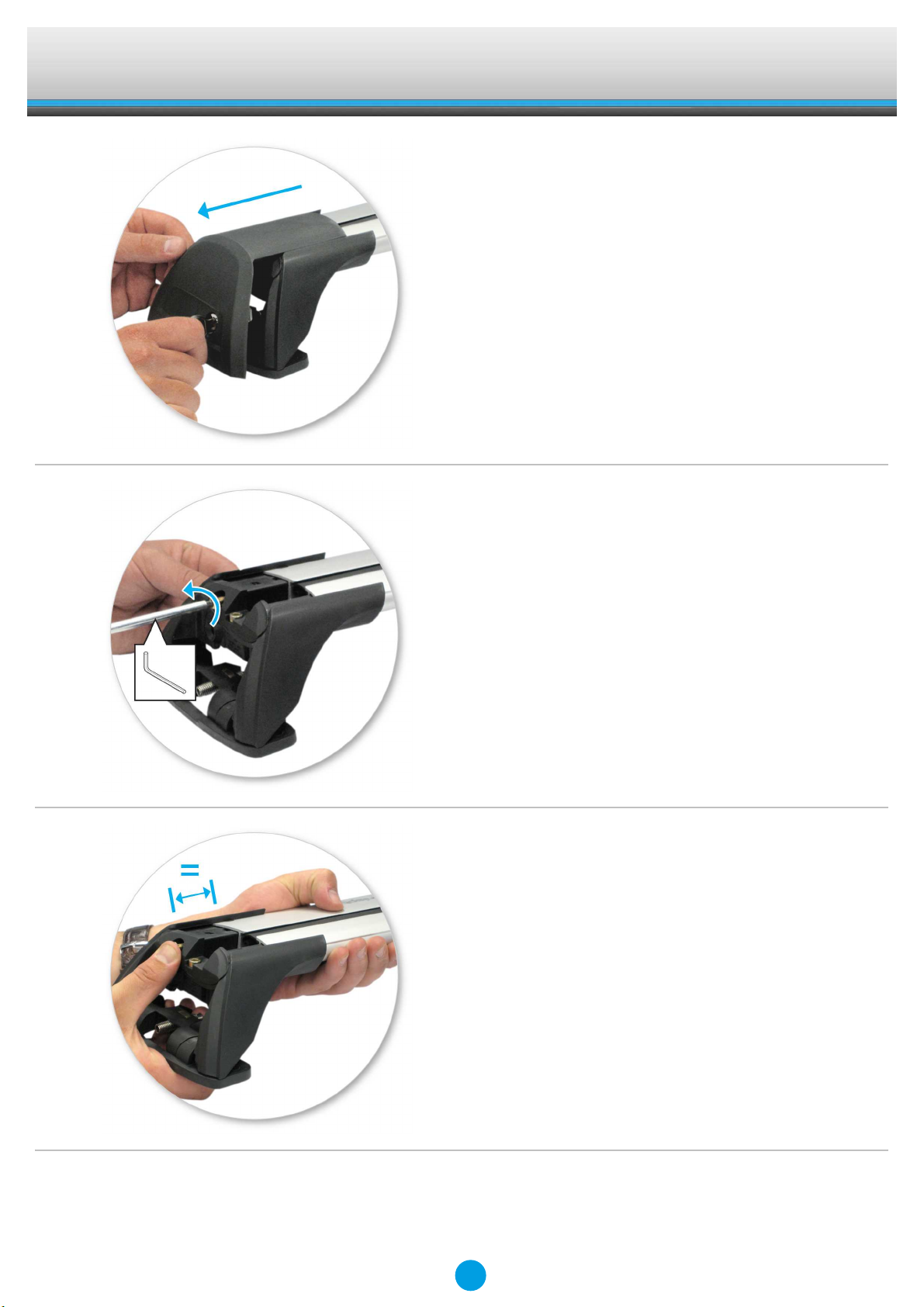

●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5

Fitting Kit EN
K855

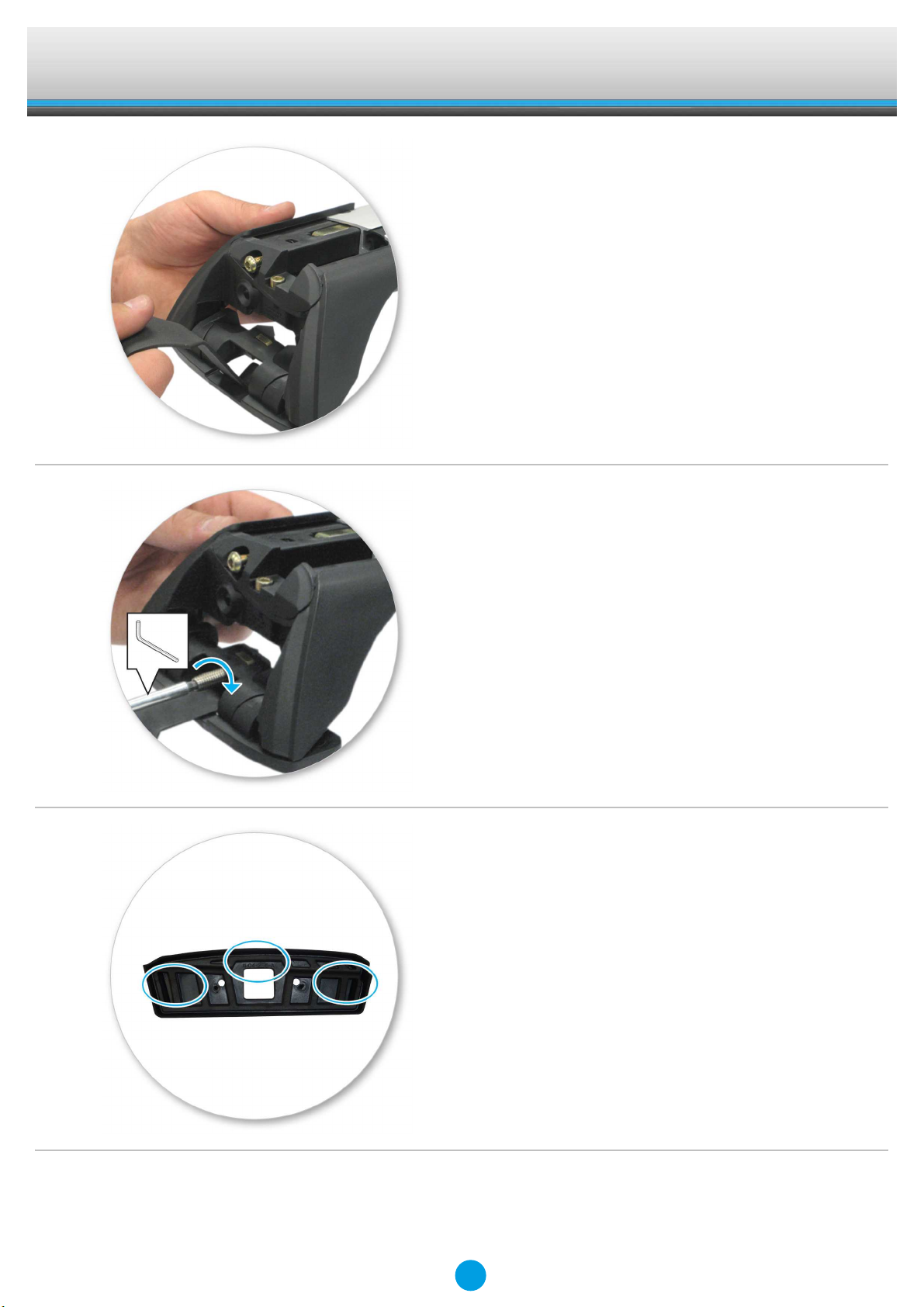

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = A453
B = A454
C = A455
D = A456
6

Fitting Kit EN
K855
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
7

Fitting Kit EN
K855

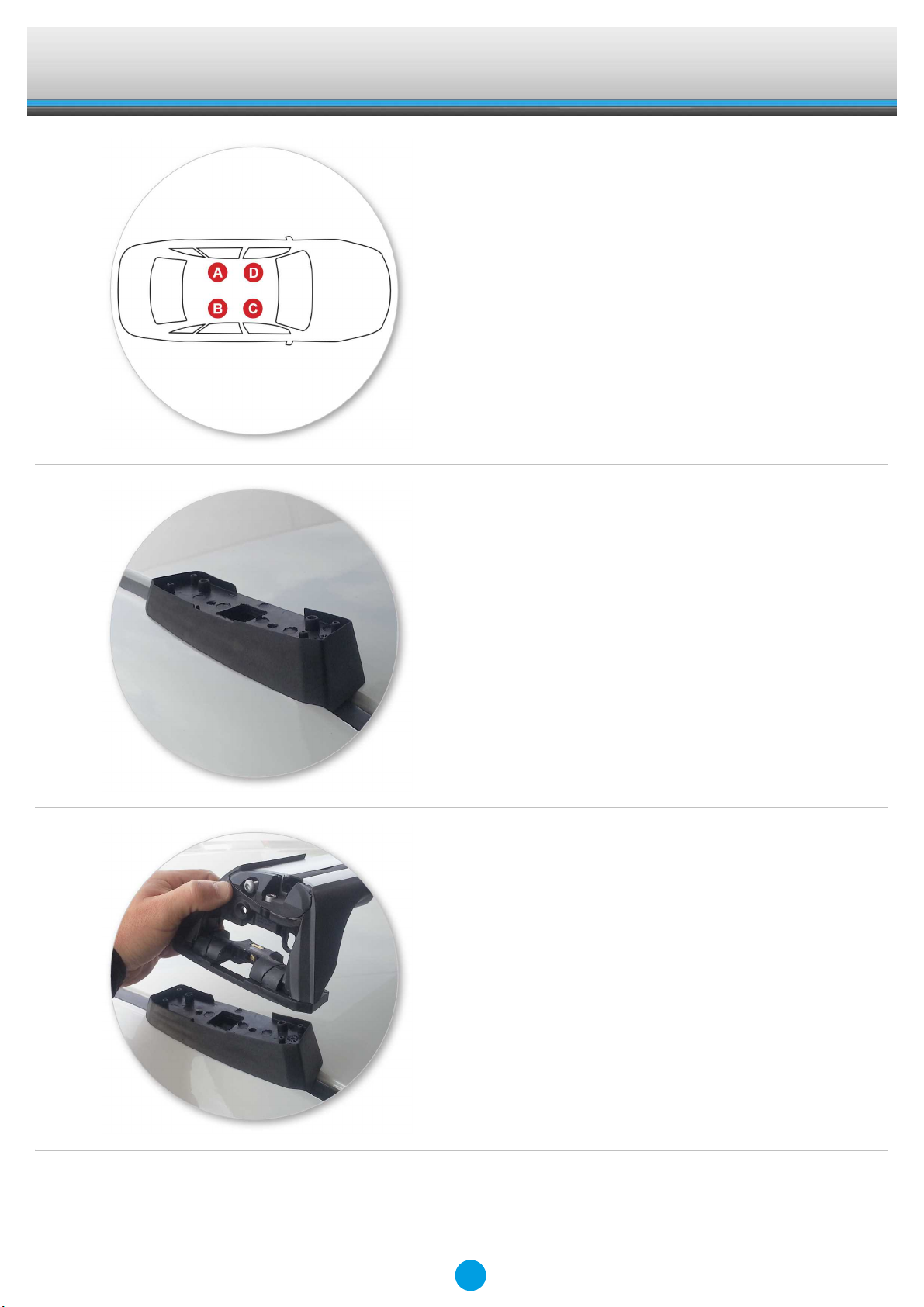

●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 265A
B = 266A
C = 293A
D = 294A
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
●Make sure the pad fits into the holes
underneath the foot.
8

Fitting Kit EN
K855
Fitment
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Clamps directly to edge of roof under the
doors, pin locates in hole on vehicle on
front clamps
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
9

Fitting Kit EN
K855
●Tighten locking screw on both legs evenly,
3 Nm (2.2 ft lb).
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
