Prorack K471W User manual

K471W

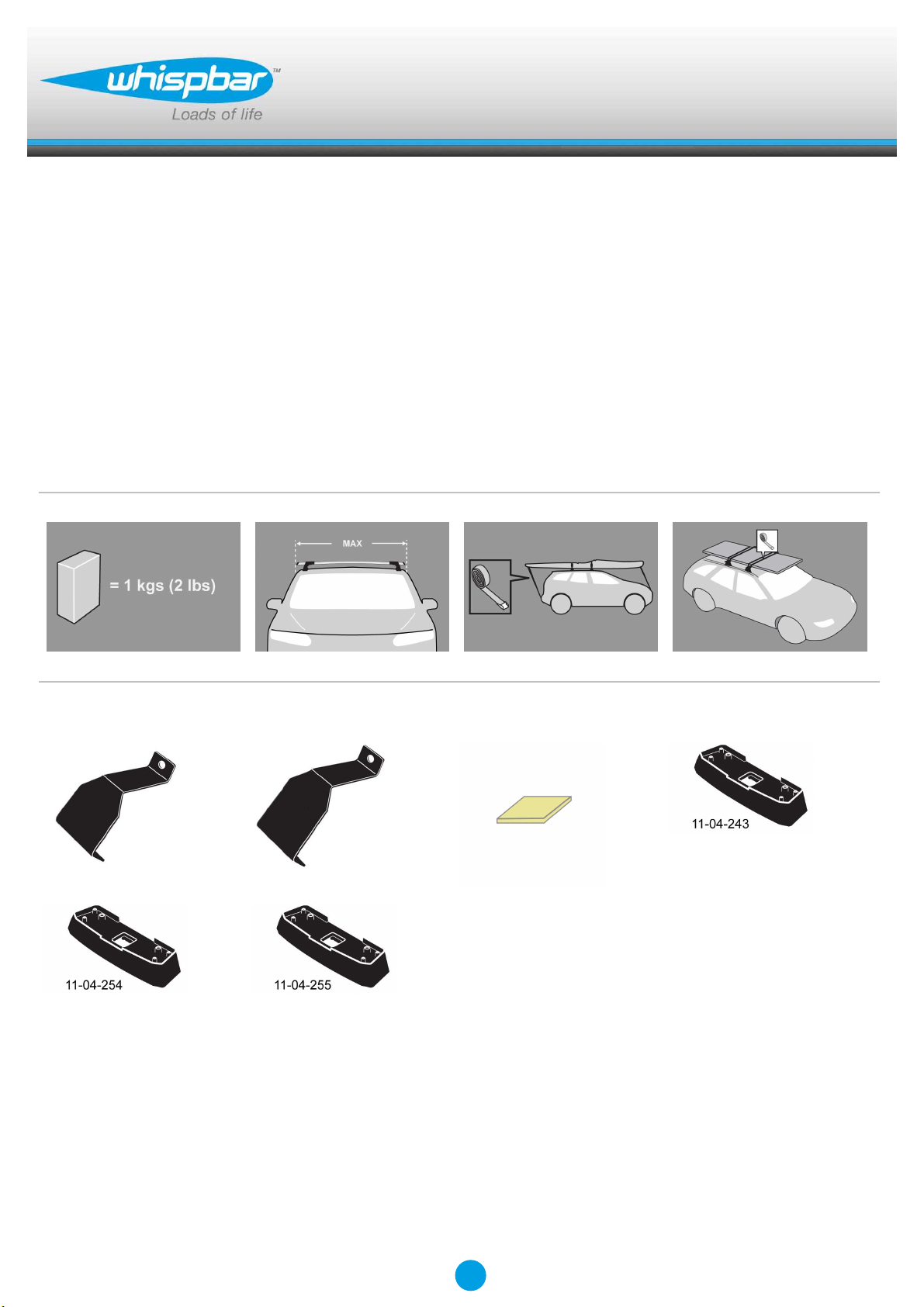

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 2 x 4 x 2
x 1 x 1
Revision No: 5C 1

Fitting Kit K471W
MAX kgs (lbs)
W/P WHD
Ford
Fusion , 4dr Sedan 06-10 US 50 kgs (110 lbs) 50 kgs (110 lbs)
Fusion , 4dr Sedan 10-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
Mercury
Milan , 4dr Sedan 06-11 US 50 kgs (110 lbs) 50 kgs (110 lbs)
Lincoln
Mkz , 4dr Sedan 07-10 US 50 kgs (110 lbs) 50 kgs (110 lbs)
2

Fitting Kit EN
K471W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
3

Fitting Kit EN
K471W
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
4

Fitting Kit EN
K471W

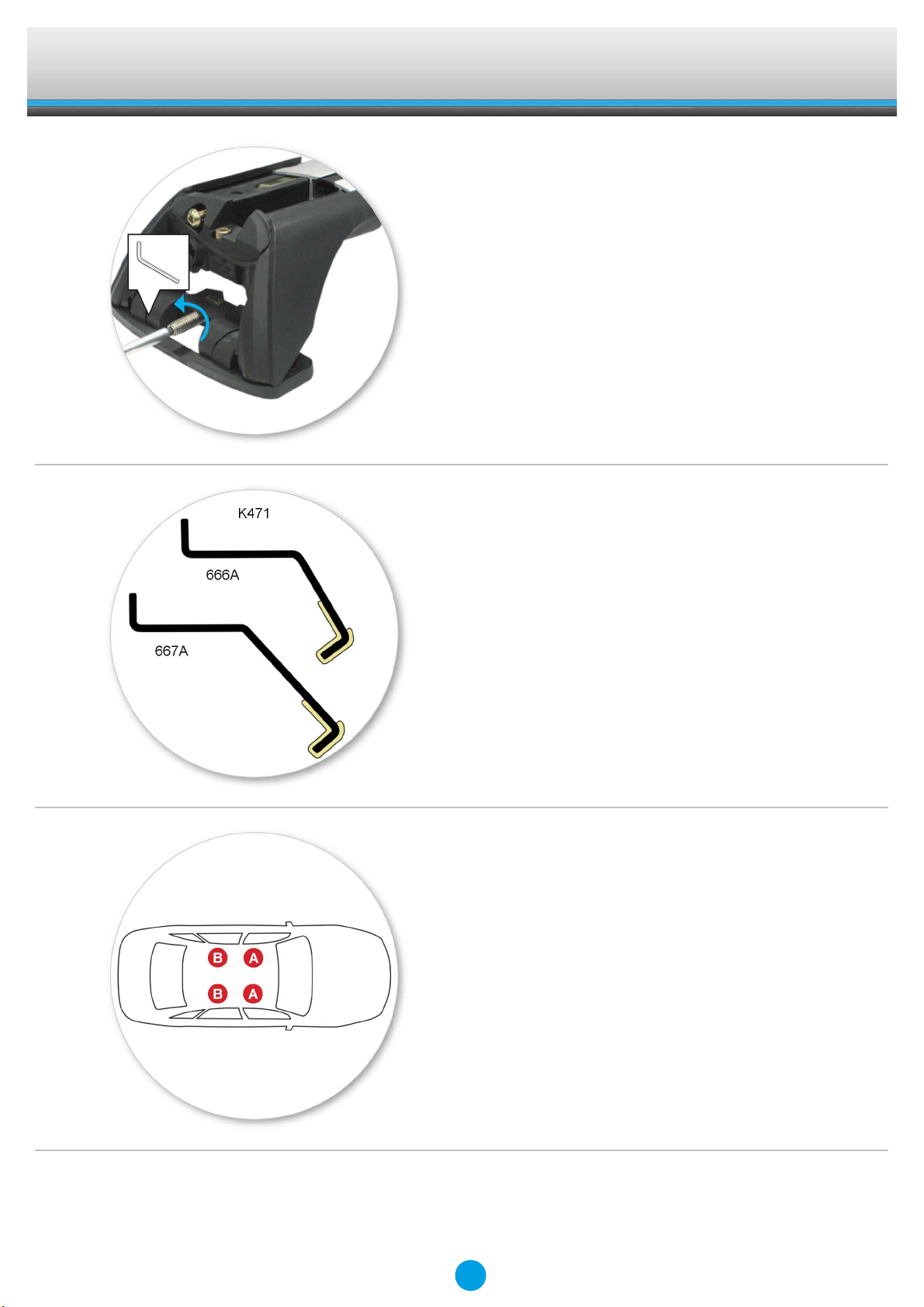

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 666A
B = 667A
5

Fitting Kit EN
K471W

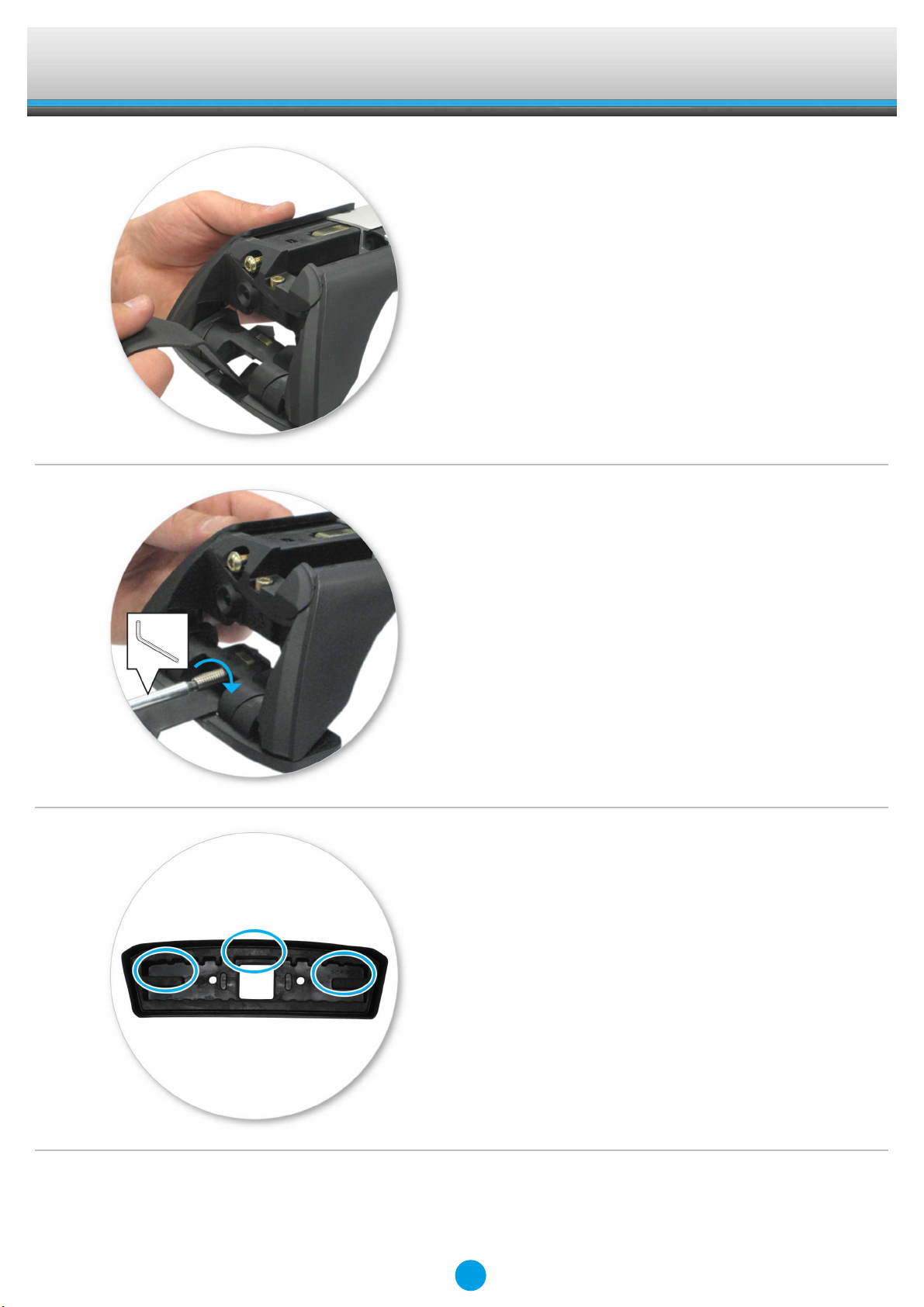

●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
6

Fitting Kit EN
K471W

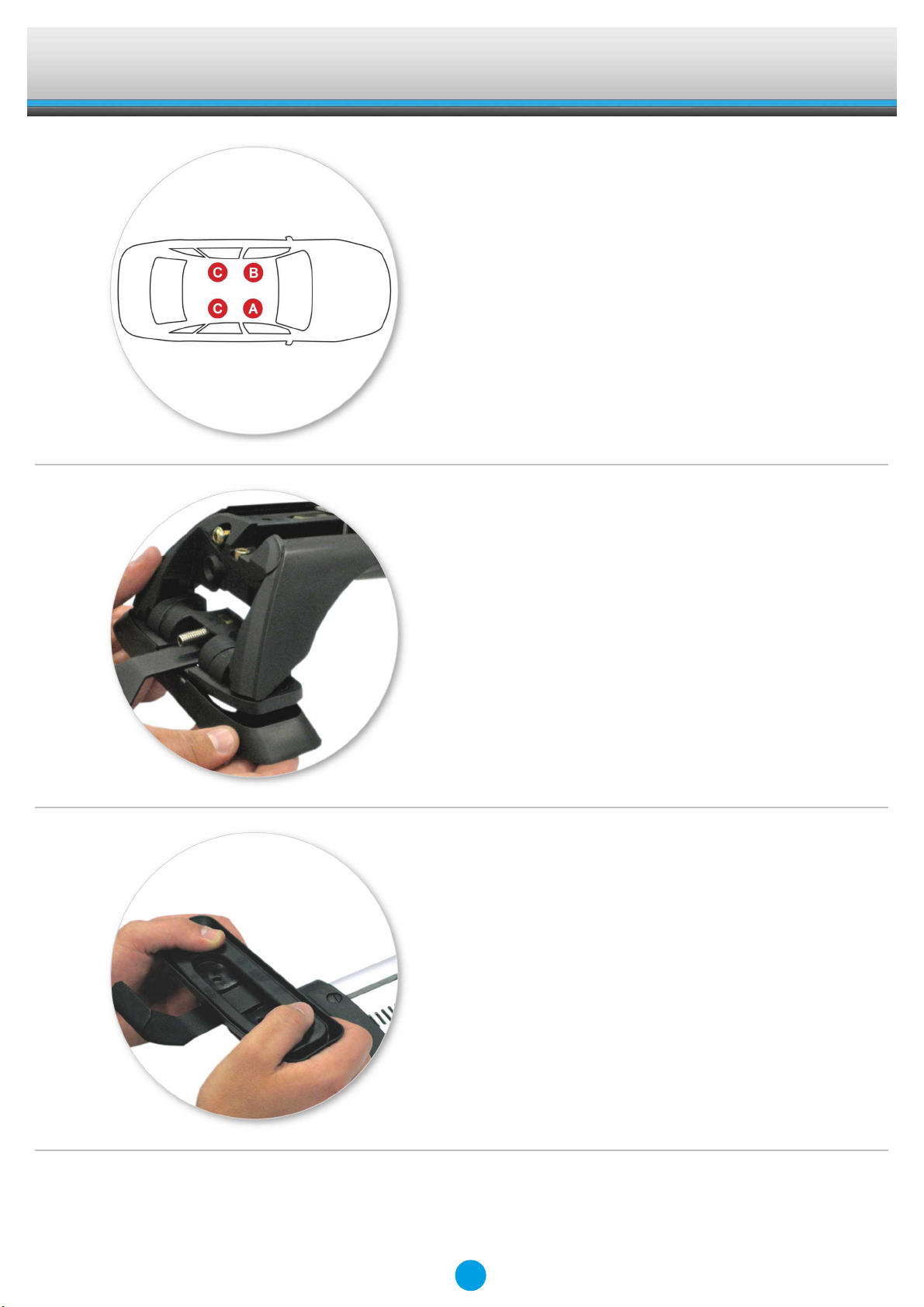

●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-255
B = 11-04-254
C = 11-04-243
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
7

Fitting Kit EN
K471W
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Please check the rear of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
8

Fitting Kit EN
K471W
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9

Fitting Kit EN
K471W
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10

Fitting Kit EN
K471W
Maintenance
●Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
●Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
●Set crossbars a minimum distance of
700mm (27 1/2") apart where no other
distance is specified in the fitting
instructions. This is especially important
when carrying long loads.
●Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
●Some glass/panoramic roofs and radio
antennae may not be able to be used when
the product is fitted.
●Do not modify this product.
●Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the
fitting instructions.
●Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
●Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
●Objects with pointed ends (e.g. ski poles)
should be carried with the pointed ends to
the rear of the vehicle.
●Remove all loose or removable objects
from the load prior to loading.
●Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
●A loaded roof rack system can alter the
performance of your vehicle. Be especially
aware of the effects of side winds,
changing of direction, and braking
performance. Avoid rapid acceleration and
deceleration. Drive carefully.
●Note that the total height of the vehicle
increases when upright loads are carried.
●Products should be locked during transport
if they have locks fitted.
11

Fitting Kit EN
K471W
●Check and replace worn out or defective
parts.
●Keep the product clean and maintained.
●Never drive into a car wash with the roof
rack system fitted.
●Lubricate locks and adjusting screws at
regular intervals.
●Remove the products from the vehicle
when not in use. Make sure all loose parts
are stored safely.
●Yakima Australia Pty Ltd
17 Hinkler Court
Brendale QLD 4500
AUSTRALIA
www.whispbar.com
www.whispbar.com.au
www.whispbar.co.nz
www.whispbar.co.uk
www.whispbar.co.za
www.whispbar.eu
www.whispbar.ca
12

Fitting Kit K471W
X
A B C 1 2 3
Fusion, 4dr Sedan 06-10 (US) -250mm 430mm - 885mm 875mm -
-9 -13/16ths" 16 15/16ths" - 34 13/16ths" 34 7/16ths" -
Fusion, 4dr Sedan 10-+ (US) -250mm 450mm - 887mm 868mm -
-9 -13/16ths" 17 11/16ths" - 34 15/16ths" 34 3/16ths" -
Milan, 4dr Sedan 06-11 (US) -250mm 430mm - 885mm 875mm -
-9 -13/16ths" 16 15/16ths" - 34 13/16ths" 34 7/16ths" -
Mkz, 4dr Sedan 07-10 (US) -250mm 430mm - 885mm 875mm -
-9 -13/16ths" 16 15/16ths" - 34 13/16ths" 34 7/16ths" -
13

1.
2.
3.
a.
b.
1.
2.
WARRANTY & DISCLAIMER
Yakima Australia Pty Ltd ABN 58 154 440 221
17 Hinkler Court, Brendale QLD 4500
Tel: [phone] (NZ) or 1800 143 548 (AU)
Email: [email protected] or [email protected]
Where the product is supplied to the customer for other than business purposes within the meaning of section 43 of the New
Zealand Consumer Guarantees Act 1993, the provisions of that Act shall apply. It is important that anyone who fits or uses this
product does so in accordance with the manufacturer's instructions.
Where the product is supplied to the customer for business purposes within the meaning of section 43 of the New Zealand
Consumer Guarantees Act 1993, the provisions of that Act and all other representations or terms (including any conditions or
warranty expressed or implied by law, statute or otherwise) not expressly included in this leaflet are hereby expressly excluded
shall have no effect and the clauses (a) and (b) shall apply.
Subject to the Additional Information (Australia), where the product is supplied and purchased in Australia, the following shall
apply:
THE SUPPLIER WARRANTS the product to be free from defects in materials and/or workmanship for a limited lifetime from the
date of original purchase (the warranty period). Proof of purchase is required. Subject to the limitations and exclusions set out
below, the Supplier hereby agrees to remedy any defects in materials or workmanship becoming apparent during the warranty
period, by replacing or repairing any defective product or component (at its option) free of charge to the purchaser in respect of
replacement parts or labour. Any defective product or component must be notified and where practicable, returned at the
purchaser’s expense to the Supplier immediately upon discovery of the alleged defect and no attempt made on the part of the
purchaser to repair it.
EXCEPTIONS, EXCLUSIONS AND LIMITATIONS TO WARRANTY. The product and/or its components must be fitted/assembled and
loaded in accordance with the Supplier’s written instructions and any requirements set out in the car’s owner manual. This
warranty does not cover defects, loss or damage resulting from circumstances beyond the Supplier’s control including, but not
limited to misuse, overloading, or failure to assemble and/or fit the product or component in accordance with the Supplier’s
written instructions. Nor does the warranty cover defects, loss or damage resulting from accidents, unlawful use of the vehicle
or defects/inconsistencies in the vehicle on which the product or component is fitted. Liability for direct, indirect, special,
punitive, incidental, exemplary, contractual or consequential damage or loss arising from defects, faulty materials or design
omissions or negligence or workmanship in the product or its components is hereby expressly excluded subject to the following.
Certain Commonwealth legislation, including the Competition and Consumer Act 2010 (Cth), and other State and Territorial
legislation confers upon purchasers rights which cannot be excluded from or be restricted or modified by contract. Any
conditions, guarantees and/or warranties implied by law and incapable of exclusion are deemed to be expressly incorporated
herein. Nothing herein contained is intended nor shall be permitted to be inconsistent with any such conditions, guarantees
and/or warranties. To the extent permitted by legislation all conditions, guarantees and/or warranties such as implied
warranties which are capable of exclusion are hereby expressly excluded and negatived.
ADDITIONAL INFORMATION ( AUSTRALIA )
This information should be read in conjunction with clauses (a) and (b).
IMPORTANT LEGAL NOTICE
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty does not change or take away your rights under the Australian Consumer Law. Your right to claim under this policy for
the benefits covered is in addition to other rights and remedies you have under the law in relation to the product.
Where you become aware of defects in materials or of workmanship, and wish to make a claim under this warranty you must do the
following for the warranty to be honoured by your Whispbar dealer or Yakima Australia Pty Ltd ABN 58 154 440 221 (Yakima):
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give
you instructions on how to proceed.
If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as
soon as practicable at:
Call: 0800 4776 722 (NZ) or 1800 143 548 (AU)
Email: [email protected] or [email protected]
Fitting Kit EN
K471W
14

3.
4.
Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your
warranty.
Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you
with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to
Yakima.
The costs and expenses associated with making a claim under your warranty including the costs of complying with those
instructions and of returning the product to Yakima or the Whispbar dealer will be borne by you.
Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to
determine whether the claim falls within the warranty. If:
4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the
warranty period, by replacing or repairing any defective product or component (at its option) free of charge to the purchaser in
respect of replacement parts or labour.
4.2 the claim does not fall within the warranty, Yakima will return the product to you at your expense.
