Prorack K934 Operation and installation manual

K934
Fitting Kit
EN Fitting Instructions for Basic Carrier

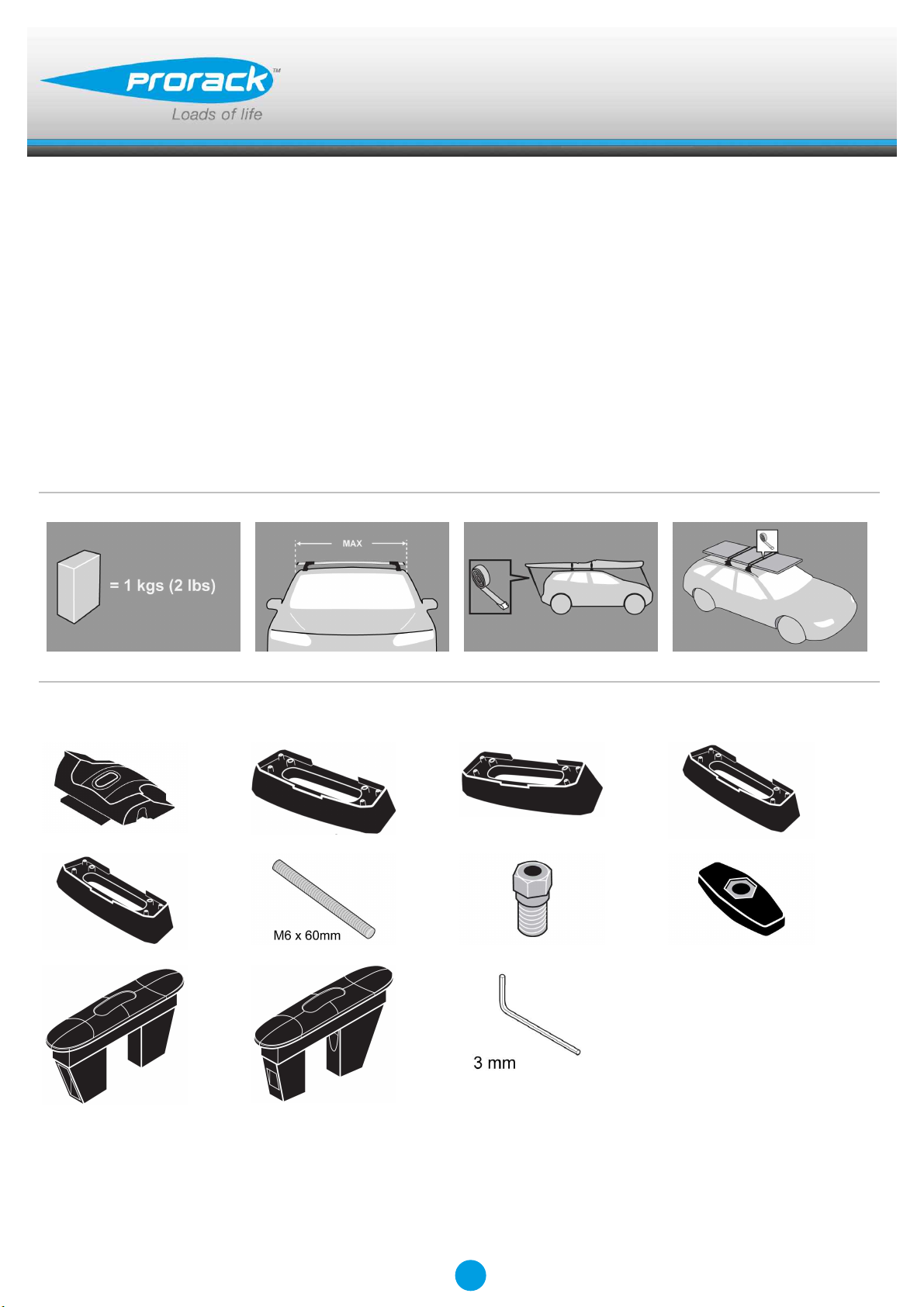

x 4 x 1 x 1 x 1
x 1 x 4 x 4 x 4
x 2 x 2 x 1
Revision No: 3C 1

Fitting Kit K934
MAX kgs (lbs)
W/P WHD
Mercedes
S Class W222, 4dr Sedan 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
S Class W222, 4dr Sedan 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
S Class W222, 4dr Sedan 14-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
S Class W222, 4dr Sedan 14-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
S Class W222, 4dr Sedan 14-14 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
2

Fitting Kit K934

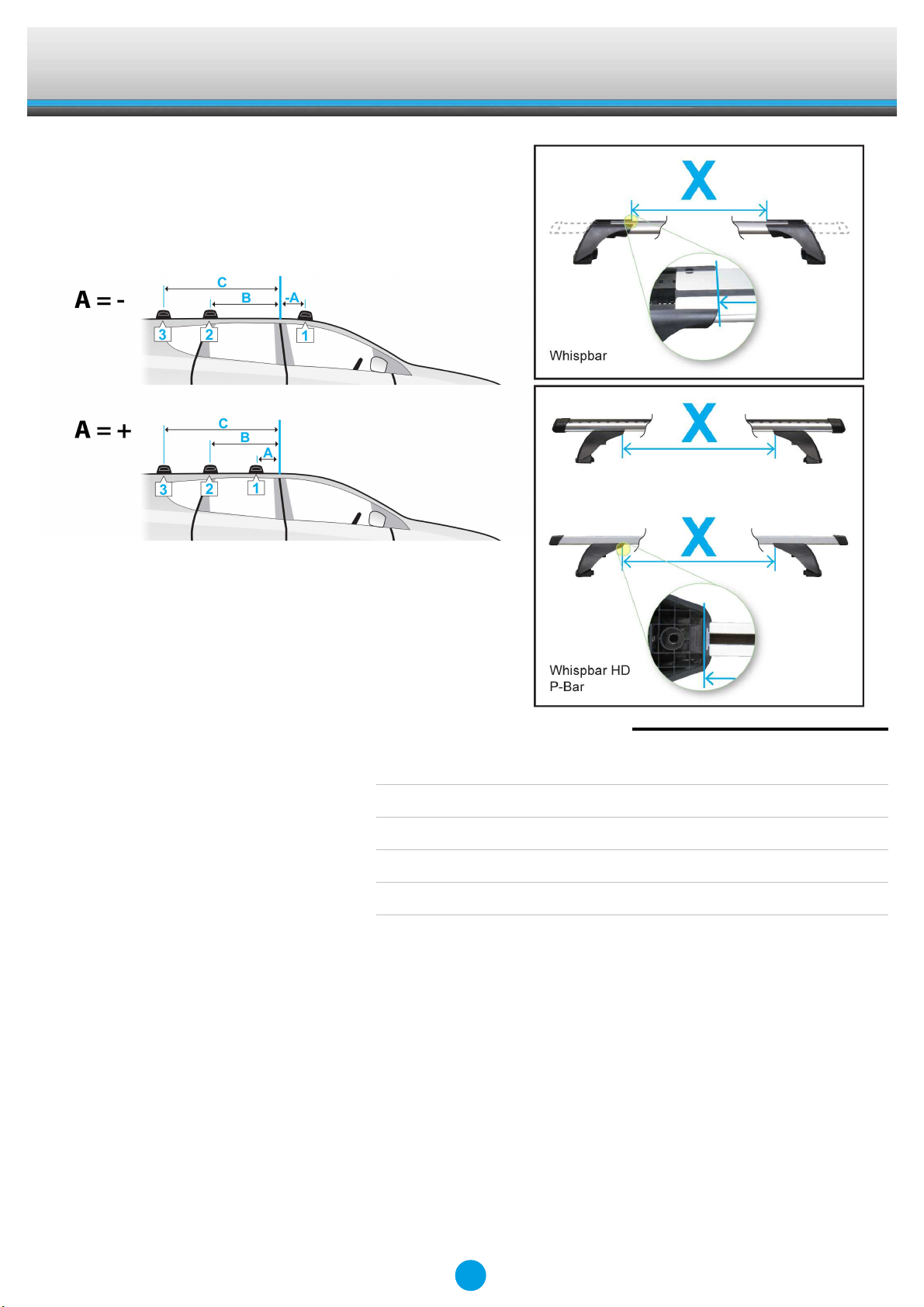

X
A B C 1 2 3
S Class W222, 4dr Sedan 14-+ (NZ) -365mm 370mm - 950mm 885mm -
-14 -3/8ths" 14 9/16ths" - 37 3/8ths" 34 13/16ths" -
S Class W222, 4dr Sedan 14-+ (AU) -365mm 370mm - 950mm 885mm -
-14 -3/8ths" 14 9/16ths" - 37 3/8ths" 34 13/16ths" -
S Class W222, 4dr Sedan 14-+ (EU) -365mm 370mm - 950mm 885mm -
-14 -3/8ths" 14 9/16ths" - 37 3/8ths" 34 13/16ths" -
S Class W222, 4dr Sedan 14-+ (CN) -365mm 370mm - 950mm 885mm -
-14 -3/8ths" 14 9/16ths" - 37 3/8ths" 34 13/16ths" -
S Class W222, 4dr Sedan 14-14 (ZA) -365mm 370mm - 950mm 885mm -
-14 -3/8ths" 14 9/16ths" - 37 3/8ths" 34 13/16ths" -
3

Fitting Kit EN
K934
First Time Installation

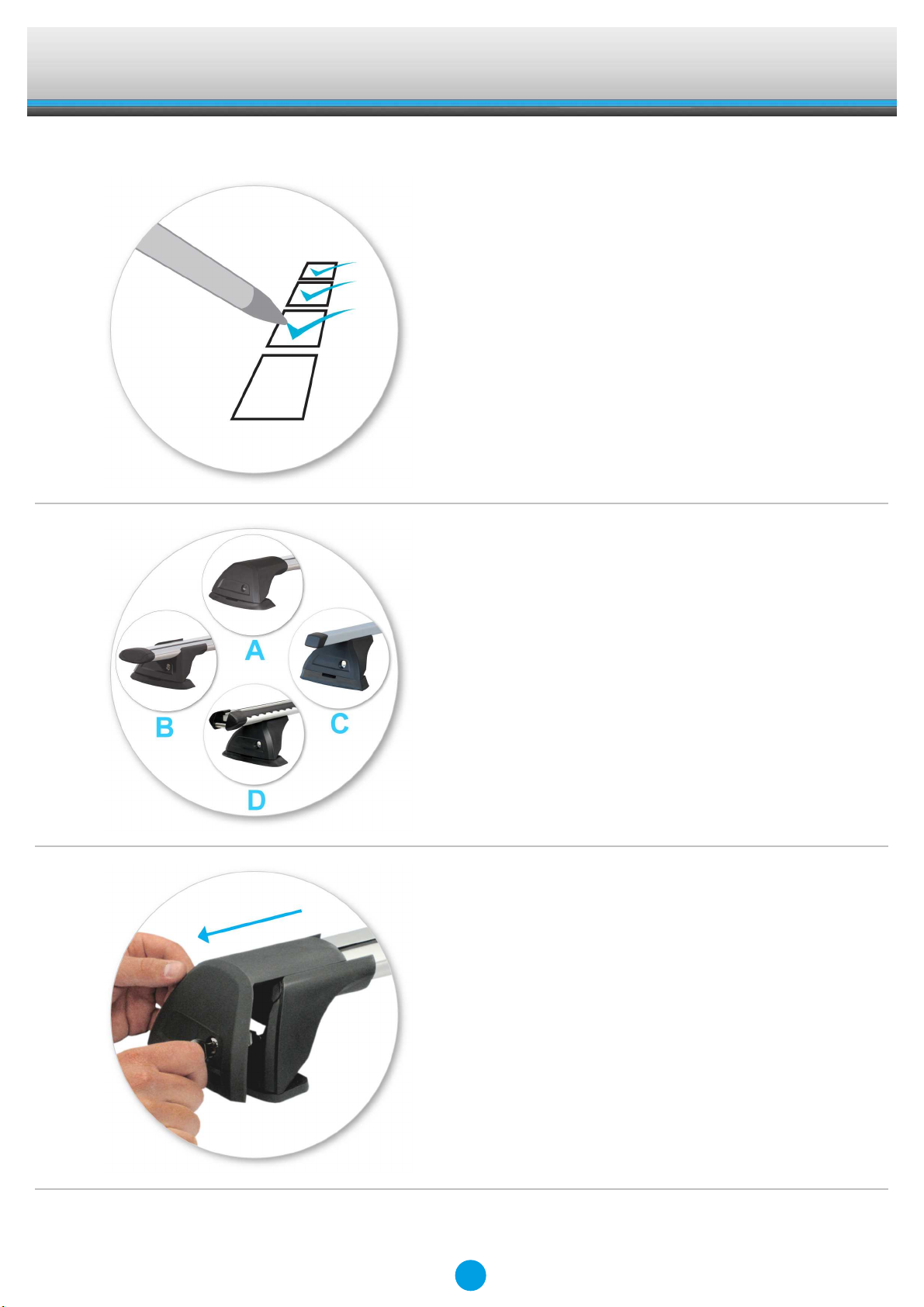

●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●This kit fits type A, B, C and D.
●Use keys to remove covers.
4

Fitting Kit EN
K934

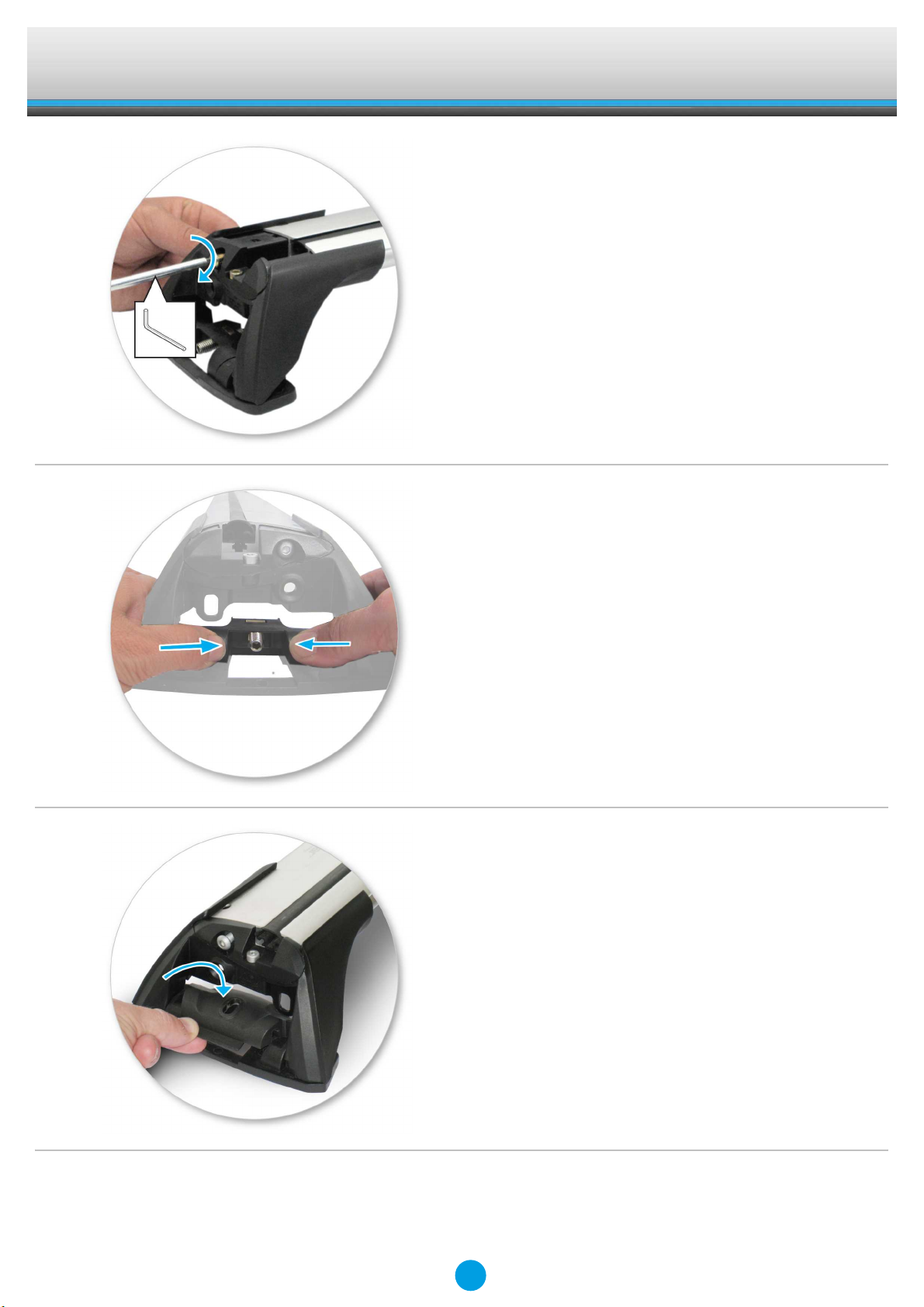

●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5

Fitting Kit EN
K934
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6

Fitting Kit EN
K934
Fitment

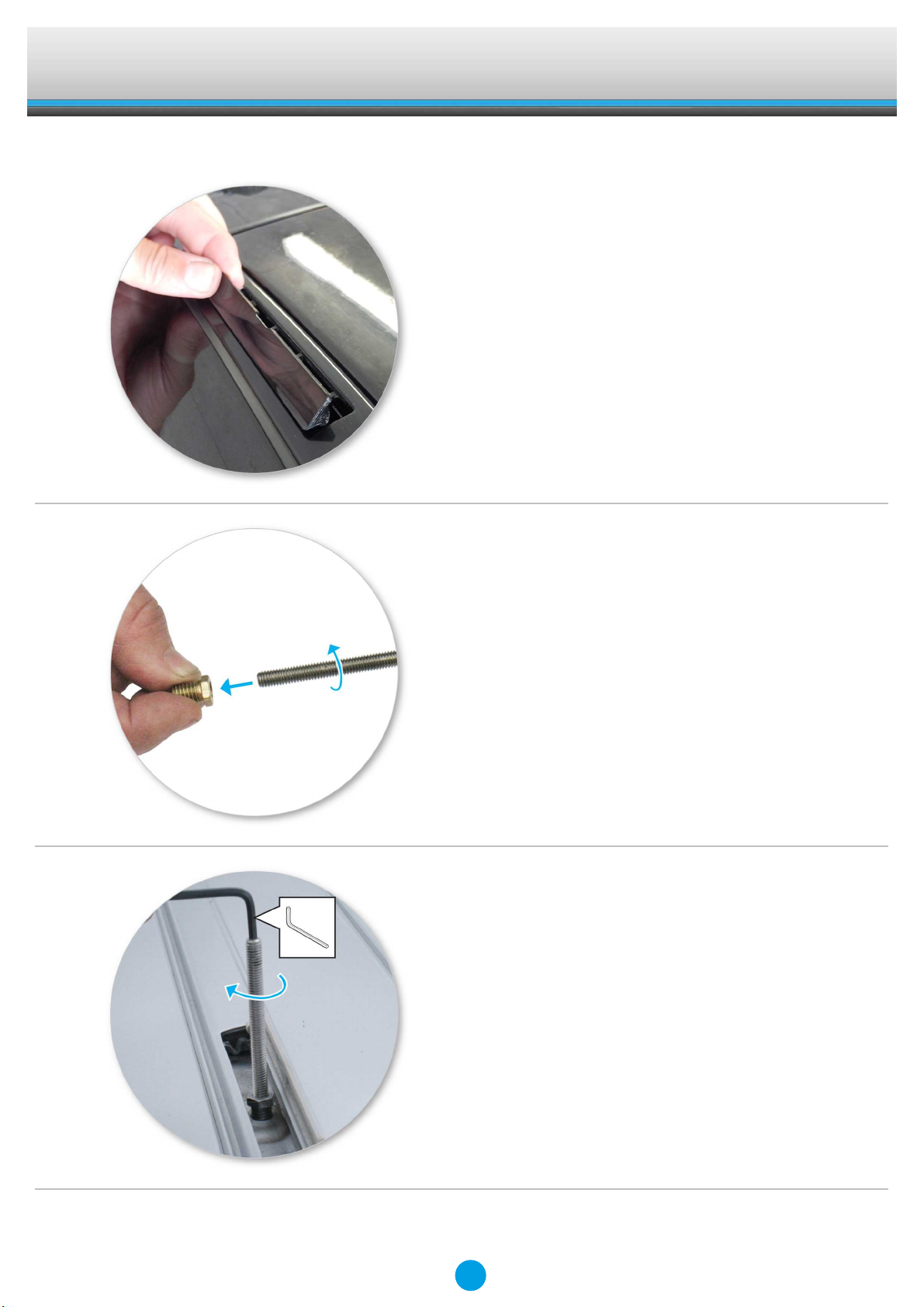

●Open or remove fixed-point covers.
●Select four grubscrews and assemble them
into the adaptor using 3 mm (1/8") Hex
Key.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
7

Fitting Kit EN
K934
●Letters refer to the load- support part
numbers and position.
●It is important to put the load supports in
the correct position on the vehicle.
●Load-support part number:
A = 31-03-350
B = 31-03-349
●Place load support over grubscrew as
shown.
8

Fitting Kit EN
K934

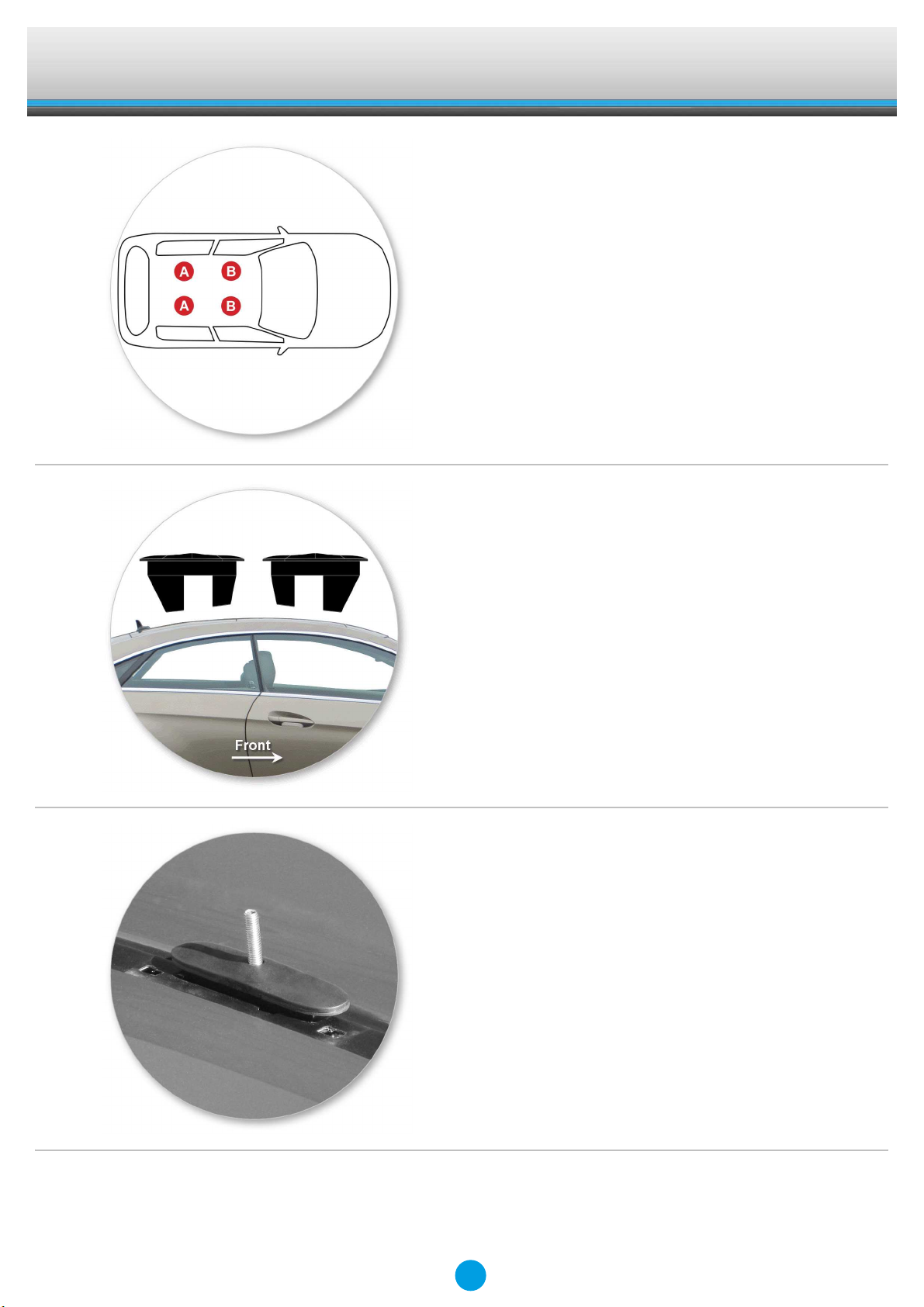

●Refer to the underside of the pad for the
part number.
●Letters refer to the pad part numbers and
position.
●It is important to put the pads in the correct
position on the vehicle.
●Pad Part Number:
A = 11-04-236
B = 11-04-235
C = 11-04-231
D = 11-04-232
●Ensure the fixed-point covers sit vertically
in the recess in the pads.
9

Fitting Kit EN
K934
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
10
