Prorack K577 Operation and installation manual

K577
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 2 x 2
Revision No: 3C 1

Fitting Kit K577
MAX kgs (lbs)
W/P WHD
Volkswagen
Golf Mk4, 3dr Hatch 98-06 US 75 kgs (165 lbs) 75 kgs (165 lbs)
Golf Mk4, 3dr Hatch 98-06 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
2

Fitting Kit EN
K577
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
3

Fitting Kit EN
K577

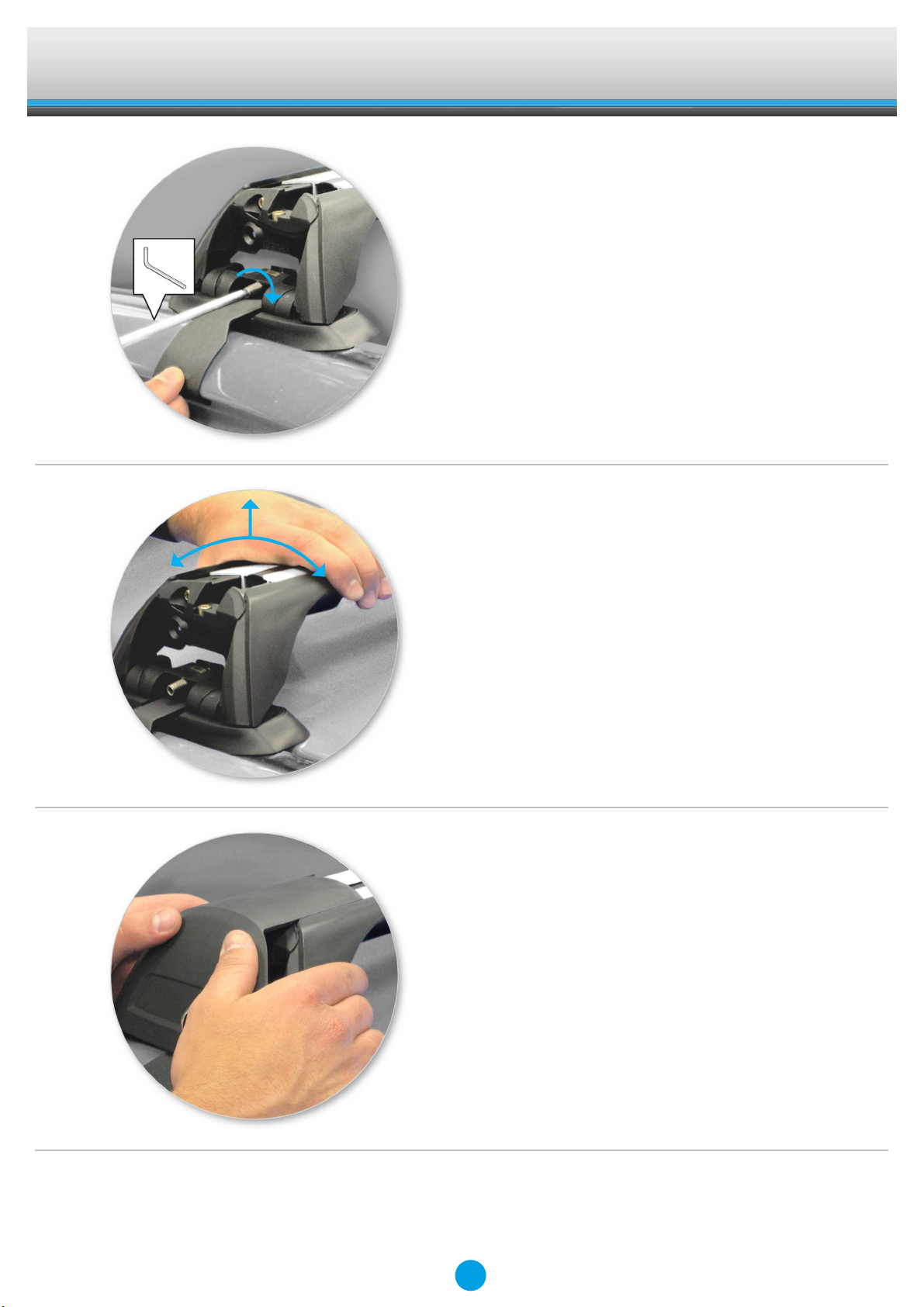

●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
4

Fitting Kit EN
K577
●Remove locking screw.
●NOTE: REAR CROSSBAR ONLY
●Apply protective strip as shown.
Trim if required.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.

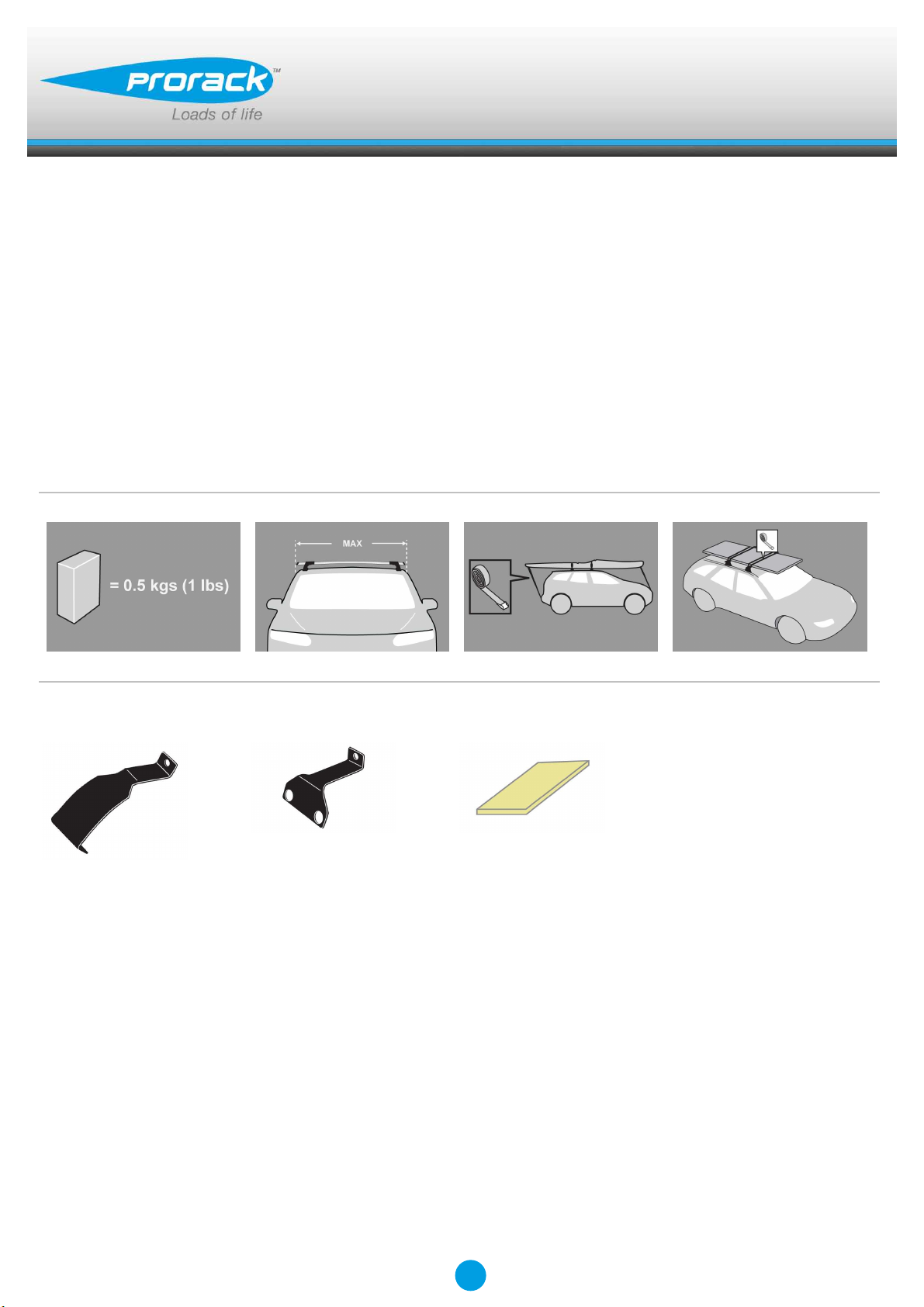

●Clamp Part Number:
A = 456A
B = 807A
5

Fitting Kit EN
K577
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Fit rubber pad (supplied with crossbar) to
foot.
6

Fitting Kit EN
K577
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Please check the rear of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●NOTE: FRONT CROSSBAR ONLY
●Locate vehicle's fixed points.

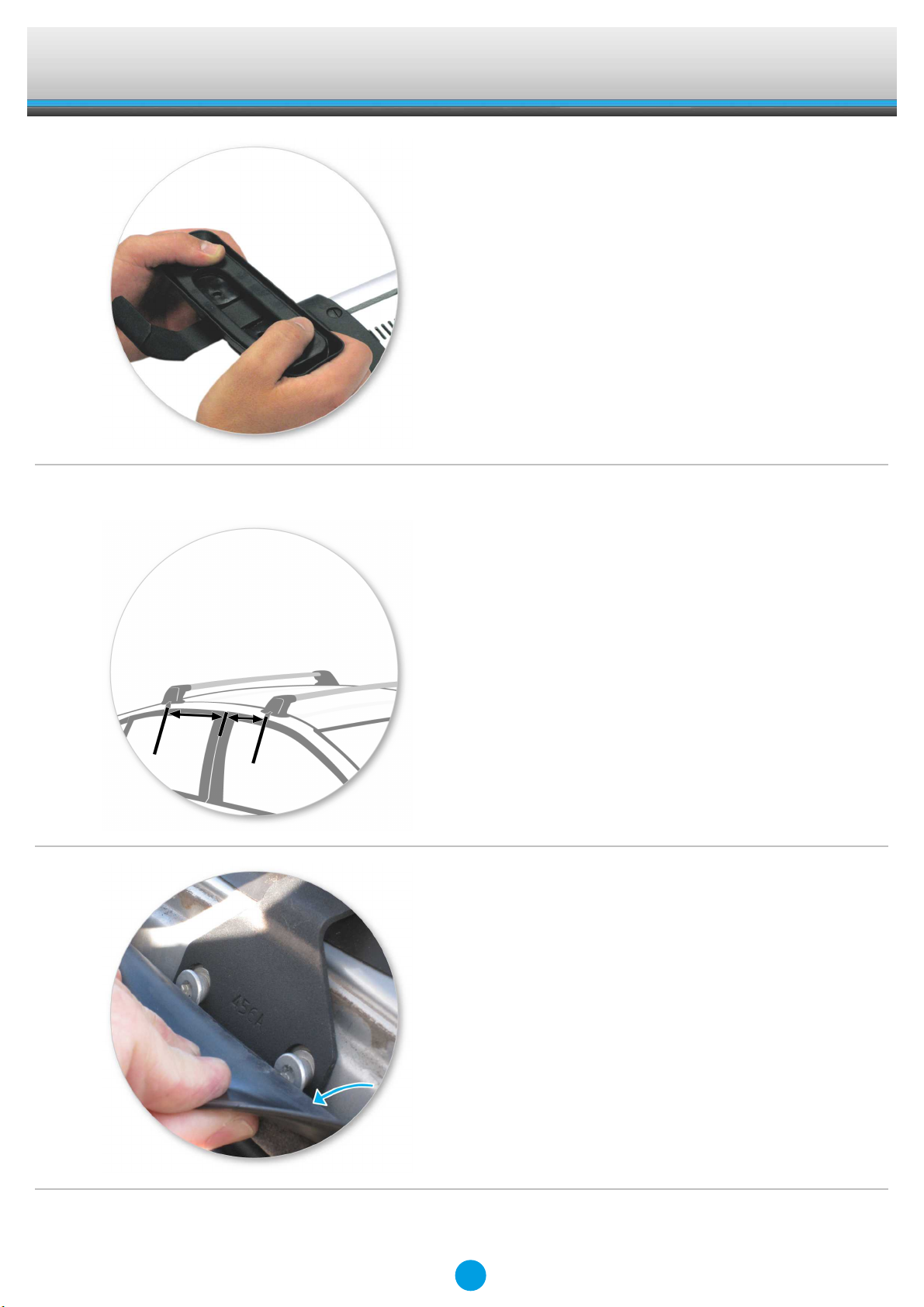

●Clamps onto anchor points under rubber
door frame mouldings
7

Fitting Kit EN
K577
●NOTE: REAR CROSSBAR ONLY
●Clamps directly to edge of roof above rear
windows.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb).
8

Fitting Kit EN
K577
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9

Fitting Kit EN
K577
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
