Prorack K673 User manual

K673

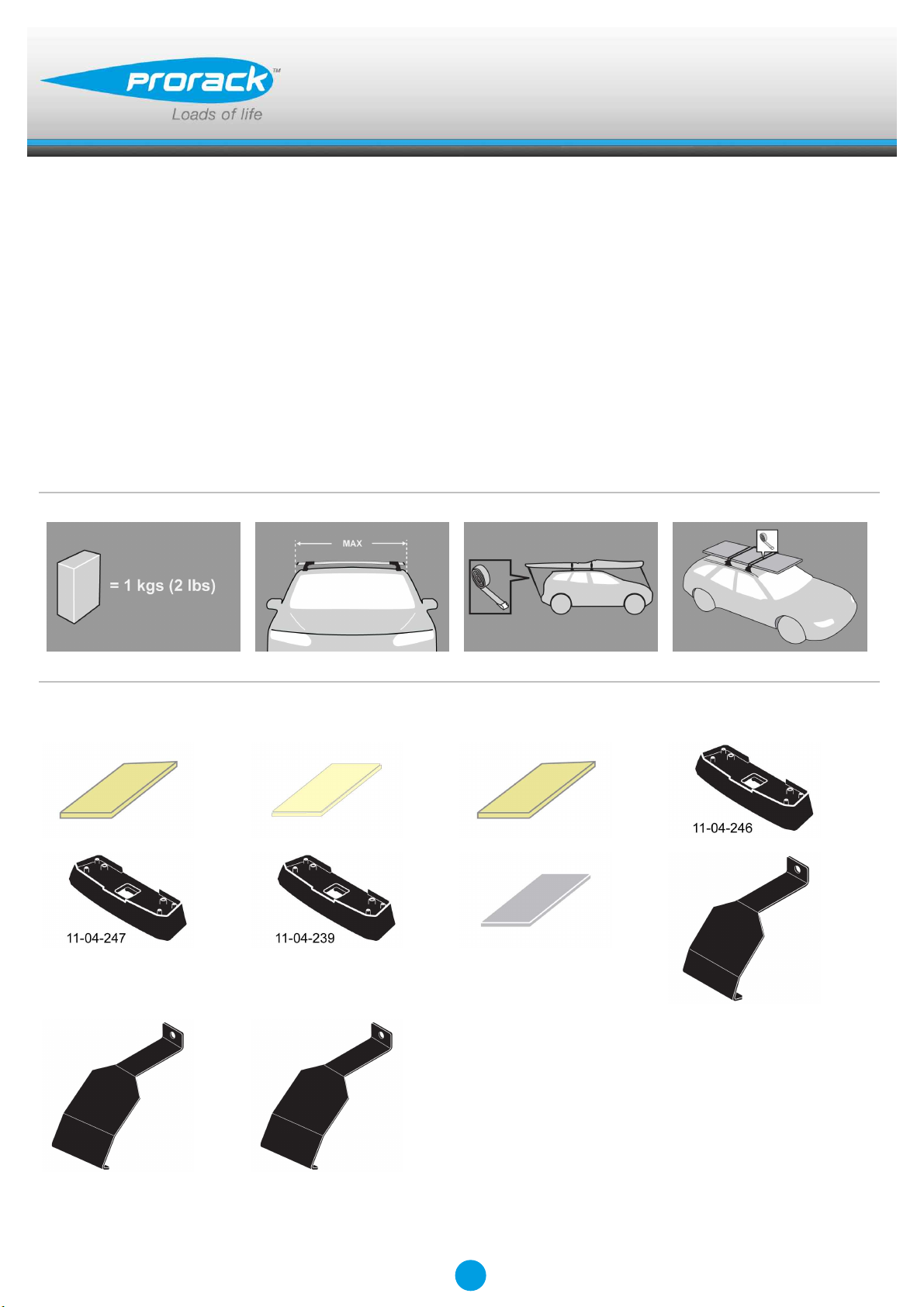

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 4 x 2 x 1
x 1 x 2 x 4 x 2
x 1 x 1
Revision No: 1A 1

Fitting Kit K673
MAX kgs (lbs)
W/P WHD
Honda
CR-V 2WD, 5dr SUV 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V S/SE, 5dr SUV 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V LX/EX, 5dr SUV 12-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V S, 5dr SUV 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
2

Fitting Kit EN
K673
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
3

Fitting Kit EN
K673
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment.
●Ensure each end of the crossbar is
adjusted equally.
4

Fitting Kit EN
K673

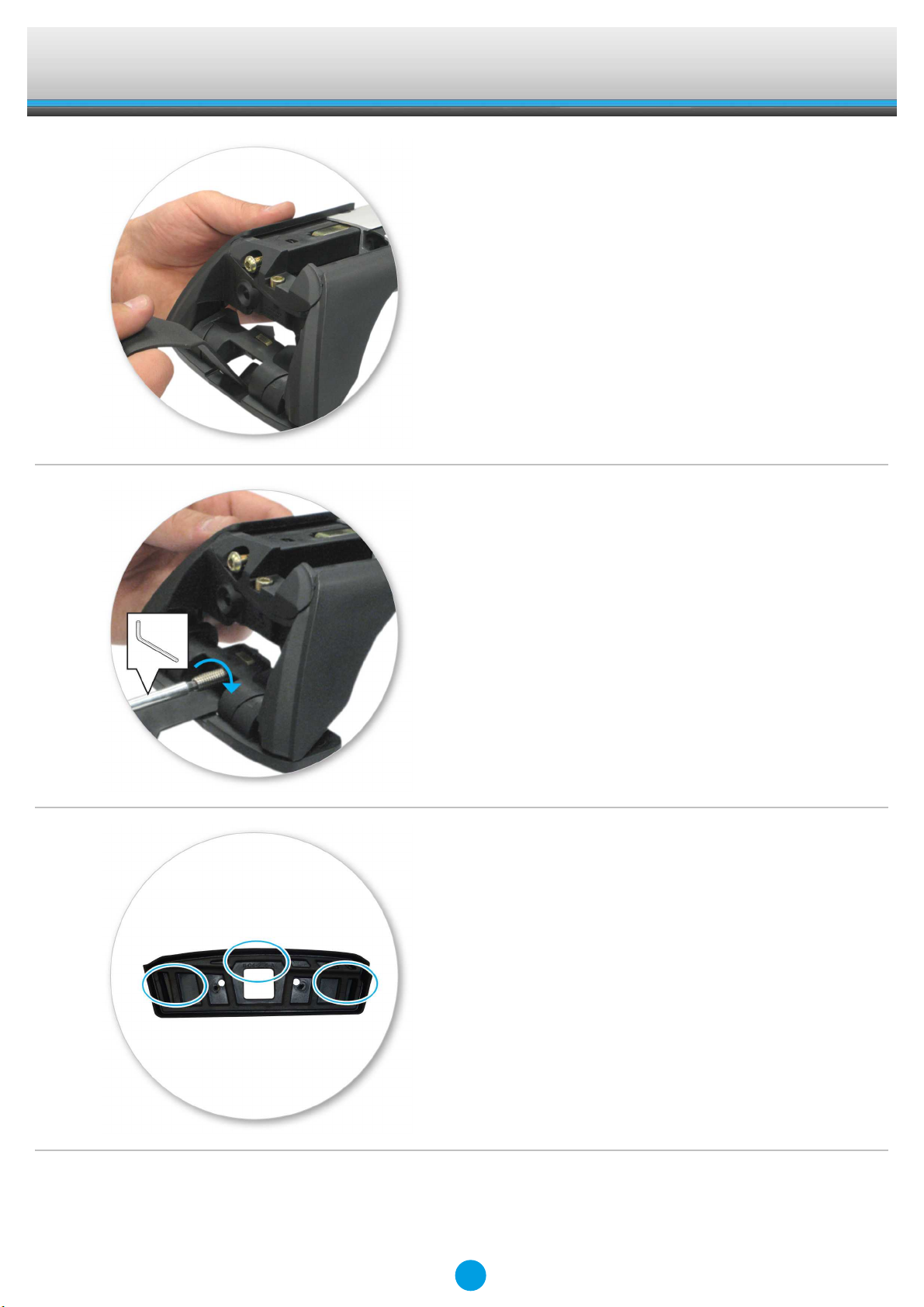

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A = Clear
B = Grey
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 963A
B = 964A
C = 965A
5

Fitting Kit EN
K673

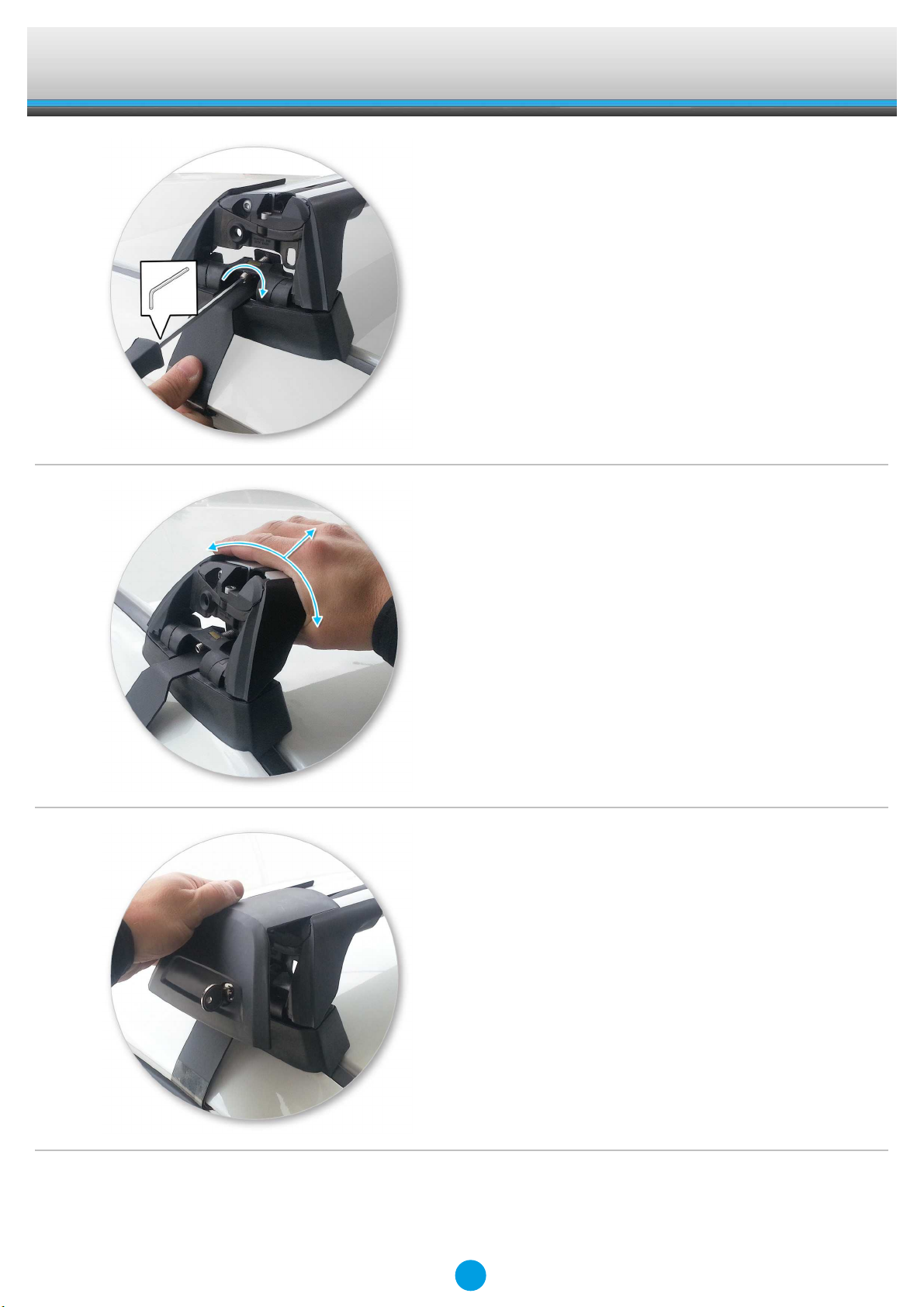

●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Refer to the underside of the pad for the
part number.
6

Fitting Kit EN
K673
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-239
B = 11-04-246
C = 11-04-247
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
●Make sure the pad fits into the holes
underneath the foot.
7

Fitting Kit EN
K673
Fitment
●Clamps directly to edge of roof under the
doors
●Please check the rear of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).

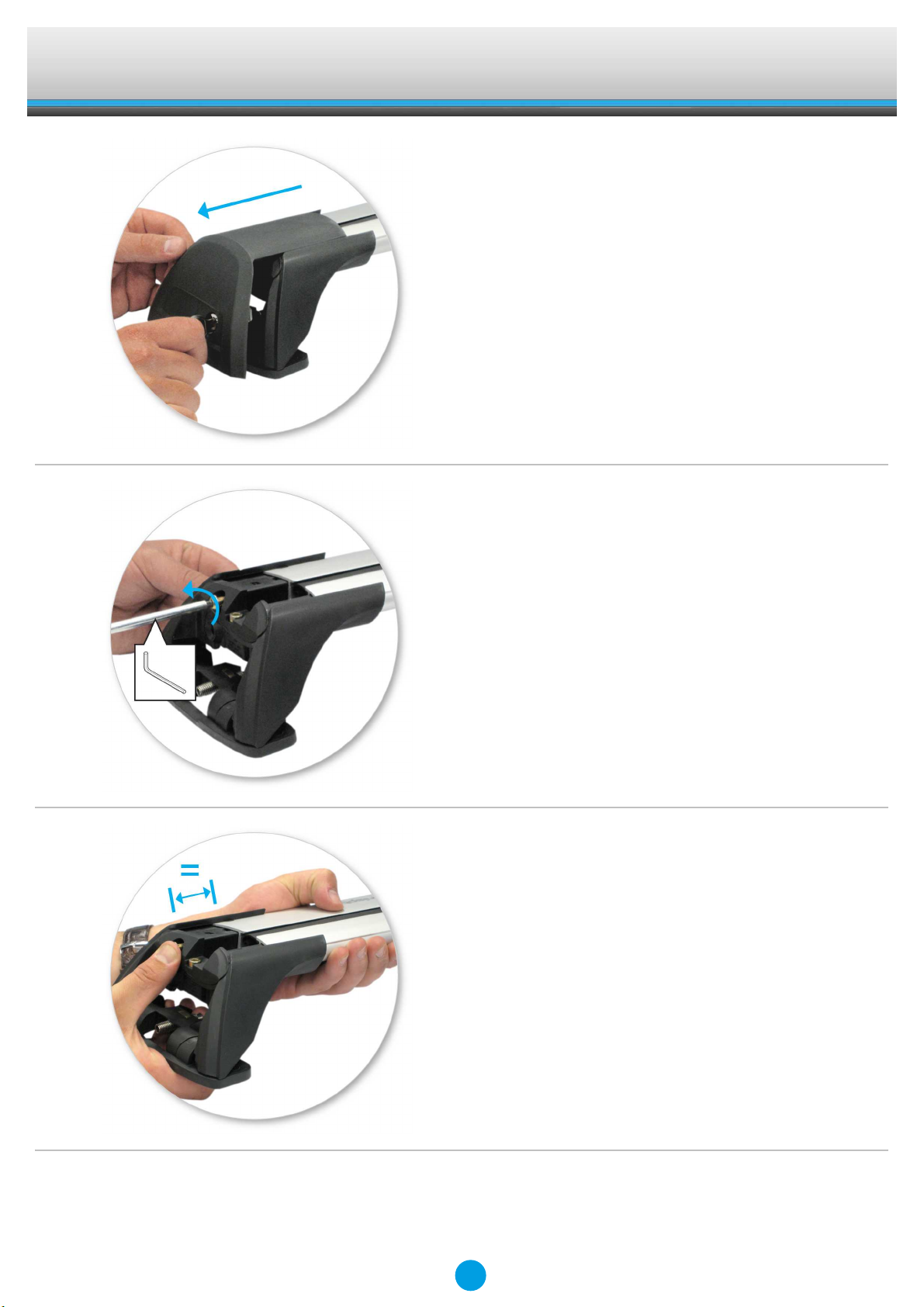

●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb).
8

Fitting Kit EN
K673
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9

Fitting Kit EN
K673
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
