Prorack K726 User manual

K726
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 1 x 1 x 1
x 1 x 1 x 1 x 1
Revision No: 1A 1

Fitting Kit K726
x 2 x 2 x 2 x 2
x 1 x 1 x 1 x 1
2

Fitting Kit K726
MAX kgs (lbs)
W/P WHD
Citroen
C4 , 5dr Hatch Oct 11-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
C4 , 5dr Hatch Oct 11-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
C4 , 5dr Hatch Sep 10-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
C4 , 5dr Hatch Sep 10-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
C4 , 5dr Hatch Sep 10-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
3

Fitting Kit EN
K726
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4

Fitting Kit EN
K726
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5

Fitting Kit EN
K726
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●A, B = Clear
C, D = Grey
●Apply protective strip as shown.
Trim if required.
●E, F = Clear
G, H = Grey
6

Fitting Kit EN
K726
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 083A
B = 084A
C = 085A
D = 086A
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
7

Fitting Kit EN
K726
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 246A
B = 247A
C = 293A
D = 294A
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
8

Fitting Kit EN
K726
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Clamps directly to edge of roof under the
doors
●Please check the rear of this manual for
information relating specifically to your
vehicle.

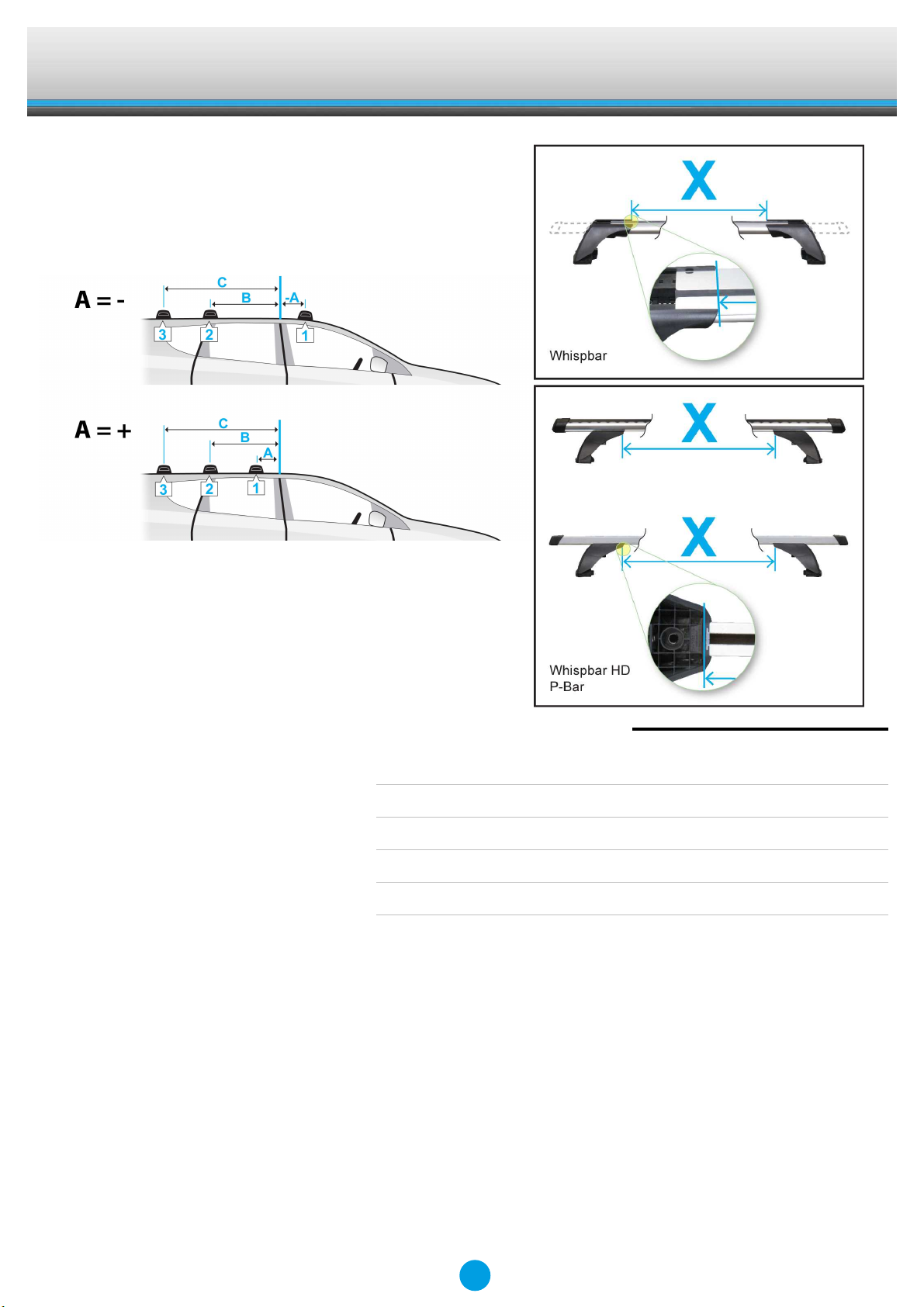

●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
9

Fitting Kit EN
K726
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
