Prorack K452 User manual

K452
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 8 x 4 x 4
x 4 x 1 x 1 x 2
x 4 x
16
Revision No: 4C 1

Fitting Kit K452
MAX kgs (lbs)
W/P WHD
Honda
CR-V , 5dr SUV 02-06 US 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V , 5dr SUV 02-07 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V , 5dr SUV 02-07 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V , 5dr SUV Mar 02-Jan 07 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
CR-V , 5dr SUV Mar 02-Jan 07 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
2

Fitting Kit EN
K452
First Time Installation

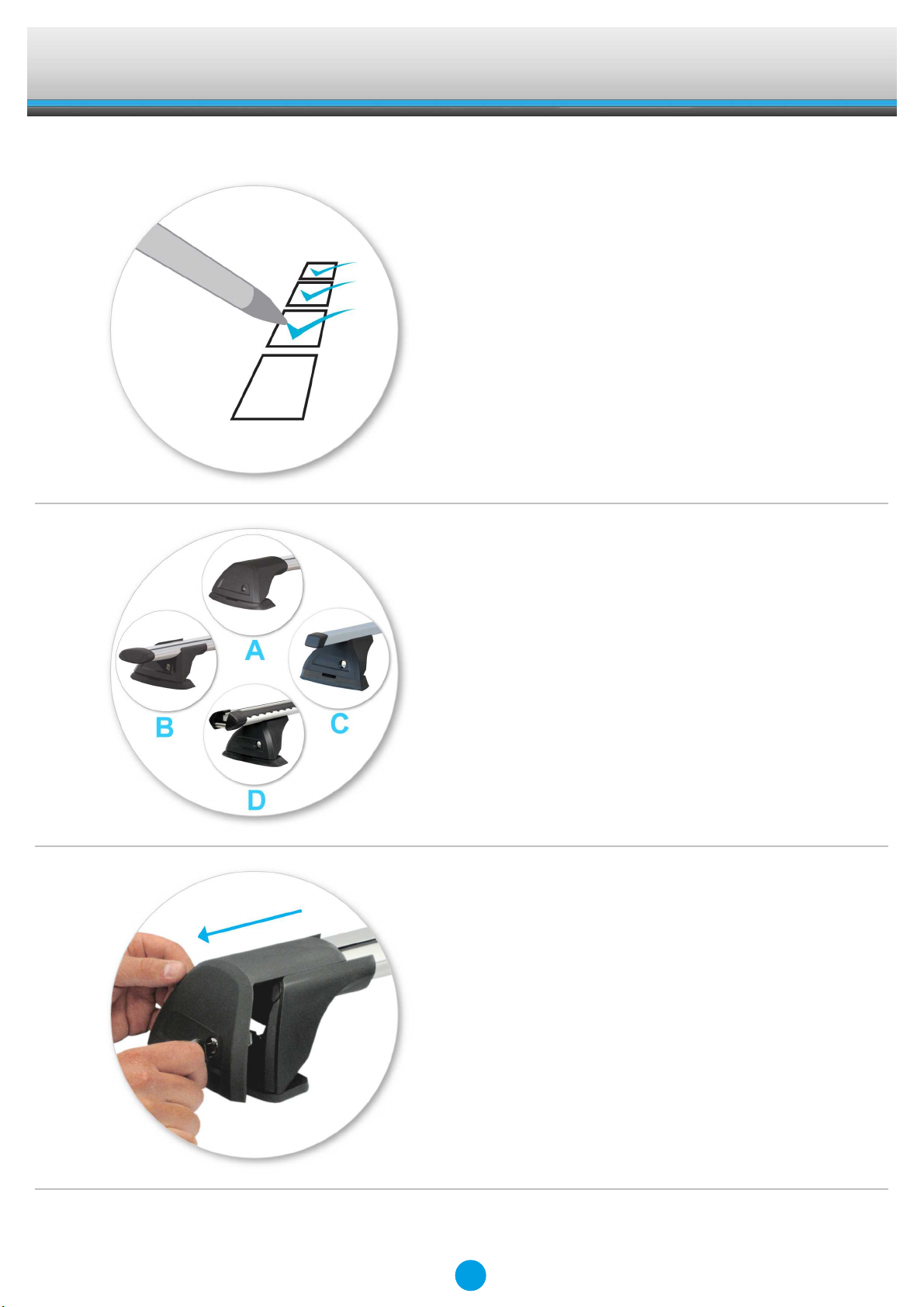

●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
3

Fitting Kit EN
K452

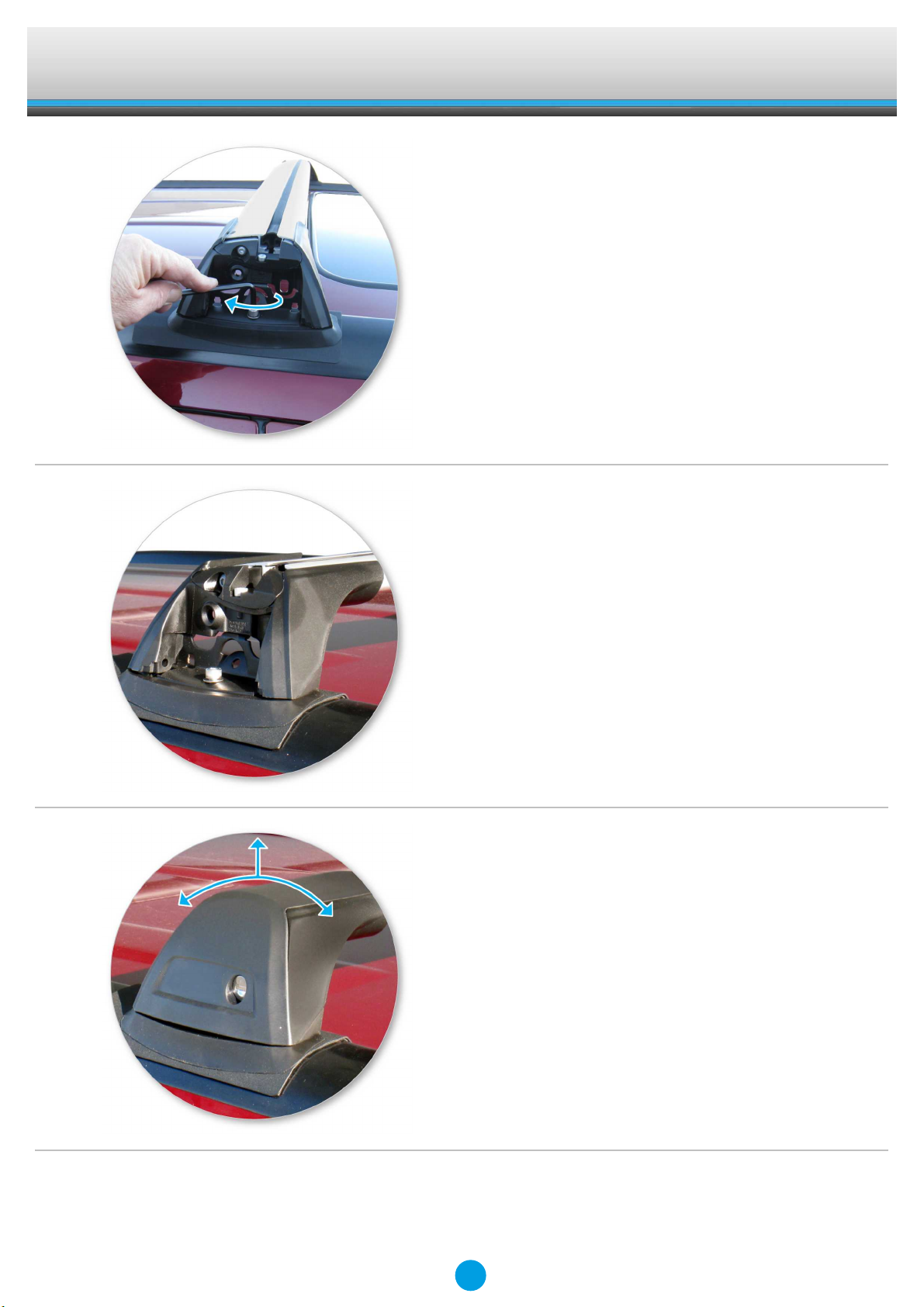

●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment.
●Ensure each end of the crossbar is
adjusted equally.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Attaches to factory-fitted mounting points
●Please check the rear of this manual for
information relating specifically to your
vehicle.
4

Fitting Kit EN
K452
●Tighten adjusting screw to 5 Nm (3.7 ft lb).

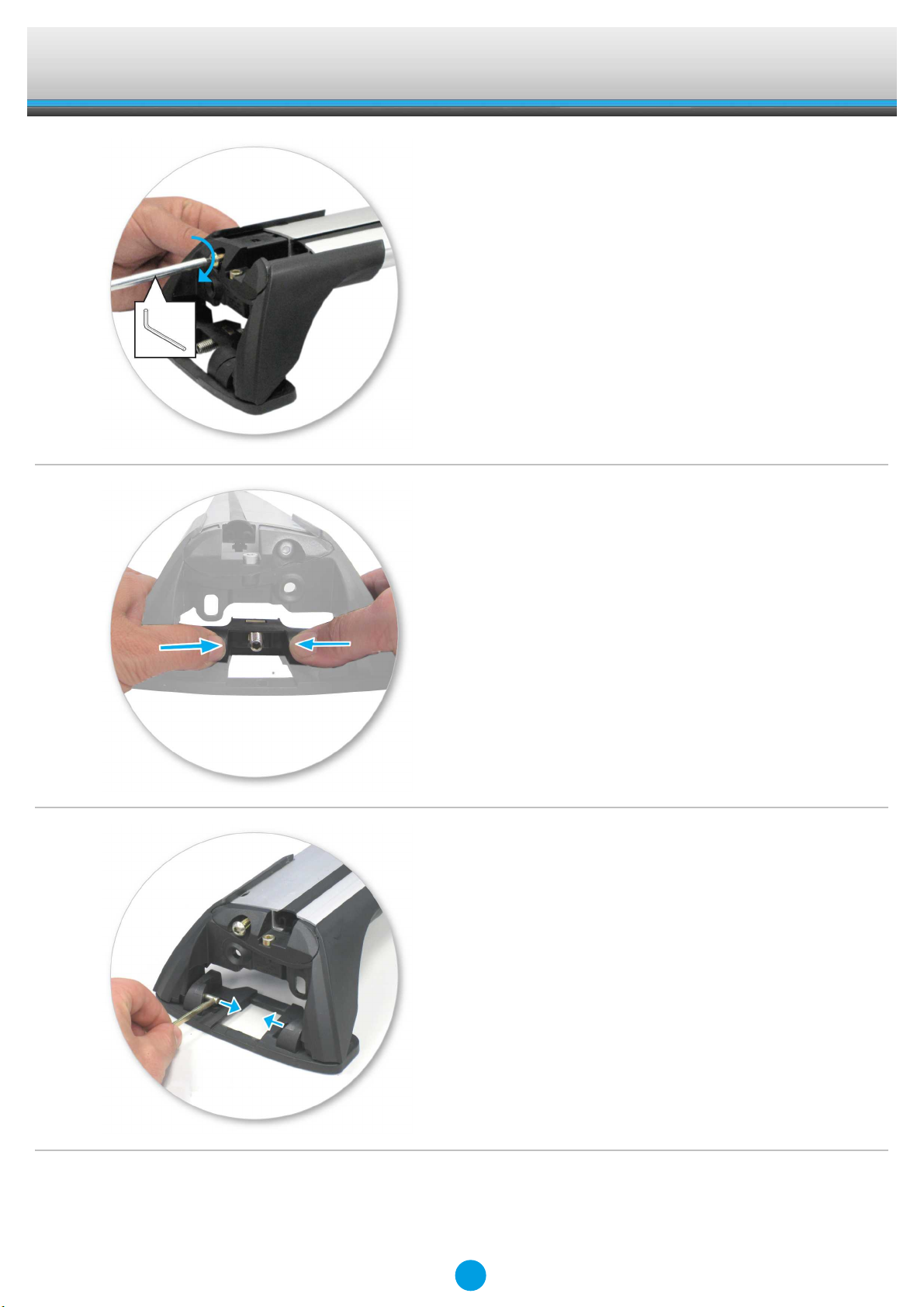

●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Remove both pins from each leg. Use
tapered end of spanner located inside left
hand cover to assist.
5

Fitting Kit EN
K452

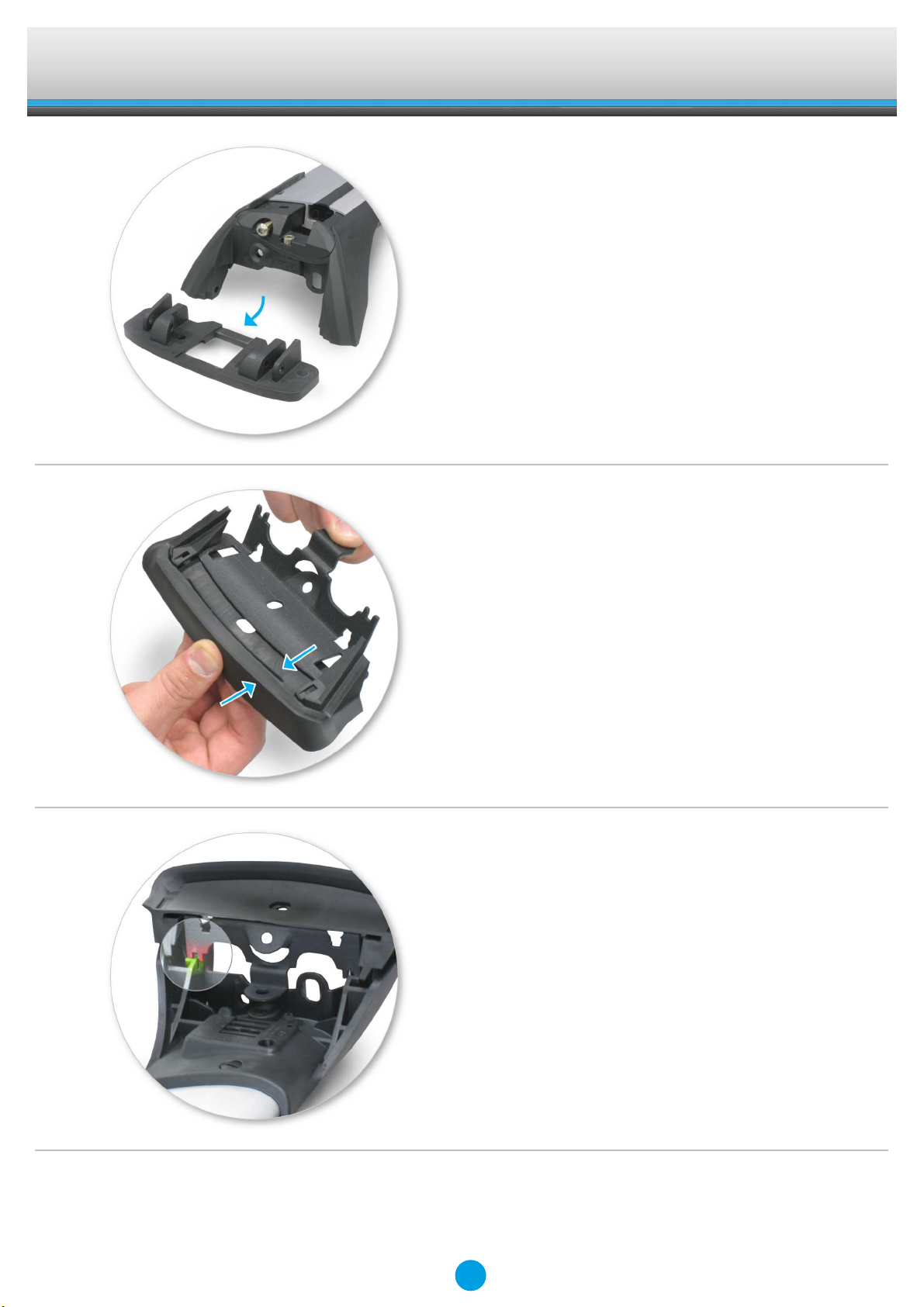

●Detach foot from leg. Store loose parts in a
safe place.
●Repeat for all legs.
●Assemble metal loadplate and rubber pad
from the fitting kit.
●Repeat for all four items.
●Assemble metal loadplate into leg. Ensure
loadplate interlocks with the leg.
6

Fitting Kit EN
K452
●Using short capscrew and washer, secure
assembly onto leg (use Hex Screwdriver
supplied with crossbar to assist)
●Repeat for all legs.
Fitment
●Open or remove fixed-point covers.
●Store items away in a safe place.
●Cover plate location
A = 465A
B = 466A
C = 603A
7

Fitting Kit EN
K452
●Apply protective strip as shown.
Trim if required.
●Fit cover plates over opening.
●Slot in cover should line up over centre
fixed point thread.
●Fit the M6 socket head screw and M6
washer.
●Leave loose until both sides have had the
screw fitted.
8

Fitting Kit EN
K452
●Tighten foot and cover plate down using
the Hex Key.
●Ensure that the cover plate and foot sit
firmly on the roof.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9

Fitting Kit EN
K452
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
