Prorack K807 Operation and installation manual

K807
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 4
x 1 x 1 x 1 x 1
x 1 x 2 x 2
Revision No: 3C 1

Fitting Kit K807
MAX kgs (lbs)
W/P WHD
Citroen
C3, 5dr Hatch 09-16 EU 70 kgs (154 lbs) 70 kgs (154 lbs)
C3, 5dr Hatch 10-+ NZ 70 kgs (154 lbs) 70 kgs (154 lbs)
C3, 5dr Hatch 10-+ AU 70 kgs (154 lbs) 70 kgs (154 lbs)
C3, 5dr Hatch 10-+ ZA 70 kgs (154 lbs) 70 kgs (154 lbs)
2

Fitting Kit K807
X
A B C 1 2 3
C3, 5dr Hatch 09-16 (EU) -305mm 370mm - 790mm 705mm -
-12" 14 9/16ths" - 31 1/8ths" 27 3/4ths" -
C3, 5dr Hatch 10-+ (NZ) -305mm 370mm - 790mm 705mm -
-12" 14 9/16ths" - 31 1/8ths" 27 3/4ths" -
C3, 5dr Hatch 10-+ (AU) -305mm 370mm - 790mm 705mm -
-12" 14 9/16ths" - 31 1/8ths" 27 3/4ths" -
C3, 5dr Hatch 10-+ (ZA) -305mm 370mm - 790mm 705mm -
-12" 14 9/16ths" - 31 1/8ths" 27 3/4ths" -
3

Fitting Kit EN
K807
Important
●Only suitable for models with Trap Door
option on roof strip
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
4

Fitting Kit EN
K807
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5

Fitting Kit EN
K807
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
6

Fitting Kit EN
K807
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-229
B = 11-04-230
C = 11-04-233
D = 11-04-234
7

Fitting Kit EN
K807
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Open or remove fixed-point covers.

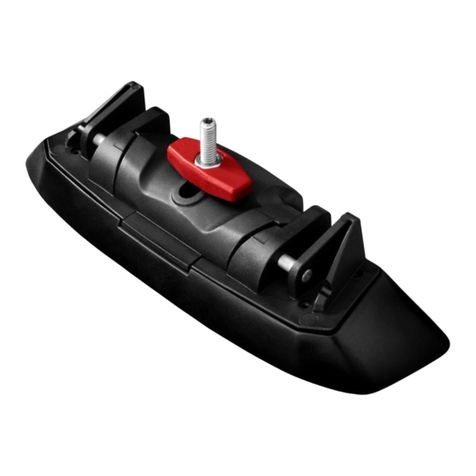

●Place mounting block into position as
shown.
●Right = A539
Left = A393
8

Fitting Kit EN
K807
●Slide mounting block to front, so the thread
is above mounting point.
●Insert grubscrew and tighten (make sure
that the grubscrew is above the mounting
point) .
●Place pad over grubscrew.
9

Fitting Kit EN
K807
●Mount crossbars over clamps.
●Ensure the pads are in the correct position
and the clamp threads pass through the
crossbar feet.
●Place washer over clamp thread as shown.
●Ensure that tab is inserted into clamp
block.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
10
