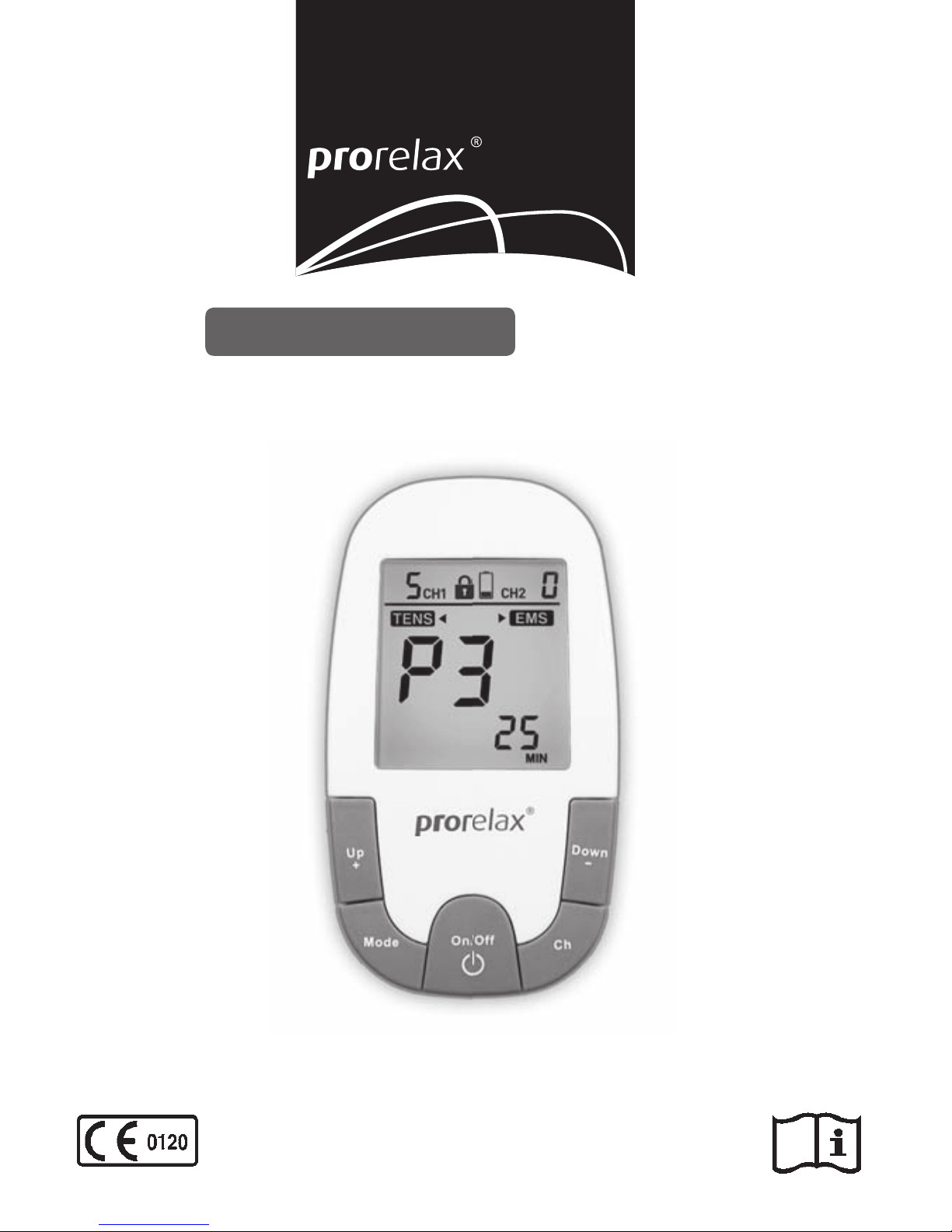

Prorelax SUPER DUO User manual

Natural therapies to relieve pain
and for muscle building
SUPER DUO
TENS + EMS
USER MANUAL

Dear prorelax customer,
You have decided to purchase the prorelax TENS + EMS SUPER DUO.
For this, we would like to thank you sincerely. This modern device was developed
for people suering from painful, tense muscles and those who wish to build up
muscles. We want to make sure that you are satised with this device.
We therefore ask that you read this user’s manual carefully before rst time usage
and that you also pay attention to the safety instructions and warnings.

3
TABLE OF CONTENTS
INDICATIONS AND CONTRAINDICATIONS 4
WARNINGS AND PRECAUTIONS 5
PACKAGE CONTENTS 11
ABOUT THE DEVICE 12
STEP BY STEP OPERATION GUIDE FOR TRAINING 13
Inserting 3 AAA Batteries 14
Placement of Electrodes 15
Turning ON/ OFF the Device 17
Selecting the Program 18
Selecting the Treatment Time 21
Selecting the Therapy Intensity Level 21
SPECIAL FEATURES 23
CARE AND MAINTENANCE 24
TROUBLESHOOTING 25
TECHNICAL SPECIFICATIONS OF TENS+EMS SUPER DUO 26
WARRANTY 31
3
IMPORTANT NOTE
PRORELAX TENS + EMS DEVICES ARE VERY SAFE AND USERFRIENDLY.
THEREFORE THE INTENSITY IS CONTROLLED ONLY WHEN THE
ELECTRODES ARE IN CONTACT WITH THE SKIN.

4
Indications and contraindications
INDICATIONS AND CONTRAINDICATIONS
READ THE OPERATION MANUAL BEFORE USING.
Read instruction manual before operation. Be sure to comply with all “CAUTIONS”
and “WARNINGS” in the manual. Failure to follow instructions can cause harm to
user or device.
Observe your physician’s precise instructions and let them show you where to apply
the electrodes. For successful therapy, the correct application of the electrodes is an
important factor.
INDICATIONS FOR USE
The TENS+EMS SUPER DUO-System is a dual channel digital electrical
stimulator for active treatment application as the following intended use:
Transcutaneous Electrical Nerve Stimulator (TENS) can be used for the
following applications:
• Forsymptomaticreliefofchronicintractablepain.
Electrical Muscle Stimulator (EMS ) stimulation can be used for the following
applications:
• Relaxmusclespasms
• Preventorretarddisuseatrophy
• Re-educatemuscles
• Maintainorincreasetherangeofmotion

5
WARNINGS AND PRECAUTIONS
WARNINGS
• IfyouareunderthecareofaPhysician,consultwithyourPhysicianbeforeusing
this System.
• Thelong-termeectsofthisSystemarenotknown.
• Donotplacethepadsonorclosetoyourheart.
• Donotplacethepadsaroundorclosetoyourneck.Donotapplystimulationover
the neck. Severe spasm of the muscles may occur and the contractions may be
strong enough to close the airway or cause diculty in breathing. Stimulation
over the neck could also have adverse eect hearing or blood pressure.
• Donotapplystimulationacrossthechestbecausetheintroductionofelectrical
current into the chest may cause rhythm disturbances to the heart.
• Donotplacethepadsonoraroundyourhead.Theeectsofstimulationofthe
brain are unknown.
• Donotusethepadsoverorclosetosores.
• Donotplacethepadsonthefrontorsidesoftheneckacrossorthroughthe
heart (one pad on the front of the chest and one on the back), in the genital
region, or on the head, because of the risk of stimulating inappropriate muscles
and organs.
• Donotplacethepadstoveranyrecentscars,brokenorinamedareasof
infection or susceptibility to acne, thrombosis or other vascular problems (e.g.
varicose veins), or any part of the body where feeling is limited.
• Donotplacethepadsoverareasofinjuryorrestrictedmovement(e.g.fractures
or sprains).
• DonotusethisSystemwhilesleeping.
• Donotuseifyoufeelnumbness.
• DonotusethisSysteminorclosetowater.
• Donotapplystimulationacrossthechestbecausetheintroductionofelectrical
current into the chest may cause rhythm disturbances to the heart, which could
be lethal.
• Donotusethepadsoverorclosetocancerouslesions.
• Usethepadsonlyonnormal,healthy,cleananddryskin.Donotusethepadson
openwoundsorrashes,oroverswollen,red,infectedorinamedskin.
• Ifyouhaveeverhadbacksurgery,consultyourPhysicianbeforeusing
this System.
Warnings and precautions

6
Warnings and precautions
• Electronicmonitoringequipment(suchasECGandECGalarms)maynotoperate
properly when electrical stimulation is in use.
• YoumustpositionthepadsandoperationtheunitONLYasindicatedinthis
manual.
• Avoidareasininjuryorrestrictedmovement(e.g.fracturesorsprains)
• Avoidplacingthepadsovermetalimplants.
• Avoidusingdierentsizeelectrodestogethercancauseskinirritationor
increased stimulation intensity under the smaller electrode. Some programs may
requiretheuseofdierentsizedelectrodesfortreatment.
• Donotuseinthebathorshower,orinanenvironmentofelevatedhumidity
(e.g. Sauna, hydrotherapy, etc).
• Operationincloseproximity,suchas3feet(1meter),toshortwaveormicrowave
therapyequipmentmayproduceinstabilityinthedeviceoutputandmayshut
the device o.
• Donotusethedeviceinanenvironmentwhereammableorexplosivefumes
may exist.
• Patientshouldneveroperatepotentiallydangerousmachinerysuchaspower
saws, automobiles, etc. during electrical stimulation.
Wait before using next until:
At least 6 weeks after the birth of your baby (you must consult your doctor before
use).
• OnemonthafteranIUDcontraceptivedevice(e.g.coil)hasbeentted(youmust
consult your doctor before use).
• Atleast3monthsafterhavingacaesareansection(youmustconsultyourdoctor
before use).
• Theheavydaysofyourperiodhavenished,becausevigorousabdominal
exercise is not recommended at this time.
PRECAUTIONS
• ReadUserManualbeforeusingthisSystemforthersttime.
• KeepthismanualavailablewheneveryouuseyourSystem.
• TheSystemisintendedforpersonaluseonhealthyadultmuscleonly.
• ThesafetyofusingtheSystemduringpregnancyorbirthhasnot
been established.
• TheeectivenessoftheSystemdependsgreatlyonaperson’sindividualphysical
condition. It may not always be eective for every user.
• Thesafetyofneuromuscularstimulationduringpregnancyhas
not been established.

7
• Usecautionwhen/if:
- Sensory nerve damage is present by a loss of normal skin sensation.
- Use caution prior to using this device on patients suspected of having heart
disease.
- Use caution for patients with suspected or diagnosed epilepsy when using this
device.
- Use caution following recent surgical procedures when muscle contraction may
disrupt the healing process.
- Use caution when there is a tendency to hemorrhage, such as following acute
trauma or fracture.
- A menstruating or pregnant uterus.
- Patient experiences skin irritation due to electrical stimulation or the electrical
conductive medium used, remove the electrodes, discontinue stimulation, and
consult the clinician. Irritation may be reduced by an alternative conductive
medium or an alternative electrode placement. Isolated cases of skin irritation
may occur at the site of electrode placement following long term application.
• PlaceelectrodesinaccordancewithillustrationsintheUserManual.
• Thisunitshouldnotbeusedwhiledriving,operatingmachineryorduringany
activity in which involuntary muscle contractions may place the user at undue risk
ofinjury.
• Someusersmayexperienceskinirritationorhypersensitivityduetotheelectrical
stimulation or the conductive medium.
• Keepthisdeviceoutofthereachofchildren.Ifthepatientisachild,makesure
he/she is properly supervised during electrical stimulation.
• Applicationofmoderateheat(thermalwrap)tomusclesaswellasmoistening
skin prior to treatment improves treatment ecacy; use of cold packs on treated
muscles after treatment is likewise recommended.
• Thisunitshouldonlybeusedwiththeleads,electrodesandaccessoriesprovided
by the manufacturer.
• Thedeviceisnotintendedformedicaluse,forthetreatmentofanymedical
condition or for any permanent physical changes.
• ContactEUROMEDICS,oranauthorizeddealer,ifyourunitisnotworkingcor-
rectly. Do not use in the meantime.
Warnings and precautions

8
Warnings and precautions
• Aneectivesessionshouldnotcausediscomfort.
• Forrsttimeusers,musclestimulationcanbeanunusualsensation.
We recommend that you begin in a seated position with low stimulation intensity
settingstofamiliarizeyourselfwiththesensationbeforeprogressingtohigher
intensity settings.
• Theleadsandpadsmustnotbeconnectedtootherobjects.
• Donotoverexertyourselfwhileusingmusclestimulation.Anyworkoutshouldbe
at a comfortable level for you.
• Donotplacepadsoverjewelryorbodypiercings.
Use Caution and consult your Physician before using System if any of the
following conditions apply to you :
• Youhaveanyseriousillnessorinjurynotmentionedinthisguide.
• Youhaverecentlyundergoneasurgicalprocedure.
• Youtakeinsulinfordiabetes.
• Youusetheunitaspartofarehabilitationprogram.
• Ifyouhavesuspectedordiagnosedheartproblem.
• Ifyouhavesuspectedordiagnosedepilepsy.
• Ifyouhaveatendencytobleedinternallyfollowinganinjury.
• Ifyourecentlyhadsurgery,orhaveeverhadsurgeryonyourback.
• Ifareasofskinlacknormalsensations,suchasskinthattinglesorisnumb.
• Duringmenstruationorduringpregnancy.
• Somepeoplemayfeelskinirritationorexperienceaverysensitivefeelinginthe
skin due to electrical stimulation. If this occurs, stop using your System and consult
your Physician.
• Ifskinunderoneofmorepadsfeelsirritatedafterusingthestimulatorforalong
period of time, use the stimulator for a shorter period of time.
• Minorrednessatstimulationplacementisanormalskinreaction.Itisnot
considered as skin irritation, and it will normally disappear within 30 minutes after
the electrodes are removed. If the redness does not disappear after 30 minutes
from the removal of electrodes, do not use the stimulator again until after the
excessive redness has disappeared.

9
Warnings and precautions
• Turnothestimulatorifthestimulationfeelsunpleasantordoes
not provide pain relief.
• KeepyourSystemoutofthereachofchildren.
• Useyourstimulatoronlywiththepads,snapcablesandaccessories
recommended by the manufacture.
• DonotusethisSystemwhendriving,operatingmachineryorwhenswimming.
• Beforeremovingthepads,besuretopowerodevicetoavoidunpleasant
stimulation.
After strenuous exercises or exertion :
• Alwaysuselowerintensitytoavoidmusclefatigue.
IMPORTANT :
• Eectivenessishighlydependentuponpatientselectionbyaclinicianqualiedin
the management of pain or rehabilitation.
• Donotuseyourunitatthesametimeasanyotherdevice,whichtransfersan
electrical current into the body (e.g. another muscle stimulator).
• Ceaseusingyourunitifyouarefeelinglightheadedorfaint.Consultdoctorifthis
happens.
• Donottouchthepadsormetalstudswhiletheunitisswitchedon.
• Donotuseunitifyouarewearingabellybuttonring.Removeringbeforesession.
• Usethedevicewithonlytheleadsandelectrodesprovidedforusebythe
Well-Life with your device. Any others many not be compatible with your unit and
could degrade the minimum safety levels. Use only the electrode placements and
stimulation settings prescribed by your practitioner.
• Thisdeviceisforexternaluseonly.
Note: If you are in any doubt about using device for any reason, please consult your
doctor before

10
Warnings and precautions
PAD/ELECTRODE PRECAUTIONS
• Torepositionthepadsduringasession,alwayspausetheprogramcurrently
running, reposition the pads and then restart the program again.
• Thepadsareforsinglepersonuseonly.
• Donotplungethepadsintowater.
• Donotapplysolventsofanykindtothepads.
• AlwaysensuretheunitisOFFbeforeremovingthepads.
• Applythewholesurfaceofthepadsrmlytotheskin.Donotusepads,whichdo
not adhere properly to the skin.
• Ifyourskinisredunderthepadafterasession,donotstartanothersessioninthe
same area until your redness has completed disappeared.
Adverse Reactions
• Youmayexperienceskinirritationandburnsbeneaththestimulationelectrodes
applied to your skin.
• Youmayexperienceheadacheandotherpainfulsensationsduringorfollowing
the application of electrical stimulation near your eyes and to your head and face.
• Youshouldstopusingthedeviceandshouldconsultwithyourphysicianifyou
experience adverse reactions from the device.
Conditions that may aect your TENS+EMS SUPER DUO-System
Since the stimulator is a battery-operated electronic System, its output
performance and safety may be aected greatly in extreme humidity.
Therefore, it is very important to keep the stimulator dry to ensure the safety and
performance of the stimulator.

11
PACKAGE CONTENTS
1. TENS+EMS SUPER DUO
2. Self Adhesive Electrodes,
 Size:50x50mm,4pcs/bag
3. 3 AAA batteries
4. 2 lead wires
5. 1 storage bag
6. 1 Clipholder
Package contents
1
4
2
5
3
6

12
About the device
ABOUT THE DEVICE
1. Power On/O key
2. CH key
3. Modekey
4. Up + key
5. Down – key
6. TherapyMode
7. Program number
8. Therapy time remaining
9. CH1 intensity level
10. CH2 intensity level
11. Lock status indicator
12. Battery status indicator
13. Battery compartment
14. Battery cover
15. Output Socket
Front view Rear view
Top

13
STEP BY STEP OPERATION GUIDE FOR TRAINING
PREPARING THE SKIN FOR RUNNING A SESSION
Proper preparation of the skin covered by the electrodes allows more stimulation to
reach targeted tissues, prolongs electrode life, and reduces the risk of skin
irritation. After connecting the lead wire(s) to the stimulator, use the following steps
to prepare your skin at the electrode placement sites:
1. Determine the placement sites for the electrodes.
2. Wash the area with mild soap and water (do not use alcohol). Rinse and dry
thoroughly.
3. Trim excess body hair from the area with scissors (do not shave).
4. Optionally, apply skin prep to the area to form a protective barrier on your skin.
Apply, let dry, and apply electrode as directed. This will both reduce the chance
of skin irritation and extend the life of your electrodes.
5. When removing electrodes, always remove by pulling in the direction of hair
growth.
6. It may be helpful to apply skin lotion on electrode placement area when not
wearing electrodes.
Step by step operation guide for training
Connecting the Cable to The Device
1. Connecting the lead wire to the electrodes before applying to the Skin.

14
Inserting/Changing the Batteries
1. Open the battery compartment at the back of the device by pushing the
battery cover labelled “Open” downward (this area features raised marks for
easy identication).
2. Insert 3 AAA (1.5 V) batteries in the battery compartment; make sure to match
up the symbols (+/–).
3. Close the battery cover by carefully placing the stud into the slot in the rear
area and sliding it upward, applying slight pressure.
4. Follow the same procedure when replacing the battery at a later date.
Note: for important precautions regarding the batteries, please be informed:
• Alwaysuseonly3x1.5V(AAA)batteries.
• Keepawayfromchildren.
• Donotrecharge.
• Donotshort-circuit.
• Donotthrowintoare.
• Pleaserecycle.Donotdisposeofoldbatterieswithyourhouseholdwaste;
dispose of them safely at your recycling centre or business where the batteries
were purchased.
Step by step operation guide for training

15
Note:
When stimulating the muscles of the arms or legs bear in mind that the
muscles contraction may cause involuntary limb movement, which
could cause injury to you or others. Always ensure the limb is secured
to prevent movement
Do not turn the unit on until all electrodes and lead wires are properly
attached
Placement of the Electrode Pads
for TENS (Treatment of Pain)
Note:
You may need help placing the Electrode Pads onto
hard to reach areas (lower & upper back)
Step by step operation guide for training
LOWER BACK
Place a pair of pads
horizontally on each
side of your back in
the lower back area.
SHOULDER
Place one half of the
pad on the top part
of you shoulder and
the other half on
the side.
UPPER BACK
Place a pair of pads
horizontally on each
side of your back
in the upper back
area.
BACKOFTHIGHS
Place a pair of pads
horizontally on each
calf muscle. Do not
place the pads too low
on the leg, as this can
lead to unpleasant
contractions.
BUTTOCK
Place the pads
horizontally on the
buttocks, halfway
between the centre
line and the side of
your body.
CALF MUSCLES
Place a pair of pads
horizontally on each
calf muscle. Do not
place the pads too low
on the leg, as this
lead to unpleasant
contractions.
FRONT THIGHS
Place the pads on
the buttocks
horizontal, halfway
between the
center line and the
side of your body.
1.
2.
CH1 CH2
CH1 CH2
CH1 CH2
CH1
CH2
CH1
CH2
CH1 CH2
CH1
CH2
or
Shoulder
Calf
Muscle
Low
Back
Upper
Back
Buttock
ABS
Back of
Thighs
Front of
Thighs

16
Placement of the Electrode Pads
for EMS
1. Connecting the lead wire to the electrodes before
applying them to the Skin. Use the large Electrode
PadsforEMS.
2. The pad placement chart hereafter illustrates the
correct placement of the pads for a selection of
target muscles.
Step by step operation guide for training
Note:
When stimulating the muscles of the arms or legs bear in mind that the muscle
contraction may cause involuntary limb movement, which could cause injury
to your or others. Always ensure the limb is secured to prevent movement.
Do not turn the unit on until all electrodes and lead wires are properly attached
Always start with a low intensity level, increase gradually. You may use any of
the modes for EMS
SHOULDERS
Place one half of the
pad on the front of your
shoulder and the
otheron the side.
BACK OF THIGHS
Place each pair of pads
horizontally across
your hamstring.
ABS
Place each pair of pads
horizontally either side
of your nevel.
CALF MUSCLES
Place each pair of pads
horizontally across calf
muscle. Do not place
them too low on the leg,
as this can result in an
uncomfortable contraction.
LOWER BACK
Place a pair of pads
horizontally either side
of your spine on the
lower part of the back.
UPPER BACK
Place a pair of pads
horizontally either side
of your spine on the
upper part of the back.
BOTTOM
Place a pair of pads
horizontally across the
buttocks halfway
between the midlone
and side of your body.
FRONT THIGHS
Place a pair of pads
horizontally across
each thighs muscles.
1.
2.
3.
Shoulder
Calf
Muscle
Low
Back
Upper
Back
Bottom
ABS
Back of
Thighs
Front of
Thighs

17
Step by step operation guide for training
Turning On/ O the Device
To Turn On/O the device, Press and hold the On/O
button for one (1) second to turn on the device.
1.The most recently selected treatment time and program
will display on the screen
Note : Do not turn the unit on until all electrodes and lead
wires are properly attached.
Note : When stimulating the muscles of the arms or legs bear
in mind that the muscle contraction may cause involuntary
limbmovementwhichcouldcauseinjurytoyouorothers.
Always ensure the limb is secured to prevent movement.
2. The device turns o automatically after the therapy session
time has elapsed.
Note : In an emergency you may also pull the connector(s)
from the device and then remove the electrodes.
Note : To prevent unpleasant electric shocks, never remove
the device while it is still turned on.
Selecting TENS/EMS Treatment Mode
The Device oers 8 dierent preset treatment programs
respectivelyforTENS/EMSmodes;theprograms
dierwithrespecttovaryingpulsewidthsandfrequencies.
1.PressMODE,thepreset(default)therapymodeTENS/EMS
will display on the screen.
2. Use the button Up+ ,or Down – , for choice of therapy
mode. therapy mode.
3.PressModeagain,thenumericnumberofprogramisthen
ashing.PressthebuttonUp+(toincrease)orthebuttonDown–
(to decrease) for choice of program of the selected modality.
4.PressMODEagaintosaveyourselection.
Note : If you change programs during the course of a
therapy session, the treatment time will not reset unless you
manually reset it by performing the steps described above.

18
Selecting the program
The device oers 8 dierent preset treatment programs (P1~P8) respectively for
TENS/EMSmodes;P9isself-programmableprogrambytheusertodesirable
pulsewidthbetween50~260uSandfrequency
at2~60Hz(forTENS)and7~70Hz(forEMS).
Choice of the appropriate mode
The mode you choose determines the kind of work that is imposed upon the
stimulated muscles. Choose the mode that is appropriate to your needs or gives
you the greatest pleasure.
For TENS programs:
When using any of the 8 programs for pain relief always start with the lowest
intensity and gradually increase the
level of intensity until you feel a “tingling” sensation. All programs are dierent
and therefore feel dierently.
You may try all 8 programs in the beginning and choose one that feels pleasant.
Never increase the intensity to a level so that it hurts, always stay under the point
of discomfort. Start with short sessions of 5 or 10 minutes until your body gets
used to the stimulation.
Selecting the program
Program
Pulse width (uS) Pulse rate (Hz) Waveform Type
P1
P2
P3
P4
P5
P6
P7
P8
P9
260
260
260
260~156
260~156
260
260~156
50~ 260 uS
15
60
60
2~60
60
7~60
60
Constant
Burst
Constant
Dense-Disperese
ModulationPulseWidth
SD Pulse Rate
SD Pulse Width
2~60Hz
Recycle ( P1~P7)
Self programmable
All electrical specication ±20%

19
For EMS programs:
Whenusingthedeviceformusclestimulation(EMS)anyofthe8programsmay
be used. The intent is to cause a muscle to contract, and then release.
All 8 programs will achieve contraction and vary mainly by the rate and duration
of the contractions. As with any exercise regiment, start out slowly with low
intensity levels for a warm-up (5~10min). You may increase intensity level and
treatment time as you progress with your muscle performance. Use the device
regularly over a longer period of time as to maintain the benet you may have
gained during “exercise”.
Selecting the program
Program
Pulse Width
(uS) Ramp up (sec) Ramp down (sec) Pulse rate (Hz) Function Mode
O Time
(sec)
Hold on
(sec)
P1
P2
P3
P4
P5
P6
P7
P8
P9
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
4
5
6
2
4
6
2
3
4
5
6
8
10
S
S
S
S
A
A
A
S/MR
70
60
50
50
50
60
70
7~60
260 uS
(Fixed)
50~260 uS 7~70Hz
Self
programmable
All electrical specication ±20%

20
Selecting the program
Press MODE after treatment mode is set.
1. To choose Program (P1~P8), use Up + (to increase) or the button Down – (to
decrease).
2. Program P9, it is self –programmable mode. To set up desirable pulse width
between50~260uSandfrequencyat2~60Hz(forTENS)and7~70Hz(forEMS):
2.1.PressModebutton,thepreset(default)PulseWidthisthenashing.
Press the button Up + (to increase) or the button Down – (to decrease) for choice
of the selected Pulse Width .
2.2.PressModebuttonagain,thepreset(default)PulseRateisthenashing.
Press the button Up + (to increase) or the button Down – (to decrease) for
choiceoftheselectedPulsefrequency.
3.PressMODEagaintosaveyourselection.Thetreatmentprogramyouselected
will appear on the display the next time you turn the device on.
➠
➠
