Protekt RUP503-U Technical specifications

USE AND INSTALLATION MANUAL
0001268 edition: 1/22.03.2021
Page 1 of 8
EN 1496:2017/B Machine Directive
2006/42/EC
RUP503-U
RESCUE LIFTING DEVICE

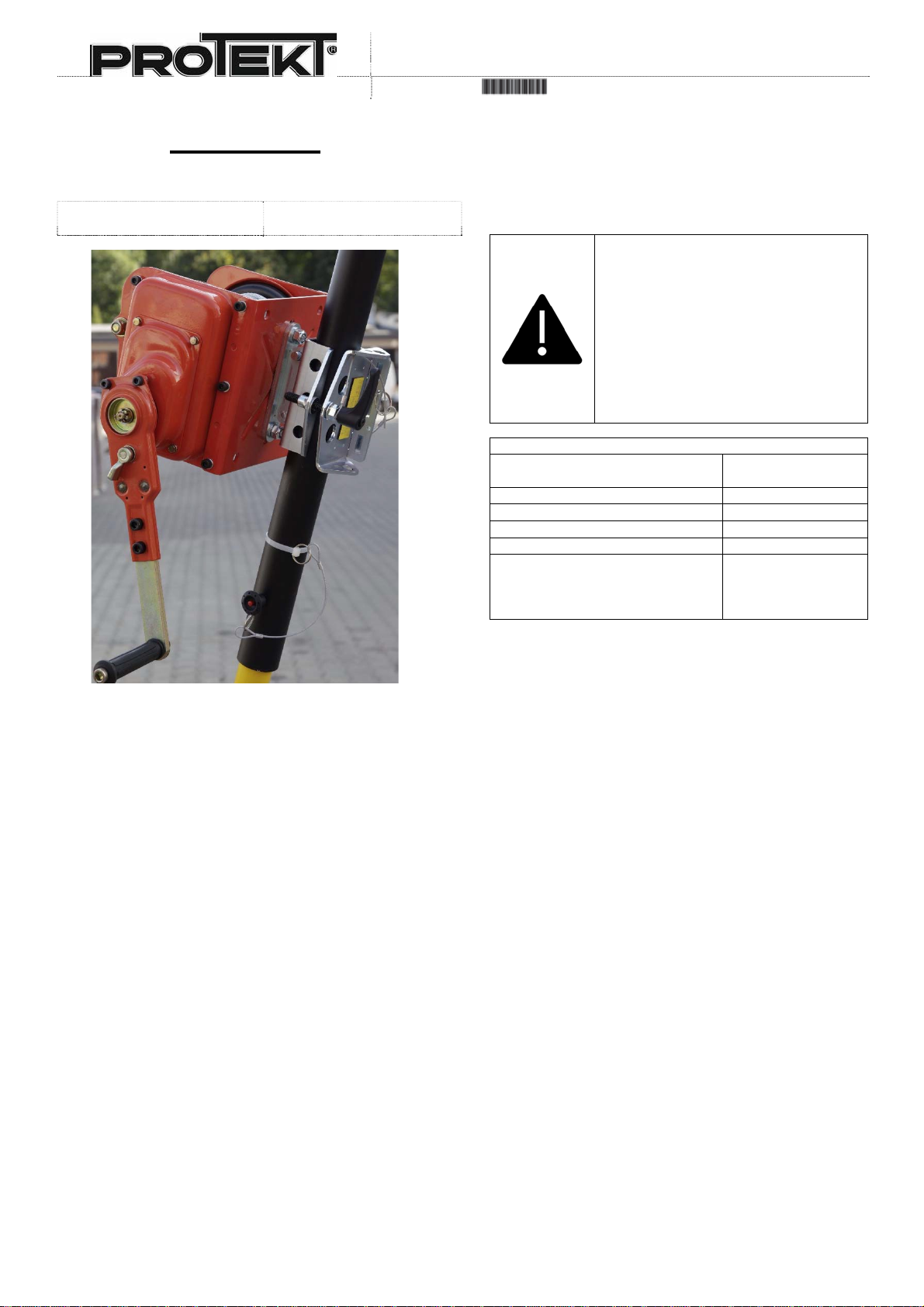

Figure 1 - Overview
TABLE OF CONTENTS:
1. GENERAL DESCRIPTION...............................................1
2. LOAD LIMIT AND STRENGTH........................................1
3. TRANSPORT AND WEIGHT ...........................................2
4. MAINTENANCE AND STORAGE....................................2
5. TIME OF USAGE...............................................................2
6. PERIODIC INSPECTIONS...............................................2
7. TABLE NO. 1 - POSSIBLE INSTALLATION OF
DEVICE RUP503-U.....................................................................3
8. OVERALL DIMENSIONS..................................................3
9. MARKING............................................................................4
10. INSTALLATION OF RUP503-U.......................................5
11. GENERAL SAFETY RULES ............................................6
12. ESSENTIAL PRINCIPLES FOR USE OF PERSONAL
FALL PROTECTION EQUIPMENT...........................................6
13. WARRANTY .......................................................................7
14. IDENTITY CARD................................................................8
1. GENERAL DESCRIPTION
Rescue lifting device RUP503-U can be used as a
component of rescue equipment. With use of the device a
victim can be ascended from a lower onto a higher level or
descended from a higher to a lower level. The descending
distance cannot exceed 2 m.
BASIC TECHNICAL DATA
Working Load Limit
200kg
Required hand force
10kg
Gear ratio
7.2:1
Lever length
300mm
Rope diameter
6.3mm
Weight
25m rope – 22.5kg
35m rope – 24.0kg
45m rope – 25.5kg
50m rope – 26.2kg
The device RUP503-U is formed by:
a) general winch with reelon which work ropeof 6.3mm
in diameter is wound. The device is fitted with holder
UTB (AT017-330),
b) for spring-type energy absorber SDW with
connectors AZ011,
c) detachable part of crank (for transportation of the
device). The device RUP503-U can be mounted on
various devices using universal holders. Please
refer to Table 1.
2. LOAD LIMIT AND STRENGTH
a) GENERAL INFORMATION
Minimum Breaking Strength (MBS): 21kN.
The devicecan be loaded with work force along theprofile
to which it is fixed as shown in Figure 2.
The maximum load that could be transmitted in service
from the device to the static construction – 10kN.
If the device is used as a part of a fall arrest system,
the user must be equipped with an element limiting
maximum dynamic forces applied on user while arresting
a fall to max. 6kN.
The device can be used
to descend personnel
above the 2-meter limit
by means of an
additional WR / CR /
CRW retractable type
fall arrester to arrest a
fall.

USE AND INSTALLATION MANUAL
0001268 edition: 1/22.03.2021
Page 2 of 8
b) LIFTING MATERIALS
Working Load Limit (WLL): 1000kg
Safety Factor (SF): 2.1:1.
Available work rope length max.: 50m.
c) LIFTING MATERIALS WITH PULLEY
TU415/TU416
Working Load Limit (WLL): 2000kg
Safety Factor (SF): 2.1:1.
Available work rope length max.: 24m.
d) RESCUE WINCH (PPE)
Working Load Limit (WLL): 200kg
Safety Factor (SF): 10:1.
Available work rope length max.: 50m.
Figure 2 – Permissible load direction
3. TRANSPORT AND WEIGHT
Maximum weight of a complete device (50m rope):
26.2kg.
Personal fall protection equipment must be transported
in a package (e.g.: bag made of moisture-proof textile or foil
bag or cases made of steel or plastic) to protect it against
damage or moisture.
4. MAINTENANCE AND STORAGE
The device should be cleaned and disinfected without
causing adverse effect on the materials which the device is
made of. For textile materials (webbings, ropes) use agents
suitable for delicate fabrics. Can be washed in hands or in a
washing machine. Rinse thoroughly. Wash textile elements
with water only.
- If the equipment becomes wet, either when cleaning or in
use, allow it to dry naturally, and keep it away from any
sources of heat. In metallic products slightly lubricate some
mechanical parts (springs, hinges, pawls, etc.) on a regular
basis to ensure their better operation.
The device should be stored loosely packed in well-
ventilated rooms, protected from direct light, UV degradation,
dust, sharp edges, extreme temperatures and aggressive
chemical substances.
5. TIME OF USAGE
Maximum time of usage of correctly operating
devices is unlimited.
The device must be withdrawn from use immediately
and destroyed if it has been used to arrest a fall or there are
any doubts concerning its function.
NOTE: Maximum time of usage of the device depends on
intensity and environment of use. Ifthe device is used in heavy
conditions, being exposed to frequent contact with water,
sharp edges, corrosive substances, extreme of temperatures,
it may be necessary to withdrawthe device after only one use.
6. PERIODIC INSPECTIONS
At least once a year, after every 12 months of use, it
is necessary to carry out periodic detailed inspection of the
device.
Periodic inspection can be carried out by a properly
qualified and skilled person.
After 5 years of use, it is recommended that periodic
inspections are carried out by the manufacturer of the
equipment or an entity authorised by the manufacturer to carry
out such inspections.

USE AND INSTALLATION MANUAL
0001268 edition: 1/22.03.2021
Page 3 of 8
7. TABLE NO. 1 - POSSIBLE INSTALLATION OF DEVICE RUP503-U
DEVICE
UNIVERSAL HOLDER
TRIPOD TM6 / TM6-T / TM12 / TM12-2 / TM13 / TM13-T /
TM14 / TM15
UTB (AT017-300)
8. GENERAL DIMENSIONS

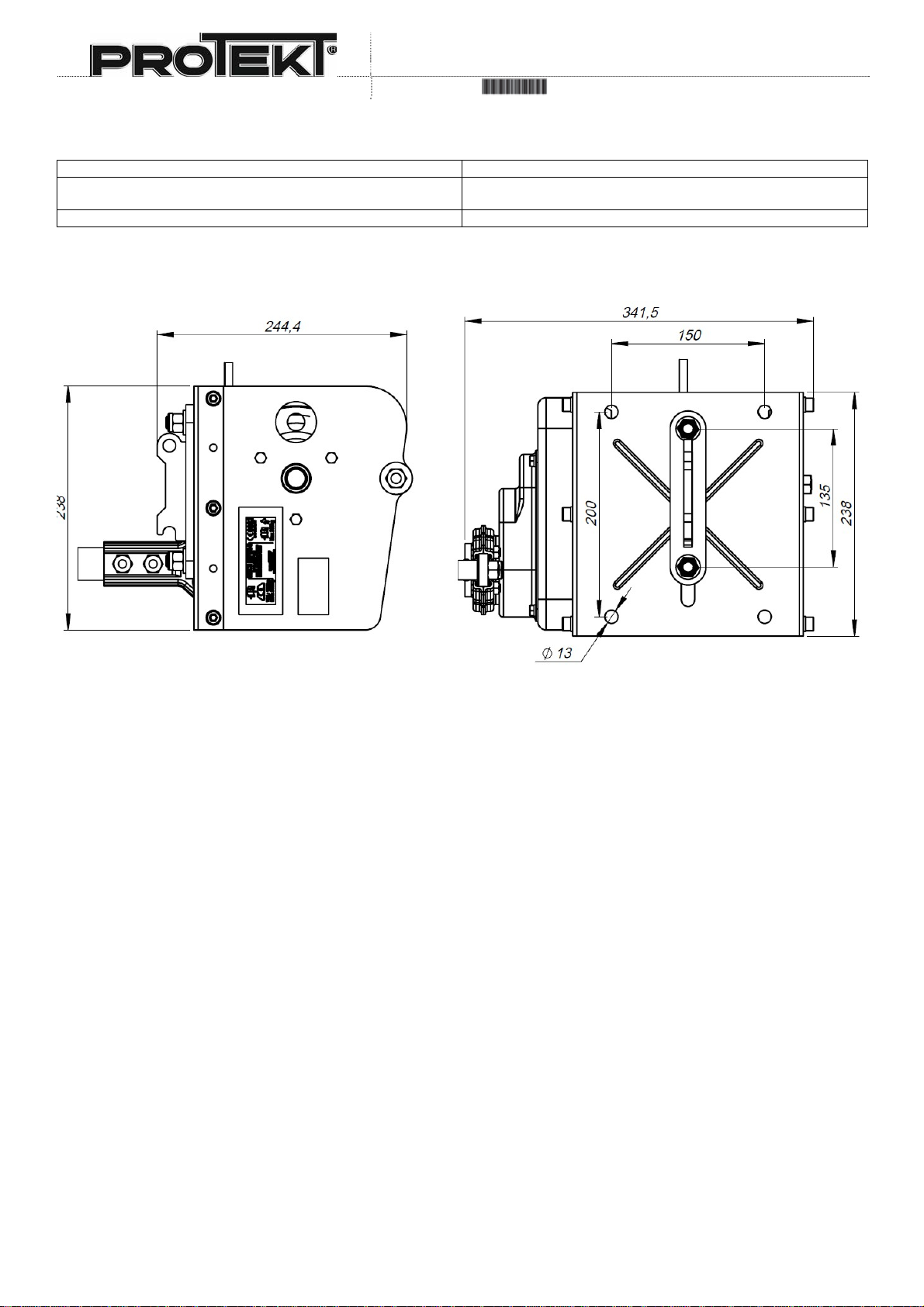

Figure 3 – Overall dimensions of device

USE AND INSTALLATION MANUAL
0001268 edition: 1/22.03.2021
Page 4 of 8
9. MARKING
Marking:
a) Name/ type of device.
b) Device model designation.
c) Reference number.
d) Number/year/class of European standard.
e) CE mark and number of notified body controlling
manufacturing of the equipment.
f) Month and year of manufacture.
g) Serial number of device.
h) Attention: read instruction manual.
i) Marking of manufacturer or distributor of the device.
j) Maximum number of simultaneous users
Figure 6 – “Next inspection” sticker
“Next inspection” sticker should be affixed near identity label
and it is necessary to mark month and year of the nextperiodic
inspection. Do not use the device after this date.
Attention: Before the first use, mark the date of next
inspection (date of first use + 12 months, e.g. first use 01.2013
– mark 01.2014). “Next inspection” sticker affixed near identity
label.
Figure 5 – Location of markings
Figure 4 – Identity label of
device

USE AND INSTALLATION MANUAL
0001268 edition: 1/22.03.2021
Page 5 of 8
10. INSTALLING RUP503-U
a) Install the device in socket of the universalholder and
secure with automatic pin.
b) When using the device for evacuation of personnel
(in accordance with EN 1496:2017/B) additionally
use energy absorber SDW mounted using AZ011 at
the end of work rope.

USE AND INSTALLATION MANUAL
0001268 edition: 1/22.03.2021
Page 6 of 8
11. GENERAL SAFETY RULES Periodically examine connections and fitting of
components of the equipment to prevent any accidental
loosening or disconnection.
• it is forbidden to use a combination of the equipment
where function of any one component is affected by, or
interferes with the function of any other.
• before each use of personal fall protection equipment, a
pre-use check should be carried out to ensure that it is in
a serviceable condition and operates correctly.
12. ESSENTIAL PRINCIPLES FOR USE OF
PERSONAL FALL PROTECTION EQUIPMENT
• For rescue operation with descending use a descender
device for rescue compliant with EN 341.
• The device must be used in accordance with instruction
manuals of personal fall protection equipment and
standards:
EN 361 - full body harnesses
EN 352-3; EN 355; EN 360 - personal fall protection
equipment
EN 362 - connectors
EN 795 / TS16415 - anchor points
• personal fall protection equipment should be used onlyby
personnel trained in its use.
• personal fall protection equipment must not be used by a
person with medical condition that could affect safety of
the equipment user in normal and emergency use.
• prepare a rescue plan to be implemented whenever
necessary.
• it is forbidden to make any alterations or additions to the
equipment without prior written consent given by the
manufacturer.
• any repair shall only becarried out by manufacturer of the
equipment or an authorised representative.
• personal fall protection equipment shall not be used for
any purpose other than intended.
• personal fall protection equipment provides individual
protection and shall be used by one person only.
• before each use make sure that all parts of fall protection
system cooperate correctly.
• in particular, inspect all accessible elements of the
equipment for any damages, excessive wear, corrosion,
abrasion, cutting or improper function. For individual
devices pay particular attention to:
in full body harnesses and work positioning devices:
buckles, regulating elements, attachment points
(buckles), webbings, seams, belt loops;
in energy absorbers: attachment loops, webbings,
seams, housing, connectors;
in lanyards and textile guides: rope, loops, thimbles,
connectors, regulating parts, splices;
in lanyards and steel guides: rope, wires, clamps,
loops, thimbles, connectors, regulating parts;
in retractable type fall arresters: lanyard or webbing,
retractor and locking mechanism for proper
operation, housing, energy absorber, connectors;
in guided type fall arresters: body, proper guiding,
locking mechanism forproperoperation,rollers,bolts
and rivets, connectors, energy absorber;
in connectors (snap hooks): load-bearing body,
rivets, main pawl, locking mechanism functionality.
• at least once a year, after each 12 months of use,
personal fall protection equipment must be
withdrawn from use to carry out periodic detailed
inspection. Periodic inspection can be carried out by
a person who is responsible for periodic inspections
in user’s organisation and properly trained in this
respect. Periodic inspections can be carried out also
by the manufacturer of the equipment or his
authorized representative, or an authorized
company. Inspect in detail all accessible elements of
the equipment paying attention to any damages,
excessive wear, corrosion, abrasion, cutting or
incorrect function (see the above item.) In some
cases, if fall protection equipment has a complex
design (e.g. fall arresters), periodic inspections can
be carried out by manufacturer of the equipment, or
his authorized representative only. After the periodic
inspection, date of the next inspection should be
marked.
• Regular periodic inspections are essential in respect
of the equipment condition and safety of users which
is dependent on functionality and durability of the
equipment.
• during periodic inspection it is necessary to check the
legibility of all markings on the equipment (identity
label of the device).
BEFORE OPERATION MAKE SURE
THAT WORK ROPE IS NOT
DAMAGED
INSPECT THE FUNCTION OF
FRICTION BRAKE
DURING RESCUE USE SPRING-
TYPE ENERGY ABSORBER SDW

USE AND INSTALLATION MANUAL
0001268 edition: 1/22.03.2021
Page 7 of 8
• all information on fall protection equipment (name,
serial number, date of purchase and date of first use,
name of user, information on repairs and inspections
and withdrawal from use) must be provided in the
Identitycard of the device. It isresponsibilityof user’s
organisation to provide the Identity card and to fill in
the required details. The Identity card should be filled
in by a person in charge of personal fall protection
equipment in user’s organisation. It is forbidden to
use personal fall protection equipment if the Identity
card is completed.
• if the equipment is re-sold outside the original
country of destination the reseller must provide
instructions for use, for maintenance, for periodic
inspection and for repair in language of the country
where the product is to be used.
• Personal fall protection equipment must be
withdrawn from use immediately if any doubts arise
in regard of its condition, or proper operation. The
equipment must not be used until manufacturer of
the equipment carries out a detailed inspection and
gives his written consent to use the equipment again.
• Personal fall protection equipment must be
withdrawn from use immediately and destroyed if it
has been used to arrest a fall.
• full body harness is the only admissible device to be
used to support the user’s body in personal fall
protection equipment.
• in full body harness, to attach a fall protection system
use only attachment points (buckles, loops) marked
with capital letter “A”.
13. WARRANTY
The manufacturer grants a warranty for 12 months
from the date of purchase of the device. If a defect is found in
any part, the warranty and guarantee period for this part is
extended by the time of repairs and effective removal of the
defect found.
The warranty covers:
• Defects in material,
• Defects in workmanship,
• Anti-corrosion coating defects
According to EN 365, personal protective equipment
against falls from a height shall be subject to periodic
inspections carried out at least every 12 months. Periodic
inspection shall be carried out by the manufacturer’s
authorized service point located at the following address:
PROTEKT Grzegorz Łaszkiewicz
ul. Starorudzka 9
93-403 Łódź
or person trained in inspections of such equipment.
A trained person is a person who, based on own
specialized education and adequateexperience, has sufficient
knowledge in installed protective and rescue equipment, and
is familiarized with applicable OHS regulations, guidelines
and generally acknowledged technical rules to such extent
that is able to assess safety of use and correct application of
devices.
Before each use of the system check whether date of
the next inspection is not expired. Do not use the device after
this date. Before each use of the system visually check the
system for its integrity and technical condition and whether
steel cable is tensioned.
If any defect or lack of integrity is found, do not use the
point. If any doubts arise as regards the use of the
equipment, please contact the manufacturer and never repair
the equipment on your own!
A system which has been used to arrest a fall must be
withdrawn from use immediately!
The system which has been used to arrest a fall may
be admitted for use again after a detailed inspection is carried
out by the manufacturer or an authorized service point.
When using the system, pay special attention to risks
affecting operation of the personal fall protection equipment or
the user’s safety,and in particular tokinks and rope movement
on sharp edges, oscillatory falls, electricity, influence of
extreme temperatures, equipment damage, adverse
environmental factors, chemical substances and
contamination.
Neither modify, repair components of the system nor
replace them with non-original spare parts.

USE AND INSTALLATION MANUAL
0001268 edition: 1/22.03.2021
Page 8 of 8
14. IDENTITY CARD
IDENTITY CARD (compliant with EN365)
Reference number
of device RUP503-U
Serial number:
……………………….
Date of first use
(installation)
………………….
Date of manufacture:
………………………..
Place of installation
………………………………………………………………………………………………
………………………………………………………………………………………………
User name:
………………………………………………………………………………………………
………………………………………………………………………………………………
Inspection and repair record
No.
Date of
inspection Type of
inspection / repair
Remarks
Date of next
inspection Name and signature of
service technician
1
2
3
4
5
6
7
8
9
10
