prowarm ProTouch Wifi Guide

Smart Thermostat
INSTRUCTION MANUAL
& USER GUIDE

Frost symbol
Key lock indicator
WiFi
Floor Temp
Room Temp
Set
Flame symbol
Temperature
Program Parameter edit
Holiday Parameter edit
Clock Parameter edit
Day indicator
Period indicator
Holiday left
Hold left
Clock
Degrees Celsius
Fahrenheit
Floor limit symbol
Advanced Setup
Hold parameter edit
TEMP
HIGH
SET
ROOM TEMP
FLOOR TEMP
HOLD
h
HOLIDAY
EDIT
SAT
FRITHU
WED
MON TUE SUN
WAKE LEAVE RETURN SLEEP LEFT
HOLIDAY HOLD SETUP
Smart Thermostat
Confirm DownUpReturn Power
DISPLAY SYMBOLS

THERMOSTAT DESCRIPTION

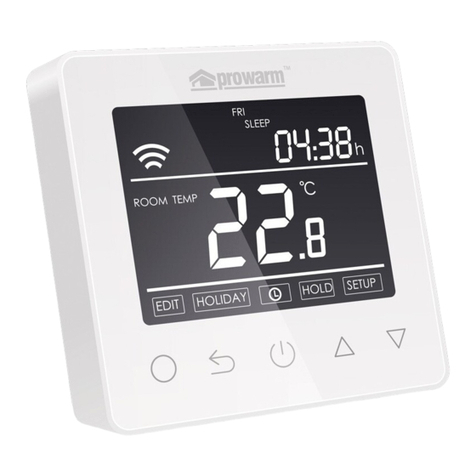

The new ProTouch WiFi is a smart thermostat used to control your electric floor heating system or water
heating system. It will keep your home at comfortable temperature whilst minimizing energy use. Install the app
on your smart phone to control your heating system remotely with the WiFi thermostat.
THERMOSTAT DESCRIPTION
TECHNICAL SPECIFICATION
Supply voltage: 50/60Hz 220-240V AC
Max load: 3A
Standby power: ＜2W IP rating: IP21
Max wire diameter: 侑2.5mm²
MAIN FUNCTIONS
Key-lock
Open window detection
Off time frost protection
Floor temperature limitation
Optimum start
Power consumption
monitor (in APP)
Holiday function
Time display
Hold function
TH
TEC
Sup
M
a
x
Stan

INSTALLATION AND WIRING INSTRUCTIONS
Loosen fixing screw
located in the bottom of
the thermostat to get the
front panel.
Connect the
thermostat
according to the
Wiring Instruction.
Insert the back
panel into wall box
with provided
screws.
Align top part of front
panel and back panel to
fit these two parts. Then
fix them with screw.
NOTE: Thermostat should be mounted in a 35mm deep single gang back box
12
43

WIFI CONNECTION
Step 1
Scan the QR code through mobile browser or download the App from APP Store or Google Play
Step 2
Log in or sign up the
APP through Phone No.
or your Email address
Step 3
Click “Add Home”,
fill in the information
about the Home
Step 4
Click “+” on the top-right corner of
the screen.Then click “WiFi Devices”
on the top-right corner of the screen

WIRING INSTRUCTIONS
Ensure power is disconnected when wiring!
MAX LOAD: 16A
SENSOR
L1N1 N L
FLOOR
SENSOR
POWER
85V-265V
50/60Hz
IP 21
N1 NLL1 S2 COM S1
POWER
FLOOR SENEOR
Suggestion: Please keep the max load around 90% of 16A to prolong the lifetime.

Step 5
Set the thermostat
based on APP’s
instruction. Then click
the bottom button
Step 6
Log in WiFi password
and click the button to
continue.
Step 7
When connection is
done, Click “Done”
or make a new name
for your thermostat
Step 8
You can check the
actual temp, change
the set temp and
other operations on
the control interface.
‘ProTouch WiFi’ app available from....

FUNCTION & USER OPERATION
Press to turn on/off
Note: When frost protection mode is active, the thermostat will maintain the frost protection temperature
when in power ‘off’ mode.
Temporarily override temperature
In normal timed power ‘on’ mode, press
△ or ▽ to
change the current period temperature setting. The new
set temperature will flash for 30 seconds. The
thermostat will revert to the normal programmed setting
at the start of the next time period.
Key-lock
Setting Key-lock can prevent children and others from
switching thermostat parameters. In normal timed
power ‘on’ mode, press for 3 seconds to lock the
thermostat and again for 3 seconds to cancel.
Set the Time
In normal timed power ‘on’ mode, Press
Oand the CLOCK symbol will flash.
Press O again to enter day set.
Press
△ or ▽ to set day.
Press O to confirm and enter hour set.
Press
△ or ▽ to set hour.
Press O to confirm and enter minute set.
Press
△ or ▽ to set minute.
Press O to confirm then press to
revert to normal screen.
Note: The WiFi version updates the time
automatically when connected to internet.

Holiday mode
The thermostat will maintain frost protection
temperature until the holiday days ends.
In normal timed power ‘on’ mode, press O to
enter setting.
Press
△ or ▽ to select HOLIDAY.
Press O to enter holiday days set.
Press
△ or ▽ to set holiday days .
Press O to confirm and return to the normal
screen.
Note: In holiday mode, ‘HOLIDAY LEFT’ and
the days remaining will show on display.
Set the holiday days to 0 to cancel holiday
mode.
Hold mode
The thermostat will maintain the ‘hold temperature’
until the hold time ends.
In normal timed power ‘on’ mode, press O to enter
setting.
Press
△ or ▽ to select HOLD.
Press O to enter hold time set.
Press
△ or ▽ to set hour.
Press O to enter minute set.
Press
△ or ▽ to set minute.
Press to enter hold temperature set.
Press
△ or ▽ to set hold temperature.
Press O to confirm and return to the normal screen.
Note: In hold mode, ‘HOLD’ will show on display.
Set the hold time to 00:00 to cancel hold mode.

Timer setting
Each day of the week has 4 time periods,you should allot a temperature to each time period. Set the
temperature above room ambient temperature and the heating will come on until the desired temperature is
reached, or, set the temperature low and the heating will not come on during that time period. The default
settings are shown in the table below.
In normal timed power ‘on’ mode, press O to enter setting.
Press
△ or ▽ to select EDIT.
Press
△ or ▽ to select the day to be set.
Press
△ or ▽ to select the period to be set.
Press
△ or ▽ to select start time hour.
Press
△ or ▽ to select start time minute.
Press
△ or ▽ to select temperature.
Press O to enter day selection.
Press O to enter period selection.
Press O to enter start time set.
Press O to enter minute set.
Press O to enter temperature set.
Press O to confirm and move on to next time period.
Press to revert to normal screen.
Period parameter table (Default)
Mon - Fri 07:00 22삸08:30 19삸
08:30 22삸
17:00 22삸22:00 19삸
22:00 19삸
17:00 22삸
08:00 22삸
Sat - Sun
Day Wake Leave Return Sleep

42
2616
87
87
51
51
60
DIMENSIONS (mm)

1
2
3
No. Name Default value Ranges
Room temperature calibration 0°C
0°C
ON
- 5°C -- 5°C
- 5°C -- 5°C
OFF/ON
Floor temperature calibration
Frost protection mode
4
5
6
7
8
9
11
5°C
30°C
00: °C
5°C -- 15°C
00: Built-in sensor
01: Floor sensor01: Floor sensor
02: Both sensors
20°C -- 50°C
00: °C
01: °F
00: 00 s
01: 30 s
02: 60 s
03: 90 s
00: 0.5°C
01: 1.0 °C
02: 2.0 °C
03: 3.0 °C
00: 7
01: 5+1+1
Frost protection temperature
Sensor selection
Floor temperature limit(both sensors)
Temperature unit
Output delay
Switching Differential
Schedule
00: 00s
01: 1.0°C
00: 7
10 00: ON
01: OFF
Reverse output 00: OFF
12 00: OFF
01: ON
Adaptive function 01: ON
13 00: No
1: YES
Reset 00: No

1. Room temp calibration: Calibrate the temp detected by room sensor.
2. Floor temp calibration: Calibrate the temp detected by floor sensor.
3-4. Frost Protection Mode: Frost protection allows the thermostat to turn on if the temperature drops
below 5 degrees even when it is not programmed to. ❄ displays when you turn off the thermostat.
5. Sensor selection:
00 Room sensor: Run by room sensor.
01 Floor sensor: Run by floor sensor.
02 Both sensors: Run by room sensor with floor temp limit.
6. Floor temp limit: If you choose both sensors, floor temp limit must be set to protect floor.
7. Temp unit: °C and °F can be selected.
8. Output delay: This option help you avoid inadvertent operation on heating.
9. Switching Differential: The number of degrees the temperature has to change before the unit switches
on/off. The default is 1 degree so if the temperature is set to 21 degrees the thermostat will switch on at 20.5
degrees and off at 21.5 degrees. 0.5 degrees either side of 21.
10.Reverse output: This function works for the cooling system. When the temp is 1°C higher than set temp,
the thermostat will disconnect the cooling system. otherwise, it will connect the cooling system.
11. Schedule: Select a weekly schedule for the Edit. There are 2 options:
7: each day from Mon to Sun can be set individually.
5+1+1: 5 days from Mon to Fri have the same events, Sat and Sun can be set individually.
12. Adaptive function: After several days of installation and use, Adaptive function ensures that the required
temp has already been reached when the next event begins.
13. Reset: All parameters are restored to default values.
ADVANCED SETTING

Open window detection
This function only works when room sensor or both sensors is selected. The thermostat with this function will
shut off automatically for 15 min when the window opens, as it can detect that the room temp plummets..
TROUBLESHOOTING
Fault Codes
E1 = Built-in sensor short-circuit or disconnected.
E2 = Floor sensor short-circuit or disconnected.
Note: Should a sensor fault display, please contact us for assistance.
ADVANCED SETTING (Please refer to table above)
Caution: These are normally set by technicians during initial installation.
In normal timed power ‘on’ mode, press O to enter setting.
Press
△ or ▽ to select SETUP.
Press O to enter advanced setting. Each parameter can be accessed by pressing O and adjust the values as
required using the arrow keys. (The default values are recommended and changing these may adversely
affect the way the thermostat works). Press to revert to normal screen.

www.prowarm.comSupport: 01268 567019
‘ProTouch WiFi’ app available from
Smart Thermostat
