HD CCTV Tester/Test Monitor
Model: HD5002
User Manual

Content
1. Safety information.......................................... 1
2. Function interface........................................... 2
3. Operation ....................................................... 5
3.1 Installing the Battery ............................ 5
3.2 General.................................................. 6
4. Feature ........................................................... 6
5. Feature introduction........................................ 7
5.1 TVI/CVI/AHD/CVBS camera test ......... 7
5.2 Coaxial PTZ control .............................. 8
5.3 RS485 control...................................... 10
5.4 EX-SDI/HD-SDI camera test............... 10
6. XVR display................................................. 11
6.1 HDMI input......................................... 11
6.2 VGA input........................................... 12
7. Cable Tester.................................................. 12
7.1 UTP Cable Tester................................. 12
7.2 Digital cable tracer (Optional) ............. 14
8. U disk reading .............................................. 16
9. Audio test ..................................................... 16
10. Setting........................................................ 17
11. Packing kits ................................................ 17
12. Specifications ............................................. 18

•Safety information
◆ The tester is intended to use in compliance with the local rules of the electrical
usage and avoid to apply at the places which are inapplicable for the use of
electrics such as hospital, gas station etc.
◆ To prevent the functional decline or failure, the product should not be sprinkled
or damped.
◆ The exposed part of the tester should not be touched by the dust and liquid.
◆ During transportation and use, it is highly recommended to avoid the violent
collision and vibration of the tester, lest damaging components and causing
failure.
◆ Don’t leave the tester alone while charging and recharging. If the battery is
found severely hot, the tester should be powered off from the electric source at
once. The tester should not be charged over 10 hours.
◆ Don’t use the tester where the humidity is high. Once the tester is damp, power
off immediately and move away other connected cables.
◆ The tester should not be used in the environment with the flammable gas.
◆ Do not disassemble the instrument since no component inside can be
repaired by the user. If the disassembly is necessary indeed, please contact with the
technician of our company.
◆ The instrument should not be used under the environment with strong
electromagnetic interference.
◆ Don’t touch the tester with wet hands or waterish things.
◆ Don’t use the detergent to clean and the dry cloth is suggested to use. If the dirt
is not easy to remove, the soft cloth with water or neutral detergent can be used.
But the cloth should be tweaked sufficiently.

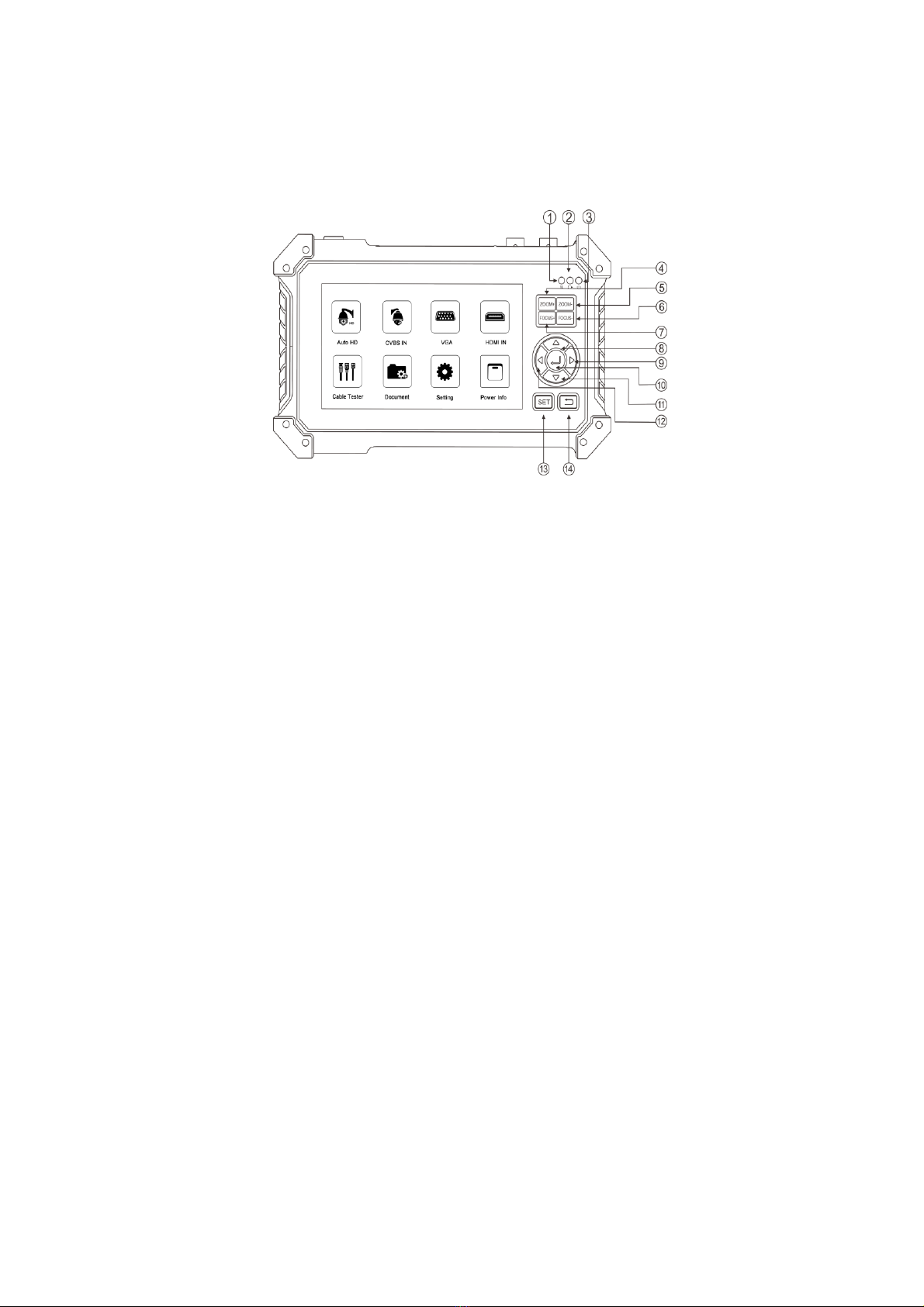

•Function interface
1_RS485 data transmission indicator: the light is red while the data is being
transmitted
2_Charging indicator: the light is red while the battery is being charged. The light
will automatically turn off if charge completed.
3_Power indicator: the light is green while the tester is turned on
4_Zoom in the image
5_Zoom out the image
6_Focus the image faraway
7_Focus the image nearby
8_Upward, select function, set parameter and tilt the PTZ upward
9_Rightward, select function, set parameter and pan the PTZ rightward
10_Confirm button, enter functions and save settings
11_Downward, select function, set parameter and tilt the PTZ downward
12_Leftward, select function, set parameter and pan the PTZ leftward
13_Setting button, enter the function parameter settings
14_Return/Close: Return and cancel the operation

15_CVBS/AHD/TVI/CVI input (BNC interface)
16_EX/HD-SDI input (BNC interface) （Optional）
17_HDMI input
18_DC 5V 1A power output, USB power bank
19_DC 12V 1A power output, temperately supply power for camera
20_ON/OFF power switch
21_LED light
22_Light power button
23_DC 5V 2A charging interface
24_RS485 Interface: RS485 communication for the PTZ
25_Audio input
26_UTP port, UTP cable tester port/ Cable tracer port (*Optional)
27_VGA input

•Operation
3.1 Installing the Battery
The tester has built-in lithium ion rechargeable battery. The battery inside battery
cabin should be disconnected for safety during transportation!
Prior to the use of the instrument, please take out the battery insulation paper.
Sliding the ON/OFF power switch can power on or off the tester.
Notice: please use 5V 2A adapter to charge when charging. Too high
voltage/current will burn the instrument!
When the battery icon is full or the charge indicator turns off automatically, indicate
the battery charging is completed.
3.2 General
The 5 inch TFT-LCD screen HD CCTV Tester is designed for maintenance and
installation of CVBS, TVI, CVI, AHD cameras, as well as HDMI input, VGA input,
Audio input, PTZ control, PING test, LED Flashlight, DC 12V 1A power output,
etc. Its portability, user-friendly design and many other functions make the CCTV
tester an essential tool for all installers or technicians.
•Feature
● 5 inch TFT-LCD screen, 800*480 resolutions
● RS485 PTZ control, baud 600-115200bps, compatible with more than 30
protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, coaxial PTZ control & call OSD
menu
● 8MP AHD test, 3840x2160P 15 FPS, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, coaxial PTZ & call OSD menu

● 8MP EX-SDI test, 3840 x2160P 25/30FPS, coaxial PTZ & call OSD menu
(*Optional)
● HD-SDI test, 1920 x1080P 25/30/50/60 FPS, coaxial PTZ & call OSD menu
(*Optional)
● 3G-SDI test, 1920 x1080P 50/60 FPS, coaxial PTZ & call OSD menu
(*Optional)
● CVBS camera test, PTZ controller
● DC12V/1A power output, camera can be powered from DC 12 Voltage.
● DC 5V 1A power output, support reading USB disk
● Audio in, support record and save the audio.
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity
test, can save testing report, if special number, need customized. Can detect the
near-end, mid-end and far-end fault point of RJ45 cable connector
● Digital Cable tracer, search BNC cable, network cable and telephone cable from
the mess cables. Cable tracer and UTP cable test app in the same
interface(*Optional)
● 3.7 V /5200mAh Li-ion Battery, after 4 hours charging, working time lasts 6.5
hours
•Feature introduction

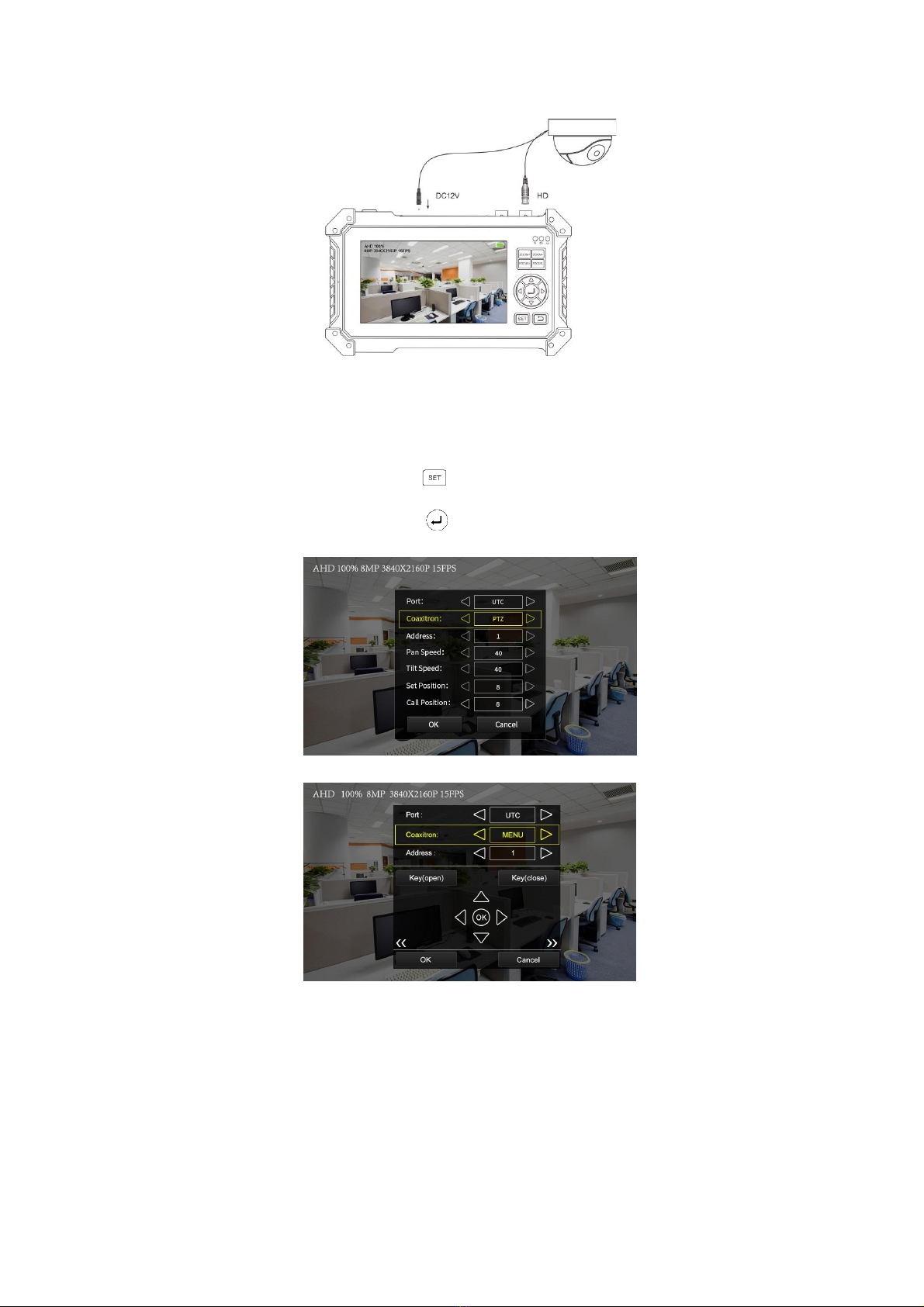

• TVI/CVI/AHD/CVBS camera test
Connect camera to “AHD/CVI/TVI” port, enter “Auto HD” app. Can auto
recognize AHD/CVI/TVI/CVBS signal and display the image, as well as display
the camera type and frame.

• Coaxial PTZ control
When enter “PTZ” option, press key switch to “menu setting”, and switch to
“key (open)” or “OK” option, press key to call out the camera main menu.

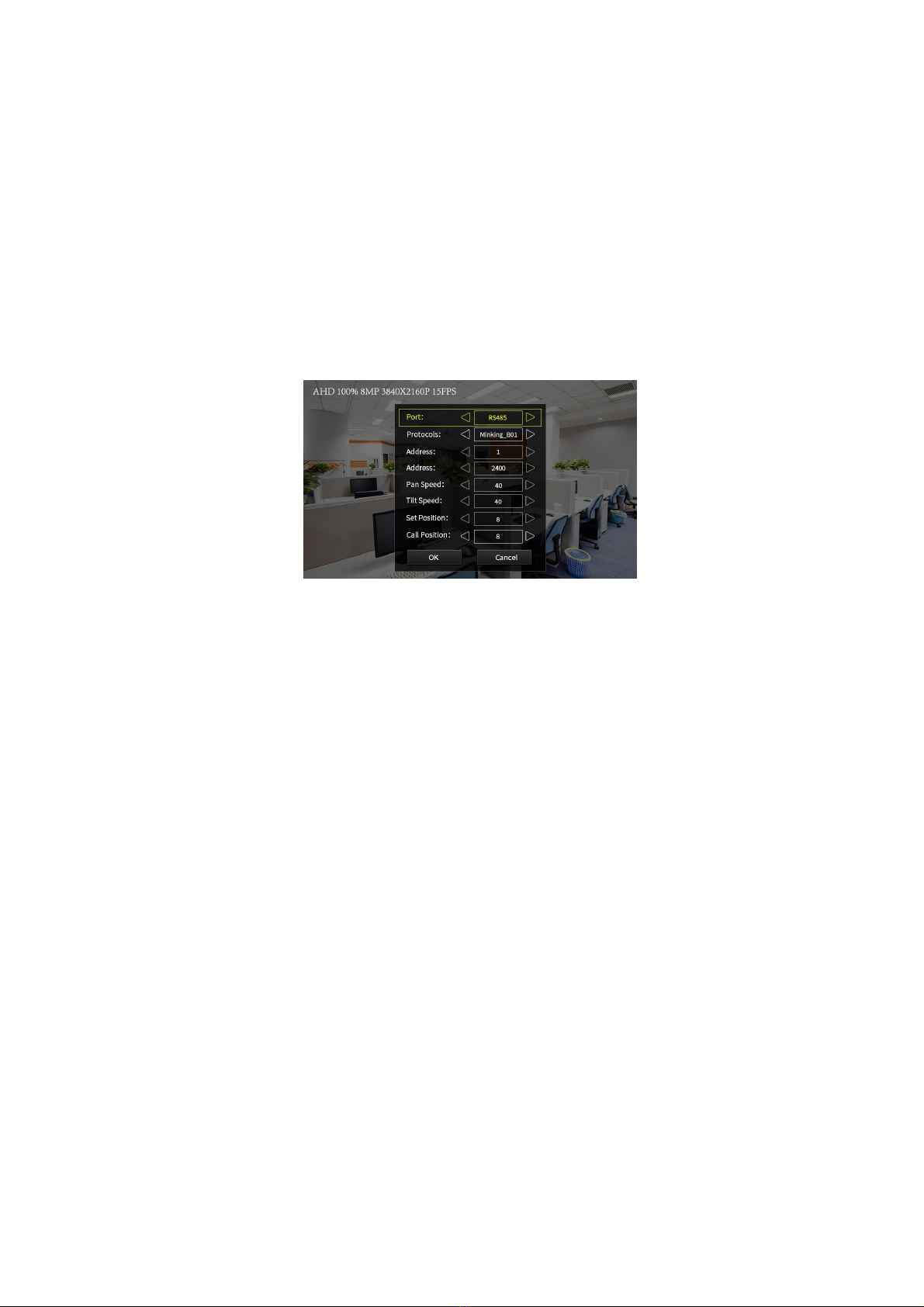

• RS485 control
Support RS485 control, baud 600-115200bps, compatible with more than 30
protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. Can set PTZ
pan speed and Tilt speed, call set preset position. In the Auto HD/CVBS IN
interface, press “SET” , can set RS485 protocol, Port, Baud, Address, PTZ, etc.
• EX-SDI/HD-SDI camera test
Connect camera to “SDI” port, enter “Auto HD” app, and select “SDI” to enter
SDI interface, can display the camera image, and will display the resolution and
frame rate in top-left corner, support up to 4K/8MP 3840x2160p 25/30fps EX-SDI
camera test, coaxial PTZ, call OSD menu and RS485 control.
•XVR display
• HDMI input
Connect one end of HDMI cable to Tester’s “HD IN” port, other end connect to
XVR’s “HDMI” port, enter “HDMI input” app, can receive the real-time
audio and video signal from XVR, and will display the resolution and frame rate in
top-left corner, support up to 4K/3840x2160p30fps resolution.

• VGA input
Connect one end of VGA cable to Tester’s “VGA” port, other end connect to
XVR’s “VGA” port, enter “VGA input” app, can receive the real-time video
signal from XVR, support up to 1920x1200 resolution.
•Cable Tester
•UTP Cable Tester
Connect one end of LAN cable or telephone cable to Tester’s UTP/SCAN port,
other end connect to the UTP port of Cable tester or cable tracer (*optional).
Cable tester can test cable sequence, continuity and cable type, can detect near /
medium / far end fault of RJ45 cable connector, display the number of the remote
kit (Remote default No.255).

Visual judgment of network cable availability:
All sequence of cable is correct, generally corresponds to Gigabit straight/cross
network cables.
Cable sequence is wrong, but the cable is still available, generally corresponds
to 100M straight-through/cross network cable.
All sequence of cable is wrong, not available.
Meter-end/cable tester-end fault location:
Tester-end/cable tester-end display “x”, it means the RJ45 cable connector or
within 1 meter from the RJ45 cable connector is faulty.
The middle part of sequence display “x”, it means the RJ45 cable connector at
the end of Tester/Cable tester is normal, and there is a breakpoint 1 meter away
from the RJ45 cable connector.

The middle part of sequence is not communicated and not display “x”, it means
the RJ45 cable connector at the end of Tester / Cable tester is faulty, and the middle
of the cable is normal.
Tester-end can perform RJ45 cable connector fault detection even when the remote
end is not connected to the cable tester’s UTP interface.
• Digital cable tracer (Optional)
Press key button, to enter “Cable Tester” and select “Cable tracer” app.
Connect UTP cable or telephone cable to tester bottom port “UTP/SCAN”, or
use adapters and cables to connect other cables, such as BNC cable. Or use BNC
adapters and alligator clamp cable to connect BNC cable etc.
Note: If use BNC adapters and alligator clip cable to connect BNC cable etc. Please
select to “BNC mode”, if connect shielded cable, please select “STP mode”.
Locate cables: Arrow keys to switch mode, “UTP mode” to looking for unshielded
network or telephone cables, “BNC mode” for finding BNC cable after connecting
adapter. “STP mode” is used to find the shielded network cable. Turn on the cable
tracer. The round knob, if clockwise rotation the knob to increase sensitivity, and
turn it counter clockwise to decrease the sensitivity.

Silent mode: Press the key “MUTE” for 2 seconds and will make a sound “Di” to
start.
In silent mode, locate cable according to the indicator signal of 1-8. Press the
"MUTE" key again to exit silent mode.
Cable sequence test: When search cable, also can test UTP cable sequence.
Through the indicator to check cable sequence whether is correct. If the indicator is
“ON”, it means the cable sequence is correct.
•U disk reading
Insert U disk to Tester’s “USB” port, enter “Media player” app, can read the
image, music, video and documents. And also support DC 5V 1A power output, as
power bank.
•Audio test
Connect pickups or other Audio equipment to tester’s bottom port “Audio in”,
you can test the audio input from audio pickup devices by connecting the audio
pickup device to the CCTV tester with the supplied audio cable.

•Setting
Language: Select your desired language: English, Korean, Russian, Italian, Polish,
Spanish, French, Japanese, Deutsch,Turkish, Portuguese, Czech, Serbian,etc.
Brightness/Contrast/Colour: Set the image brightness of Auto HD, CVBS, VGA
and HDMI input
Backlight: Set the desired brightness of the CCTV tester
Volume: Set volume level
PTZ address scan: You can toggle the PTZ Address scan off or on before entering
the “ PTZ controller” app. This needs to be turned on in order to use the PTZ Scan
feature of the PTZ app.
Power on status: Set the instrument to power on and enter the program directly. It
can set the main screen/Auto HD/SDI/CVBS in/VGA/ HDMI in, etc
•Packing kits
1. Tester
2. Network cable tester
3. Adaptor DC5V 2A
4. RJ45-BNC converter (Only for cable tracer)
5. Li-ion battery (3.7V DC 5200mAh)
6. Tool bag /DC Power cable/BNC cable/RS485 cable/Audio cable
7. Safety cord/Wrist belt
8. Manual

•Specifications
Model
HD5002
Display
5-inch TFT-LCD screen with 800*480 resolution
CVI video
signal test
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control /
call OSD menu
TVI video
signal test
8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/
call OSD menu
AHD video
signal test
8MP AHD camera test, 3840 x 2160P 15FPS, UTC control / call
OSD menu
SDI video
signal test
(* Optional)
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu*
Auto HD
Auto HD app, auto recognize HD coax camera type and
resolution, support coaxial PTZ & call OSD menu
HDMI input
1 channel HDMI input, support 4K 30FPS. The resolution as
follow:4K_3840*2160
/2K_2560*1440P/1920×1080p /1920×1080i/ 720×480p /720×576p
/1280×720p/1024×768p/
1280×1024p /1280×900p /1440×900p, etc
VGA input
1 channel VGA input, support 1920 x 1200P 60FPS. The
resolution as follow: 1920 x 1200P /1920×1080P/1400×
1050P/1600x 1200P /1600x
900P/1440x900P/1360x768P/1280x1024/1280x960/1280x800/128
0x768, etc
CVBS video
signal test
1 channel BNC input, NTSC/PAL (Auto adapt),
PTZ control, RS485 control, Baud 600-115200bps, compatible
with more than 30 protocols such as PELCO-D/P, Samsung,
Panasonic etc
Digital Cable
tracer (*
Optional)
Search BNC cable, network cable and telephone cable from the
mess cables. Cable tracer and UTP cable test app in the same
interface *
UTP cable test
Test UTP cable connection status and display on the screen. Detect
the near-end, mid-end and far-end fault point of RJ45 cable
connector.
DC 12V/1A
power output
DC12V/1A power output, supply temporarily power for the
camera
5V 1A power
output
5V 1A power output, support reading USB disk
Audio test
1 channel audio signal input, test the audio whether is normal
Power

Battery
Built-in 3.7V Li-ion battery, 5200mAh
Rechargeable
After charging 4 hours, normal working time 6.5 hours. The
maximum charging current of the battery is 1.67A, and 5V 2A
charger is standard.
Parameters
Operation
setting
OSD menu, select your desired language: English, Korean,
Russian, Italian, French, Polish, Spanish, Japanese, Deutsch,
Turkish, Portuguese, Czech, Serbian, etc
General
Working
Temperature
-10℃ ～ +50℃
Working Humidity
30%-90%
Dimension/Weight
184mm x 110mm x 41mm / 0.4Kg
Note: Digital cable tracer is optional function and not including, if added, need
pay extra cost.
Comparison Table:
Features/ Model
5 inch tester +
Analog +TVI CVI
AHD+VGA input
+ HDMI input
5 inch tester
+Analog+ TVI CVI
AHD+SDI/EX
SDI+VGA input +
HDMI input
8MP AHD
√
√
8MP TVI
√
√
8MP CVI
√
√
HD-SDI/3G-
SDI/EX-SDI 2.0*
x
√
HDMI INPUT
4K 30 FPS
√
√
VGA IN
√
√
Digital Cable
tracer*
Optional
Optional
Upgrade UTP cable
test, check fault of
RJ45 cable
connector
√
√
The data above is only for reference and any change of them will not be informed in
advance. For more detailed technical inquiries, please feel free to contact our
technical department.
