PROGRAMMABLEDIGITAL
STORAGEOSCILLOSCOPE
DCS-8200
INSTRUCTION MANUAL
KENWOODCORPORATION
KENWOOD
©PRINTEDINJAPAN B63-0059-10(N)
16312

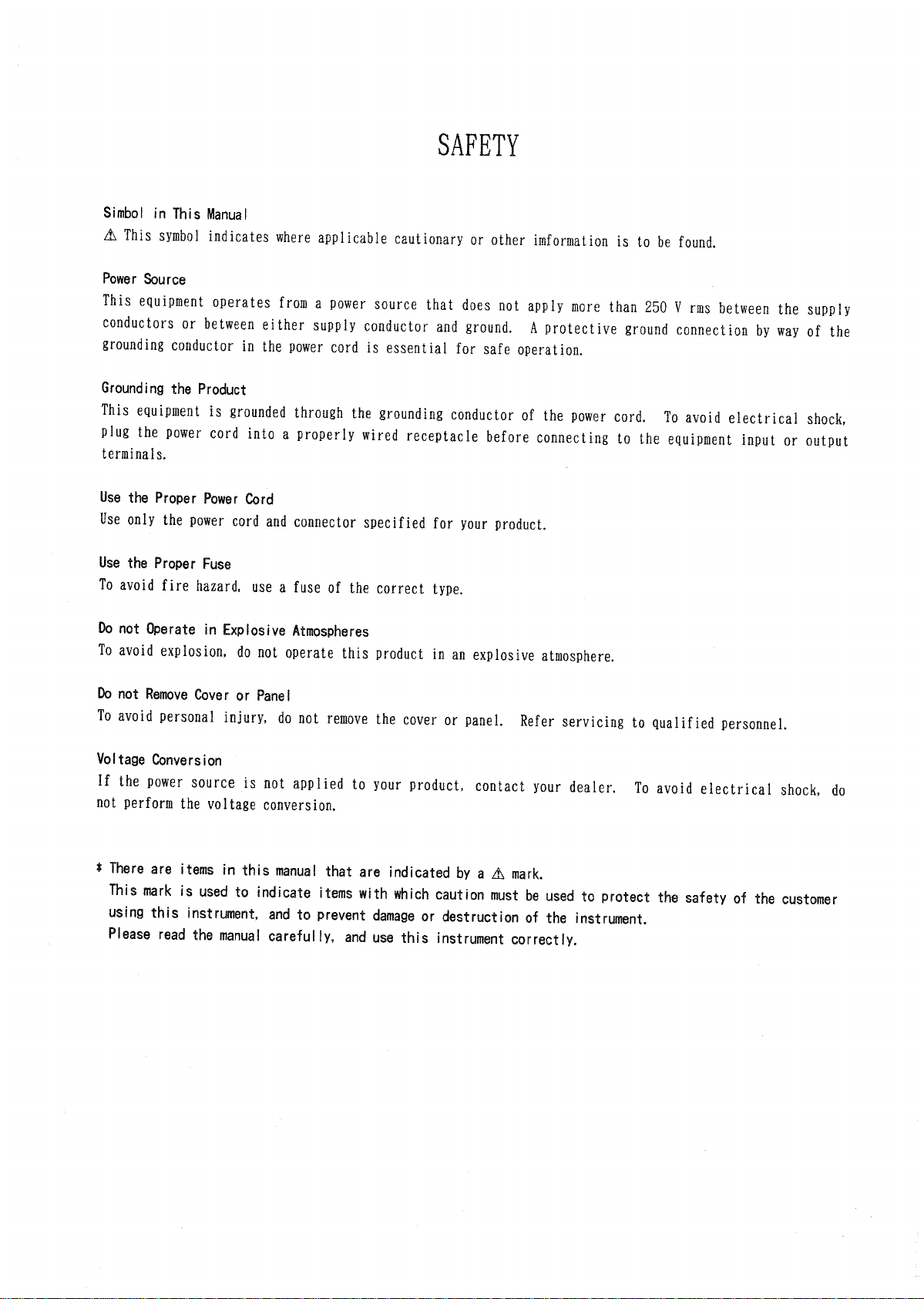

SAFETY
Simbol inThis Manual
A This symbol indicates where applicable cautionaryorotherinformationistobefound.
Power Source
This equipment operates from a power source that does notapply more than250V rms between thesupply
conductorsor between either supplyconductorand ground. A protective ground connectionbywayofthe
groundingconductorinthe power cordis essential for safe operation.
Grounding the Product
This equipment is grounded throughthegroundingconductorofthe power cord.Toavoid electrical shock,
plugthe power cord into a properlywired receptacle beforeconnectingtothe equipment inputoroutput
terminals.
Usethe Proper Power Cord
Useonlythe power cordandconnector specified for your product.
Usethe Proper Fuse
Toavoid fire hazard,usea fuseofthe correct type.
Donot Operate inExplosive Atmospheres
Toavoidexplosion,donotoperate this productinan explosive atmosphere.
Donot Remove Cover or Panel
Toavoidpersonal injury, donot remove thecoverorpanel.Refer servicing to qualified personnel.
Voltage Conversion
If the power sourceisnotappliedto your product,contact your dealer. Toavoid electrical shock,do
notperformthevoltageconversion.
* There are items in this manual thatareindicatedbya A mark.
This mark is used toindicate items with which caution must be used toprotectthesafetyofthe customer
using this instrument, andto prevent damage ordestructionofthe instrument.
Please read the manual carefully. anduse this instrument correctly.

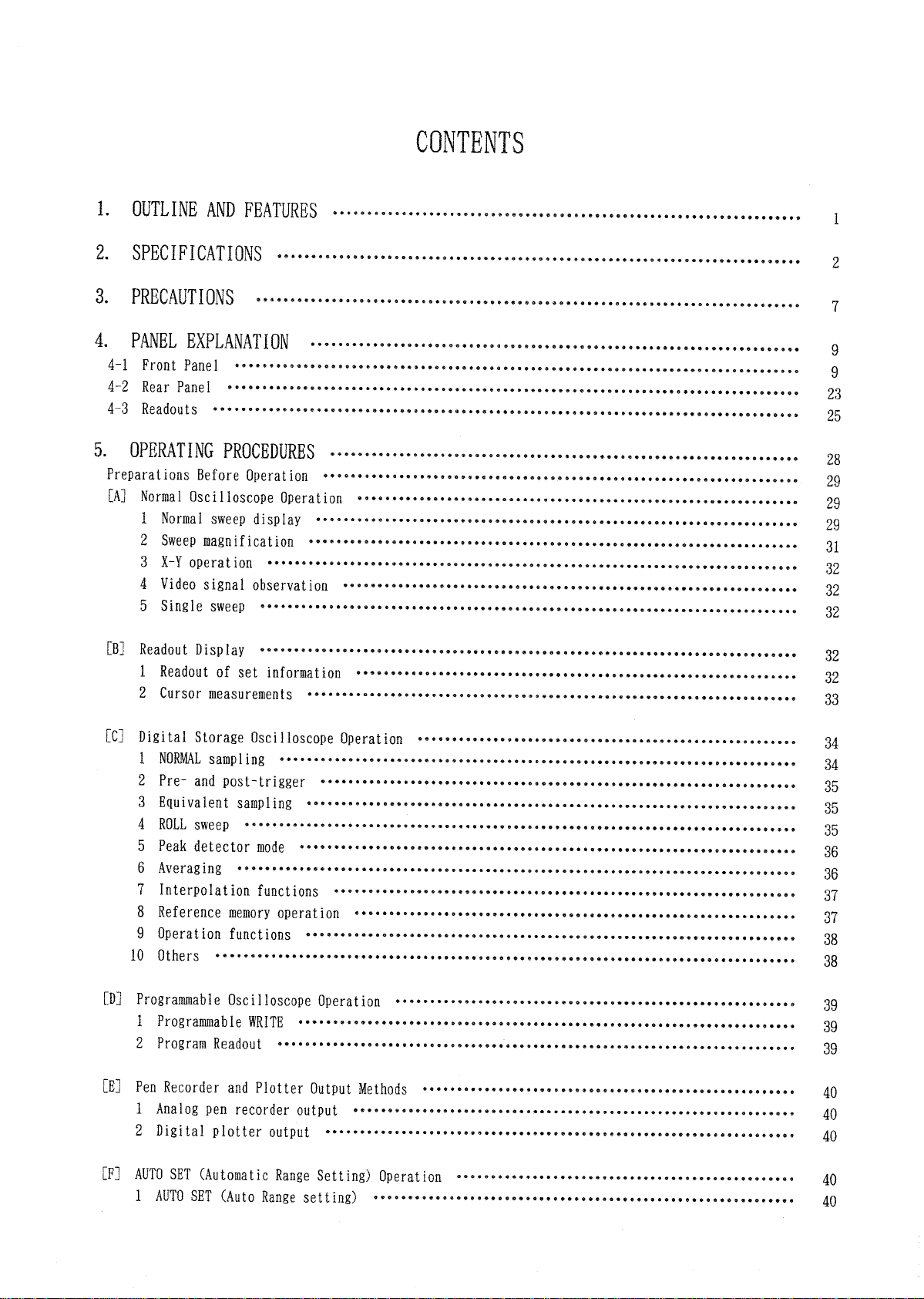

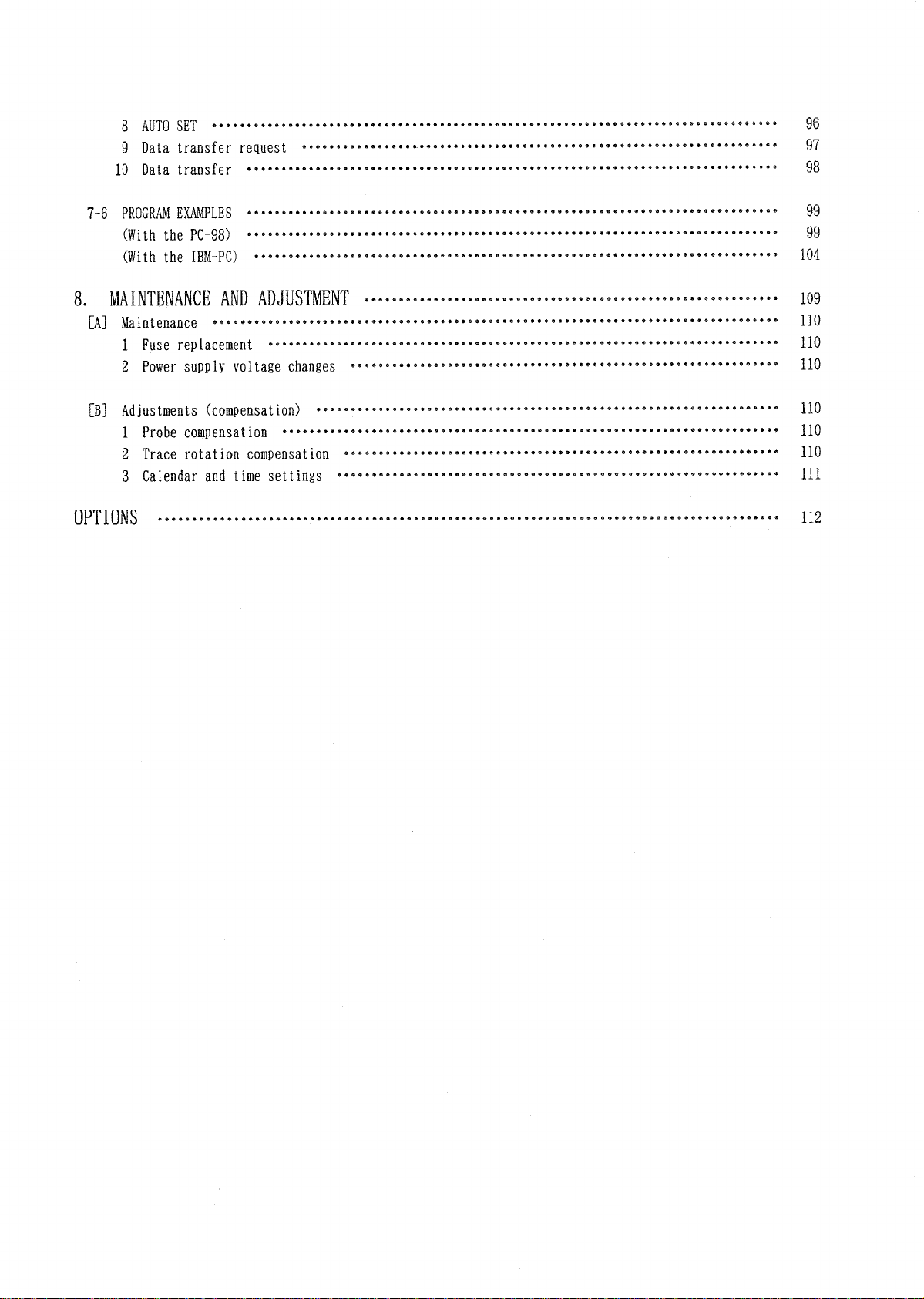

CONTENTS
1. OUTLINE AND FEATURES i
2. SPECIFICATIONS • 2
3. PRECAUTIONS • 7
4. PANEL EXPLANATION 9
4-1FrontPanel • ••• 9
4-2RearPanel • • • 23
4-3Readouts • • 25
5. OPERATING PROCEDURES 28
Preparations BeforeOperation•••• ••• 29
[A] Normal Oscilloscope Operation • 29
1 Normal sweep display • • • • • 29
2 Sweep magnification ••31
3 X-Y operation • 32
4Video signal observation • ••32
5 Single sweep • • • 32
[B] Readout Display • • • • • 32
1 Readout ofset information • 32
2Cursor measurements • • 33
[C] Digital Storage Oscilloscope Operation • 34
1 NORMAL sampling • • • 34
2Pre- and post-trigger • • 35
3 Equivalent sampling ••• • 35
4 ROLL sweep 35
5 Peak detector mode• 36
6Averaging • • • 36
7 Interpolation functions •••• 37
8Reference memory operation • 37
9Operation functions • • 38
10Others • • « 38
[D] Programmable Oscilloscope Operation 39
1 Programmable WRITE • 39
2 Program Readout • • 39
[E] Pen Recorder and Plotter Output Methods • • 40
1Analog pen recorderoutput • 40
2 Digital plotter output • • 40
[F] AUTOSET (Automatic Range Setting) Operation 40
1 AUTOSET (Auto Range setting) 40

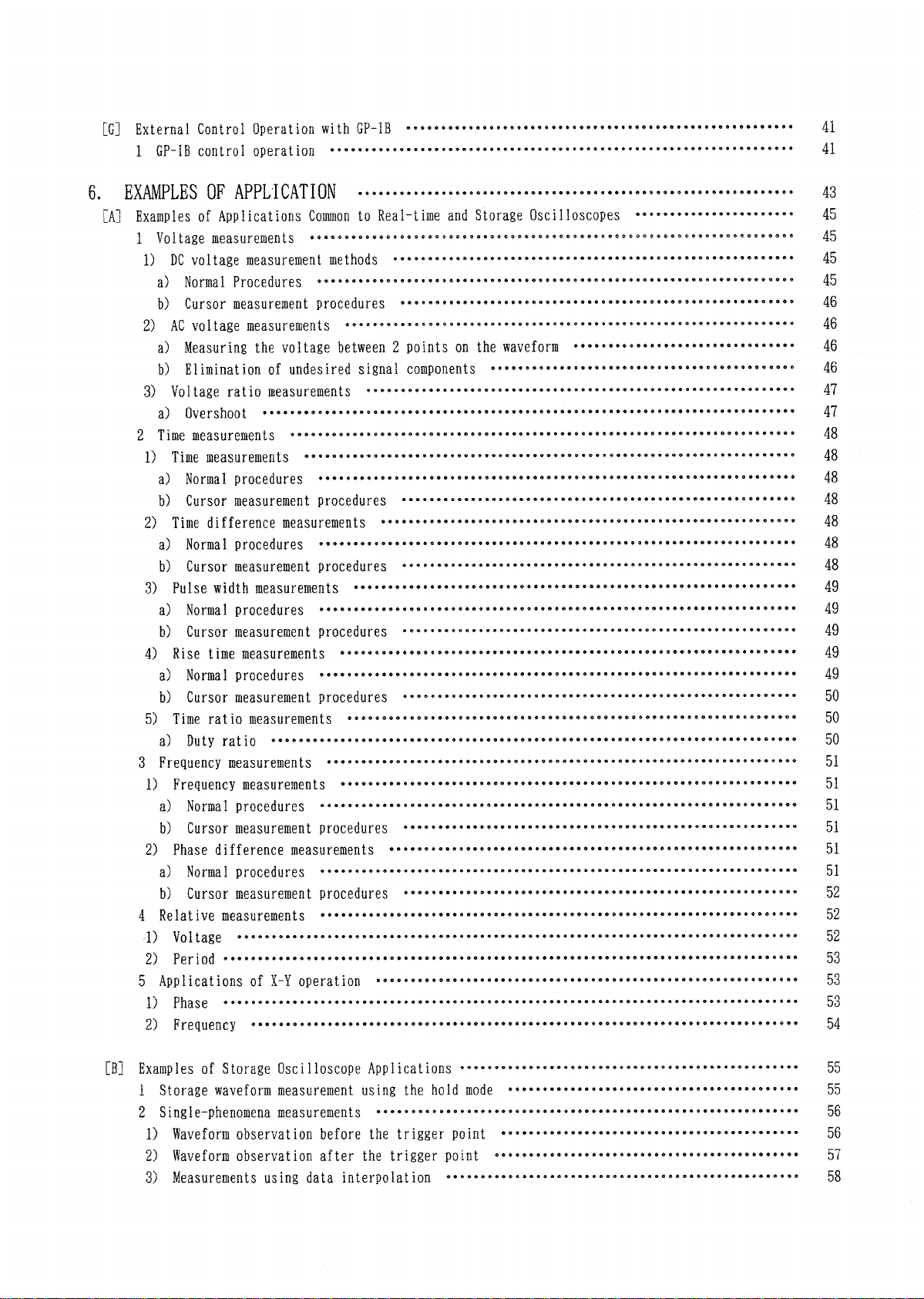

[G] External ControlOperation with GP-1B41
1 GP-IB control operation 41
6. EXAMPLES OFAPPLICATION• 43
[A] Examples of Applications Common to Real-time and Storage Oscilloscopes ••••• 45
1 Voltage measurements« • ...... <.-45
1) DC voltage measurementmethods• • ••.....45
a) Normal Procedures ••• • • •••• •••45
b)Cursor measurement procedures 45
2) AC voltage measurements•••••45
a) Measuring the voltage between2 points onthewaveform• • 46
b) Elimination of undesired signal components• 45
3)Voltage ratio measurements47
a) Overshoot • •••• 47
2Timemeasurements43
1) Timemeasurements••• • •••48
a) Normal procedures • 48
b)Cursor measurement procedures•••• ••• •••• 48
2) Time difference measurements• • • • 48
a) Normal procedures • • 48
b)Cursor measurement procedures • • • 48
3) Pulse width measurements49
a) Normal procedures • • •••• 49
b)Cursor measurement procedures•••• • • • 49
4) Rise time measurements49
a) Normal procedures • • 49
b)Cursor measurement procedures•••• • • 50
5) Time ratio measurements• •••50
a) Duty ratio • 50
3Frequency measurements• • ••••• •••• 51
1)Frequency measurements •••• 51
a) Normal procedures • • • • 51
b)Cursor measurement procedures •••51
2) Phase difference measurements• 51
a) Normal procedures • • • 51
b)Cursor measurement procedures 52
4 Relative measurements• • 52
1)Voltage•••• • • 52
2)Period • • • •••• 53
5 Applications ofX-Y operation • 53
1) Phase • 53
2)Frequency • •••54
[B] Examples of Storage Oscilloscope Applications • 55
1 Storage waveformmeasurement using the hold mode • 55
2Single-phenomenameasurements• 56
1) Waveform observationbefore the trigger point • 56
2) Waveform observation after the trigger point • • • 57
3) Measurements using data interpolation • 53

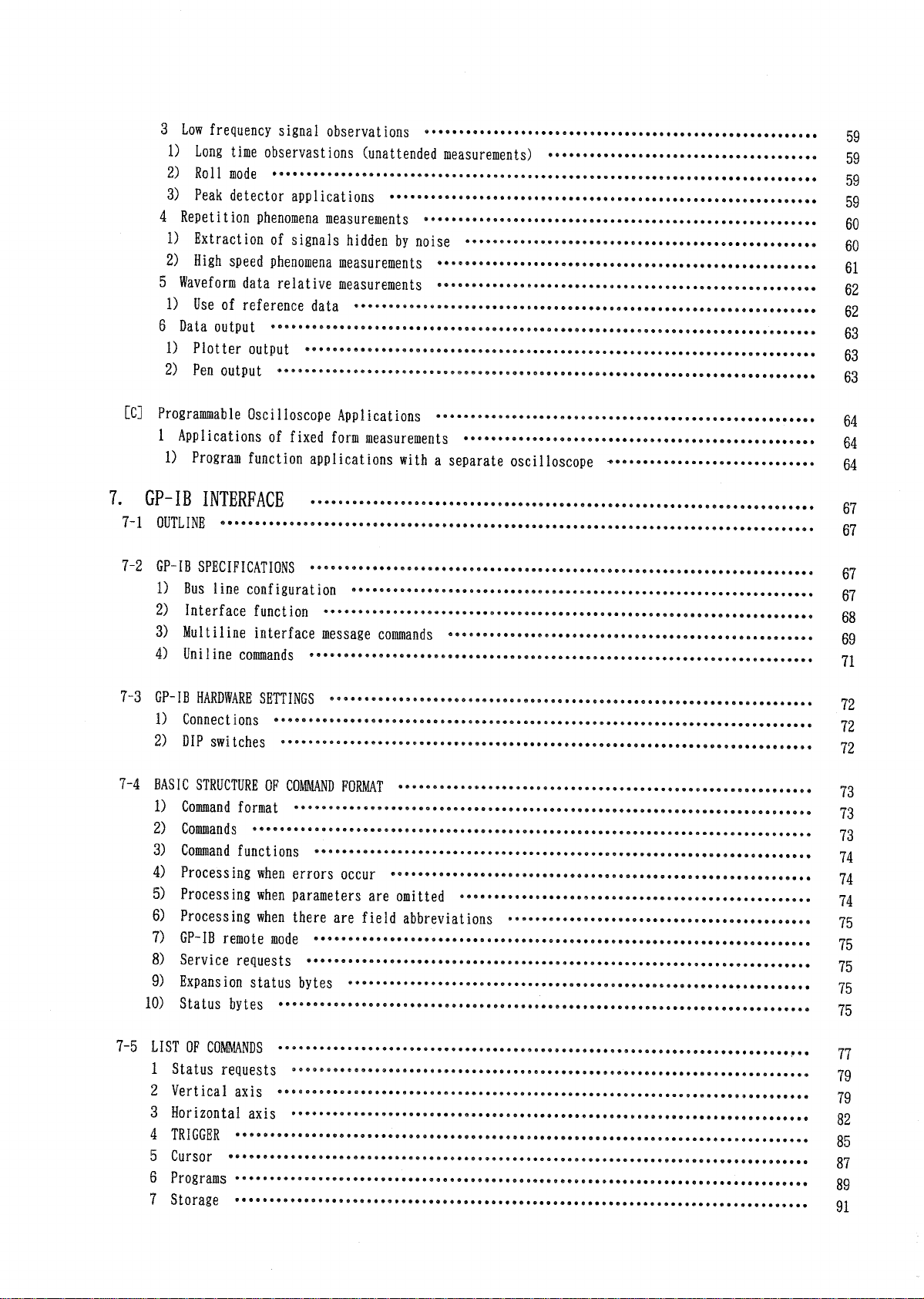

3 Low frequency signalobservations 59
1) Long time observastions (unattended measurements) 59
2)Roll mode 59
3) Peak detectorapplications • 59
4 Repetition phenomena measurements •••• 60
1)Extraction of signals hidden by noise • 60
2) Highspeed phenomena measurements • 61
5 Waveform data relative measurements • • • 62
1) Useof referencedata 62
6Data output • • • • ••• 63
1)Plotter output • 63
2) Pen output • 63
[C] Programmable OscilloscopeApplications • • 64
1 Applications of fixed formmeasurements • 64
1) Program functionapplicationswith a separateoscilloscope - 64
7.GP-IBINTERFACE 67
7-1 OUTLINE • • 67
7-2GP-IBSPECIFICATIONS • • • • • 67
1) Bus line configuration • 67
2)Interfacefunction • • • 68
3)Multiline interface message commands 69
4)Uniline commands • 71
7-3GP-IB HARDWARE SETTINGS • • • 72
1) Connections • • 72
2) DIP switches • •••• • • 72
7-4BASIC STRUCTURE OFCOMMAND FORMAT • • • 73
1) Command format • 73
2) Commands • • • 73
3) Command functions 74
4)Processing when errors occur 74
5)Processing when parameters are omitted • 74
6)Processing when there are field abbreviations •••75
7) GP-IBremote mode • 75
8)Servicerequests 75
9) Expansion statusbytes • • • 75
10)Statusbytes 75
7-5 LIST OFCOMMANDS• >>>77
1 Statusrequests • • 79
2 Vertical axis • 79
3Horizontal axis • 82
4TRIGGER • • 85
5 Cursor • • • 87
6Programs • 89
7 Storage • 91

8 AUTO SET• ' • 96
9 Data transfer request 97
10Data transfer • • • 98
7-6 PROGRAM EXAMPLES • • • ••99
(With the PC-98) • 99
(With the IBM-PC) ••••••••• • 104
8. MAINTENANCEANDADJUSTMENT• 109
[A] Maintenance • 110
1 Fusereplacement • • •*•HO
2 Power supply voltage changes•••• • •••• • HO
[B] Adjustments(compensation)•••• • • 110
1 Probecompensation • • • ••• • 110
2 Trace rotation compensation••••• • 110
3Calendar and time settings • • ni
OPTIONS • • • 112

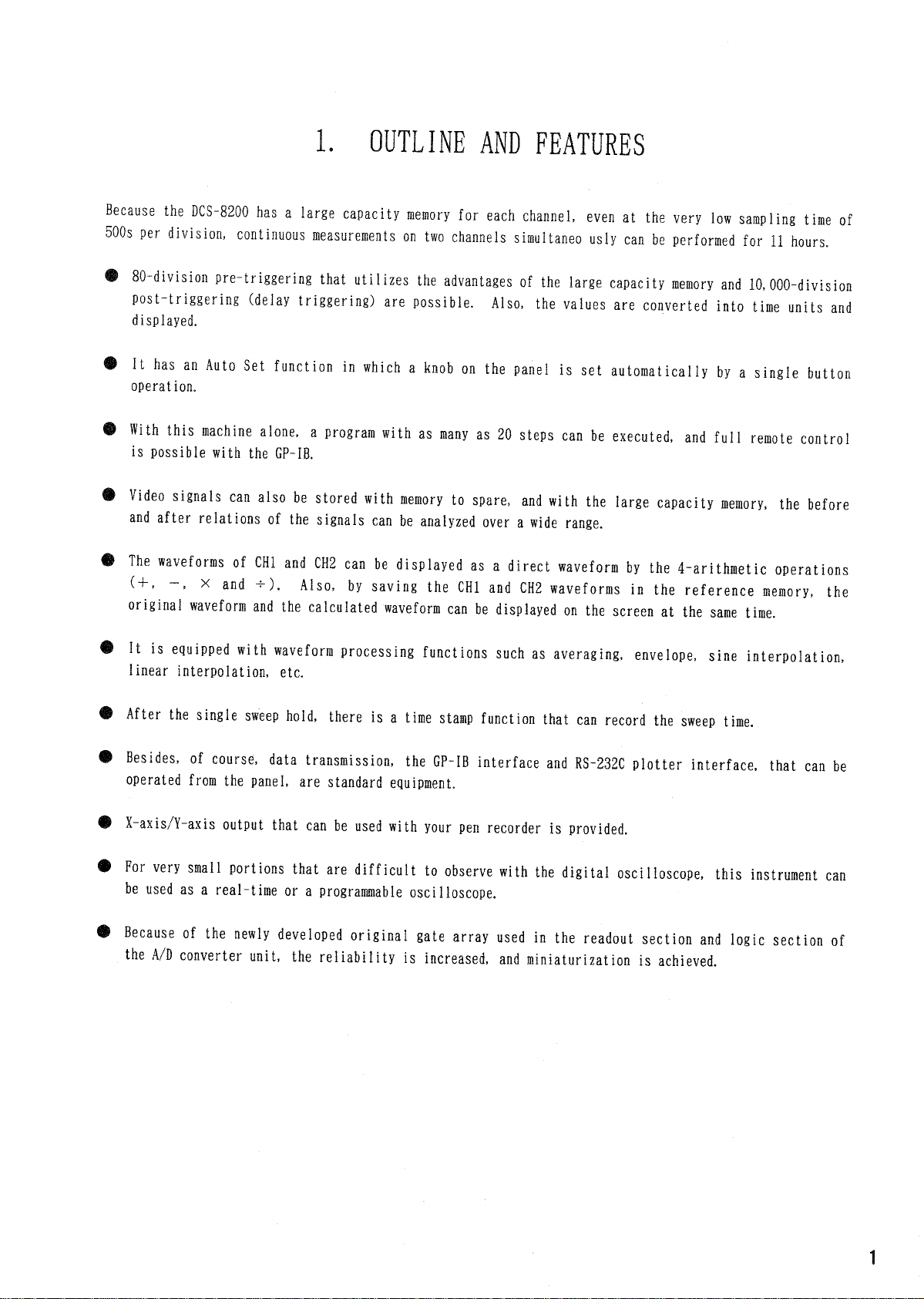

1. OUTLINE AND FEATURES
Because the DCS-8200 hasa largecapacity memoryfor each channel, even atthe very low sampling time of
500s per division, continuous measurements ontwo channelssimultaneo usly canbe performed for11 hours.
980-divisionpre-triggeringthat utilizes the advantages ofthe largecapacity memoryand 10,000-division
post-triggering(delaytriggering) are possible.Also, the values are converted into time units and
displayed.
9 Ithasan Auto Set function in which a knob onthe panel isset automatically bya single button
operation.
9 With this machine alone, a program with asmanyas20 steps canbe executed, and full remote control
is possiblewith the GP-IB.
9 Video signals can also be storedwith memoryto spare, and with the largecapacity memory,the before
andafterrelations ofthe signals canbe analyzed over a wide range.
#The waveforms ofCHIandCH2canbe displayed asa direct waveform bythe 4-arithmetic operations
( + , -,x and -5-).Also, by saving theCHIandCH2 waveforms inthe reference memory,the
original waveform andthe calculated waveform canbe displayed onthe screen atthe same time.
9 Itis equipped with waveform processing functions such as averaging, envelope, sineinterpolation,
linear interpolation, etc.
9After the single sweep hold, there isa time stamp functionthat can record the sweep time.
9Besides, of course, data transmission, the GP-IB interface and RS-232C plotterinterface,that canbe
operated from the panel, are standard equipment.
9X-axis/Y-axis output that canbe used with your pen recorder is provided.
9 For very small portionsthat are difficult to observe with the digital oscilloscope, this instrument can
be used asa real-time ora programmable oscilloscope.
§ Because ofthe newly developed original gate array used inthe readout section and logicsection of
the A/D converter unit, the reliability is increased, and miniaturization is achieved.
1

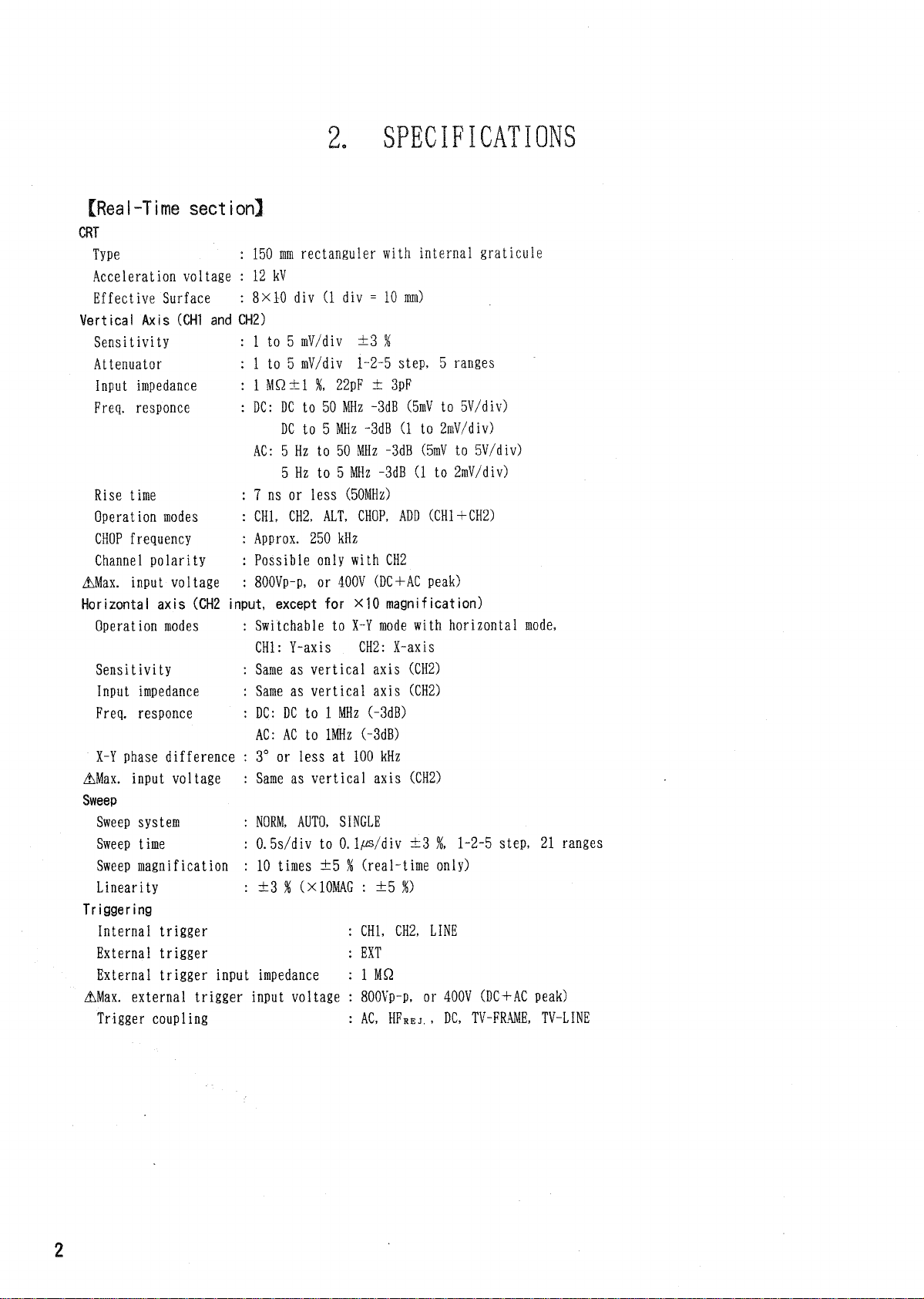

2. SPECIFICATIONS
2
[ReaI-Time section]
CRT
Type : 150mm rectangulerwith internal graticule
Acceleration voltage : 12kV
Effective Surface : 8x10div(1div= 10mm)
Vertical Axis (CMandCH2)
Sensitivity : 1 to5 mV/div ±3%
Attenuator : 1 to5 mV/div 1-2-5 step, 5 ranges
Input impedance : 1 MQ+ 1 %, 22pF ± 3pF
Freq. responce : DC:DCto50MHz-3dB(5mVto 5V/div)
DCto5 MHz-3dB(1to 2mV/div)
AC:5 Hzto50MHz-3dB(5mVto 5V/div)
5 Hzto5 MHz-3dB(1to 2mV/div)
Rise time : 7 nsor less (50MHz)
Operation modes: CHI.CH2,ALT, CHOP, ADD (CH1+CH2)
CHOP frequency : Approx. 250kHz
Channel polarity : Possibleonlywith CH2
AMax. inputvoltage : 800Vp-p, or 400V (DC+AC peak)
Horizontal axis (CH2 input, except forX10 magnification)
Operation modes: Switchable toX-Y mode withhorizontal mode,
CHI:Y-axis CH2: X-axis
Sensitivity : Sameas vertical axis (CH2)
Input impedance : Sameas vertical axis (CH2)
Freq. responce : DC:DCto1 MHz (-3dB)
AC:ACto1MHz (-3dB)
X-Y phase difference : 3° or less at100kHz
AMax. inputvoltage : Sameas vertical axis (CH2)
Sweep
Sweep system : NORM, AUTO, SINGLE
Sweep time : 0.5s/div to 0.l^s/div ±3%,1-2-5 step, 21 ranges
Sweep magnification : 10 times ±5% (real-time only)
Linearity : ±3X (xlOMAG : ±5X)
Triggering
Internal trigger : CHI,CH2, LINE
External trigger : EXT
External trigger input impedance : 1 MQ
AMax. external trigger inputvoltage : 800Vp-p, or 400V (DC+AC peak)
Triggercoupling : AC, HFHEJ., DC,TV-FRAME, TV-LINE

Trigger sensitivity
Frequency Range
Internal External
DC DC
to10 MHz
DC to 50MHz
1 div
2 div
0.1 Vp-p
0. 2 Vp-p
AC
10 Hzto 10 MHz
10 Hz to 50MHz
1 div
2 div
0.1 Vp-p
0. 2 Vp-p
HFrej
Increased minimum syncamplitude for
above 10kHz.
TV
FRAME, LINE
1 div 0.1 Vp-p
Calibration voltage : Square wave, positivepolarity, 1 Vp-p ±2 %, 1 kHz ±3 %
AUTO : Same as above specification for above 50Hz.
FIX : Same as above specification for above 40Hz.
3
[Storage section]
Vertical resolution
Data length : 8-bit (25 dot/div)
Dynamic range : Approx. 10 div
Freq. responce
Effective storagefrequency : DC:DCto8 MHz, (sin interpolation)
AC: 5 Hzto8 MHz, (sin interpolation)
Equivalent sampling : DC:DCto50MHz
AC: 5Hz to 50MHz
Rise time
Effective rise time : 80nsor less
Memory capacity
NORM : Display memory (including REF memory) 2KWX 2/CH (200 dot/div)
Acquisition memory 16KW/CH
REF memory 16KW/CH
Equivalent sampling : Display memory (including REF memory) 2KWx 2/CH (200 dot/div)
Acquisition memory 2KW/CH
REF memory 2KW/CH
Roll : Display memory (including REF memory) 2KWx 2/CH (200 dot/div)
Acquisition memory 16KW/CH
REF memory 16KW/CH
Averaging : Display memory (including REF memory) 2KW/CH (200 dot/div)
Acquisition memory 5KW/CH
X-Y : Display memory (including REF memory) 2KW/CH (200 dot/div)
Acquisition memory 2KW/CH
REF memory 2KW/CH
REF memory data backup (32KW) :
System : Capacitance system
Life : 7 days or more
Sweep time
Equivalent sampling : 20 ns/div to 5/^s/div
NORM : 0.1 ^s/div to 100 ms/div (0.1 jus/div to 5,"s/div is magnificationrange).
Roll : 0.2s/div to 500s/div
* Max. sampling speed is 20 MS/s, 2-channel sync.
Storage system
NORM : Data updated for every trigger input
SINGLE : Single sweep write
AVERAGE : 2 to 256 times, average of adding (2, 4,8... 256)

PEAK DETECTOR: 100ns glitch detection
Effective sweep range (500s/div to 0. lms/div)
ROLL : Data is recorded on screencontinuously and updated.
Equivalent sampling : Sequential sampling system
Magnification and reduction
Magnification and reduction are performed centered ontheCRT with SWEEP TIME/DIV control (when the
starting point issetatthe left edge ofthe screen.).
Magnification : Max.100x
Reduction : Max.xl/10
Interpolation
Systems : Linear interpolation, sin interpolation
Trigger delay
Pre-trigger : Upto-80 times ofSWEEP TIME/DIV setting (integer times setting)
Post-trigger : Upto +10,000 times ofSWEEP TIME/DIV setting (integer times setting)
X-Y
NORM : DCto800kHz
Equivalent Sampling : DCto50MHz
PENOUT
Output : CRT display and hardcopy (25KW)
Y axis Output voltage, 0.5V/div
Outputimpedance,approx. 2kQ
Readoutspeed, lOms/word and 50ms/word
X axis Output voltage, 0.5v/div
Outputimpedance,approx. 2kQ
Readoutspeed, lOms/word and 50ms/word
PEN DOWN
Output level : TTL level ("L" duringoperation)
Waveform operation
CHI + CH2,CHI- CH2,CHIX CH2,CHIH-CH2
Plotter output
Output : RS-232C, HP-GL command (made byMuto Industries, forHP-GL plotter), forCRT hardcopy,
data transmission only.
Baud rate : 9600,4800,2400 and1200bps.
Transfer system : Data length 8-bit, no parity, stop bit is 2-bit fixed, hardware-hand shake.
Signals : FG (FrameGround)
SD (SendData) -* plotter
RD (Receive data) *- plotter
RS (Request to send) -«• plotter
CS (Clear to Send) — plotter
DR (Data Set Ready)Request to sendfrom plotter *- plotter
ER (Data Terminal Ready) Permission to sendfrom plotter -» plotter
SG (Signal Ground)
Connections : (DCS-8200 side) (Plotter side)
1
Shild
2 Blue
3
Red
4
Gray
5
Brown
6 Yellow
7
Q
Black
0
20 Green
Shild 1
Red 2
SD
Blue 3
RD
Yellow 4 RS
Green 5 CS
Gray
6
DR
Black
7
0
SG
Brown
O
20 ER
4

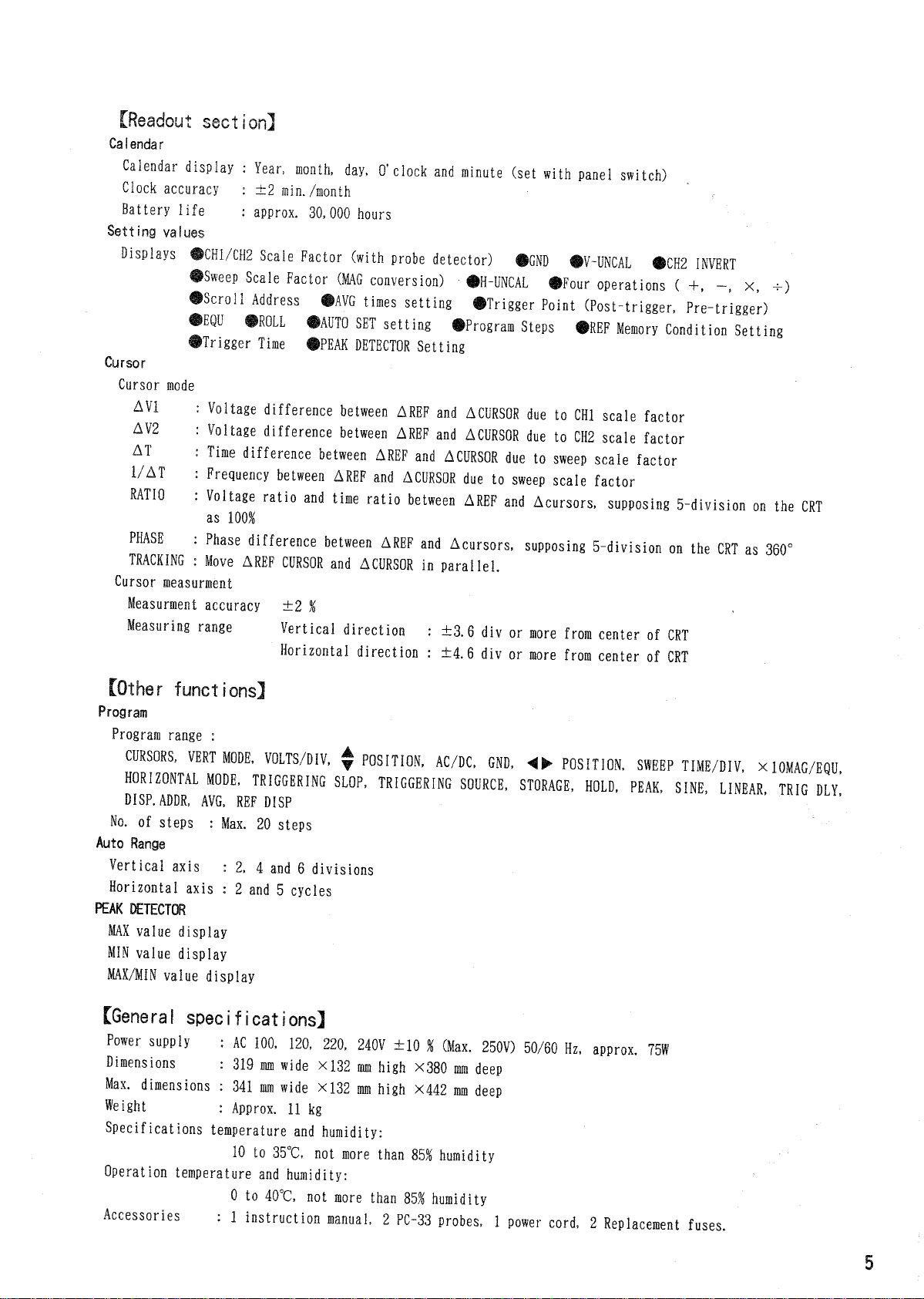

[Readout section]
Calendar
Calendar display : Year, month, day, O'clock and minute (setwith panel switch)
Clockaccuracy : ±2 min. /month
Battery life : approx.30, 000 hours
Setting values
Displays •CH1/CH2 Scale Factor (with probe detector) •GND •V-UNCAL#CH2 INVERT
•Sweep Scale Factor (MAG conversion) •H-UNCAL ©Fouroperations ( +,-,X,+ )
•Scroll Address @AVG times setting ©TriggerPoint (Post-trigger, Pre-trigger)
•EQU •ROLL •AUTO SET setting •Program Steps •REF Memory Condition Setting
•Trigger Time •PEAK DETECTOR Setting
Cursor
Cursor mode
AVI : Voltage difference between A REF and ACURSOR duetoCHI scale factor
AV2 : Voltage difference between AREF and ACURSOR duetoCH2 scale factor
AT : Time difference between AREF and ACURSOR dueto sweep scale factor
1/AT : Frequency between AREF and ACURSOR dueto sweep scale factor
RATIO : Voltage ratio and time ratio between AREF and Acursors,supposing 5-division on the CRT
as 100%
PHASE : Phase difference between AREF and Acursors,supposing 5-division on the CRTas 360°
TRACKING : Move AREF CURSOR and ACURSORin parallel.
Cursor measurment
Measurment accuracy ±2%
Measuring range Vertical direction : ±3.6div or more from center ofCRT
Horizontal direction : ±4.6div or more from center ofCRT
[Other functions]
Program
Program range :
CURSORS, VERT MODE, VOLTS/DIV, y POSITION. AC/DC, GND, POSITION, SWEEP TIME/DIV, X10MAG/EQU,
HORIZONTAL MODE, TRIGGERING SLOP, TRIGGERING SOURCE, STORAGE, HOLD, PEAK, SINE, LINEAR, TRIG DLY,
DISP.ADDR, AVG,REF DISP
No. of steps : Max.20 steps
Auto Range
Vertical axis : 2,4 and6 divisions
Horizontal axis : 2 and5 cycles
PEAK DETECTOR
MAX value display
MINvalue display
MAX/MIN value display
[General specifications]
Power supply : AC 100, 120,220, 240V ±10 % (Max. 250V) 50/60 Hz,approx. 75W
Dimensions : 319 mm wide X132 mm high X380 mm deep
Max.dimensions : 341 mm wide X132 mm high X442 mm deep
Weight : Approx. 11kg
Specifications temperature and humidity:
10 to 35°C, not more than 85% humidity
Operationtemperature and humidity:
0 to 40°C, not more than M humidity
Accessories : 1 instruction manual, 2 PC-33 probes, 1 power cord, 2 Replacement fuses.
5

b8 b7 b6 b5 b4 b3 b2
bl
ExtensionStatus
SRQ Error
BUSY Status Code
6
[interface unit!
GP-IB (Complies withIEEE Standard488-1978).
Subsets SHI: (Transmission handshake)ail functions
AH1: (Reception handshake)all functions
T5 : (Talker) Basic talker, serial pole, and talker only mode.Has talkerreleasefunction
with MLA.
TEO : (Talker address extension) Does not have function.
L4 : (Listener) Basic listener. Has listener releasefunctionwith MTA.
LEO : (Listener address extension) Does not have function.
SRI : (Servicerequest) Has allfunctions
RL2 : (Remote/local) Has remote/local function. Does not have locallock out (LLO) function.
PPO : (Parallel pole) Does not have function.
DC1 : (Device clear) Has al1 functions.
DTO: (Devicetrigger) Does not have function
CO: (Controller) Hasno functions.
Delimiter : CR/LF andEOI
Data code : ASCII code and binary code
Statusbytes
(41H)
Waveform write complete
(42H)
Output finished
(61H) Command error
(62H) Command parameter error
(64H)
Data error

3. PRECAUTIONS
1. Beforeusing this instrument,besureto check the power supplyvoltage.Onthe set's rearsurface,
onthe left sideoftheACinputterminal,thereisa fuseholderandvoltageswitch.Thevaluethatis
aligned nexttothe arrow ontheholderisthevoltage setting.
Changing thevoltagethatis used may cause troublewiththeinstrument,sopleasebe careful. After
this voltagehas been verified, connect the power cord.Ifthe power sourcevoltage changes, refer to
themaintenance items.
T
In this case,
theswitchis
set to100V.
2. Avoid conditions under theconditions shown below.
®Placessubjectto direct sunlight
© Rooms withhigh temperature andhumidity
© Rooms withstrong mechanical vibration
®Locationscloseto equipment which generatesstrong magnetic lines offorceor impulse voltages.
© Near locations where explosive gases are generated orstored.
3. Make surethatthevoltagesappliedto each inputterminaldonot exceed the maximum inputwithstand
voltage.
CHIandCH2input: 800V p-por 400V (DC+ AC peak)
EXT TRIG : 800V p-por 400V (DC+ AC peak)
Also,donotapplyexternalvoltagesto output terminals.
4.Donotincreasebrightness beyond therequired level.
5.Donotleavetheinstrumentonforlongperiodsof time withthebrightness line adjustedtoa spot.
6. Avoid placingobjectsontheset, because blockingthe ventilation holesorfanventholesmay
increase the temperature inside thesetand cause trouble.
7.Donot insert items such aswires,pins,etc.,inthecase ventilation holesorrear panel fan
ventilation holes.
8. High voltagesareappliedtothe inside ofthe machine, so when thecaseistobe removed, refer to
the maintenance items.
9.Beforeusing this instrument,besureto connect the ground terminaltoanearth ground.
10. Because thereisa READOUT detectorterminalontheaccessory PC-33 probe, itcanbescratchedby
usingitwithotherinstruments,soavoid this.
7

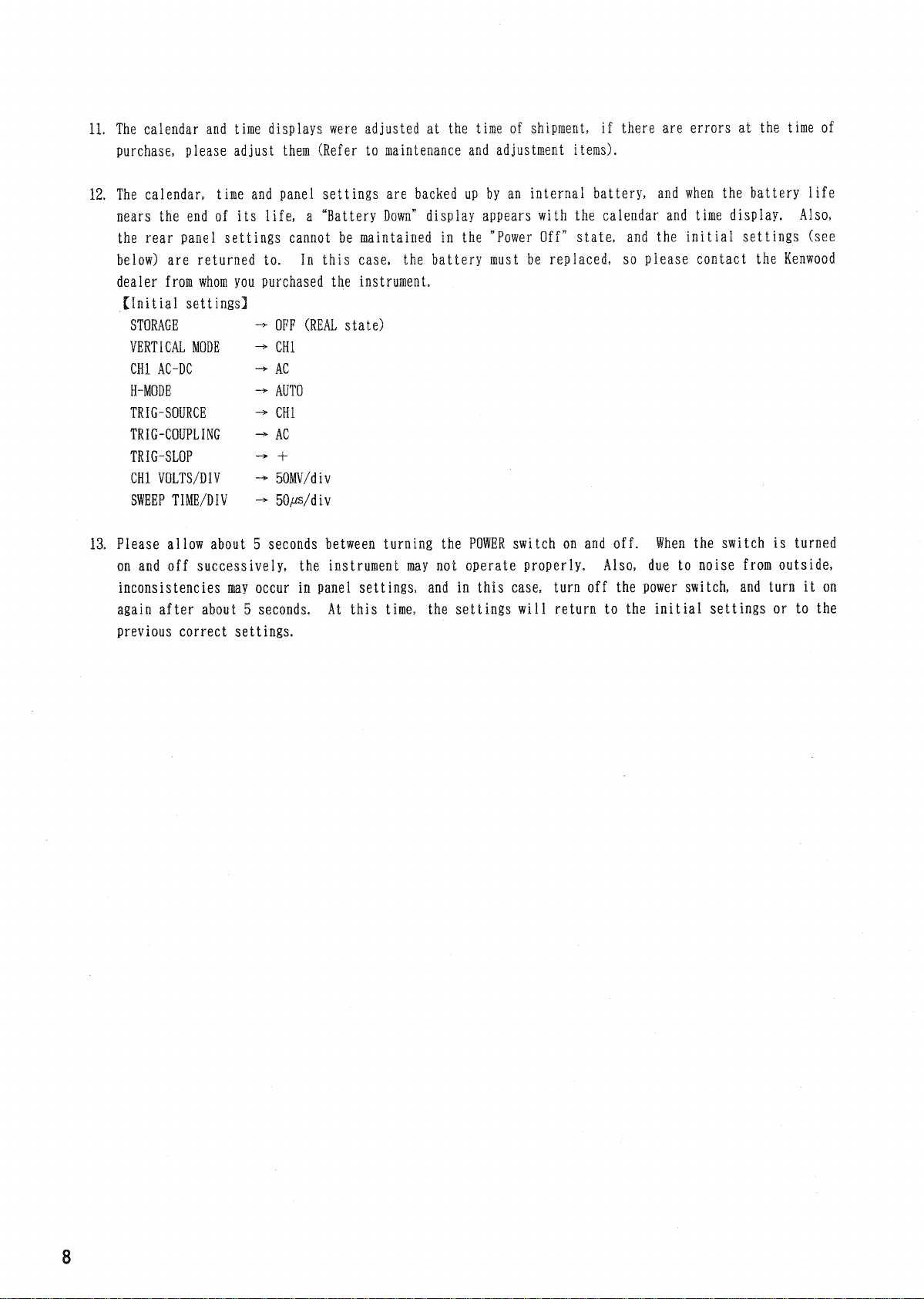

11. The calendar and time displays were adjusted at the time of shipment, ifthere are errors at the time of
purchase, pleaseadjust them (Refer to maintenance and adjustment items).
12. The calendar, time and panel settings are backed upbyan internal battery, and when the battery life
nears the endof its life, a "Battery Down" display appears with the calendar and time display.Also,
therear panel settings cannot be maintained in the "Power Off" state, and the initial settings (see
below) are returnedto. In this case, the battery must be replaced, so pleasecontact the Kenwood
dealer from whom you purchased the instrument.
[Initial settings]
13.Please a 11ow about 5 seconds between turning the POWER switch onand off. Whenthe switch is turned
on and offsuccessively, the instrument maynot operateproperly.Also, dueto noise from outside,
inconsistencies may occur in panel settings, andin this case,turnoff the power switch, and turnit on
again after about 5 seconds. At this time, the settings will return to the initial settings ortothe
previouscorrect settings.
8
STORAGE - OFF (REAL state)
VERTICAL MODE- CHI
CHI AC-DC -
AC
H-MODE -
AUTO
TRIG-SOURCE - CHI
TRIG-COUPLING - AC
TRIG-SLOP -
+
CHI VOLTS/DIV - 50MV/div
SWEEP TIME/DIV -»
50/is/div

4. PANELEXPLANATION
® POWER M ON/1 OFF Switch
This isthepower switch. When itis pushedin, thepower supply ison,andwhenitis pushed again and
released, thepowerisoff.
® INTEN (REAL) Control
This is used to adjust the intensity ofthe trace line.
When itis turned clockwise, the brightnessincreases.
® INTEN (READOUT) Control
This is used to adjust the intensity ofthe readout. When itis turned clockwise the brightnessincreases,
and whenitis turned counterclockwise the readout is turned off, andthe characters disappear.
® FOCUS/PULL ASTIG Control
FOCUS : This isthe focus adjustment.
ASTIG : When theknobis pulled outward, the astigmatism ofthe trace orthe spot canbe adjusted. It
is used to adjust both the focus andthe waveform to their optimum appearance, andis adjusted
sothat the spot appearsround.
© SCALE/ILLU1/PULL TRACE ROTA Control
SCALE ILLUM : This is used to adjust the intensity ofthe scale ontheCRT. When the photograph
background light istoo intense,halationoccurs. In this case,adjust the intensity with
this knob.
TRACE ROTA : This is used to adjust the slope ofthe horizontaltrace line. Adjust this whenthe
trace line slants duetothe effect of groundmagnetism, etc.
Fig. 1
4-1 FrontPanel
9

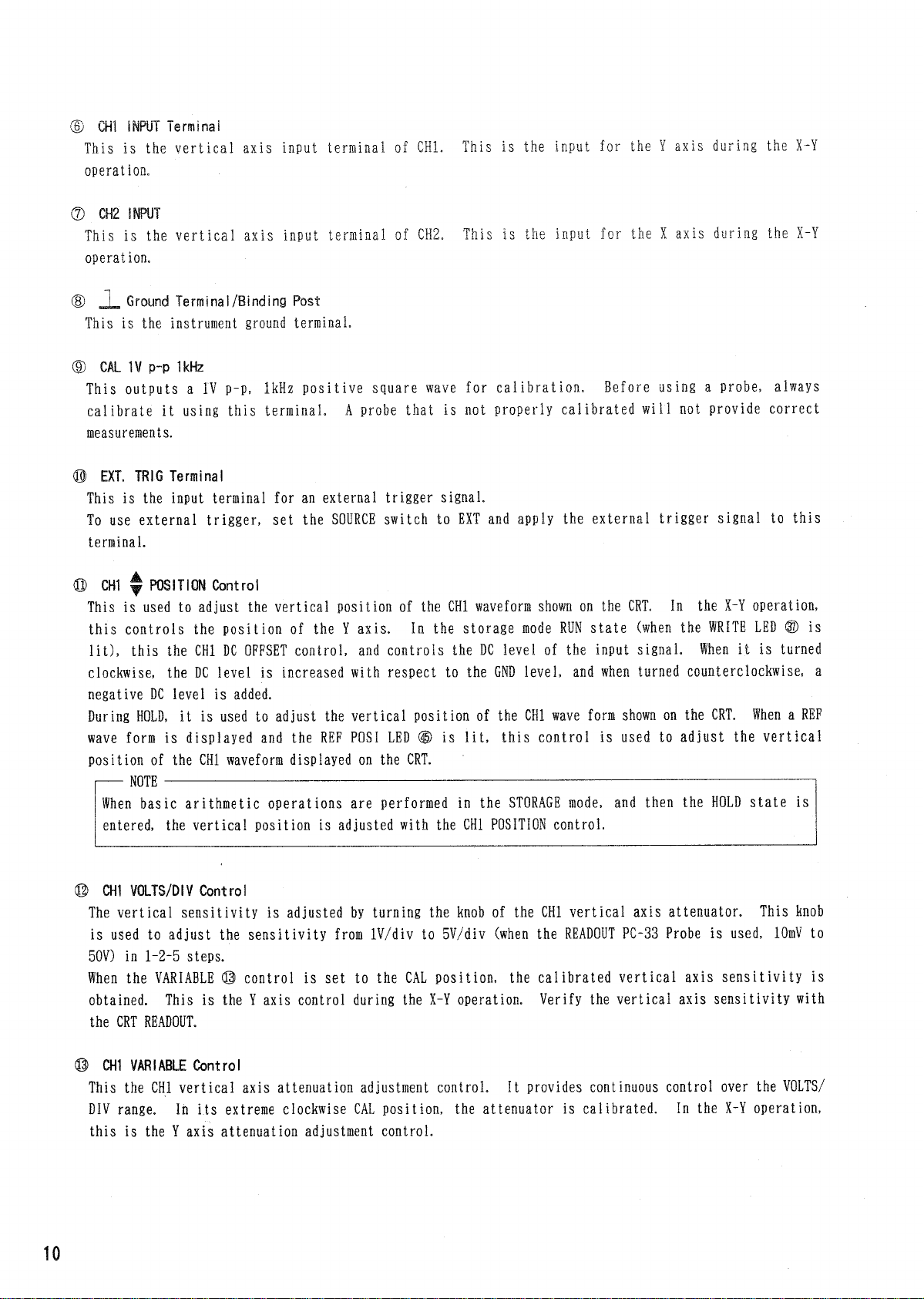

®CHI INPUT Terminal
This isthe vertical axis inputterminalofCHI.ThisistheinputfortheY axis duringtheX-Y
operation.
®CH2 INPUT
This isthe vertical axis inputterminalofCH2.ThisistheinputfortheX axis duringtheX-Y
operation.
®_L Ground Terminal/Binding Post
This istheinstrument ground terminal.
®CALIVp-p1kHz
This outputsa TVp-p,1kHz positive square wave for calibration. Beforeusinga probe, always
calibrate itusing this terminal.A probe thatisnotproperly calibrated wi11notprovidecorrect
measurements.
©EXT. TRIG Terminal
This istheinputterminalforanexternaltrigger signal.
Touseexternal trigger, setthe SOURCE switchtoEXTandapplytheexternaltriggersignalto this
terminal.
©CH1y POSITION Control
This is used toadjustthe vertical positionoftheCHI waveform shown ontheCRT.IntheX-Yoperation,
this controlsthepositionoftheY axis. Inthestorage mode RUN state (when the WRITE LED® is
lit), this theCHIDC OFFSET control, andcontrolstheDC level oftheinput signal. When itisturned
clockwise, theDC level isincreasedwithrespecttotheGND level, and when turnedcounterclockwise,a
negativeDC level is added.
During HOLD, itis used toadjustthe vertical positionoftheCHI wave form shown ontheCRT. When a REF
wave form isdisplayedandtheREF POSI LED® is lit, this controlis used toadjustthe vertical
position oftheCHI waveform displayedontheCRT.
©CH1 VOLTS/DIV Control
The vertical sensitivity isadjustedbyturningthe knob oftheCHI vertical axis attenuator.This knob
is used toadjustthe sensitivity from lV/divto 5V/div (when the READOUT PC-33 Probe is used, lOmV to
50V)in1-2-5steps.
When the VARIABLE © controlissettotheCALposition,the calibrated vertical axis sensitivity is
obtained.ThisistheY axis controlduringtheX-Yoperation. Verify the vertical axis sensitivity with
theCRT READOUT.
©CH1 VARIABLE Control
This theCHI vertical axis attenuation adjustment control. Itprovides continuous control over the VOLTS/
DIV range. Inits extreme clockwiseCALposition,theattenuatoris calibrated. IntheX-Yoperation,
this istheY axis attenuation adjustment control.
10
mm
When basicarithmeticoperationsare performed inthe STORAGE mode, and then the HOLD state is
entered,the vertical positionisadjustedwiththeCHI POSITION control.

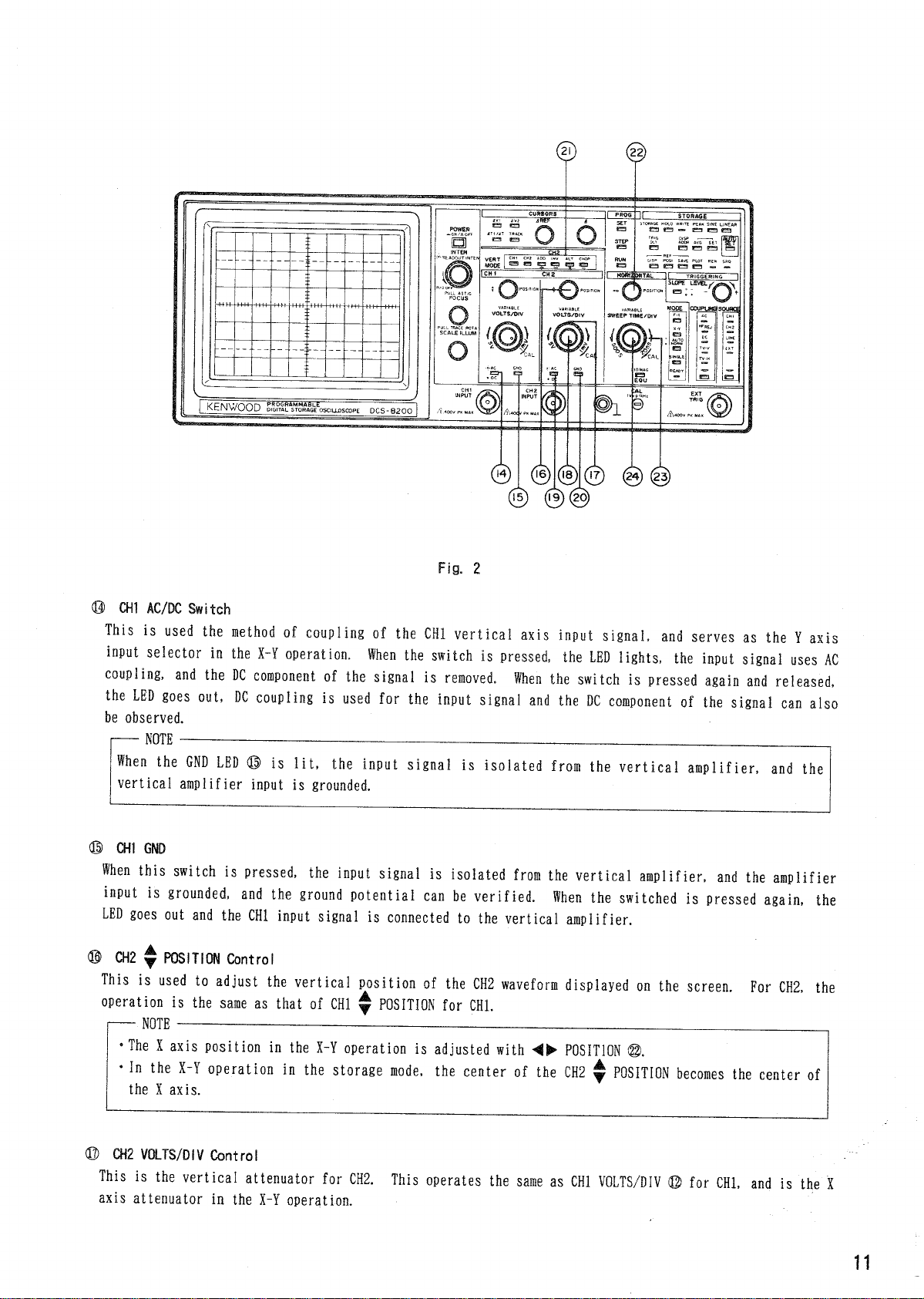

© CH1 AC/DC Switch
This is used the method of coupling oftheCHI verticalaxis input signal, and serves astheY axis
inputselector intheX-Y operation. Whenthe switch is pressed, theLED lights, the inputsignal uses AC
coupling, andtheDC component ofthe signal is removed. Whenthe switch is pressedagain and released,
the LED goesout, DC coupling is used forthe inputsignal andtheDC component ofthe signal can also
be observed.
r— NOTE——• — • • • • •—|
WhentheGNDLED© is lit, the inputsignal is isolated from the vertical amplifier, andthe
vertical amplifierinput isgrounded.
© CH1GND
When this switch is pressed, the inputsignal is isolated from the vertical amplifier, andthe amplifier
input is grounded, andthe ground potential canbe verified. Whenthe switched is pressedagain, the
LEDgoes outandtheCHI inputsignal is connected tothe vertical amplifier.
© CH2y POSITION Control
This is used to adjust the vertical position oftheCH2 waveform displayed onthe screen. ForCH2,the
operation isthe same as that ofCHI* POSITIONfor CHI.
© CH2 VOLTS/DIV Control
This isthe vertical attenuator for CH2. Thisoperates the same asCHI VOLTS/DIV ® forCHI, andistheX
axis attenuator intheX-Y operation.
11
Fig. 2
NOTE
•The X axis position intheX-Y operation is adjustedwith POSITION @.
• IntheX-Y operation inthe storage mode,the center oftheCH2* POSITION becomes the center of
the X axis.

© CH2 VARIABLE
This isthe vertical attenuation adjustment control forCH2. Thisoperates the same asCHI VARIABLE ©
for CHI, andistheX axis attenuation adjustment control intheX-Y operation.
© CH2 AC/DC Switch
This is used inthe method of coupling oftheCH2 vertical axis input signal, and serves astheY axis
inputselector intheX-Y operation. Its operation isthe same as that oftheCHIAC/DC switch ®.
® CH2GND Switch
This isthe ground switch for CH2.The operation isthe same as that oftheCHIGND switch ©.
© VERTICAL MODE (V-MODE) Switches
They are used to select the vertical axis operation mode.Whena switch is pressed, theLED lights to
indicate that this channel is selected. Whena lightedswitch is pressedagain, theLED goes out, andthe
channel selection is cancelled.
CHI : CHI inputsignal is displayed ontheCRT.
CH2 : CH2 inputsignal is displayed ontheCRT.
ADD/+ : The algebraic sumofCHIandCH2 signals is displayed ontheCRT,but when theCH2INVis
set, the difference between CHIandCH2is displayed.
CH2 INV/-: Whenthe switch is pressed, theLED 1 ights, the polarity oftheCH2 signal is reversed,
and the normal state is restored.
I NOTE1
In theX-Ymode,theCH2INV cannot be selected.
ALT/x : CHIandCH2 signals are alternately displayed ontheCRT.
CHOP/':CHIandCH2 signals are displayed ontheCRT with the250kHz chopping system.
I NOTE: • • 1
Chopping isnot activated inthe single-trace mode.When switching from dual-trace tothe single
-trace mode,the CHOP LED goes out. It lights again, and chopping is activated when dual-trace
operation is selectedagain.
The operations listed below canbe operated inthe storage mode.
CHI : CHI storage waveform is displayed ontheCRT.
CH2 : CH2 storage waveform is displayed ontheCRT.
ADD/+ : TheCHIandCH2 storage waveforms are added together and displayed onthe screen, but when
CH2 INVis set, the difference between CHIandCH2is displayed.
CH2 INV/-: CH2 storage waveform is subtracted from CHI storage waveform, andthe result is displayed on
the CRT.
I NOTE• • 1
CH2 INV cannot besetinthe storage mode.TheCH2INV setting must bemadeinthe Real-time mode.
ALT/x : The product ofa multiplication operation ofCHIandCH storage waveforms is displayed on
the CRT.
CHOP/H- : The quotient ofa division operation ofCHIandCH2 storage waveforms is displayed onthe
CRT.
i NOTE• 1
• Inthe arithmeticoperations inthe storage mode, make the calculations assuming that the level in
thecenter oftheCRTis0.
• Inthe dual-trace mode, when switching from the triggerinput standby state tothe arithmetic
operation mode,the switching canbe activated from the followingtrigger signals.
12

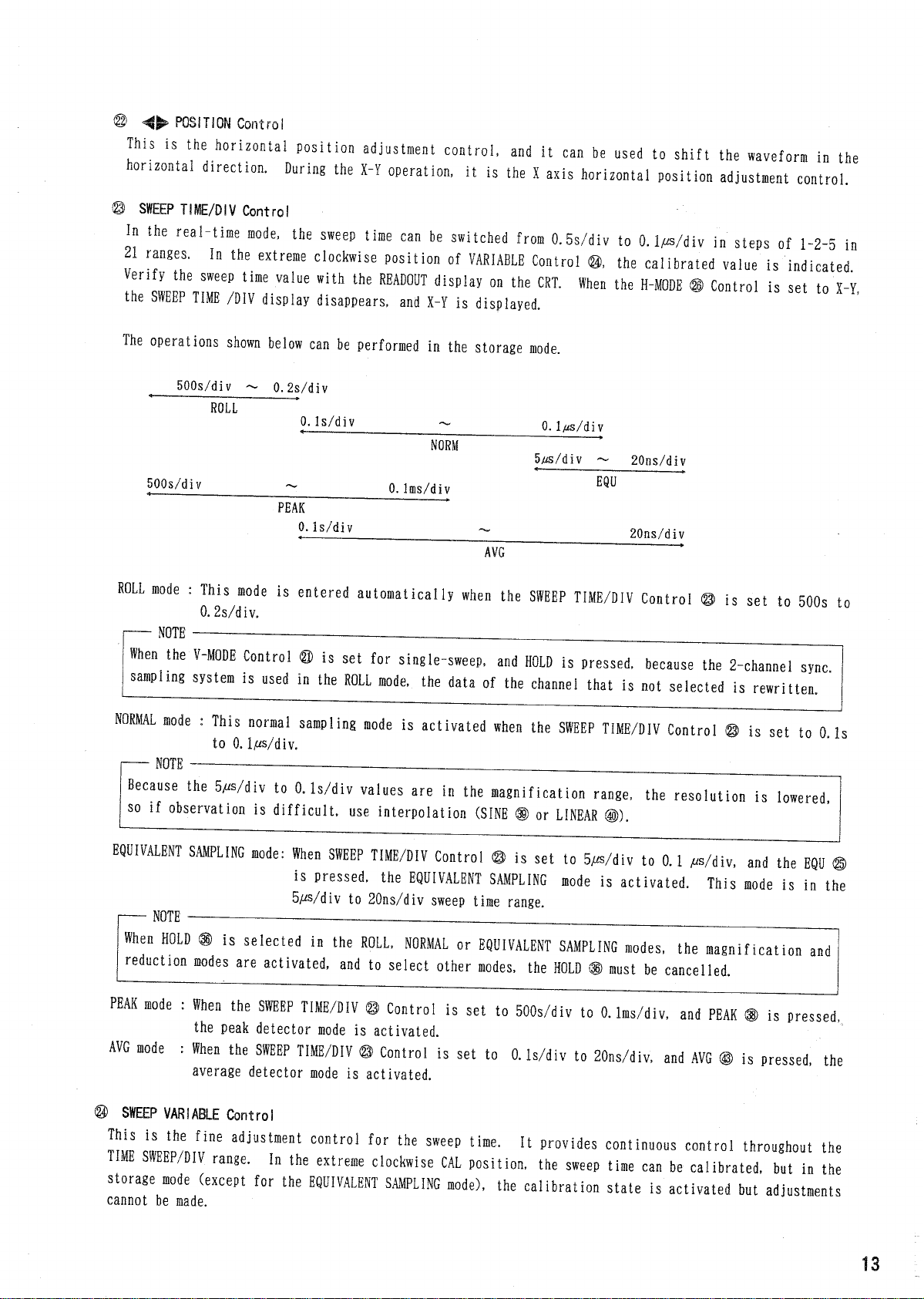

® POSITION Control
This is the horizontal position adjustment control, and it can be used to shift the waveform inthe
horizontal direction. During the X-Y operation, itisthe X axis horizontal position adjustment control.
© SWEEP TIME/DIV Control
In the real-time mode, the sweep time can be switched from 0.5s/div to 0.1/us/div in steps of 1-2-5 in
21ranges. In the extreme clockwise position of VARIABLE Control ©, the calibrated value is indicated.
Verify the sweep timevaluewith theREADOUT display on the CRT. Whenthe H-MODE© Controlisset to X-Y,
the SWEEP TIME /DIV display disappears, and X-Y isdisplayed.
Theoperations shown below can be performed in the storage mode.
500s/div — Q.2s/div
ROLL
0. ls/div ~ 0.1/is/div
NORM
5/<s/di v ~~ 20ns/div
500s/div ~ 0. Ims/div
PEAK
0. ls/div ~ 20ns/div
AVG
ROLL mode : This mode is enteredautomatically when the SWEEP TIME/DIV Control © is set to 500s to
0.2s/div.
| NOTE • •—•1
Whenthe V-MODE Control © is setforsingle-sweep, and HOLD ispressed, because the 2-channel sync,
samplingsystemis used in the ROLL mode,the data of the channel that is not selected is rewritten.
NORMAL mode : This normal sampling modeis activated when the SWEEP TIME/DIV Control © isset to 0.Is
to 0. l//s/div.
j NOTE ^ ^ ^ ^ 1
Because the 5/fi/div to 0. ls/div values are in the magnificationrange, the resolution is lowered,
soifobservationis difficult, use interpolation (SINE ® or LINEAR ®).
EQUIVALENT SAMPLING mode:When SWEEP TIME/DIV Control © isset to 5/^/div to 0.1 ^s/div, and the EQU®
is pressed, the EQUIVALENT SAMPLING modeis activated. This mode isinthe
5/-s/div to 20ns/div sweep timerange.
r NOTE • -j
WhenHOLD ® is selected in the ROLL, NORMAL or EQUIVALENT SAMPLING modes, the magnification and
reduction modes are activated, andto select other modes, theHOLD ® must be cancelled.
PEAK mode : When the SWEEP TIME/DIV © Control isset to 500s/div to 0.Ims/div, and PEAK ® is pressed,,
the peak detector modeis activated.
AVGmode : When the SWEEP TIME/DIV © Control is set to 0.ls/div to 20ns/div, and AVG® ispressed, the
averagedetector modeis activated.
© SWEEP VARIABLE Control
This is the fine adjustmentcontrol for the sweep time.Itprovidescontinuouscontrol throughout the
TIME SWEEP/DIV range. In the extreme clockwise CAL position, the sweep time can be calibrated, but inthe
storage mode (exceptfor the EQUIVALENT SAMPLING mode), the calibration state is activated but adjustments
cannot be made.
13

) x 10MAG/EOU Switch
Real-time mode:Whenthe switch is pressed, theLED lights, andthe sweep time canbemade10 times as
fast. If the switch is pressed again, theLED goes outandthe normal modeis returned to.
Storage mode: Whenthe SWEEP TIME/DIV Control issetto5 ^s/div to0.1 /s/div and this switch is
pressed, theLED lights andthe EQUIVALENT SAMPLING modeis activated. In this mode,
the SWEEP TIME/DIV operates between 5 ps/div and 20ns/div.
Whenthe switch is pressed again, andtheLEDis lit, or when the SWEEP TIME/DIV isinthe
10/is/div range andtheLEDis lit, the NORMAL mode is activated.
| NOTE• j
WhenHOLD® is selected, themode cannot be switched from the EQUIVALENT SAMPLING to NORMAL, sothe
HOLD® must be cancelled to make this switch.
) HORIZONTAL MODE (H-MODE) SWITCHES
FIX : When this switch is pressed, theLED lights andthe trigger level becomes fixed. When
theswitch is pressed again, theLED goes outandthe normal state is returned to.
X-Y : When this switch is pressed, theLED lights andtheX-Y Oscilloscopeoperation is
activated, in which CHIistheY axis andCH2istheX axis. This X-Y operation has
no relation tothe setting ofthe vertical axis mode.Whenthe switch is pressed again,
the LED goes outandthe dual-tracedisplay is activated.
Because the capacity ofthe memory inthe storage modeis2 KW,the magnification and
reduction oftheHOLD cannot be performed.
AUTO/NORM : When this switch is pressed, theLED lights andtheAUTO state is entered. Sweep canbe
performed with the trigger signal, but when there isno trigger signal, the sweep is
free-running, andthe bright line appears. When this switch is pressed again, the
NORMAL state is returned to. The sweep canbe performed with the trigger signal, but,
unlike theAUTO state, if there isno suitabletrigger signal, the trace line does not
appear.

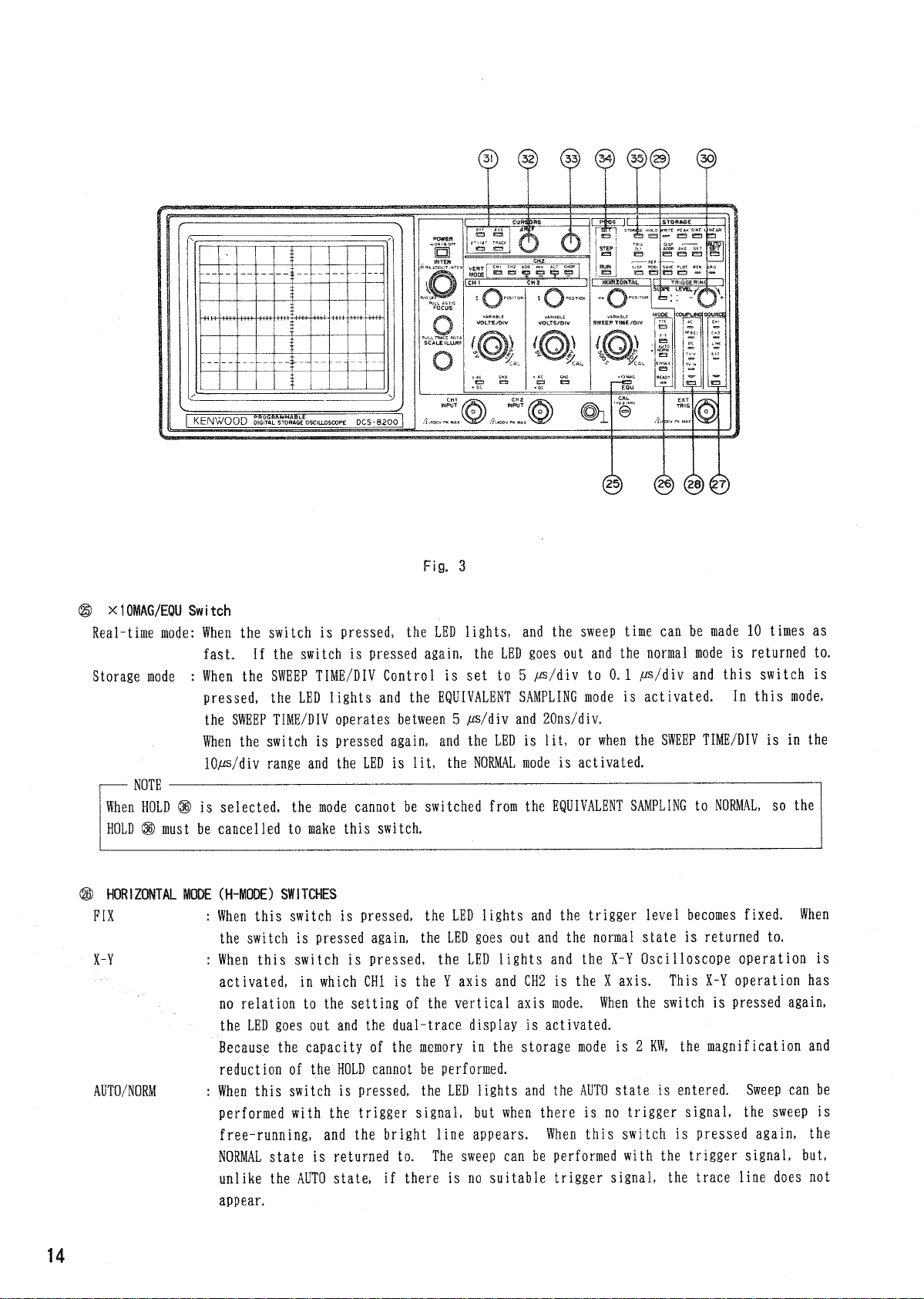

Fig. 3
14
