1. Introduction
1.1. About MMX6464
MMX6464 is a high-performance video and audio modular matrix switcher supporting
max 64 input signal sources and 64 output display synchronously. It supports different
video signals with cross switching. Every video or audio signal is transmitted and
switched independently to decrease signal attenuation. MMX6464 supports various
changeable cards including HMDI, DVI, VGA, SDI and HDBaseT etc, and all the cards
support hot plug & play. Users can choose to insert different signal card for different
application.
MMX6464 have power fail memory function and audio can break away from or follow
the video to switch. It has RS232 port for serial control and optional IP port for TCP/IP
control, can be easily controlled by third-part devices.
With its flexible design, MMX6464 can be used for different project and tend to be an
all-in-one solution. It is the combo solution for multimedia conference rooms, control
rooms, broadcasting rooms, shopping center etc. It will handle all the audiovisual
management, including the switching, driving, scaling etc.
1.2. Features
Modular chassis with configurable I/O slots, ranging from 4x4 to 64x64.
Various I/O cards, includes HDMI, HDBaseT, SD/HD/3G-SDI, DVI and VGA cards
(Compatible with YUV, YC & CVBS.) to configure any matrix.
Truly cross-point switching, any input to any output, regardless signal format.
Support HDMI1.4a, support 3D.
Integrated HDBaseT technology.
Controllable via button, RS232 & optional TCP/IP, also compatible with 3rd parties
control.
HDCP compliant.
LCD display.
1.2.1. MMX signal card (changeable cards)
To meet different situation and users, the MMX6464 cards are classified into the
following models:
Spec
Models Inputs Signal Format
4I-HD
4
HDMI
4I-DV 4 DVI
4I-DS 4 DVI, HDMI, VGA, AV,
YPbPr
4I-VG 4 VGA
4I-VA
4
VGA& PCM audio
Input Cards

Modular Matrix Switcher 64x64
PTN Electronics Limited 2www.PTN-electronics.com
Spec
Models Inputs Signal Format
4I-SD 4 inputs & 4 LOOP
outputs for each
channel)
SDI
4I-TP 4 HDMI TP, IR, RS232
4I-UH
4
HDMI& PCMAudio
4I-UF 4 Optical Fiber
4I-BT
4
HDBT, RS232, Audio
Spec
Models
Outputs Signal Format
4O-HD 4 HDMI
4O-DV
4
DVI
4O-DS 4 DVI, HDMI, VGA, AV,
YPbPr
4O-VG 4 VGA, 4 Stereo
audio
VGA, analog audio
4O-SD 4 outputs & 4 LOOP outputs for
each channel) SDI
4O-TP
4
HDMI TP, IR, RS232
4O-UH 4 HDMI& PCMAudio
4O-UF
4
Optical Fiber
4O-BT 4 HDBT, RS232, Audio
1.4 Package List
1 x MMX6464
1 x RS232 cable
4 x Plastic cushions
1 x IR remote (The cell battery is not included)
1 x Power Cord
4 x Male VGAto female YPbPr cable (packed only when includes the 4I-VG/4I-VA
cards)
4 x Male VGAto female S-video & RCA (C-video) cable (packed only when
includes the 4I-VG/4I-VA cards)
1 x User manual
Notes: Please confirm if the product and the accessories are all included, if not,
please contact with the dealers.
Output Cards
Input Cards

Modular Matrix Switcher 64x64
PTN Electronics Limited 3www.PTN-electronics.com
2. Panel Description
2.1. MMX6464

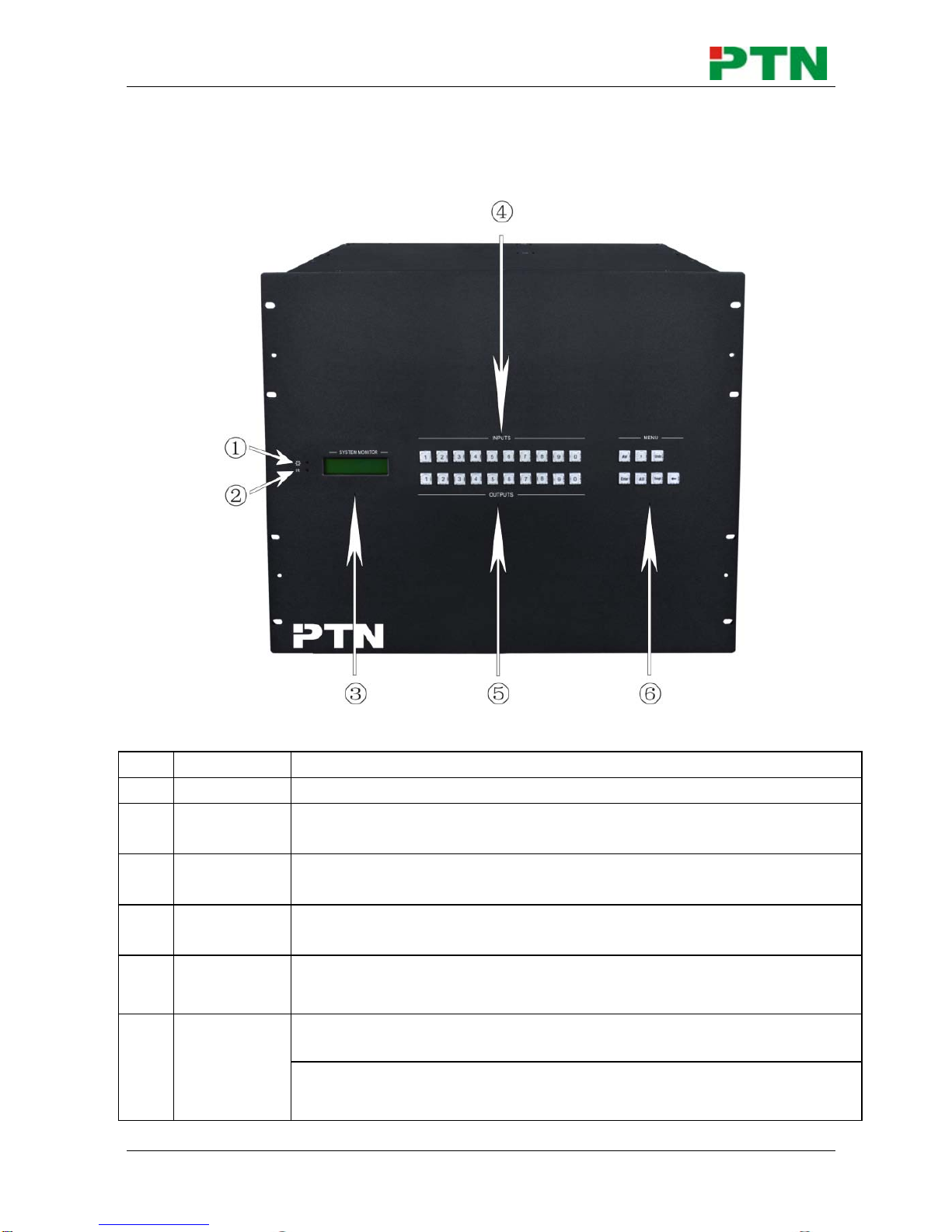

2.1.1. Front Panel
Figure 2- 1 Front Panel of MMX6464
No.
Name
Description
①
IR
IR sensor, receive IR signal sent from IR remote
②Power
indicator Illuminate red once powered on
③LCD
screen
Display real-time operation status
④INPUTS Buttons for input channels with green back-light indicating, ranges
from 0~ 9, 64 selectable channels in total.
⑤OUTPUTS Buttons for output channels with green back-light indicating,
ranges from 0 ~ 9, 64 selectable channels in total.
⑥MENU
AV: transfer video and audio signal synchronously
‚: division button, to divide the output channels when switching to
more than one channel.

Modular Matrix Switcher 64x64
PTN Electronics Limited 4www.PTN-electronics.com
ENTER: confirm switching operation. O
peration will not be
executed by the matrix without confirmation.
ALL: To transfer an input channel to all output channels.
THROUGH:
To transfer the signals directly to the corresponding
output channels.
UNDO: Undo button, to resume to the status before the command
just performed.

: Backspace button, to backspace the latest input button.
2.1.2. Rear Panel
Figure 2- 2 Rear Panel of MMX6464
No.
Name
Description
①
INPUTS
Input signal card slots, 16 in total
②OUTPUTS Output signal card slots, 16 in total
③Optional
Ports Power switch: Switch betweenAC110V and AC230V to access
different power supply

Modular Matrix Switcher 64x64
PTN Electronics Limited 5www.PTN-electronics.com
TCP/IP: Used for TCP/IP control port
④RS232 Serial control port, connect with RS232 port of control device.
⑤Power
ports
Connect with household alternating current power, including one
redundant power.
⑥GND
connector
Used for system grounding
Note: There are only 16 input and 16 output slots for MMX6464, which enables only
16 input cards and 16 output cards to be installed on MMX6464. The input/output
cards can be changed based on your requests and supports hot plug and play.
2.2. Changeable Cards
MMX6464 support expansion through various changeable input/ output cards of
different signals including DVI, HDMI, VGA, twisted pair, SDI etc. Here is a brief
introduction to the changeable cards.

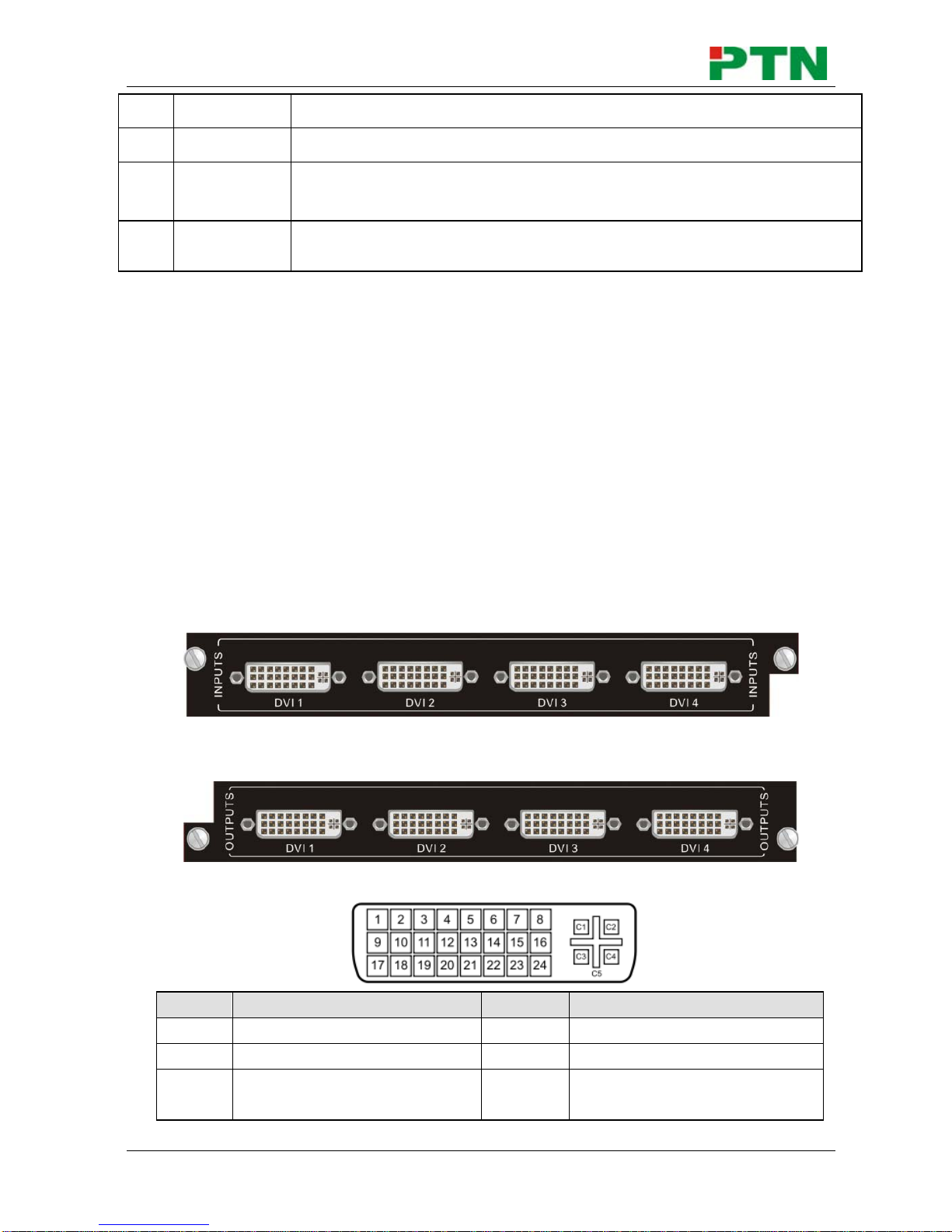

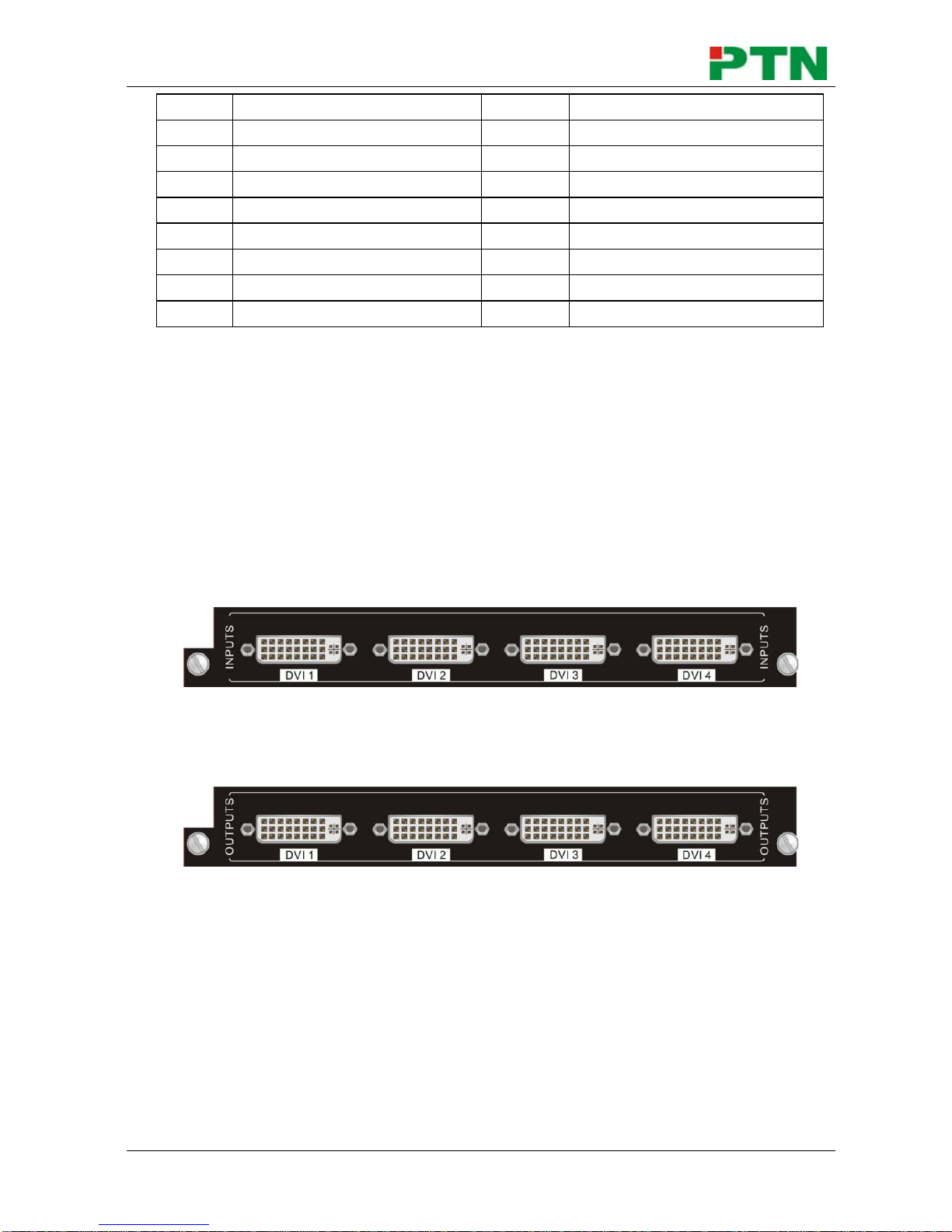

2.2.1. 4I-DV & 4O-DV
DVI signal card. (Please check the specification from 5.2.1)
It is fully compatible with HDMI1.3 and HDCP, but not supporting analogy signal.
It is embedded EDID management technology, supporting DDC.
4I-DV: input card, maximum four input signal. Input signal can pass to output device
through 4O-DV, or pass through other kinds of output cards.
4O-DV: output card, maximum four output signal, output signals from 4I-DV, or other
kinds of input cards.
Pin Layout of the DVI-I connector (Dual-Link). (Female)
PIN
Function
PIN
Function
1
T.M.D.S.Data2-
13
T.M.D.S.Data3+
2 T.M.D.S.Data2+ 14 +5V Power
3 T.M.D.S. Data 2/4 Shield 15 Ground (return for +5V,
Hsync and Vsync)
