PTN TPUH408TU-UK User manual

TPUH408TU-UK
3x1 Wallplate Transmitter Switcher with HDMI
and USB-C
All Rights Reserved
Version: TPUH408TU-UK_2018V1.1
User Manual

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
September, 2018. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class Adigital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
SAFETY PRECAUTIONS
To ensure the best performance from the product, please read all instructions carefully
before using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
Table of Content
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Package List......................................................................................................2
2. Specification ...............................................................................................................3
3. Panel Description........................................................................................................4
3.1 Front Panel........................................................................................................4
3.2 Rear Panel.........................................................................................................5
3.3 Side Panel.........................................................................................................6
4. System Connection.....................................................................................................7
5. Button Control.............................................................................................................8
5.1 Source Switching...............................................................................................8
5.2 Display Control..................................................................................................8
6. RS232 Control............................................................................................................9
6.1 RS232 Connection ............................................................................................9
6.2 RS232 Control Software..................................................................................10
6.3 RS232 Command............................................................................................11
6.3.1 Device Control.......................................................................................11
6.3.2 Source Switching...................................................................................11
6.3.3 EDID Management................................................................................11
6.3.4 CEC Control ..........................................................................................13
7. Button User-defined..................................................................................................14
8. Panel Drawing ..........................................................................................................16
9. Troubleshooting & Maintenance ...............................................................................17
10. Customer Service...................................................................................................18

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
1
1. Product Introduction

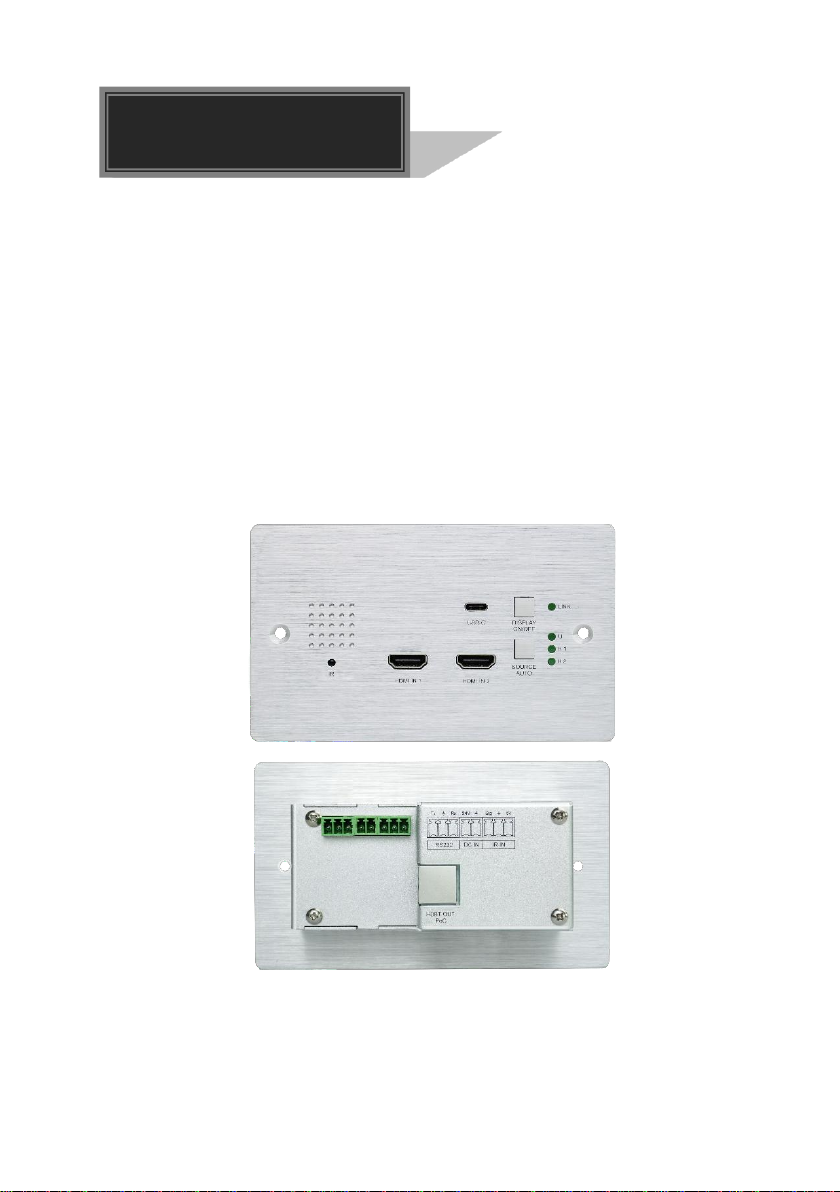

Thanks for choosing the TPUH408TU-UK 3x1 Wallplate Transmitter Switcher, which is
designed to switch and extend HDMI or Slimport input signal to far-end display device,
and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080P video
by using a single CATx cable.
The switcher features two HDMI and one Type-C USB inputs, it can be selected by the
SOURCE AUTO button on the front panel. The switcher supports CEC. The DISPLAY
ON/OFF button on front panel is used to control the far-end display device, and it can
be programmed by IR learning or RS232 command to ensure the compatibility with
various display devices. Moreover, 12V-48V PoC allows the switcher can be powered
from the compatible HDBaseT receiver.
1.1 Features
Supports HDMI signal up to 4K@60Hz 4:2:0, Slimport signal up to 4K@30Hz
4:4:4.
Supports HDMI 1.4 standard and HDCP 2.2 compliant. Ensures display of
content-protected media and interoperability with other HDCP compliant devices.
Active input automatic detective.
Extending HDMI signal 4K@60Hz up to 131ft/40m and 1080P@60Hz up to
229ft/70m.
Supports RS232 pass-through with HDBaseT connection and local control.
Supports IR pass-through to extend IR signal to control display device.
The DISPLAY ON/OFF button can be programmed by IR learning feature or
RS232 command.
The HDBT port supports 12V-48V PoC input, the switcher can be powered from
the compatible HDBaseT receiver by the CATx cable, and it also supports 12V-
24V PoC output.
Firmware upgrade by Micro-USB port.

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
2
1.2 Package List
1x TPUH408TU-UK
1x 2-pin Terminal Block
2x 3-pin Terminal Blocks
1x Power Adapter (24V 1.25A)
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
3
2. Specification
Input
Input
(2) HDMI, (1) USB-C (Slimport)
Input Connector
(2) Female type A HDMI, (1) Type-C USB,
HDMI Input Resolution
Up to 4K/UHD@60Hz 4:2:0
Slimport Input Resolution
Up to 4K/UHD@30Hz 4:4:4
Output
Output
(1) HDBT OUT
Output Connector
(1) RJ45
HDBT Output Resolution
Up to 4K/UHD@60Hz 4:2:0
Control
Control Ports
(1) IR, (1) FIRMWARE, (1) RS232, (1) IR IN
Control Connector
(1) Built-in IR sensor, (1) Micro-USB,
(2) 3-pin terminal block
General
Bandwidth
10.2Gbps
Transmission Mode
HDBaseT
HDMI Version
1.4
HDCP Version
2.2
Transmission Distance
4K@60Hz≤40M, 1080P@60Hz≤70M
External Power Supply
Input:100V~240V AC; Output: 24VDC 1.25A
Power Consumption
5W max. (408TU only –add extra for HDBaseT
receiver)
Operation Temperature
-10 ~ +40℃
Storage Temperature
-15 ~ +55℃
Relative Humidity
10% ~ 90%
Dimension (W*H*D)
146mm x 86mm x 39mm
Net Weight
230g

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
4
3. Panel Description
3.1 Front Panel

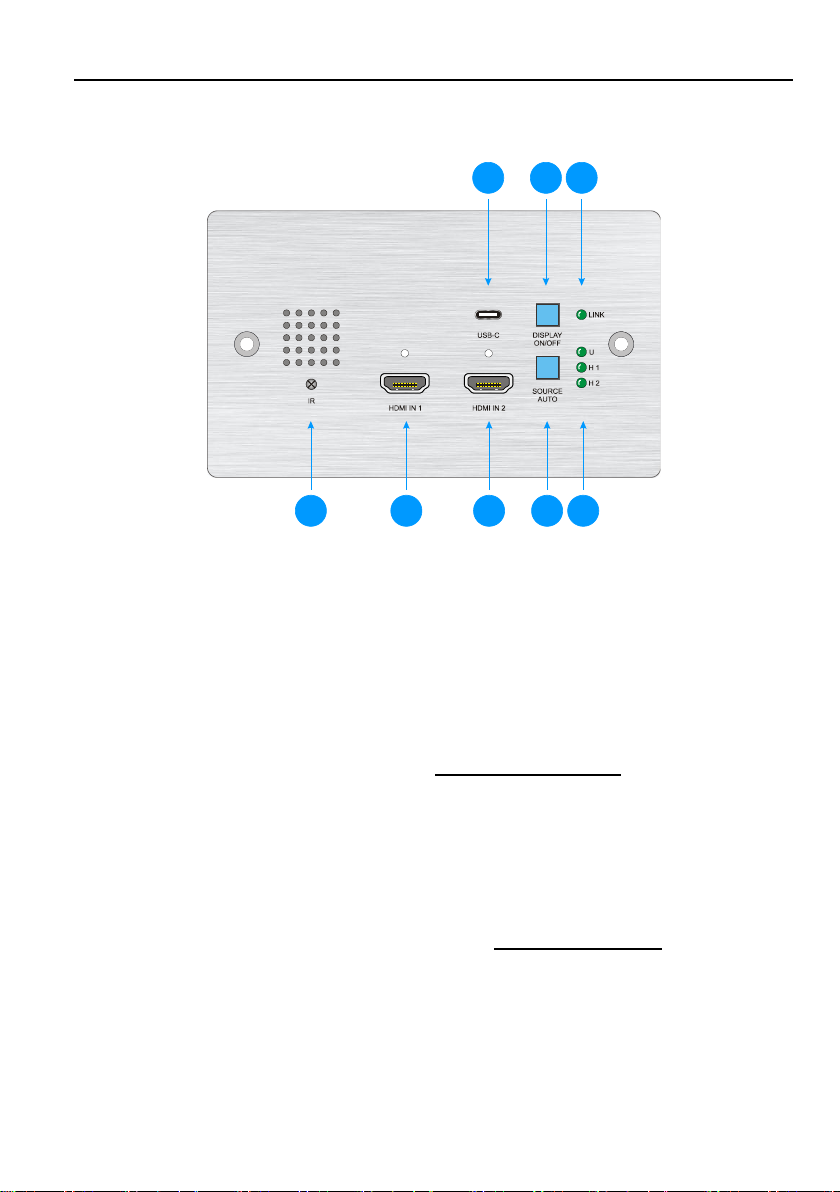

①IR: Built-in IR sensor for IR learning feature. It doesn’t support IR pass-through.
②HDMI IN 1: Type-A HDMI port to connect HDMI source.
③HDMI IN 2: Type-A HDMI port to connect HDMI source.
④USB-C: Type-C USB to connect the Macbook or other device with SlimPort output.
⑤SOURCE AUTO:
Press the backlit button to select the next input source.
Press and hold the button at least 3 seconds to enable auto switching mode.
For more details, please refer to the 5.1 Source Switching on the page 8.
⑥Input LED:
U: The LED illuminates green to indicate the USB-C input is selected.
H 1: The LED illuminates green to indicate the HDMI 1 input is selected.
H 2: The LED illuminates green to indicate the HDMI 2 input is selected.
⑦DISPLAY ON/OFF: Turn the display ON or OFF via CEC or RS232 (Programming
required). For more details, please refer to the 5.2 Display Control on the page 8.
⑧LINK LED: The LED illuminates green to indicate a successful data link with the
HDBaseT receiver.
123
478
56

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
5
3.2 Rear Panel
①HDBT (POC): RJ45 HDBaseT output port to connect to the HDBT IN port of the
receiver by a CATx cable. It supports 12V-48V PoC to enable the switcher can be
powered from a compatible receiver.
②RS232: Either 3-pin terminal block to connect a control device (such as PC) to
send the RS232 command to control this unit, or to connect a third party device
which needs to be controlled by RS232 pass-through. For more details, please
refer to the 6. RS232 Control on the page 9.
③DC IN: Power port to connect 24V DC power adapter.
④IR IN: 3-pin terminal block to connect an IR receiver.
1
234

3x1 Wallplate Transmitter Switcher with HDMI and USB-C
6
3.3 Side Panel
①FIRMWARE: Micro-USB port for firmware upgrade.
FIRMWARE
1
