Pts PTS90423 Series User manual

1
All Rights Reserved, 2018
888-820-3508
Scan the QR code above to link to current document or click the link below:
PTS90423 Series
120V AC Power Distribution Panel
60A Main Breaker,
with External Rotary Disconnect Switch
Suitable for Use as Service Equipment
Small Cell, Pico, Micro, CRAN or Macro
INSTALLATION GUIDE
Compact 120V AC Power Distribution Load Center
60AMP Main Breaker with External Rotary Disconnect Switch
Single SPD (L-G) per Leg or Dual SPD (L-N) per Leg, (N-PE)
PTS90423 - Maximum 6 UL489 Breaker Positions with Single SPD
PTS90423 - Maximum 5 UL489 Breaker Positions with Dual SPD
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
2
All Rights Reserved, 2018
888-820-3508
Table of Contents
1.0 Model Overview ........................................................................................................................... 3
Figure 2: Dimensional Drawings. .............................................................................................. 4
1.1 Specifications .............................................................................................................................. 5
1.2 Breaker Specifications……..……….…………………………………………………….……………..6
1.3 Wiring Diagrams .......................................................................................................................... 7
1.4 Application………………………………………………………………………………………..……….8
2.0 Features ......................................................................................................................................... 8
2.1 Main Breakers ............................................................................................................................ 8
2.2 Distribution Breakers .................................................................................................................. 8
2.3 Optional Surge Protection Device…………………………………………………………….............8
2.4 Suitable for Use as Service Equipment....................................................................... .…….…....8
3.0 Inspecting and Unpacking of PTS90423 Series Panels ................................................................ 9
3.1 Steps to Inspect and Remove……………………………………………………………………….…9
4.0 Mounting. ...................................................................................................................................... 9
4.1 Mounting Bracket................................................................................................................................. 9
4.2 Mounting to Pole, Stanchion or Round Surfaces ........................................................................10
Figure 3: Mounting Example ..................................................................................................... 11
4.3 Mounting to flat surfaces ........................................................................................................... 11
Figure 4: Mounting Example. .................................................................................................... 11
5.0 Accessing Dead Front Plate and Breakers .................................................................................. 12
5.1 Removing Dead Front Access Plate ......................................................................................... 12
5.2 Wiring Ground Connections……………………………………………………………………………12
5.3 Wiring Load Connections………………………………………………………………………………13
Figure 6: Standard Wiring Example ............................................................................................ 14
5.4 Re-Installing Dead Front Access Plate...................................................................................... 15
Figure 7: Dead Front Access Plate Re-installed .......................................................................... 15
6.0 Installation Review ....................................................................................................................... 17
7.0 Document and Revision Control…………………………………………………………………..…….18
5.5 Labeling the Breakers............................................................................................................... 16
Figure 1: PTS90423.................................................................................................................... 3
Figure 5: Enclosure Grounding.................................................................................................. 12
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
3
All Rights Reserved, 2018
888-820-3508
1.0 Model Overview
The PTS90423 Series of Small Cell AC Power Distribution Load Centers
provides a custom factory fully assembled load center for Small Cell and CRAN
deployments.
PTS90423 – Small Cell AC Power Distribution Load Center
Figure 1: PTS90423
The PTS90423 Series products are:
Suitable for Use as Service Equipment.
Conforms to UL Standard 67
Certified to: CSA Standard C22.2 #29
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
4
All Rights Reserved, 2018
888-820-3508
PTS90423 Outline Drawing
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
Figure 2: Dimensional Drawings
Example with Dual SPD
and 5 Load Positions
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
5
All Rights Reserved, 2018
888-820-3508
1.1 Specifications
Electrical
Operating Voltage
120VAC
Main Breaker
60Amp MAX
Distribution Breakers
Max of (6) UL489 Breakers 0-20Amp
Power Input Wire Size
#14 - #4 awg Cu - Al
Power Output Wire Size
#14 - #4 awg Cu - Al
Neutral and Ground Contacts
#14 - #4 awg Cu - Al
Rated Conditional Short
10kAIC
SPD, Dual MOV (L-N) & (N-G)
20Ka 8/20us Nominal
External Ground Connection
2-hole ¼-20 w/ 5/8” spacing
Physical
Housing Material
Powder Coated Aluminum
Breaker Access
Thumb knob and lockable hasp
Wire Access, Internal
¼” hex head or #2 Phillip
Housing Dimensions (H x W x D)
(Excludes hasp and bracket)
PTS90423 16.15" x 6.68" x 6.285"
Unit Weight / Shippping Weight
PTS90423 11lbs / 13lbs
Mounting
Supplied Bracket
Environmental
Operating Temperature
(-40°C) to (60°C)
Relative Humidity
95% Non-Condensing
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
6
All Rights Reserved, 2018
888-820-3508
1.2 Breaker Specifications
Breaker Specifications
PTS P/N
Description
PT-KM1N-07A
UL489A DIN rail Breaker, 07 AMP
PT-KM1N-10A
UL489A DIN rail Breaker, 10 AMP
PT-KM1N-12A
UL489A DIN rail Breaker, 12 AMP
PT-KM1N-16A
UL489A DIN rail Breaker, 16 AMP
Torque Recommendations
Main QOU Breaker
42-47 in-lbs
Load Breaker
17-22 in-lbs
Surge Protection
17-22 in-lbs
Neutral Block and Bar
24-27 in-lbs
Ground Bar
24-27 in-lbs
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
7
All Rights Reserved, 2018
888-820-3508

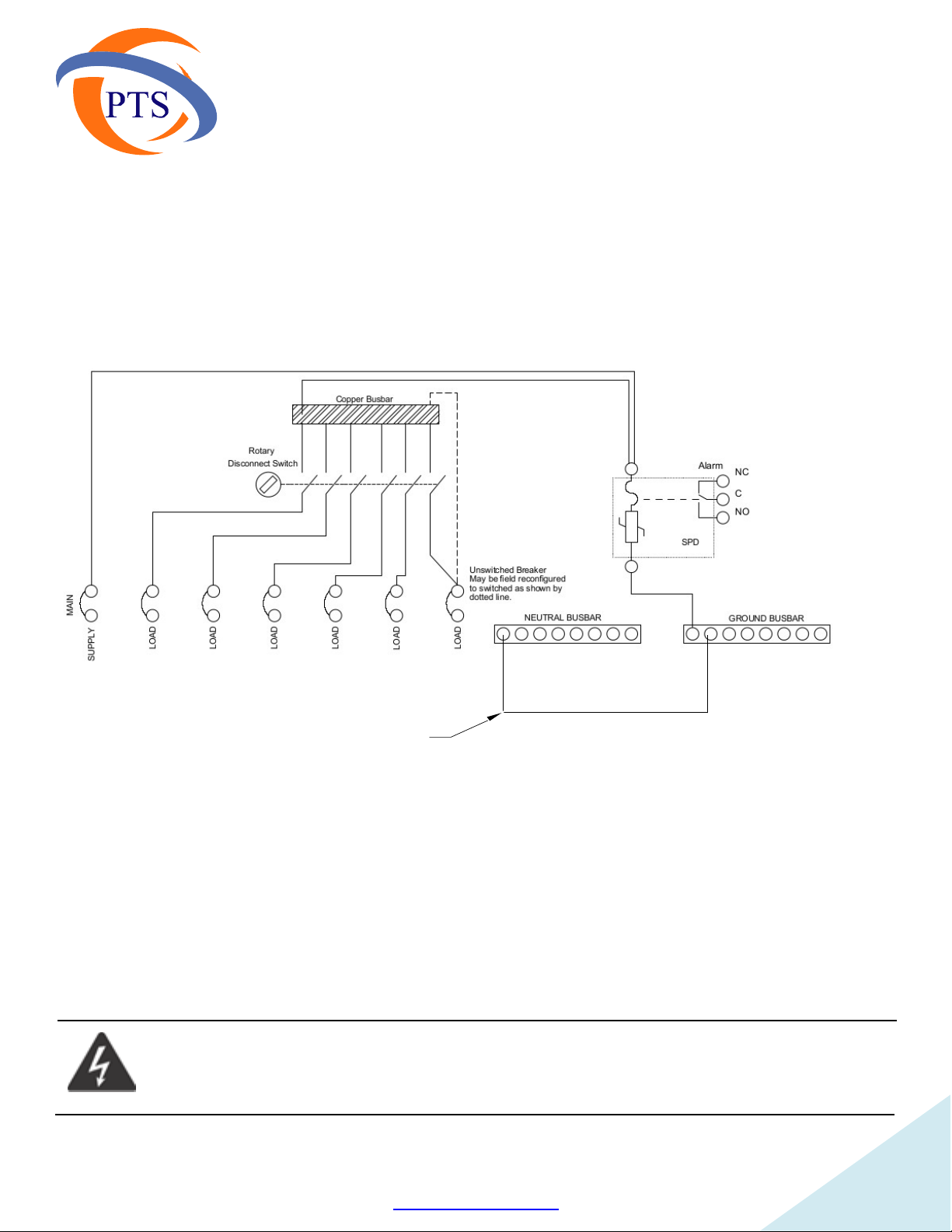

1.3 Wiring Diagrams
PTS90423 Wiring Diagram
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
Drawing above shows equipped with Neutral to Ground
Bond Required when Using for Service Equipment.
Suitable for Use as Service Equipment
NEUTRAL to GROUND
BOND Require when using for
SERVICE EQUIPMENT
Drawing above shows equipped with Single SPD,
supporting up to 6 load breaker positions.
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
9
All Rights Reserved, 2018
888-820-3508
1.4 Application
The PTS90423 is a compact AC Load Centers designed for Small Cell and CRAN Deployments
where distribution of AC power is required.
The PTS90423 Series of compact AC Load Centers can also be used for AC Power Distribution
applications where limited space exists, excluding the ability to use a larger load center.
The PTS90423 Series of compact AC Load Centers is Suitable for Use as Service Equipment, or
as a sub-tending branch panel when modernizing or expanding existing sites.
2.0 Features
The PTS90423 Series of Small Cell AC Load Centers packaged as a custom
configuration, ready for install in new and expansion environments.
2.1 Main Breaker
The PTS90423 Systems can support main breaker ampacity up to 60Amps.
2.2 Distribution Breakers
The PTS90423 Systems support upto (6) UL489 Breakers rated from 0-20 Amps.
2.3 Optional Single-SPD or Dual–SPD Protection
The PTS90423 Systems can support either Single SPD (L-G) or Dual SPD (L-N) & (N-G) modules.
2.4 Suitable for Use as Service Equipment
The PTS90423 is Suitable for Use as Service Equipment when bonding the
Neutral and Ground and following code requirements.
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
10
All Rights Reserved, 2018
888-820-3508
3.0 Inspecting and Unpacking of PTS90423 Series Load Centers
3.0.1 Inspect the packaging for obvious signs of rough handling and/or external damage.
3.0.2 Review Installation Guide.
3.0.3 Remove from plastic packaging.
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
4.0 Mounting
The PTS90423 Systems are certified for outdoor installations This section
provides installations guidelines to insure the appropriate requirements are met.
4.1 Mounting Bracket
4.1.1 A mounting bracket is included and pre-installed with the enclosure and can be used
as a template, or the mounting bracket detail on page 4 can be used, if preferred.
4.1.2 If mounting bracket is removed, a lock-tite like adhesive should be applied to the
screws when replacing.
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
11
All Rights Reserved, 2018
888-820-3508
4.2 Mounting enclosure to Pole, Stanchion or Round Surfaces
4.2.1 Customer is responsible to identify suitable location for mounting
4.2.2 Install Pole Straps and tighten per specifications -or -
4.2.3 Mark and drill anchors locations using template provided.
4.2.4 Wood Poles should be Lag Bolted or Through Bolted
4.2.5 Fiberglass or Metal pole shall be strap mounted.
4.2.6 Torque to mounting hardware specifications.

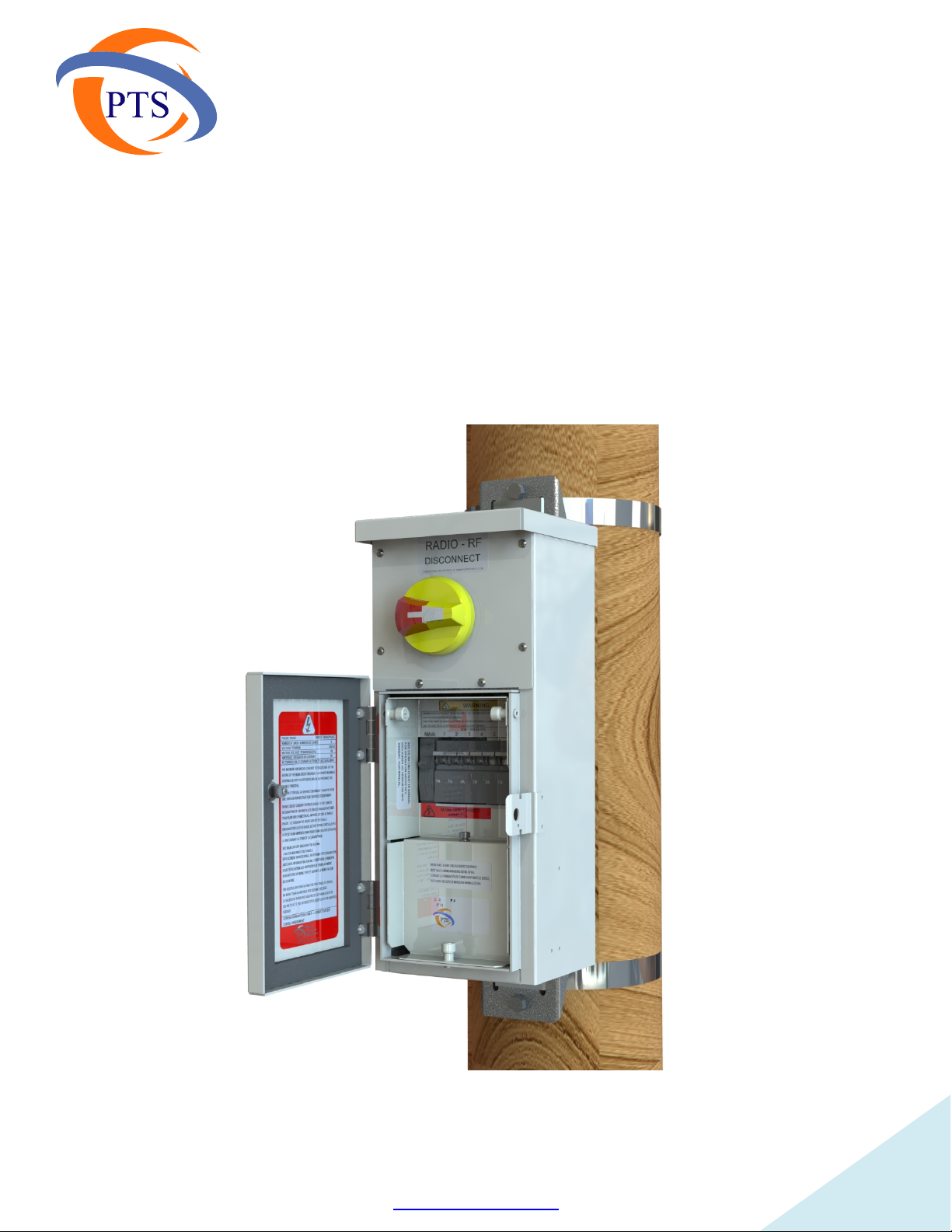

Figure 3: Mounting Configuration for enclosure on a
Pole, Stanchion or Round Surface
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
12
All Rights Reserved, 2018
888-820-3508
4.3 Mounting enclosure on flat surfaces
4.3.1 Customer is responsible to identify suitable location for mounting.
4.3.2 Mark and drill anchors or clips to secure enclosure to surface.
4.3.3 Torque to mounting hardware specifications.

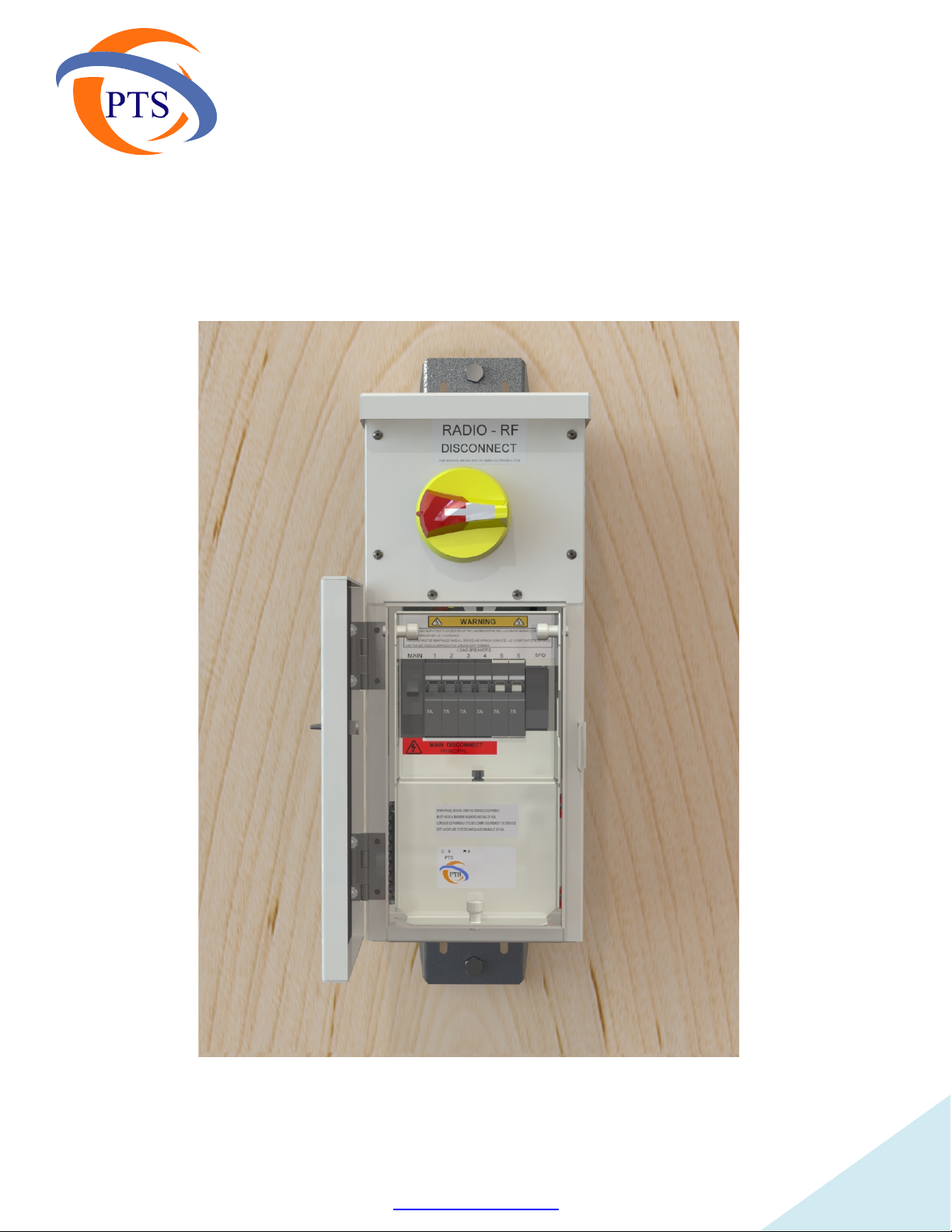

Figure 4: Mounting Configuration for enclosure on flat surfaces
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
13
All Rights Reserved, 2017 888-820-3508
5.1 Removing Dead Front Access Plate
5.1.1 Locate Dead Front Access Plate set screw and remove
5.1.2 Set aside for reuse.
5.1.3 Review Equipment Ground Connection Points
5.1.4 Review Neutral Connection points
5.2 Wiring Ground Connections
5.2.1 Ensure enclosure is grounded as per NEC and Local Jurisdictions Code requirements.
5.2.2 If Using for Service Equipment, bond the neutral to the ground bus bar and follow NEC and
Local Jurisdictions Code requirements.
5.2.3 Tighten connections as per manufacturers specifications.

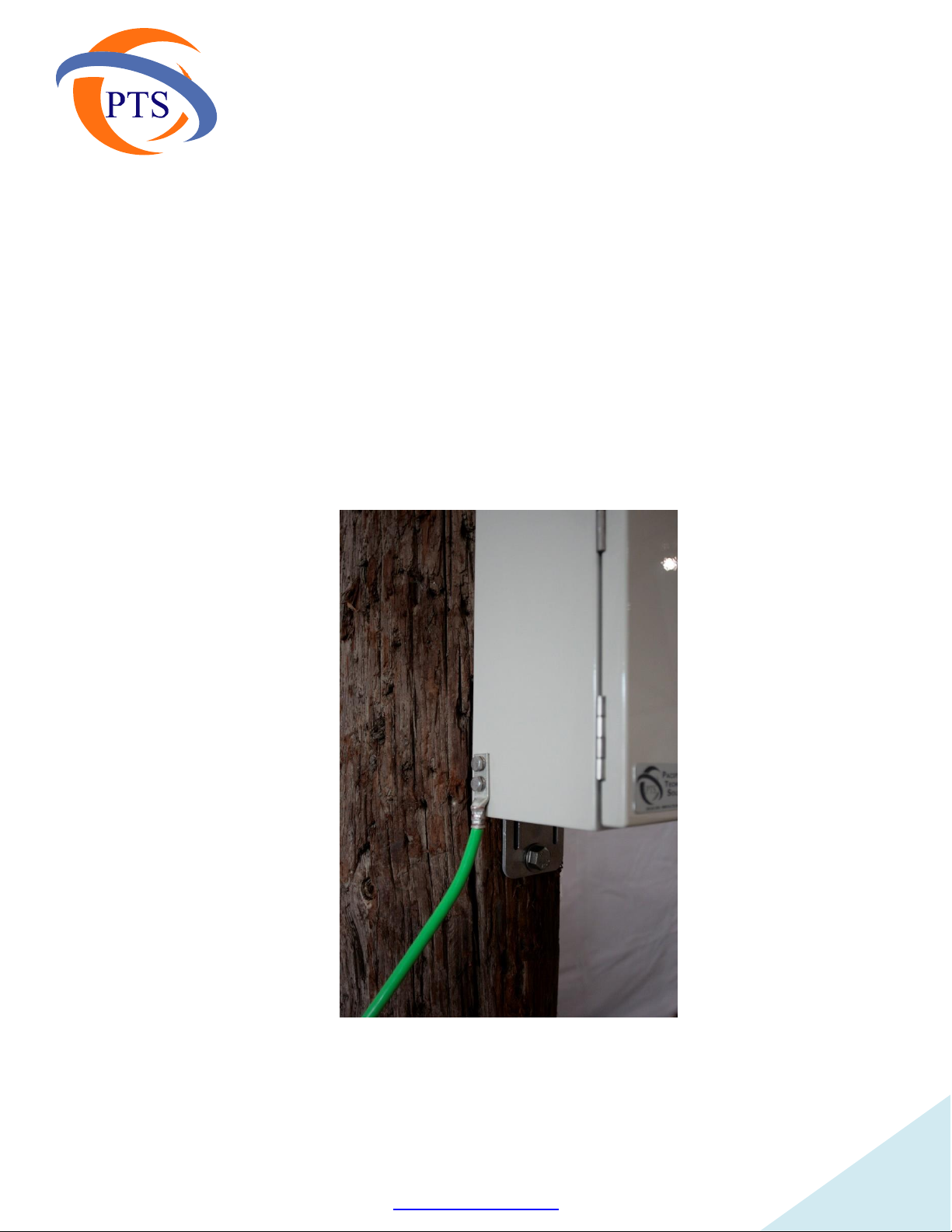

Figure 5: Mounting Location of External Enclosure
Ground Connection
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
14
All Rights Reserved, 2018
888-820-3508

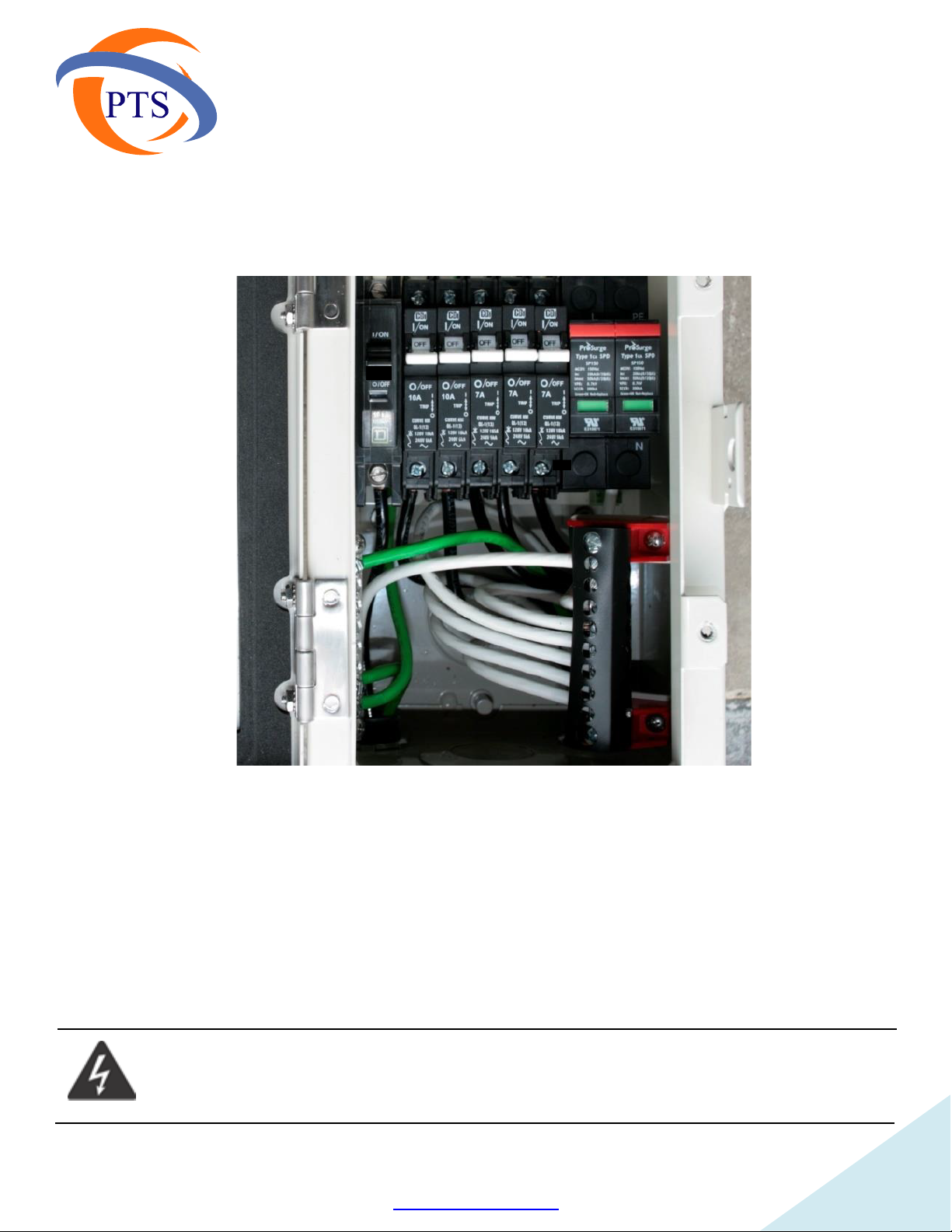

5.3 Wiring Service and Load Connections
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
5.3.1 Wiring to be done in accordance with NEC and Local Jurisdictions Code.
5.3.2 Wire the Service Ground to the internal ground bar
5.3.3 Wire the Service Neutral to Neutral bar connection according to use and Local
Jurisdictional Code.
5.3.4 If wiring for Service Entrance, ensure that the provided bond strap is connected
between the internal ground bar and neutral bar, and label accordingly.
5.3.5 Wire the Service Feed to the right side (service side) of the Main Breaker (s)
5.3.6 Land Equipment ground to ground bar
5.3.7 Land Equipment Neutral to Neutral bar
5.3.8 Land Load feeds to the right side (load side) of load breaker(s)
5.3.9 Ensure connections are properly seated in set screw capture ring openings prior to
tightening per specifications.
5.3.10 Tighter per breaker and bar specifications
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
15
All Rights Reserved, 2018
888-820-3508
Figure 6: Standard Wiring Practice Example
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
60
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
16
All Rights Reserved, 2018
888-820-3508
5.4 Re-Intalling the Dead Front Access Plate
5.4.1 Reinstall the Dead Front Access Plate and ensure that it is seated correctly.
5.4.2 Reinstall the Dead Front Access Plate set screw and tighten.
5.4.3 Check to ensure all breakers are sitting square in the dead plate opening
5.4.4 Check to ensure all blank breaker positions are covered
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
17
All Rights Reserved, 2018
888-820-3508
5.5 Labeling the Breakers
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
5.5.1 If installed as Service Equipment, apply the "SERVICE DISCONNECT" label at the
primary breaker positions
5.5.2 If installed as Branch Equipment, apply the "MAIN DISCONNECT" label at the
primary breaker positions
5.5.3 Label Load Breakers accordingly
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
18
All Rights Reserved, 2018
888-820-3508
6.0 Installation Review
Inspect the installation, verifying that all is in accordance with this document, NEC, and local Codes.
Caution: Installation shall be completed per all NEC and Local Codes. Do not install
PTS90423 Systems before reading and understanding all specifications and
installation guides provided. Installation should be performed by a qualified installer.
www.pactechsol.comwww.pactechsol.com

PTS 90423 Series Small Cell
AC Power Distribution Load Centers
Installation Guide
19
All Rights Reserved, 2018
888-820-3508
7.0 Document and Revision Control
Author
Tom Cooleen
Date
06/05/2018
File Location
www.pactechsol.com
Revision Control
Issue Number
09
Date
09/05/2018
Description
PTS90423 Series Installation Guide
Prime Contact 1
Name
UID
Phone
Department / Responsibility
Prime Contact 2
Name
UID
Phone
Department / Responsibility
Prime Contact 3
Name
UID
Phone
Department / Responsibility
www.pactechsol.comwww.pactechsol.com
