Pure-Pro RS-105 User manual

RS-105
PRO
P
URE
DRINKING WATE R SYSTEM
REVERSE OSMOSIS SYSTEM
15
PURE-PRO REVERSE OSMOSIS SYSTEM
Type ofproduct
Date of purchase
Name Tel
Address
PRO
P
URE
DRINKING WATE R SYSTEM
USER'S MANUAL
01 Introduction ofRS-105
02 What isreverse osmosis
03 Components &Selected filters
04 Cartridge filters
05 The parts of RS-105
06 Tubingconnection diagram
07 Installation diagram
08 Change filters
09 Change membrane
10 Operation regulation
12 FAQ
14 Maintenance checkinglist
15 Memo
Thank you verymuch for selectingPure-Pro WaterCorp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Memo
RS-105 Reverse Osmosis Drinking Water Systems

01
PURE-PRO REVERSE OSMOSIS SYSTEM
14
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Introduction of RS-105
¨RS-105 Quick-change cartridges RO system
®
PurePro ROYALRO system usesthe most advancedwater treatment technology:
"Reverse Osmosis". Reverse Osmosis (RO) is recognized as one of the best
available technologies for producing best quality drinking water. It's also the
same method used by many bottled water companies to make safe and great
tasting water. No other home water treatment system can offer you as much
protection and reliability.
®
PurePro ROYALRO system uses100GPD membrane which is powerful, fastand
excellent efficiency. 100GPD membrane increase the daily production capacity
and the speedof RO water production. This allows for better assurance that there
is adequate wateravailable when desired,even during heavyuse times ofthe day.
PurePro ROYALRO with its supreme quality ensuresa great water flow rate with
absolutely the leastwasting of water.
The newly designed ROYAL RO system is user friendly with design simplicity in
mind. It requires no tools for filter changes. Use twist and quick-change cartridge
design makes filter changes fast, clean and easy. This space saving allows
maximum use ofyour under counterspace.
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 5th stage Other items
Production: 100 GPD/ 378 LPD
Water storagetank: 3.2gallons /12.2 liters
Operation pressure: 50- 100 psi
Dimensions: (cm)27.5 (L)x 44.5(H) x26.5 (W)
Weight: 8 kg - system
4 kg -tank
RS-105 Reverse Osmosis Drinking Water Systems RS-105 Reverse Osmosis Drinking Water Systems
¨Specifications

Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly itwill remove allmicroorganisms from tapwater and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow isreversed, water fromthe salt solutionis forced topass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening outthe salts andother contaminants.
13
PURE-PRO REVERSE OSMOSIS SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Q: How will the PureProseries water affect mixed beverages?
Because reverse osmosis removes invisible contaminants that mask flavor, it
allows the natural taste of your beverages to come through. You will be able to
use less coffee and still get the full flavor. Concentrated beverages like orange
juice will taste tangier. You will probably be drinking a lot more water as well,
since many people drink soda, Kool-Aid, concentrated juices, and beer as an
alternative to bad-tasting tap water. Also, PurePro eliminates most of the lime
build up on drip coffee makers, preventing the need for frequent cleaning. No
longer will you find thewhite scum on the insideof pans after boiling water.
Q: How much water doesthe PurePro system produce ?
Under ideal conditions, the TW30-1812-100 TFC membrane is rated at 100
gallons of production per day. Under the average conditions, the consumer can
expect 100 gallons of product water per day. But that's still a lot of water for the
average household's drinking and cookingrequirements.
Q: Don't people need mineralsremoved from the water ?
Most of the minerals that we receive are from the foods we eat. Only a very
small percentage comes from thewater we drink.
Q: What is the maintenanceschedule for the PurePro system?
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine to destroy themembrane.
FAQ
RS-105 Reverse Osmosis Drinking Water Systems RS-105 Reverse Osmosis Drinking Water Systems

03
PURE-PRO REVERSE OSMOSIS SYSTEM
12
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM

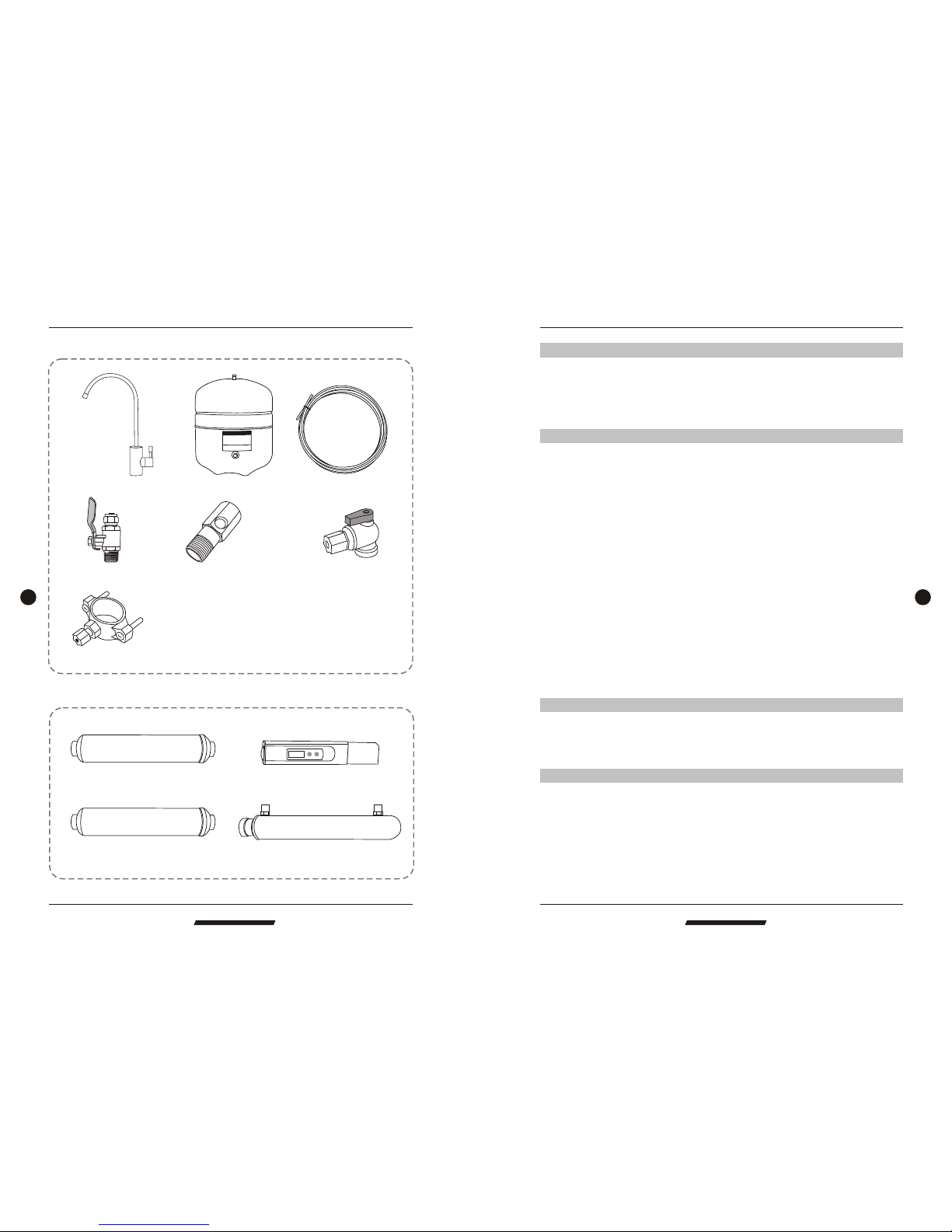

Components & Selected filters
Water storagetank
Deliver-valve Water supplyconnector
Drain saddle
Tank ball shut-off valve
Tubing
¨Selected filters
¨Components
Infra-red cartridge filter
PRO
P
URE
DRINKING WATE R SYSTEM
Q: What is the guaranteeon the PurePro system ?
The PurePro system (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect thequantity and the quality ofthe water production?
There are four major variablesto consider:
1.Pressure-The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
00
2.Temperature-76 F is the ideal water temperature for R.O. 40 F water will
0
cause the production of R.O. water to fall to half of that at 76 F. The maximum
0
water temperature recommended is 85 F.
3.Total Dissolved Solids (TDS)-The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4.Membrane-Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes TW30-1812-100 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Q: Can the PurePro systembe connected to an extrafaucet?
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run PureProsystem to all of theirbathrooms.
Q: What does the PureProseries drinking water taste like?
The taste of the PurePro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water(moderate mineral content).
FAQ
T.D.S
UVC-LIGHTING
ULTRAVIOLETWATER STERILIZER
Mineral cartridge filter
UV water sterilizer
TDS meter
Infra-Red
Mineral
European ceramic faucet
RS-105 Reverse Osmosis Drinking Water Systems RS-105 Reverse Osmosis Drinking Water Systems

11
PURE-PRO REVERSE OSMOSIS SYSTEM
04
PURE-PRO REVERSE OSMOSIS SYSTEM
6 Months
2 Years
1 Year
PRO
P
URE
DRINKING WATE R SYSTEM

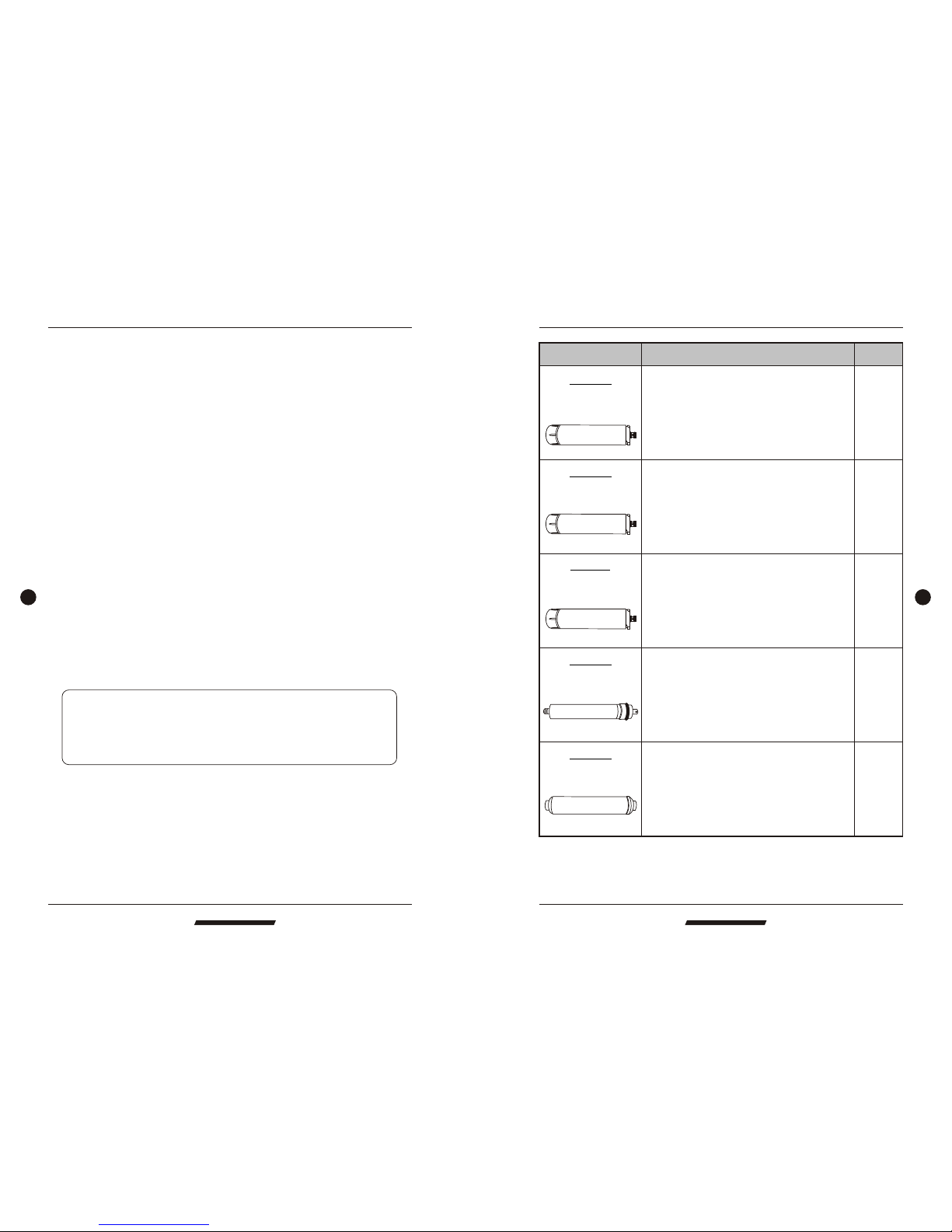

Cartridge filters
Stage 1
Stage3
Stage 2
GAC Carbon Filter
Stage 4
TFC Membrane
Stage 5
Post Carbon Filter
Cartridge Filters Filter Description
6 Months
6 Months
A thin film composite (TFC) high quality
membrane that processes 100 gallons per day. It
remove the following hard water contaminants
that may be present in your water: lead, cooper,
barium, chromium, mercury, sodium, cadmium,
fluoride, nitrite, nitrate,and selenium.
This carbon post filter removes objectionable
tastes and odors to enhance the quality of your
drinking water. We are using NSF approved post
carbon to guaranteethe taste ofwater.
5 Micron
Sediment Filter
PRO
P
URE
DRINKING WATE R SYSTEM
A.With everything connected,turn on thewater check forleaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on firsttime use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink topfaucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOTUSE FIRST TANKOF WATER.***
G.Close the sinktop faucet. The system isnow ready foruse.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
0
1.Do not usehot water (over45 C)!
2.Do not freezethe machine!
3.Switch off electricity and water source if away for more than5 days,
and drain outpure water.
Operation regulation
Service Life
CTO Carbon Filter
RS300ST
With only five micron rating. It is effective in
removing dirt, rustand sand particles.
RS300ND
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor,and color.
RS300RD
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor,and color.
RS-105 Reverse Osmosis Drinking Water Systems RS-105 Reverse Osmosis Drinking Water Systems

05
PURE-PRO REVERSE OSMOSIS SYSTEM
10
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Operation regulation
The parts of RS-105
The 1st stage filterThe 3rd stage filter
The 2nd stage filter
Pressure gauge
Post carbon filter
RO membrane housing To the tank
To the faucet
Input water
Flow restrictor
Todrain out tube
RS-105 Reverse Osmosis Drinking Water Systems RS-105 Reverse Osmosis Drinking Water Systems
3 Let the waterrun for atleast 30
minutes. This flushes the carbon
filters on firsttime use.
2 Switch on watertank.
1 Turn onwater source.
ToRO system

09
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
PRO
P
URE
DRINKINGWATE RSYSTEM
PRO
P
URE
DRINKINGWATERSYSTEM
Change membrane
06
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Tubing connection diagram
Faucet
Tank
Drain
Input water
CONNECTING THE COLORTUBING:
A. Connect theWHITE tubing tothe water supplyconnector.
B. Connect theBLUE tubing tothe sink topfaucet.
C. Connect theBLACK tubing tothe drain saddle.
D. Connect theRED tubing tothe storage tank.
A
B
C
D
RS-105 Reverse Osmosis Drinking Water Systems RS-105 Reverse Osmosis Drinking Water Systems
1Turn off water source. 2Switch off water tank.
ToRO system
5Remove the membrane by a pincer. 6Install the membrane by carefully
pushing the spigotend into the
socket at thefar end of the housing
until completely in.
3Remove the tube. 4Remove the membranehousing
cap anticlockwise.

PURE-PRO REVERSE OSMOSIS SYSTEM
07 08
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATE R SYSTEM
Installation diagram
4 Screw in andinstall the newfilter
anticlockwise.
PRO
P
URE
DRINKING WATE R SYSTEM
Change filters
3 Loose the used pre-filter clockwise
and remove it.
5 Drain out 1Gallon of waterto
purify replacement filters.
Input water : Install water tank:
Install drain saddle:
Drill a 1/4"hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Faucet
Kitchenware table
Twisted plasticlocker
Rubber gasket
Flat metal piece
Screw locker
Tubing
Cutting ring
Concave type screw
Install faucet :
Hand tighten
plastic shut-off
valve to tank.
Then connect
color tubing.
ToRO system
Tankball shut-
off valve
ToRO system
Deliver valve
Water supply connector
Towater
source pipe
RS-105 Reverse Osmosis Drinking Water Systems RS-105 Reverse Osmosis Drinking Water Systems
2Switch off water tank.
1Turn off water source.
ToRO system
Assemble membrane :
Remove the membranehousing cap.
Install the membraneby carefully
pushing the spigotend into the
socket at thefar end ofthe housing
until completely in.
PRO
P
URE
DRINKINGWATERSYSTEM
