Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Memo
UV-301
UV-301 3 Stage Ultraviolet (UV) Water Purification System
International Reverse Osmosis System Standard
Under Industry Standard #SBT-02204
U.S.A. 1-800-993-2933

01
PURE-PRO REVERSE OSMOSIS SYSTEM
14
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Introduction of UV-301
¨
¨
UV-301- 3 stage Ultraviolet (UV) Water Purification
System
Specifications
Mini but super efficient! This system has an ultraviolet lamp capable of killing
99.99% of all bacteria and viruses. This system also removes the following 17
hazardous metals such as lead and mercury, insecticides, pesticides, radon,
chlorine, bad taste and odor, as well as the single cell amoeba, Giardia and
Cryptosporidium. The UV light of wavelengths between 250 and 270 nanometers
(UV-C or UVC band), and is extremely effective in killing many species of bacteria,
mold spores, viruses and other microorganisms. No longer fear drinking water
from your own faucet!
Maintenance checking list
UV-301 3 Stage Ultraviolet (UV) Water Purification System UV-301 3 Stage Ultraviolet (UV) Water Purification System
3 Stage UV filtration system
100% Factory tested and sterilized ready for installation
Heavy duty steel with powder coating white bracket
UV stainless steel housing
Double o'ring filter housing
Feed water connector or self piercing saddle valve
Completely assembled
Long reach chrome faucet (upgrade faucet is acceptable)
Installation Instruction
Production: 1 GPM / 3.8 liters per minute
Operation pressure: 15 -85 PSI
Dimensions: (cm) 37 (L) x 20 (W) x 45(H)
Weight: 6.0 kg
Date
Filters
1st stage 2nd stage 3rd stage Other items

Using UV radiation in this manner to purify water is popular among Europeans
who have known about it for decades. It's used in the United States started in the
early 1990s and is becoming more prevalent especially with outbreaks of drinking
water contamination by microorganisms. The UV purification system
incorporates a lamp of suitable size and wattage to generate light of the proper
wavelength with an electronic ballast to operate it. The electronic ballast plays an
important role in how much UV the lamp generates. Dosage is a function of UV
wavelength, intensity and time. Light intensity from the lamp is proportional to the
electric current flowing through it, and is also affected by the frequency at which
it's operated. Both of these parameters are controlled by the electronic ballast.
Since many water purification systems are portable, they sometimes require
power supplied from a battery rather that the typical AC source, i.e.,220 -volt
outlet. The electronic ballast must be able to accommodate applications with this
requirement. Some of the other features users might expect from the electronic
ballast are small physical size, long life and high efficiency.
At least one line of electronic ballasts can help meet these requirements. It can
operate a wide variety of germicidal lamps from a number of different power
supply voltages including both AC and DC (battery) sources. Many models are
compact in size and can be easily incorporated into most designs. Probably one
of the most attractive features of the product line is that nearly any model can be
customized for a specific lamp to generate different levels of UV radiation. In
some cases, new or specialty lamps require new ballast designs. In these
instances, engineers can often create designs that meet or exceed customer
needs. UV irradiation is becoming a more viable and economical means of water
purification when used in conjunction with other methods.
13
PURE-PRO REVERSE OSMOSIS SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
UV-301 3 Stage Ultraviolet (UV) Water Purification System UV-301 3 Stage Ultraviolet (UV) Water Purification System
How UV works
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage Other items

03
PURE-PRO REVERSE OSMOSIS SYSTEM
12
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Components & Other selections
Housing wrench
Deliver-valve Water supply connector
Four color coded 1/4 inch
tubing for system connection
¨Other selections
¨Components
PRO
P
URE
DRINKING WATER SYSTEM
UV-301 3 Stage Ultraviolet (UV) Water Purification System UV-301 3 Stage Ultraviolet (UV) Water Purification System
Standard faucet
Upgraded european
ceramic faucet
T.D.S
TDS meter
Color Tester
Q: How will the Pure-Pro series water affect mixed beverages?
Because reverse osmosis removes invisible contaminants that mask flavor, it
allows the natural taste of your beverages to come through. You will be able to
use less coffee and still get the full flavor. Concentrated beverages like orange
juice will taste tangier. You will probably be drinking a lot more water as well,
since many people drink soda, Kool-Aid, concentrated juices, and beer as an
alternative to bad-tasting tap water. Also, Pure-Pro eliminates most of the lime
build up on drip coffee makers, preventing the need for frequent cleaning. No
longer will you find the white scum on the inside of pans after boiling water.
Q: How much water does the Pure-Pro system produce ?
Q: Don't people need minerals removed from the water ?
Q: What is the maintenance schedule for the Pure-Pro System ?
Under ideal conditions, the RE1812-70 TFC membrane is rated at 70gallons of
production per day (70gpd at 60psi, 95gpd at 100psi). Under the average
conditions, the consumer can expect 70-95 gallons of product water per day. But
that's still a lot of water for the average household's drinking and cooking
requirements.
Most of the minerals that we receive are from the foods we eat. Only a very
small percentage comes from the water we drink.
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine to destroy the membrane.
FAQ

11
PURE-PRO REVERSE OSMOSIS SYSTEM
04
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Cartridge Filters
PRO
P
URE
DRINKING WATER SYSTEM
6 Months
PRO
P
URE
DRINKING WATER SYSTEM
Stage 1
Stage3
Stage 2
Granular Activated
Carbon Filter
Cartridge Filters Filter Description
6 Months
With only five micron rating. It is effective in
removing dirt, rust and sand particles.
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor, and color.
Ultraviolet light (UV), a natural part of the sunlight
is widely accepted as a reliable, efficient &
environmentally friendly solution for water
disinfection. This UV lamp utilize the application
of particularly efficient UV radiator with a 254nm
wave length to cause immediate death for
organisms and wipe out their ability to survive
and reproduce. 99.99% destruction of bacteria
and viruses.
5 Micron
Sediment Filter
1 Year
UVC-LIGHTING
ULTRAVIOLET WATER STERILIZER
Service Life
UV-301 3 Stage Ultraviolet (UV) Water Purification System UV-301 3 Stage Ultraviolet (UV) Water Purification System
Ultraviolet Water
Sterilizer
PRO
P
URE
DRINKING WATER SYSTEM
Q: What is the guarantee on the Pure-Pro system ?
Q: What factors affect the quantity and the quality of the water production?
Pressure
Temperature
Total Dissolved Solids (TDS)
Membrane
Q: Can the Pure-Pro system be connected to an extra faucet?
Q: What does the Pure-Pro series drinking water taste like?
The Pure-Pro System (excluding filters) is guaranteed for 1 year for material
and workmanship. All defective parts will be replaced free within the first year
under natural breakdown. The membrane has one year pro-rated guarantee.
There are four major variables to consider:
1. -The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
2. -76 F is the ideal water temperature for R.O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommended is 85 F.
3. -The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4. -Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
Pure-Pro system includes RE1812-70 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run Pure-Pro system to all of their bathrooms.
The taste of the Pure-Pro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water (moderate mineral content).
0 0
0
0
FAQ

International Reverse Osmosis System Standard
Under Industry Standard #SBT-02204
U.S.A. 1-800-993-2933
05
PURE-PRO REVERSE OSMOSIS SYSTEM
10
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Operation regulation

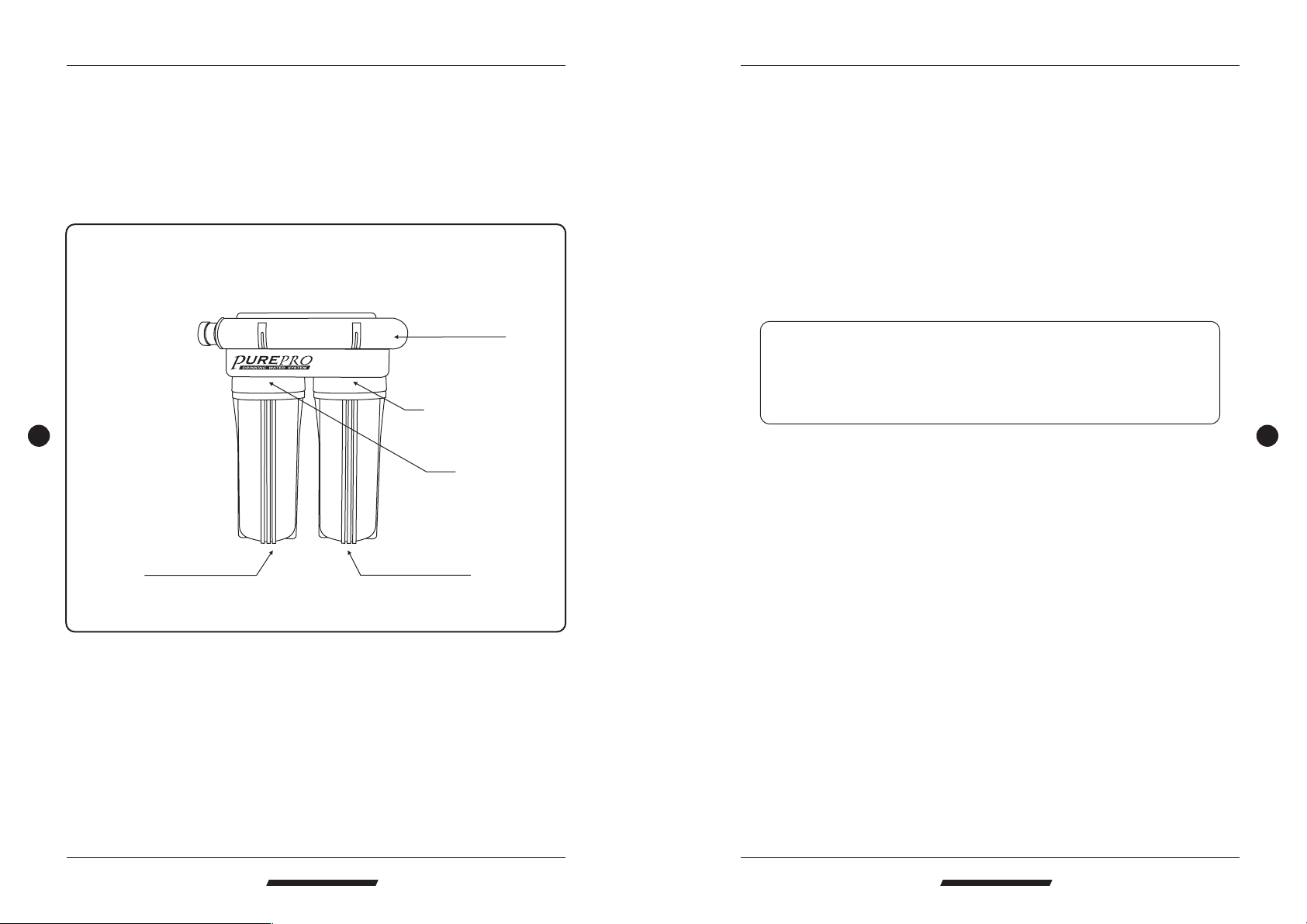

ThepartsofUV-301
The 1st stage housingThe 2nd stage housing
IN
OUT
UV water sterilizer
UV-301 3 Stage Ultraviolet (UV) Water Purification System UV-301 3 Stage Ultraviolet (UV) Water Purification System
A.With everything connected, turn on the water check for leaks.
B.Let the water run for at least 30 minutes. This flushes the carbon
filters on first time use.
C.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
1.Do not use hot water (over 45 C)!
2.Do not freeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drain out pure water.
0

06
PURE-PRO REVERSE OSMOSIS SYSTEM
09
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM

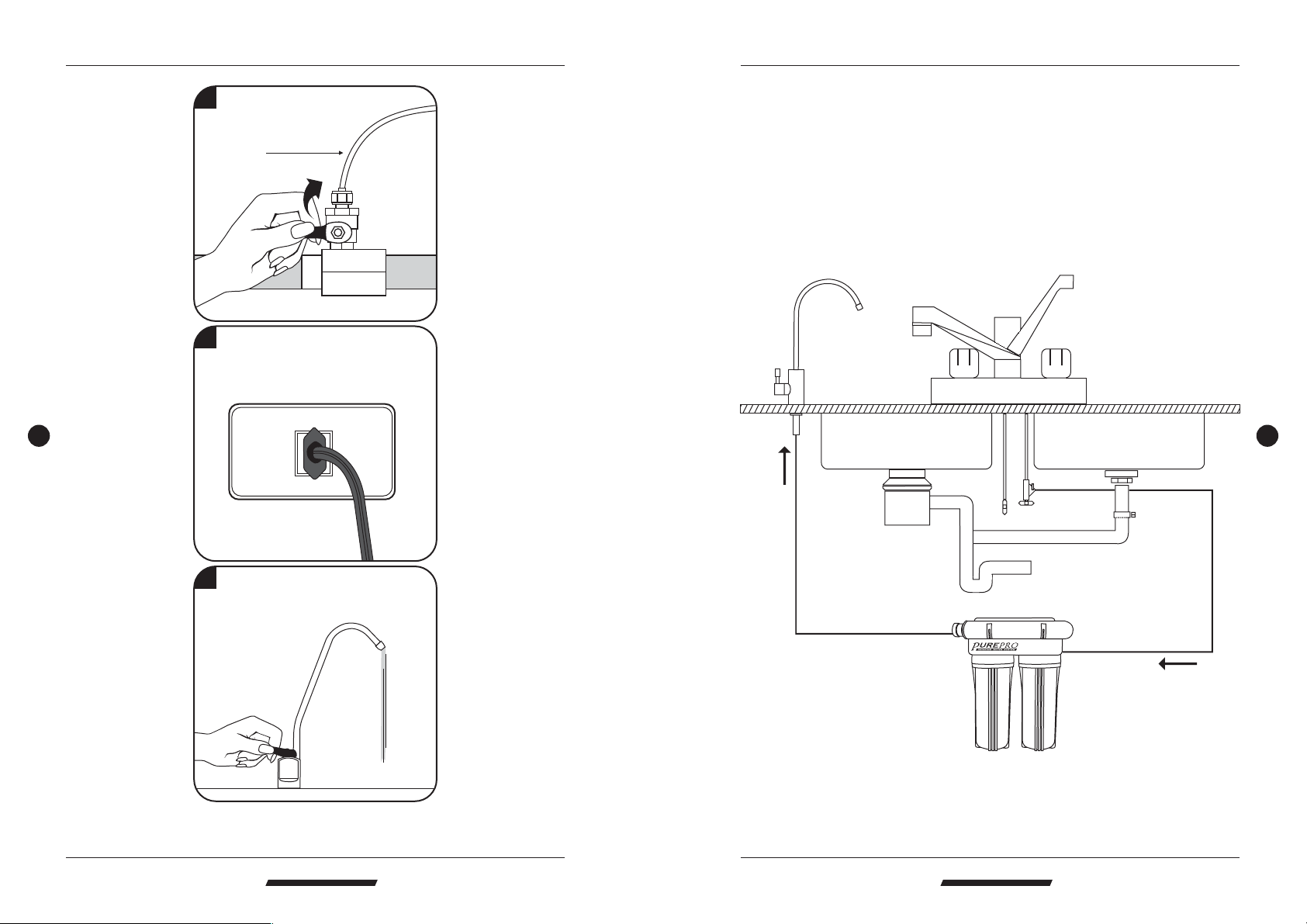

Tubing connection diagram
Faucet
Input water
CONNECTING THE COLOR TUBING:
A. Connect the WHITE tubing to the water supply connector.
B. Connect the BLUE tubing to the sink top faucet.
A
B
PRO
P
URE
DRINKING WATER SYSTEM
UV-301 3 Stage Ultraviolet (UV) Water Purification System UV-301 3 Stage Ultraviolet (UV) Water Purification System
InternationalReverse Osmosis System Standard
UnderIndustry Standard #SBT-02204
U.S.A. 1-800-993-2933
Operation regulation
3Let the water run for at least 30
minutes. This flushes the carbon
filters on first time use.
2Plug in electricity.
1Turn on water source.
To RO system

Install European ceramic faucet :
PURE-PRO REVERSE OSMOSIS SYSTEM
07 08
PURE-PRO REVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Input water :
To RO system
Deliver valve
To faucet
To water source pipe
Installation diagram
6Drain out 1 Gallon of water to
purify replacement filters.
1Prepare a housing wrench.
PRO
P
URE
DRINKING WATER SYSTEM
Change filters
5Put the replacement filters in the
housings and double O' ring.
Be sure tighten with
O-ring to prevent
from leaking.
4Open housings clockwise with a wrench.
3Turn off water source.
To RO system
UV-301 3 Stage Ultraviolet (UV) Water Purification System UV-301 3 Stage Ultraviolet (UV) Water Purification System
1. Take out the UV sterilizer from the box as shown in the picture.
2. Connect the wire to both ends of UV lamp.
3. Tight up the UV cap.
Install UV lamp :
2Unplug electricity.
