1
1. Product Introduction
The PT-MA-HD44DA is a professional 4x4 HDMI 2.0 Matrix Switcher with Audio
Matrix. It includes 4 HDMI inputs, 4 HDMI outputs and the last two outputs with
down-scaling function, which is designed for switching two HDMI2.0 and HDCP2.3
compliant signals. It also features 4 SPDIF and 4 analog audio outputs for audio
matrix. It features comprehensive EDID management and advanced HDCP handing
to ensure maximum functionality with a wide range of video sources. It not only
supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP
control options.
1.1 Features
4x4 HDMI 2.0 Matrix Switcher.
Supports 4K/60 4:4:4, HDR, HDCP2.3 compliant.
Audio Matrix, audio out can de-embedded from arbitrary input or output.
Individual volume adjustment on each L+R output.
Supports 4K to 1080p down-scaling up to 2 outputs.
HDMI out provides 2.5W to power Active Optical Cable (AoC).
HDMI Output support up to 5V500mA for AoC cable.
Controllable by front panel, IR, RS232 and TCP/IP.
1.2 Package List
1x PT-MA-HD44DA
1x Power Adaptor (24V DC 1.25A)
2x Mounting Ears with 6 Screws
4x Plastic Cushions
1 x IR Remote
1x IR Receiver
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

User Manual
PT-MA-HD44DA
2
2. Specification
Video
Video Input
(4) HDMI
Video Input Connector
(4) Type-A female HDMI
Video input Video Resolution
Up to 4K@60Hz 4:4:4
Video Output
(4) HDMI
Video Output Connector
(4) Type-A female HDMI,
Video output Video Resolution
Up to 4K@60Hz 4:4:4
HDMI Output
Supports up to 5V500mA for AoC cable
HDMI Version
Up to 2.0
HDCP Version
Up to 2.3
HDMI Audio Signal
LPCM 7.1 audio, Dolby Atmos® , Dolby® TrueHD, Dolby Digital®
Plus, DTS:X™ and DTS-HD® Master Audio™ pass-through.
Digital Audio Output
Output
(4) Digital SPDIF audio
Output Connector
(4) Toslink connector
Digital SPDIF Audio Format
Supports PCM, Dolby Digital, DTS, DTS-HD
Frequency Response
20Hz to 20KHz, ±1dB
Max Output level
±0.05dBFS
THD+N
< 0.05%, 20Hz –20KHz bandwidth, 1KHz sine at 0dBFS level (or
max level)
SNR
> 90dB, 20Hz-20KHz bandwidth
Crosstalk Isolation
< -70 dB, 10KHz sine at 0dBFS level (or max level before clipping)
Noise
-90dB
Analog Audio Output
Output
(4) Analog L/R Audio
Output Connector
(4) L&R (RCA)
Digital SPDIF Audio Format
PCM 2CH
Frequency Response
20Hz to 20KHz, ±1dB

User Manual
PT-MA-HD44DA
3
Analog Audio Output
Max output level
2.0Vrms ± 0.5dB. 2 V = 16 dB headroom above -10dBV (316 mV)
nominal consumer line level signal
THD+N
< 0.05%, 20Hz –20KHz bandwidth, 1 kHz sine at 0dBFS level (or
max level)
SNR
> 80dB, 20Hz-20KHz bandwidth
Crosstalk Isolation
< -80 dB, 10KHz sine at 0dBFS level (or max level before clipping)
L-R Level deviation
< 0.05 dB, 1KHz sine at 0dBFS level (or max level before clipping)
Frequency Response Deviation
< ± 0.5dB 20Hz - 20KHz
Output Load Capability
1Kohm and higher (supports 10x paralleled 10k ohm loads)
Noise
-80dB
Control
Control Port
(1) IR EYE, (1) RS232, (1) FIRMWARE, (1) TCP/IP
Control Connector
(1) 3.5mm jack, (1) 3-pin terminal block, (1) USB-A, (1) RJ45,
General
Transmission Distance
4K/60Hz/444 5m,4K/60Hz/420 10m,1080P 15m
Bandwidth
18Gbps
Operation Temperature
-5~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humility
10%-90%
External Power Supply
Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A
Maximum Power Consumption
18.3W
Dimension (W*H*D)
436.4mm*44mm*236mm
Net Weight
2.6kg

User Manual
PT-MA-HD44DA
4
Video Resolution Down-scaling
The product supports video resolution down-scaling, the 4K input can be
automatically degraded to 1080p output for compatibility with 1080p display, shown
in the below chart.
Input
Output
#
Resolution
Refresh
Color
Space
Downscale
1080p Specs
1
3840x2160
60
4:4:4
Support
1080p@60Hz 4:4:4
2
3840x2160
30
4:4:4
Support
1080p@30Hz 4:4:4
3
3840x2160
24
4:4:4
Support
1080p@24Hz 4:4:4
4
3840x2160
60
4:2:0
Support
1080p@60Hz 4:4:4
5
3840x2160
30
4:2:0
Support
1080p@30Hz 4:4:4
6
3840x2160
24
4:2:0
Support
1080p@24Hz 4:4:4
7
3840x2160
60
4:2:2
Not Support
N/A
8
3840x2160
30
4:2:2
Not Support
N/A
9
3840x2160
24
4:2:2
Not Support
N/A
Note: Only last two outputs (output 3 and output 4) have down-scaling function.

User Manual
PT-MA-HD44DA
5
3. Panel Description

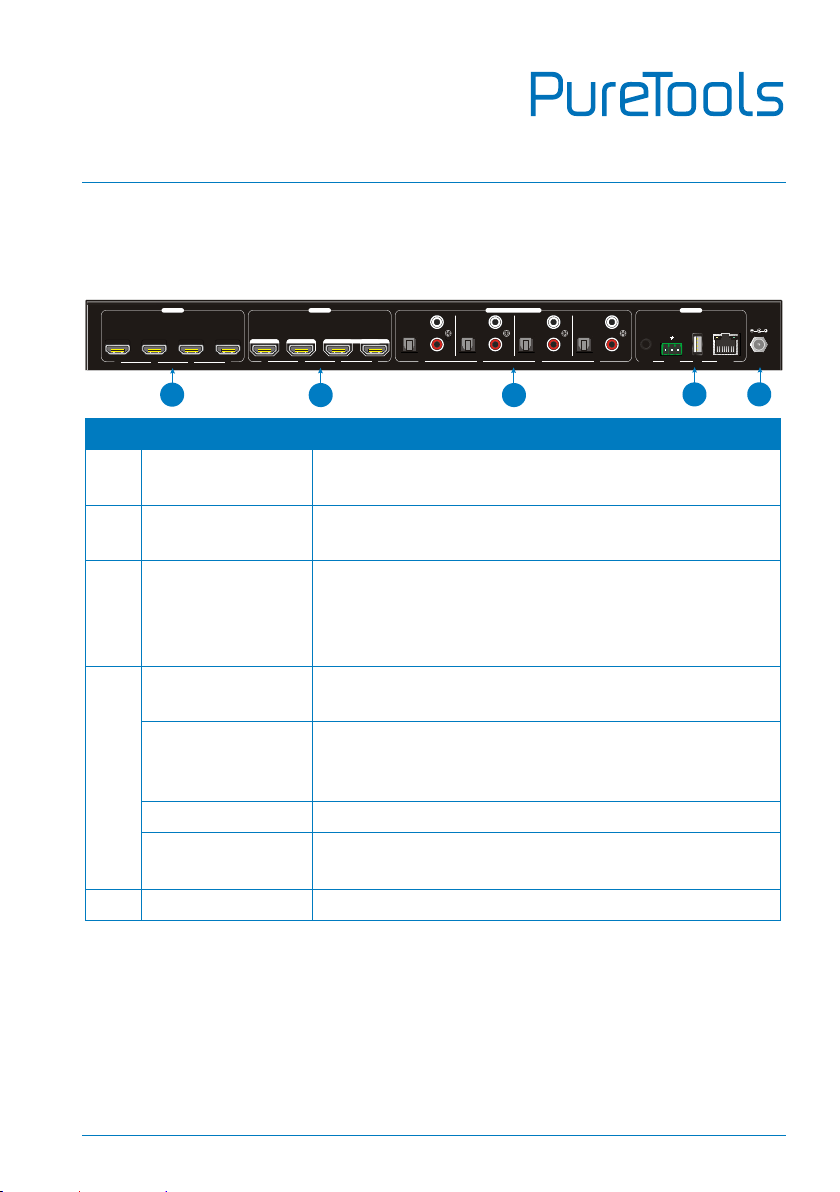

3.1 Front Panel
No.
Name
Description
①
Power Indicator
Illuminates green when device powered on;
Turns red in standby mode.
②
IR sensor
Built-in IR sensor, receives IR signal sent from
IR remote.
③
INPUT selector button
OUTPUT selector button
Total 4 input selector buttons, press one of
buttons to switch input source.
Total 4 output selector buttons, press the
buttons to select output channel.
④
ENTER button
Confirm operation.
LOCK button
Press this button for 3 seconds to lock/unlock
all front buttons.
ALL button
Select all outputs to convert an input to all
outputs:→Press INPUTS 1 + ALL + ENTER
CLEAR button
Withdraw button.
⑤
PRESET RECALL
HOLD TO STORE
Press and hold the button 1~4 to save the
current switching status to the corresponding
preset 1~4.
Press the button 1~4 to recall the saved
preset 1~4.
ALL
1 2
34
1 2 3 4
INPU TS
OUTP UT S
EN TER
HOLD TO STORE
PR ES ET R EC AL L
IR
CLEAR
PT-MA-HD44DA
Matrix
15
24
3

User Manual
PT-MA-HD44DA
6
3.2 Rear Panel
No.
Name
Description
①
INPUTS
HDMI input ports, 4 in total, connects with HDMI
sources.
②
OUTPUTS
4 in total, connects with HDMI displays. The latter
four HDMI ports have down-scaling function.
③
AUDIO MATRIX
OUTPUTS
SPDIF: audio output ports for de-embedded HDMI
audio, 4 in total.
L&R (RCA): audio output ports for de-embedded
HDMI audio, 4 pairs in total.
④
IR EYE
Connects with external IR receiver for using the IR
remote to control the Matrix Switcher.
RS232
3-pin terminal block to connect the RS232 control
device (e.g. PC) or a device to be controlled by
RS232 commands.
FIREWARE
USB-A port for updating firmware.
TCP/IP
RJ45 port to connect the control device (e.g. PC) to
control the matrix by GUI.
⑤
DC 24V
Connect with 24VDC 1.25A power adaptor.
DC 24 VTCP /IP
Tx Rx
RS23 2 FW
L
R
1 42 3
L
R
L
R
L
R
SPD IF SP DI F SPD IF SP DI F
DOWN-SCALING
1 42 3
AUDIO MATRIX OUTPUTS
1 42 3
INP UTS OUTPUTS CONTROL
IR EYE
15
24
3

User Manual
PT-MA-HD44DA
7
4. System Connection
4.1 Usage Precaution
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated
and safe.
All devices should be connected before power on.

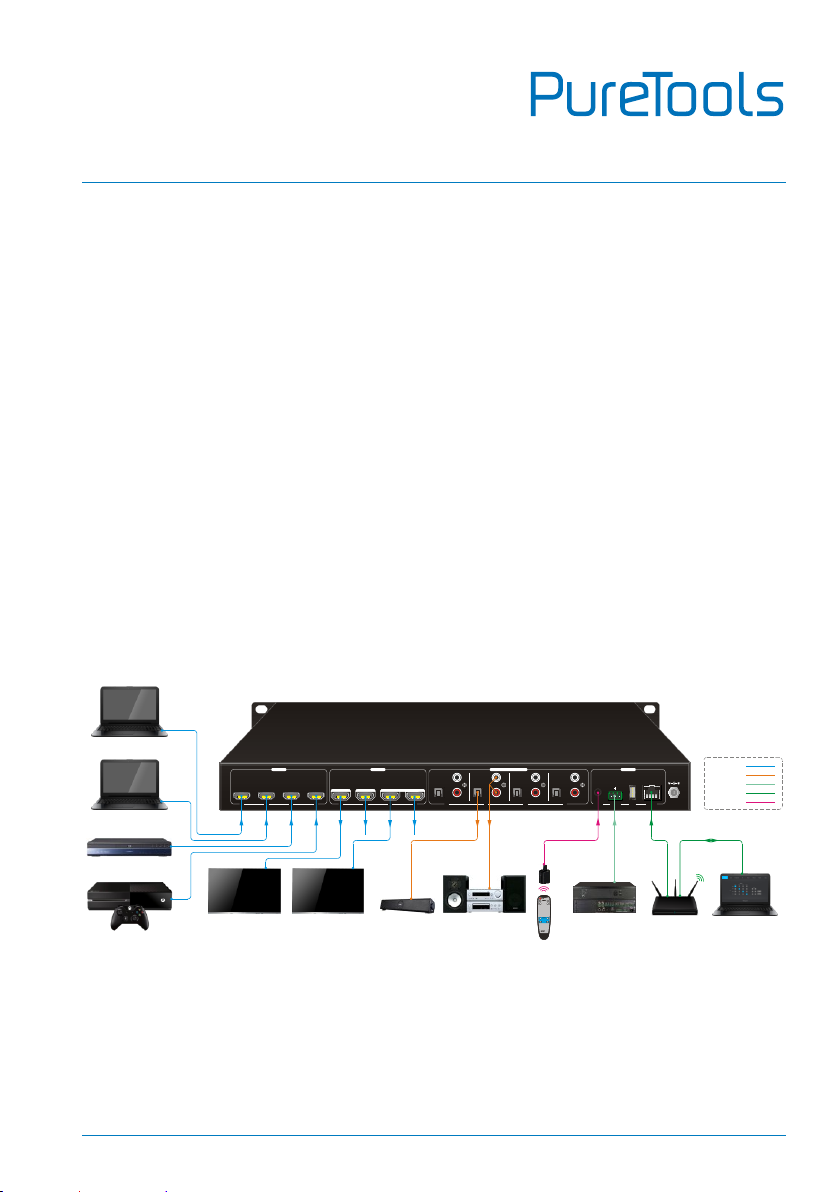

4.2 System Diagram
DC 24VTCP/ IP
Tx Rx
IR EYE RS232 FW
L
R
1 42 3
L
R
L
R
L
R
L
R
SPDI F SPD IF SPD IF SPD IF
DOWN-SCALING
1 42 3
AUDIO MATRIX OUTPUTS
1 42 3
INPU TS OUTPUTS CONTROL HDMI:
IR Control:
RS232:
Ethernet:
Audio:
Laptop
Blue-Ray
Game Console
4K TV
4K
TV
Down-Scaling
Laptop
Soundbar Amplifier Central Control System
IR
Receiver
Router Laptop
Remote

User Manual
PT-MA-HD44DA
8
5. Panel Control
5.1 I/O connection switching
The front panel features four input selection buttons and four output selection
buttons for switching I/O connection.
1) To convert 1 input to 1 output:
Example: Input 1 to Output 3
→Press INPUTS 1 + OUTPUTS 3 + ENTER button.
2) To convert 1 input to 2~3 outputs:
Example: Input 1 to Output 2, Output 3, Output 4.
→Press INPUTS 1 + OUTPUTS 2, Output 3, Output 4 +ENTER button.
3) To convert 1 input to 4 outputs:
Example: Convert Input 2 to all outputs
→Press INPUTS 2 +ALL button +ENTER button.
Note: Indicators of the pressed buttons will blink blue for three times if the conversion
is done, then it will be off. If the conversion failed, they will be off immediately.
5.2 I/O connection Inquiry
Press OUTPUTS button 1, 2, 3 or 4 to inquiry its corresponding input, and then the
indicator of the input button will turn blue.
5.3 LOCK Function
Long press the LOCK button for three seconds, all buttons on the front panel disable
to work. And then long press the LOCK button for three seconds again or unlock on
GUI control, the front panel button will unlock.

User Manual
PT-MA-HD44DA
9
5.4 PRESET RECALL Function
Press and hold the PRESET 1~4 at least three seconds to save the current switching
status to the corresponding preset 1~4.
Press the PRESET 1~4 to recall the saved preset 1~4.
Note: The matrix switcher supports six presets, but only preset 1~4 can be saved and
recalled by button control. Please manage other preset by GUI control or RS232
control.
5.5 CLEAR Button
Please press the CLEAR button if want to withdraw an operation before the ENTER
button comes into effect, meanwhile, the matrix will return to the previous status.

User Manual
PT-MA-HD44DA
10
6. IR Remote Control
The Matrix Switcher features one built-in IR receiver to receive IR signal from IR
remote to enable IR control. If the external IR receiver or other IR control device
need to be used, the IR EYE port on rear panel can be connected.

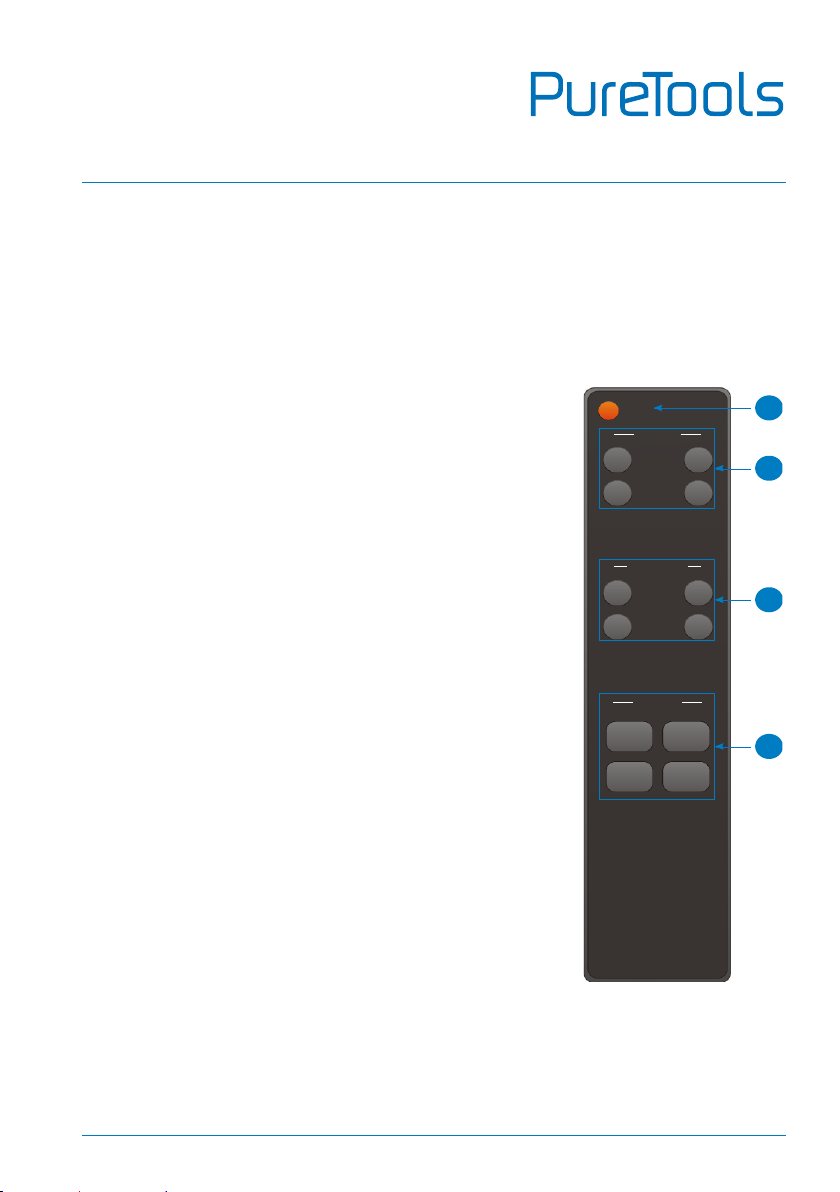

①Standby button:
Press it to enter/ exit standby mode.
②INPUTS:
Input channel selection buttons, same with the
corresponding front panel buttons
③OUTPUTS:
Output channel selection buttons, same with the
corresponding front panel buttons.
④Menu buttons:
ALL: Select all inputs/outputs.
To convert an input to all outputs:
Example: Input 1 to all Outputs:
→Press INPUTS 1 + ALL + ENTER
EDID management button:
1) One input port follows the EDID data from one
output port.
Example: Input 2 learns EDID data from output 4:
→Press EDID + INPUTS 2 + OUTPUTS 4+ ENTER
2) All input ports learn EDID data from one output
port.
Example: All input ports learn EDID data from output
3:
→Press EDID + ALL + OUTPUTS 3 + ENTER
CLEAR: Withdraw button.
ENTER: Confirm operation.
INPUTS
OUTPUTS
MENU
1 2
34
1 2
34
ALL EDID
CLEAR ENTER
1
2
3
4

User Manual
PT-MA-HD44DA
11
7. GUI Control
The matrix can be controlled via TCP/IP. The default IP settings are:
IP Address:
192.168.0.178
Subnet Mask:
255.255.255.0
Gateway:
192.168.0.1
Type 192.168.0.178 in the internet browser, it will enter the below log-in webpage:
There are three selectable usernames:
Username
Password
Access Tab
admin
admin
All tabs
user1
user1
Switching, Audio and Configuration tabs
user2
user2
Switching tab.
The username and password can be changed via Access tab.
Here we login as “admin” as an example to introduce each GUI tab.

User Manual
PT-MA-HD44DA
12
7.1 Switching Tab
Use the 4x4 button grid on the page to set which inputs are directed to which
outputs. For example, clicking the button on the Input 1 row and Output 1 column,
directs input 1 to output 1.
Use the 6 numbered buttons under scene area to save and load layout presets.
To save a given layout, first click one of the
numbered buttons, then click the Save button.
To load a previously saved layout, first click one of
the numbered buttons, then click the Recall
button.

User Manual
PT-MA-HD44DA
13

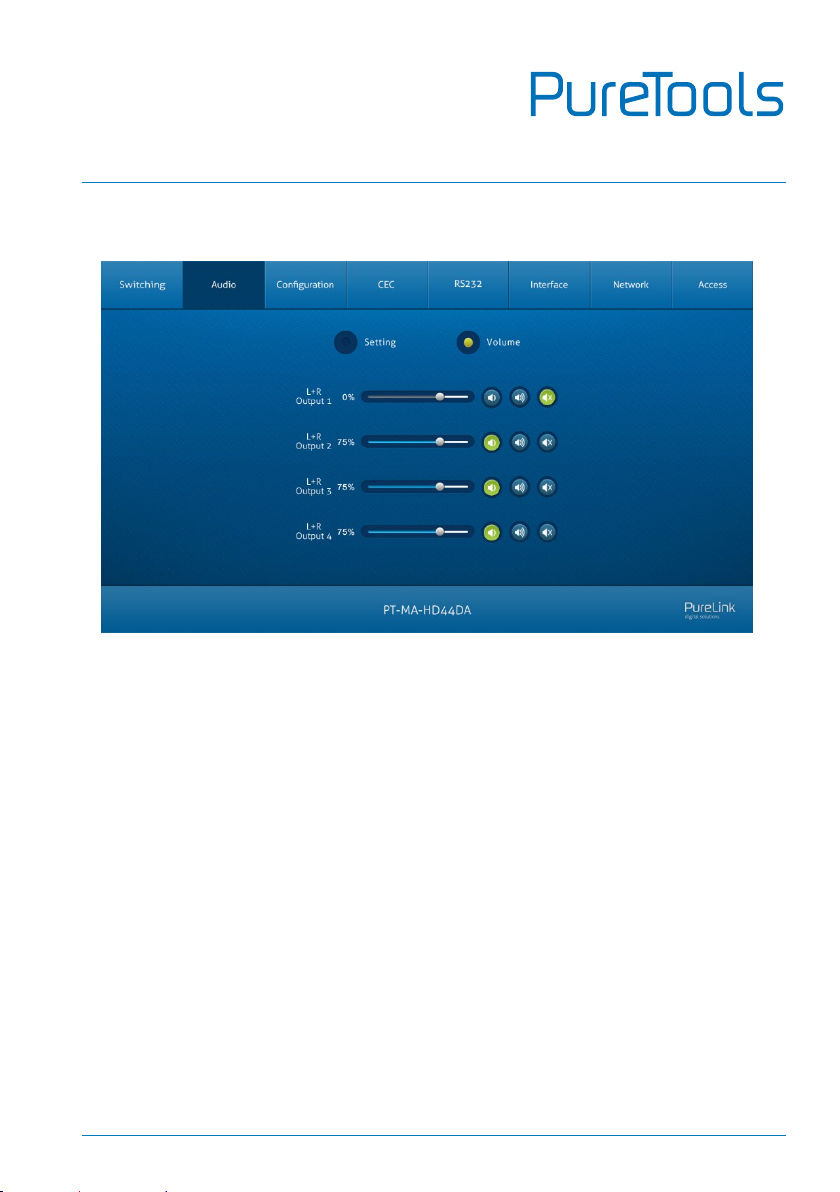

7.2 Audio Tab
1) Audio Setting
There are eight audio sources can be selected for four digital SPDIF output ports.
Audio Output Ports
Audio Sources
Input Breakout
Output Breakout
SPDIF 1 & Analog 1
Audio on Input 1
Audio on Input 2
Audio on Input 3
Audio on Input 4
Audio on Output 1
Audio on Output 2
Audio on Output 3
Audio on Output 4
SPDIF 2 & Analog 2
SPDIF 3 & Analog 3
SPDIF 4 & Analog 4

User Manual
PT-MA-HD44DA
14
2) Audio Volume
Four pairs analog L/R audio to control their outputs volume.
