Purified Air UV-O 500 User manual

UV-O Odour Control Units
Technical and
Operations Manual
Models Covered: UV-O 500
UV-O 1000

UV-O Odour Control Units
Technical and Operations Manual - Using this Manual i
Using this Manual
This manual is intended to be used as a work of reference by professional, well trained and
authorised users to assist them in safely installing, using, maintaining and repairing the Units
mentioned on the cover of this document.
Please note that it is strongly recommended that training is given by Puried Air Limited prior to
operatives attempting to carry out maintenance or repair work on these Units.

UV-O Odour Control Units
ii Technical and Operations Manual - Copyright Statement
Copyright Statement
All rights reserved
No part of this publication may be copied or published by means of printing, photocopying,
microlm or otherwise without prior written consent of the manufacturer. This restriction also
applies to the corresponding drawings and diagrams.
The information given in this manual has been collected for the general convenience of our clients.
It has been based on general data pertaining to construction material properties and working
methods known to us at the time of issue of the document and is therefore subject, at any time,
to change or amendment and the right to change or amend is hereby expressly reserved. The
instructions in this publication only serve as a guideline for installation, use, maintenance and
repair of the models mentioned on the cover page of this document.
This manual is to be used for the standard models of the Units of the type given on the cover page.
Thus the manufacturer cannot be held responsible for any damage resulting from the application of
this manual to the version actually delivered to you.
This manual has been written with great care. However, the manufacturer cannot be held
responsible either for any errors occurring in this manual or their consequences.

UV-O Odour Control Units
Technical and Operations Manual - Contents iii
1. Safety 1
1.1 Introduction 1
1.2 Safety Warnings and Instructions 2
1.3 Pictograms, Warnings and Instructions
Displayed on the Unit 3
1.4 Safety Features 3
1.5 Safety Warnings and Cautions 4
1.6 Modications 5
1.7 Users 5
1.8 Technical Specications 6
2. Product Overview 7
2.1 Intended Use 7
2.2 Features 8
2.3 Operating Principles 8
2.4 Components 9
3. Storage, Unpacking and Handling 13
3.1 Storage 13
3.2 Shipping List 13
3.3 Unpacking and Handling 13
14
14
14
15
23
30
30
30
31
31
32
32
33
33
34
4. Installation Guidance
4.1 Overview
4.2 Unit Dimensions
4.3 Installing the UV-O 500 Unit
4.4 Installing the UV-O 1000 Unit
5. Operation and Control
5.1 UV-O 500 Control Panel
5.2 UV-O 1000 Control Panel
5.3 Before Use
5.4 Switching the UV-O 500 Unit On
5.5 Switching the UV-O 1000 Unit On
5.6 BMS Connections
6. Maintenance
6.1 Introduction
6.2 Cleaning and Maintenance Tasks -
UV-O 500
6.3 Cleaning and Maintenance Tasks -
UV-O 1000 37
7. Troubleshooting 40
8. Commissioning Waiver 41
9. Wiring Diagrams 42
9.1 UV-O 500 42
9.2 UVO 500 BMS 43
9.3 UV-O 1000 44
9.4 UV-O 1000 BMS 45
10. Equipment Disposal 46
10.1 Packaging Material Disposal 46
10.2 Used Unit Disposal 46
11. Contact Details 47
11.1 Nationwide Coverage 47
11.2 Service and Maintenance Contracts 47
11.3 Dependability 47
11.4 Global Sales 47
12. Warranty Statement 48
13.Certication 49
13.1 EC Declaration of Conformity -
UV-O 500 and UV-O 1000 49
Contents

Technical and Operations Manual - Safety 1
UV-O Odour Control Units
1. Safety
1.1 Introduction
Everyone working on or with these Units must be familiar with the contents of this manual
and must strictly observe the instructions herein.
The Management should instruct personnel in accordance with this manual and observe
all instructions and directions given herein.
Note: Always follow the steps for any instructions in this manual in the order given.
Always keep this manual with your Unit.
The users of the Units are always fully responsible for observing all applicable
local safety instructions and regulations.
Specic working conditions or selected accessories may require additional safety
instructions. Contact your supplier immediately if you detect a potential danger
when using these Units.

UV-O Odour Control Units
Technical and Operations Manual - Safety 2
1.2 Safety Warnings and Instructions
The following symbols and notications are used in this manual:
WARNING!
Used to indicate where there is a risk of injury or death.
WARNING! - DANGER OF ELECTRIC SHOCK!
Used to indicate where there is a risk of injury or death from electric
shock.
WARNING
Used to indicate that Ozone (O3) is produced by this Unit
WARNING
Used to indicate that the Unit contains lamps that produce UV light.
CAUTION
Used to indicate where there is a risk of damage to equipment.
INFORMATION
Important information or useful hints about usage.
RECYCLING
Recycling information.
WEEE REGULATIONS
Used to ensure that waste electrical equipment is disposed of correctly.

Technical and Operations Manual - Safety 3
UV-O Odour Control Units
1.3 Pictograms, Warnings and Instructions Displayed on the Unit
The pictograms, warning and instructions attached to the Unit are, themselves, safety
features.
They must not be covered or removed and must remain present and legible through the
entire life of the Unit.
●Immediately replace or repair damaged or illegible pictograms, warnings and
instructions.
Figure 1 -
UV-O 500
0800 0184000 www.purifiedair.com
This system contains UV light which is
harmful to skin & eyes, isolate before opening.
This system produces ozone.
If you smell ozone isolate unit and ventilate area.
WARNING
WARNING
UV-O 500 Unit Label
Figure 2 -
UV-O 1000
0800 0184000 www.purifiedair.com
This system contains UV light which is
harmful to skin & eyes, isolate before opening.
This system produces ozone.
If you smell ozone isolate unit and ventilate area.
WARNING
WARNING
UV-O 1000 Unit Label
1.4 Safety Features
To prevent inadvertent exposure to UV light, the UV-C lamps are secured behind locked
panels, with the Units automatically shutting down when these panels are unlocked.

UV-O Odour Control Units
Technical and Operations Manual - Safety 4
CAUTION
●Allsafetyfeaturesmustbecorrectlyttedandcanonlybe
removed for maintenance and repair jobs by skilled and authorised
service engineers.
●These Units must not be used if the safety features are not fully
present or defective.
●The safety features should be regularly checked for their proper
functioning and, if defective, should be immediately repaired.
1.5 Safety Warnings and Cautions
WARNING! RISK OF EXPLOSION!
These Units are not explosion-proof rated. They can cause sparks and
should therefore not be used in areas with an explosion risk.
WARNING!
Ozone (O3) is produced by these Units. Ozone can be poisonous at
certain levels of concentration.
Inhalation of ozone causes dryness of the mouth, coughing, and
irritates the nose, throat, and chest.
Itmaycausedi󰀩cultyinbreathing,headachesandfatigue,and
could aggravate existing bronchial conditions including asthma.
The characteristic sharp, irritating odour is readily detectable at low
concentrations (0.01 to 0.05 ppm).
UNIT MUST NOT BE OPERATED WITHOUT KITCHEN EXTRACT FAN
RUNNING.
WARNING! - DANGER OF ELECTRIC SHOCK!
●To avoid electric shock:
●Do not operate these Units without a proper electrical ground/earth.
●Always disconnect power to these Units and isolate them from the
power supply before performing any service or maintenance.
●Do not operate these Units if their power cables are damaged, or if
any other damage to them is visible or suspected.
●The supplied utility/mains power must match the power
requirements listed on the Units’ rating labels.
WARNING!
●These Units contain lamps that produce UV light.
●Avoidexposuretodirectorreectedultravioletrays.
●Immediate or prolonged exposure to UV light can result in painful
eye injury, skin burn, premature skin aging, or skin cancer.

Technical and Operations Manual - Safety 5
UV-O Odour Control Units
CAUTION
●Regularly inspect your Unit and check it for damage.
●Verify the correct functioning of all of the safety features.
●Read and save all notices, warnings and safety instructions
received with your Unit.
●Do not alter the construction or design of these Units.
●Do not remove safety labels or devices.
●Do not use these Units for other than their intended purpose; as
described in this manual.
●Only use original spare parts.
●Keep the operating controls free from dirt and grease.
CAUTION
●Makesuretheroomisalwayssu󰀩cientlyventilated,particularlyin
smallerconnedareas.
●Do not use these Units at a relative humidity exceeding 75%.
●Do not use these Units at temperatures below 5°C or above 56°C.
●Check the working environment. Do not allow unauthorised persons
to enter the working environment.
●Use common sense. Stay alert and pay attention to your work. Do
notusetheseUnitswhenyouaretiredorundertheinuenceof
drugs, alcohol or medicine.
1.6 Modifications
Modication of these Units is not permitted.
1.7 Users
Installation or maintenance of these Units is exclusively reserved for authorised, trained
and qualied users.
Temporary personnel and trainees should only access these Units under the supervision
and responsibility of authorised, trained and qualied users.

UV-O Odour Control Units
Technical and Operations Manual - Safety 6
1.8 Technical Specifications
1.8.1 Rating Plates
Figure 3 -
Model: UVO 500 230V/1 ~ /50Hz
Ser. No.: UVO52017 01001 140W
UV-O 500 Unit Rating Plate
Figure 4 -
Model: UVO 1000 230V/1 ~ /50Hz
Ser. No.: E10121 4 001001 700W
UV-O 1000 Unit Rating Plate

Technical and Operations Manual - Product Overview 7
UV-O Odour Control Units
2. Product Overview

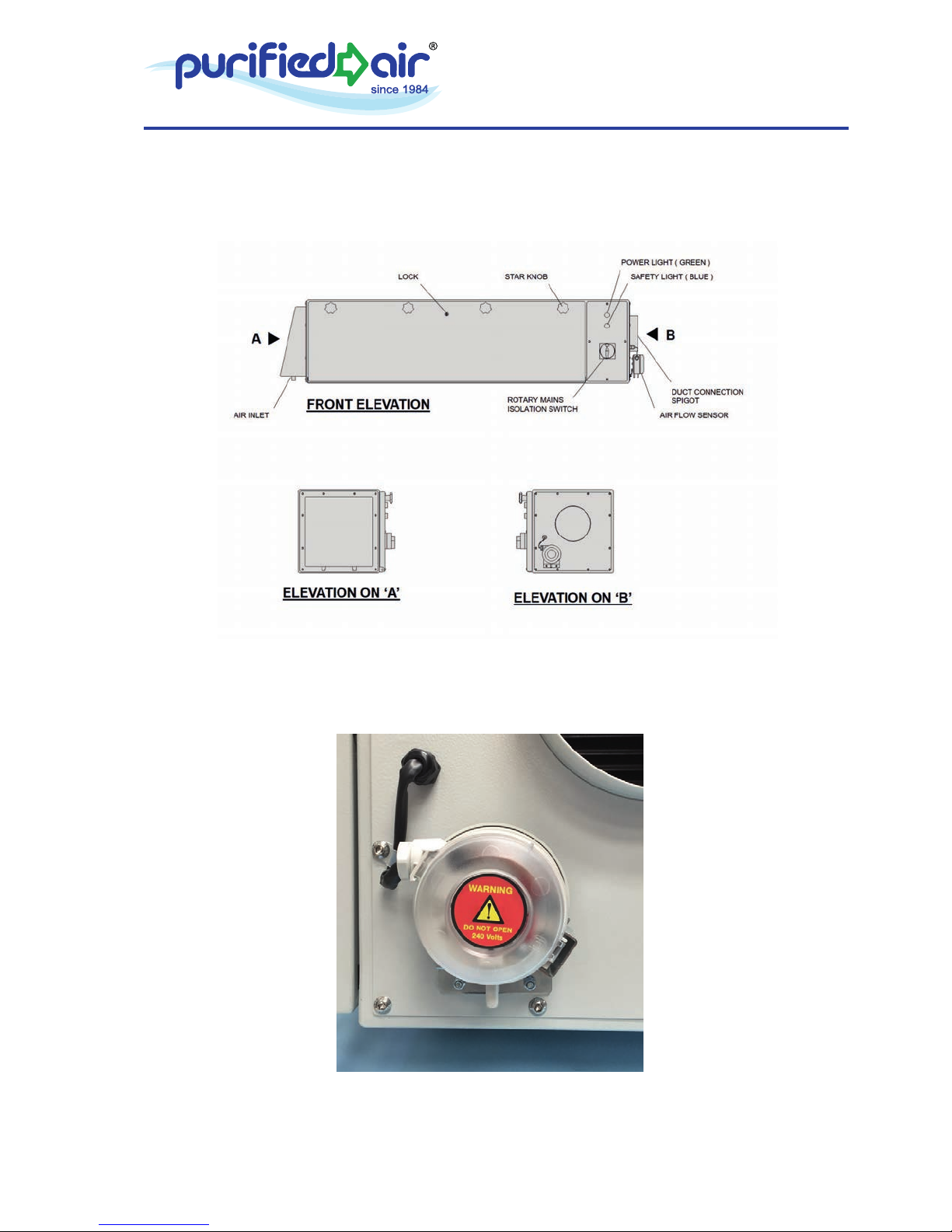

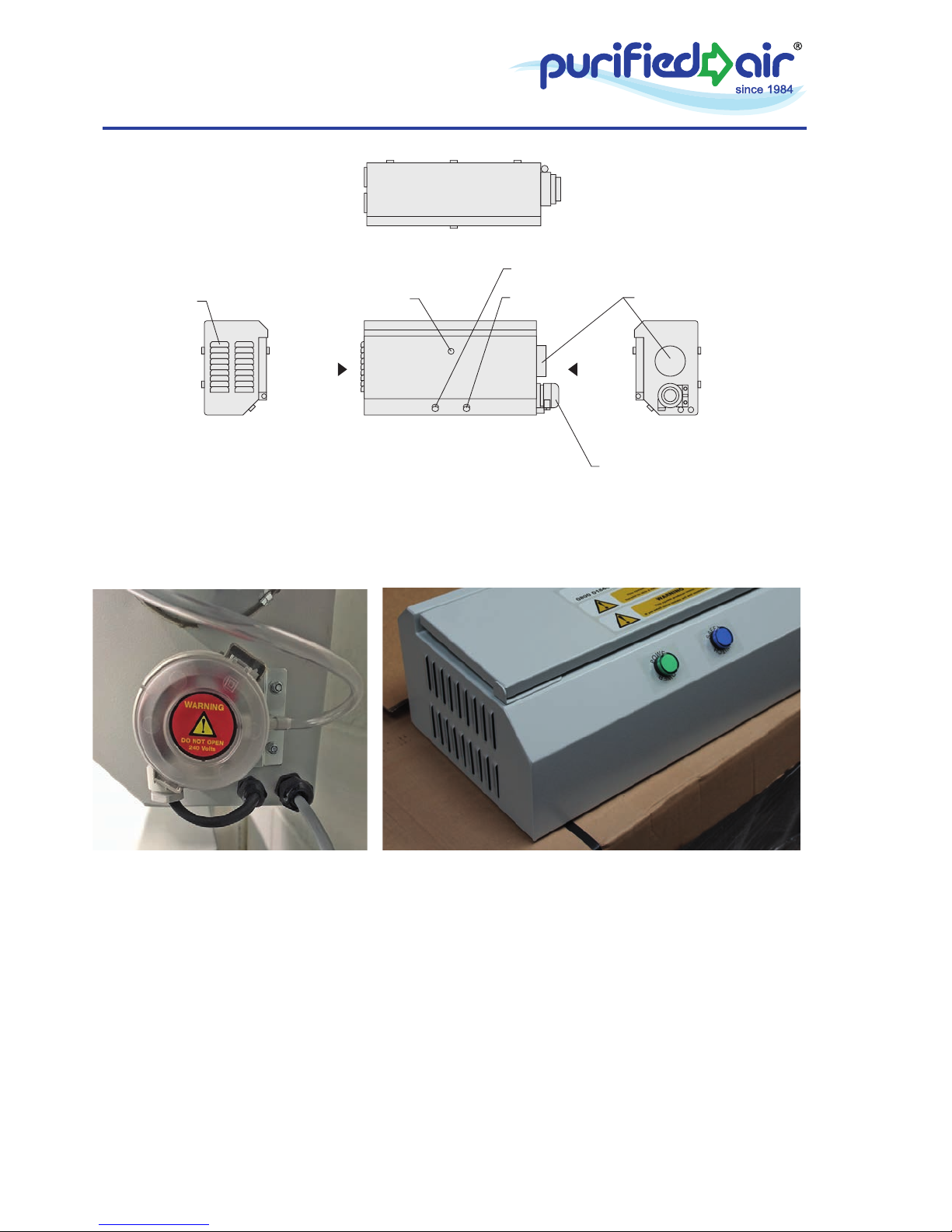

Figure 5 - UV-O 500 Unit
Figure 6 - UV-O 1000 Unit Installed
2.1 Intended Use
UV-O Odour Control Units are designed to efficiently remove odorous compounds from the
fumes extracted from commercial kitchens.
Simple to install, the Units are designed to be located on the outside of the ducting. The fact
that they are externally located makes these Units ideal for retrospective installations and,
as the UV lamps are outside of the airstream, maintenance requirements are minimal.

UV-O Odour Control Units
8
To maximise the Units’ e󰀩ciency, they should be installed into the extraction ducting of a
commercial kitchen, down stream of the extraction hood on the negetive side of the fan.
CAUTION
Using these Units for other purposes is considered contrary to their
intended use. The manufacturer accepts no liability for any damage
or injury resulting from such use.
These Units have been built in accordance with state-of-the-art standards and recognised
safety regulations.
CAUTION
Only use these Units
●If they are not damaged in any way.
●After following the instructions laid down in this manual.
2.2 Features
When installed correctly, Puried Air’s UV-O Odour Control Units have the following
features and benets:
● Use highly efficient UV-C technology.
●Robust, compact construction.
● Twelve month effective lamp life.
●Minimum maintenance requirements.
●Enhanced safety - UV-C lamps are locked behind panels.
●Optional self-diagnostic system.
●Designed to complement our Electrostatic Precipitator (ESP) system.
●Reduce the need for duct cleaning.
●Can reduce cooking odours by up to 90%*.
●Grease is broken down in to more easily managed compounds.
●Virtually no pressure increase within the duct.
* In particularly odourous environments, high levels of odour control will only be
achieved by also using good quality particulate control systems (particularly ESPs) and
supplementary odour control systems in conjunction with this Unit.
2.3 Operating Principles
Puried Air’s UV-O Odour Control Units contain either two (UV-O 500) or ten (UV-O 1000)
high output UV-C (short-wavelength ultraviolet radiation) lamps and are designed to be
located outside the extraction duct.
2.3.1 Ozone and Free Radical Production
The UV light produced by the UV-C lamps converts oxygen present in the air into ozone.
Technical and Operations Manual - Product Overview

Technical and Operations Manual - Product Overview 9
UV-O Odour Control Units
Ozone is a highly reactive oxidant which interacts with most contaminants, allergens and
odour producing compounds it comes into contact with, oxidising them and rendering
them harmless.
The UV light produced by the lamps can also further convert the ozone to hydroxyl free
radicals in the presence of water or water vapour.
Free radicals are highly reactive oxidants which makes them e󰀨ective natural air cleansing
agents.
The mixture of ozone and hydroxyl free radicals produced in this way creates a much
more powerful oxidising action (Ozonolysis) than the use of ozone alone.
2.3.2 Location
It is widely accepted that the best way to apply UV-C is in the airstream itself. However, in
such a situation, the lamps can quickly become dirty, greatly reducing their e󰀨ectiveness.
Unlike other UV-C systems, the UV-O Odour Control Units are designed to be located
outside of the kitchen extract duct, connected via a spigot.
Negative pressure forms as the extract fume is drawn down the duct across the spigots
opening, thus drawing ambient air into the Unit and across the UV lamps producing Ozone
which is then introduced into the duct.
As the ambient air is relatively contaminant free the lamps stay cleaner allowing a more
constant production of Ozone.
2.4 Components
2.4.1 UV-O 500 Components
The UV-O 500 Unit consists of a Main Chassis which contains the UV lighting source
behind a lockable, hinged, access panel.
A green Power Light and blue Safety Light are located on the lower Panel of the Unit.
An Airflow Sensor (See Figure 8 - Air Flow Sensor on page 10) is mounted on the right
hand side of the Main Chassis below the Duct Connection Spigot.
The Air Inlet is located on the left hand side of the Unit (See Figure 9 - Air Inlet on page
10).

UV-O Odour Control Units
Technical and Operations Manual - Product Overview 10
Figure 7 -
Door Lock
Air Inlet
Plan
Power Light
Safety Light
Air Flow Sensor
Duct Connection
Spigot
View On ‘A’ View On ‘B’
BA
Front View
UV-O 500 - Views
Figure 8 - Air Flow Sensor Figure 9 - Air Inlet
2.4.2 UV-O 1000 Components
The UV-O 1000 Unit consists of a Main Chassis which contains the UV lighting source
behind a lockable hinged access panel also secured with four star knobs. A Control
Panel, on the right hand side of the Main Chassis, contains the Rotary Mains Isolation
Switch green Power Light and blue Safety Light.
An Airow Sensor (See Figure 11 - UV-O 1000 Air Flow Sensor and Air Outlet on page

Technical and Operations Manual - Product Overview 11
UV-O Odour Control Units
11) is mounted on the right hand side of the Main Chassis below the Airow Outlet/Duct
Connection Spigot.
The Air Inlet, containing the Unit’s lter, is located on the left hand side of the Unit (See
Figure 12 - Air Inlet on page 12).
Figure 10 - UV-O 1000 - Front and Side Views
Figure 11 - UV-O 1000 Air Flow Sensor and Air Outlet

UV-O Odour Control Units
Technical and Operations Manual - Product Overview 12
Figure 12 - Air Inlet

Technical and Operations Manual - Storage, Unpacking and Handling 13
UV-O Odour Control Units
3. Storage, Unpacking and Handling
3.1 Storage
Prior to installation, a UV-O Unit must be stored in its original packaging in a dry
environment.
3.2 Shipping List
Each Unit is shipped with the following:
●Main Unit.
● Airow Sensor Probe Assembly.
●This Technical and Operations Manual.
It is strongly recommended that Puried Air commission the UV-O Unit. However, should
the customer decide to complete these tasks (See 4.3.3 Commissioning the UV-O
500 Unit on page 20 and 4.4.3 Commissioning the UV-O 1000 Unit on page 27)
and following the signing of a waiver indemnifying Puried Air against any negative
consequences, the following additional items will also be provided:
●Keys to the Main Unit’s Front Panel.
● Two or Ten UV-C Lamps depending on the model.
3.3 Unpacking and Handling
Strip away all packaging, wrapping and strapping (this must only be done by trained,
professional installers).
WARNING!
●These Units are heavy and the appropriate lifting and handling
practices must be observed, for both unpacking and installation, to
avoid personal injury or damage to the equipment.
●ConsulttheTechnicalSpecications(SeeParagraphs1.8Technical
Specicationsonpage6andfortheUnits’weights.
CAUTION
Inspect the Unit and check it for damage. Ensure all safety features are
present and functioning correctly.

UV-O Odour Control Units
Technical and Operations Manual - Installation Guidance 14
4. Installation Guidance
4.1 Overview
Installation of the Units should only be carried out by trained, professional installers.
Installations vary widely depending on the specic site requirements, therefore, this
section only provides general guidance for the installers.
Note: It is strongly recommended that UV-O Units are commissioned by Puried Air Ltd
to ensure that they are installed correctly and safely.
If in any doubt regarding the installation of the UV-O Units, contact Puried Air Ltd.
4.2 Unit Dimensions
The dimensions of the UV-O Units are detailed below.
4.2 .1 UV-O 500 Unit Dimensions
170
120
300
550 20060
27
3
Ø100

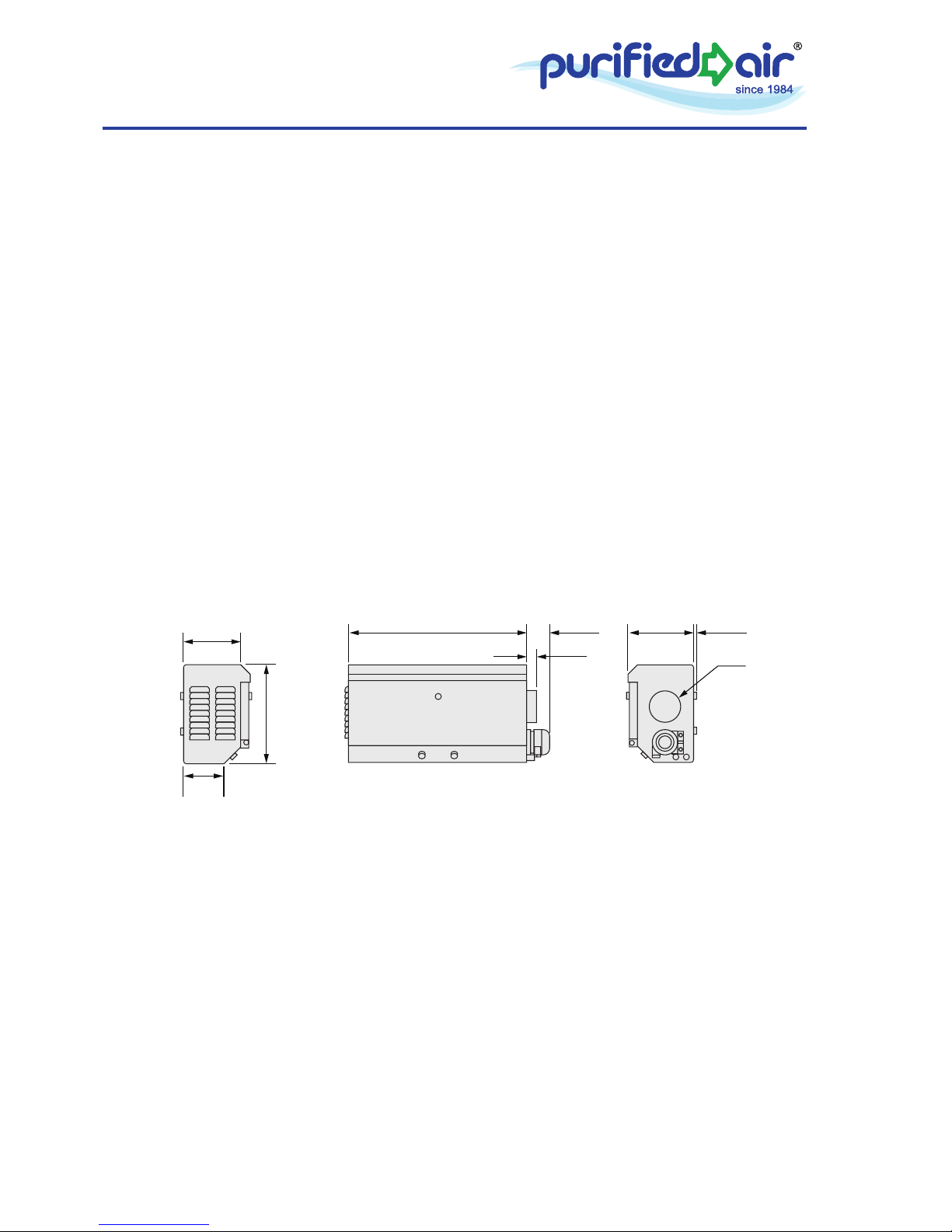

Figure 13 - UV-O 500 - Dimensions
(All Dimensions in Millimetres)
