Comparato DIAMIX User manual

TABLE OF CONTENTS
1. Overview _________ _____________________________ 1-2
2. Electrical and mechanical features _________________ 2-3
3. Installation of Diamix / Compamix ___________________ 3
3.1. Electrical connection __________________________ 4
3.2. Activation ____________________________________ 4
3.3. Temperature regulation _________________________ 4
3.4. Programming _________________________________ 5
3.5. Alarm description _____________________________ 5
3.6. Application examples ________________________ 5-6
3.7. Accessories ________________________________ 6-7
4. Installation of Diamix L / Compamix L __________________ 8
4.1. Disinfection cycle operation _____________________ 9
4.2. Electrical connection _________________________ 10
4.3. Activation ___________________________________ 10
4.4. Temperature regulation ________________________ 10
4.5. Disinfection cycle setting ____________________ 10-11
4.6. Programming ________________________________ 12
4.7. Alarm description ____________________________ 12
4.8. Example of use ______________________________ 12
4.9. Accessories ______________________________ 13-14
5. Warranty conditions ______________________________ 14
6. Ball Valve positioning - Actuator ___________________ 15
COMPARATO NELLO SRL
1
1. GENERAL DE CRIPTION
The
DIAMIX - COMPAMIX - COMPAMIX e DIAMIX L - COMPAMIX L series valves are motorized
mixing ball valves consisting of ball valve and actuator.
CAUTION
ixing-thermoregulating valves must be installed by qualified personnel according to the specifica-
tions of this manual, in compliance with local standards and IEE regulations. COMPARATO will not be
held responsible for any problems arising from the non-compliance with these instructions. Before
the assembly, the installer shall read the instructions carefully. The manufacturer shall not be held lia-
ble, both contractually and non-contractually, for any damage to people, animals or things arising
from the misuse or from any mistake made during the installation or special maintenance. Likewise,
no liability shall derive from any operation performed by unqualified personnel and from all actions
infringing the provisions for the operation and laying instructions.
CAUTION! Risk of short-circuit or damage to the device! Before performing any operation, discon-
nect the power supply. The supply network must be disconnectable by means of a magnetothermic
switch and secured with a residual current-operated circuit breaker. This device must be protected by
an earthing equipment.

2. ELECTRICAL AND MECHANICAL FEATURE
POWER PLATE DATA FOR VER . 24V AC
Rated supply voltage 24V +/-10%
Rated frequency 50/60 Hz
POWER PLATE DATA FOR VER . 230V AC
Rated supply voltage 230V +/-10%
Rated frequency 50/60 Hz
POWER PLATE DATA FOR VER . 110V AC
Rated supply voltage 110V +/-10%
Rated frequency 50/60 Hz
U E OF DIAMIX-COMPAMIX
ixing/thermoregulating valves are specifically used for:
• sanitary hot water mixing with recirculation system
• underfloor heating system
• under-bench heating system in greenhouses
• thermoregulations in general
U E OF DIAMIX L - COMPAMIX L
ixing/thermoregulating valves are specifically used for mixing hot sanitary water in systems where
a programmed thermal disinfection of the circuit is needed, in order to significantly reduce the pre-
sence and proliferation of legionella bacteria.
Thermal disinfection is compliant with what stated in national guidelines for the prevention and con-
trol of the Legionellosis.
N.B.: The multiple variables connected to the realization of plants where this equipment can be instal-
led are so numerous that it is impossible to totally exclude the risk.
NOTE ON OPERATION: fo DIAMIX - DIAMIX L and COMPAMIX - COMPAMIX L to ope ate co ectly
with plumbing and sanita y fittings, the use of eci culation loop is essential.
NAME AND BRAND
The following labels are visible on the housing of the actuator:
• Trademark and name of the manufacturing company: Hydrothermal systems
COMPARATO NELLO s.r.l.
Viale della Libertà, 53 • Località Ferrania
17014 Cairo ontenotte (SV) ITALY
• Name of the models: DIA IX-CO PA IX e DIA IX L-CO PA IX L
• Production date: onth and Year
• EC regulations compliance: Sticker bearing the Company brand, EC mark, voltage and power frequency.
2
COMPARATO NELLO SRL
CAUTION! The i staller/service e gi eer/user is ot allowed to perform a y operatio i side the
device. Opening the device, unless expressly authorized, will automatically void the warranty. For fur-
ther information please contact our Technical Office.
ENVIRONMENTAL CONDITION
Duty temperature 0÷60°C
Storage temperature 0÷60°C
oisture 25÷85% U.r.
DIAMIX - COMPAMIX
DIAMIX L - COMPAMIX L

COMPARATO NELLO SRL
3
C: HOT inlet (red)
F: COLD inlet (green)
M: IXED outlet (red and green)
Place the temperature sensor on the outlet pipe, at a minimum
distance of 150 mm from the TEE intersection and always
upstream the first drawing. Secure it with the special rubber
clamp. NB: The pipe section where the temperature probe will be
placed must be made of metal. The following part of the pipe can
be of any type, provided it is suitable to the use.
To help performing the ordinary maintenance operations, it is
advisable to install manual interception valves on the inlets and
outlets of the mixing valve.
A: DECREASES the value
B: INCREASES the value
C: ENTER
D: ON/OFF
E: RED led = HOT inlet opening command
F: GREEN led = COLD inlet opening command
3.
IN TALLATION OF
DIAMIX - COMPAMIX
Keyboard
and display
CAUTION! Once installed, the actuator connection should not be at the bottom of the valve.
actuator
ball
valve
DIAMIX - COMPAMIX
DIAMIX L - COMPAMIX L
FLUID TEMPERATURE
+7 °C ... +100°C
-20 °C ... +100 °C versions with spacer for insulation
BALL VALVE MATERIAL
Body and ball Brass
Seal P.T.F.E
O-ring EPD
ADJU TMENT RANGE: -15°C ... +85°C
OPERATING TIME (90°)
35 s c. DIAMIX / DIAMIX L
45 s c. COMPAMIX / COMPAMIX L
CLA PROTECTION
IP 67 for ALL versions
MAX ELECTRICAL POWER AB ORPTION
7,5 VA DIAMIX / DIAMIX L
12 VA COMPAMIX / COMPAMIX L
FLUID TYPE
Water / Water-glycol mixture (max 30%)
RATED PRE URE
16 bar DIAMIX / DIAMIX L (25 bar 1/2”)
10 bar COMPAMIX / COMPAMIX L

4
COMPARATO NELLO SRL
3.2. ACTIVATION
3.1. ELECTRICAL CONNECTION
Before making the electrical connections the supply power must be properly disconnected. To make
the connections, it is not necessary to remove the actuator cover: just connect the preset power chord
to the mains.
PHASE – brown • NEUTRAL – blue • GROUND – yellow/green
CAUTION: THI DEVICE MU T BE PROTECTED BY AN EARTHING EQUIPMENT. The earthing wire connec-
tion shall be secured in order to avoid accidental disconnections. The electrical installation shall be perfor-
med only by qualified personnel and according to current standards.
When the equip-
ment is powered,
the installed soft-
ware version is
shown on the
display for a few
seconds.
Immediately afterwards, if
the equipment was "off" the
last time it was powered
(default condition at the time
of purchase), the “OFF” mes-
sage appears. To turn it on,
press the “ON/OFF” button
once: the display will be
similar to the one described
in the following step.
The display shows the temperature measured by the probe; the mixing valve
is working. In case of power shortage, no operator action is needed when
the power is restored: the mixing valve starts working again according to
the last settings. In order to turn it off, press the “ON/OFF” button: if the
equipment is still powered, the “OFF” sign will appear.
3.3.
TEMPERATURE REGULATION
To change the set temperature, press either the “A” or the “B” button: the
display will show the chosen value. Press “A” to decrease it or “B” to
increase it. During this step, the displayed number blinks. Adjustment
range: -15 / +85 °C.
Then, press “ENTER” or wait for 20 seconds in order to set the value. The
device starts working again automatically.
DIAMIX - COMPAMIX

“Alt” The set point temperature was not reached in P2 time.
To reset the alarm (3digital outlet activation, optional), turn
the device off and then on again with the “ON/OFF” button.
P1 X.X Indicates the temperature sampling range. Press “A” or “B” to
set the value. Press “ENTER” to save the value and exit the
sub-menu. The adjustment range is from 2.0 sec. to 10.0 sec.
(default, 3.0 sec).
P2 MMM Indicates the number of minutes after which the "set tempera-
ture not reached” alarm is triggered. Press “A” or “B” to set
the minutes; if the value is P2=0, the “set temperature not
reached” alarm is disabled. Press “ENTER” to save the minutes
value and exit the sub-menu.
Adjustment range 0min to 250 min.
COMPARATO NELLO SRL
5
3.4. PROGRAMMING
To access the programming level when the device is “OFF”, press the “A” button and the “B” button
simultaneously for 3 seconds; when the display shows “P1”, release the buttons.
Scroll the main menu with the “A” and “B” buttons. To access the sub-menu, press "ENTER”.
MENU FUNCTION
SUB MENU
3.5. ALARM DE CRIPTION
ALARM MEANING
3.6. APPLICATION EXAMPLE
Hot sanitary water production system
1 SANITARY S RGE CHAMBER
2 SHOCK ABSORBER TANK
3 TEMPERAT RE PROBE
HOT SANITARY WATER
4 RECIRC LATION P MP
COLD SANITARY WATER
NITS
DIAMIX - COMPAMIX

INLET DE CRIPTION
FUNCTION
2Forcing If you close the inlet, the geared motor starts up: the valve is turned counter
towards hot clockwise towards the hot way (during this phase the temperature control is
disabled); the display shows the “ an” message.
3Forcing If you close the inlet, the geared motor starts up: the valve is turned clockwise
towards cold (during this phase the temperature control is disabled); the display shows the
“ an” message.
OUTLET DE CRIPTION
FUNCTION
3Temperature alarm The outlet is activated if the set point temperature is not reached within P2
time (“AL t”)
OUTLET CABLE (optional)
RET RN
O TLET
Floor heating system
6
COMPARATO NELLO SRL
3.7. ACCE ORIE
SPACER FOR
INSULATION
SPACER FOR
INSULATION and
ANUAL OVERRIDE
DIAMIX - COMPAMIX

1
WARNING
The total cable length shall not exceed 30 meters.
NOTE:
In floor heating systems it is advisable to use the digital inlet 3– forcing towards cold – in order to
position the mixing valve passageway towards the return to the floor heating system when the circu-
lation pump stops.
This configuration prevents any high-temperature peak in the radiating panel circuit when the pump
is restarted.

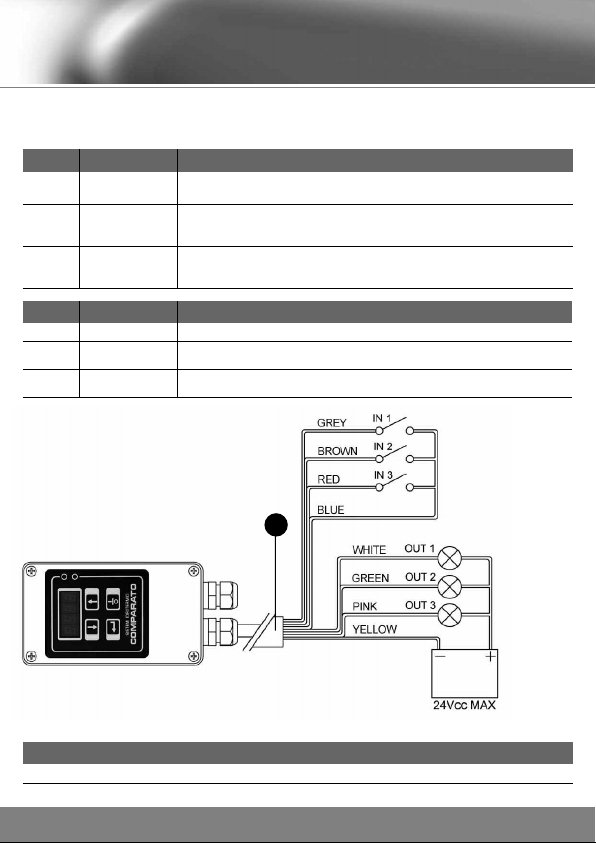

1: Optional Inlet/outlet cable 5 X 0,25 mm2
COMPARATO NELLO SRL
7
Install the temperature probe in the well G1/8 " (not included).
Afterwards, connect the probe to the actuator using the cable equip-
ped with the suitable connector.
I ERSION PROBE
DIAMIX - COMPAMIX

8
COMPARATO NELLO SRL
A: Hot water inlet from the boiler
B: Cold water inlet to valve
C: ixed water outlet (recirculation starting point)
D: Inlet to the boiler
E: Recirculation return
F: Cold water inlet
Place the mixing probe on the outlet pipe, at a minimum distance of 150 mm from the TEE intersec-
tion and always upstream the first drawing. Secure it with the special rubber clamp. Place the legio-
nella probe on the final tract of the recirculation ring. Secure it with the special rubber clamp.
NB: The pipe section where the temperature probe will be placed must be made of metal. The following
part of the pipe can be of any type, provided it is suitable to the use.
CAUTION!
Once installed, the actuator connection should not be at the bottom of the valve.
4.
IN TALLATION OF DIAMIX L / COMPAMIX L
min. 150 mm
1: ixing probe
2: Legionella probe
3: Check valve
4: Recirculation pump
1
2
3
3
4
AB
C
D
E
F
DIAMIX L - COMPAMIX L

COMPARATO NELLO SRL
9
4.1. DI INFECTION CYCLE OPERATION
DIAMIX L and COMPAMIX L deal with the thermal disinfection cycle of the recirculation ring of the
DHW distribution plant, as per the national guidelines for the prevention and control of the
Legionellosis. Disinfection timing and modes are automatically set on the basis of the user's needs
and the plant's features.
Programming is realised through a display and a keyboard; the cycle can be activated once a week
or on a daily basis. The user will have to program hour and day of disinfection cycle's repetition ( if
weekly programmed).
During the disinfection process, the temperature control is disactived and the valve is oriented
towards the hot water inlet; the water's temperature reading is realised by the second temperature
probe ( Legionella probe on sanitary circuit), the pump relay is triggered ( optional) and activated by
the Disinfection Cycle digital outlet ( optional).
CAUTION
During the disinfection cycle the hot sanitary water supplied to users can reach dangerous tempera-
tures which could cause scalds. Set the time and day of disinfection when it is unlikely that someo-
ne needs to use hot sanitary water.
During the cycle, the display toggles between the “SAni” message, the water temperature detected
by the legionella probe “C XX” and the progress percentage of the disinfection cycle “P XX”. The dura-
tion of the disinfection cycle will depend on the hot water temperature reachable by the system: the
higher the temperature, the shorter the cycle.
The disinfection can be programmed once a week.
The following table shows the cycle duration depending on the temperature:
If during the disinfection cycle the water is not hot enough (temperature below 55°C for more than
60 minutes), the "disinfection cycle temperature too low" alarm is triggered, the cycle is aborted, the
valve returns to the mixing mode and the display toggles between the "AL bt" message and the tem-
perature detected by the mixing probe.
In case of power shortage, the “power shortage during disinfection cycle” alarm is triggered, the cycle
is aborted, the valve returns to the mixing mode and the display toggles between the “AL d” messa-
ge and the temperature; the 2digital outlet “Disinfection alarm” is triggered (optional).
The maximum duration of the disinfection cycle is 5hours; if the cycle is not over after the afore-
mentioned amount of time, the actuator goes back to its thermoregulating function, the “Disinfection
cycle duration time exceeding 5hours” alarm is triggered and the display toggles between the “AL
ot” message and the temperature.
WATER TEMPERATURE DURATION
ore than 70C° 30 minutes
Between 65°C and 70°C 1hour
60° to 65°C 2hours
57,5°C to 60°C 3hours
55° to 57,5°C 4hours
DIAMIX L - COMPAMIX L

10
COMPARATO NELLO SRL
4.3. ACTIVATION
See page 4
4.4. TEMPERATURE REGULATION
See page 4
4.5.
DI INFECTION CYCLE ETTING
Press “C-ENTER” when the display shows the “OFF” message: the “U1” message will appear. Use the
“A” and “B” buttons to scroll the main menu and increase or decrease the sub-menu value.
Press the "ENTER" key to save the value and enter the sub-menu.
If no key is pressed for 30 seconds, it automatically exits the programming menu (the amended value
will be saved).
4.2.
ELECTRICAL CONNECTION
Before making the electrical connections the supply power must be properly disconnected. To make
the connections, it is not necessary to remove the actuator cover: just connect the preset power chord
to the mains.
PHASE – brown • NEUTRAL – blue • GROUND – yellow/green
CAUTION:
THI DEVICE MU T BE PROTECTED BY AN EARTHING EQUIPMENT. The earthing wire connection shall
be secured in order to avoid accidental disconnections. The electrical installation shall be performed
only by qualified personnel and according to current standards.
Keyboard and display
A: DECREASES the value
B: INCREASES the value
C: ENTER
D: ON/OFF
E: RED led = HOT inlet opening command
F: GREEN led = COLD inlet opening command
DIAMIX L - COMPAMIX L

COMPARATO NELLO SRL
11
MENU FUNCTION
UB MENU
U1 HH MM Curre t time setti g
HH MM indicates hours and minutes on the clock.
Press “A” or “B” to set the hours. HH links during the setting;
press “ENTER” to save the hour setting and move on to the
minutes. Press “A” or “B” to set the minutes. MM links during
the setting; press “ENTER” to save the minute value and exit the
su -menu.
U2 G Curre t day setti g
G is the day of the week.
Press “A” or “B” to set the day.
1= Monday.
2= Tuesday.
3= Wednesday.
4= Thursday.
5= Friday.
6= Saturday.
7= Sunday.
Press “ENTER” to save the day setting and exit the su -menu.
U3 G Disi fectio cycle day setti g
G is the disinfection cycle day of the week. Press “A” or “B” to set the day.
1= Monday.
2= Tuesday.
3= Wednesday.
4= Thursday.
5= Friday.
6= Saturday.
7= Sunday.
8= Daily disinfection cycle.
0= Disinfection cycle off.
Press “ENTER” to save the day setting and exit the su -menu.
(Default 1)
U4* HH MM Disi fectio cycle time setti g
HH MM indicates the starting time (hour and minutes) of the
disinfection cycle. Press “A” or “B” to set the hours. HH links
during the setting; press “ENTER” to save the hour setting and
move on to the minutes. Press “A” or “B” to set the minutes. MM
links during the setting; press “ENTER” to save the minute
value and exit the su -menu. (Default 02:00)
* The U4menu is present only when U3is not zero.
DIAMIX L - COMPAMIX L

12
COMPARATO NELLO SRL
4.6. PROGRAMMING
To access the programming level when the device is “OFF”, press the “A” button and the “B” button
simultaneously for 3seconds; when the display shows “P1”, release the buttons.
Scroll the main menu with the “A” and “B” buttons. To access the sub-menu, press "ENTER”.
MENU FUNCTION
SUB MENU
P1 . X.X indicates the temperature sampling range.
Press “A” or “B” to set the value.
Press “ENTER” to save the value and exit the su -menu.
The adjustment range is from 2.0 sec. to 10.0 sec. (default, 3.0 sec).
P2 MMM MMM indicates the num er of minutes after which the "set tempe-
ture not reached” alarm is triggered. Press “A” or “B” to set the
alarm minutes; if the value is P2=0, the “set temperature not
reached” alarm is disa led.
Press “ENTER” to save the minutes value and exit the su -menu.
Adjustment range 0 min to 250 min.
4.7. ALARM DE CRIPTION
ALARM MEANING
“ALot” The duration of the disinfection cycle is more than 5hours.
To reset the alarm, press "ENTER”.
“ALbt” The disinfection cycle temperature is too low
(temperature below 55°C for more than 60 minutes).
To reset the alarm, press "ENTER”.
“AL d” No power supply during the disinfection cycle.
To reset the alarm, press "ENTER”
(2digital outlet activation, optional).
“AL t” The set point temperature was not reached in P2 time.
To reset the alarm, press the “ON/OFF” utton to turn the device
off and then on again (3digital outlet activation, optional).
4.8. EXAMPLE OF U E
Hot sanitary water production system
with DISINFECTION cycle
1 SANITARY S RGE CHAMBER
2 SHOCK ABSORBER TANK
3 TEMPERAT RE PROBE FOR HOT SANITARY WATER
4 RECIRC LATION TEMPERAT RE PROBE
5 RECIRC LATION P MP
COLD SANITARY WATER
NITS
DIAMIX L - COMPAMIX L

OUTLET DE CRIPTION
FUNCTION
1Disinfection cycle The outlet is activated during the disinfection cycle
2Disinfection alarm The outlet is activated if there is a power shortage (“Ald”)
during the disinfection cycle.
3Temperature alarm The outlet is activated if the set point temperature is not reached
within P2time (“AL t”)
COMPARATO NELLO SRL
13
OPTIONAL OUTPUT CABLE (L version)
INLET DE CRIPTION
FUNCTION
1Manual activation If you close the inlet for at least 2seconds, the disinfection cycle activates
of disinfection cycle
2Forcing If you close the inlet, the geared motor starts up: the valve is turned counter
towards hot clockwise towards the hot way (during this phase the temperature control is disa-
led); the display shows the “Man” message.
3Forcing If you close the inlet, the geared motor starts up: the valve is turned clockwise
towards cold (during this phase the temperature control is disa led); the display shows the
“Man” message.
4.9. ACCE ORIE (SEE PAGE 6)
1
1: Optional Inlet/outlet cable 8 X 0,25 mm2
The outlet is activated (contact closing) during the disinfection cycle.
Description of DIGITAL OUTLET FOR SANITARY RECIRCULATION PU P CONTROL
DIAMIX L - COMPAMIX L

14
COMPARATO NELLO SRL
Comparato Nello S.r.l. reserves the right to modify technical data,
drawings, graphs and photos of this user and installation manual at any time, without prior notice.
1
1: 2-pole terminal strip for connection
(free contact)
DIAMIX L - COMPAMIX L
5. BALL VALVE PO ITIONING - ACTUATOR
In order to achieve the correct positioning of the Actuator on the ball valve, please proceed as follows:
- Get the Actuator on the "completely hot" position ( flashing red led)
by setting the set point temperature on a higher value than the probe's temperature
- Wait for the achievement of the limit switch.
- If necessary, turn the ball valve's control rod until the notches on the rod are as in the picture:
COMPAMIX / COMPAMIX L
HOT WATER
inlet
HOT WATER
inlet
COLD WATER
inlet
HOT WATER
inlet
COLD WATER
inlet
COLD WATER
inlet
COMPARATO CONNECTION
I O 5211 CONNECTION
DIAMIX / DIAMIX L
- Couple the actuator with the ball valve.
NOTE: After having correctly positioned the ball
valve, it is possible to couple the
Actuator with the cable gland oriented
equally to the hot inlet or to the cold
inlet.

HYDROTHERMAL SYSTEMS
COMPARATO NELLO SRL
OFFICE: VIALE DELLA LIBERTÀ, 53 • LOCALITÀ FERRANIA
17014 CAIRO MONTENOTTE
TEL. [phone] • FAX [phone]
www.comparato.com [email protected]
1I TRDIAMIX - JANUARY 2016 9th version
6. GENERAL WARRANTY CONDITION
WARRANTY
otorised/thermoregulating valves are covered by a 3-year warranty from the date marked on the base
of the actuator (year of production).
The warranty refers to the plain product and does not cover any replacement cost and/or maintenance
and/or any other indirect cost. Products are covered by an Allianz s.p.a. insurance according to current
rules regarding the manufacturer's responsibility for any damage arising from defective products.
For any returned good, users should contact the Reseller they bought the items from. The goods should
be returned postage-free.
DURING THE WARRANTY PERIOD
During the warranty period, COMPARATO NELLO S.r.l. will repair or replace, free of
charge, any product or component, provided it turns out to have a manufacturing defect. Any repair
or replacement of the component or of the product itself does not extend the warranty period.
COMPARATO NELLO S.r.l. reserves the right to replace the Product with an iden-
tical one; if the product is out of production, it will be replaced with one with identical speci-
fications, provided that, according to the unquestionable opinion of COMPARATO
NELLO S.r.l., the repair is not economically excusable.
WARRANTY EXCLU ION PROVI ION
Interventions and/or repairs and/or spare parts will not be covered by this Warranty if it turns
out that they are defective because of:
• tampering • failure due to carelessness and/or unskilfulness during the installation (wrong,
incomplete or missing assembling/wiring/setting) • electrostatic discharge, electric discharge con-
ducted/induced because of lightning or other phenomena not ascribable to the product, irradia-
ted electromagnetic disturbances, intermittent or discontinuous power supply. • defects or dama-
ges caused by fall, breakage, liquid seepage • repairs made by unauthorized people • products
with expired warranty • systems made in a non-workmanlike manner • any other damage not
directly ascribable to
COMPARATO NELLO S.r.l.
