Purite Select Analyst User manual

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118
SELECT ANALYST
OPERATING MANUAL
ISSUE - A
1/9/09

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 2

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 3
CONTENTS PAGE
1DOCUMENT HISTORY 5
2CONTACT DETAILS 5
3HEALTH AND SAFETY 7
3.1 Explanation of symbols and references. 7
3.2 Additional safety requirements. 7
3.3 Usage in accordance with intended purpose. 7
3.4 Operating staff. 7
3.5 Bringing the system to a stop in the event of an emergency. 8
3.6 Safety information for maintenance tasks. 8
3.7 Disposing of system parts and operating materials. 8
3.8 Unauthorised conversion & replacement parts. 8
3.9 Warranty claims and liability. 9
4ABOUT YOUR WATER PURIFIER 11
4.1 The Select Analyst range of units. 11
4.2 Key components of the Select Analyst. 11
5OPERATING YOUR WATER PURIFIER 13
5.1 Menu structure 13
5.2 Settings menu 14
5.3 Maintenance menu 18
5.4 Engineer menu 19
5.5 Auto restart 20
6MAINTENANCE, SERVICE & SPARES 21
6.1 Replacing media packs 21
6.2 Cleaning inlet filter 21
6.3 Sanitisation procedure 22
6.4 Service spares 23
7TROUBLE SHOOTING 25
8TECHNICAL SPECIFICATION 27
8.1 Product outputs 27
8.2 Treated water specification 27
8.3 Water storage 27
8.4 Fuse rating/ type 27

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118
9INSTALLATION DETAILS
9.1 Media cartridge packs 29
9.2 Feedwater supply requirements 29
9.3 Electrical Supply 30
9.4 Unit positioning 30
9.5 Drain connection 32
9.6 Installation of media cartridge packs 32
10 APPENDIX 35
10.1 CE Declaration 35
10.2 WEEE Declaration 36
10.3 Process Flow Diagram 37

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 5
1DOCUMENT HISTORY
Issue Date of
Change Description of Change Approved by
A First Issue: 1/09/2009
2CONTACT DETAILS
We trust the system will meet all your expectations. However, should you
have any additional questions concerning the equipment please do not
hesitate to contact Purite Ltd at:
Purite Ltd
Bandet Way
Thamee
OxfordshireOxfordshire
OX9 3SJOX9 3SJ
United KingdomUnited Kingdom
For all spares and consumable enquiries contact:For all spares and consumable enquiries contact:
Customer Services Department: Tel No. [phone]Customer Services Department: Tel No. [phone]
For all service enquiries contact:For all service enquiries contact:
Service Department: Tel No. [phone]Service Department: Tel No. [phone]
For further sales enquires contact:For further sales enquires contact:
Sales Department: Tel No. [phone]Sales Department: Tel No. [phone]

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 6

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 7
3HEALTH AND SAFTEY
3.1 Explanation of symbols and references
This symbol refers to any immediate dangers. Failure to
follow the specified procedure could result in serious
personal Injury. Extreme caution should be observed when
conducting any activity where this symbol is shown. Work
should be completed by a trained competent person.
Electrical shock. Do not touch electrical components. Before
performing tasks on parts of the electrical system, disconnect the
system from the power supply.
This symbol refers to a possible danger. Failure to follow the
specified procedure could result in personnel injury. Caution
should be observed when conducting any activity where this
symbol is shown. It is recommended work should be completed
by a trained competent person.
This symbol refers to a possibly hazardous situation.
Failure to observe these references may result in minor injuries
and/or damage to property.
Danger
Warning
Caution
I This symbol points out important information for working with the
system in the proper manner. Failure to observe these references
may result in malfunctions in the system or impact on the
environment.
3.2 Additional safety requirements
Country-specific requirements standards and regulations must be
observed.
3.3 Usage in accordance with intended purpose.
The units must only be operated with water supplied in accordance with
the quality described and the operating parameters specified in
“installation details”.
The units must not be operated unless in proper working order. Any
malfunctions must be rectified immediately.
3.4 Operating staff
Only persons who have read and understood this Operating Manual
should be permitted to operate the unit. When operating the units, it is
important to observe all safety information.

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 8
3.5 Bringing the system to a stop in the event of an
emergency
Switch off via the display.
Turn off the electrical supply.
Shut off the water supply.
After remedying the damage:
Open the water supply.
Turn on the electrical supply.
Restart the unit via the main display.
3.6 Safety information for maintenance tasks
The operator must take care to ensure that all maintenance, inspection
and assembly tasks are performed by authorised and qualified
professionals who have been sufficiently informed regarding the task at
hand (via use of Operating Manual).
The system must be shut down and be protected from further use until all
repair and maintenance tasks have been completed. It is essential to
observe the shutdown procedure as described in this Operating Manual.
Before beginning tasks relating to electrical equipment/components of this
system, a check must confirm that power has been disconnected from the
corresponding section of the system. In addition, the system must be
secured to prevent it from being turned on again unintentionally.
3.7 Disposing of system parts and operating materials
When they need to be discarded, consumables must be disposed of
according to local and National requirements.
3.8 Unauthorised conversion and manufacturing
replacement parts
Conversion or modification of the system is only permitted with the
approval of the manufacturer. The same applies to making changes in the
programming for the control system. Original replacement parts and
accessories authorised by the manufacturer enhance safety. Use of other
parts will void the warranty.

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 9
3.9 Warranty claims and liability
This product has been manufactured in accordance with ISO 9001:2008
procedures, after which it was subjected to a quality control process. If,
however, you are unsatisfied with the unit, please contact the
manufacturer (Purite Limited).

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 10

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 11
4About your water purifier

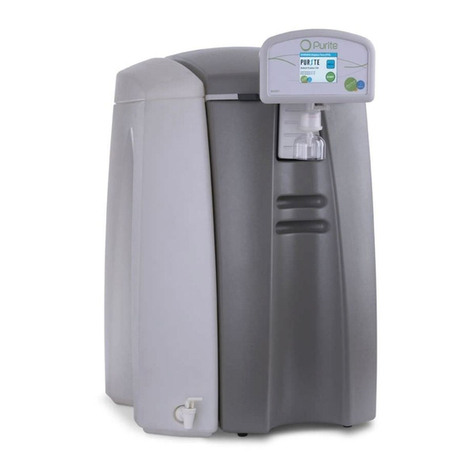

The Purite Select Analyst purifies potable water. The water is purified by a
combination of processes including; ion-exchange, activated carbon and
reverse osmosis.
The purified water produced by the unit complies with latest standards for
laboratory grade purified water.
4.1 The Select Analyst range of units
GP: Generation unit (with no close coupled tank).
IT: Generation unit with close coupled 20 litre water storage
tank
GP BP: Generation unit with feed water boost pump
BP/IT: Generation unit with close coupled water storage tank and
feed water boost pump
Each of the above variants is available with 4 different output flow rates:
SA 40 6 litres per hour
SA 80 12 litres per hour
SA160 24 litres per hour
SA 320 48 litres per hour
Please note that the above outputs are based on an 8 hour working day at
60psi (4 bar) inlet pressure, 25oC and maximum of 400 ppm total dissolved
solids.
The unit type is detailed on its serial plate which can be found on the
reverse side of the front cover.
The Select Analyst is provided with an installation kit for quick installation.
Both media packs are provided and packaged separately. Refer to Section
9.1 and 9.6.
4.2 Key components of the Select Analyst
4.2.1 Touch screen display
Operation of the Select Analyst is controlled solely through the touch
screen display. System schematics are displayed for easy
understanding of the unit’s process.
4.2.2 Close coupled tank
The close coupled tank holds 20 litres of purified water. To dispense

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 12
water a bib tap has been provided at the front of the tank.
Note: Generation units are NOT supplied with a water storage tank
4.2.3 Removable front cover.
The front cover is easily removed and provides access to the cartridge
media packs.

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 13
5Operating your water purifier.
Your select Analyst is operated via the touch screen display. Buttons are
provided on the display to access both the start-up and set-up menus.
5.1 Menu structure (accessed via touch screen display).
5.1.1 Power on screen
INITIALISING 09/09/09 10.22
MENU
WELCOME
ANALYST
START
When connected to an electrical supply the Power On screen is
displayed.
5.1.2 Start up screen
Start
Stop
Menu
→Language
→Time and date
→Set time→Set time
→Set date→Set date
→set format→set format
→Maintenance→Maintenance
→Pre-treatment cartridge pack date→Pre-treatment cartridge pack date
→Puripac cartridge pack date→Puripac cartridge pack date
→Product Information→Product Information
→Engineer Menu→Engineer Menu
→Auto restart→Auto restart
→Enable→Enable
→Disable→Disable

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 14
The unit runs an initialisation for 10 seconds before the unit can be
activated. To switch the unit on press the START button after the
initialisation is compete
When start is pressed the following screen is displayed to show the unit
is in operation and processing water.
5.1.3 Processing screen
PROCESSING 09/09/09 10.22
QUALITY 10.0 MΩ
TEMPERATURE 20.0 °C
STOP
Outlet water quality and outlet water temperature are displayed on the
screen for your information.
A single red button is featured, STOP. When pressed the display reverts to
the Power On Screen and all functions are terminated.
5.2 Settings Menu
Pressing the MENU button takes you to the Settings Menu where system
parameters can be set up.
PROCESSING 09/09/09 10.22
MENU
WELCOME
ANALYST
START
All menu screens feature four buttons BACK, UP, DOWN, ENTER.nu screens feature four buttons BACK, UP, DOWN, ENTER.

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 15
UP and DOWN are used to move through the available options and/or to
increase/decrease numerical vales.
ENTER selects to the option highlighted.
BACK returns to the previous screen.
SETTINGS MENU
Language
Time and Date
Maintenance
Product information
Engineer menu
BACK
Auto Restart
ENTER
5.2.1 Language
LANGUAGE
ENGLISH
FRENCH
BACK


ENTER
Text displays can be set to be shown in either English or French.
Highlight the appropriate tick box by pressing on the relevant screen area
and press enter.

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 16
5.2.2 Time and date
TIME AND DATE MENU
Set Time
BACK
Set Date
Set Format
ENTER
The system time and date can be set.
Set time.
The required time is programmed by using the up and down arrows to
select correct values, press enter to confirm.
PROCESSING
BACK
12:54
HH:MM
NEXT

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 17
Set date
SET DATE
04/01/09
DD/MM/YY
BACK
NEXT
Set date format
SET DATE
DD MM YY
DD MM YYYY
BACK
MM DD YY
MM DD YYY

ENTER

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 18
5.3 Maintenance menu
The maintenance menu provides the capability to set defined dates for
replacement of media cartridge packs in the device. These dates, when
expired, will trigger an alarm which will be displayed on the menu bar.
MAINTENANACE
Pretreatment Pack Date
BACK
Puripac Pack PP 8 Date
ENTER
5.3.1 Pretreatment pack date
When the Pretreatment (PT8) media packs are replaced it is necessary
to reset the replacement date. This is done via the Pretreatment Pack
date menu.
Enter the menu and press reset. Failure to reset and replace media
packs will lead to poor water quality.
Pretreatment Pack date
BACK
16/12/2009
6 MONTH EXPIRY
RESET

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118 19
5.3.2 Puripac pack date
When the PP8/16 cartridge pack is replaced it is necessary to reset the
next replacement date. This is done in the Puripac date menu. Enter
the menu and press reset. Failure to reset and replace media packs will
lead to poor quality water.
Puripac date
BACK
16/12/2009
6 MONTH EXPIRY
RESET
5.3.3 Product information
Product Information
Type: Analyst
Serial number: 123456
Unit ID: 00
Unit Version: R.1.5
Pod Version : R.1.6
Commissioning Date: 01/01/01
BACK
Memory Checksum: OxFE66
Address 02
5.4 Engineer menu
For Purite service engineers only.

OPERATING MANUAL FOR SELECT ANALYST
Issue: A, part number R041118
5.5 Auto restart
If selected will return the unit into operation automatically in the event of a
power cut.
AUTO RESTART
Disabled
Enabled
BACK

ENTER
