PURPLE PANDA Lavalier Mic Kit User manual
USER GUIDE & SUPPORT
Dual Lavalier Mic Kit
TABLE OF CONTENTS 4
PARTS GUIDE
MIC PLACEMENT
FUZZY WINDSCREEN
SMARTPHONES WITH 3.5MM EARPHONE PORT
IPHONE - MIC RECORDING SETUP
ANDROID - MIC RECORDING SETUP
ANDROID - MIC NOT RECOGNIZED
IPAD - MIC RECORDING SETUP
TABLET - MIC RECORDING SETUP
ZOOM - MIC SETUP
TASCAM - MIC SETUP
OTHER AUDIO RECORDERS
DSLR - MIC SETUP
TROUBLESHOOTING
CONTACT US / NEED MORE HELP?
SPECIFICATIONS
1
2
3
4
5
6
7-8
9
10
11-12
13
14
15
16-18
19
20
1
25
PARTS GUIDE
1
4
2x Microphone with TRRS Connector
2x 9.8ft (3m) Extension Cord with TRRS Connector
TRS (2-Ring) Adapter
Dual Mic Adapter
2x Fuzzy Windscreen for Windy Environments
1.
2.
3.
4.
5.
3
2x
2x 2x
MIC PLACEMENT 2
The microphone should be positioned directly underneath the
speaker's mouth (as close as possible), without being subject to
clothing rustle. When attaching the microphone, please ensure
the microphone is pointed towards the speaker's mouth.
FUZZY WINDSCREEN
3
The fuzzy windscreen is ideally used for windy environments to
prevent wind noise from distorting the audio quality of the
microphone. For increased wind protection, add the fuzzy
windscreen when recording outdoors by sliding it over the
microphone and ensuring the fur is fluffed up in all directions for
best results. Please remove the foam windscreen on the
microphone first before attaching the fuzzy windscreen.
RECORDING ON SMARTPHONES WITH 3.5MM
EARPHONE PORT
1 2
INSERT RECORD
CONNECT BOTH MICS FIRMLY INTO THE
DUAL-MIC ADAPTER, THEN PLUG THE
ADAPTER FIRMLY INTO YOUR DEVICE
3UNPLUG 4PLAY
PRESS THE "PLAY" ICON TO
LISTEN TO YOUR
RECORDING AFTER
UNPLUGGING THE ADAPTER
POSITION THE MICS
DIRECTLY UNDERNEATH THE
SPEAKER'S MOUTH (ENSURE
IT IS POINTED TOWARDS THE
SPEAKER'S MOUTH ) AND
START RECORDING USING
THE PHONE'S RECORDING
APP
FOR DEVICES WITHOUT A 3.55MM EARPHONE PORT, READ
FURTHER INSTRUCTIONS
TO LISTEN TO YOUR
RECORDING YOU MUST
UNPLUG THEADAPTER FIRST
4
CONNECT ALL PLUGS FIRMLY UNTIL
YOU HEAR A "CLICK"
IPHONE - MIC RECORDING SETUP
IMPORTANT: TO LISTEN TO YOUR RECORDING YOU MUST
UNPLUG THE ADAPTER AND MIC FIRST
5
CONNECT ALL PLUGS FIRMLY UNTIL YOU HEAR A “CLICK”
Mic Dual-Mic Adapter
Mic Dual-Mic Adapter
NOT INCLUDED: LIGHTNING TO 3.5 MM
HEADPHONE JACK ADAPTER REQUIRED
Newer iPhone models require "Lightning to 3.5mm Headphone Jack
Adapter" - Sold Separately by Apple. It is recommended that it's
bought directly from Apple in order to guarantee quality.
iPhone SE (2016) and older models
CONNECT ALL PLUGS FIRMLY UNTIL YOU HEAR A “CLICK”
SMARTPHONES WITHOUT AN EARPHONE PORT REQUIRE A
USB-C TO 3.5MM ADAPTER: NOT INCLUDED
SOLD SEPARATELY BY THE PHONE COMPANY (EG. SAMSUNG)
ANDROID - MIC RECORDING SETUP
IMPORTANT: TO LISTEN TO YOUR RECORDING YOU MUST
UNPLUG THE ADAPTER AND MIC FIRST
Mic Dual-Mic Adapter
CONNECT ALL PLUGS FIRMLY UNTIL YOU HEAR A “CLICK”
6
CONNECT ALL PLUGS FIRMLY UNTIL YOU HEAR A “CLICK”
Mic Dual-Mic Adapter
USE THE FOLLOWING CONNECTION FOR ANDROID SMARTPHONES
WITH A 3.5MM EARPHONE PORT
ANDROID - MIC NOT RECOGNIZED
7

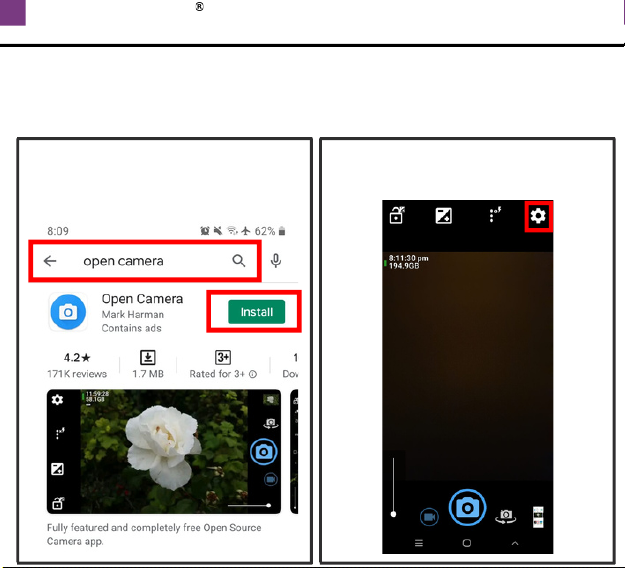

SOME ANDROID PHONES REQUIRE AN EXTERNAL APP FOR THE
MIC TO WORK. DOWNLOADING THE OPEN CAMERA APP WOULD
BE AN EASY FIX, PLEASE TAKE THE FOLLOWING STEPS:
1. Launch the Play Store and
search for "Open Camera" then
press on "Install"
2. Launch the Open Camera app
then press on the settings icon
ANDROID - MIC NOT RECOGNIZED
3. Select Video Settings... Audio Source External Mic
Then create your video recording using the Open Camera app
8

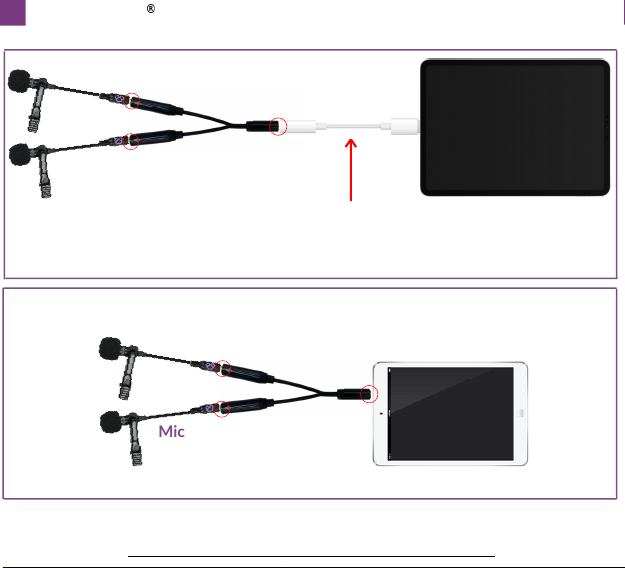

NEWER MODELS (12.9‐INCH IPAD PRO, 11‐INCH IPAD PRO, ETC.)
REQUIRE THE USB-C TO 3.5MM ADAPTER: NOT INCLUDED
SOLD SEPARATELY BY APPLE
CONNECT ALL PLUGS FIRMLY UNTIL YOU HEAR A “CLICK”
IPAD - MIC RECORDING SETUP
Mic Dual-Mic Adapter
FOR MODELS WITH A 3.5MM EARPHONE PORT (IPAD AIR, IPAD MINI,
AND CLASSIC IPAD), CONNECT THE MIC PLUG DIRECTLY INTO IPAD
IMPORTANT: TO LISTEN TO YOUR RECORDING YOU MUST
UNPLUG THE ADAPTER AND MIC FIRST
9
CONNECT ALL PLUGS FIRMLY UNTIL
YOU HEAR A “CLICK”
Mic Dual-Mic Adapter

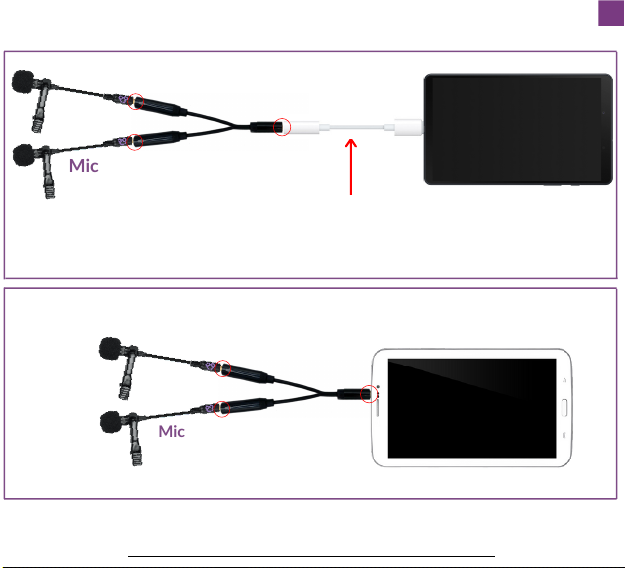

TABLETS WITHOUT AN EARPHONE PORT REQUIRE A
USB-C TO 3.5MM ADAPTER: NOT INCLUDED
SOLD SEPARATELY BY THE TABLET COMPANY (EG. SAMSUNG)
CONNECT ALL PLUGS FIRMLY UNTIL YOU HEAR A “CLICK”
Mic Dual-Mic Adapter
Mic Dual-Mic Adapter
FOR MODELS WITH A 3.5MM EARPHONE PORT CONNECT THE MIC
PLUG DIRECTLY INTO THE TABLET
IMPORTANT: TO LISTEN TO YOUR RECORDING YOU MUST
UNPLUG THE ADAPTER AND MIC FIRST
TABLET - MIC RECORDING SETUP 10
CONNECT ALL PLUGS FIRMLY UNTIL
YOU HEAR A “CLICK”
IMPORTANT: “PLUG-IN POWER” MUST BE TURNED ON ON YOUR
DEVICE FOR THE MIC TO WORK
ZOOM - MIC SETUP
H4n: Go to “Menu” > “Input” > “PLUG-IN” > ON
H2n: Go to “Menu” > “Input” > “Plug-in Power” > ON
H1n: Plug-in power is turned on automatically
.
4. Adjust the input level as desired on the Zoom recorder and
record
CONNECT ALL PLUGS FIRMLY UNTIL
YOU HEAR A “CLICK”
Mic
Connect both mics into the dual-mic adapter and then connect the
dual-mic adapter into the TRS adapter tightly until you hear a
“CLICK”
Plug the TRS adapter tightly into the “LINE IN” jack on the
Zoom recorder
Turn ON “Plug-in Power” from Zoom recorder settings
1.
2.
3.
11
Dual-Mic Adapter TRS Adapter
ZOOM H1n / ZOOM H2n / ZOOM H4n
ZOOM - MIC SETUP
IMPORTANT: “PLUG-IN POWER” MUST BE TURNED ON ON YOUR
DEVICE FOR THE MIC TO WORK
ZOOM H5 / ZOOM H6
H6: Go to “Menu” > “Input & Output” > “Plugin Power” > ON
H5: Go to “Menu” > “IN/OUT” > “PLUGIN POWER” > ON
4. Adjust the input level as desired on the Zoom recorder and record
Connect both mics into the dual-mic adapter and then connect the
dual-mic adapter into the TRS adapter tightly until you hear a
“CLICK”
Plug the TRS adapter tightly into the “LINE IN” jack found on the
X/Y Mic Capsule
Turn ON “Plug-in Power” from Zoom recorder settings
1.
2.
3.
12
CONNECT ALL PLUGS FIRMLY UNTIL
YOU HEAR A “CLICK”
Mic
Dual-Mic Adapter TRS Adapter

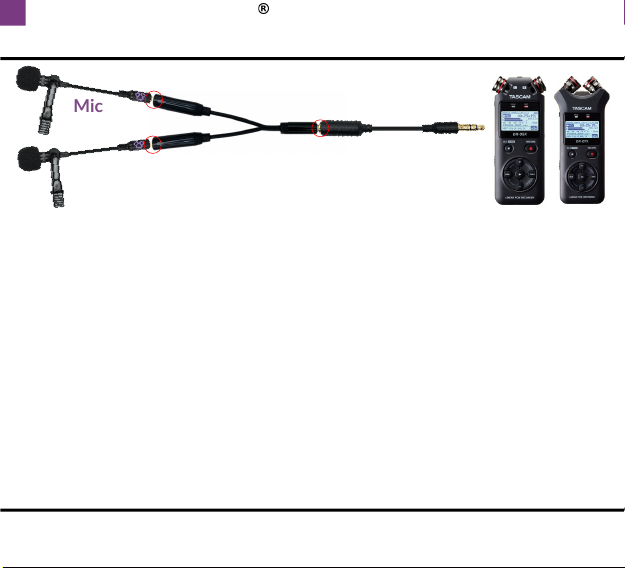

TASCAM - MIC SETUP
TASCAM DR05: Go to “Menu” > Rec Setting > Mic Power > ON
For other models: Refer to TASCAM device manual for
instructions to turn on mic power setting
IMPORTANT: “MIC POWER” MUST BE TURNED ON ON YOUR
DEVICE FOR THE MIC TO WORK
4. Adjust the input level as desired on the TASCAM recorder and
record
13
Connect both mics into the dual-mic adapter and then connect the
dual-mic adapter into the TRS adapter tightly until you hear a
“CLICK”
Plug the TRS adapter into the “MIC/EXT IN” jack on the TASCAM
recorder
Turn ON “MIC POWER” from TASCAM recording settings
1.
2.
3.
CONNECT ALL PLUGS FIRMLY UNTIL
YOU HEAR A “CLICK”
Mic
Dual-Mic Adapter TRS Adapter

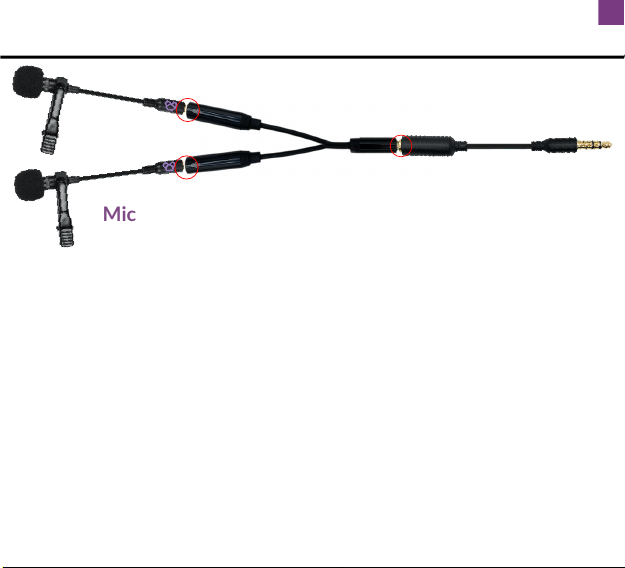

OTHER AUDIO RECORDERS
IMPORTANT: “MIC POWER” MAY NEED TO BE TURNED ON ON
YOUR DEVICE FOR THE MIC TO WORK
AUDIO RECORDERS OTHER THAN ZOOM AND TASCAM MAY
OR MAY NOT BE COMPATIBLE
PLEASE FOLLOW THE ZOOM INSTRUCTIONS (PAGE 11-12)
14
TRS AdapterDual-Mic AdapterMic
CONNECT ALL PLUGS FIRMLY UNTIL YOU HEAR A “CLICK”
DSLR - MIC SETUP
Connect both mics into the dual-mic adapter and then
connect the dual-mic adapter into the TRS adapter
tightly until you hear a “CLICK”
Plug the TRS adapter firmly into the DSLR port
1.
2.
CONNECTION FOR ALL DSLR MODELS:
TRS AdapterDual-Mic AdapterMic
CONNECT ALL PLUGS FIRMLY UNTIL YOU HEAR A “CLICK”
15
TROUBLESHOOTING

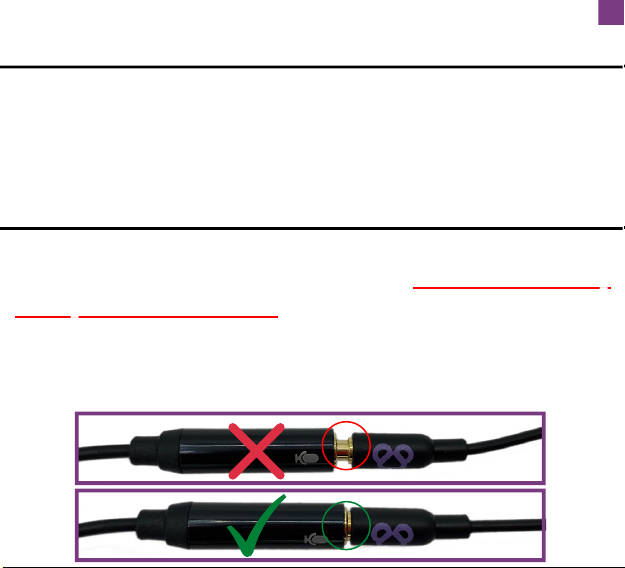

When connecting adapters to each other, connect them firmly
until you hear a “CLICK”. Many issues happen due to the
adapters not being connected properly. Make sure you are
using the correct combination of adapters for your device by
referring to the instructions in this guide.
16
Record an audio recording (preferably with a smartphone)
while scratching the foam windscreen on the mic. Unplug the
mic and listen to the recording, if the mic is working, the
scratching sound should be loud which means the mic is active.
HOW TO TEST IF YOUR MIC IS WORKING:
IMPORTANT:
TROUBLESHOOTING
1. When connecting adapters to each other, connect
them firmly until you hear a “CLICK”. Many issues
happen due to the adapters not being connected
properly. Make sure you are using the correct
combination of adapters for your device by referring to
the instructions in this guide.
BUZZING NOISES IN RECORDING?
2. Ensure that Bluetooth and NFC (near field
communication) are turned off on the device, and you
are not next to a WiFi Router.
3. Check if the microphone cable or extension cables
are crossing other cables that are causing electrical
interference. This is especially possible close to power
cables.
17
