PURPLE PANDA Lavalier User manual

USER GUIDE & SUPPORT
3.5mm Lavalier Mic Kit

FOR RETURNS, REFUNDS AND
REPLACEMENTS
EMAIL US AT:
[email protected]
YOU HAVE A 1 YEAR WARRANTY

TABLE OF CONTENTS 4
PARTS GUIDE
MIC PLACEMENT
FUZZY WINDSCREEN
SMARTPHONES WITH 3.5MM EARPHONE PORT
IPHONE - MIC RECORDING SETUP
IPHONE - CALL SETUP
ANDROID - MIC RECORDING SETUP
ANDROID - CALL SETUP
ANDROID - MIC NOT RECOGNIZED
IPAD - MIC RECORDING SETUP
IPAD - CALL SETUP
TABLET - MIC RECORDING SETUP
TABLET - CALL SETUP
TROUBLESHOOTING
CONTACT US
SPECIFICATIONS
1
2
3
4
5
6
7
8
9-10
11
12
13
14
15-17
18
19

1
24
PARTS GUIDE
1
3
Microphone with TRRS Connector
9.8ft (3m) Extension Cord with TRRS Connector
Mic & Earphone Connector (for calls)
Fuzzy Windscreen for Windy Environments
1.
2.
3.
4.

MIC PLACEMENT
The microphone should be positioned directly underneath the
speaker's mouth (as close as possible), without being subject to
clothing rustle. When attaching the microphone, please ensure
the microphone is pointed towards the speaker's mouth.
2

FUZZY WINDSCREEN
The fuzzy windscreen is ideally used for windy environments to
prevent wind noise from distorting the audio quality of the mic.
For increased wind protection, add the fuzzy windscreen when
recording outdoors by sliding it over the mic and ensuring the
fur is fluffed up in all directions for best results.
3

RECORDING ON SMARTPHONES WITH 3.5MM
EARPHONE PORT
1 2
INSERT RECORD
"CLICK"
CONNECT THE
MICROPHONE PLUG
FIRMLY INTO THE
EARPHONE PORT OF
YOUR SMARTPHONE
3UNPLUG 4PLAY
PRESS THE "PLAY"
ICON TO LISTEN TO
YOUR RECORDING
AFTER UNPLUGGING
THE MICROPHONE
ATTACH THE MIC TO
YOUR SHIRT AND
START RECORDING
USING THE PHONE'S
RECORDING APP
TO LISTEN TO YOUR
RECORDING YOU
MUST UNPLUG
THEMICROPHONE
FIRST
4
FOR DEVICES WITHOUT A 3.5MM EARPHONE PORT, READ
FURTHER INSTRUCTIONS

IPHONE - MIC RECORDING SETUP
iPhone 6S Plus
iPhone 6
iPhone SE & Older
Models
iPhone 6S
iPhone 6 Plus
TURN OVER
MIC
NOT INCLUDED: LIGHTNING TO 3.5 MM
HEADPHONE JACK ADAPTER
(SOLD SEPARATELY BY APPLE, OR
INCLUDED WITH YOUR IPHONE 7, 7
PLUS, 8, 8 PLUS, AND X AT THE BACK OF
THE EARPHONES PACKAGE IN THE BOX)
MIC
CONNECT THE MIC PLUG FIRMLY
UNTIL YOU HEAR A “CLICK”
IMPORTANT: TO LISTEN TO YOUR RECORDING YOU MUST UNPLUG
THEMIC OR USE THE "MIC & EARPHONE CONNECTOR" - SEE NEXT PAGE
CONNECT THE MIC PLUG FIRMLY
UNTIL YOU HEAR A “CLICK”
5
iPhone 12 Pro
iPhone 11
iPhone 12 Pro Max
iPhone 12 Mini
iPhone 12
iPhone 11 Pro
iPhone 11 Pro Max
iPhone SE (2nd Gen),
Xs, Xs Max, XR, X,
8 Plus, 8, 7 Plus, 7

iPhone 12 Pro
iPhone 11
iPhone 12 Pro Max
iPhone 12 Mini
iPhone 12
iPhone 11 Pro
iPhone 11 Pro Max
iPhone SE (2nd Gen),
Xs, Xs Max, XR, X,
8 Plus, 8, 7 Plus, 7
IPHONE - CALL SETUP
iPhone 6S Plus
iPhone 6
iPhone SE & Older
Models
iPhone 6S
iPhone 6 Plus
CONNECT ALL PLUGS FIRMLY
UNTIL YOU HEAR A “CLICK”
Mic
Mic & Earphone
Connector
⬅ Plug earphones to listen
to playback or during call
Mic
Mic & Earphone
Connector
⬅ Plug earphones to listen
to playback or during call
6
Not Included

SMARTPHONES WITHOUT AN EARPHONE PORT REQUIRE A
USB-C TO 3.5MM ADAPTER: NOT INCLUDED
SOLD SEPARATELY BY THE PHONE COMPANY (EG. SAMSUNG)
MIC
CONNECT THE MIC PLUG FIRMLY
UNTIL YOU HEAR A “CLICK”
MIC
CONNECT THE MIC PLUG FIRMLY
UNTIL YOU HEAR A “CLICK”
ANDROID - MIC RECORDING SETUP
IMPORTANT: TO LISTEN TO YOUR RECORDING YOU MUST UNPLUG
THEMIC OR USE THE "MIC & EARPHONE CONNECTOR" - SEE NEXT PAGE
7

CONNECT ALL PLUGS FIRMLY
UNTIL YOU HEAR A “CLICK”
8
ANDROID - CALL SETUP
Mic
Mic & Earphone
Connector
⬅ Plug earphones to listen
to playback or during call
Mic
Mic & Earphone
Connector
⬅ Plug earphones to listen
to playback or during call
CONNECT ALL PLUGS FIRMLY
UNTIL YOU HEAR A “CLICK”
SMARTPHONES WITHOUT AN EARPHONE PORT REQUIRE A USB-C TO 3.5MM ADAPTER:
NOT INCLUDED SOLD SEPARATELY BY THE PHONE COMPANY (EG. SAMSUNG)

ANDROID - MIC NOT RECOGNIZED
9

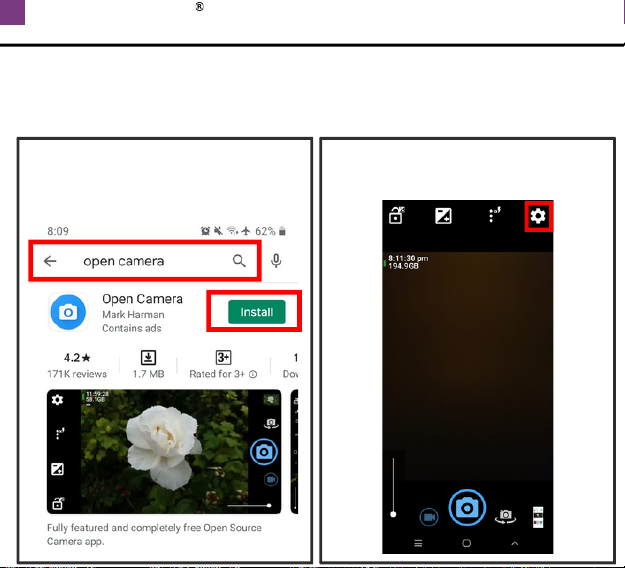

SOME ANDROID PHONES REQUIRE AN EXTERNAL APP FOR THE
MIC TO WORK. DOWNLOADING THE OPEN CAMERA APP WOULD
BE AN EASY FIX, PLEASE TAKE THE FOLLOWING STEPS:
1. Launch the Play Store and
search for "Open Camera" then
press on "Install"
2. Launch the Open Camera app
then press on the settings icon

ANDROID - MIC NOT RECOGNIZED
3. Select Video Settings... → Audio Source → External Mic
Then create your video recording using the Open Camera app
10

NEWER MODELS (12.9‐INCH IPAD PRO, 11‐INCH IPAD PRO, ETC.)
REQUIRE THE USB-C TO 3.5MM ADAPTER: NOT INCLUDED
SOLD SEPARATELY BY APPLE
CONNECT THE MIC PLUG FIRMLY
UNTIL YOU HEAR A “CLICK”
FOR MODELS WITH A 3.5MM EARPHONE PORT
(IPAD AIR, IPAD MINI, AND CLASSIC IPAD),
CONNECT THE MIC PLUG DIRECTLY INTO IPAD
MIC
MIC
CONNECT THE MIC PLUG FIRMLY
UNTIL YOU HEAR A “CLICK”
IPAD - MIC RECORDING SETUP
IMPORTANT: TO LISTEN TO YOUR RECORDING YOU MUST UNPLUG
THEMIC OR USE THE "MIC & EARPHONE CONNECTOR" - SEE NEXT PAGE
11

Mic
Mic & Earphone
Connector
⬅ Plug earphones to listen
to playback or during call
CONNECT ALL PLUGS FIRMLY
UNTIL YOU HEAR A “CLICK”
CONNECT ALL PLUGS FIRMLY
UNTIL YOU HEAR A “CLICK”
IPAD - CALL SETUP 12
Mic
Mic & Earphone
Connector
⬅ Plug earphones to listen
to playback or during call

FOR MODELS WITH A 3.5MM EARPHONE PORT
CONNECT THE MIC PLUG DIRECTLY INTO THE TABLET
TABLETS WITHOUT AN EARPHONE PORT REQUIRE A
USB-C TO 3.5MM ADAPTER: NOT INCLUDED
SOLD SEPARATELY BY THE TABLET COMPANY (EG. SAMSUNG)
MIC
CONNECT THE MIC PLUG FIRMLY
UNTIL YOU HEAR A “CLICK”
MIC
CONNECT THE MIC PLUG FIRMLY UNTIL YOU HEAR A “CLICK”
13
IMPORTANT: TO LISTEN TO YOUR RECORDING YOU MUST UNPLUG
THEMIC OR USE THE "MIC & EARPHONE CONNECTOR" - SEE NEXT PAGE
TABLET - MIC RECORDING SETUP

CONNECT ALL PLUGS FIRMLY UNTIL
YOU HEAR A “CLICK”
14
TABLET - CALL SETUP
Mic
Mic & Earphone
Connector
⬅ Plug earphones to listen
to playback or during call
CONNECT ALL PLUGS FIRMLY
UNTIL YOU HEAR A “CLICK”
⬅ Plug earphones to listen
to playback or during call
Mic
Mic & Earphone
Connector

TROUBLESHOOTING
When connecting adapters to each other, connect them
firmly until you hear a “CLICK”. Many issues happen due to
the adapters not being connected properly. Make sure you
are using the correct combination of adapters for your
device by referring to the instructions in this guide.
15
Record an audio recording while scratching the foam
windscreen on the mic. Unplug the mic and listen to the
recording, if the mic is working, the scratching sound should
be loud which means the mic is active.
HOW TO TEST IF YOUR MIC IS WORKING:
IMPORTANT:

TROUBLESHOOTING
1. When connecting adapters to each other, connect
them firmly until you hear a “CLICK”. Many issues
happen due to the adapters not being connected
properly. Make sure you are using the correct
combination of adapters for your device by referring to
the instructions in this guide.
BUZZING NOISES IN RECORDING?
2. Ensure that Bluetooth and NFC (near field
communication) are turned off on the device, and you
are not next to a WiFi Router.
3. Check if the microphone cable or extension cables
are crossing other cables that are causing electrical
interference. This is especially possible close to power
cables.
16

TROUBLESHOOTING
4. Check if the microphone cable or extension cables
are close to or wrapped around other electrical devices
(including the one you are recording with).
BUZZING NOISES IN RECORDING?
5. Try the microphone with a smartphone to ensure
there is not a problem with the microphone itself. If you
are trying to use any of the adapters, ensure that they
are plugged in firmly (until you hear a click) and that the
correct combination of adapters is being used.
17
