INSTRUCTION
MANUAL
PX154
DMX - MP3
Player
R

CONTENTS
1. General description.................................................................................................
2. Safety conditions.....................................................................................................
3. Player description...................................................................................................
4. LED indicators.........................................................................................................
5. Current player status...............................................................................................
6. Direct control...........................................................................................................
7. DMX control............................................................................................................
8. Player menu............................................................................................................
8.1. Adr menu.................................................................................................
8.2. Cbn menu................................................................................................
8.3. noS menu................................................................................................
8.4. dEF menu................................................................................................
9. Communication with a PC computer.......................................................................
10. Connection scheme................................................................................................
11. DMX signal connection...........................................................................................
12. Technical specification............................................................................................
13. Declaration of conformity........................................................................................
1
1
2
2
3
3
3
4
5
5
5
5
6
7
7
8
9
Manufacturer reserves the right to make modifications in order to improve device operation.
PXM s.c.
ul. Przemysłowa 12
30-701 Kraków
POLAND
tel.: [phone]
fax: [phone]
E-mail: [email protected]
Internet: www.pxm.pl

1. GENERAL DESCRIPTION
1
PX154 DMX-MP3 Player is a device, that allows to play the compressed audio files mp3 MPEG I,
II-Layer 3, controlled with the DMX-512 protocol or directly, with the keys placed on the device's
front panel. You can place up to 26 tracks on the SD/MMC memory card.
The module can co-operate with the DMX devices in two modes: taking up four or seven DMX
channels, in the first case the tone equalizer adjusted with the DMX controller is unavailable.
The player can be connected to the PC computer through the built-in USB port, that allows to
transfer the mp3 files from the computer to the SD/MMC card and vice versa. The device is
identified as a removable disc then.
The features supported by the PX154 DMX-MP3 Player allow to play the tracks, choose a
particular tune, loop one or all tracks, adjust the volume in a 32-grades scale, adjust the equalizer
of high, medium and low tones and to set the DMX address.
The module is manufactured in a casing for DIN rails mounting.
2. SAFETY CONDITIONS
PX154 DMX-MP3 Player is a device powered with safe voltage 12 V; however, during its
installation and use the following rules must be strictly observed:
1. The device can only be connected to 12 V DC with current-carrying capacity compatible with
technical data.
2. All the conductors should be protected against mechanical and thermal damage.
3. In the event of damaging any conductor, it should be replaced with a conductor of the same
technical data and attestations.
4. Connection of DMX signal can be made with shielded conductor only.
5. All repairs and connections of outputs or DMX signal can be made with cut off power supply
only.
6. PX154 should be strictly protected against contact with water and other liquids.
7. All sudden shocks, particularly dropping, should be avoided.
8. The device cannot be turned on in places with humidity exceeding 90%.
o o
9. The device cannot be used in places with temperature lower than 2 C or higher than 40 C.
10. Clean with damp duster only.

2

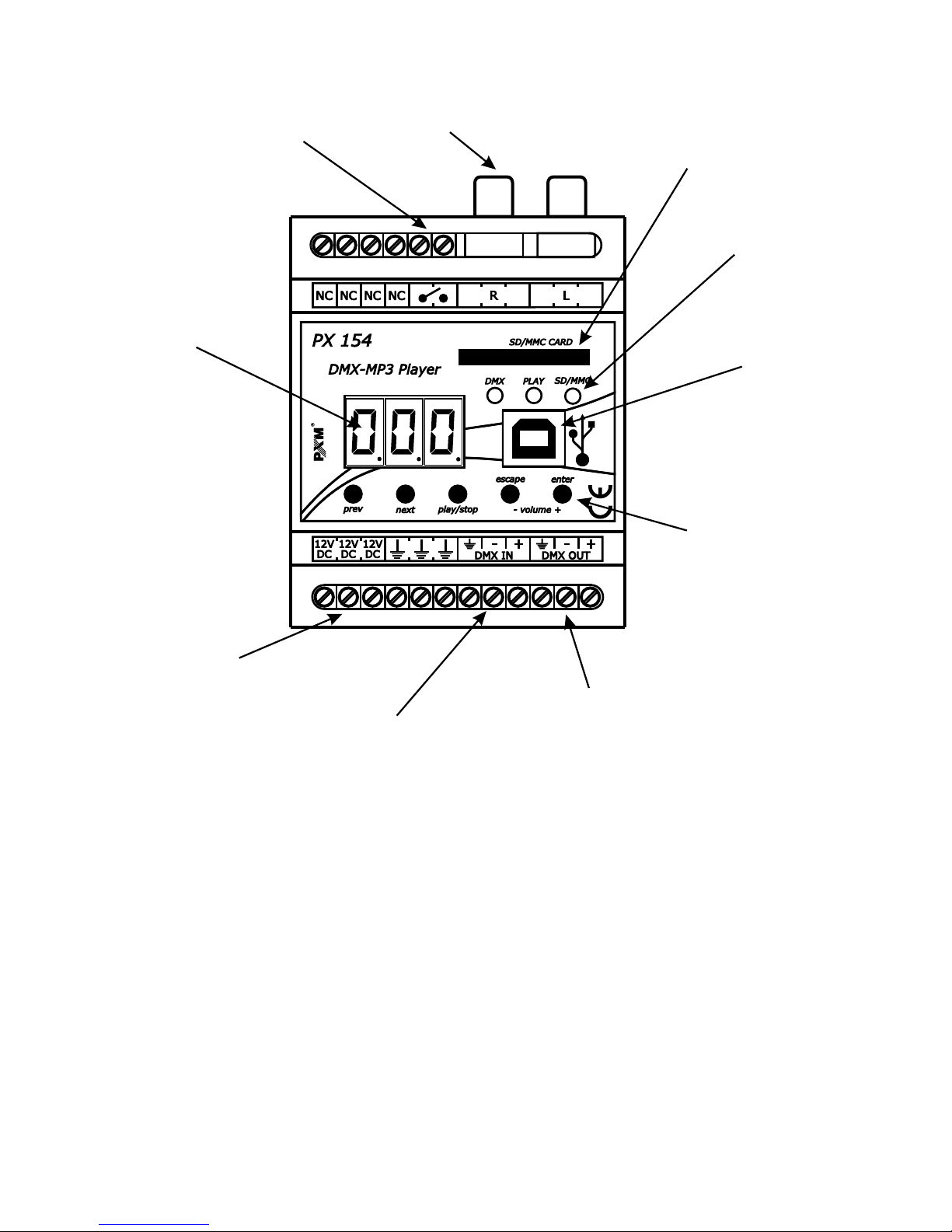

3. PLAYER DESCRIPTION
DMX signal input
DMX signal output
LED indicators
USB port
functional buttons:
display
12 V DC power input
audio outputs
external control
button outputs SD/MMC card slot
serve for module
control (refer to point
6 of the present
manual) and allow to
introduce settings in
the player menu
(refer to point 8).
4. LED INDICATORS
The PX154 player is equipped with three LED indicators, that inform about the condition of the
player, SD/MMC card, PC connection and the DMX signal presence.
1. SD/MMC LED indicator (green)
lights - the memory card and the selected file are correct
twinkles - memory card error or incorrect / missing file
off - the module is switched off
2. PLAY LED indicator (orange)
lights - mp3 file playing
twinkles - USB Master Mass Storage mode
off - module switched off or inactive
3. DMX LED indicator (blue)
twinkles - DMX signal is present
off - no DMX signal

Channel 1: stop, pause, start, restart
DMX values:
0 - 63 - stop
64 - 127 - pause
128 - 255 - start / restart
ATTENTION: You can start the track in a "stop" state only.
You can restart the track in a "pause" state only.
Channel 2: track number selection (0 - 25)
DMX values
track number 000 001 002 003 004 005 006 007 008 009 010 011 012
0-9 10-19 20-29 30-39 40-49 50-59 60-69 70-79 80-89 90-99 100-109 110-119 120-129
DMX values
track number 013 014 015 016 017 018 019 020 021 022 023 024 025
130-139 140-149 150-159 160-169 170-179 180-189 190-199 200-209 210-219 220-229 230-239 240-249 250-255
3
5. CURRENT PLAYER STATUS
6. DIRECT CONTROL
Direct control (with the control keys) is possible when the DMX signal is absent (DMX LED off)
only. You can operate with the four following keys:
PLAY/STOP - plays / stops / pauses / restarts playing
VOLUME "+" and "-" - adjust the volume level
NEXT - next track selection
PREV - previous track selection
7. DMX CONTROL
With the DMX protocol the player control can be held through four or seven channels. In the 7-
channel control mode the following features are available: play / stop / restart, track number
selection, reproduction mode (one track or all tracks once and one or all tracks in a loop), volume
adjustment and a three tone equalizers (high, medium and low). When the 4-channel control
mode is set the equalizer is unavailable - you can adjust the tones manually in the player's menu
(dEF section).
When the PX154 player is switched on, the software version number is displayed. After
approximately 2 seconds the currently played track number appears. The direct control with the
functional keys is possible, when the DMX signal is absent. The player starts with the 0 volume
level and selects (does not play) track no. 000 then. The equalizer is set at the default level, as
well as the single playing of one track. By pressing the PLAY/STOP key you can start playing the
selected track. The special case is the "run" feature activated (refer to p. 8.3 of the manual).
When both volume keys are pressed simultaneously you can enter the player's menu, where the
following parameters can be set: the DMX address, number of DMX control bytes, player reaction
to DMX signal absence or interruption and the played track parameters.
ATTENTION: When the SD/MMC memory card is empty, the player can be used as the Master
Mass Storage device, that is a removable disc, only! The control with the functional
keys will not be possible.
Moreover, the number of files put on the SD/MMC card cannot exceed 26. If there is more files or
any additional folders are put on the memory card, it can cause improper player operation during
tracks changing. All the mp3 files must be saved in format 000.mp3, 001.mp3, ... , 025.mp3.

Channel 3: reproduction mode - single (the selected track is played once), single looped
(the selected track is played repeatedly), continuous single (starting from
the selected track, playing comes to the last track and stops when the last
track was played), continuous looped (starting from the selected track,
tracks are played in turn, after the last track was, the player starts to play the
first track, and so on)
DMX values:
0 - 63 - single reproduction
64 - 127 - looped single reproduction
128 - 191 - continuous single reproduction
192 - 255 - looped continuous reproduction
ATTENTION: each change of playing mode through the DMX protocol auto-
matically selects the track and realizes the start / stop command
Channel 4: 32-grades volume adjustment
Channels 5, 6, 7: tone equalizer - in sequence: low tones, medium and high (32 grades
each)
4
DMX values
volume level
equalizer level
0-7 8-15 16-23 24-31 32-39 40-47 48-55 56-63
7
6
5
4
3
2
1
0
12345678
DMX values
volume level
equalizer level
128-135 136-143 144-151 152-159 160-167 168-175 176-183 184-191
23
22
21
20
19
18
17
16
17 18 19 20 21 22 23 24
DMX values
volume level
equalizer level
192-199 200-207 208-215 216-223 224-231 232-239 240-247 248-255
31
30
29
28
27
26
25
24
25 26 27 28 29 30 31 32
DMX values
equalizer level
64-71 72-79 80-87 88-95 96-103 104-111 112-119 120-127
15
14
13
12
11
10
9
8
910 11 12 13 14 15 16
volume level
To enter the player main menu press both volume adjustment (VOLUME + and -) keys
simultaneously. Moving around the menu and options selection is performed with the following
keys:
VOLUME "+" - ENTER (enters the successive submenu and confirms your selection)
VOLUME "-" - ESCAPE (returns to the previous menu and discards changes made)
NEXT - scrolls the menu forwards and increases the parameters values
PREV - scrolls the menu backwards and decreases the parameters values
8. PLAYER MENU
The player menu allows to define the parameters of a played track, set the player reaction to DMX
signal interruption, choose the control mode (number of DMX control bytes) and to set the DMX
address. When the programming is performed, the tracks reproduction is not interrupted (the only
exception is the dEF menu parameters programming).

8.3. noS MENU
Defines the player reaction to DMX control signal absence or interruption. You may choose from
three following options:
oFF - playing is stopped and all the parameters are being reset, the player status is the
same as it is after turning the device on. Full control with the functional keys on the
front panel is possible.
run - the device automatically plays the track defined in the dEF menu with the
parameters set in the dEF menu as well
InP - you can launch the track with the external button, it is played with the parameters
set in the dEF menu, by pressing the external button once more, you will restart
the player with dEF parameters as well
VOLUME + NEXT NEXT
5
8.1. Adr MENU
This is a first parameter to be set. In this menu you can select the player DMX address. The
address set corresponds to the first channel, the following channels will be ascribed to the
subsequent DMX addresses. The range you can choose from is from 1 to 505, regardless of the
control bytes number.
8.2. Cbn MENU
It defines the control mode through the DMX protocol. Allows to select one of two available
modes: 7-byte (7-channel) control (all playing parameters, volume and tone adjusting is
available) and 4-byte (4-channel) control, that ignore the tone equalizer. This parameter can be
adjusted manually in the dEF menu then.
VOLUME + NEXT
VOLUME + NEXT NEXT NEXT NEXT

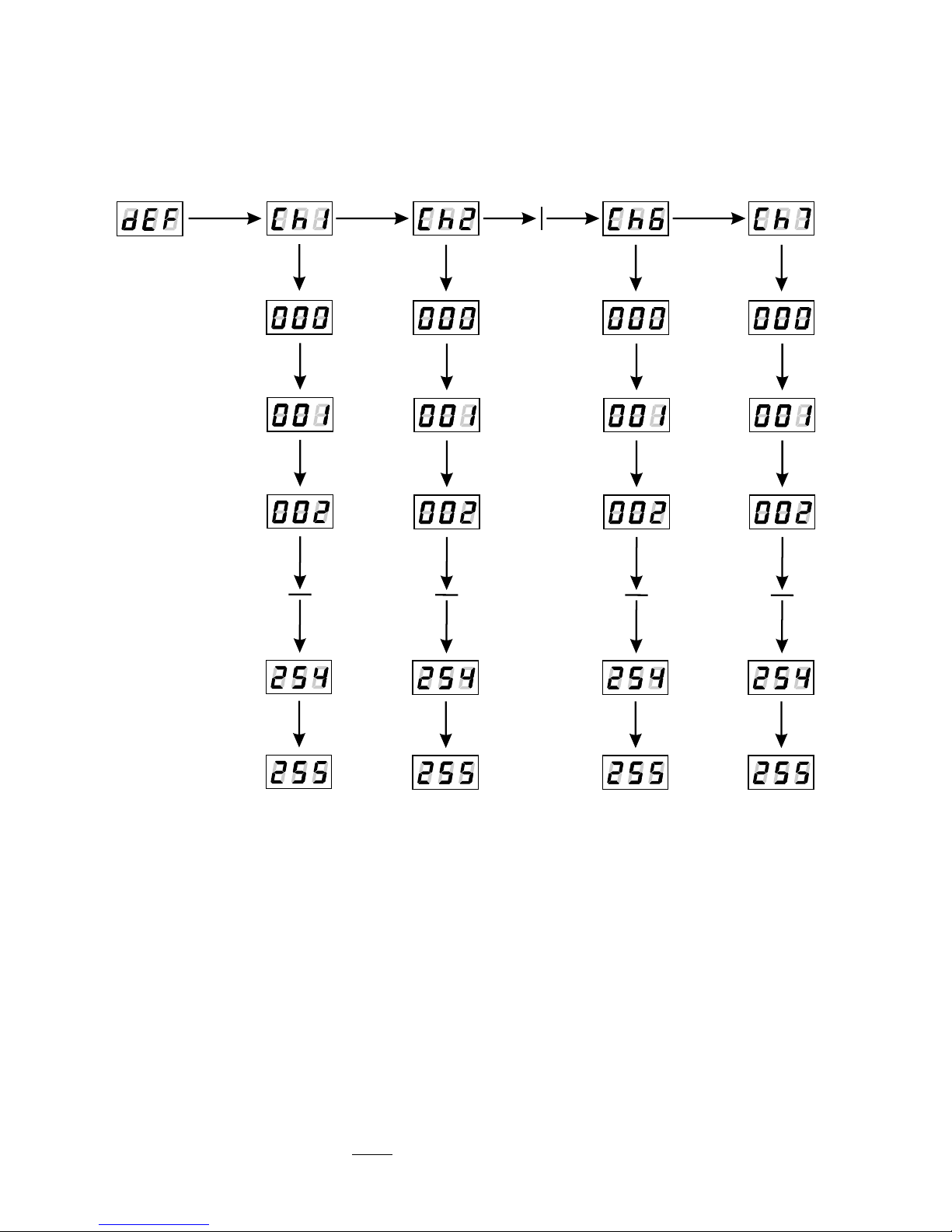

8.4. dEF MENU
Allows to define the parameters of a played track. You have seven channels at disposal, for each
channel you can set the value in a range from 0 - 255, same as in a 7-channel DMX control. When
the parameters are being adjusted, you have the possibility to hear the changes made.
ATTENTION:
When the DMX signal is absent, the dEF menu settings after leaving the dEF
submenu, are held until any key is pressed - in this moment the playing mode,
if different, is changed into single.
When the DMX signal is present, leaving the dEF submenu causes the instant
launch of a command set on a DMX controller.
Ch1 - stop / pause / play / restart
Ch2 - track number
Ch3 - playing mode

6
VOLUME + NEXT NEXT NEXT NEXT
VOLUME +
NEXT
VOLUME +
NEXT
VOLUME +
NEXT
VOLUME +
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT NEXT NEXT NEXT
Ch4 - volume
Ch5 - low tones adjustment
Ch6 - medium tones adjustment
Ch7 - high tones adjustment
9. COMMUNICATION WITH A PC COMPUTER
PX154 DMX-MP3 Player may be connected to the PC computer through the USB cable. When
connected, the USb inscription will be displayed and the MP3 LED will twinkle. The computer
identifies the player as a removable disc. The file transfer can be performed with the easiest
methods: "drag and drop" or "copy / paste". If the SD/MMC memory card is empty, the device can
be used as the Master Mass Storage device (removable disc) only. Moreover, if the PC is
equipped with the memory card slot, the files can be transferred directly to the SD/MMC card.
ATTENTION:
The number of files put on the SD/MMC card cannot exceed 26. If there is more files or any
additional folders are put on the memory card, it can cause improper player operation during
tracks changing. All the mp3 files must be saved in format 000.mp3, 001.mp3, ... , 025.mp3.

11. DMX SIGNAL CONNECTION
7
LAST
DEVICE
RESISTOR
1
2
3110 Ohm
PUSH
1
2
3
SHIELD
DMX -
DMX +
1. ground
2. DMX (-)
3. DMX (+)
PUSH
1. To connect the devices application of the microphone cable is strictly recommended (two
strands in a shield).
2. The devices have to be connected in series.
3. To split the DMX line it is necessary to use the DMX SPLITTER (PX094).
4. In case of the great number of devices or long distances use the DMX REPEATER (PX097).
It is an amplifier of the DMX signal.
5. In the last device a terminator must be installed. It is a 110 Ohm resistor.
10. CONNECTION SCHEME
1 2 3 4 5 6
PX015
1 2 3 4 5 6 Chaser Scene
Club 6p
90
% 100
80
70
60
50
40
30
20
10
0
100 %
90
80
70
60
50
40
30
20
10
0
Master
MusicSpeed
stereo
amplifier
external
control button
(works when
the DMX signal
is absent only!)
12 V DC
adaptor DMX controller DMX controlled
fixture (eg. lamp)

- control
- DMX channels
- maintained file formats
- maintained sampling frequencies
- power supply
- current consumption
- AB P0 class power preamplifier initial
degree
- dimensions
- width
- heigth
- depth
12. TECHNICAL SPECIFICATION
DMX-512 protocol
4
mp3 MPEG I, II - Layer 3
44.1 kHz
12 V DC
200 mA
30 mW (R = 32 Ohm)
70 mm (4 DIN rail modules)
86 mm
60 mm
8

9
PXM s.c.
ul. Przemysłowa 12
30-701 Kraków
DMX-MP3 Player
PX154
PN-EN 55103-1
PN-EN 55103-2
Marek Żupnik M.Sc.
The DMX-512 output must be shielded and the shielding
must be connected to the ground responding to the DMX
connectors.
Name of producer:
Address of producer:
declares that the product:
Name of product:
Type:
answers the following product specifications:
EMC:
Additional informations:
Kraków, 01.06.2007
DECLARATION OF CONFORMITY
according to guide lines 89/336/EWG
stage and theatre consoles digital dimmers dmx systems architectural lighting controllers led lighting
tel: [phone]
fax: [phone]
e-mail: [email protected]
http://www.pxm.pl
ul. Przemysłowa 12
30-701 Kraków, Poland
