Legal noce

DME204 4.13.10 (001B_en)

Rights and Responsibilies

publisher. The products and services menoned herein may be trademarks and/or service marks of the publisher. or trademarks of their respecve owners. The publisher and the

author do not claim any rights to these Marks.

Although every precauon has been taken in the preparaon of this document, the publisher and the author assume no liability for errors or omissions, or for damages resulng

from the use of the informaon contained in this document or the use of programs and source code that can go with it. Under no circumstances can the publisher and the author be

held responsible for any loss of proﬁts or any other commercial prejudice caused or alleged to have been caused directly or indirectly by this document.

Product informaon

Product design and speciﬁcaons are subject to change at any me and `Qeedji` reserves the right to modify them without noce. This includes the hardware, the embedded

soware and this manual, which should be considered as a general guide to the product. The accessories supplied with the product may diﬀer slightly from those described in this

manual, depending on the developments of the various suppliers.

Precauons for use

Please read and heed the following warnings before turning on the power: - installaon and maintenance must be carried out by professionals. - do not use the device near water. -

do not place anything on top of the device, including liquids (beverages) or ﬂammable materials (fabrics, paper). - do not expose the device to direct sunlight, near a heat source, or

in a place suscepble to dust, vibraon or shock.

Warranty clauses

The `Qeedji` device is guaranteed against material and manufacturing defects for a certain duraon. Check the device warranty duraon value at the end of the document. These

warranty condions do not apply if the failure is the result of improper use of the device, inappropriate maintenance, unauthorized modiﬁcaon, operaon in an unspeciﬁed

environment (see operang precauons at the beginning of the manual) or if the device has been damaged by shock or fall, incorrect operaon, improper connecon, lightning,

insuﬃcient protecon against heat, humidity or frost.

WEEE Direcve

This symbol means that your appliance at the end of its service life must not be disposed of with household waste, but must be taken to a collecon point for waste electrical and

electronic equipment or returned to your dealer. Your acon will protect the environment. In this context, a collecon and recycling system has been set up by the European Union

3
1.1
1.2
1.2.1
1.2.2
1.2.3
1.2.4
1.3
1.4
2.1
2.1.1
2.1.2
2.1.3
2.1.4
2.1.5
2.1.6
2.1.7
2.1.8
2.1.9
2.1.10
2.1.11
2.1.12
2.1.13
2.1.14
2.1.15
2.1.16
2.1.17
2.2
2.3
3.1
3.2
4.1
Table of contents
1 - Descripon and installaon
Introducon
Geng started with the device
Device dimensions
Labelling
Device start-up step
Testcard
LEDs behaviour
Connectors pin-out
2 - Conﬁguraon
Conﬁguraon Web interface
Conﬁguraon > Administrator
Conﬁguraon > LAN
Conﬁguraon > Output
Conﬁguraon > App
Conﬁguraon > Servers
Conﬁguraon > License
Conﬁguraon > Date and me
Conﬁguraon > Regionality
Conﬁguraon > Tasks
Conﬁguraon > Variables
Maintenance > Testcard
Maintenance > Middleware
Maintenance > Logs
Maintenance > Preferences
Maintenance > Tools
Informaon > Device
Informaon > Network
Conﬁguraon by script
Appendix
3 - Technical informaon
Technical speciﬁcaons
Conformies
4 - Contacts
Contacts

1.1 Introducon

This manual explains how to install and conﬁgure your device DME204.

Recommendaons and warnings

This device is designed to be used indoor.

This device is intended to work with the power supply unit. This power supply unit must be connected to a mains socket conforming to standard NF C 15-100. If the AC power cable

is damaged, it must be replaced. It is possible to order a power supply unit replacement by sending a request to the email address sales@qeedji.tech.

This device is a Class A device. In a residenal environment, this device may cause radio interference. In this case, the user is asked to take appropriate measures.

Content of the package

Items Descripon

Device DME204 with Gekkota embedded.

One power supply unit 12V power supply unit with cable of 1.2m.

Labels One on the cardboard packaging and one at the back of the product. Addional label can be present in case build-in opons.

1.2 Geng started with the device

Front face

1 USB 2.0 connector,

2 Infrared/GPIO connector,

3 Status Green LED,

4 Power supply Red LED.

Rear face

5 ASI connector,

6 Express Card connector,

7 RS232 connector,

8 USB1 2.0 connector,

9 USB2 2.0 connector,

10 LAN1 RJ45 connector,

11 LAN2 RJ45 connector,

12 Power supply connector,

DME204

1.2.1 Device dimensions

1.2.2 Labelling

☛ The serial number of the device can be requested in case of technical support.

The model of the device, the power supply characteriscs, the serial number (PSN) and the MAC address are wrien on labels which are stuck on the case.

Model:

00:14:2D:40:76:F0

5A rue Pierre Joseph Colin

35000 RENNES

12V DC

MAC:

1.1A

www.qeedji.tech

Input:

DME204

FRANCE

PSN00120-00095 CD9

This is the label stuck also on the cardbox. They are showing informaon on:

the device model,

the serial number (PSN).

www.qeedji.tech

3 7 0 0 5 6 8 1 0 4 4 3 7

EAN

MODEL

DME204-HDD

Some addional labels may be present in case of built-in opons.

1.2.3 Device start-up step

Step 1 (T0=0s)

Device start-up inialisaon

Step 2 (T~24s)

Device start-up ﬁnalisaon

This phase duraon is depending on some variable values

(like NTP), some network access duraon or some data

checking (check-disk)

Step 3 (T~45s)

Nominal mode

During this step, the device has to play the App content.

When ﬁrmware upgrade process occured, in case

DNS valid & NTP server inacve, it takes ~8 min 30 s.

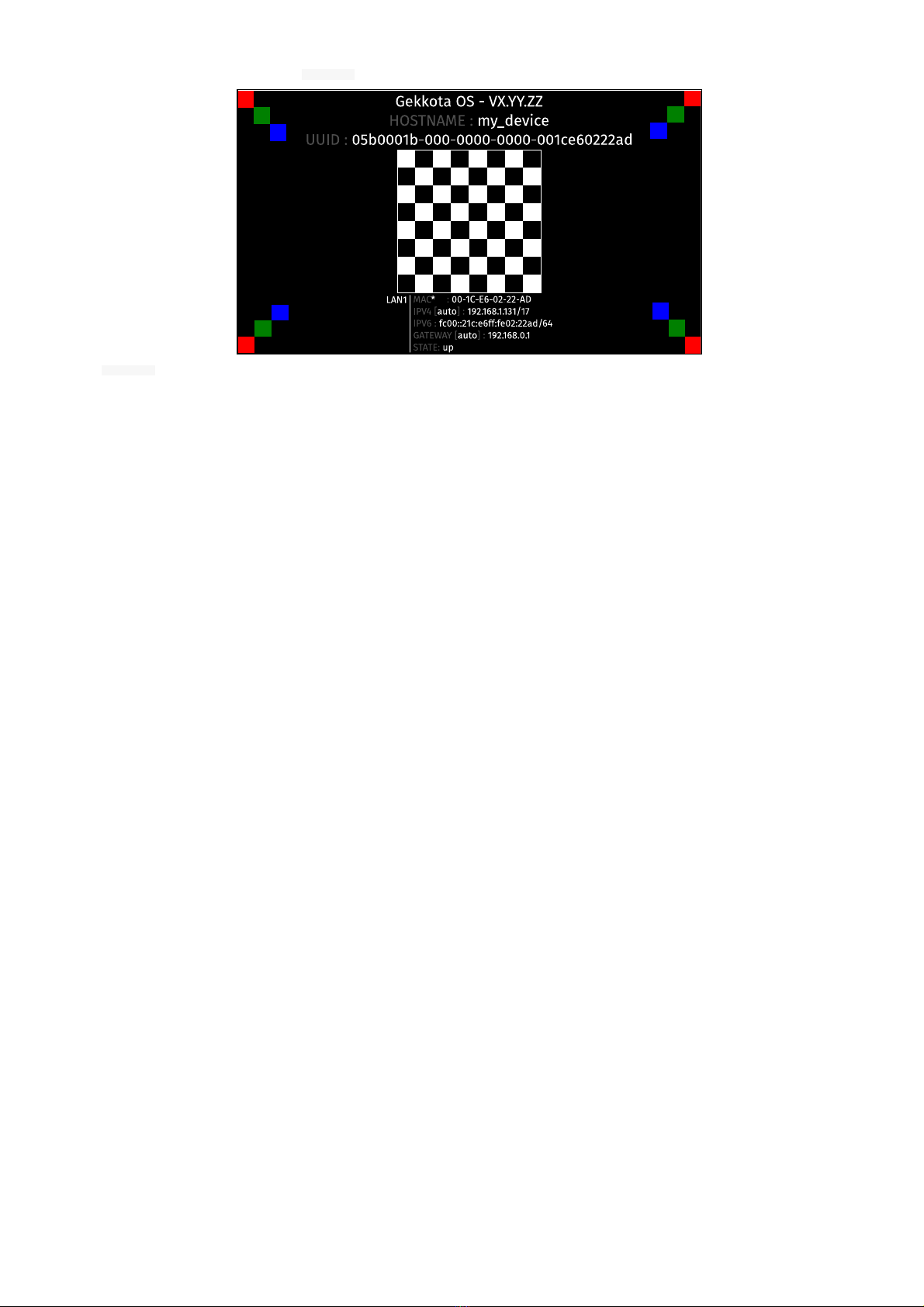

1.2.4 Testcard

At the factory, the device content set by default is the Test Card . The chart displays important informaon to assist in the device conﬁguraon:



Disable the Test Card by using the WebUI.

1.3 LEDs behaviour

LED POWER behaviour (power on device)

State Informaon

Red OK: Power supplied

Oﬀ Error: Power supply issue ¹

LED LAN behaviour (power on device)

State Informaon

Oﬀ There is no network traﬃc on the Ethernet connector

Blinking The blinking frequency is indicang the data rate on Ethernet connector

LED STATUS behaviour depending on device start-up steps

• Step 1: Device start-up inialisaon

State Informaon

Green: connuous OK

Always Oﬀ Error: Power supply issue ¹

• Step 2: Device start-up ﬁnalisaon

State Informaon

Oﬀ OK. This step duraon can be from several seconds to several minutes.

Green blinking: 1 second duraon ﬂash and periodicity every 2 seconds Error: Boot issue ¹

• Step 3: Nominal mode

State Informaon

Green blinking: 1 very short ﬂash

(300 ms) spaced 4 seconds apart OK

Green blinking: 2 very short and

consecuve ﬂashs (300 ms)

spaced 4 seconds apart

Warning: Fail So Mode Level 1

Frequent device reboot detected (for example 4 mes in less than ½ hour)

Fail So Mode message is wrien on the device status.xml.

The instability has been caused probably by a content media not yet supported by the Gekkota OS. Consequently, to prevent any

further reboot, the content has been invalided. You are invited to remove the deﬁcient media from your App and publish again to

go ahead. ²

Green blinking: 3 very short and

consecuve ﬂashs (300 ms)

spaced 4 seconds apart

Warning: Fail So Mode Level 2

Frequent device reboot detected (for example 4 mes in less than ½ hour)

Content is purged

Fail So Mode message is wrien on the device status.xml.

The instability has been caused probably by a content media not yet supported by the Gekkota OS. Consequently, to prevent any

further reboot, the content has been invalided. You are invited to remove the deﬁcient media from your App and publish again to

go ahead. ²

Green blinking: 4 very short and

consecuve ﬂashs (300 ms)

spaced 4 seconds apart

Warning: Check disk

The device has detected memory corrupon on content storage. The media storage is being repaired. This repair step is called

Check-Disk and its duraon can be several minutes. During this step, the “checking the ﬁle system of data paron in progress”

message is wrien on the device status.xml ³

Green blinking: 5 very short and

consecuve ﬂashs (300 ms)

spaced 4 seconds apart

Warning: errors on system paron

The user has to connect to device WebUI, go to Maintenance > Tools menu, and press buon Format or Repair to solve the

problem. ³

Green blinking: 6 very short and

consecuve ﬂashs (300 ms)

spaced 4 seconds apart

Warning: a ﬁrmware upgrade is pending

During this phase, no content is played on the device, do not switch OFF the device.

Green blinking: 7 very short and

consecuve ﬂashs (300 ms)

spaced 4 seconds apart

Error: write problem on the storage

For an unknown reason, your storage space isn't usable any more. ³

Oﬀ Error. ¹

¹ If the problem persists in despite of an appropriate power-supply, contact [email protected]ech.

² If the problem persists, it is recommended to ﬁnd out the media not supported yet by the system and remove it from content.

³ If the problem persists aer a paron repairing, contact [email protected]ech.

1.4 Connectors pin-out

Power supply connector (12VDC-1.1A)

ASI connector

DVB-ASI output of the video stream MPEG-TS encoded into H.264 which can be placed as input of a DVB-T modulator to create a local TV channel.

LAN connectors

Ethernet RJ-45. 10/100/1000 BaseT. It is recommended to use shielded cables.

When two cables are connected, the DME204 device works also like a switch. The user can thanks to the device WebUI, inacvate the mulcast mode on the LAN1 connector or

the LAN connector.

Connecteur RS232 DTE

It is recommended to use cables whose length is less than 3 meters.

Connector pin-out

N° Funcon

1 CD

2 RXD

3 TXD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 -

Jack 3.5mm connector (GPIO1/IR)

N° Name Write/Read Control

1 Voltage reference 3.3V

2 GPIO1 IN or OUT CPU/GPIO1

3 Ground

Electrical features

Vin min Vin max VOH min VOL max VIH min VIL max

GPIO1 -0.95V 4.6V 2.4V 0.4V 2.0V 0.8V

The 3.3V pin must not be used as a power supply, but rather as a reference voltage.

During boot, the GPIO1 is conﬁgured in input during some seconds. And then aer the system startup, the GPIO1 is operaonal.

The GPIO has a weak pull-up.

It is not recommended to hotplug/unplug the GPIO1 connector, which could damage the device.

Principle schemacs for several use cases

Three wires input conﬁguraon for GPIO1:

Two wires input conﬁguraon for GPIO1:

Output conﬁguraon for GPIO1:

3.3V

CPU/GPIO1

DME204

Switch

Input

2 (Jack)

3 (Jack)

1 (Jack)

PERIPHERAL

CPU/GPIO1

DME204

Switch or dry loop

Input

2 (Jack)

3 (Jack)

PERIPHERAL

CPU/GPIO1

DME204

Logic gate, transistor or opto-coupler

Output

Power supply

2 (Jack)

3 (Jack)

PERIPHERAL

Conﬁguraon

GPIO1 connector conﬁguraon can be done through system preferences edion with device WebUI or with a conﬁguraon script. GPIO1 conﬁguraon part for this script is

described here:

// Set the direction: input or output

if (aDirection == "out")

{

Services.prefs.setBoolPref("innes.app-profile.gpio-input.epld_1.jack35_1.*.authorized", false);

Services.prefs.setBoolPref("innes.app-profile.gpio-output.epld_1.jack35_1.*.authorized", true);

}

else if (aDirection == "in")

{

Services.prefs.setBoolPref("innes.app-profile.gpio-input.epld_1.jack35_1.*.authorized", true);

Services.prefs.setBoolPref("innes.app-profile.gpio-output.epld_1.jack35_1.*.authorized", false);

}

else if (aDirection == "disable")

{

Services.prefs.setBoolPref("innes.app-profile.gpio-input.epld_1.jack35_1.*.authorized", false);

Services.prefs.setBoolPref("innes.app-profile.gpio-output.epld_1.jack35_1.*.authorized", false);

}

2.1 Conﬁguraon Web interface

The DME204 device has a web-based conﬁguraon interface that can be accessed with a web browser. The supported browsers are: Google Chrome , Mozilla Firefox , MS-Edge

and MS-Edge (Chromium) .

It is accessible from the URL:

http://<device_IP_addr>/

By default, the login credenals for the conﬁguraon Web interface and the Web server are:

password: admin .

WebDAV directories

Clicking on the parent directory provides access to the root of the device's WebDAV server, which provides access to directories, among other things:

.playlog/ : locaon to store data for mediametry,

.resources/ : locaon to store the resources of the conﬁguraon web interface,

.software/ : locaon to store .frm middleware for updates,

.status/ : locaon to store the device status ﬁle status.xml ,

.upnp/ : locaon to store device.xml device status for upnp detecon,

.assets/ : locaon to store some of the resources of the conﬁguraon web interface,

.playout/ : locaon to store the App is hosted when deployed on the device,

.log/ : locaon to store the applicaon logs, when they are acvated.

Administraon console

Click on the Administration Console buon to access the device conﬁguraon interface.

With the buon at the top right corner, choose the language in which your web interface should be displayed. The supported languages are:

English,

Spanish,

German,

French.

⚠ It is desirable that your device DME204 is on me. When possible, do synchronize it with an NTP server.

◬

Aer you have changed and saved all your sengs in the diﬀerent panes, be sure to perform a restart of the device by clicking the Reboot the device buon so that

your changes are fully reﬂected.

Click on the device logo at the le top corner to return to the main page.

For example, for the MAC address value: ``00-1c-e6-02-1e-45`,

In a Web browser, enter the URL: http://[fc00::21c:e6ff:fe02:1e45]/.admin/

To obtain the applicaon note reminding some noons about IPV6 conﬁguraon, click on the link to the Qeedji site

2.1.1 Conﬁguraon > Administrator

In the Configuration pane, select the Administrator menu to change:

the hostname,

the login credenals,

the device idenﬁcaon method:

MAC (default),

Hostname ,

UUID .

For security reasons, it may be useful to change the login credenals for the device's conﬁguraon Web interface. Please keep these login credenals in a safe place aerwards.

It is recommended that you enter a unique Hostname value for each device. In case several DME204 devices are located in diﬀerent buildings or geographical locaons, we

recommend that you enter hostname values with informaon about the building and the locaon (e.g. Hall-RD-Paris-1 ).

2.1.2 Conﬁguraon > LAN

In the Configuration pane, select the LAN menu to set up the network conﬁguraon of the LAN interface of your device:

If your device is not located in a secure network, select:

security: None.

If your device is located and properly declared in a secure network, select 802.1X , then select an 802.1X authencaon method supported by your RADIUS server:

security: 802.1x.

☛ On this device, it is required to allow mulcast on LAN1 and LAN2 ports to support 802.1X authencaon methods.

☛ In the context of a secure network, your device must ﬁrst be declared to your dedicated RADIUS server. Some idenﬁcaon methods require you to add a trusted

certificate (the one used by your RADIUS server) and/or a client certificate (generated with the MAC address of your device and the trusted cerﬁcate of the

RADIUS server); For more informaon, please contact your IT department.

☛ When using a 802.1X cerﬁcate with an expiraon date, in case your device is not on me or when the expiraon date has expired, the device is not able to access the

network anymore. To work around, you have to insert a USB sck containing a speciﬁc conﬁguraon script to set either a new cerﬁcate or update the device date and

me.

☛ By default, the device is conﬁgured with DHCP acvated. In case the end user doesn’t have a DHCP server, aer the DHCP meout, the device ends up using the stac IP

address whose the default value is 192.168.0.2 when never changed yet by the end user.

2.1.3 Conﬁguraon > Output

From the Configuration pane, select the Output menu to change the audio and video encoding sengs and the broadcast mode of your device.

Video :

Encoding :

Codec : H264,

Output video format : 1280x720 (HD), 176x144 (QCIF), 352x288 (CIF), 720x480 (NTSC), 720x576 (PAL), …

Image rate (fps) : 60, .. 25,

Profile : Hand, High, Baseline,

Level : 4, 3.2, 3.1, …

overscan (²):

720p SMPTE,

1080p SMPTE,

Personalized:

X : horizontal origin in pixel),

Y : Vercal origin in pixel,

Width (in pixels),

Height (in pixels).

`Audio':

codec:

MPEG4 AAC-LC,

MPEG1 Layer2.

Volume : 0 .. 100%.

Output mode :

Ethernet :

Protocol :

UDP: UDP streaming,

RTP: RTP Mpeg streaming,

RTMP: allows to feed live streaming providers (for example: YouTube, Facebook, …).

Address : broadcast IP address (unicast or mulcast),

Port : broadcast port,

Enable multicasting :

LAN1 ¹,

LAN2 ².

ASI : allows DVB-T broadcasng through a dedicated modulator ( MOE10 ).

☛ Some UDP stream receivers may not be able to correctly play the DME204 UDP stream when audio is turned oﬀ. To work around this problem, enable "Audio".

☛ In order for 802.1X authencaon to be supported on the LAN1 port, Allow multicast must be checked for LAN1 , whether the broadcast is ASI or Ethernet .

Similarly, for 802.1X authencaon to be supported on the LAN2 port, Allow multicast must be checked for LAN2 .

☛ For beer rendering of your media, especially scrolling text overlay, please set the display mode on the DME204 side to the same frequency (e.g., 60 Hz) as the display

mode on the devices receiving the stream (e.g., 60 Hz).

Some monitors, due to their construcon, have been designed with an overscan, which means that the edges of your broadcast content on your device may not be visible

on your monitor even when choosing the right opomal resoluon for your monitor. To alleviate this problem, use the overscan on your Qeedji device to slightly reduce

the width and height of your container. While doing so, it is recommended to display the test paern of the device.

◬

when using the overscan, for a good conﬁguraon of your device, please make sure that your screen is not in Wall , Mozaic or Tile mode.

2.1.4 Conﬁguraon > App

An App is a custom applicaon that, once loaded on the device, allows you to play a broadcast channel or play content that a user has programmed.

From the Configuration pane, select the App menu to select how the App is loaded.

For each mode, you can use the Purge App or Restart App buons at any me to remove the App from the device or restart it, respecvely.

☛ The Restart App or Purge App cannot work when Testcard is acvated.

☛ In order to restart an App , the App must be present on the device.

Local deposit : Allows you to load an App from the device's web interface and play its contents immediately.

Use the Drop file here box or click to add one to drop your App .

Then click on the Load App buon. When the ﬁle disappears from the interface, the App is loaded and launches automacally.

☛ App development is reserved for advanced users with soware development skills. The content of the App must contain at least these 2 ﬁles manifest.xml and

player.html . Then archive your App in one of the supported formats: *tar.gz, *.zip, *.tar, *.tgz . App examples are available at github SDK-G4 API (PDF example).

For more informaon, contact [email protected]ech.

Push WebDAV : Conﬁgure the device to receive a published App from any WebDAV client or compable soware suite. Once the App is received, its content is immediately

played.

☛ To ﬁnd out which soware suites are capable of publishing an App on Qeedji devices, contact [email protected].

Pull WebDAV : allows you to conﬁgure the device so that it can regularly retrieve an App from a remote WebDAV server. Once the App is retrieved, its content is immediately

played.
