Quadra-Fire QFI30-C User manual

1
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12
Models:
QFI30-C
QFI35-C
• DO NOT storeorusegasolineor other flam-
mablevapors andliquidsin thevicinityof this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,service agency,orthe
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
NOTICE
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer’s instructions
and the manufactured home construction and safety standard,
Title 24 CFR, Part 3280 or Standard for Installation in Mobile
Homes, CAN/CSA Z240MH, in Canada.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory trained
professionals, or technicians supervised by an NFI
certified professional.
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
WARNING
R
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
ACOdetector shall beinstalledin the room wheretheappliance
in installed.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/122
Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on fireplace:_____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
A. Congratulations
Congratulations on selecting a Quadra-Fire gas fireplace,
anelegant andcleanalternativetowood burningfireplaces.
The Quadra-Fire gas fireplace you have selected is
designed to provide the utmost in safety, reliability, and
efficiency.
As the owner of a new fireplace, you’ll want to read and
carefully follow all of the instructions contained in this
Owner’s Manual. Pay special attention to all cautions and
warnings.
This Owner’s Manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Owner’s Manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Quadra-Fire gas fireplace will give you years of
durable use and trouble-free enjoyment. Welcome to the
Quadra-Fire family of fireplace products!
We recommend that you record the following pertinent
information about your fireplace.
Gas and Electric
Information
Serial Number
Type of Gas
The model information regarding your specific fireplace can be found on
the rating plate usually located in the control area of the fireplace.
Homeowner Reference Information
Model Number
Quadra-Fire, a brand of Hearth & Home Technologies Inc.
7571 215th Street West, Lakeville, MN 55044
Not
Not
for
for
use
use
with
with
solid
solid
fuel.
fuel.
(
(
Ne
Ne
doit
doit
pas
pas
entre
entre
utilise
utilise
avec
avec
un
un
combustible
combustible
solide).
solide).
This
This
appliance
appliance
must
must
be
be
installed
installed
in
in
accordance
accordance
with
with
local
local
codes,
codes,
if
if
any;
any;
if
if
not,
not,
follow
follow
ANSI
ANSI
Z223.1
Z223.1
in
in
the
the
USA
USA
or
or
CAN/CGA
CAN/CGA
B149
B149
installation
installation
codes.
codes.
(Installer
(Installer
l’appareil
l’appareil
selon
selon
les
les
codes
codes
ou
ou
reglements
reglements
locaux
locaux
ou,
ou,
en
en
l’absence
l’absence
de
de
tels
tels
reglements,
reglements,
selon
selon
les
les
codes
codes
d’installation
d’installation
CAN/CGA-B149.)
CAN/CGA-B149.)
Type
Type
of
of
Gas
Gas
(Sorte
(Sorte
De
De
Gaz)
Gaz)
:
:
N
N
A
A
TURAL
TURAL
GAS
GAS
MADE
MADE
IN
IN
USA
USA
Minimum
Minimum
Permissible
Permissible
Gas
Gas
Supply
Supply
for
for
Purposes
Purposes
of
of
Input
Input
Adjustment.
Adjustment.
Approved
Approved
Minimum
Minimum
(De
(De
Gaz)
Gaz)
Acceptable
Acceptable
0.0
0.0
in
in
w.c.
w.c.
(Po.
(Po.
Col.
Col.
d’eau)
d’eau)
Maximum
Maximum
Pressure
Pressure
(Pression)
(Pression)
0.0
0.0
in
in
w.c.
w.c.
(Po.
(Po.
Col.
Col.
d’eau)
d’eau)
Maximum
Maximum
Manifold
Manifold
Pressure
Pressure
(Pression)
(Pression)
0.0
0.0
in
in
w.c.
w.c.
(Po.
(Po.
Col.
Col.
d’eau)
d’eau)
Minimum
Minimum
Manifold
Manifold
Pressure
Pressure
(Pression)
(Pression)
0.0
0.0
in
in
w.c.
w.c.
(Po.
(Po.
Col.
Col.
d’eau)
d’eau)
Model:
Model:
(Modele):
(Modele):
Serial
Serial
(Serie):
(Serie):
ANSI
ANSI
Z21XX-XXXX
Z21XX-XXXX
·
·
CSA
CSA
2.XX-MXX
2.XX-MXX
·
·
UL307B
UL307B
XXXXXXXX
XXXXXXXX
IN
IN
CANADA
CANADA
ALTITUDE:
ALTITUDE:
0-0000
0-0000
FT.
FT.
0000-0000FT.
0000-0000FT.
MAX.
MAX.
INPUT
INPUT
BTUH:
BTUH:
00,000
00,000
00,000
00,000
MIN.
MIN.
INPUT
INPUT
BTUH:
BTUH:
00,000
00,000
00,000
00,000
ORIFICE
ORIFICE
SIZE:
SIZE:
#XXXXX
#XXXXX
#XXXXX
#XXXXX
XXXXXXXX
XXXXXXXX
Total
Total
Electrical
Electrical
Requirements:
Requirements:
000Vac,
000Vac,
00Hz.,
00Hz.,
less
less
than
than
00
00
Amperes
Amperes
R
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.

3
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
A. Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
B. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . 4
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
B. Glass Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
C. BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
D. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . 6
E. Non-Combustible Materials Specification. . . . . . . . . . . . . . 6
F. Combustible Materials Specification . . . . . . . . . . . . . . . . . 6
G. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
User Guide
2 Operating Instructions
A. Gas Fireplace Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
B. Your Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
C. Clear Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
D. Decorative Doors, Fronts and Surrounds. . . . . . . . . . . . . . 8
E. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
F. Remote Controls, Wall Controls and Wall Switches. . . . . . 8
G. IPI Battery Tray/Battery Installation . . . . . . . . . . . . . . . . . . 8
H. Control Module Operation . . . . . . . . . . . . . . . . . . . . . . . . . 9
I. Before Lighting Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . 9
J. Lighting Instructions (IPI) . . . . . . . . . . . . . . . . . . . . . . . . . 10
K. After Appliance is Lit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
L. FrequentlyAsked Questions . . . . . . . . . . . . . . . . . . . . . . 11
3 Maintenance and Service
A. Maintenance Tasks-Homeowner . . . . . . . . . . . . . . . . . . . 12
B. Maintenance Tasks-Service Technician . . . . . . . . . . . . . . 13
Installer Guide
4 Getting Started
A. Typical Appliance System. . . . . . . . . . . . . . . . . . . . . . . . . 15
B. Design and Installation Considerations . . . . . . . . . . . . . . 16
C. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . 16
D. Inspect Appliance and Components. . . . . . . . . . . . . . . . . 16
5 Fireplace Size Requirements
A. Minimum Fireplace Opening . . . . . . . . . . . . . . . . . . . . . . 17
B. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 19
6 Termination Locations
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . 20
7 Installation Preparation
A. Inspection and Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . 21
B. Flue Damper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
C. Gas Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
D. Fireplace Conversion Notice . . . . . . . . . . . . . . . . . . . . . . 21
E. Electrical Outlet Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8 Installing Vent Pipe and Appliance
A. Vent Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
B. Venting Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
C. Connecting Vent Pipe. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
D. Placing, Securing and Leveling the Appliance . . . . . . . . . 23
E. Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
F. Installing Adaptor and Termination Cap . . . . . . . . . . . . . . 25
9 Gas Information
A. Fuel Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
B. Gas Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
D. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . 26
10 Electrical Information
A. Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
B. IntelliFire Plus™ Ignition System Wiring . . . . . . . . . . . . . 27
C. Optional Accessories Requirements . . . . . . . . . . . . . . . . 28
D. Fan Wiring with Remote. . . . . . . . . . . . . . . . . . . . . . . . . . 29
E. Control Module Operation . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Finishing
A. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 30
12 Appliance Setup
A. Remove Glass Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 31
B. Remove the Shipping Materials . . . . . . . . . . . . . . . . . . . . 31
C. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
D. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
E. Place the Lava Rock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
F. Ember Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
G. Install the Log Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 32
H. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
I. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
13 Troubleshooting
A. IntelliFire Plus™ Ignition System . . . . . . . . . . . . . . . . . . . 39
14 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 41
B. Vent Kits Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
C. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
D. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
= Contains updated information.


Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/124
B. Limited Lifetime Warranty
4021-645C 12-29-10 Page 1 of 2
Hearth & Home Technologies Inc.
LIMITED LIFETIME WARRANTY
Hearth & Home Technologies Inc., on behalf of its hearth brands (”HHT”), extends the following warranty for
HHT gas, wood, pellet, coal and electric hearth appliances that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the HHT appliance at the site of installation, and to any transferee taking ownership
of the appliance at the site of installation within two years following the date of original purchase, that the HHT appliance
will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered compo-
nents manufactured by HHT are found to be defective in materials or workmanship during the applicable warranty period,
HHT will, at its option, repair or replace the covered components. HHT, at its own discretion, may fully discharge all of its
obligations under such warranties by replacing the product itself or refunding the verified purchase price of the product
itself. The maximum amount recoverable under this warranty is limited to the purchase price of the product. This warranty
is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
Warranty coverage begins on the date of original purchase. In the case of new home construction, warranty coverage
begins on the date of first occupancy of the dwelling or six months after the sale of the product by an independent,
authorized HHT dealer/ distributor, whichever occurs earlier. The warranty shall commence no later than 24 months
following the date of product shipment from HHT, regardless of the installation or occupancy date. The warranty period for
parts and labor for covered components is produced in the following table.
The term “Limited Lifetime” in the table below is defined as: 20 years from the beginning date of warranty coverage for
gas appliances, and 10 years from the beginning date of warranty coverage for wood, pellet, and coal appliances. These
time periods reflect the minimum expected useful lives of the designated components under normal operating conditions.
See conditions, exclusions, and limitations on next page.
Parts Labor Gas Wood Pellet EPA
Wood Coal Electric Venting
XXXXXXX
All parts and material except as
covered by Conditions,
Exclusions, and Limitations
listed
XXX Igniters, electronic components,
and
g
lass
XXXXX Factor
y
-installed blowers
X Molded refractor
y
p
anels
XFire
p
ots and burn
p
ots
5
y
ears 1
y
ear X X Castin
g
s and baffles
7 years 3 years X X X Manifold tubes,
HHT chimne
y
and termination
10
y
ears 1 year X Burners, logs and refractory
Limited
Lifetime 3yearsXXXXX Fireboxandheatexchanger
XXXXXXX All replacement parts
be
y
ond warrant
y
p
eriod
Warranty Period HHT Manufactured Appliances and Venting
1 Year
Components Covered
3 years
2 years
90 Days

5
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12
B. Limited Lifetime Warranty (continued)
4021-645C 12-29-10 Page 2 of 2
WARRANTY CONDITIONS:
 7KLVZDUUDQW\RQO\FRYHUV++7DSSOLDQFHVWKDWDUHSXUFKDVHGWKURXJKDQ++7DXWKRUL]HGGHDOHURUGLVWULEXWRU$OLVWRI
++7DXWKRUL]HGGHDOHUVLVDYDLODEOHRQWKH++7EUDQGHGZHEVLWHV
 7KLVZDUUDQW\LVRQO\YDOLGZKLOHWKH++7DSSOLDQFHUHPDLQVDWWKHVLWHRIRULJLQDOLQVWDOODWLRQ
 &RQWDFW\RXULQVWDOOLQJGHDOHUIRUZDUUDQW\VHUYLFH,IWKHLQVWDOOLQJGHDOHULVXQDEOHWRSURYLGHQHFHVVDU\SDUWVFRQWDFW
WKHQHDUHVW++7DXWKRUL]HGGHDOHURUVXSSOLHU$GGLWLRQDOVHUYLFHIHHVPD\DSSO\LI\RXDUHVHHNLQJZDUUDQW\VHUYLFH
IURPDGHDOHURWKHUWKDQWKHGHDOHUIURPZKRP\RXRULJLQDOO\SXUFKDVHGWKHSURGXFW
 &KHFNZLWK\RXUGHDOHULQDGYDQFHIRUDQ\FRVWVWR\RXZKHQDUUDQJLQJDZDUUDQW\FDOO7UDYHODQGVKLSSLQJFKDUJHV
IRUSDUWVDUHQRWFRYHUHGE\WKLVZDUUDQW\
This warranty is void if:
 7KHDSSOLDQFHKDVEHHQRYHUILUHGRURSHUDWHGLQDWPRVSKHUHVFRQWDPLQDWHGE\FKORULQHIOXRULQHRURWKHUGDPDJLQJ
FKHPLFDOV2YHUILULQJFDQEHLGHQWLILHGE\EXWQRWOLPLWHGWRZDUSHGSODWHVRUWXEHVUXVWFRORUHGFDVWLURQEXEEOLQJ
FUDFNLQJDQGGLVFRORUDWLRQRIVWHHORUHQDPHOILQLVKHV
 7KHDSSOLDQFHLVVXEMHFWHGWRSURORQJHGSHULRGVRIGDPSQHVVRUFRQGHQVDWLRQ
 7KHUHLVDQ\GDPDJHWRWKHDSSOLDQFHRURWKHUFRPSRQHQWVGXHWRZDWHURUZHDWKHUGDPDJHZKLFKLVWKHUHVXOWRIEXW
QRWOLPLWHGWRLPSURSHUFKLPQH\RUYHQWLQJLQVWDOODWLRQ
LIMITATIONS OF LIABILITY:
 7KHRZQHU¶VH[FOXVLYHUHPHG\DQG++7¶VVROHREOLJDWLRQXQGHUWKLVZDUUDQW\XQGHUDQ\RWKHUZDUUDQW\H[SUHVVRU
LPSOLHGRULQFRQWUDFWWRUWRURWKHUZLVHVKDOOEHOLPLWHGWRUHSODFHPHQWUHSDLURUUHIXQGDVVSHFLILHGDERYH,QQR
HYHQWZLOO++7EHOLDEOHIRUDQ\LQFLGHQWDORUFRQVHTXHQWLDOGDPDJHVFDXVHGE\GHIHFWVLQWKHDSSOLDQFH6RPHVWDWHV
GRQRWDOORZH[FOXVLRQVRUOLPLWDWLRQRILQFLGHQWDORUFRQVHTXHQWLDOGDPDJHVVRWKHVHOLPLWDWLRQVPD\QRWDSSO\WR\RX
7KLVZDUUDQW\JLYHV\RXVSHFLILFULJKWV\RXPD\DOVRKDYHRWKHUULJKWVZKLFKYDU\IURPVWDWHWRVWDWH(;&(3772
7+((;7(173529,'('%</$:++70$.(612(;35(66:$55$17,(627+(57+$17+(:$55$17<
63(&,),('+(5(,17+('85$7,212)$1<,03/,(':$55$17<,6/,0,7('72'85$7,212)7+(
(;35(66(':$55$17<63(&,),('$%29(
WARRANTY EXCLUSIONS:
7KLVZDUUDQW\GRHVQRWFRYHUWKHIROORZLQJ
 &KDQJHVLQVXUIDFHILQLVKHVDVDUHVXOWRIQRUPDOXVH$VDKHDWLQJDSSOLDQFHVRPHFKDQJHVLQFRORURILQWHULRUDQG
H[WHULRUVXUIDFHILQLVKHVPD\RFFXU7KLVLVQRWDIODZDQGLVQRWFRYHUHGXQGHUZDUUDQW\
 'DPDJHWRSULQWHGSODWHGRUHQDPHOHGVXUIDFHVFDXVHGE\ILQJHUSULQWVDFFLGHQWVPLVXVHVFUDWFKHVPHOWHGLWHPV
RURWKHUH[WHUQDOVRXUFHVDQGUHVLGXHVOHIWRQWKHSODWHGVXUIDFHVIURPWKHXVHRIDEUDVLYHFOHDQHUVRUSROLVKHV
 5HSDLURUUHSODFHPHQWRISDUWVWKDWDUHVXEMHFWWRQRUPDOZHDUDQGWHDUGXULQJWKHZDUUDQW\SHULRG7KHVHSDUWV
LQFOXGHSDLQWZRRGSHOOHWDQGFRDOJDVNHWVILUHEULFNVJUDWHVIODPHJXLGHVOLJKWEXOEVEDWWHULHVDQGWKHGLVFRORU-
DWLRQRIJODVV
 0LQRUH[SDQVLRQFRQWUDFWLRQRUPRYHPHQWRIFHUWDLQSDUWVFDXVLQJQRLVH7KHVHFRQGLWLRQVDUHQRUPDODQGFRP-
SODLQWVUHODWHGWRWKLVQRLVHDUHQRWFRYHUHGE\WKLVZDUUDQW\
 'DPDJHVUHVXOWLQJIURPIDLOXUHWRLQVWDOORSHUDWHRUPDLQWDLQWKHDSSOLDQFHLQDFFRUGDQFHZLWKWKHLQVWDOODWLRQ
LQVWUXFWLRQVRSHUDWLQJLQVWUXFWLRQVDQGOLVWLQJDJHQWLGHQWLILFDWLRQODEHOIXUQLVKHGZLWKWKHDSSOLDQFHIDLOXUHWR
LQVWDOOWKHDSSOLDQFHLQDFFRUGDQFHZLWKORFDOEXLOGLQJFRGHVVKLSSLQJRULPSURSHUKDQGOLQJLPSURSHURSHUD-
WLRQDEXVHPLVXVHFRQWLQXHGRSHUDWLRQZLWKGDPDJHGFRUURGHGRUIDLOHGFRPSRQHQWVDFFLGHQWRULPSURSHUO\
LQFRUUHFWO\SHUIRUPHGUHSDLUVHQYLURQPHQWDOFRQGLWLRQVLQDGHTXDWHYHQWLODWLRQQHJDWLYHSUHVVXUHRUGUDIWLQJ
FDXVHGE\WLJKWO\VHDOHGFRQVWUXFWLRQVLQVXIILFLHQWPDNHXSDLUVXSSO\RUKDQGOLQJGHYLFHVVXFKDVH[KDXVWIDQVRU
IRUFHGDLUIXUQDFHVRURWKHUVXFKFDXVHVXVHRIIXHOVRWKHUWKDQWKRVHVSHFLILHGLQWKHRSHUDWLQJLQVWUXFWLRQV
LQVWDOODWLRQRUXVHRIFRPSRQHQWVQRWVXSSOLHGZLWKWKHDSSOLDQFHRUDQ\RWKHUFRPSRQHQWVQRWH[SUHVVO\DXWKRUL]HG
DQGDSSURYHGE\++7PRGLILFDWLRQRIWKHDSSOLDQFHQRWH[SUHVVO\DXWKRUL]HGDQGDSSURYHGE\++7LQZULWLQJ
DQGRULQWHUUXSWLRQVRUIOXFWXDWLRQVRIHOHFWULFDOSRZHUVXSSO\WRWKHDSSOLDQFH
 1RQ++7YHQWLQJFRPSRQHQWVKHDUWKFRPSRQHQWVRURWKHUDFFHVVRULHVXVHGLQFRQMXQFWLRQZLWKWKHDSSOLDQFH
 $Q\SDUWRIDSUHH[LVWLQJILUHSODFHV\VWHPLQZKLFKDQLQVHUWRUDGHFRUDWLYHJDVDSSOLDQFHLVLQVWDOOHG
 ++7¶VREOLJDWLRQXQGHUWKLVZDUUDQW\GRHVQRWH[WHQGWRWKHDSSOLDQFH¶VFDSDELOLW\WRKHDWWKHGHVLUHGVSDFH,QIRUPD-
WLRQLVSURYLGHGWRDVVLVWWKHFRQVXPHUDQGWKHGHDOHULQVHOHFWLQJWKHSURSHUDSSOLDQFHIRUWKHDSSOLFDWLRQ&RQVLGHU-
DWLRQPXVWEHJLYHQWRDSSOLDQFHORFDWLRQDQGFRQILJXUDWLRQHQYLURQPHQWDOFRQGLWLRQVLQVXODWLRQDQGDLUWLJKWQHVVRI
WKHVWUXFWXUH

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/126
C. BTU Specifications
MODELS: QFI30-C, QFI35-C
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Vented Gas Fireplace Heater
STANDARD: ANSI Z21.88-2009 CSA 2.33-2009
Vented Gas Fireplace Heaters
This product is listed to ANSI standards for “Vented Gas
Appliance Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
Quadra-Fire gas inserts are designed for installations into
solidfuelmasonryorfactory builtfireplaces thathave been
installedinaccordance with theNational,Provincial, State
and local building codes. Fireplaces are to be constructed
of non-combustible materials and, in the absence of local
orregional codes,meet criteriaof NFPA211.No additional
outside air source is required.
Models
(U.S. or Canada)
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orifice
Size
(DMS)
QFI30-C (NG)
US
(0-2000 FT) 32,000 18,000 #35
CANADA
(2000-4500 FT) 28,800 16,200 #36
QFI35-C (NG)
US
(0-2000 FT) 35,000 18,500 #33
CANADA
(2000-4500 FT) 33,250 18,250 #34
QFI30-C (LP)
US
(0-2000 FT) 31,000 15,500 #51
CANADA
(2000-4500 FT) 27,500 14,500 #52
QFI35-C (LP)
US
(0-2000 FT) 35,000 17,000 #50
CANADA
(2000-4500 FT) 31,000 15,500 #51
A. Appliance Certification
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
D. High Altitude Installations
NOTICE: Iftheheating valueof thegashas beenreduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Reduce input rate 10% for elevations
between 2000 feet and 4500 feet. Above 4500 feet,
consult local gas utility.
Check with your local gas utility to determine proper
orifice size.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
1
1 Listing and Code Approvals
E. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC and UL763 shall be
considered non-combustible materials.
F. Combustible Materials Specification
Materials made of or surfaced with wood, compressed pa-
per, plant fibers, plastics, or other material that can ignite
and burn, whether flame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired and
groundedin accordancewith localcodes or,intheabsence
of local codes, with National Electric Code ANSI/NFPA
70-latest edition or the Canadian Electric Code CSA
C22.1.
• A 120 VAC circuit for this product must be protected with
ground-fault circuit-interrupter protection, in compliance
with the applicable electrical codes, when it is installed in
locations such as in bathrooms or near sinks.
B. Glass Specifications
This appliance is equipped with 5 mm ceramic glass. Re-
place glass only with 5 mm ceramic glass. Please contact
your dealer for replacement glass.

7
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12
2
2 Operating Instructions
Figure 2.1 General Operating Parts
B. Your Fireplace
WARNING! DO NOT operate fireplace before read-
ing and understanding operating instructions. Failure
to operate fireplace according to operating instructions
could cause fire or injury.
DECORATIVE DOORS
(NOT SHOWN)
SECTION 2.D.
MANTEL
SECTION
5.B AND
11.A
FIXED GLASS ASSEMBLY
(NOT SHOWN)
SECTION 12.H.
HEARTH
CLEAR SPACE
SECTION 2.C.
APPLIANCE INSTALLED IN EXISTING
SOLID FUEL FIREPLACE
If you expect that small children or vulnerable adults may
come into contact with this fireplace, the following precau-
tions are recommended:
• Install a physical barrier such as:
- A decorative firescreen.
- Adjustable safety gate.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
User Guide
A. Gas Fireplace Safety
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Keep remote controls out of reach of children.
• Neverleave children alone near a hot fireplace,whether
operating or cooling down.
• Teach children to NEVER touch the fireplace.
• Consider not using the fireplace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/safety-information.
To prevent unintended operation when not using your fire-
place for an extended period of time (summer months,
vacation/trips, etc):
• Remove batteries from remote controls.
• Turn off wall controls.

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/128
C. Clear Space
WARNING! DO NOT place combustible objects in front
of the fireplace or block louvers. High temperatures may
start a fire. See Figure 2.2.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.

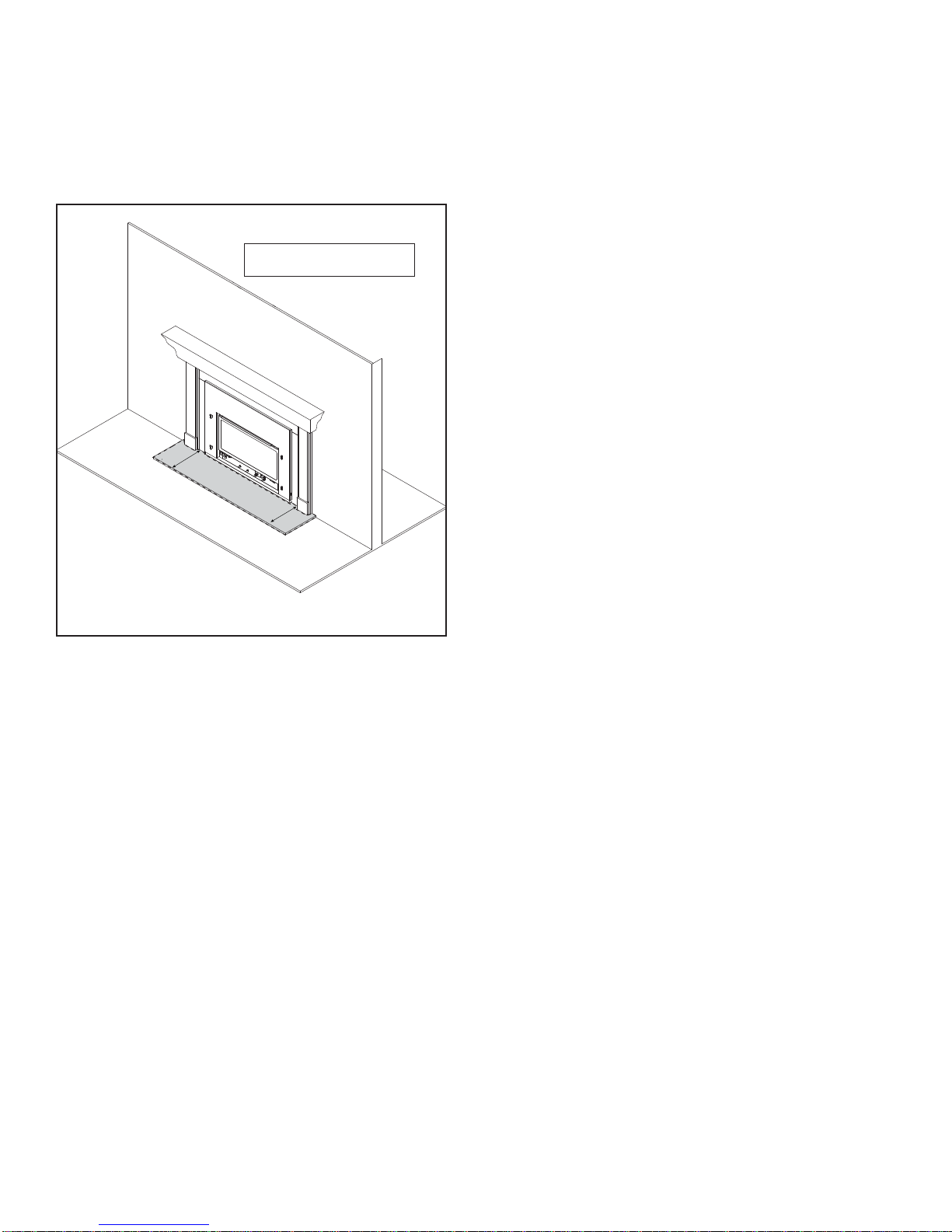

Figure 2.2 Clear Space
E. Fixed Glass Assembly
See Section 12.H.
D. Decorative Doors, Fronts and Surrounds
WARNING! Risk of Fire! Install ONLY doors, fronts or
surrounds approved by Hearth & Home Technologies.
Unapproved doors or fronts may cause appliance to over-
heat.
This appliance has been supplied with an integral
barrier to prevent direct contact with the fixed glass
panel. DO NOT operate the appliance with the barrier
removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
Formoreinformation refertothe instructionssuppliedwith
your decorative door or front.
F. Remote Controls, Wall Controls and Wall
Switches
Follow the instructions supplied with the control installed
to operate your fireplace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
CLEAR SPACE
3 FT. IN FRONT OF FIREPLACE
APPLIANCE INSTALLED IN EXISTING
SOLID FUEL FIREPLACE
G. IPI Battery Tray/Battery Installation
The IntelliFire PlusTM system has a battery backup option.
Battery longevity and performance will be affected by the
servicetemperaturesofthisappliance.Batteries shouldonly
be used as a power source in the event of an emergency
such as an outage.
NOTICE: Batteriesshould onlybeusedasapowersource
in the event of an emergency such as an outage.

9
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12

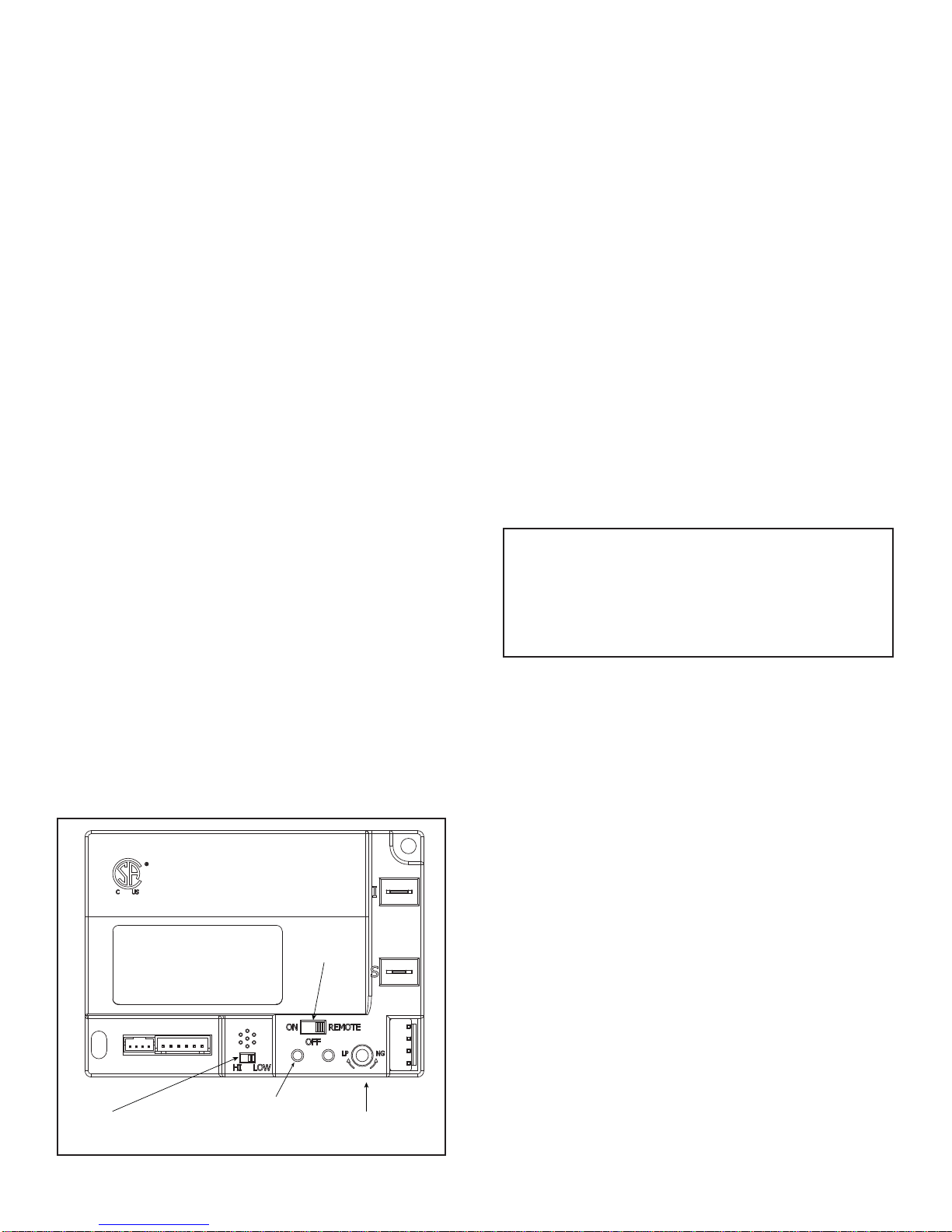

Figure 2.3 Control Module
NG/LP SETTING
STATUS INDICATOR LED
SELECTOR
SWITCH
FLAME HI/LO SWITCH
I. Before Lighting Fireplace
Before operating this fireplace for the first time, have a
qualified technician:
• Verify all shipping materials have been removed from
inside and/or underneath the firebox.
• Review proper placement of logs, ember material and/
or other decorative materials.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensurethatthe glassis sealedandin theproper position
and that the integral barrier is in place.
WARNING! Risk of Fire/Asphyxiation! DO NOT oper-
ate fireplace with fixed glass assembly removed.
• An Intellifire Plus™ignition system is standard with this
appliance.
H. Control Module Operation
1. Thecontrolmodule hasanON/OFF/REMOTE selector
switch that must be set. See Figure 2.3.
OFFPosition: Appliance willignore allpower inputsand
willnotrespond toanycommands from awall switch or
remote. The unit should be in the OFF position during
installation,service, batteryinstallation, fuelconversion,
and in the event that the control goes into LOCK-OUT
mode as a result of an error code.
ONPosition: Appliancewill igniteandrun continuously
in the HI flame setting, with no adjustment in flame
output. This mode of operation is primarily used for
initialinstallation orpoweroutageoperationwith battery
backup.
REMOTE Position: Appliance will initiate commands
from an optional wired wall switch and/or the wireless
remote (RC300).
2. Ifusinga wiredwall switchwiththemodulein REMOTE
mode, the flame output can be adjusted with the HI/LO
selector switch on the module. See Figure 2.3. Note
thatthe flameHI/LOselector switchwillbecomeinactive
once an optional remote control (RC200/RC300) is
programmedto thecontrol module.Note thatthecontrol
modulewillalwaysignitethe fireplaceon HIandremain
so for the initial 10 seconds of operation. If the HI/LO
is switched to the LO position, the flame output will
automatically drop to the lowest setting after the flame
has been established for 10 sec. After this 10 second
period, the flame can be adjusted from HI to LO with
the switch.
3. Thecontrolmodulehassafetyfeature thatautomatically
shuts down the fireplace after 9 hours of continuous
operationwithout receivinga commandfrom theRC300
remote.
4. If you intend to use both an optional wired wall switch
andthe RC300remote controlto operateyour fireplace,
the wall switch will override any commands given by
the remote.
5. Module Reset
This module may lock-out under certain conditions.
When this occurs, the appliance will not ignite or
respondtocommands.Themodule willgointo lock-out
modeby emittingthreeaudiblebeeps,then continuously
displaying a RED/GREEN error code at its status
indicator LED.
• Check battery tray. Remove batteries if installed.
Batteries should only be installed for use during power
outages. See Section G.
• Locate the module selector switch. (See Figure 2.3).
• Set the module selector switch to the OFF position.
• Wait five(5)minutes toallowpossible accumulatedgas
to clear.
• Set the module selector switch to ON or REMOTE
position.
• Start the appliance.
WARNING! Risk of Explosion! DO NOT reset the mod-
ule more than one time within a five minute time period.
Gas may accumulate in firebox. Call a qualified service
technician.
Nine Hour Safety Shutdown Feature
The appliance has a safety feature that automatically
shutsdownthefireplaceafterninehoursofcontinuous
operation without receiving a command from the wall
switch or optional remote.

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/1210
J. Lighting Instructions (IPI)
1. This appliance is equipped with an ignition
device which automatically lights the burner.
DO NOT try to light the burner by hand.
2. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the floor. If
you smell gas, STOP! Follow “B” in the Safety
Information located on the left side of this la-
bel. If you do not smell gas, go to next step.
3. To light the burner:
Equipped with wall switch: Turn ON/OFF switch
to ON.
Equipped with remote or wall control: Press
ON or FLAME button.
Equipped with thermostat: Set temperature to
desired setting.
4. If the appliance does not light after three tries,
call your service technician or gas supplier.
LIGHTING
INSTRUCTIONS (IPI)
TO TURN OFF
GAS TO APPLIANCE
1. Equipped with wall switch: Turn ON/OFF switch
to OFF.
Equipped with remote or wall control: Press
OFF button.
Equipped with thermostat: Set temperature to
lowest setting.
2. Service technician should turn off electric
power to the control when performing service.
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING:Ifyoudonot followthese instructionsexactly, a fire orexplosion
may result causing property damage, personal injury or loss of life.
CAUTION:
NOT FOR USE
WITH SOLID FUEL
WARNING:
593-913G
GAS
VALVE
For additional information on operating your
Hearth & Home Technologies fireplace, please refer to www.fireplaces.com.
A. This appliance is equipped with an
intermittent pilot ignition (IPI) device
which automatically lights the burn-
er. DO NOT try to light the burner by
hand.
B. BEFORELIGHTING,smellallaround
the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
• DO NOT try to light any appliance.
• DO NOT touch any electric switch; do
not use any phone in your building.
DO NOT CONNECT LINE VOLT-
AGE (110/120 VAC OR 220/240
VAC) TO THE CONTROL VALVE.
Improper installation, adjustment, al-
teration, service or maintenance can
cause injury or property damage. Re-
fer to the owner’s information manual
provided with this appliance.
This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and main-
tained in accordance with the manufac-
turer’s instructions, this product could
expose you to substances in fuel or
fuel combustion which are known to the
StateofCaliforniatocause cancer,birth
defects, or other reproductive harm.
Keep burner and control compartment
clean. See installation and operating
instructions accompanying appliance.
Hot while in operation. DO NOT touch.
Keepchildren,clothing,furniture,gaso-
lineandother liquids having flammable
vapors away.
DO NOT operate the appliance with
fixedglassassemblyremoved,cracked
or broken. Replacement of the fixed
glass assembly should be done by a
licensed or qualified service person.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
C. DO NOT use this appliance if any
part has been under water. Imme-
diately call a qualified service tech-
nician to inspect the appliance and
to replace any part of the control
system and any gas control which
has been under water.
For use with natural gas and propane.
A conversion kit, as supplied by the
manufacturer, shall be used to convert
this appliance to the alternate fuel.
Also Certified for Installation in a
Bedroom or a Bedsitting Room.
For assistance or additional informa-
tion, consult a qualified installer, ser-
vice agency or the gas supplier.
Final inspection by

11
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12
Initial Break-in Procedure
• The appliance should be run three to four hours
continuously on high.
• Turn the appliance off and allow it to completely cool.
• Remove fixed glass assembly. See Section 12.H.
• Clean fixed glass assembly. See Section 3.
• Replace the fixed glass assembly and run continuously
on high an additional 9 hours.
This cures the materials used to manufacture the fire-
place.
NOTICE! Open windows for air circulation during ap-
pliance break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
K. After Appliance is Lit
L. Frequently Asked Questions
ISSUE SOLUTIONS
Condensation on the glass This is a result of gas combustion and temperature variations. As the appliance warms, this
condensation will disappear.
Blue flames This is a result of normal operation and the flames will begin to yellow as the appliance is al-
lowed to burn for 20 to 40 minutes.
Odor from appliance Whenfirst operated, this appliance may release an odor for the firstseveral hours.This is caused by the curing of the paint and the burning off of any oils remaining from manufacturing. Odor may
also be released from finishing materials and adhesives used around the appliance.
Film on the glass This is a normal result of the curing process of the paint and logs. Glass should be cleaned within 3 to 4 hours of initial burning to remove deposits left by oils from the manufacturing
process. A non-abrasive cleaner such as gas fireplace glass cleaner may be necessary. See
your dealer.
Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or
longevity of the appliance.
Is it normal to see the pilot flame burn
continually?
In an intermittent pilot ignition system (IPI), the pilot flame should turn off when appliance is
turned off. Some optional control systems available with IPI models may allow pilot flame to
remain lit.

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/1212
Glass Cleaning
Frequency: Seasonally
By: Homeowner
Tools Needed: Protective gloves, glass cleaner, drop
cloth and a stable work surface.
CAUTION! Handle fixed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
•Preparea workarea largeenough toaccommodate fixed
glass assembly and door frame by placing a drop cloth
on a flat, stable surface.
Note: Fixed glass assembly and gasketing may have res-
idue that can stain carpeting or floor surfaces.
•Remove door or decorative front from appliance and set
aside on work surface.
• See Section 12.H for instructions to remove fixed glass
assembly.
• Clean glass with a non-abrasive commercially available
cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Carefullysetfixedglassassembly inplace onappliance.
Hold glass in place with one hand and secure glass
latches with the other hand.
• Reinstall door or decorative front.
3
3 Maintenance and Service
A. Maintenance Tasks-Homeowner
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
More frequent cleaning may be required due to lint from
carpeting or other factors. Control compartment, burner
and circulating air passageway of the appliance must be
kept clean.
CAUTION! Risk of Burns! The appliance should be
turned off and cooled before servicing.
When properly maintained, your appliance will give you
many years of trouble-free service. We recommend an-
nual service by a qualified technician.
Doors, Surrounds, Fronts
Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface
• Assess condition of screen and replace as necessary.
• Inspect for scratches, dents or other damage and repair
as necessary.
•Check that louvers are not blocked.
• Vacuum or dust surfaces.
Remote Control
Frequency: Seasonally
By: Homeowner
Tools needed: Replacement batteries and remote con-
trol instructions.
• Locate remote control transmitter and receiver.
• Verify operation of remote. Refer to remote control
operation instructions for proper calibration and setup
procedure.
• Place batteries as needed in remote transmitters and
battery-powered receivers.
• Place remote control out of reach of children.
If not using your fireplace for an extended period of time
(summer months, vacations/trips, etc), to prevent unin-
tended operation:
• Remove batteries from remote controls.
Any safety screen or guard removed for servicing must be
replaced prior to operating the appliance.
Installation and repair should be done by a qualified techni-
cian only. The appliance should be inspected before use
and at least annually by a professional service person.

13
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12
Venting
Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• Inspect venting and termination cap for blockage or
obstructionsuchplants, birdnests, leaves,snow, debris,
etc.
• Verifyterminationcapclearance tosubsequent construc-
tion (building additions, decks, fences, or sheds). See
Section 6.
• Inspect for corrosion or separation.
• Verify weather stripping, sealing and flashing remains
intact.
• Inspect draft shield to verify it is not damaged or missing.
B. Maintenance Tasks-Service Technician
The following tasks must be performed by a qualified
technician.
Gasket Seal and Glass Assembly Inspection
Frequency: Annually
By: Service Technician
Tools needed: Protective gloves, drop cloth and a stable
work surface.
• Inspect gasket seal and its condition.
• Inspectfixed glassassembly forscratches andnicksthat
can lead to breakage when exposed to heat.
• Confirm there is no damage to glass or glass frame.
Replace as necessary.
• Verify that fixed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.
Logs
Frequency: Annually
By: Service Technician
Tools needed: Protective gloves.
• Inspectfordamagedormissinglogs. Replaceasnecessary.
Refer to Section 12 for log placement instructions.
• Verify correct log placement and no flame impingement
causing sooting. Correct as necessary.
Firebox
Frequency: Annually
By: Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace appliance if firebox has been perforated.
Control Compartment and Firebox Top
Frequency: Annually
By: Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust
cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Usecautionwhen cleaning these areas. Screwtipsthat
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/1214
Burner Ignition and Operation
Frequency: Annually
By: Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, flashlight, voltmeter, indexed drill bit set, and a
manometer.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Cleanoff burnertop,inspect forpluggedports, corrosion
or deterioration. Replace burner if necessary.
• Replace Glowing embers with new dime-size pieces.
DO NOT block ports or obstruct lighting paths. Refer to
Section 12 for proper ember placement.
• Verifybatterieshavebeenremovedfrombatteryback-up
IPI systems to prevent premature battery failure or
leaking. For optimal battery life, locate the battery
pack outside of the control cavity on the hearth. This
placement will reduce the chances of overheating the
batteries during extended burns which could result in
reduced battery life or degradation.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay.
• Inspect for lifting or other flame problems.
• Verify air shutter setting is correct. See Section 12 for
required air shutter setting. Verify air shutter is clear of
dust and debris.
• Inspect orifice for soot, dirt and corrosion. Verify orifice
size is correct. See Service Parts List for proper orifice
sizing.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Inspect pilot flame pattern and strength. See Figure 3.1
for proper pilot flame pattern. Clean or replace orifice
spud as necessary.
• Inspect thermocouple/thermopile or IPI flame sensing
rod for soot, corrosion and deterioration. Polish with fine
steel wool or replace as required.
• Verify that there is not a short in flame sense circuit by
checkingcontinuitybetween pilothoodand flame sense
rod. Replace pilot as necessary. (IPI only)
Figure 3.1 IPI Pilot Flame Patterns

15
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12

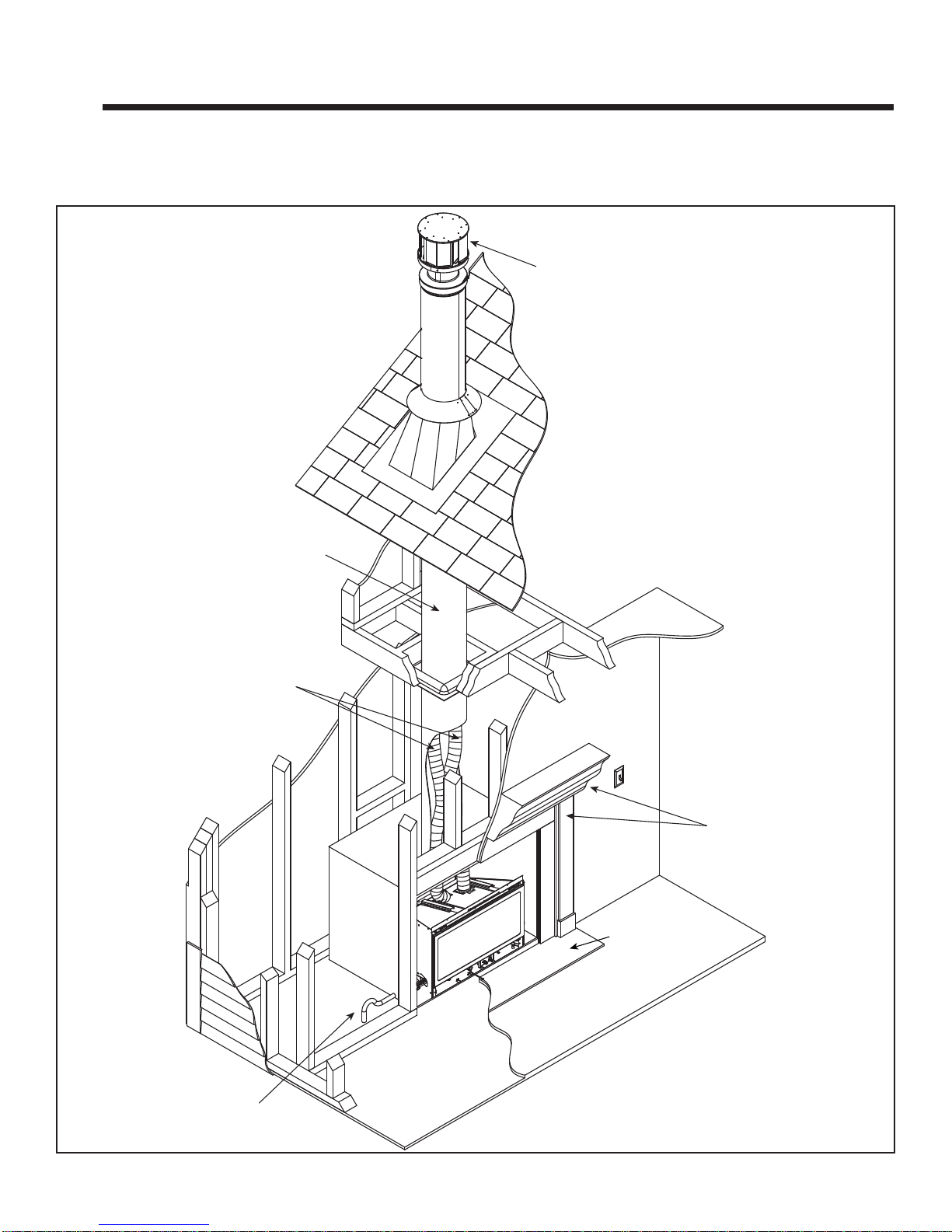

A. Typical Appliance System
NOTICE: Illustrations and photos reflect typical installations and are for design purposes only. Illustrations/diagrams are not
drawn to scale. Actual product may vary from pictures in manual
VERTICAL TERMINATION CAP
(SECTION 8.F)
VENT PIPE
(SECTION 8)
GAS LINE (SECTION 9)
ACCESS THROUGH EXISTING
MASONRY OR WOODBURNING
FIREPLACE
HEARTH EXTENSION
SURROUND OR FRONT
NOT SHOWN
SECTION 2.D AND 8.D.
MANTEL AND MANTEL LEG
SECTION 5.B AND 11.A
3 INCH FLEX LINERS
(SECTION 8)
Figure 4.1 Typical System
4
4 Getting Started
Installer Guide

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/1216
B. Design and Installation Considerations
Quadra-Fire gas inserts are designed for installations into
solid fuel masonry or factory built fireplaces that have
been installed in accordance with the National, Provin-
cial, State and local building codes. Fireplaces are to be
constructed of non-combustible materials and, in the ab-
sence of local or regional codes, meet criteria of NFPA
211. No additional outside air source is required.
Installation MUST comply with local, regional, state and na-
tional codes and regulations. Consult insurance carrier, local
building inspector, fire officials or authorities having jurisdic-
tion over restrictions, installation inspection and permits.
Prior to installing the gas insert:
• Have the chimney and adjacent structure inspected
and cleaned by qualified professionals. Hearth & Home
Technologies recommends that NFI or CSIA certified
professionals,ortechnicians underthedirection ofcerti-
fied professionals, conduct a minimum of a NFPA 211
Level 2 inspection of the chimney.
• Replace component parts of the chimney and fireplace
as specified by the professionals.
• Ensure combustible mantel and surround clearances
comply with applicable codes and regulations for solid-
fuelfireplaces. Intheabsenceof localor regionalcodes,
refer to NFPA 211.
• Ensure all joints are properly engaged and the chimney
is properly secured.
• Minimum fireplace size. See Section 5.A.
• Gas supply piping requirements.
• Electrical wiring requirements.
• Finishing details.
• Whether optional accessories—devices such as a wall
switch or remote control—are desired.
D. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• If packaged separately, the log set and appliance grate
must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
•Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers Flat blade screwdriver
Hammer Phillips screwdriver
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Reciprocating saw
Manometer Noncorrosive leak check solution
1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
Caulking material (300ºF minimum continuous exposure
rating)
Stove cement (1200ºF or higher continuous exposure
rating)
Hearth&HomeTechnologiesdisclaimsany responsibility for,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruseofanycomponentpartnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING! Risk of Fire,/Explosion/Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualified technician to inspect the appliance
and to replace any part of the control system and/or gas
control which has been under water.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified
technician, service agency or your dealer.

17
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12
5
5 Fireplace Size Requirements
A. Minimum Fireplace Opening
Minimumfireplace openingrequirements fora standard3/4
inch deep surround are shown in Figure 5.2. For smaller
openings,an optional1-1/2inchdeepsurround isavailable
and dimensions are shown in Figure 5.3.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffic and away from furniture and draperies.
• Thefirebrick(refractory), glassdoors,screenrails,screen
mesh and log grates can be removed from a factory
built firebox in order to gain minimum gas insert opening
requirements.
• Anysmoke shelves,shieldsand bafflesmay beremoved
from the factory built firebox if attached with mechanical
fasteners.
• The metal floor of the solid fuel firebox may be removed
to facilitate the installation of the insert.
• Cutting of any sheet metal parts of the fireplace in which
the gas fireplace insert is to be installed is prohibited,
except the floor as tested for and as noted above and in
Figure 5.1.
• A minimum 1/2 inch gap from the bottom of the
appliance to the metal floor of the solid fuel firebox is
RECOMMENDED for optimal fan performance. See
side view in Figure 5.1

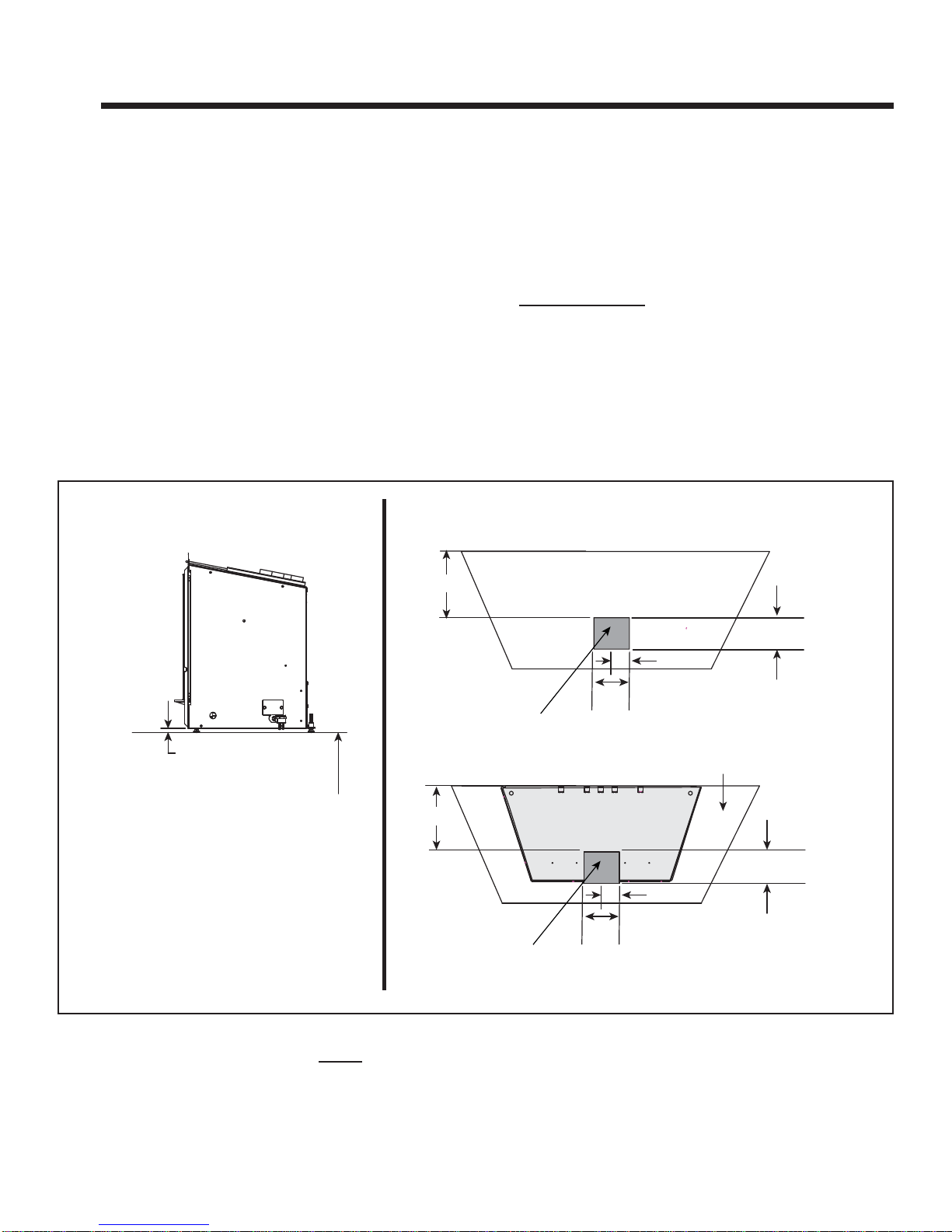

Figure 5.1-A
SIDE VIEW
6 IN.
5 IN.
3 IN.
9 IN. METAL INSERT
FACTORY BUILT FIREBOX
6 IN.
5 IN.
3 IN.
9 IN. METAL FLOOR OF EXISTING
SOLID FUEL FIREBOX
TOP VIEW
REMOVE THIS
SECTION OF
METAL FLOOR
REMOVE THIS
SECTION OF
METAL FLOOR
1/2 IN. MINIMUM LEVELING HEIGHT
(RECOMMENDED)
1/4 IN. REQUIRED
METAL FLOOR OF EXISTING SOLID FUEL FIREBOX
• The appliance may not be placed directly on the base of
the outer wrap, a 1/4 inch airspace MUST be provided
between the insert and the floor of the outer wrap. Use
theleveling legsto raisethe inserta minimumof 1/4inch.
The original fireplace may never be returned to solid
fuel in this condition. The sidewalls and top structure
of the firebox may not be altered with the exception of
removable baffles and dampers.
• Ifaminimum1/2inch gapcan notbeachieved, asection
of the factory-built metal floor can be removed. See
Figure 5.1-B.
Figure 5.1-B

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/1218

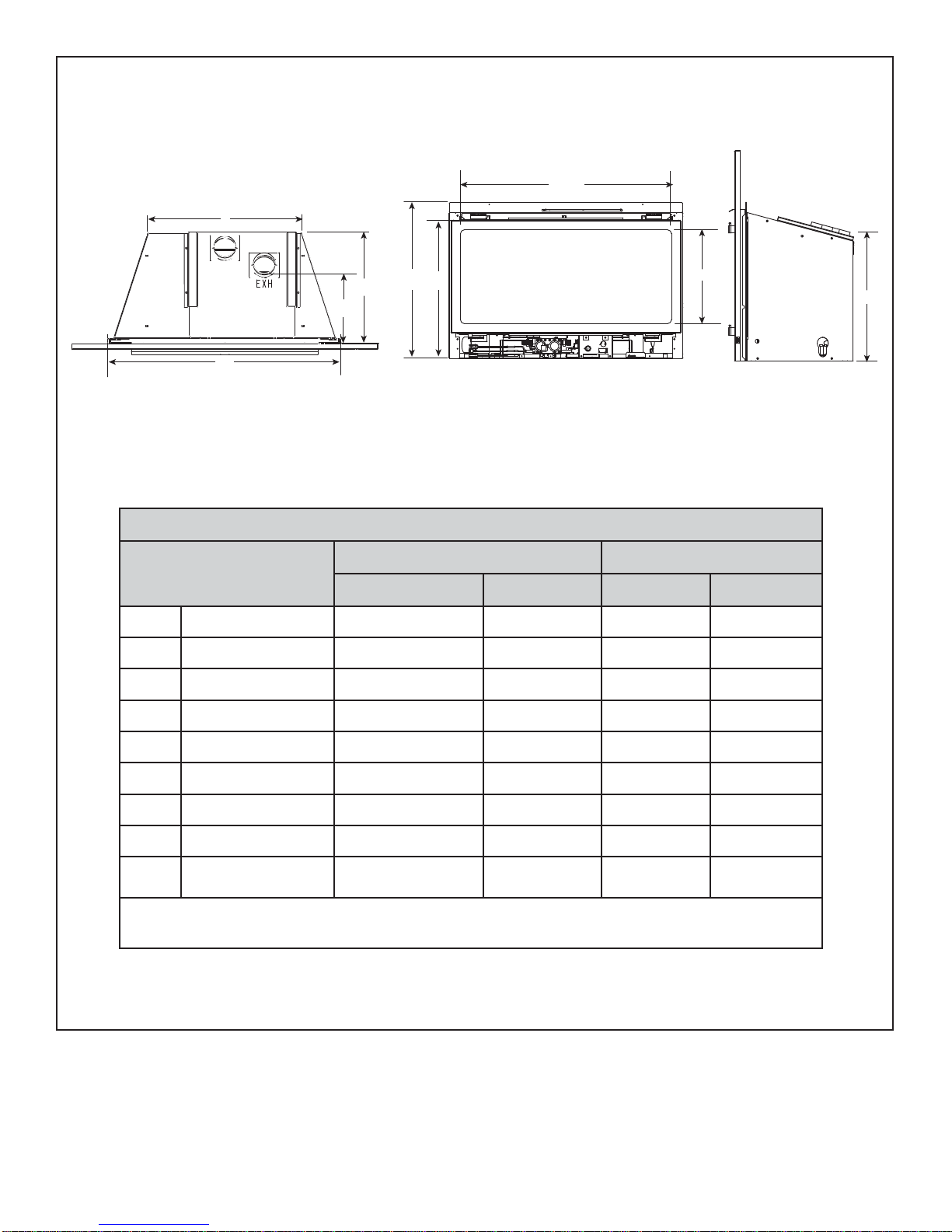

Figure 5.2 Fireplace Opening
In addition to these dimensions, also reference Clearances and Mantel Projections (Section 5.B).
MINIMUM FIREPLACE SIZE
Location QFI35-C QFI30-C
Inches Millimeters Inches Millimeters
A Rear Width 23-1/2 597 20-1/4 514
B Front Width 34-5/8 879 30-1/2 775
C Glass Opening Width 31-9/16 802 27-7/16 697
D Glass Opening Height 15-11/16 398 12-13/16 325
E Height-Front 24 610 20-1/2 521
F Height-Rear 21-1/16 535 17-5/8 448
G** Unit Depth 16 406 14-3/4 375
H Venting Depth 10-1/2 267 9-1/2 241
IHeight to Top of
Glass Frame 22 559 18-1/4 464
* Note: If exhaust collar on insert and fireplace damper do not line up, add 4 inches (102 mm) to minimum
fireplace height for bends in vent pipe.
**Unit depth is measured to the back of the surround to give the depth needed for installation.
TOP VIEW FRONT VIEW SIDE VIEW
ED
C
IF
B
A
G
H

19
Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/12
B. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clear-
ances to combustibles as specified. Framing or finishing
material closer than the minimums listed must be construct-
ed entirely of noncombustible materials (i.e., steel studs,
concrete board, etc).
Clearance to combustible material under the insert is 1/4
inch (6 mm). Clearance from top of fireplace opening for
combustibles extending 12 inches max. is 12 inches.
• Useleveling legsto raiseinsert minimum1/4inch(6mm)
abovecombustiblematerial orouterwrap offactorybuilt
firebox.
Combustible facings must not extend behind the insert
surround. For non-combustible material specifications
refer to section 1.E.

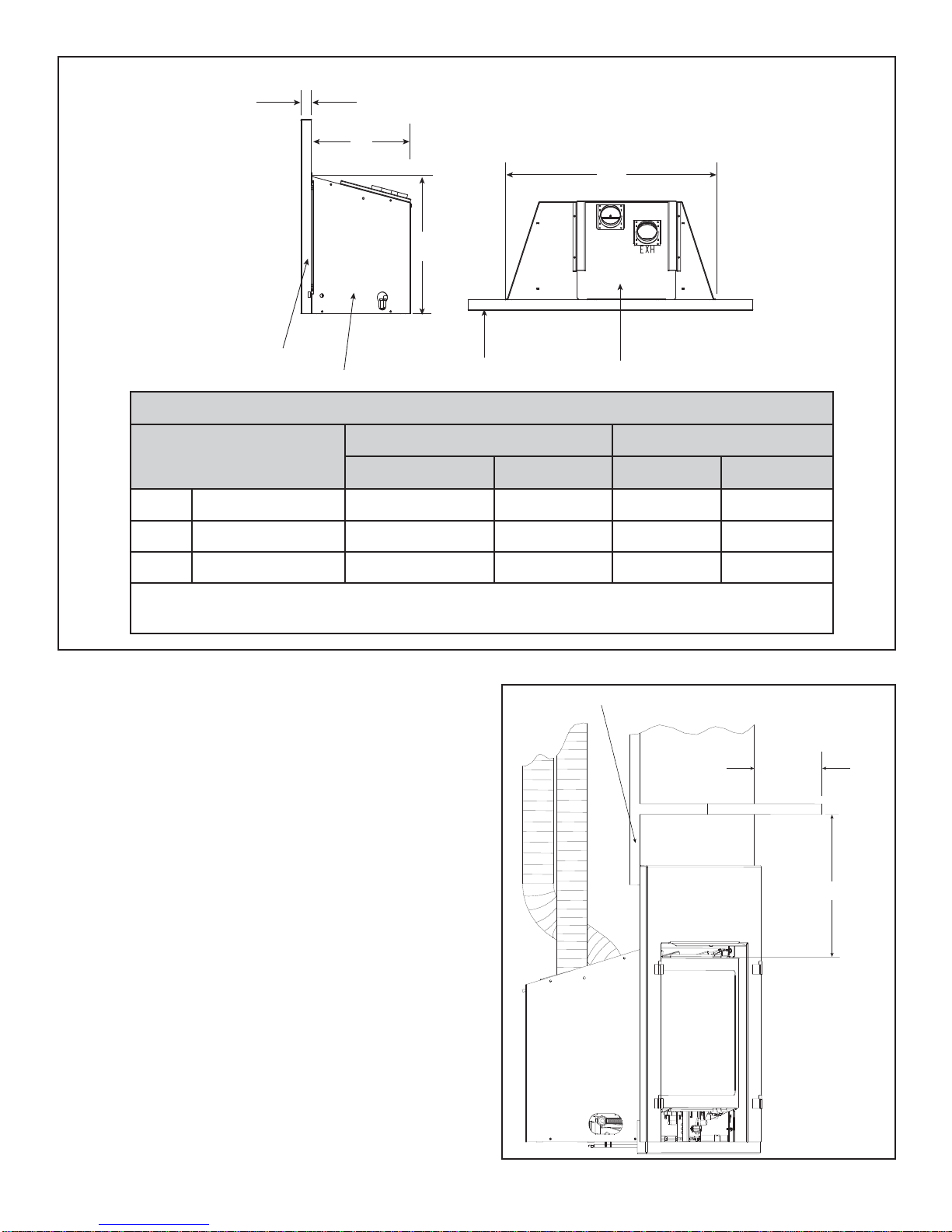

Figure 5.4 Mantel Clearances
12 IN. MIN.
12 IN. MAX.
EXISTING NON-COMBUSTIBLE FACING
CD
SURROUND
APPLIANCE
1-1/2 IN.
BD
AD
APPLIANCESURROUND
MINIMUM FIREPLACE SIZE
Location QFI35-C QFI30-C
Inches Millimeters Inches Millimeters
ADAlternate Unit Width 33-3/16 843 29-1/16 738
BDAlternate Unit Depth 15-1/16 383 13-7/8 352
CDAlternate Unit Height 22-9/16 573 19-1/16 484
* Note: If exhaust collar on insert and fireplace damper do not line up, add 4 inches (102 mm) to minimum
fireplace height for bends in vent pipe.
TOP VIEW
SIDE VIEW
Figure 5.3 Fireplace Opening - Deep Surround

Quadra-Fire • QFI30-C, QFI35-C • 2227-901 Rev. H • 7/1220
A. Vent Termination Minimum Clearances
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5
Over 10/12 to 11/12.............................................3.25
Over 11/12 to 12/12.............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0
Figure 6.1 Minimum Height From Roof To Lowest Discharge
Opening
* 3 foot minimum in snow regions
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
6
6 Termination Locations
Fire Risk.
Maintain vent clearance to combustibles as
specified.
• DO NOT pack air space with insulation or
other materials.
Failure to keep insulation or other materials
away from vent pipe may cause fire.
WARNING
