Quadra-Fire EXPEDITION II User manual

1July 30, 20197095-802B
R
EXPEDITION II WOOD INSERT
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL(S):
EXPEDITION-II
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
NOTE: To obtain a French translation of this
manual, please contact your dealer or visit
www.quadrare.com
REMARQUE : Pour obtenir une traduction française de
ce manuel, s’il vous plaît contacter votre
revendeur ou visitez www.quadrare.com
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over re and generate
poisonous gases (i.e. carbon monoxide).
WARNING
If the information in these instructions
is not followed exactly, a re may result
causing property damage, personal injury,
or death.
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
• Do not over re - If heater or chimney connector
glows, you are over ring. Over ring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specied. Failure to comply may cause house re.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
WARNING
Hot glass and appliance will cause burns.
• Do not touch glass until it is cooled
• Use leather gloves when reloading fuel
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as appliance.
• Alert children and adults to hazards of
high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammable materials away.

2July 30, 20197095-802B
EXPEDITION II INSERT
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
1 Important Safety Information............. 3
A. Insert Certication ...........................3
B. BTU & E󰀩ciency Specications ................3
C. Mobile Home Approved (USA only)..............4
D. Electrical Rating ............................4
E. Glass Specications .........................4
F. Non-Combustible Materials ....................4
G. Combustible Materials .......................4
H. Sleeping Room .............................4
I. California - Prop65 ...........................4
2 Getting Started .................................... 5
A. Design and Installation Considerations ...........5
B. Draft......................................5
C. Negative Pressure...........................6
D. Tools And Supplies Needed ...................6
E. Inspect Appliance and Components .............6
F. Install Checklist .............................7
3 Dimensions and Clearances.............. 8
A. Dimensions ................................8
B. Clearances to Combustibles ..................10
4 Chimney Systems ............................. 12
A. Locating Your Stove & Chimney ...............12
B. Chimney Termination Requirements ............13
C. 2-10-3 Rule ...............................13
D. Venting Systems ...........................14
E. Inspections ...............................14
F. Chimney Height / Rise and Run................14
G. Securing Chimney Components ...............14
H. Larger Chimneys...........................15
I. Masonry Chimney...........................15
J. Metal Heat Circulating Masonry................16
K. Prefabricated Metal Chimney .................16
L. Ovalizing Round Stainless Steel Liners..........17
M. Altering the Fireplace .......................17
N. Zero-Clearance Fireplace ....................17
5 Appliance Set-Up .............................. 18
A. Outside Air Kit .............................18
B. Stove Pipe or Liner to Flue Collar ..............19
C. Optional O󰀨set Adapter ......................19
D. Appliance to Stove Pipe or Liner ...............19
E. Power Cord ...............................20
F. Flat Surround ..............................20
G. Flat Surround with Trim Kit ...................21
H. Standard Surround & Cast Trim Kit.............22
6 Mobile Home Installation.................. 23
7 Reference Materials.......................... 24
A. Service and Maintenance Log.................24
B. Accessories ...............................26
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.

3July 30, 2019 7095-802B
EXPEDITION II INSERT
Model: Expedition II wood Insert
Laboratory: OMNI Test Laboratories, Inc.
Safety Report No: 0061WN100S
Type: Solid Fuel Type, Listed Room Heater
Standard: UL1482-2011 and ULC S628-93
and (UM) 84-HUD.
Emissions Report No: 0061WN100E
EPA Certication #: Number: 199-19
EPA Certied Emissions: 1.9 g/h
*LHV Tested E󰀩ciency: 77.0%
**HHV Tested E󰀩ciency: 71.3%
***EPA BTU Output: 24,700 to 26,800 / hr
****Peak BTU/Hour Output: 56,000
Vent Size: 6 inches
Firebox Size: 2.37 cubic feet
Recommended
Wood Length: 20 inches
Fuel Orientation: Side-to-Side
Fuel Seasoned Cord Wood
*Weighted average LHV (Low Heating Value) e󰀩ciency
using Douglas Fir dimensional lumber and data collected
during EPA emissions test. LHV assumes the moisture
is already in a vapor state so there is no loss in energy
to vaporize.
**Weighted average HHV (High Heating Value) e󰀩ciency
using Douglas Fir dimensional lumber and data collected
during EPA emissions test. HHV includes the energy
required to vaporize the water in the fuel.
***A range of BTU outputs calculated using HHV
E󰀩ciency and the burn rates from EPA tests, using
Douglas Fir dimensional lumber.
****A peak BTU out of the unit calculated using the
maximum rst hour burn rate from the High EPA Test and
BTU content of Douglas Fir dimensional lumber (8600)
times the e󰀩ciency.
1 Important Safety Information
A. Insert Certication B. BTU & E󰀩ciency Specications
NOTE: This installation must conform with local codes. In the absence of local codes you must comply with the
UL1482-2011, (UM) 84-HUD and NPFA211 in the U.S.A. and the ULC S628-93 and CAN/CSA-B365
Installation Codes in Canada. NOT APPROVED FOR MOBILE HOME INSTALLATIONS IN CANADA!
Approved for ZC reboxes.
This wood appliance needs periodic inspection and repair for proper operation. Consult the owner’s manual for further
information. It is against federal regulations to operate this wood appliance in a manner inconsistent with the operating
instructions in the owner’s manual.
This Expedition II insert
is Certied to comply with
2020 crib wood particulate
emission standards.

4July 30, 20197095-802B
EXPEDITION II INSERT
E. Glass Specications
This stove is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
C. Mobile Home Approved (USA only)
• WARNING: DO NOT INSTALL IN A SLEEPING ROOM.
• CAUTION: THE STRUCTURE INTEGRITY OF THE
MOBILE HOME FLOOR, WALL, AND CEILING/ROOF
MUST BE MAINTAINED.
• The appliance must be properly grounded to the
frame of the mobile home with #8 copper ground wire,
and chimney must be listed to UL103 HT or a listed
UL-1777 full length six inch (152mm) diameter liner
must be used.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
D. Electrical Rating
Maximum 1.5 Amps (blower).
F. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
• Steel
• Plaster
• Brick
• Iron
• Concrete
• Tile
• Glass
• Slate
Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace of 750° C.
G. Combustible Materials
Material made of/or surfaced with any of the
following materials:
• Wood
• Compressed Paper
• Plant Fibers
• Plastic
• Plywood/OSB
• Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
H. Sleeping Room
When an appliance is installed in a sleeping room an
outside air kit is required and it is recommended that a
smoke and/or CO alarm be installed in the bedroom. The
size of the room must be at least 50ft³ per 1,000 Btu/hr
stove input
I. California - Prop65
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
Hearth & Home Technologies WILL NOT warranty stoves
that exhibit evidence of over-ring. Evidence of over-ring
includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated ba󰀪e and other interior components
NOTE: Hearth & Home Technologies, manufacturer
of this appliance, reserves the right to alter
its products, their specications and/or price
without notice.
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling
all components.
• Operating appliance without legs attached (if supplied
with unit).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:

5July 30, 2019 7095-802B
EXPEDITION II INSERT
Install Guide
2 Getting Started
A. Design and Installation Considerations
Before installing, determine the following:
• Type of chimney connector to be used
- Single wall, 6 inch (152mm) diameter, stainless
steel, or
- Double wall, 6 inch (152mm) diameter,
stainless steel
• Consult page 28 for clearances to combustibles
• Power outlet located close by for optional blower
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult insurance carrier, local building, re o󰀩cials
or authorities having jurisdiction about restrictions,
installation inspection, and permits.
CAUTION
WARNING
Asphyxiation Risk.
• Do NOT connect this unit to a chimney
ue servicing another appliance.
• Do NOT connect to any air distribution
duct or system.
May allow ue gases to enter the house.
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of

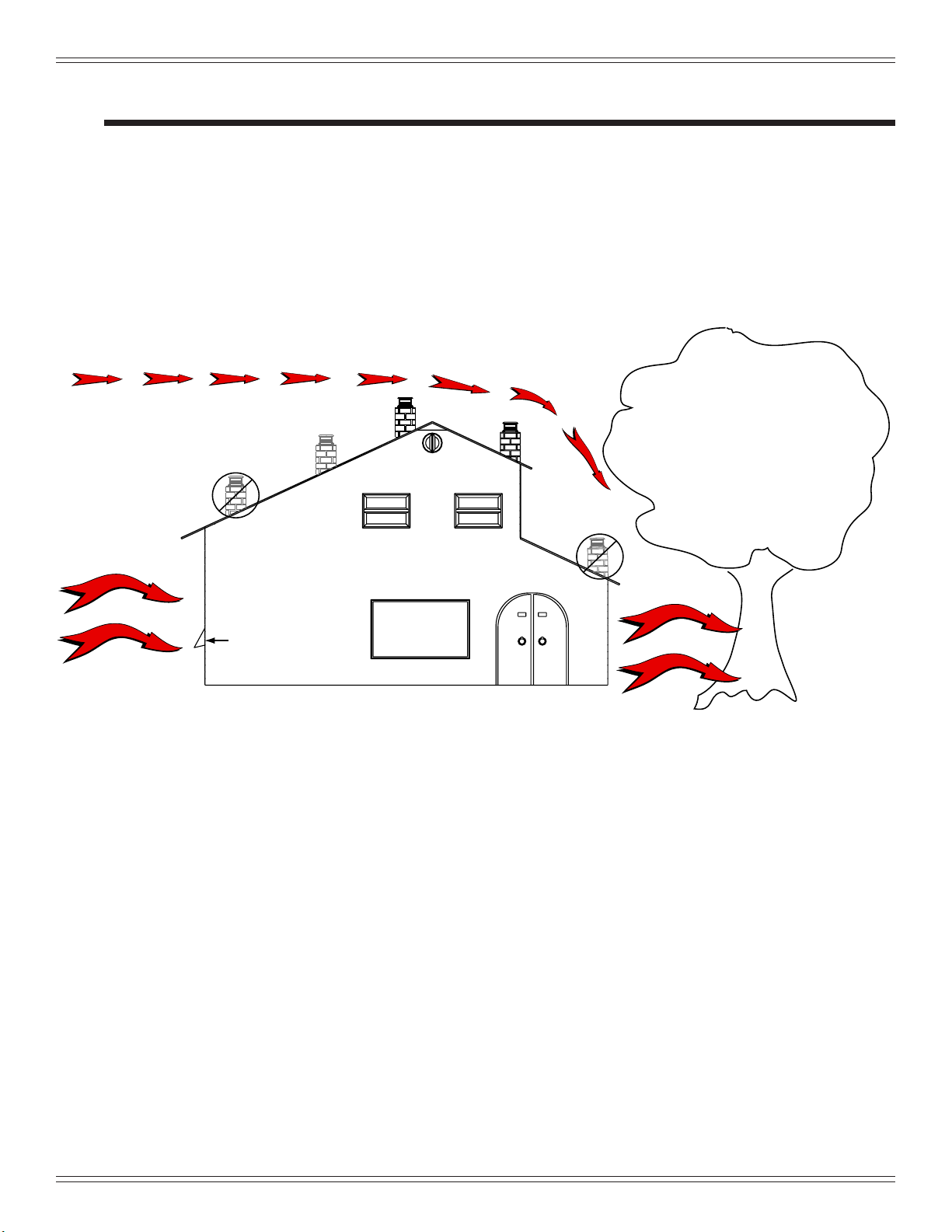

the appliance system caused by:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Over drafting caused by excessive chimney heights
• Ideal performance is with height of chimney between
14-16 feet (4.26-4.88m) measured from the base of
the appliance.
B. Draft
Draft is the pressure di󰀨erence needed to vent appliances
successfully. When a appliance is drafting successfully,
all combustion byproducts are exiting the home through
the chimney.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
To be sure that your appliance burns properly:
• During the burn, the chimney draft (static
pressure) should be approximately -0.07 inch
water column (W.C.)
• Measure the W.C at 6 inches (152mm) above the top
of the appliance after one hour of operation.

6July 30, 20197095-802B
EXPEDITION II INSERT
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
• Reciprocating saw
• Framing material
• Pliers
• High temp caulking material
• Hammer
• Gloves
• Phillips screwdriver
• Framing square
• Flat blade screwdriver
• Electric drill and bits
• Plumb line
• Safety glasses
• Level
• Tape measure
• Misc. screws and nails
• 7/16 socket or wrench
• 1/2-3/4 in. length, #6 or #8 self-drilling screws
• Remove appliance and components from packaging
and inspect for damage.
• Vent system components and doors are shipped in
separate packages.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the installation
to ensure maximum safety and benet.
E. Inspect Appliance and Components
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with unit).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
WARNING
Fire Risk.
Inspect appliance and components for
damage. Damaged parts may impair
safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
C. Negative Pressure
Negative pressure results from the imbalance of air
available for the appliance to operate properly. It can be
strongest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
heaters and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or
air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the e󰀨ects of negative air pressure:
• Install the outside air kit with the intake facing
prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are
not located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
• Basement installations should be avoided
WARNING
Asphyxiation Risk.
• Negative pressure can cause spillage
of combustion fumes, soot and
carbon monoxide.
• Appliance needs to draft properly
for safety.

7July 30, 2019 7095-802B
EXPEDITION II INSERT
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot / Address:
Location of Appliance:
Installer:
Dealer / Distributor Phone #:
Serial #:
Model:
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions can lead to a fire or explosion.
Appliance Install
Verified clearances to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Chimney
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (14-16 feet).
Roof flashing installed and sealed.
Terminations installed and sealed.
Clearances
Combustible materials not installed in non-combustible areas.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup
All packaging and protective materials removed.
Firebrick, baffle and ceramic blanket installed correctly.
All labels have been removed from the door.
All packaging materials are removed from inside/under the appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installtion is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible ____________________________ by _____________________ on ___________
(Builder / Gen. Contractor) (Installer) (Date)
_________________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
________________________________________________________________________
___________________________________________________________________________________
___________________________________________________________________
___________________________________________________________________________________
____________________________________________________________________________________
YES IF NO, WHY?
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
F. Install Checklist

8July 30, 20197095-802B
EXPEDITION II INSERT
Figure 8.4 - Top View with Cast Surround
43 in (1092mm)43 in (1092mm)
31 in
(787mm)
31 in
(787mm)
22-1/4 in
(564mm)
22-1/4 in
(564mm)
12-3/8 in
(313mm)
12-3/8 in
(313mm)
3-1/8 in
(79mm)
3-1/8 in
(79mm)
17-1/4 in
(438mm)
17-1/4 in
(438mm)
23-5/8 in (602mm)
23-5/8 in (602mm)
31-1/2 in (800mm)
31-1/2 in (800mm)
Figure 8.5 - Front View with Small Flat Surround (CT2-4331)
with Cast Trim (811-0930)
51 in (1295mm)51 in (1295mm)
34 in
(863mm)
34 in
(863mm)
22-1/4 in
(564mm)
22-1/4 in
(564mm)
12-3/8 in
(313mm)
12-3/8 in
(313mm)
Figure 8.6 - Front View with Large Flat Surround (CT2-5134)
with Cast Trim (811-0930)
Figure 8.1 - Top View with Flat Surround
31 in
(787mm)
31 in
(787mm)
42-3/4 in
(1086mm)
42-3/4 in
(1086mm)
22-1/4 in
(564mm)
22-1/4 in
(564mm)
12-3/8 in
(313mm)
12-3/8 in
(313mm)
50-3/4 in
(1289mm)
50-3/4 in
(1289mm)
22-1/4 in
(564mm)
22-1/4 in
(564mm)
34 in
(864mm)
34 in
(864mm)
12-3/8 in
(313mm)
12-3/8 in
(313mm)
Figure 8.2 - Front View with Small Flat Surround (SP2-4331)
Figure 8.3 - Front View with Large Flat Surround (SP2-5134)

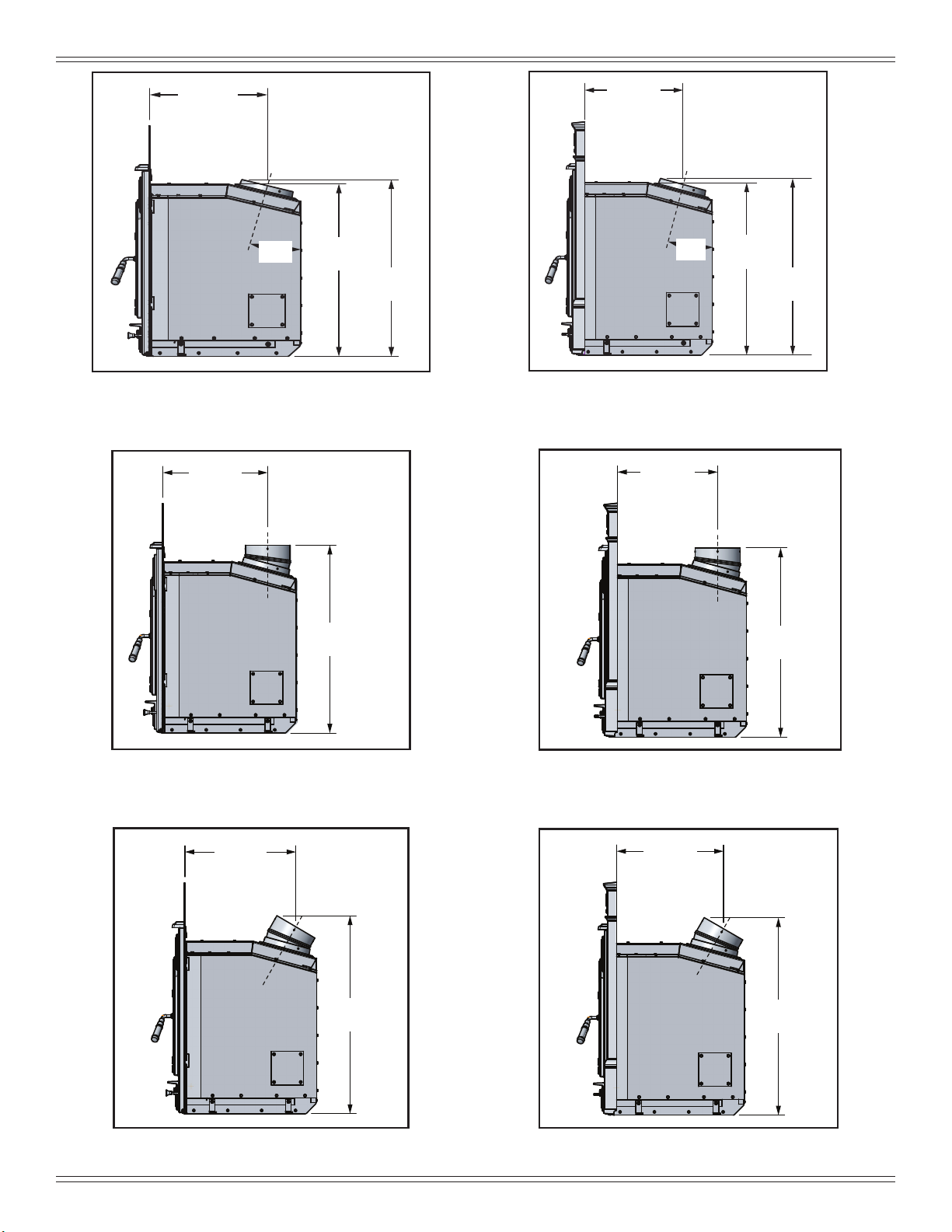

3 Dimensions and Clearances
A. Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
2-3/8 in
(60mm)
2-3/8 in
(60mm)
18 in
(457mm)
18 in
(457mm)
23-5/8 in (602mm)
23-5/8 in (602mm)
31-1/2 in (800mm)
31-1/2 in (800mm)

9July 30, 2019 7095-802B
EXPEDITION II INSERT
13-1/4 in
(337mm)
13-1/4 in
(337mm)
23-1/8 in
(589mm)
23-1/8 in
(589mm)
23-3/4 in
(604mm)
23-3/4 in
(604mm)
15°15°
Figure 9.4 - Side View with Cast SurroundFigure 9.1 - Side View with Flat Surround
14 in
(356mm)
14 in
(356mm)
23-3/4 in
(604mm)
23-3/4 in
(604mm)
23-1/8 in
(589mm)
23-1/8 in
(589mm)
15°15°
13-3/8 in
(340mm)
13-3/8 in
(340mm)
25-3/8 in
(645mm)
25-3/8 in
(645mm)
Figure 9.5 - Side View with Cast Surround and Optional 15
Degree Adapter (DV-6DLR-E15ADSS)
Figure 9.2 - Side View with Flat Surround and Optional 15
Degree Adapter (DV-6DLR-E15ADSS)
14-1/8 in
(359mm)
14-1/8 in
(359mm)
25-3/8 in
(645mm)
25-3/8 in
(645mm)
14-3/8 in
(366mm)
14-3/8 in
(366mm)
26-5/8 in
(676mm)
26-5/8 in
(676mm)
Figure 9.6 - Side View with Cast Surround and Optional 15
Degree Adapter (DV-6DLR-E15ADSS)
Figure 9.3 - Side View with Flat Surround and Optional 15
Degree Adapter (DV-6DLR-E15ADSS)
15-1/8 in
(385mm)
15-1/8 in
(385mm)
26-5/8 in
(676mm)
26-5/8 in
(676mm)

10 July 30, 20197095-802B
EXPEDITION II INSERT
HEARTH EXTENSION
(MINIMUM EMBER PROTECTION)
SIDE TRIM (3” max depth)
SIDE WALL
TOP TRIM (3/4” max depth)
24-1/4 in
(616mm)
23-3/4 in
(603mm)
34-3/4 in
(883mm)
USA 38-1/4
CANADA 46-1/4
(1175mm)
HEARTH EXTENSION
(EMBER PROTECTION)
FIREPLACE FRONT SURFACE
MANTEL
(12” max depth)
3 in
(76mm)
3 in
(76mm)
47-3/4 in
(1213mm)
47-3/4 in
(1213mm)
USA 17-1/2
CANADA 19-1/2
(495mm)
40-3/4 in
(1035mm)
40-3/4 in
(1035mm)
Required Protection
Suggested Protection
NOTE: Keep Ashlip
Clear of Ashes
Figure 10.1
Figure 10.2
Figure 10.4
Figure 10.3
C
DA
B
Minimum Opening Dimensions Inches Millimeters
AHeight 23-3/8 594
BFront Width 32 813
CBack Width 23-7/8 606
DDepth (Steel Surround) 18-1/4 464
Depth (Cast Surround) 17-1/2 445
NOTE: Clearances may only be reduced by means
approved by the regulatory authority
having jurisdiction
In Canada a full length 6 inch (152mm) S635 ue liner
required as per ULC S628.
In USA a minimum 5 ft length (1.82m), 6 inch (152mm)
diameter ue liner is required as per UL 1482.
To calculate mantel height requirement, multiply the
depth of the mantel by 0.78 inches then add 38.375
inches to the total.
NOTE: If trim measurement is over 3/4 in (19mm)
in depth use mantle or side clearances
to combustibles.
NOTE: Minimum opening dimensions include a 1/4 inch
(6mm) clearance around unit.
B. Clearances to Combustibles United States and Canada (UL and ULC)
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING

11July 30, 2019 7095-802B
EXPEDITION II INSERT
NOTE: Clearances may only be reduced by means
approved by the regulatory authority
having jurisdiction
0 to 4.5 inches from bottom of unit, thermal
protection required. R value of 2.9.
4.5 inches or more from bottom of
unit, ember protection only
required
NOTE: Hearth Rug may be used in Suggested Area
Figure 11.1
Material
Thermal Resistance: R value
The R value is a measure of a material’s resistance to
heat transfer.
R value is convenient when more than one material is used
since you can add the R values together, whereas you can
not do this for k value.
The HIGHER the R factor means less heat is being
conducted through the non-combustible material to the
combustible material beneath it.
The R value of a material must be equal or larger then the
required R value to be acceptable.
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING

12 July 30, 20197095-802B
EXPEDITION II INSERT
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 12.1
A. Locating Your Stove & Chimney
Location of the appliance and chimney will a󰀨ect performance. As shown in gure 12.1 the chimney should:
• Install through the warm space enclosed by the building envelope. This helps to produce more draft, especially during
lighting and die down of the re.
• Penetrate the highest part of the roof. This minimizes the a󰀨ects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid oor and ceiling attic joists and rafters.
• Locate termination cap away from trees, adjacent structures, uneven roof lines and other obstructions.
Your local dealer is the expert in your geographic area and can usually make suggestions or discover solutions that will
easily correct your ue problem.
4 Chimney Systems

13July 30, 2019 7095-802B
EXPEDITION II INSERT
Figure 13.1
Figure 13.2

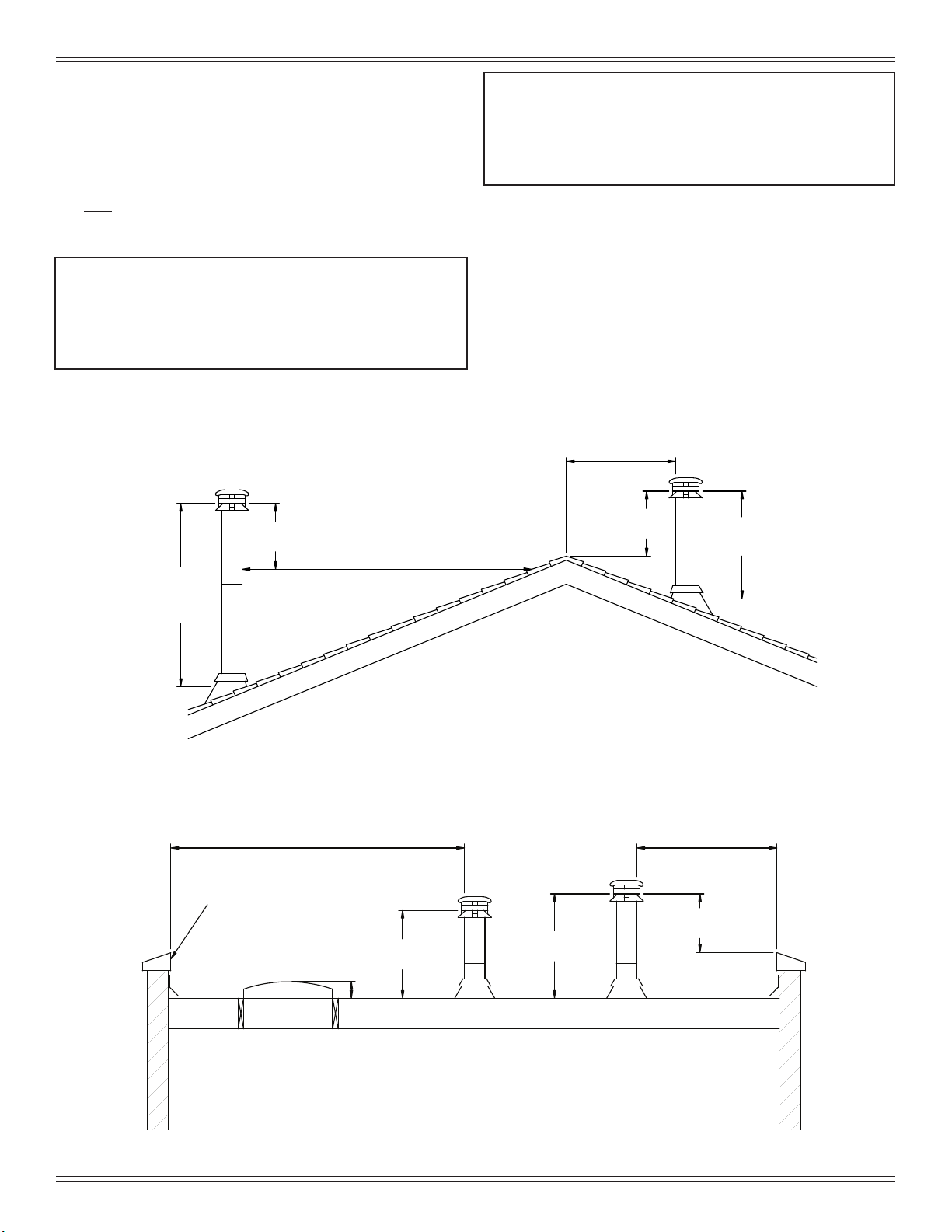

10 ft. (305cm) or more
3 ft. (91cm) Minimum
Less than 10 ft. (305cm)
2 ft. (61cm) Minimum
3 ft. (91cm) Minimum
Wall or Parapet
C. 2-10-3 Rule
These are safety requirements and are not meant to
assure proper ue draft.
This appliance is made with a 6 inch (152mm) diameter
chimney connector as the ue collar on the unit.
• Changing the diameter of the chimney can a󰀨ect draft
and cause poor performance.
• It is not recommended to use o󰀨sets and elbows at
altitudes above 4000 feet above sea level and or when
there are other factors that a󰀨ect ue draft.
3 ft (91 cm)
Minimum
Less than 10 ft (305 cm)
2 ft (61 cm) 3 ft (91 cm)
Minimum
10 ft (305 cm) To Nearest Roofline
2 ft (61 cm)
B. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, securing
ashing and terminating the chimney (Figure 13.1 & 13.2).
• Must have an approved and Listed cap
• Must not be located where it will become plugged by
snow or other material
• Must terminate at least 3 feet (91cm) above the roof
and at least 2 feet (61cm) above any portion of the roof
within 10 feet (305cm).
• Must be located away from trees or other structures
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions
a󰀨ect performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
NOTICE: Locating the appliance in a basement or in
a location of considerable air movement
can cause intermittent smoke spillage from
appliance. Do not locate appliance near
• Frequently open doors
• Central heat outlets or returns
Pitched Roof
Flat Roof

14 July 30, 20197095-802B
EXPEDITION II INSERT
D. Venting Systems
Chimney Connector:
It is also known as ue pipe or stove pipe. It must be
6 inches (152mm) minimum diameter stainless steel
connector pipe.
Chimney:
The chimney can be new or existing, masonry or
prefabricated and must meet the following minimum
requirements as specied below.
In Canada a full length 6 inch (152mm) S635 ue liner
required as per ULC S628.
In USA a minimum 5 ft length (1.82m), 6 inch (152mm)
diameter ue liner is required as per UL 1482.
Risk of Fire!
Follow venting manufacturer’s clearances and
instructions when installing venting system.
WARNING
E. Inspections
Existing chimneys should be inspected and cleaned by
a qualied professional prior to installation. The chimney
must not have cracks, loose mortar or other signs of
deterioration and blockage. Hearth & Home recommends
a NFI or CSIA certied professional or a technician, under
the direction of a certied professional, conduct a Level II
inspection per NFPA 211.
Fire Risk
Inspection of Chimney:
• Chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch
(152mm) UL103 HT.
WARNING
F. Chimney Height / Rise and Run
This product was designed for and tested on a 6 inch
(152mm) chimney, 14 to 16 feet (420-480cm) high,
(includes appliance height) measured from the base of the
appliance. The further your stack height or diameter varies
from this conguration, the greater the likelihood it may
a󰀨ect performance.
Chimney height may need to be increased by 2 - 3% per
each 1000 feet above sea level. It is not recommended
to use o󰀨sets or elbows at altitudes above 4000 feet
above sea level or when there are other factors that a󰀨ect
ue draft.
WARNING
Asphyxiation Risk.
• DO NOT CONNECT THIS Appliance
TO A CHIMNEY FLUE SERVICING
ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM.
May allow ue gases to enter the house.
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualied installer, service agency or
your dealer.
WARNING

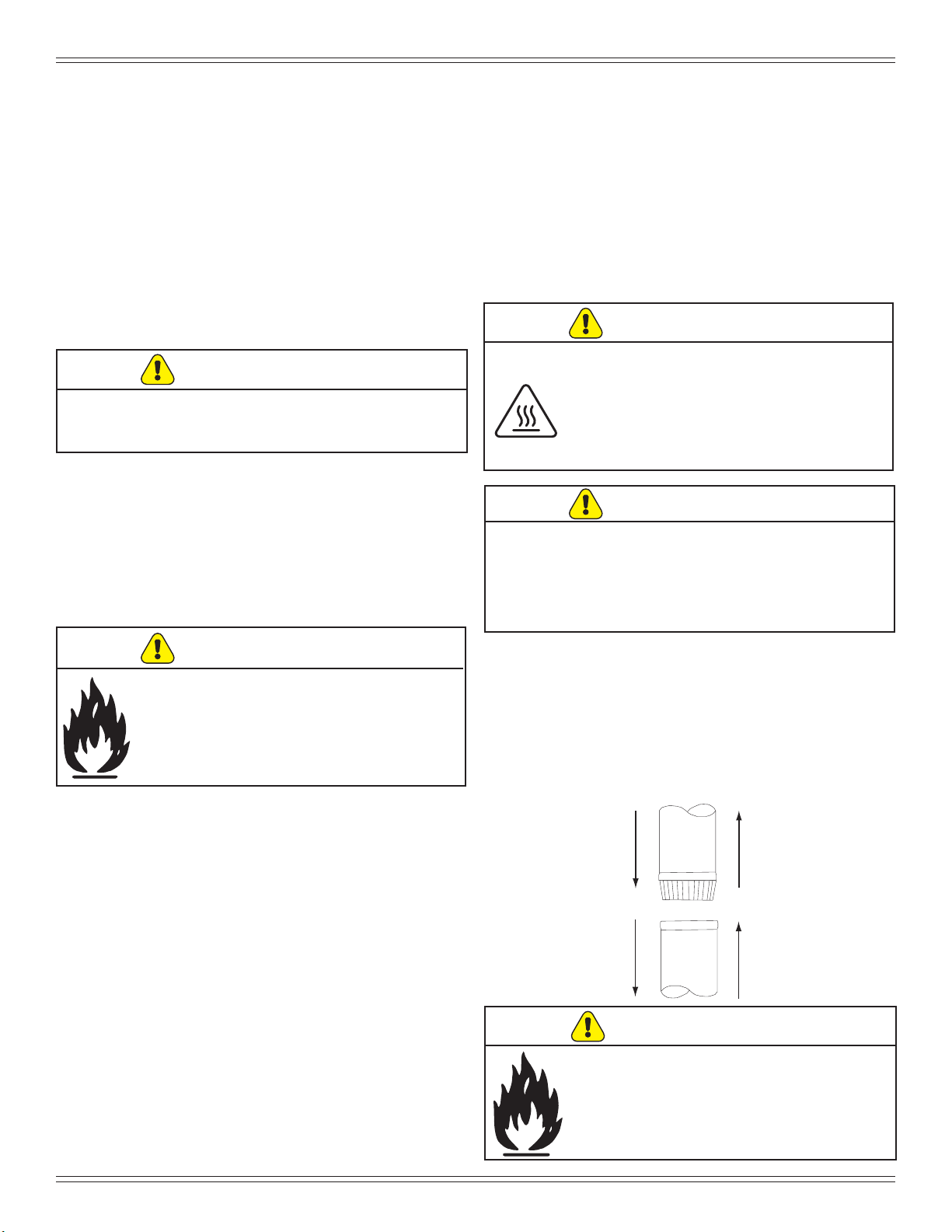

LINER CONNECTOR
FLUE
GAS
DIRECTION
CRIMPED
END
TOWARDS
STOVE
Figure 14.1
G. Securing Chimney Components
All joints should be secured with 3 sheet metal screws
or rivets per pipe manufacturers instructions. The
sections must be attached to the insert and to each other
with the crimped (male) end pointing toward the insert
(Figure 15.1).
WARNING
Fire Risk.
Follow venting manufacturer’s clearances
and instructions when installing
venting system.

15July 30, 2019 7095-802B
EXPEDITION II INSERT
• Must meet minimum standards of NFPA 211.
• Must have at least 5/8 inch (16mm) re clay lining
joined with refractory cement (Installations into a clay
ue without a stainless steel liner may reduce draw
which a󰀨ects performance, will cause the glass to
darken and produce excessive creosote).
• The masonry wall of the chimney, if brick or modular
block, must be a minimum of 4 inches (102mm)
nominal thickness.
• A chimney of rubble stone must be at least 12 inches
(305mm) thick.

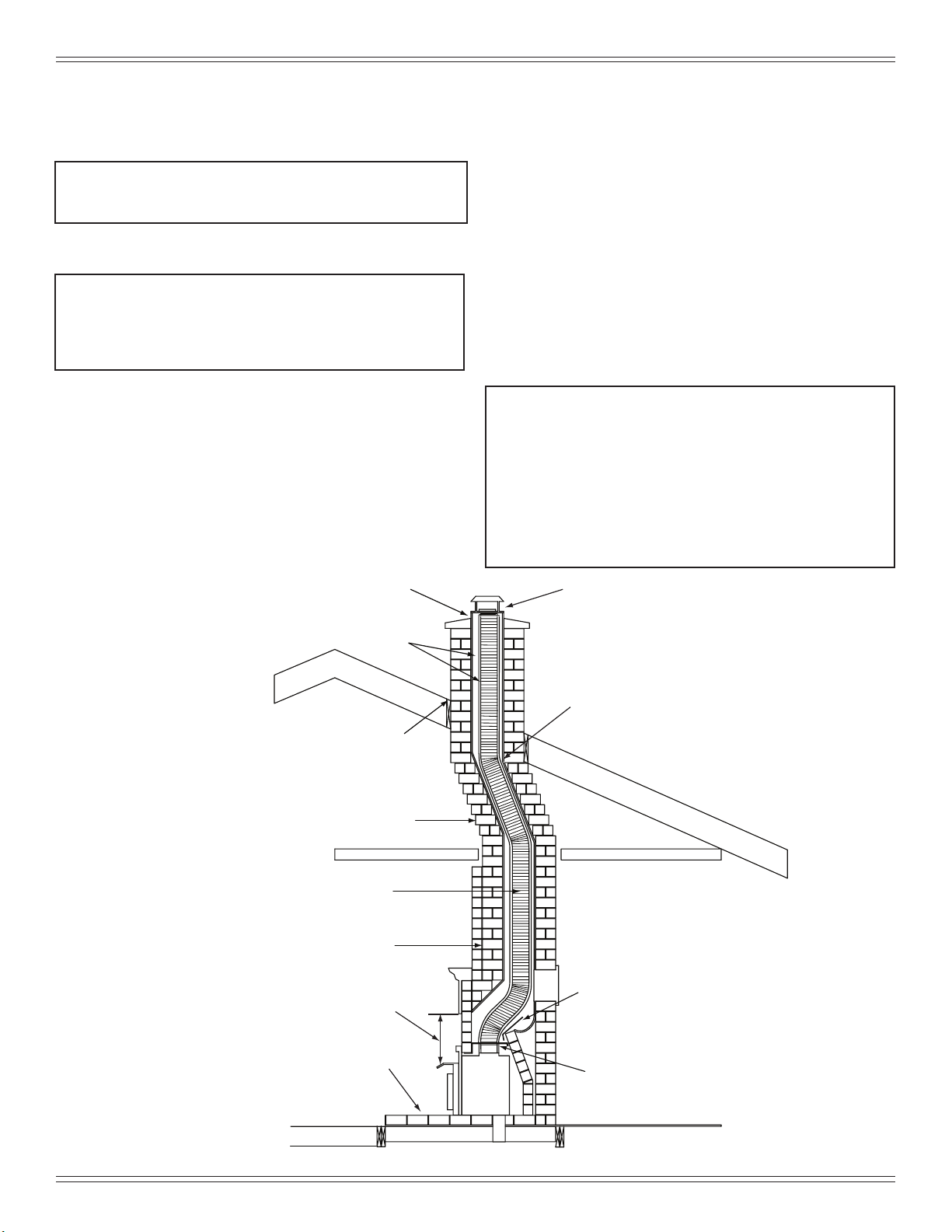

I. Masonry Chimney
UL 1777 Insulated Stainless Steel
Liner or Other Approved Lining System
Follow Manufacturer’s Instructions
on Insulation and Support
For Zero or Other Non-Code Clearances,
Follow Approved Liner Manufacturer’s Specific
Insulation Requirements: Different Clearances
May Require Different Specifications
Masonry Chimney Must
Have Structural Integrity
UL 1777 Insulated Stainless Steel
Liner or Other Approved Lining System
Minimum 8 in. (203mm) Masonry
Thickness in Front of Smoke Chamber
Damper Plate Removed or
Fastened in Open Position
Seal with Non-Combustible Material
Minimum Clearance in Accordance
with Insert Listing
Floor Protection in
Accordance with Insert
Listing
Follow Manufacturer’s
Instructions for Maximum
Liner Extension Above
Chimney
Maximum 30 Degrees
Offset in Chimney
Combustible Floor
This insert conforms with the UL 1482 and ULC S628
(Canada) in all respects, and is approved to UL &
ULC safety standards for installation and use within
a replace with a masonry chimney in accordance with
NFPA 211 and CAN/CSA-B365-01.
Figure 15.1
NOTE: In Canada, this replace insert must be
installed with a continuous chimney liner of a
6 inch (152mm) diameter extending from the
replace insert to the top of the chimney. The
chimney liner must conform to the Class 3
requirements of CAN/ULC-S635, Standard
for Lining Systems for Existing Masonry or
Factory-Built Chimneys and Vents, or CAN/
ULC-S640, Standard for Lining Systems for
New Masonry Chimneys.
Generic Insert Model Shown in Illustration
• Cross-sectional area shall conform to NFPA 211-2006
Section 12.4.5.1.
• Should be lined with a 6 inch (152mm) stainless
steel ue liner to improve performance and reduce
creosote build-up.
• An equivalent liner must be a listed chimney liner
system or other approved material.
• No dilution air is allowed to enter the chimney.
a. Secure the replace damper in the open position.
If this cannot be accomplished, it will be necessary
to remove the damper
b. Seal damper area of chimney around chimney
connector with a high temperature sealant or seal
insert against the face of the replace.
c. Both methods must be removable and replaceable
for cleaning and re-installation.
• When possible, install an airtight clean-out door to the
rear of the smoke shelf.
NOTICE: Check with your local building authorities
and/or consult the National Fire Protection
Association (NFPA 211).
H. Larger Chimneys
It is recommended that chimneys with larger diameters
than 6 inches (152mm) be relined. An oversized ue can
a󰀨ect draft and impair performance and will allow increased
build-up of creosote.

16 July 30, 20197095-802B
EXPEDITION II INSERT
J. Metal Heat Circulating Masonry
This insert conforms with the safety standard UL-1482 and
ULC S628 (Canada) in all respects and is approved to UL
& ULC safety standards for installation and use within a
replace with masonry chimney, in accordance with NFPA
211, with a direct ue collar connection.
K. Prefabricated Metal Chimney
The chimney can be new or existing, masonry
or prefabricated and must meet the following
minimum requirements:
• Must be minimum 6 inch (152mm) inside diameter
of high temperature chimney listed to UL 103 HT
(2100°F) or ULC S628.
• Must use components required by the manufacturer
for installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation
• This insert is listed to UL 1482 Standard and is
approved for installation into listed factory-built zero
clearance replaces listed to UL 127 conforming to the
following specications and instructions:
• The original factory-built clearance replace chimney
cap must be re-installed after installing the approved
chimney liner meeting type UL 103 HT requirements
(2100°F) per UL 1777.
• If the chimney is not listed as meeting HT
requirements, or if the factory built replace was
tested prior to 1998, a full height listed chimney liner
must be installed from the appliance ue collar to the
chimney top.
• The liner must be securely attached to the insert ue
collar and the chimney top.
• The air ow of the factory-built zero-clearance replace
system must not be altered. The ue liner top support
attachment must not reduce the air ow for the existing
air-cooled chimney system.
• No dilution air is allowed to enter the chimney.
a. Secure the replace damper in the open position. If
this cannot be accomplished, it will be necessary to
remove the damper
b. Seal damper area of chimney around chimney
connector with a high temperature sealant or seal
insert against the face of the replace.
c. Both methods must be removable and replaceable
for cleaning and re-installation.
Figure 16.1
Minimum 8” (203mm) Masonry Thickness
in Front of Smoke Chamber
Damper Plate Removed or
Fastened in Open Position
Seal with Non-
Combustible Material
Minimum Clearance in Accordance with
Insert Listing
Floor Protection in
Accordance with Insert
Listing
Combustible Floor
Airtight Insulated Clean-Out
Stainless Steel Chimney Connector
Must Extend to Flue Liner
Flue Liner with Required Air Space
Generic Insert Model Shown in Illustration
NOTICE: In Canada when using a factory-built
chimney it must be safety listed, Type
UL103 HT (2100°F) [1149°C] CLASS
“A” or conforming to CAN/ULC-S629M,
STANDARD FOR 650°C FACTORY-
BUILT CHIMNEYS.
NOTE: Refer to chimney liner manufacturer for
recommendations on supporting the liner.
Installation into replaces without a permit will
void the listing.
Fire Risk.
When lining air-cooled factory-built chimneys:
• Run chimney liner approved to UL 1777
Type HT requirements (2100°F)
• Re-install original factory built chimney
cap ONLY
• DO NOT block cooling air openings
in chimney
• Blocking cooling air will overheat
the chimney
WARNING
Minimum Opening Dimensions Inches Millimeters
AHeight 23-3/8 594
BFront Width 32 813
CBack Width 23-7/8 606
DDepth (Steel Surround) 18-1/4 464
Depth (Cast Surround) 17-1/2 445

17July 30, 2019 7095-802B
EXPEDITION II INSERT
The following modications of factory-built replaces
are permissible:
• The replace must not be altered. Cutting any sheet
metal parts of the replace in which the replace insert
is to be installed is prohibited per ANSI Z21.88 except
that the damper may be removed to accommodate a
direct-connect starter pipe or chimney liner,
• External trim pieces which do not a󰀨ect the operation
of the replace may be removed providing they can be
stored on or within the replace for reassembly if the
insert is removed.
• The permanent metal warning label provided in the
component pack must be attached to the back of the
replace, with screws or nails, stating that the replace
may have been altered to accommodate the insert,
and must be returned to original condition for use as a
conventional replace (Figure 17.1).
• If the hearth extension is lower than the replace
opening, the portion of the insert extending onto the
hearth must be supported.
• Manufacturer designed adjustable support kit can be
ordered from your dealer.
• Final approval of this installation type is contingent
upon the authority having jurisdiction.
M. Altering the Fireplace
L. Ovalizing Round Stainless Steel Liners
Ovalizing round stainless steel liners to accommodate the
liner passing through the damper region of a replace is an
allowable and acceptable practice.
Ensure that the ovalization is minimized to the extent
required to t through the damper.
The following parts may be removed:
Damper Smoke Shelf or Ba󰀪e
Ember Catches Fire Grate
Viewing Screen/Curtain Doors
250-2061
WARNING
THIS FIREPLACE MAY HAVE BEEN ALTERED
TO ACCOMMODATE AN INSERT. IT MUST BE
RETURNED TO ITS ORIGINAL CONDITION
BEFORE USE AS A SOLID FUEL BURNING
FIREPLACE. 250-2061
Heath & Home Technologies
250-2061
5.5 in. width x 2 in. height
NON. ANOD. ALUM BLACK LETTERS ON SILVER
with 1/8 in. holes on both sides.
Black letters
Figure 17.1
N. Zero-Clearance Fireplace
A permit may be required for installations, nal approval is
contingent of the authority having local jurisdiction. Consult
insurance carrier, local building, re o󰀩cials or authorities
having jurisdiction about restrictions, installation inspection,
and permits.
Inspect the existing replace and chimney for any damage
or aws such as burnouts, metal or refectory warping.
Inspection to a minimum of NFPA 211 Level II is
recommended. All repairs must be made prior to installing
an insert. The replace must be structurally sound and be
able to support the weight of the solid-fuel insert
The factory-built chimney must be listed per UL 127 or
ULC 610-M87 for all installations. Install thermal protection
per this appliance listing requirements.
A full height 6 inch diameter stainless steel full height listed
chimney liner must be installed meeting type HT (2100°F)
requirements per UL 1777 (USA) or ULC S635 with
“0” clearance to masonry (Canada). The full liner must
be attached to the insert ue collar and to the top of the
existing chimney.
The ue liner top support attachment must not reduce the
air ow for the existing air-cooled chimney system. Re-
install original factory-built chimney cap only; see section
on Prefabricated Metal Chimney on page 16.
To prevent room air passage to the chimney cavity of the
replace, seal either the damper area around the chimney
liner or the insert surround. Circulating air chamber (i.e. in a
steel replace liner or metal hearth circulatory) may not be
blocked. The air ow within and around the replace shall
not be altered, blocked by the installation of the insert. (i.e.
no louvers or cooling air inlet or outlet ports may be blocked
by the insert or the insert surround.
See Altering the Fireplace on page 17 for modications
allowed for factory-built replaces.
Asphyxiation Risk.
DO NOT connect this appliance to a chimney
ue servicing another appliance or to any air
distribution duct or system.
This may allow ue gases to enter
the house.
WARNING

18 July 30, 20197095-802B
EXPEDITION II INSERT
Figure 18.1
Figure 18.2
Termination
cap
Flex Adapter

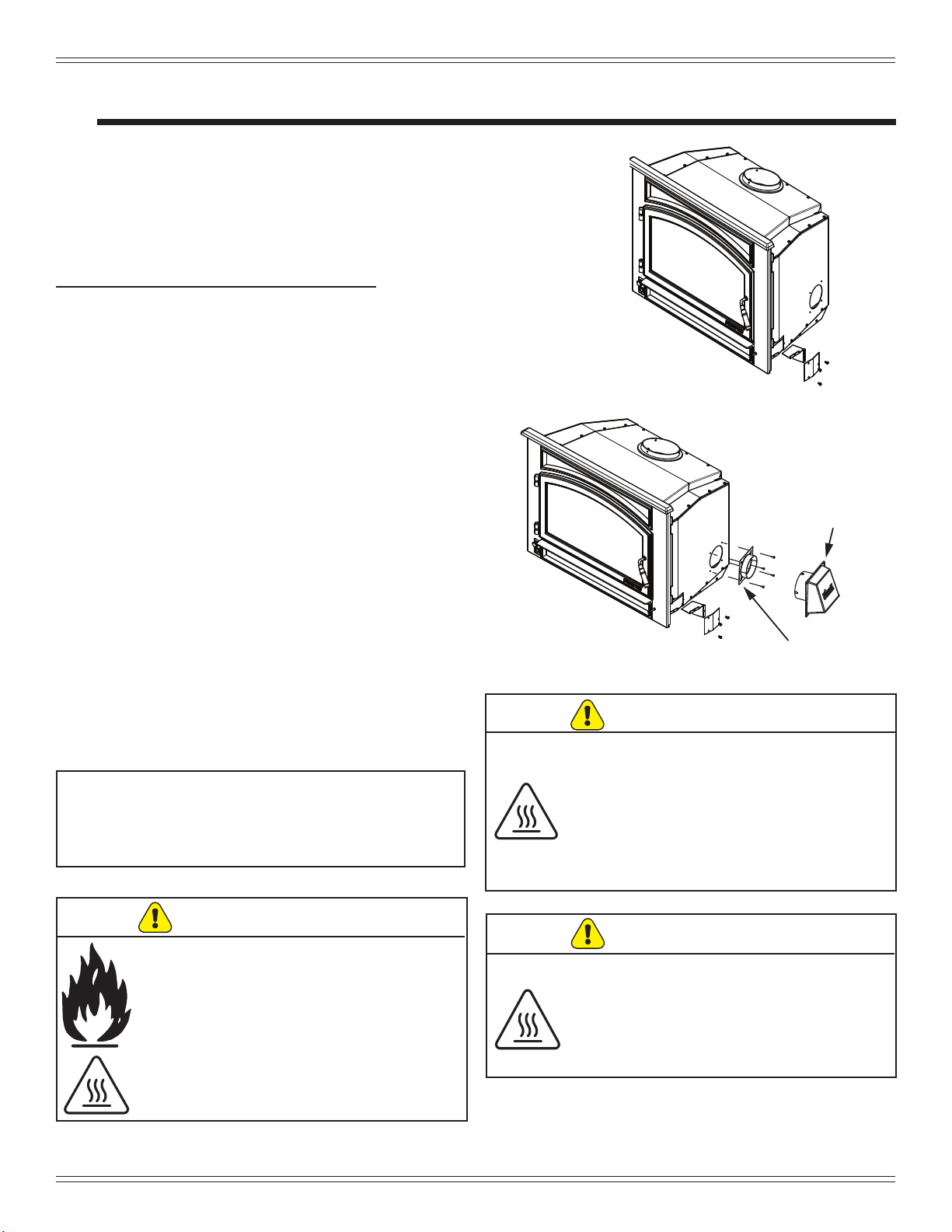

A. Outside Air Kit
A source of air (oxygen) is necessary in order for
combustion to take place. Whatever combustion air is
consumed by the re must be replaced. Air is replaced via
air leakage around windows and under doors. In homes
that have tightly sealed doors and windows, an outside air
source is needed. An optional Outside Air Kit is available.
Items Needed for Installation (not supplied)
• Needed for option two:
- 4 inch ex aluminum pipe, or if using alternate
material, then it shall be made from durable, non-
combustible, heat resistant material up to 350°F.
– Cut the pipe to the required length for your
installation.
• Needed for both options:
- Phillips head screw driver
- 5/32 Allen Wrench
- Silicone sealant
5 Appliance Set-Up
Option Two - Installation Instructions
1. Ensure existing access hole in replace is su󰀩cient to
feed the 4 inch ex.
2. After sliding can into replace, feed ex into cut
opening to obtain outside combustion air.
3. Level outer can and install appliance.
NOTE: Do not use plastic wire ties that come with the
kit as they will melt. You may need to install
the ex pipe into the rebox rst depending on
installation. Attach ex to adapter with at least
2 screws.
Option One - Installation Instructions
1. Ensure existing access hole in replace will not be
covered by the outer can. Existing outside air intake
hole may be under at the rear or side of outer can.
Outside air may also enter down existing chimney
chase in some situations.
2. Level outer can and install appliance. After installing
the appliance in the outer can, seal the replace
opening and trim package with insulation to prevent air
leakage into the room.
Fire Risk. Asphyxiation Risk.
Do not draw outside combustion air from:
• Wall, oor or ceiling cavity
• Enclosed space such as an attic
or garage
• Close proximity to exhaust vents
or chimneys
Fumes or odor may result
WARNING
Asphyxiation Risk.
Outside air inlet must be located to prevent
blockage from:
• Leaves
• Snow or ice
• Other debris
Block may cause combustion air starvation.
Smoke spillage may set o󰀨 alarms or irritate
sensitive individuals.
WARNING
Asphyxiation Risk.
Length of outside air supply duct shall NOT
exceed the length of the vertical height of the
exhaust ue.
• Fire will not burn properly
• Smoke spillage occurs when door is
opened due to air starvation.
WARNING

19July 30, 2019 7095-802B
EXPEDITION II INSERT
Flue Collar Stove Pipe/Liner
Gasket
Figure 19.1
Figure 19.2
B. Stove Pipe or Liner to Flue Collar
1. There are 4 already drilled holes in the ue collar 90
degrees apart. Attach the ue collar to the stove pipe/
liner. If the seal is questionable use high temperature
sealant such as stove mastic (Figure 19.1).
2. Attach gasket to bottom side of ue collar with a thin
coat of silicone.
C. Optional O󰀨set Adapter
Optional use of a Simpson Duravent 15° Universal Elbow
Part Number 4615 may be purchased directly through your
local Simpson Duravent Pipe Distributor or from your local
Quadra-Fire dealer, Part Number DV-6DLR-E15ADSS.
Figure 19.2 shows a vertical installations and also how to
create an optional 30° elbow installation.
The 15° elbow may be secured directly to the ue collar.
Follow the pipe manufacturer’s instructions for using
screws or rivets for attachment. Most pipe manufacturer’s 6
inch (152mm) diameter ue liners may be attached directly
to the top of the 15° elbow.
30 degree
30o
Vertical
5/16 Nuts
Attachment
Bar
5/16 Bolts
Figure 19.3
D. Appliance to Stove Pipe or Liner
1. Once you have the appliance in place and secured,
reach up through the ue opening and grab the
attachment bar and pull down inside ue opening
(Figure 19.3).
2. Insert the 5/16 bolts inside the cast ue and through
the chimney mounting bar. Securely tighten the nuts;
fasteners are provided.
3. Re-install the tube channel assembly, ba󰀪e board,
ceramic blanket and ba󰀪e protection channel.
NOTE: These are generic drawings and may not
represent your specic model.

20 July 30, 20197095-802B
EXPEDITION II INSERT

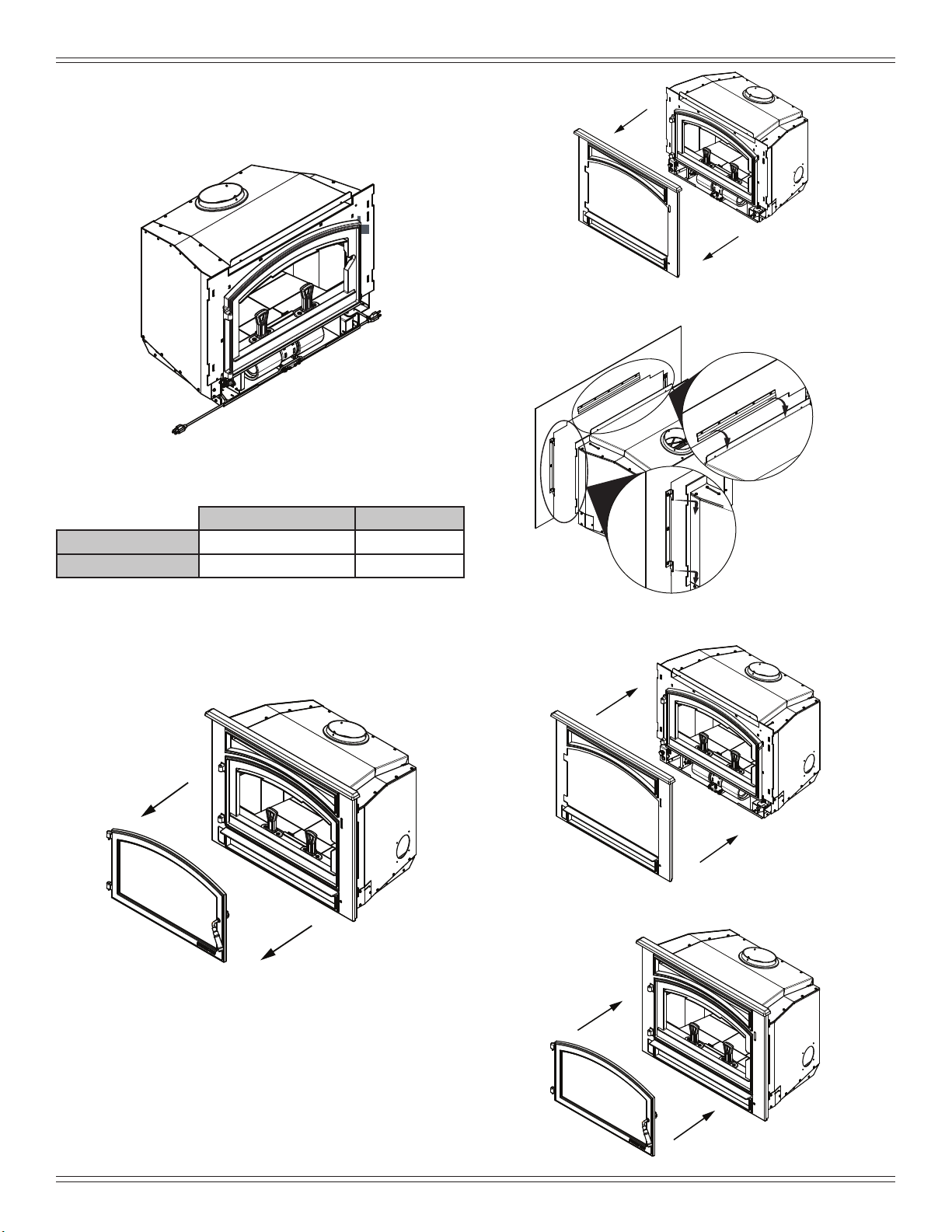

Figure 20.3
Figure 20.4
Figure 20.5
Figure 20.6
Figure 20.2
F. Flat Surround
Overall Dimensions Part Number
Standard Size 43” x 31” SP-4331
Large Size 51” x 34” SP-5134
1. Lay surround face down on a protected surface to
prevent scratching.
2. Remove door by unlatching handle from face and lifting
up on door, set aside by laying it onto a protective
surface (Figure 20.2).
Top: over lip on top of
Sides: through
cut outs on
sides and
then down
appliance
Figure 20.1
Table 20.1
The power cord is shipped assembled to the appliance.
You may route the power cord either to the left or right
side depending on your conguration for power source
(Figure 20.1).
E. Power Cord
3. Remove face by lifting up then out away from appliance
and set aside laying it onto a protective surface
(Figure 20.3).
4. Lift surround on to front of appliance (Figure 20.4).
5. Reinstall face to front of appliance (Figure 20.5).
6. Reinstall door to face of appliance (Figure 20.6).
