Quadra-Fire Village QV36D-A Assembly instructions

1
- Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
orany otherappliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
thefiredepartment.
- Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Model:
QV36D-A Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT A QUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
292-900E 4/03
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1.This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY,AFIRE OR
EXPLOSION MAY RESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. And foreign patents pending.
Printed in U.S.A. Copyright 2003 PleasecontactyourHearth&HomeTechnologiesdealer
withanyquestions orconcerns.Forthe numberofyour
nearest dealer, please call 1-800-234-2508
Quadra-Fire, a brand of Hearth & Home Technologies Inc.
1445 N. Hwy. 395, Colville, WA 99114

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide.NO OTHER vent systems or
components MAY BE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLY be
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
!

3
TABLE OF CONTENTS
Safety and Warning Information ............................................... 2
Service Parts Lists.................................................................... 4
Section 1: Approvals and Codes .............................................. 6
Appliance Certification ................................................................. 6
Installation Codes ........................................................................ 6
HighAltitude Installations.............................................................. 6
Section 2: Getting Started ........................................................ 7
Introducing the Quadra-Fire Gas Fireplaces ................................ 7
Pre-installation Preparation.......................................................... 7
Section 3: Installing the Fireplace ........................................... 9
Constructing the Fireplace Chase................................................ 9
Step1 Locating the Fireplace .................................................. 9
Step2 Framing the Fireplace................................................. 10
Step3 Installing the Vent System ........................................... 12
A. Vent System Approvals.......................................... 12
B. Installing Vent Components ................................... 19
C. VentTermination.................................................... 23
Step4 Positioning,Leveling, and
Securing the Fireplace................................................ 26
Step5 The Gas Control System ............................................ 26
Step6 The Gas Supply Line .................................................. 37
Step7 Gas Pressure Requirements...................................... 37
Step8 Wiring the Fireplace.................................................... 28
Step 9 Finishing ..................................................................... 29
Step10 Installing Trim, Logs, and Ember Material ................... 30
InstallingtheTrim........................................................ 30
Refractory Kit Placement ............................................. 30
Positioning the Logs ................................................... 31
Shutter Settings.......................................................... 31
Placing the Ember Material ......................................... 31
Glass Specifications .................................................... 31
Step11 LightingtheAppliance ................................................. 32
Step12 Before Lighting the Fireplace ...................................... 33
Step 13 Lighting the Fireplace.................................................. 33
Afterthe Installation.................................................................... 33
Section 4: Maintaining and Servicing Your Fireplace. ........ 34
Section 5: Troubleshooting. .................................................. 35
Limited Lifetime Warranty. ...................................................... 37







6
Appliance Certification
The fireplacemodel discussed in this Installers Guidehas
been tested to certification standards and listed by the
applicablelaboratories.
Certification
MODEL: QV36D-A
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSIZ21.88-2000•CSA2.33-M98•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes, thefireplaceinstallation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
theUnitedStates)or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
This model may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
Approvals and
Codes
HighAltitudeInstallations
U.L.Listedgasappliances are testedandapprovedwithout
requiringchanges for elevations from 0 to 2,000feet in the
U. S.A. and in Canada.
Wheninstalling this appliance at an elevation above2,000
feet, it may be necessary to decrease the input rating by
changingthe existing burnerorifice to asmaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000 and4500 feetin Canada. Ifthe heatingvalue
of the gas has been reduced, these rules do not apply.To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.


7
Getting Started
Introducing the Quadra-Fire Gas Fireplace
Quadra-Fire direct vent gas fireplaces are designed to op-
erate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
notedotherwise, applies to all modelsand gascontrol sys-
tems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-installation Preparation
Thisgas fireplace and itscomponents are tested and safe
when installed in accordance with this Installers Guide.
Reportto your dealerany parts damagedin shipment, par-
ticularly the condition of the glass. Do not install any unit
with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
The Hearth & Home Technologies Warranty will be voided
by, and Hearth & Home Technologies disclaims any
responsibility for, the following actions:
• Installation of any damaged fireplace or vent system
component.
• Modification of the fireplace or direct vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/or useof any component part notmanu-
facturedand approvedby Hearth &Home Technologies,
not withstanding any independent testing laboratory or
other party approval of such component part or acces-
sory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8
Figure 1. Diagram of the QV36D-A
41 1/8
[1044mm]
38
[965mm]
36 1/8
[916mm]
25 1/4
[642mm]
34 5/8
[879mm]
8 5/8
[219mm]
VENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[682mm]
12 3/4
[323mm]
3 1/2
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 1/4
[362mm]
8 5/8 [219mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]
TOP
STANDOFFS
HOOD
ELECTRICAL
ACCESS
GAS
CONTROLS
RATING
PLATE AND
LABELS
GAS
LINE
ACCESS -

9
Installing the Fireplace
Step 1. Locating the Fireplace
Thefollowing diagramshows space andclearance require-
ments for locating a fireplace within a room.
ABCD E
42” 22” 36” 51” 72”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................36..................... 914
Floor ....................................0........................ 0
Rear ................................... 1/2 ..................... 13
Sides ................................. 1/2 ..................... 13
SurroundSides* ..................0........................ 0
Top....................................3 1/2.................... 89
Ceiling**..............................31..................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1................. 25
Horizontal Sections
Top......................................3................. 75
Bottom................................1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top................................... 2 1/2.............63.7
Bottom.............................. 1/2 ............... 13
Sides ..................................1................. 25
* See Figure 3.
**The clearanceto theceilingismeasuredfromthetop
of the unit, excluding the standoffs (see Figure 38).
Thedistance fromthe unit tocombustible construction
is to be measured from the unit outer wrap surface to
thecombustibleconstruction,NOT fromthescrewheads
that secure the unit together.
For minimum clearances, see the direct vent termination
clearancediagrams (seeFigures 30and 31).
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimumclearance to a perpendicular wall
extendingpast the faceof thefireplace is oneinch (25mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gasfireplace and/orits vent system. Vertical ventsthat run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOPSPACERS AND
CONSTRUCTIONOFTHECHASEMAYVARYWITHTHE
TYPE OF BUILDING. THESE INSTRUCTIONSARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES.THEREFORE,YOURLOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-builtfireplace chasesshould beconstructed in the
manner of all outside walls of the home to prevent cold air
draftingproblems. The chase should notbreak the outside
buildingenvelope inany manner.
This means that the walls, ceiling, base plate and cantile-
ver floor of the chase should be insulated. Vapor and air
infiltration barriers should be installed in the chase as per
regional codes for the rest of the home. Additionally, we
recommend that the inside surfaces be sheetrocked and
taped for maximum air tightness.
Tofurther preventdrafts, the firestopsshould becaulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburningunits ifthey arerequired.
THECHASE SHOULD BECONSTRUCTEDSOTHATALL
CLEARANCES TO THE FIREPLACE ARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.

10
Framing should be
constructed of 2 X 4
lumber or heavier.
A. ............. 42”*
B. .........38 1/2”
C. ...............22”
D. ...............42”
E. .........27 7/8”
Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplaceframingcan bebuiltbefore orafterthe fireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshows framing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Shows
center of 12” x
12” vent framing
holes for top and rear
venting. The center of the
hole is one (1) inch (25.4mm)
above the center of the horizontal
vent pipe.
A
B
C
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
E D
WALL
STUD
3 1/2”
3 ”
Noncombustible zone is defined
by 3” above the elbow for the
entire width and depth (behind
the front header) of the firebox.


11
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm) AT EACH JOINT.
Figure 4.
D-Series Direct Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-48D
7 3/8”
(187mm)
6 5/32”
(156mm)
11 5/8”
(295mm)
8 5/8”
(220mm)
8 1/2”
(216mm)
6 7/16”
(164mm)
11 1/16”
(281mm) 6 1/2”
(165mm)
8 1/2”
(216mm)
5 1/16”
(129mm)
8 5/8”
(220mm)
35 3/4”
(908mm)
DV-12/17D
12-17
(305-432mm)
17-24
(432-610mm)
47 3/4”
(1.2m)
DV17/24D
DV-12DDV-09D
DV-06D
DV-45D
DV-90D
11 15/16”
(303mm)
5 7/8”
(149mm)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
SL-FLEX-10
SL-FLEX-5
SL-FLEX-3
SL-FLEX-2

12
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
This model is approved to use D-series direct vent pipe
components and terminations (see Figures 4 and 5). Ap-
provedvent system componentsare labeledfor identifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosedwall.There isnorequirement for inspectionopen-
ingsat each jointwithin the wall.There is no required pitch
for horizontalvent runs. NOOTHER VENTINGSYSTEMS
OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each
vent termination kit and should be used in conjunction
with this Installers Guide. The flame and ember appear-
ance may vary based on the type of fuel burned and the
venting configuration used.
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
andtables.Referto thediagramsonthe next severalpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Thismodel hasvent startingcollars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
Terminations Kits
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-TVCD
DVK-01TRD
DV-FLEX2-01TRF
DVK-SNKD DVK-01TRF*
* For use with flex vent only.

13
Figure 7.
Straight Up Vertical Venting
STRAIGHT UP
VERTICALVENTING
V (FT.)
40' MAX. (12.4 M)
Flue Restrictor Instructions
1. The flue restrictor plate is recommended for in-
stallations with 20 feet or more of vertical venting.
2. Remove refractory pieces. First remove grate
assembly and base pan. Then remove side and
rear refractory pieces.
3. Remove exhaust shield by removing screws on
rear of firebox (see Figure 8).
NOTE:Onverticalventing
configurations you may
wantto install the vertical
baffle (385-128).Seeflue
restrictor installation in-
structions.
CAP
V
Figure 8. Exhaust Shield
FLUE
RESTRICTOR
EXHAUST
SHIELD
Figure 6.
Flex Vent
The flex vent must be supported with the spacing between
supportintervals notexceeding 4feet, with no more than½
inch sag between supports.
A support is required at each change in venting direction,
and in any location where it is necessary to maintain the
necessaryclearanceto combustibles.Asimple“upand out”
installation(Figure6)requires only enoughsupporttomain-
tainthenecessary clearancetocombustibles. However,the
vent attachment point and the firestop location are consid-
ered to be supports.
3” CLEARANCE TERMINATION
CAP
FLEX-VENT
1”
CLEARANCE

14
HORIZONTALVENTING
KitNo. H Max. Run
DVK-01TRD 24" (610 mm)
Figure 11. Corner Installation
NOTE: This model is tested and approved to use
45° elbows in corner installations. However, 90°
elbows will result in better performance.
3. Match the amount of vertical you have in the sys-
tem with the chart to find the appropriate position
to set the Flue Restrictor.
1 2 3 4 5
SETTINGS
1 2 3 4 5
Figure 9
- CHART -
Vertical Top Vent
NG Top Vent LP Rear Vent NG Rear Vent LP
4' 1 1 1 1
8' 2 2 2 1
15' 2 3 2 2
20' 3 3 3 3
25' 3 3 3 3
30' 3 3 3 3
35' 3 3 3 3
40' 3 3 3 3
4. Center the Flue Restrictor on vent and secure in
place by using two self-tapping screws (see Fig-
ure 9).
5. Reinstall the Exhaust Shield.

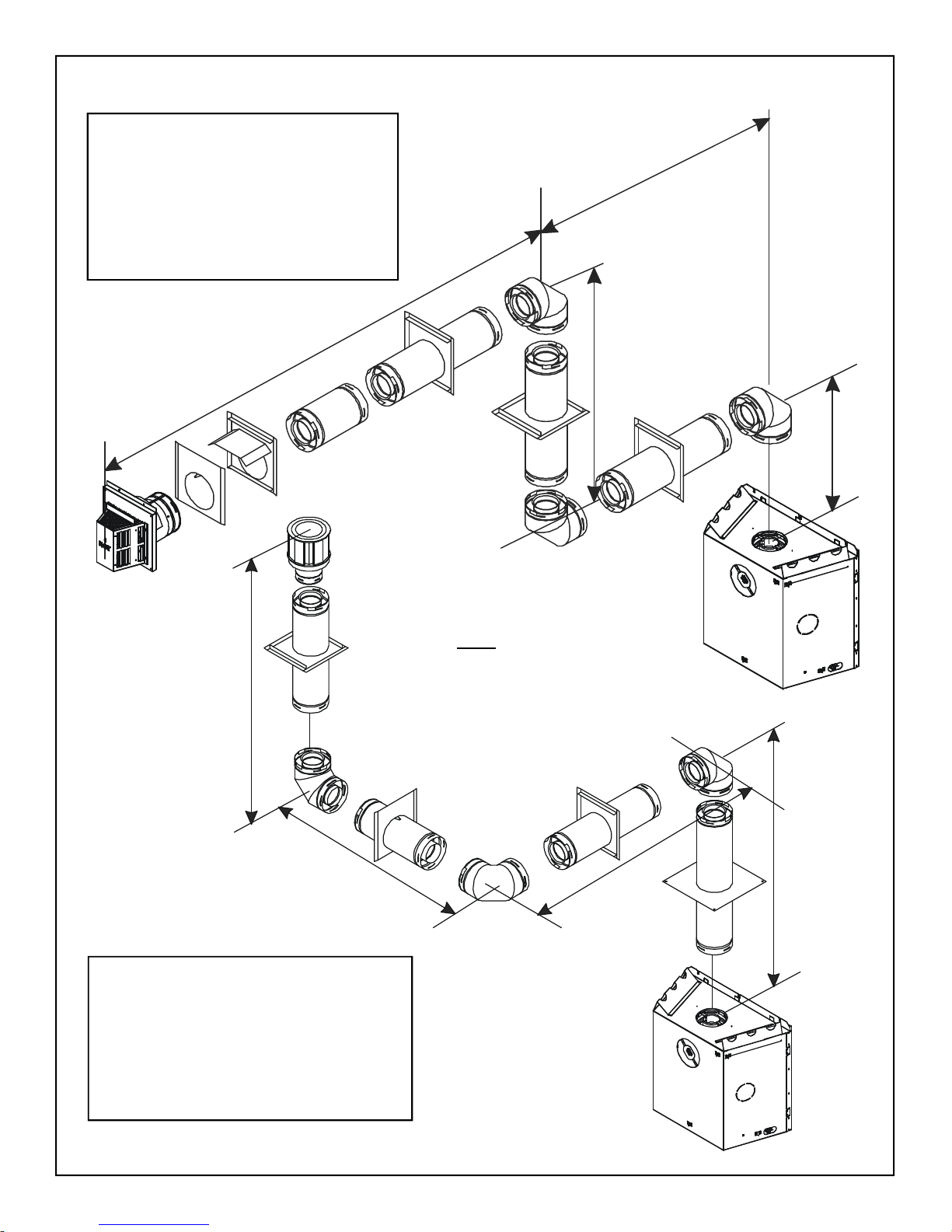

Figure 10. Horizontal Installation
90-DEGREE
ELBOWS
45-DEGREE
ELBOW
H

15
V H
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE: Onverticalventingconfigurationswhere
thevertical componentis over 10feet, youmay
wantto install the vertical baffle included inthe
manual bag assembly to improve flame
appearance.

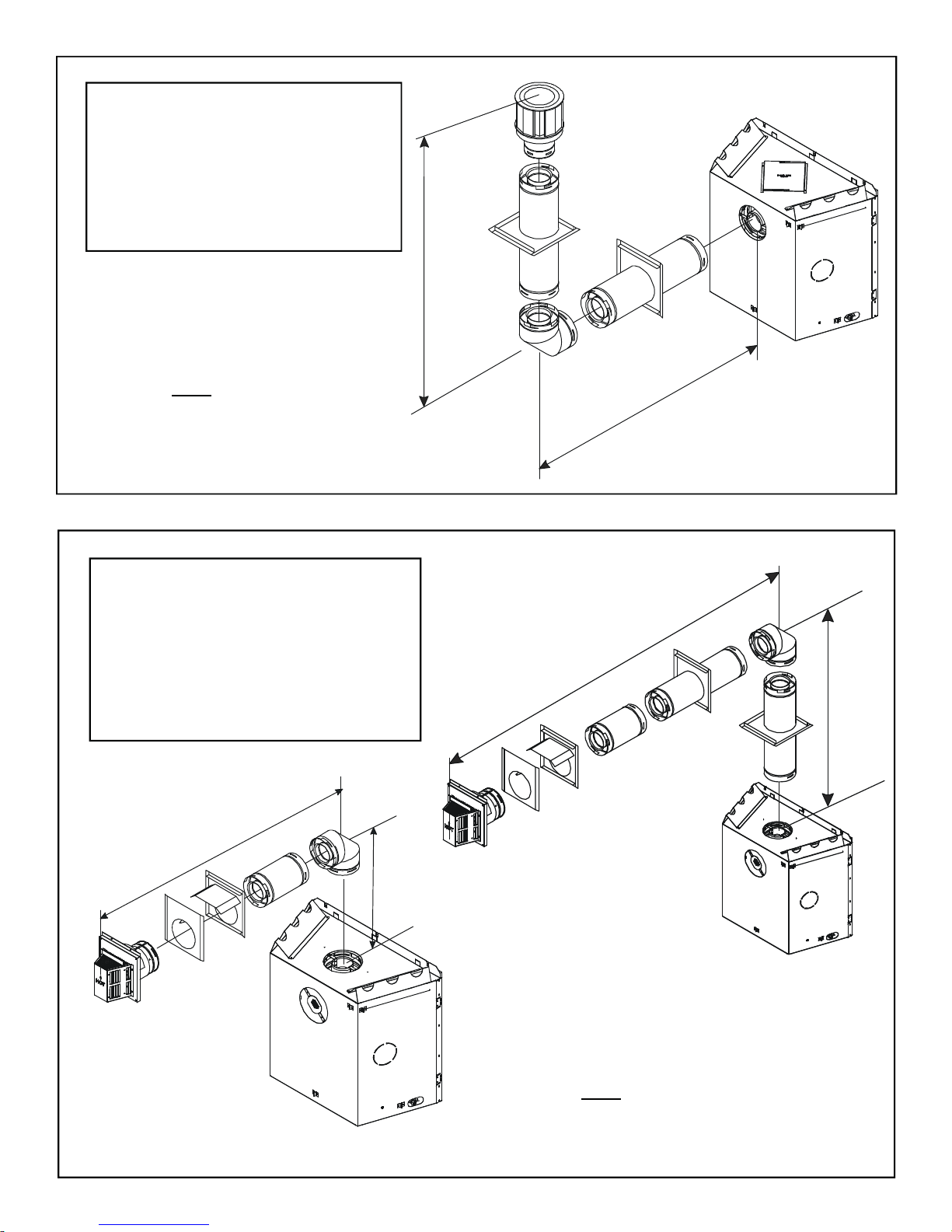

Figure 12. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX. (3.1m)
3' MIN. (914mm) 15'MAX. (4.65m)
4' MIN. (1.22m) 20'MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 13. Venting with One 90° Elbow
NOTE: If a 90oelbow is first
attached to the unit, the
maximum horizontal run is
3-feet(914mm).
NOTE: Forcorner installations:A6-inch (152mm)
section of straight pipe may need to be attached to
the fireplace before a 90oelbow, to allow the vent
pipe to clear the top standoffs.
H
V
H
V
H
V
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).

16

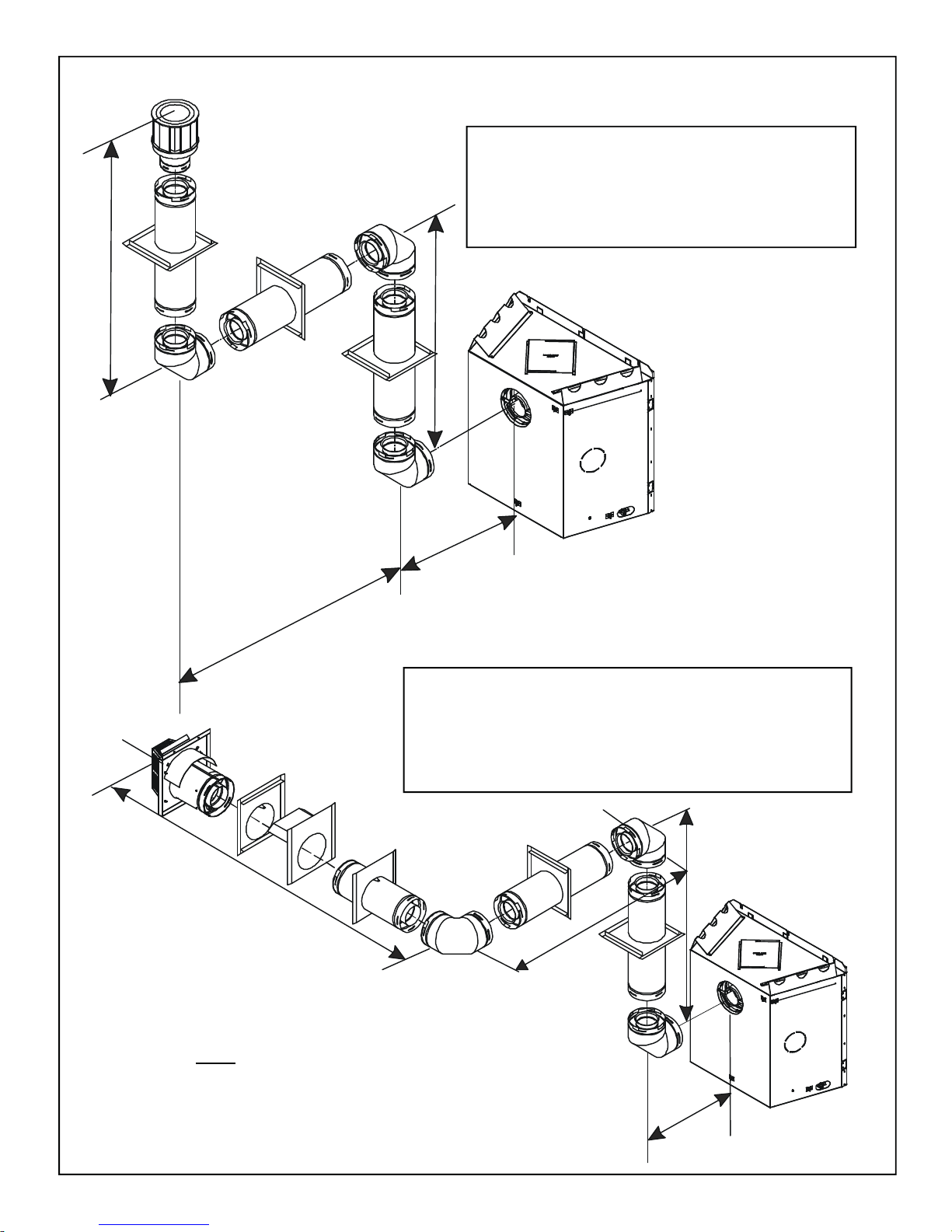

Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
VHH+H
1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´ MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´ MAX. (6.2m)
V+H+H 1 =40´MAX.(12.4 m) H= 8´MAX. (2.48m) H+H
1
=20´MAX.(6.2m)
Figure 15. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT. H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´MAX. (3.1m)
3' MIN. (914mm) 15´MAX. (4.65m)
4' MIN. (1.22m) 20´MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m)
H+H
1
=20´ MAX.(6.2m)
V+V1+H= 40' MAX.(12.4m)
H
V
H
1
V
V
1
H
H
1
H
V
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).
NOTE: ThereMUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).

17
Figure 16. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40 ´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)
V H H + H1+ H2
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V
1
+V+H+H
1
= 40 ´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
V H H + H1
H
1
V
1
H
V
H
1
V
H
2
H
1
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).

18
VENTINGWITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX.(3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20'MAX.(6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1+ H + H1= 40' MAX. (12.4m)
V (FT.) H + H1(FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10' MAX. (3.1m)
3' MIN. (914mm) 15' MAX. (4.65m)
4' MIN. (1.22m) 20' MAX. (6.2m)
H +H1= 20'MAX. (6.2m)
NOTE:V+V1+H+H1= 40' MAX.(12.4m)
Figure 17. Venting with three 90° elbows
H
1
V
1
V
H
H
1
V
1
H
V
NOTE: There MUST be a 25% reduction in total
H when using flex vent except when using the
simple up and out installation (see Figure 6).

19
Figure 18.
B. Installing Vent Components
After determining which set of starting collars will be used
(topor rear), followventing instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (see Figure 18).
Followthe vent configurationtables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING:THETOPHEATSHIELD(INSIDETHE
FIREBOX) MUST REMAIN ATTACHED IF THE
VENT SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 18.
Venting Out the Top Vent
Removethe two screwsin the topvent collar sealcap and
remove the top vent collar seal cap and the two pieces of
insulationinsidethetop two startingcollars(SeeFigure18).
Remove the heat shield from inside the TOP five inch flue
fromoutside of the firebox.
Youhave totakethe glassoffagain forpositioning thelogs
whentheunitis finallyinstalledinplace andfinishedaround
it. Re-install the glass door. Attach vent system to the top
starting collars.
WARNING: FAILURE TO REMOVE INSULA-
TION IN THE SET OF COLLARS YOU ARE US-
ING COULD CAUSE A FIRE.
WARNING: THE REAR VENT COLLAR SEAL
CAPMUST REMAINATTACHEDTOTHE REAR
VENTCOLLARS IFTHEVENT SYSTEMISATTACHED
TOTHE TOPSTARTING COLLARS. SEE FIGURE 18.
WARNING: YOU MUST LEAVE THE INSULA-
TIONIN PLACE IN THE SET OF COLLARS YOU
ARE NOT USING.
If your vertical vent component is over 10 feet, you may
want to install the included vertical baffle to improve flame
appearance.Vertical baffleis located inthe bag containing
theinstruction manual.Center thevertical baffle on the five
inch flue being used, and with self tapping screws secure
the baffle to the inside of the firebox.
!
!
!
!
1. Attach the First Vent Component to Starting Collars
To attach the first vent component to the starting collars
ofthe fireplace:
• Apply a 3/8 inch (9.5mm) bead of stove cement around
the 5 inch (127mm) fireplace starting collar.
• Make sure that the fiberglass gasket supplied with the
fireplacesealsbetween thefirst8-5/8 inch(219mm)vent
componentand theouter fireplace wrap.
• Lockthe vent components intoplace by slidingthe con-
centricpipe sectionswith four(4) equallyspaced interior
beadsinto the fireplacecollar or previouslyinstalled com-
ponentendwithfour(4)equallyspacedindentedsections.
• When the internal beads of each 8-5/8 inch (219mm)
outer pipe line up, rotate the pipe section clockwise
aboutone-quarter(1/4) turn.Thevent pipeis now locked
together.
• The first 90° elbow installed in the vent system of a
rear venting fireplace MUST BE ina verticalposition.
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
3/8”
(9.5mm)
Cut the seal cap
strapand remove white
gasketmaterial.
CUT
HERE
Venting Out Rear Venting Out Top
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Figure 19.
Attaching First Vent Component to Starting Collars

20
2. Continue Adding Vent Components
WARNING: INSTALLATION OF THIS FIRE-
PLACE REQUIRES THE USE OF A HEAT
SHIELD ABOVE THE FIRST 900ELBOW IN THE
VENTING SYSTEM.
Figure 20.
To Install the Heat Shield:
1. Determine if the heat shield is required. Do so by mea-
suring the vertical distance between the top horizontal
surfaceof the elbow toany combustible surface above.
If the distance is more than 4 inches, the heat shield is
NOT required. If it is 4 inches or less, the heat shield IS
REQUIRED.Installperthefollowingsteps.SeeFigure20.
!
• Continueaddingventcomponents,lockingeachsucceed-
ing component into place.
• Ensurethat each succeedingvent componentis secure-
ly fitted and locked into the preceding component in the
vent system.
• 90° elbows may be installed and rotated to any point
aroundthe precedingcomponent’s verticalaxis. If an el-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
Figure 21.
CORRECT INCORRECT
2. Fastenthe shield inplace using thepilot holes provided
in the part. The shield should be oriented such that the
13 1/8 inch dimension (longest dimension) is running in
thesame directiontheelbowispointing.Theshieldshould
becentered directly abovethe elbow, andpositioned so
that it creates a 1/2 inch airspace between the shield
and the combustible surface. See Figure 21.
Figure 23. Adding Venting Components
!
If the installation is for a termination cap attached directly
tothe fireplace, skip to thesections, Install Firestops and
Vent Termination.
!
WARNING: ENSURE THATTHEFIBERGLASS
GASKET SUPPLIED WITH THE FIREPLACE
SEALSBETWEEN THE FIRST VENT COMPONENT
ANDTHE OUTER FIREPLACEWRAP.
WARNING: A 3/8 INCH (9.5 MM) BEAD OF
STOVECEMENTMUSTBE PLACED AROUND
THE5 INCH (127 MM) FIREPLACESTARTING COL-
LAR BEFOREATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSETHE FIREPLACE TOOPERATEIMPROPER-
LY. SEE THE DIAGRAM .
Figure 22.
3”
(76mm)
SCREW

21
For Vertical Runs - The vent system must be supported
everyeight (8)feet (2.4m)above the fireplace flue outletby
wall brackets.
To install support brackets for vertical runs:
• Attach wall brackets to the vent pipe and secure the wall
bracket to the framing members with nails or screws.
Figure 24. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sidesof a combustible wall throughwhich thevent passes.
NOTE: Model DVK-01TRD does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass through
either interior or exterior walls:
• Cuta12-inchby 12-inch(305mmX305mm) holethrough
the wall.
NOTE: The center of the hole is one (1) inch (25.4mm)
above the center of the horizontal vent pipe.
• Position the firestops on both sides of the hole previ-
ously cut and secure the firestops with nails or screws.
• The heat shields of the firestops MUST BE placed to-
wards the top of the hole.
• Continuethe vent run through the firestops.

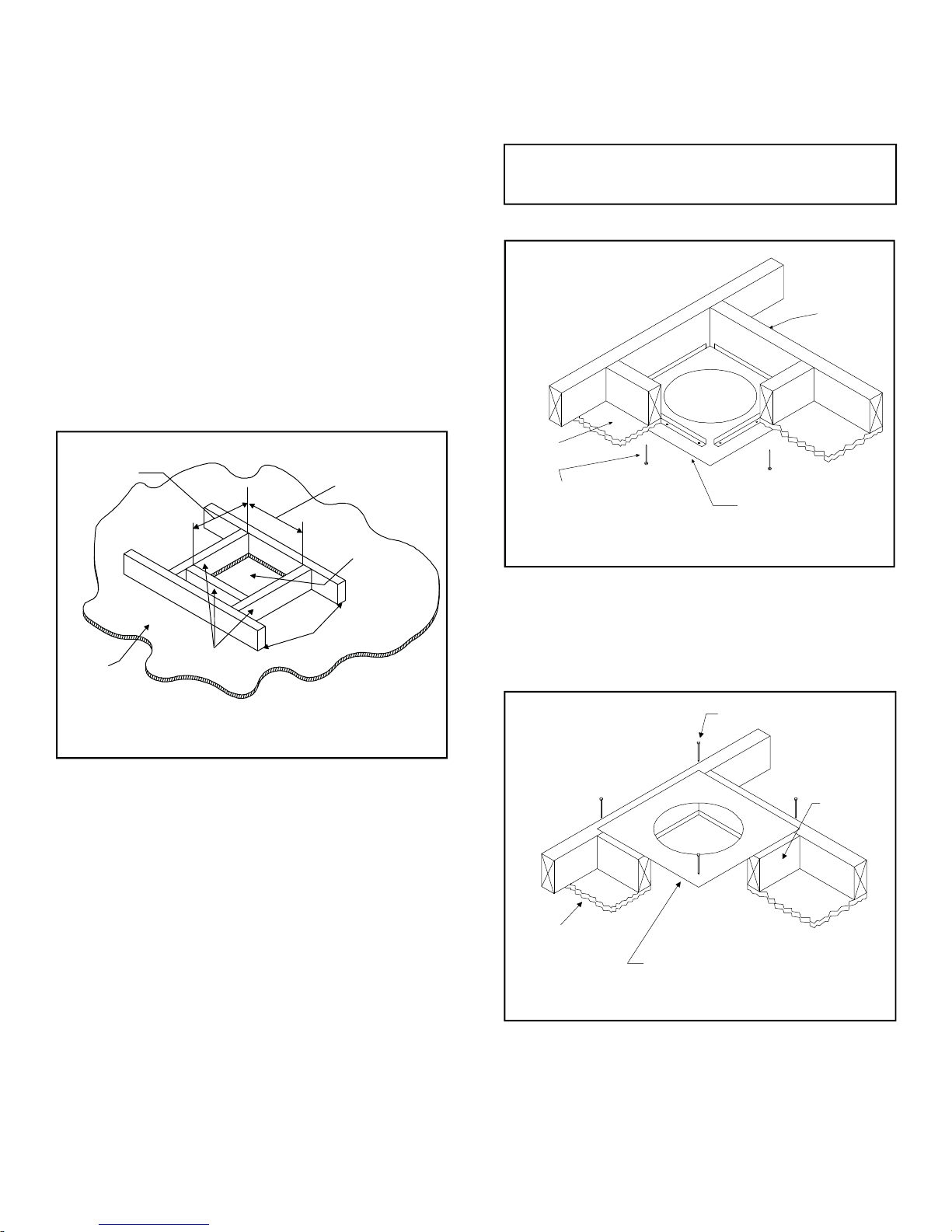

Figure 25. 12" x 12" Hole and Vent Pipe
Figure 26. Heat Shield, Interior & Exterior Firestops
V
ENT PIPE
1" (25.4 mm)
12"
(305mm)
12"
(305mm)
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.

22
For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
Toinstallfirestopsforverticalruns thatpassthroughceilings:
• Positiona plumb bob directly over the centerof the verti-
calvent component.
• Mark the ceiling to establish the centerpoint of the vent.
• Drill a hole or drive a nail through this centerpoint.
• Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
• Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
• Cutan11-inchX11-inch (280mm X280mm)hole through
the ceiling, using the centerpoint previously marked.
• Framethe hole with framing lumberthe samesize as the
ceiling joists.
Figure 28. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
securetheceilingfirestoponthe ceilingsideofthepreviously
cut and framed hole.
Figure 27. 11" x 11" Hole & New Framing Members
Ifthe area above the ceilingIS an attic,position andsecure
the firestop on top of the previously framed hole.
NOTE: Keep insulation away from the vent pipe at least
1 inch (25mm).
Figure 29. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
11" (280 mm) 11" (280mm)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
