Quadra-Fire SANTAFE-B1 User manual

R
www.quadrafire.com 7001-142C November 2, 2005
SANTA FE PELLET STOVE
Owner’s Manual
Installation and Operation
SANTAFE-B1
Model:
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
• Do NOT operate with protective barriers open or
removed.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot
during operation and cool down.
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual with
party responsible for use
and operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
DO NOT
DISCARD
WARNING
Please read this entire manual
before installation and use of this
pellet fuel-burning room heater.
Failure to follow these instructions
could result in property damage,
bodily injury or even death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• Do not overfire - If any external part starts to
glow, you are overfiring. Reduce feed rate.
Overfiring will void your warranty.
• Comply with all minimum clearances to com-
bustibles as specified. Failure to comply may
cause house fire.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, fire officials or authorities having
jurisdiction about restrictions, installation inspection,
and permits.
CAUTION
Tested and approved for wood pellets and shelled
field corn fuel only. Burning of any other type of fuel
voids your warranty.
CAUTION
Tested and
Listed by
Beaverton
Oregon USA
OMNI- Test Laboratories, Inc .
C

Page 2 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
Hearth & Home Technologies welcomes you to our tradi-
tion of excellence! In choosing a Quadra-Fire appliance,
you have our assurance of commitment to quality, durabil-
ity, and performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum operation of
our stoves, inserts and fireplaces. And yet we are old-
fashioned when it comes to craftsmanship. Each unit is
meticulously fabricated and gold and nickel surfaces are
hand-finished for lasting beauty and enjoyment. Our pledge
to quality is completed as each model undergoes a quality
control inspection. From design, to fabrication, to shipping:
Our guarantee of quality is more than a word, it’s Quadra-
Fire tradition, and we proudly back this tradition with a Lim-
ited Lifetime Warranty.
We wish you and your family many years of enjoyment in the
warmth and comfort of your hearth appliance. Thank you for
choosing Quadra-Fire.
With warm regards,
___________________________
Dave Fiebelkorn
Materials Manager
___________________________
Alan Trusler
SeniorVice President
Dealer Channel
___________________________
Dan Henry
Vice President
AdvancedTechnologies
_________________________
Jason Olmstead
Vice President &
General Manager
___________________________
Quadra-Fire Brand Manager
Steve Tate
SAMPLE: CLEARANCE TO COMBUSTIBLES LABEL
LOCATION: Back side of left side panel.
Listed Solid Fuel Room Heater/Pellet Type Insert.
Also suitable for Mobile Home
Installation. This appliance has been tested and listed for use in Manufactured Homes
in accordance with OAR 814-23-9000 through 814-23-909.
Tested to: ASTM E1509, ORD-C-1482-M199 0 Room Heating Pellet Burning Type,
APFI, (UM) 84-HUD FOR USE
ONLY WITH PELLETIZED WOOD OR SHELLED FIELD CORN
FUEL.
Input Rating: 30,000 Btu's/hr
Electrical Rating:
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 AMPS .
Route power cord away from unit. Do not route cord under or in front of appliance.
DANGER:
Risk of electrical shock. Disconnect power supply before servicing. Replace
glass only with 5mm ceramic available from your dealer. To start, set thermostat above
room temperature, the stove will light automaticall y. To shutdown, set thermostat to below
room temperature. For further instruction refer to owner's manual.
Keep viewing and ash removal doors tightly closed during operation.
U.S. ENVIRONMENTAL PROTECTION AGENCY
This model is exempt from EPA certification under 40 CFR 60.531 by definition [Wood Heater (A) "Air-to-Fuel Ratio"].
2005 2006 2007 JAN FEB MAR APR MAY JUNE JU LY AUG SEPT OCT NOV DEC
7001-143
DO NOT REMOVE THIS LABEL / NEPAS ENLEVER L'ÉTIQUETTE
Made in U.S.A./Fait Aux États-Unis
CAUTION
:
HOT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN, CLOTHING AND
FURNITUREAWAY. CONTACT MAY CAUSESKIN BURNS. SEE NAMEPLATE AND INSTRUCTIONS.
Operatethis unit with fuel hopperlid closed.Failureto do so may result in emissionsproducts'combustionfrom the
hopper under certain conditions. Maintain hopper seal in good condition. Do no over fill the hopper.
ATTENTION:
CHAUD LORS DE L'OPÉRATION. NE PAS TOUCHER. GARDEZ LES ENFANTS ET LES VÊTEMENTSLOIN
DE L'ESPACE DÉSIGNÉDE L'INSTALLATION. LE CONTACT PEUT CAUSERDES BRÛLURESÀ LA PEAU. VOIR L'ÉTIQUETTE
ET LES INSTRUCTIONS.
Opérez cet appareil avec le couverclede la trémie fermé. Le défaut de ne pas suivre les instructionspeut résulter,
sous certaines conditions, en une combustion des émissions des produits venant de la trémie. Ne pas remplir la trémie trop pleine.
Testé à: ASTM E1509-95, ORD-C 1482-M1990 Room Heating. Pellet Burning Type, APFI, (UM)
84-HUD POUR USAGE AVEC LES BOULETTES DE BOIS OU DE COMBUSTIBLE DE MAIS ÉCOSSÉ
DES CHAMPS.
Puissance de Rendement: 30,000 Btu's/hr
Puissance Électrique: 115 VAC, 60 Hz, Début 4.1 Amps, Courir 1.1 Amps,
Éloignez le fil électrique de l'appareil. Ne pas faire passer le fil électrique au dessus ou en dessous de l'appareil.
DANGER: Il y a risque de décharge électrique. Déconnectez le fil électrique de la prise de contact avant le
service.
Remplacez la vitre seulement avec une vitre céramique de 5 mm disponible chez votre fournisseu r.
Pour allumer, monter la température du thermostat au dessus de la température de la pièce, le poêle s'allumera
automatiquement. Pour éteindre, descendre la température du thermostat en dessous de la température de la
pièce. Pour des instructions supplémentaires, référez vous au manuel du propriétaire. Gardez la porte
d'ouverture et la porte des cendres fermées hermétiquement durant l'opération.
Appareil de chauffage inséré de combustible solide/de type de boulettes. Accepté dans l'installation
dans les maisons mobiles. Cet appareil a été testé et enregistré pour l'usage dans les Maisons
Mobiles en accord avec OAR 814-23-9000 jusqu'à 814-23-909.
1445 Highway North
Colville, WA 99 114
Manufactured by:Fabriqué par :
Listed by Beaverton
Oregon USA
OMNI-Test Laboratories, Inc.
C
R
Santa Fe Pellet Stove
Report /Rapport
061-S-53-2
SERIAL NO.
/
NUMÉRO DU
If Cas t Base is installe d (Part 811-0840 ) use a noncombustibl e floor
protecto r, extendin g beneat h heate r and to the front/sides/rea r as
indicated. Measure front distance (I) from the surface of the glass door. If
Cast Base is not installed, the non-combustible floor protector must be 1/4"
(6.4mm) minimum thickness ("k" value = 0.84).
G = 2"/51mm
H* = 2"/51mm
I = 6"/152mm
FLOOR PROTECTION / PROTECTION DU SOL
G
I
*H
G
*
Non-combustible floor protection must extend beneath the flue pipe when
installed with horizontal venting or under the Top Vent Adapter with vertical
installation. RECOMMENDED IN USA; REQUIRED IN CANADA
Installezet utilizeretayagedu fonte (Pièce811-0840),le poêledoit être placésur une assisenon
combustibles’étendanttout autourde lui, commeles schémasl’indiquent. Mesurezla distancedu
devant (I) de la surface de la porte vitrée.
Ne pasinstallezétayagedufonte le protecteurde plancherdoitêtred'unminimumde 1/4"(6.4mm)
d'épaisseur, ('k" value = 0.84) de matériel incombustible ou équivalent.
*Un protecteur incombustiblede plancherdoit s'étendre sous le conduitde cheminée
pour une installation de ventilation horizontale ou sous un adapteur de ventilation de
dessus pour une installation verticale. ÉTATS-UNIS-RE COMMANDÉ ; CANAD A -
REQUIRENT.
www.quadrafire.co m
007
Manufactured
Date
Serial Number
Model Name
Test Lab &
Report No.

R
R
R
November 2, 2005 7001-142C Page 3
Santa Fe Pellet Stove
Section 1: Listing and Code Approvals
A. Appliance Certifications ......................4
B. Mobile Home Approved ......................4
C. Glass Specifications ............................4
D. Electrical Rating ..................................4
E. BTU & Efficiency Specifications ..........4
Section 2: Getting Started
A. Design, Installation & Location
Considerations ....................................5
B. Fire Safety ..........................................5
C. Tools & Supplies Needed ...................6
D. Measuring Standards .........................6
E. Inspect Appliance & Components
and Pre-Use Check List ......................6
Section 3: Dimensions & Clearances

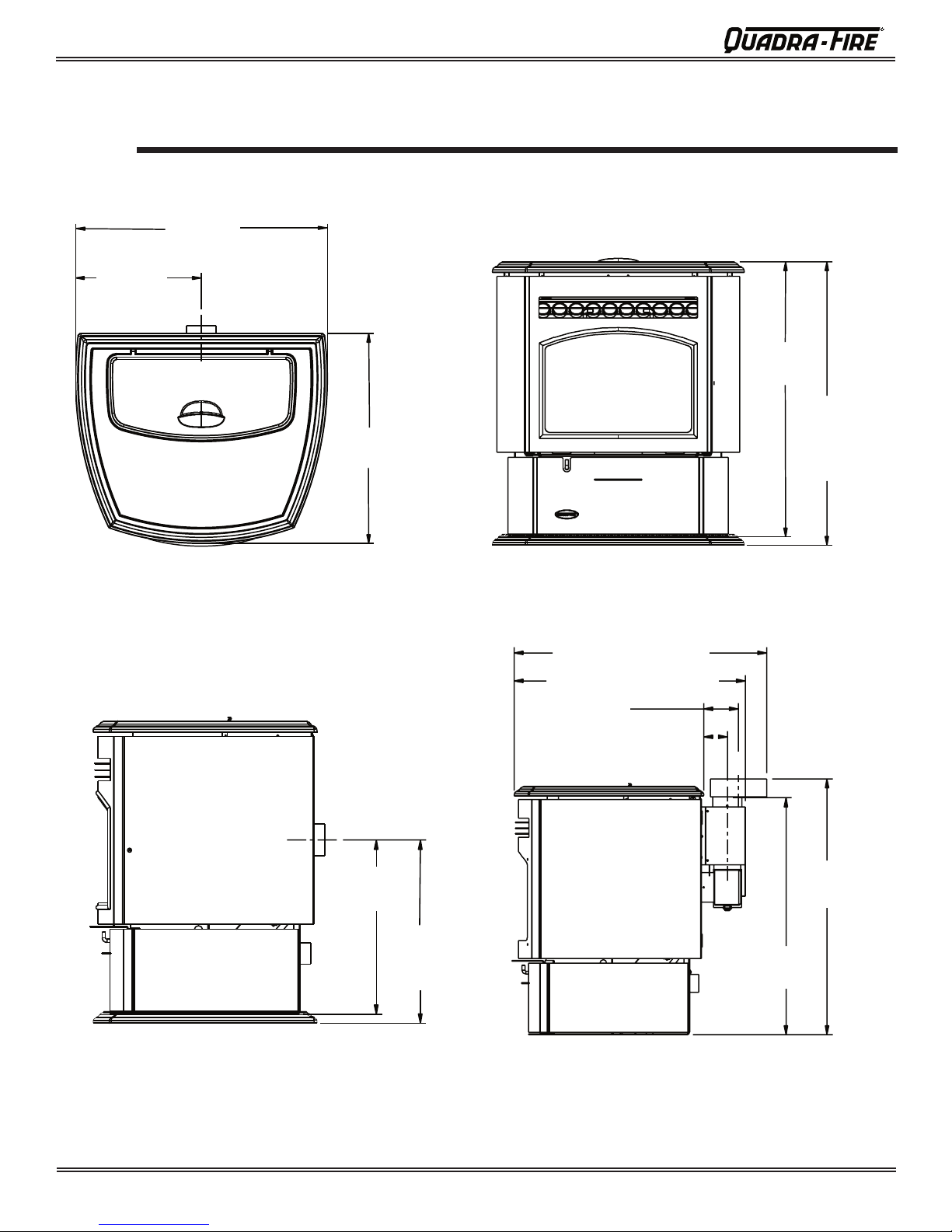

A. Appliance Dimensions ........................7

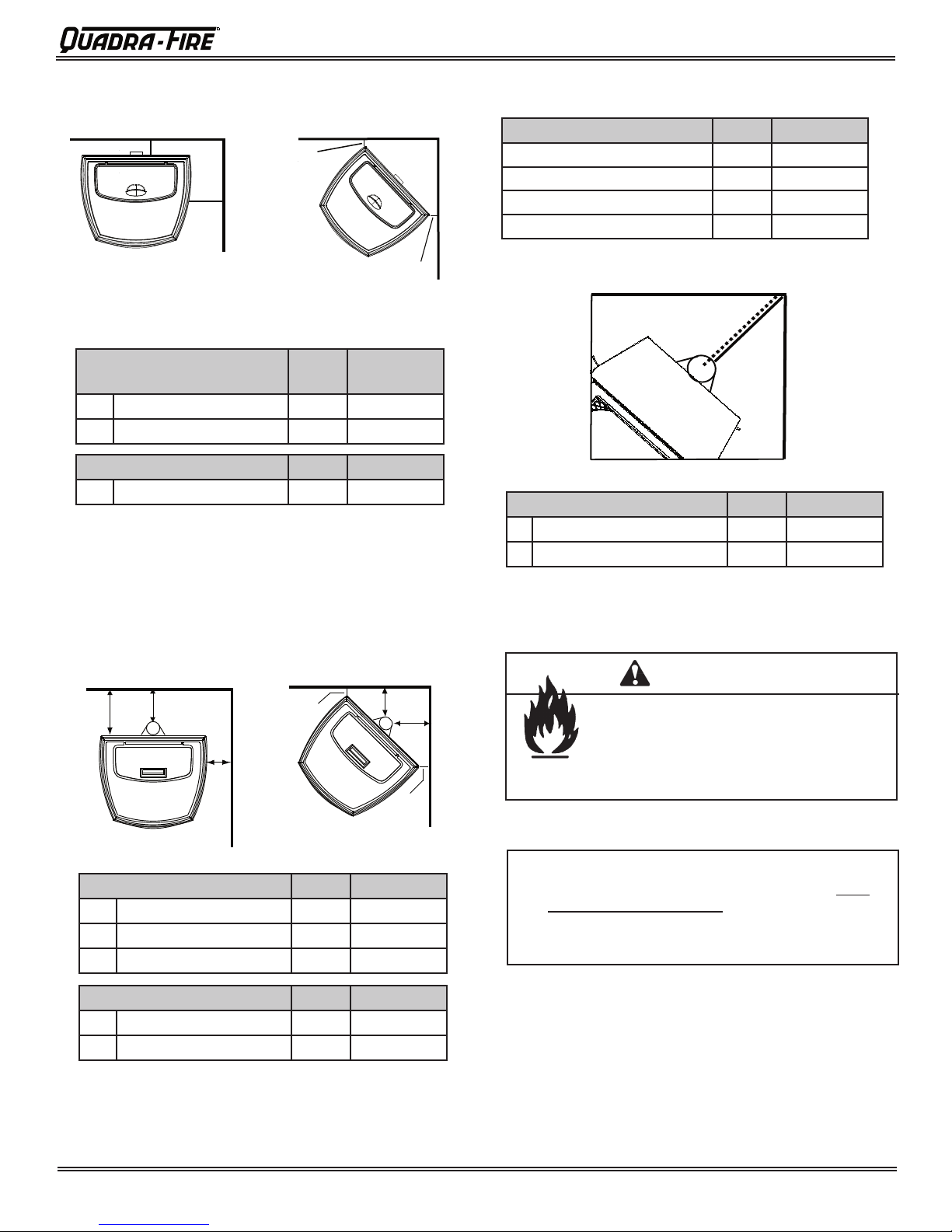

B. Clearances to Combustibles ...............8
C. Hearth Requirements .........................9
Section 4: Vent Information
A. Chimney & Exhaust Connection .........10
B. Venting Termination Requirements ....10

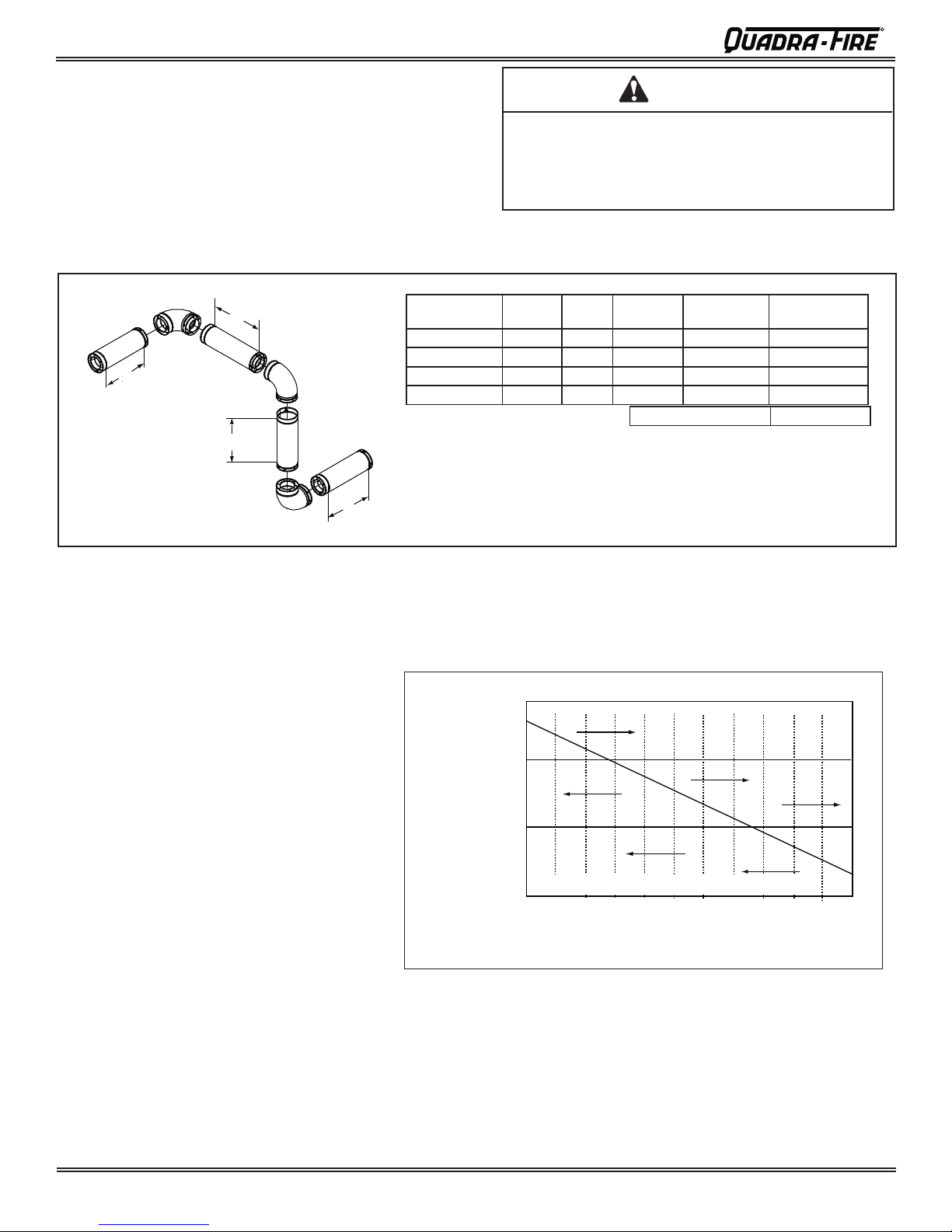

C. Equivalent Feet of Pipe .......................11
D. Pipe Selection Chart ............................11
Section 5: Venting Systems

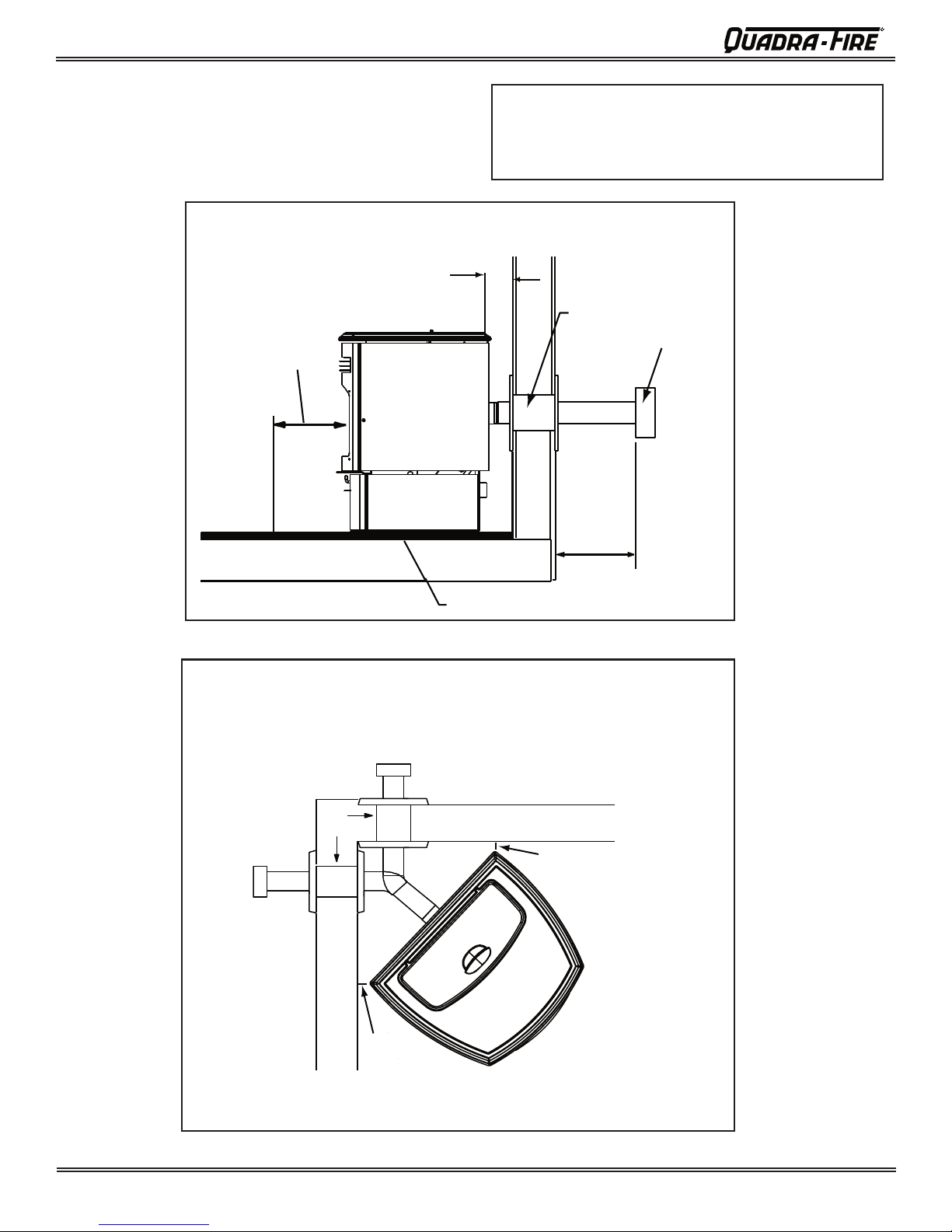

A. Alcove .................................................12
B. Through the Wall .................................13

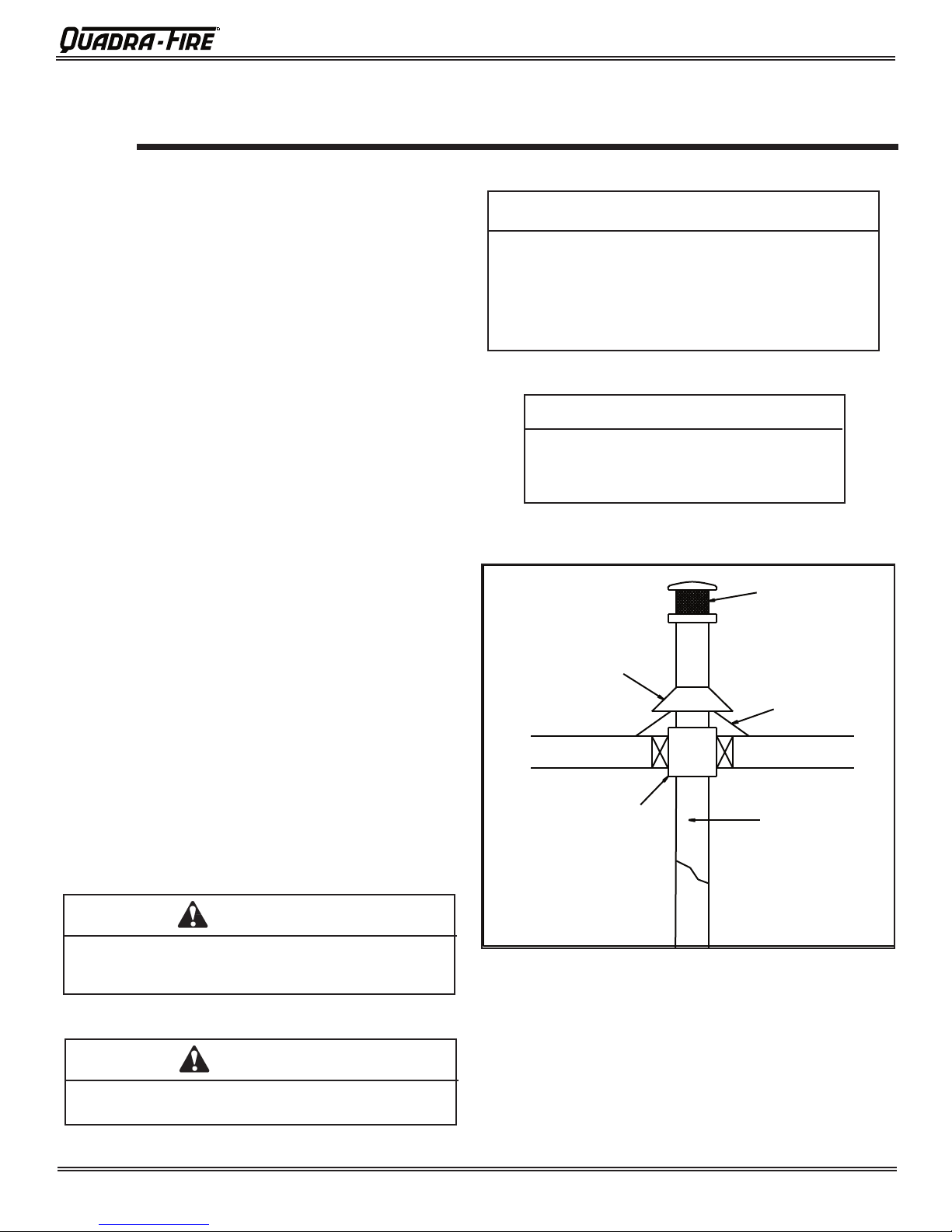

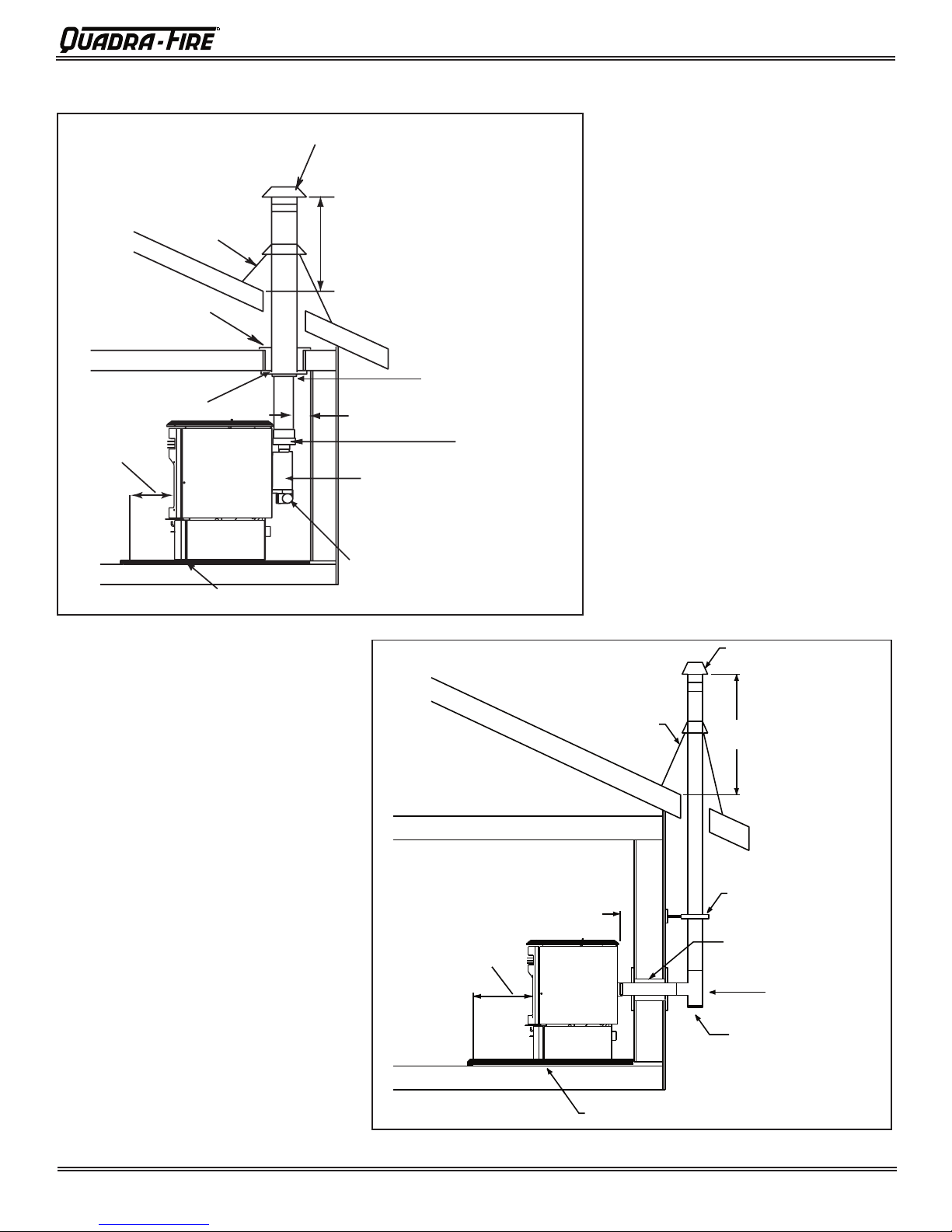

C. Vertical ................................................14
D. Through the Wall & Vertical ................14
E. Masonry ..............................................15
F. Alternate Masonry ...............................15
Section 6: Mobile Home ..................................16
Section 7: Appliance Set-Up

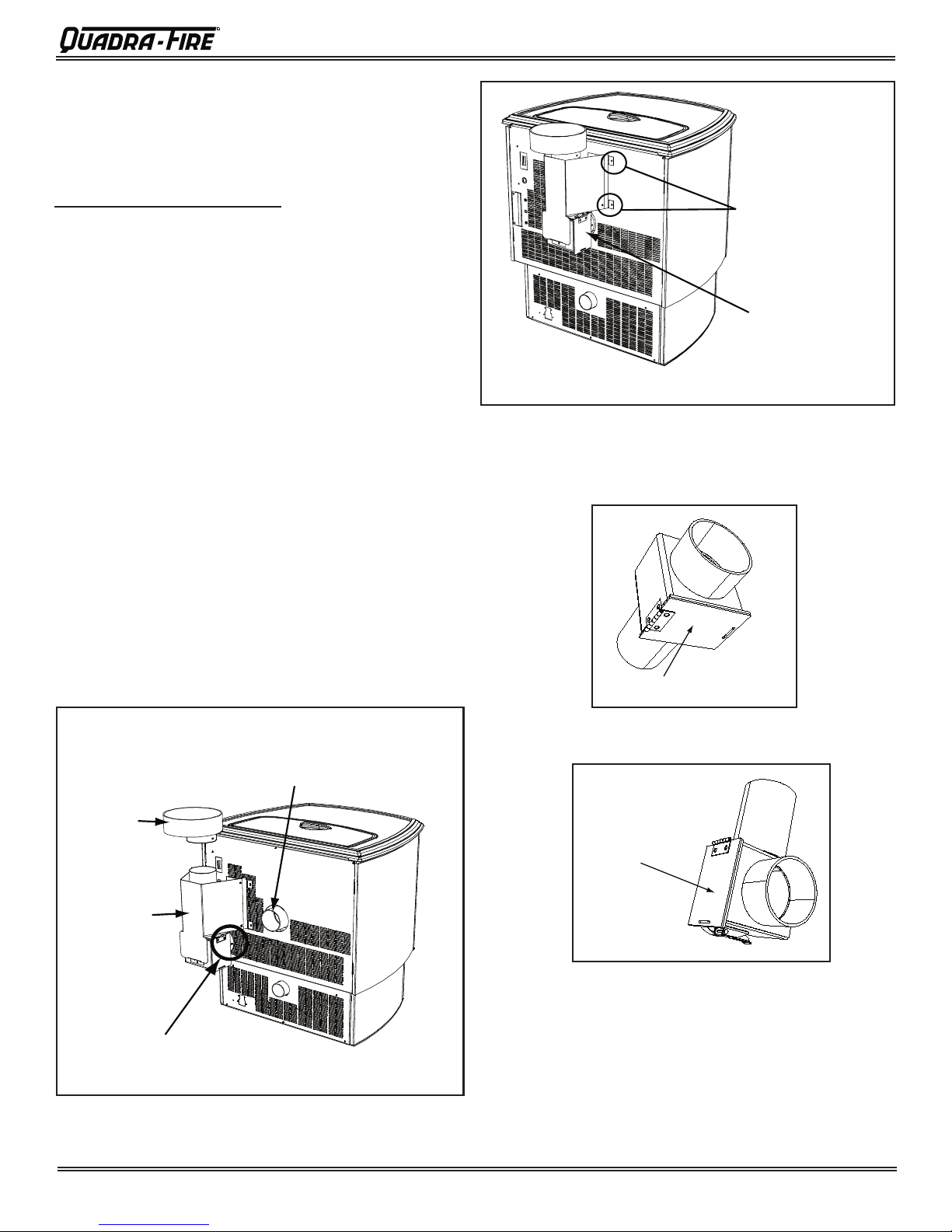

A. Outside Air Kit .....................................17

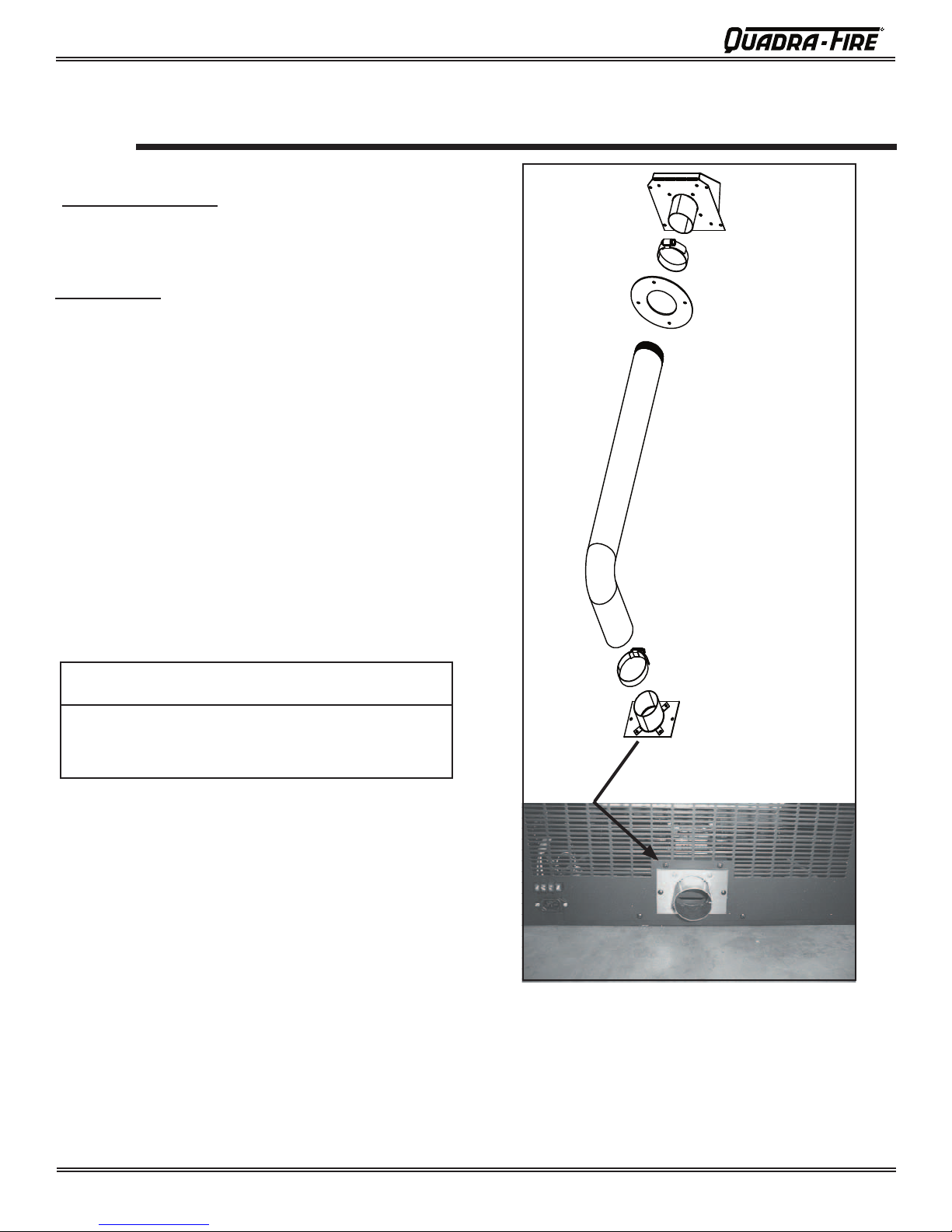

B. Top Vent Adapter ................................18
C. Log Set Placement ..............................19
D. Grille & Trim Ring Installation .............20
E. Thermostat Installation ........................21
Section 8: Operating Instructions
A. Fuel Size & Material ............................22
B. General Operation Information ...........22
C. Before Your First Fire .........................23
D. Starting Your First Fire ........................23
E. Fire Characteristics .............................23
F. Feed Rate Adjustment .......................23
G. Ignition Cycles ....................................24
H. Frequently Asked Questions ..............24
Section 9: Troubleshooting ............................25-27
Section 10: Maintaining & Servicing Appliance
A. General Maintenance & Cleaning .......28-30
B. High Ash Fuel Content Maintenance ..31
C. Blower Replacement ...........................31
D. Igniter Replacement ............................32
E. Baffle & Brick Removal .......................32
F. Baffle & Brick Replacement ................33

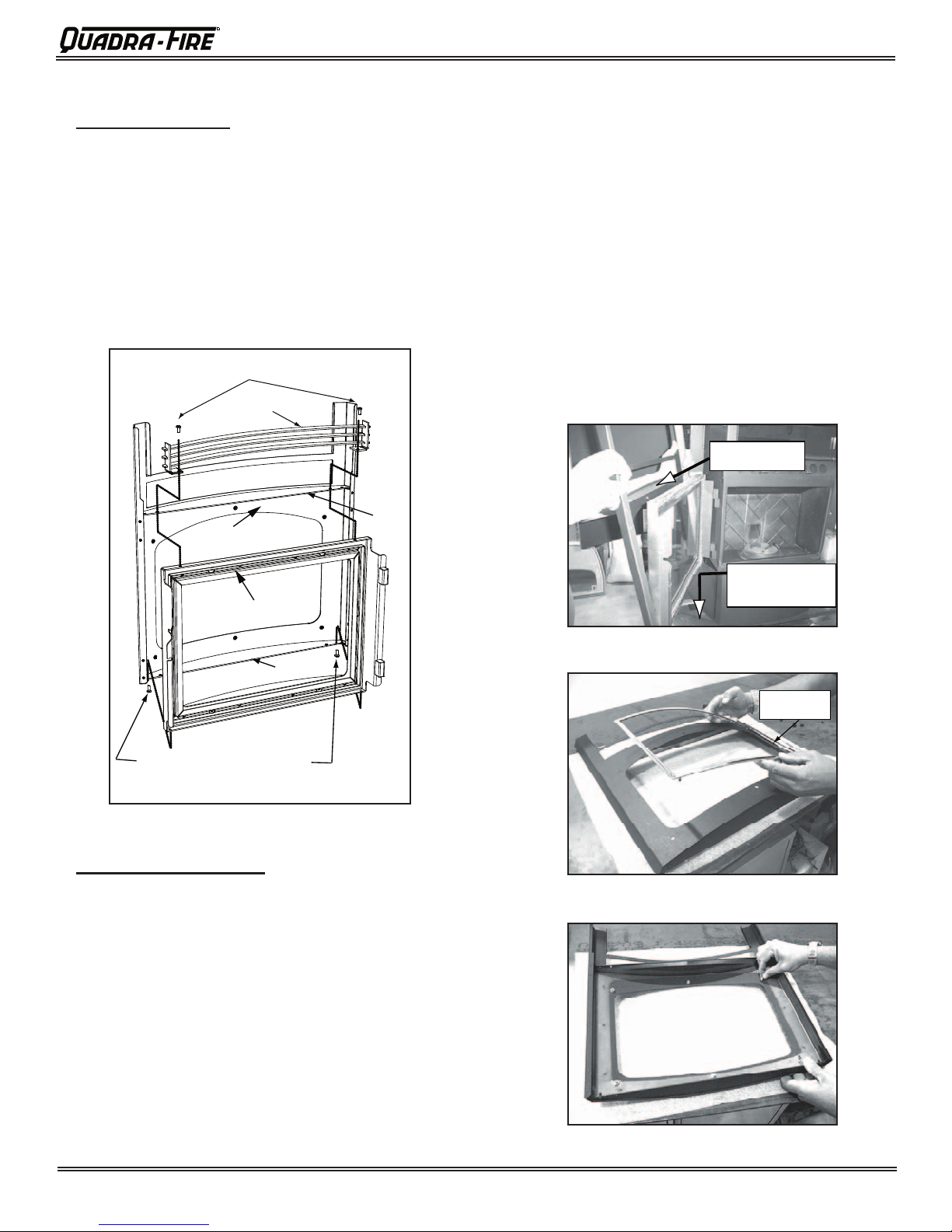

G. Glass Replacement .............................34
Section 11: Reference Material
A. Component Functions ........................36-37
B. Component Locations .........................38
C. Exploded Drawings .............................39-40
D. Service Parts & Accessories ...............41-42
E. Warranty Policy ...................................43
F. Contact Information .............................44
TABLE OF CONTENTS

Page 4 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
1Listing and Code Approvals
Model: Santa Fe Pellet Stove
Laboratory: OMNI Test Laboratories, Inc.
Report No. 061-S-53-2
Type: Solid Fuel Room Heater/Pellet Type
Standard: ASTM E1509 and ULC/ORD-C1482
Room Heater Pellet Fuel Burning type
and (UM) 84-HUD, Mobile Home
Approved.
A. Appliance Certification
C. Glass Specifications
E. BTU & Efficiency Specifications
This appliance is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
This appliance is approved for mobile home installations
when not installed in a sleeping room and when an outside
combustion air inlet is provided. The structural integrity of
the mobile home floor, ceiling, and walls must be maintained.
The appliance must be properly grounded to the frame of
the mobile home and use only listed pellet vent Class “L” or
“PL” connector pipe. A Quadra-Fire Outside Air Kit must be
installed in a mobile home installation.
B. Mobile Home Approved
NOTE: This installation must conform with local codes.
In the absence of local codes you must comply with the
ASTM E1509, (UM) 84-HUD, ULC/ORD-C-1482
D. Electrical Rating
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 Amps
*BTU output will vary, depending on the brand of fuel you
use in your stove. Consult your Quadra-Fire dealer for
best results.
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products,
their specifications and/or price without notice.
Particulate Emis-
sions Rating: 0.7 grams/hr
*BTU Output: 8,000 - 30,000 / hr
Heating Capacity: up to 1,500 sq. ft.
Hopper Capacity: 52 lbs
Fuel: Wood Pellets or Shelled Corn
Shipping Weight: 240 lbs

R
R
R
November 2, 2005 7001-142C Page 5

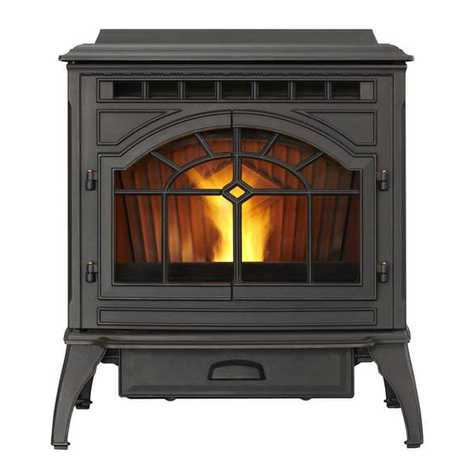

Santa Fe Pellet Stove
2Getting Started
A . Design, Installation & Location
Considerations
1. Appliance Location
Consideration must be given to safety, convenience, traffic
flow, and the fact that the appliance will need a chimney and
chimney connector. It is a good idea to plan your installation
on paper, using exact measurements for clearances and
floor protection, before actually beginning the installation. If
you are not using an existing chimney, place the appliance
where there will be a clear passage for a factory-built listed
chimney through the ceiling and roof.
Check with your local building code agency before you
begin your installation. Be sure local building codes do not
supersede UL specifications and always obtain a building
permit so that insurance protection benefits cannot be
unexpectedly cancelled. If any assistance is required during
installation, please contact your local dealer.
We recommend that a qualified building inspector and your
insurance company representative review your plans before
and after installation.
2. Thermostat Location
The thermostat’s location will have some effect on the
appliance’s operation. When the thermostat is located close
to the appliance, it may require a slightly higher temperature
setting to keep the rest of the house comfortable. If the
thermostat location is in an adjacent room or on a different
floor level, you will notice higher temperatures near the
appliance.
B. Fire Safety
Maintain the designated clearances to combustibles.
Insulation must not touch the chimney. You must maintain
the designated air space clearance around the chimney.
This space around a chimney is necessary to allow
natural heat removal from the area. Insulation in this
space will cause a heat buildup, which may ignite wood
framing. NOTE: Clearances may only be reduced by
means approved by the regulatory authority having
jurisdiction.
To provide reasonable fire safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each floor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A fire extinguisher
to contend with small fires resulting from burning
embers.
3. A practiced evacuation plan, consisting of at least
2 escape routes.
4. A plan to deal with a hopper fire as follows:
In the event of a hopper fire:
A. Notify fire department
B. Prepare occupants for immediate evacuation.
C. Close all openings into the appliance.
D. While awaiting fire department, watch for ignition
of adjacent combustibles from overheated vent
pipe, hot embers or sparks from the chimney.
E. Pour a bucket of water into the appliance
hopper.
CAUTION
• Do NOT connect this unit to a chimney flue servicing
another appliance.
• Do NOT connect to any air distributon duct or system. Fire Hazard.
WARNING
• Do not operate appliance before reading
and understanding operating instructions.
• Failure to operate appliance properly may
cause a house fire.

Page 6 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
E. Inspect Appliance & Components and
Pre-Use Check List
Reciprocating Saw
Channel Locks
Hammer
Phillips Screwdriver
Tape Meausre
Plumb Line
Level
Framing Material
Hi-temp Caulking Material
Gloves
Safety Glasses
Framing Square
Electric Drill & Bits (1/4”)
1/4” Self-Tapping Screws
May also need:
Vent Support Straps
Venting Paint
Tools and building supplies normally required
for installation, unless installing into an existing
masonry fireplace:
C. Tools And Supplies Needed
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
• Installation and use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with unit).
• Do NOT Overfire -
Or any such action that may cause a fire hazard.
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
D. Measuring Standards
1. Pipe measurements are from center line to center line.
2. Vertial terminations are measured to top of pipe.
Figure 6.1
Measure horizontal
clearances from
this surface
Measure vertical
clearances from
this surface
1. Place the appliance in a location near the
final installation area and follow the proce-
dures below:
2. Open the appliance and remove all the parts
and articles packed inside the Component
Pack. Inspect all the parts and glass for ship-
ping damage. Contact your dealer if any irregu-
larities are noticed.
3. All safety warnings have been read and fol-
lowed.
4. This Owner’s Manual has been read.
5. Floor protection requirements have been met.
6. Venting is properly installed.
7. The proper clearances from the appliance and
chimney to combustible materials have been
met.
8. The masonry chimney is inspected by a profes-
sional and is clean, or the factory built metal
chimney is installed according to the manufac-
turer’s instructions and clearances.
9. The chimney meets the required minimum
height.
10. All labels have been removed from the glass
door.
11. Plated surfaces have been wiped clean, if
applicable.
12. Thermostat or remote has been installed.
13. A power outlet is available nearby.

R
R
R
November 2, 2005 7001-142C Page 7
Santa Fe Pellet Stove
3Dimensions and Clearances
A. Appliance Dimensions
Figure 7.2- Front View
Figure 7.1 - Top View
Figure 7.3 -Side View Figure 7.4 - Side View with Top Vent Adapter
25-7/16 in.
(705 mm)
12-11/16 in.
(322mm)
21-3/16 in.
(538mm)
C
L
27-3/4 in.
(705mm)
28-5/8 in.
with base
(727mm with
base)
16-7/16 in.
(418mm)
17-5/16 in.
with base
(440mm)
C
L
28-9/16 in
(726mm)
26-7/16 in
(672mm)
25-13/16 in (655mm)
28-3/16 in (716mm)
3-7/8 in
(98mm) 2-5/8 in
(66mm)
C
L
C
L

Page 8 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
Straight Back Against
Wall
Inches Millimeters
ABack Wall to Appliance 2 51
BSide Wall to Appliance 6 152
Corner Installation Inches Millimeters
CWalls to Appliance 2 51
Vertical Installation Inches Millimeters
DBack Wall to Flue Pipe 3 76
ESide Wall to Cast Top 6 152
FBack Wall to Appliance 7 178
Installations with:
3 to 3 inch Top Vent Adapter and
3 to 6 inch Offset Adapter Kit
Corner Installation Inches Millimeters
GWalls to Appliance 2 51
HSide Wall to Flue Pipe 3 76
Alcove Installation Inches Millimeters
Minimum Alcove Height 43 1092
Minimum Alcove Side Wall 6 152
Minimum Alcove Width 38 965
Maximum Alcove Depth 36 914
Dimension to Corner Inches Millimeters
IFlue Center Line 10-3/8 264
JBack of Top Vent Adapter 9-1/8 232
B. Clearances to Combustibles (UL and ULC)
Fire Risk.
Comply with all minimum clearances to
combustibles as specified.
WARNING
Failure to comply may cause house fire.
NOTE:
• Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
J
I
C
L
C
C
D
E
F
G
G
H
H
A
B

R
R
R
November 2, 2005 7001-142C Page 9
Santa Fe Pellet Stove
*L Exception for Horizontal Installations:
USA INSTALLATIONS: If optional Cast Base is installed use
a noncombustible floor protector extending under unit and to
the sides, front and back of unit as shown in Floor Protection
Diagram. Measure front distance (M) from the surface of the
glass door.
If Cast Base is not installed, the noncombustible floor protector
must be 1/4 inch (6mm) minimum thickness (“k” value = 0.84).
A noncombustible floor protection extending beneath the
flue pipe is recommended with horizontal venting or under
the top vent adapter with vertical installation. See Figure
9.2
CANADA INSTALLATIONS: A noncombustible floor pro-
tection extending beneath the flue pipe is r equired with
horizontal venting or under the top vent adapter with vertical
installation.
Must extend 2 inches (51mm) beyond each
side of pipe (shaded area)
C. Hearth Pad Requirements (UL and ULC)
Use a noncombustible floor protector, extending beneath
appliance and to the front, sides and rear as indicated.
Measure front distance “M” from the surface of the glass
door.
Hearth Pad Requirements Inches Millimeters
KSides 2 51
L* Back 2 51
MFront 6 152
L*
K
K
M
Figure 9.2
Figure 9.1

Page 10 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
Do not terminate vent in any enclosed or semi-enclosed
area such as a carport, garage, attic, crawl space, under a
sun deck or porch, narrow walkway or closely fenced area,
or any location that can build up a concentration of fumes
such as a stairwell, covered breezeway, etc.
CAUTION
Vent surfaces get HOT, can cause burns if
touched. Noncombustible shielding or guards
may be required.
WARNING
A. Chimney and Exhaust Connection
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type "L" or "PL" venting system. It can be
vented vertically or horizontally.
2. Mobile Home: Approved for all listed pellet vent. If
using the 3 inch (76mm) vertical Top Vent Adapter Kit
or the 3 to 6 inch (76-152mm) Top Vent Offset Adapter,
use listed double wall flue connector. A Quadra-Fire
Outside Air Kit must be used with manufactured home
installations.
3. Residential: The 3 inch (76mm) vertical Top Vent
Adapter Kit and the 3 to 6 inch (76-152mm) Top Vent
Offset Adapter are tested to use 24 gauge single wall
flue connector or listed double wall flue connector to
Class A listed metal chimneys, or masonry chimneys
meeting Internationalt Conference of Building Officials
(ICBO )standards for solid fuel appliances.
4. INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
5. Secure exhaust venting system to the appliance with at
least 3 screws. Also secure all connector pipe joints with
at least 3 screws through each joint.
NOTE: All pipe must be welded seam pipe whenever
possible. Seal pipe joints with high temperature silicone
(500°F [260°C] minimum rated only).
NOTE: If burning shelled field corn, you must use
approved venting specifically designed for corn. Follow
the instructions from the venting manufacturer.
Fire Hazard.
• Only LISTED venting components may be
used.
• NO OTHER vent components may be used.
Substitute or damaged vent components may
impair safe operation.
WARNING
B. Venting Termination Requirements
1. Termination must exhaust above air inlet elevation. It is
recommended that at least 60 inches (1524mm) of verti-
cal pipe be installed when appliance is vented directly
through a wall. This will create a natural draft, which will
help prevent the possibility of smoke or odor venting into
the home during a power outage. It will also keep exhaust
from causing a nuisance or hazard by exposing people or
shrubs to high temperatures. The safest and preferred
venting method is to extend the vent vertically through the
roof.
2. Distance from doors and opening windows, or gravity or
ventilation air inlets into building:
a. Not less than 48 inches (1219mm) below;
b. Not less than 48 inches (1219mm) horizontally from;
c. Not less than 12 inches (305mm) above.
3. Distance from permanently closed windows:,
a. Not less than 12 inches (305) below; horizonatlly from
or above.
4. Distance between bottom of termination and grade should
be 24 inches (610mm) minimum. This is conditional upon
plants in the area, and nature of grade surface. The grade
surface must be a noncombustible material (i.e., rock, dirt).
The grade surface must not be lawn. Distance between
bottom of termination and public walkway should be 84
inches (2134mm) minimum.
5. Distance to combustible materials must be 24 inches
(610mm) minimum. This includes adjacent buildings,
fences, protruding parts of the structure, roof overhang,
plants and shrubs, etc.
6. Termination Cap Location (Home Electrical Service)
• Side-to-side clearance is to be the same as minimum
clearance to vinyl inside corners.
• Clearance of a termination cap below electrical service
shall be the same as minimum clearance to vinyl sof-
fits.
• Clearance of a termination cap above electrical service
will be 12 inches minimum.
• Location of the vent termination must not obstruct or
interfere with access to the electrical service.
4Vent Information

R
R
R
November 2, 2005 7001-142C Page 11
Santa Fe Pellet Stove
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this appli-
ance. For assistance or additional information consult a
qualified installer, service agency or your dealer.
WARNING
3 in. or 4 in. (76mm or 102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only
10
The chart will help you in determing proper vent-
ing size according to the equivalent feet of pipe
calcuated above and the altitude above sea level
of this installation. See Figure 11.2.
Locate the calculated equivalent feet of pipe on
the vertical left side of the chart. Move to the
right horizontally on the chart until you reach
your altitude above sea level.
If you fall below the diagonal line, 3 or 4 inch (76
to 102mm) pipe may be used. If it is anywhere
above the diagonal line, a 4 inch (102mm) diam-
eter pipe is required.
The chart reveals that a 90° elbow is 5 times as
restrictive to the flow of exhaust gases under
positive pressure as 1 foot of horizontal pipe, and
a foot of horizontal pipe is twice as restrictive as
a foot of vertical pipe.
D. Pipe Selection Chart
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent size.
See Figure 11.1
C. Equivalent Feet of Pipe
2 ft.
2 ft.
3 ft.
2 ft.
Example of 3 Elbow-Rear Vent Termination Calculaton
Figure 11.1
Figure 11.2
Pellet Venting
Component
# of
Elbows
Feet of
Pipe
Multipled
By
Equivalent
Feet
Components
Equivalent Feet
90o Elbow or Tee 3 X 515
45o Elbow X3
Horizontal Pipe 7 X 17
Vertical Pipe 2 X 0.5 1
Total Equivalent Feet 23
Note: This is a generic example and is not
intended to represent any specific fuel type.

Page 12 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
5Venting Systems
NOTE:
• Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY
.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
A. Alcove
Figure 12.1
All minimums listed are to a combustible surface.
Minimum Maximum
Inches Millimeters Inches Millimeters
AHeight 43 1092 n/a n/a
BWidth 38 965 n/a n/a
CDepth n/a n/a 36 914
DTo Side Wall 6 152 n/a n/a
A
C
B
D

R
R
R
November 2, 2005 7001-142C Page 13
Santa Fe Pellet Stove
12 in.
(305mm)
Minimum
Noncombustible Hearth Pad
Wall
Thimble
Horizontal
Termination
Cap
2 in.
(51mm)
Minimum
6 in.
(152mm)
Minimum
From Glass
Straight Out
B. Through The Wall
Horizontal termination cap must be a minimum of 12 inches.
(305mm) from the wall. Approved for mobile home instal-
lations. Must use 3 or 4 inch (76-102mm) “L” or “PL” listed
pellet venting or listed double wall pipe and a Quadra-Fire
Outside Air Kit in mobile homes.
NOTE:
In Canada, where passage through a wall or partition of
combustible construction is desired, the installation shall
conform to CAN/CSA-B365
Figure 13.1
Figure 13.2
45 Degree
Wall
Thimble
Illustration shows venting going in both directions.
Choose which one is best for your installation.
2 in. (51mm)
Minimum
2 in.
(51mm)
Minimum

Page 14 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
We recommend a minimum of 60 in.
(1524mm) vertical, however above the
eave is preferred.
Both installations are approved for mobile
home installations. Must use 3 or 4 inch (76
to 102mm) “L” or “PL” listed pellet venting
or listed double wall pipe and Quadra-Fire
Outside Air Kit in mobile homes. Single
wall pipe is approved for residential instal-
lations only.
C. Vertical
D. Through The Wall & Vertical
Firestop
Flashing
Rain Cap
6 in.
(152mm)
Min.
Noncombustible Hearth Pad
3 in. (76mm) Min.
Cleanout Cover
24 in. (610mm) Minimum
Ceiling Support
6 in. (152mm) Flue
Connector
6 in. (152mm) Class A
Chimney Connector
Adapter
3 in. to 6 in.
(76-152mm)
Top Vent Kit
Noncombustible Hearth Pad
Cleanout Cover
Tee
Wall Thimble
Support Bracket
every 60 in. (1524mm)
24 in. (610mm) minimum
Rain Cap
Flashing
2 in. (51mm) minimum
6 in. (152mm)
minimum
Figure 14.1
Figure 14.2

R
R
R
November 2, 2005 7001-142C Page 15
Santa Fe Pellet Stove
Fire Hazard
Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch (152mm) UL103 HT.
WARNING
E. Masonry
F. Alternate Masonry
Noncombustible Hearth Pad
Airtight
Cleanout Door
Cleanout cover
Sheathing
3 in. (76mm) minimum
1 in. (25mm) clearance
Flashing
Fireclay flue
liner with airspace
Concrete Cap
1 in. (25mm) clearance
with firestop
6 in. (152mm)
minimum
Noncombustible Hearth Pad
Airtight cleanout door
Sheathing
2 in. (51mm) minimum
Flashing
1 in. (25mm) clearance
1 in. (25mm) clearance
with firestop
6 in. (152mm)
minimum
Fireclay Flue Liner
with airspace
Concrete Cap
Figure 15.1
Figure 15.2

Page 16 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
6Mobile Home
1. An outside air inlet must be provided for the combustion
air and must remain clear of leaves, debris, ice and/or
snow. It must be unrestricted while the appliance is
in use to prevent room air starvation which causes
smoke spillage. Smoke spillage can also set off smoke
alarms.
2. The combustion air duct system must be made of
metal. It must permit zero clearance to combustible
construction and prevent material from dropping into
the inlet or into the area beneath the dwelling and
contain a rodent screen.
3. The appliance must be secured to the mobile home
structure by bolting it to the floor (using lag bolts).
Use the same holes that secured the appliance to the
shipping pallet.
4. The appliance must be grounded with #8 solid copper
grounding wire or equivalent, terminated at each end
with an NEC approved grounding device.
5. Refer to Clearances to Combustibles and floor pro-
tection requirements on pages 8 & 9 for listings to
combustibles and appropriate chimney systems.
6. Use silicone to create an effective vapor barrier at
the location where the chimney or other component
penetrates to the the exterior of the structure.
7. Follow the chimney manufacturer’s instructions when
installing the vent system for use in a mobile home.
8. Installation shall be in accordance with the Manufactur-
ers Home & Safety Standard (HUD) CFR 3280, Part
24.
CAUTION
Maintain structural integrity of mobile home:
• Floor, wall, ceiling and/or roof.
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses.
• Any supporting material that would affect the structural
integrity.
Never install in a sleeping room.
WARNING
Installation must comply with Manufactured Home and
Safety Standard (HUD), CFR 3280, Part 24.
WARNING
You must use a Quadra-Fire Outside Air Kit
for installation in a mobile home.
A. Mobile Home Installation
Spark Arrestor Cap
Roof Flashing
Storm Collar
Joist Shield/Firestop Double Wall
Pellet Vent
Figure 16.1
CAUTION
Never draw outside combustion air from:
• Wall, floor or ceiling cavity
• Enclosed space such as an attic or garage

R
R
R
November 2, 2005 7001-142C Page 17
Santa Fe Pellet Stove
7Appliance Set-Up
A. Outside Air Kit Instructions
Flex Hose
Hose Clamp
Collar Assembly
Trim Ring
Termination
Cap Assembly
Hose Clamp
Parts Included in Kit: 1 piece of 2 inch x 3 foot flex hose,
2 hose clamps, 1 collar assembly, 1 termination cap assem-
bly, 1 trim ring, 12 screws. (Discard collar assembly and air
channel, collar assembly lready on appliance).
1. Measure distance from floor to air vent opening in stove
and mark location on wall.
Use saw to cut opening in wall. Cut a 2-1/2 to 3 inch
(64-76mm) opening on inside wall and a 3 to 3-1/2 inch
(76-89mm) opening on outside of house.
2. Use hose clamp to secure flex pipe to collar assembly.
3. Slide trim ring over flex pipe and run pipe through wall.
4. Attach hose to outside termination cap with second
hose clamp.
5. Secure termination cap to outside surface.
6. Secure trim ring to interior wall.
Tools Needed: Phillips head screwdriver; wire cutters; hole
saw or jig saw.
CAUTION
Never draw outside combustion air from:
• Wall, floor or ceiling cavity
• Enclosed space such as an attic or garage
Figure 17.4

Page 18 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
3 to 3 inch Top Vent Adapter
3 to 6 inch Top Vent Offset Adapter
1. Put a layer of high temperature silicone on the 3
inch (76mm) exhaust outlet. Figure 18.1
2. Slide the top vent adapter onto the rear exhaust
outlet and adjust the assembly to a vertical position.
Figure 18.1
3. Drill 4 holes with #26 drill bit (provided) into the
back of the appliance using the outer shield as
a pattern (make sure the assembly is vertical).
Figure 18.2
4. Install the 4 mounting screws.
5. Drill 2 holes with #26 drill bit through the rear
exhaust outlet using the 2 holes already in the short
horizontal pipe in the top vent adapter as a guide.
Install the 2 screws. Figure 18.1
6. Install the vent pipe into the top vent adapter (be
sure to silicone all joints).
7. To clean the top vent adapter open the clean-out
cover. Figure 18.2.
B. Top Vent Adapter Installation
Use hole on each side as
drilling guide
3 to 6 in.
Offset
Adapter
Silicone
Rear Exhaust
Outlet
3 to 3 in.
Top Vent
Adapter
Drill holes in back of
stove and secure
with 4 screws, 2 on
each side
Clean-Out Cover
Figure 18.2
Figure 18.1
Installing the Top Vent Adapter
C. Rear Vent and Rear Vent to Top Vent
Adapter Installation
Clean-Out Cover
Clean-Out Cover
Figure 18.3 - Rear Vent Adapter
Figure 18.4 - Rear to Top Vent Adapter - 90o
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet. Figure 18.1.
2. Slide the adapter onto the rear exhaust outlet and adjust
the assembly to the appropriate position.
3. Install the vent pipe into the adapter (be sure to silicone
all joints)

R
R
R
November 2, 2005 7001-142C Page 19
Santa Fe Pellet Stove
D. Optional Log Set Placement Instructions
Figure 19.1
4 PIECE LOG SET INSTALLATION
OPTIONAL TOP LOG
Figure 19.2
Figure 19.3
CAUTION
Logs are FRAGILE. Use extreme care when handling or
cleaning logs.
NOTE:
Due to the abrasive nature of a pellet appliance fire, the
logs are not covered under warranty. Any placement varia-
tion other than shown here can cause excessive heat and
shall void the appliance warranty.
1. Place the right rear log as shown. There is a notch in the
bottom of the log for clearance for the thermocouple and
thermocouple cover (ceramic protection tube). Figure
19.1
2. Continue placing the last 3 logs around the firepot as
show in Figures 19.2, 19.3 and 19.4. Be careful not to
block the drop tube in the back of the firebox where pel-
lets feed into the firepot.
Place the top log over the firepot. It will be about 2-
1/2 inches (64mm) above the firepot when in place.
Notice the position of the top log as it rests on the 3
logs in a stable position to prevent it from falling into
the firepot. The charred area on the back of the top
log faces the back, not the front. Figure 19.5
Drop Tube
Notch
Thermocouple
Cover
Figure 19.4
Figure 19.5
Figure 18.3 - Rear Vent Adapter

Page 20 7001-142C November 2, 2005
Santa Fe Pellet Stove
R
R
R
E. Optional Gold or Nickel Grille & Trim Ring
1. While holding door to face, remove 2 screws from
grille and remove existing grille. Figure 1.
2. Install new grille using screws removed in step 1.
Ensure that screws are inserted through the grille, rib
and door.
Included in Kit: (1) Grille
Tools Required: Phillips head screwdriver
1. Installing the Grille
Included in Kit: (1) Trim Ring, (6) 8-32 nuts
Tools Required: Phillips head screwdriver, 11/32”
wrench or nut driver
1. Face can be removed with the door on or off the appli-
ance. Remove the grille before removing face to prevent
it from falling foward and potentially causing damage.
2. Tilt the top of the face foward until the top rib clears the
door, then slide the face down until the locating screws
on the bottom rib are completely out of the door.
Figure 20.2
2. Installing the Trim Ring
Rib
Face
Grille
Door
Remove 2 screws
Rib
Locating screws on rib are the
2 outside holes on each side
Figure 20.1
Start with
straight edge
Lift up so top rib
can clear the door
Slide face down
until locating screws
are out of door
Figure 20.2
Figure 20.3
Figure 20.4
3. Lay the face, face-down on a protective coating to avoid
scratching.
4. Remove the 6 nuts from the back side of the face and
discard the stud and nuts.
5. Turn the face over so it is front side up. Locate studs
on the trim ring. Starting with one straight side of trim
ring, insert the studs into the holes in the face. After
the first 2 studs have dropped into their holes, carefully
lay the trim ring down until all of the studs are in place.
Figure 20.3.
6. Hold the trim ring in place and turn the face over to
expose the back side. Figure 20.4.
7. Place 8-32 nuts, included in the kit, on all 6 studs and
gently tighten them.
8. Reverse steps 1 and 2 to re-install face and the grille.
