Quantel ULTRA User manual

1. Attach coolant lines to the back of the
laser head and back of the power sup-
ply: blue to blue and red to red.
2. Attach the double-connector side of the
electrical cable to the laser head.
These connectors have red dots indi-
cating proper orientation. Note: It is
easier to attach the bottom connector
first. Ensure that the connectors are
fully seated. Note: You should hear an
audible “click”.
3. Attach the other end of the D-Connector to the back of the power supply
and tighten the thumb screws completely to avoid connector contact
damage. Note: Never operate the laser system without the connectors
of the electrical cable fully inserted and the thumbscrews tightened.
• The optional External DI Cartridge instructions are on the oppo-
site side of this Quick Start Guide.
4. Connect the power cord to the back of the power supply.
5. Remove white plastic shipping cover from the front of the laser head.
Do not discard.
Quick Start Guide For Your ULTRA Laser System
WARNING: THIS IS A CLASS IV LASER. READ AND FOLLOW YOUR USER’S MANUAL BEFORE OPERATING TO AVOID DAMAGE OR PERSONAL INJURY.

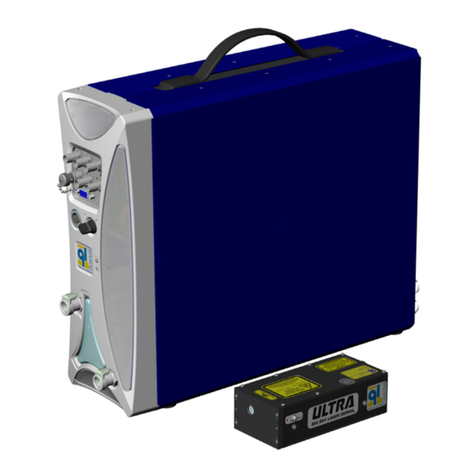

ULTRA Laser Head/Rack Power Supply
1 UNPACK your system. Save your packing material.
Locate the following items:
Laser Head
Rack Power Supply with Fill Kit
Coolant Lines and Electrical Cables
Accessory Kit (including keys)
Power Cord
Coolant (Distilled Water)
External DI Cartridge (optional)
WARNING: OPERATING YOUR LASER WITHOUT COOLANT WILL CAUSE CATASTROPHIC FAILURE.
2
3
DOC00073 Rev A
CABLE CONNECTION
FILL
Electrical Cables
Coolant Lines
1. Attach vent hose to the upper vent port
on the front of the power supply as
shown.
2. Attach the fill bottle to the lower fill port
on the front of the power supply.
3. Add water to the fill bottle until the cool-
ant begins to drain from the vent hose.
Note: You may need to loosen the cap on
the fill bottle to generate flow.
4. Ensure that the red emergency stop but-
ton on the front of the power supply is
rotated to the OUT position.
5. Turn the key to the ON position. The pump will start.
6. Add coolant until coolant remains at the top of the
view window. Note: To check the water level, it
may help to tilt or move the power supply.
7. To purge the laser head of trapped air, turn the key
OFF for approximately 30 seconds allowing
trapped air to collect. Turn the key ON to
start the pump. Note: This may take 3-5 attempts.
8. If possible, tip the laser head up and down to dislodge any trapped air.
Note: You shouldn’t see any bubbles in the coolant lines.
9. Disconnect the fill bottle and vent hose.
10. Turn the key to the OFF position.
11. Secure the laser head to the table using three 8-32 UNC screws at
torque 16-18 in-lb.
(OVER)
Vent Port
Fill Port
Vent Hose
Fill Bottle
View Window
Emergency Stop Button

Quick Start Guide For Your ULTRA Laser System
ULTRA Laser Head/Rack Power Supply
4 CONGRATULATIONS!
Your system is ready for full operation.
CONSULT CHAPTER 2 OF THE USER’S
MANUAL BEFORE CONTINUING FOR
APPROPRIATE EYE PROTECTION AND
SAFETY PRECAUTIONS.
1. Ensure that the red emergency stop button located on
the front of the power supply is rotated to the OUT po-
sition.
2. Insert the key and turn it to the ON position. Note: The
front panel will illuminate and the pump will turn on.
3. Check the Pulse Repetition Frequency for the desired
value and adjust accordingly.
4. Open the manual shutter on the laser head.
5. Press the RUN/STOP button. Note: You should hear a
continuous “chirping” as the lamp flashes.
6. Press the Q-Switch Button.
Note: You can control the output energy with the output
energy control buttons.
FOR TECHNICAL SUPPORT
PLEASE CALL
CUSTOMER SERVICE:
QUANTEL USA: 1-800-914-8216
QUANTEL: (33)1-6929-1700
DOC00073 Rev A
START UP
Your laser is pre-configured to operate at full en-
ergy and Pulse Repetition Frequency (PRF).
The only routine maintenance required on the UL-
TRA system is deionization cartridge and flash-
lamp replacement. Cycle the coolant at least 30
minutes every 2 weeks and replace the flashlamp
as required. See the User's Manual for details.
If you need to ship the laser for any reason, see
Chapter 3 of the User's Manual for details on
draining the system for transport to prevent freez-
ing.
RUN/STOP Button
Q-Switch Button
Output Energy Control Buttons
Optional External DI Cartridge Connection:
1.Connect the connectors and tubing to the DI car-
tridge.
2.Connect the connector sides of the DI cartridge to
the vent/fill connectors located on the back of the
power supply.
Shutter CLOSED Shutter OPEN
