Quantum Design K7S746FX User manual

Notice
The information in this document is subject to change
in order to improve reliability, design, or function with-
out prior notice and does not represent a commit-
ment on the part of this company. In no event will we
be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or the
possibility of such damages.
All trademarks are the property of their respective
owners.
If you need any further information, please visit our
web-site: “www.qdigrp.com”.
Item Checklist
This item checklist is only available for retail market.
Completely check your package,If you discover dam-
aged or missing items, contact your retailer.
K7S746FX mainboard
QDI Utility CD
User’s manual
IDE ribbon cable
Floppy ribbon cable
I/O shield(option)
Cable with bracket for USB Connectors(option)

Declaration of conformity
QUANTUM DESIGNS(HK) LTD.
20th Floor, Devon House, Taikoo Place, 979 King’s Road,
Quarry Bay, Hong Kong
declares that the product
Mainboard
K7S746FX
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
 EN 55022 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
 EN 50081-1 Generic emission standard Part 1:
Residential, commercial and light industry
 EN 50082-1 Generic immunity standard Part 1:
Residential, commercial and light industry
European Representative:
QDICOMPUTER(UK)LTD QDI COMPUTER ( SCANDINAVIA ) A/S
QDISYSTEMHANDELGMBH QDIEUROPEB.V.
QDICOMPUTER(FRANCE)SARL QDICOMPUTERHANDELSGMBH
LEGENDQDISPAINS.L . QDICOMPUTER(SWEDEN)AB
Signature : Place / Date : HONG KONG/2003
Printed Name : Xu Wenge Position/ Title : Assistant President

Declaration of conformity
Trade Name: QDI Computer ( U. S . A. ) Inc.
Model Name: K7S746FX
Responsible Party: QDI Computer ( U. S. A.) Inc.
Address: 41456 Christy Street
Fremont, CA 94538
Telephone: [phone]
Facsimile: [phone]
Equipment Classification: FCC Class B Subassembly
Type of Product: Mainboard
Manufacturer:Quantum Designs (HK) Inc.
Address: 20th Floor, Devon House, Taikoo Place
979 King’s Road, Quarry Bay, HONG
KONG
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions : (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2003

CONTENTS
Chapter 1 .............................................................1
Introduction......................................................................... 1
Key Features ........................................................................2
Chapter 2 .............................................................5
Installation Instructions ..................................................... 5

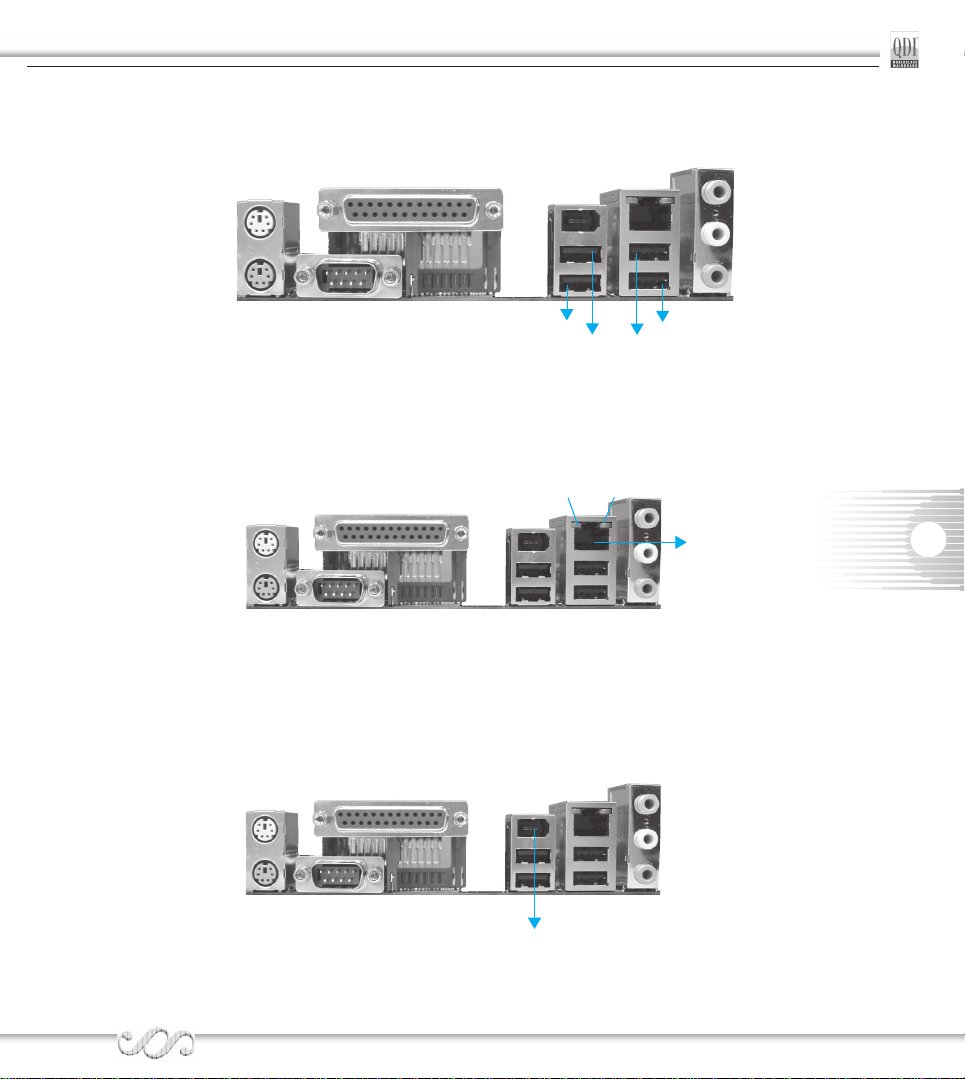

External Connectors .......................................................... 6

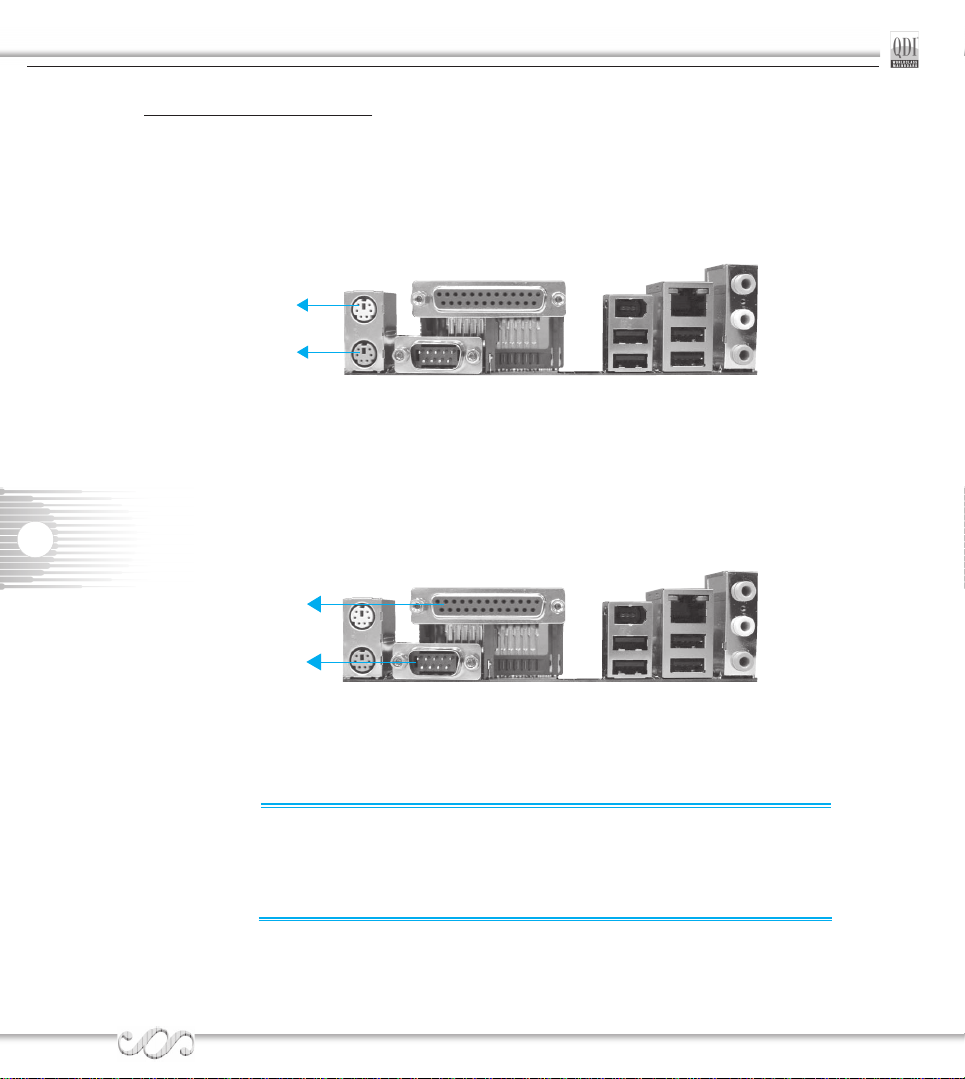

PS/2 Keyboard/Mouse Connector..................................... 6
Parallel Port & Serial Port Connector (COM1).................. 6
LANConnectors(optional).....................................................7
IEEE1394Port(IEEE1394_1)(optional) .................................7
USB1,USB2,USB3,USB4Connectors .................................7
Line-in jack, Microphone-in jack & Speaker-out jack..............8
6-ChannelAudio ...................................................................8
ATX Power Supply Connector
& Power Switch (POWER SW) .......................................... 9
Hard Disk LED Connector (HD_LED) .............................. 9
Reset Switch (RESET)....................................................... 9
Power LED Connector (PWR_LED) ............................... 10
FanConnectors(SYSFAN,CPUFAN) ..................................10
IEEE1394_2port(optional) .................................................. 11
USB5,USB6port................................................................. 11
Infrared Header (IrDA) ........................................................12
AudioConnectors(CD_IN) ..................................................12
S/PDIFoutputconnector .....................................................13
Wake-UpOn LAN(WOL1) ..................................................13
Audio Interface (F_Audio)...................................................14
OnboardSATA(optional).......................................................14
JumperSettings ..................................................................15
ClearCMOS(JCC)...............................................................15
BIOS-Protection Jumper(JAV) ............................................16

Chapter 3 ............................................................17
BIOSDescription .................................................................17
UtilitySupport ...................................................................... 18
AWDFLASH.EXE .................................................................18
AWARD(Phoenix)BIOS Description ....................................19
EnteringSetup ....................................................................19
LoadOptimizedDefaults .....................................................19
StandardCMOS Features Setup .........................................19
QDIInnovationFeatures ......................................................23
Advanced BIOS Features Setup .........................................24
Advanced Chipset Features Setup .....................................26
Advance Host Control.........................................................27
Advance DRAM Control .....................................................27
PowerManagementSetup ..................................................28
PMWakeupEvents ............................................................30
PNP/PCIConfigurationSetup ...............................................32
IntegratedPeripherals .........................................................33
SISOnChipIDEDevice ........................................................34
SISOnChipPCIDevice ........................................................34
OnboardSuperIODevice ....................................................35
Password Setting ...............................................................36
Boot with BIOS defaults......................................................36
Appendix ............................................................37
QDIUtilityCD .......................................................................37
Norton AntiVirus .................................................................37
Using4-/6-Channel Audio ...................................................38
Board Layout

Caution
Caution
Be sure to add some Silicone Grease between the CPU and the
heatsink to keep them fully contacted to meet the heat sink require-
ment.
Be sure to unplug the AC power supply before adding or re-
moving expansion cards, RAM or other system peripherals, other-
wise your mainboard and RAM might be seriously damaged.

This manual is suitable for mainboards of K7S746FX. Each
mainboard is carefully designed for the PC user who wants diverse
features.
-6A: with 6-channels onboard Audio
-6AL: with 6-channels onboard Audio and LAN
-6AFL: with 6-channels onboard Audio, LAN and IEEE 1394 ports
-6ALFS: with 6-channels onboard Audio, LAN ,IEEE 1394 ports and
SATA(optional)

T-- This page is intentionally left blank --his

K7S746FXK7S746FX
K7S746FXK7S746FX
K7S746FX
1
Chapter 1Chapter 1
Chapter 1Chapter 1
Chapter 1
Chapter 1
Introduction
K7S746FX mainboards utilize ( SIS 746FX + SIS 963/963L) chipset
providing a fully compatible, high performance and cost-effective
ATX platform. The new integrated technologies, together with AGP
8X support, AC’97 audio(2/6-channels), integrated LAN(optional),
6 USB 2.0 ports, 2 DRR 400 slots, 2 IEEE 1394 ports (optional),
and 2 SATA connectors(optional), give customers an advanced,
multimedia solution at reasonable price. It provides 200/266/
333MHz host bus speed to support AMD socket 462 processors
and the largest DDR memory capacity is up to 2GB. It also pro-
vides advanced features such as Wake-on-LAN, AntiVirus function,
ACPI function and so on. The optimal implementation of the Ad-
vanced Configuration and Power interface (ACPI) specification
makes the PC's power consumption drop to the lowest pos-
sible level and enable quick wakeup.

QDIQDI
QDIQDI
QDI
2
IntroductionIntroduction
IntroductionIntroduction
Introduction
Key Features
Form factor
ATX form factor of 295mm x 200mm
Microprocessor
Supports AMD socket 462 Duron/Athlon/Athlon XP CPU of 200/266/333MHz host
bus speed
Supports 200/266/333MHz host bus speed
System memory
Provides two 184-pin DDR SDRAM interfaces
Supports DDR266/DDR333/DDR400 SDRAM
Supports 64/128/256/512Mb technology up to 2GB
Onboard IDE
Supports Independent timing of up to 4 drives
Supports Ultra ATA 133/100/66/33, PIO mode
Two fast IDE interfaces supporting four IDE devices including IDE hard disks and
CDROM/DVDROM drives
Onboard LAN (Optional)
10/100 Mbit/sec Ethernet support
10/100M LAN interface built-in on board
USB Ports
USB 2.0 compliant, operates at 480Mbps, about 40X times faster than USB 1.1
which currently works at a snails pace of just 12Mbps
IEEE 1394 Ports(Optional)
Supports two IEEE 1394a ports
AGP Interface
AGP 1.5V Connector supports AGP 2.0 including AGP 4x data transfers and AGP
3.0 including AGP 8x data transfers

K7S746FXK7S746FX
K7S746FXK7S746FX
K7S746FX
3
Chapter 1Chapter 1
Chapter 1Chapter 1
Chapter 1
6-Channel Onboard Audio(Optional)
AC’97 2.2 Specification Compliant
Provides Front left&right, Rear left&right/Line-in Jack and Center&Woofer/
Microphone-in Jack,which can be specified by software
5.1 channels output
Onboard I/O
One floppy port supporting one 3.5’’ or 5.25’’ floppy drives with 360K/
720K/1.2M/1.44M/2.88M format
One high speed 16550 compatible UARTs ( COM1 ) with 16 byte send/receive FIFO
One parallel port supports SPP/EPP/ECP mode
Infrared interface
All I/O ports can be enabled/disabled in the BIOS setup
Onboard SATA & Raid(available on -6ALS mainboard)(optional)
Supports hot-plug
Two SATA devices including SATA HDD and CDROM/DVD ROM devices
Supports 150Mbps transfer rate.
Supports Raid 0 or Raid 1(optional).
BIOS
Licensed advanced AWARD(Phoenix) BIOS, supports flash ROM, plug
and play ready
Supports IDE CDROM/SCSI and USB devices boot up
Green function
Supports ACPI (Advanced Configuration and Power Interface) and ODPM
(OS Directed Power Management)
Supports ACPI power status: S0 (full-on), S1 (power on suspend), S4(STD,sus-
pend to Disk,depends on OS) and S5 (soft off)
Expansion slots
1 AGP slot
5 PCI slots

QDIQDI
QDIQDI
QDI
4
IntroductionIntroduction
IntroductionIntroduction
Introduction
Advanced Features
PCI 2.2 Specification Compliant
Provides Trend ChipAwayVirus On Guard
Supports Windows 98/2000/ME/XP soft-off
Supports Wake-on-LAN
Supports Wake up by keyboard password
Supports system monitoring(monitors CPU and system temperatures, system
voltages, fan speed. available on several models)
Main Expansion Slots and Connectors
Slot/Port (Quantity) Description
PCI( 5 ) PCI slots
AGP( 1 ) AGP slot
IDE( 2 ) IDE Ports
FLOPPY( 1 ) Floppy Drive port
DDR(2) DDRSockets
USB( 6) USB Connectors
IEEE 1394(2) (optional) IEEE1394Connector
UART(1) UART Connectors
PARALLEL( 1 ) Parallel Connector
IrDA( 1 ) IrDA Connector

5
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2
K7S746FXK7S746FX
K7S746FXK7S746FX
K7S746FX
Chapter 2
Installation Instructions
This section covers External Connectors and Jumper Settings.
Refer to the mainboard layout chart for locations of all jumpers,
external connectors, slots and I/O ports. Furthermore, this
section lists all necessary connector pin assignments for your
reference. The particular state of the jumpers, connectors and
ports are illustrated in the following figures. Before setting the
jumpers or inserting these connectors, please pay attention
to the directions.

QDIQDI
QDIQDI
QDI
6
Installation InstructionsInstallation Instructions
Installation InstructionsInstallation Instructions
Installation Instructions
External Connectors
PS/2 Keyboard/Mouse Connector
PS/2 keyboard connector is for the usage of PS/2 keyboard. If using a standard AT size
keyboard, an adapter should be used to fit this connector. PS/2 mouse connector is for
the usage of PS/2 mouse.
Parallel Port & Serial Port Connector (COM1)
The parallel port connector can be connected to a parallel device such as a printer. The
serial port COM1 connector can be connected to a serial port device such as a serial
port mouse. You can enable/disable them and choose the IRQ or I/O address in “Inte-
grated Peripherals” from AWARD BIOS SETUP.
PS/2 Mouse
PS/2 Keyboard
Parallel Port
UART1
Serial Port
Be sure to unplug the AC power supply before adding or removing
expansion cards or other system peripherals, otherwise your
mainboard and expansion cards might be seriously damaged.
00
00
0 Warning:

7
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2
K7S746FXK7S746FX
K7S746FXK7S746FX
K7S746FX
USB1, USB2, USB3, USB4 Connectors
Four USB 2.0 ports are for connecting USB devices.
USB1
USB2
USB3USB4
LAN Connectors (optional)
The RJ-45 connector is for onboard LAN.
IEEE 1394 Port (IEEE 1394_1)(optional)
IEEE 1394 port is for connecting IEEE 1394 devices.
LAN optional
LINK ACTIVE
IEEE 1394_1 Port optional

QDIQDI
QDIQDI
QDI
8
Installation InstructionsInstallation Instructions
Installation InstructionsInstallation Instructions
Installation Instructions
Line-in jack, Microphone-in jack & Speaker-out jack
The Line-in jack can be connected to devices such as a cassette or minidisc player to
playback or record. The Microphone-in jack can be connected to a microphone for voice
input. The Speaker-out jack allows you to connect speakers or headphones for audio
output from the internal amplifier.
Speaker Out
Line In
Microphone In
6-Channel Audio
This mainboard utilizes ALC655chip providing 6-channel Audio, which consists of Front
Left, Front Right, Rear Left, Rear Right, Center and Woofer for a complete surround
sound effect. When 6-Channel audio is available, the front Left&Right jack can be con-
nected to the Front speakers, the Back Left&Right jack can be connected to the rear speak-
ers and the Center&Woofer jack can be connected to the center speaker and woofer.
Microphone function is offered by Microphone In or F_AUDIO Connector on the mainboard
If set 2-Channel Audio mode on -6A or -6AL mainboard, you can connect two speakers to
the Front Left&Right jack, at the same time use the Rear Left&Right jack as Line in jack, and
use the Center&Woofer jack as Microphone in jack.
Rear L&R
Center & Woofer
Front L&R

9
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2
K7S746FXK7S746FX
K7S746FXK7S746FX
K7S746FX
ATX Power Supply Connector & Power Switch (POWER SW)
Be sure to connect the power supply plug to this connector in its proper orientation.
The power switch (POWER SW) should be connected to a momentary switch. When
powering up your system, first turn on the mechanical switch of the power supply (if
one is provided), then push once the power switch. When powering off the system, you
needn’t turn off the mechanical switch, just push once the power switch.
Hard Disk LED Connector (HD_LED)
The connector connects to the case’s IDE indicator LED indicating the activity status
of IDE hard disk. The connector has an orientation. If one way doesn’t work, try the other
way.
Reset Switch (RESET)
The connector connects to the case’s reset switch. Press the switch once, the system
resets.
If you change “Power Button Override” from default “Instant-
off” to “Delay 4 Sec” in the “POWER MANAGEMENT SETUP”
section of the BIOS, the power switch should be pressed for
more than 4 seconds before the system powers down.


 Note:
POWER SW
ATXPowerSupplyConnector
20
1
5V
5V
-5V
GND GND PS-ON
-12V
3.3V GND
12V
5VSB
5V
GND
3.3V GND 5V
GND
PS-OK
3.3V
GND

QDIQDI
QDIQDI
QDI
10
Installation InstructionsInstallation Instructions
Installation InstructionsInstallation Instructions
Installation Instructions
Power LED Connector (PWR_LED)
When the system is in S0 status, the LED is blink; When the system is in S5 or S1
status, the LED is off. The connector has an orientation.
Fan Connectors (SYSFAN, CPUFAN)
The fan speed of CPUFAN and SYSFAN can be detected and viewed in “PC Health”
section of the CMOS SETUP.
HD LED
POWER
LED Power
SW
RESET
SW
Reserved
POWER LED
HDD LED
HDD LED(+)
HDD LED(-)
G N D
P O W E R
REVERSE
EMPTY
G N D
P O W E R
PWR LED(+)
RESET SW
PWR LED(-)
POWER SW
+12V
CPUFAN
SENSE
GND
SYSFAN
+12V
GND
SENSE

11
Chapter 2Chapter 2
Chapter 2Chapter 2
Chapter 2
K7S746FXK7S746FX
K7S746FXK7S746FX
K7S746FX

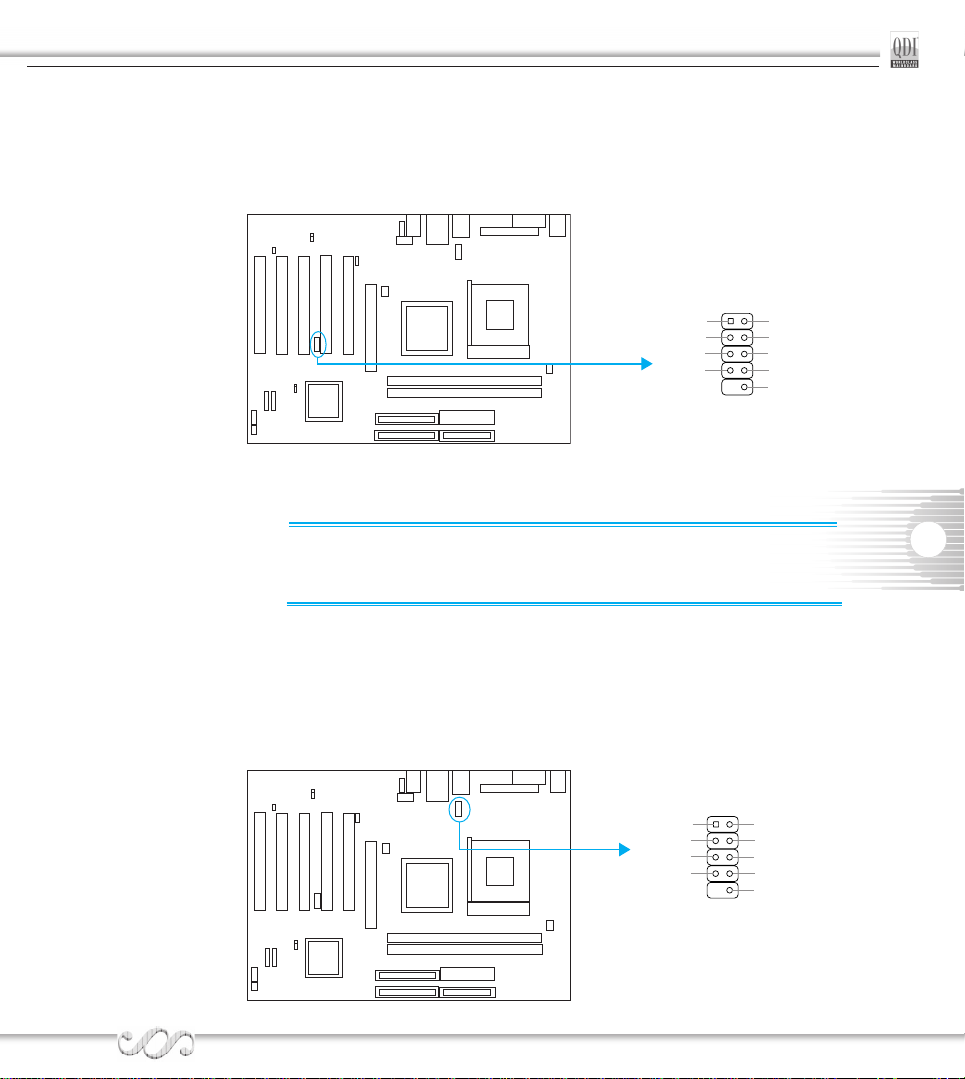

USB5, USB6 port(USB5_6)
Besides USB1,2,3,4 on the back panel, the K7S746FX mainboard also have one 10-
pin headers on board which may connect to front panel USB cable( optional ) to provide
additional two USB ports.
Be sure to connect correctly your cable to the connector, otherwise
your mainboard and USB devices might be seriously damaged.
00
00
0 Warning:
IEEE 1394_2 port(optional)
Besides 1394_1 on the back panel, the K7S746FX mainboard also have one 10-pin
headers on board to provide additional IEEE 1394 port.
USB5_6
1
+5V
D5+
D5-
GND
+5V
D6+
D6-
GND
N/A
JP4
1
TPA+1
TPB+1
Ground
VCC Bus
TPA-1
Ground
TPB-1
VCC Bus
Ground

QDIQDI
QDIQDI
QDI
12
Installation InstructionsInstallation Instructions
Installation InstructionsInstallation Instructions
Installation Instructions
Infrared Header (IrDA)
This connector supports wireless transmitting and receiving device. Before using this
function, configure the settings for IR Address, IR Mode and IR IRQ from the “INTE-
GRATED PERIPHERALS” section of the CMOS SETUP.
Audio Connectors (CD_IN)
CD_IN is Sony standard CD audio connectors, it can be connected to a CD-ROM drive
through a CD audio cable.
IrDA
+5V
IRTX
GND
IRRX
NC
1
Left Channel
Common
Right Channel
CD_IN
