Quantum edge 2.0 User manual

Product Serial #
USA
401 York Avenue
Duryea, PA 18642
Canada
5096 South Service Road
Beamsville, Ontario L0R 1B3
UK
32 Wedgwood Road
Bicester, Oxfordshire OX26 4UL
Australia
20-24 Apollo Drive
Hallam, Victoria 3803
Italy
Via del Progresso, ang. Via del Lavoro
Loc. Prato della Corte
00065 Fiano Romano (RM)
B.V.
Castricummer Werf 26
1901 RW Castricum
The Netherlands
www.quantumrehab.com
Owner’s Manual

Safety Guidelines
Quick Reference Information
Quantum Rehab Provider:
Address:
Phone Number:
Purchase Date:
WARNING! A Quantum Rehab Provider or a qualified technician must
perform the initial setup of this power chair and must perform all of the
procedures in this manual.
The symbols below are used throughout this owner’s manual and on
the power chair to identify warnings and important information. It is very
important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation.
Failure to follow designated procedures can cause either personal
injury, component damage, or malfunction. On the product, this icon is
represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure
to perform mandatory actions can cause personal injury and/or
equipment damage. On the product, this icon is represented as a white
symbol on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should
not be performed at any time or in any circumstances. Performing a
prohibited action can cause personal injury and/or equipment damage.
On the product, this icon is represented as a black symbol with a red
circle and red slash.
Intended Use
The intended use of the Quantum Rehab device is to provide mobility to
persons limited to a seated position that have the capability of operating a
powered wheelchair.
Regarding Devices for Prescription Use
CAUTION! Federal law restricts this device to sale by or on the order of
a physician or other certified personnel licensed by the law of the State
(US only) or region in which this personnel practices to use or order
the use of the device.
NOTE: This owner’s manual is compiled from the latest specifications
and product information available at the time of publication.We reserve
the right to make changes as they become necessary. Any changes
to our products may cause slight variations between the illustrations
and explanations in this manual and the product you have purchased.
The latest/current version of this manual is available on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH
directives and requirements.
Copyright 2016
INFMANU4620/Rev D/January 2016


Introduction..............................................................................................6
Safety........................................................................................................7
Your Power Chair...................................................................................10
Assembly................................................................................................18
Comfort Adjustments............................................................................22
Batteries and Charging.........................................................................30
Care and Maintenance ..........................................................................36
Language Usage
This owner’s manual is intended for distribution in all English-speaking
countries where our Power Chairs are sold. We have chosen to compose
this manual using language and spellings common to the USA. Since we
recognize that not all English-speaking countries use the same words
or spellings, please refer to the following chart for some common word
variations that may be encountered throughout this manual.
Contents
USA Variation USA Variation USA Variation
asphalt tarmac back-
ward(s)
rearward(s) center centre
color colour cord lead curb kerb
elevator lift meter metre provider dealer;
agent
sidewalk pavement tire tyre trunk boot
turn signal turn
indicator
yard grounds wrench spanner
caster castor pocketbook handbag counter-
clockwise
anti-
clockwise
authorized authorised path footpath path bridleway
labor labour
NOTE: This product meets IPX4 classification (IEC 60529).
NOTE: The Q6 Edge 2.0 and its components are not made with natural
rubber latex. Consult with the manufacturer regarding any after-
market accessories.

Identification Key
11
9 10
8
12
A
B
1
3
13
2
4
5
7
6


Identification Key
A 1 2
3 4 5
B 6 7
8 9 10
11 12 13
Seat Assembly Seatback Armrest
Seat Base Joystick Controller
Power Base Assembly Rear Shroud
Trapeze Bar Location
(If Equipped)
Manual Freewheel Lever Drive Wheel
Spring Shock/
Gas Damper Location
Caster Wheel
Front Rigging
(Foot Platform Shown) Front Shroud

Introduction
Safety
WELCOME to Quantum Rehab. The power chair you have purchased
combines state-of-the-art components with safety, comfort, and styling in
mind. We are confident that these design features will provide you with the
conveniences you expect during your daily activities. Once you understand
how to safely operate and care for your power chair, it should give you
years of trouble-free operation and service.
Read and follow all instructions, warnings, and notes in this manual before
attempting to operate your power chair for the first time. You must also
read all instructions, warnings, and notes contained in any supplemental
instructional booklets for the controller, front riggings, and/or seating
system that accompanied your power chair before initial operation. Your
safety depends upon you, as well as your provider, caretaker, or healthcare
professional in using good judgement.
If there is any information in this manual which you do not understand, or if
you require additional assistance for setup or operation, please contact your
Quantum Rehab Provider. Failure to follow the instructions in this manual
and those located on your power chair can lead to personal injury and/
or damage to the power chair, including voiding the warranty.
Purchaser’s Agreement
By accepting delivery of this product, you promise that you will not change,
alter, or modify this product or remove or render inoperable or unsafe any
guards, shields, or other safety features of this product; fail, refuse, or
neglect to install any retrofit kits from time to time provided by Quantum to
enhance or preserve the safe use of this product.
Shipping and Delivery
Before using your power chair, make sure your delivery is complete as some
components may be individually packaged. If you do not receive a complete
delivery, please contact your Quantum Rehab Provider immediately. Where
damage has occurred during transport, either to the packaging or content,
please contact the delivery company responsible or your Quantum Rehab
Provider.
NOTE: If you ever lose or misplace your copy of this manual, contact
us and we will be glad to send you a new one immediately.


Product Safety Symbols
The symbols below are used on the power chair to identify warnings,
mandatory actions, and prohibited actions. It is very important for you to
read and understand them completely.
NOTE: There are more warnings identified and explained in the
Consumer Safety Guide that is included with your power chair. Please
become familiar with all the warnings and safety information found in
the Consumer Safety Guide and refer to this resource often.
Locked and in drive mode.
Place unit on level ground and stand to one side when changing from
drive mode to freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode.
Read and follow the information in the owner’s manual.
Indicates power chair securement points.
Wire access point. For service use only.
Power chair information label
Manufactured in
Class II Equipment
Indicates that power chair, with similarly labeled seating system,
conforms to ANSI/RESNA WC/Vol. 4, Section 19 for transport of an
occupied power chair in a motor vehicle.
Safety
XXXXXXX:
XX XX (XX XX)
XXXXXX: XXXXXXX
XXXXXXX:
XX XX (XX XX)
XXXXXXX: XXXXXXX
182 Susquehanna Avenue
Exeter, PA 18643


General Guidelines
MANDATORY! Do not operate your new power chair for the first time
without completely reading and understanding this owner’s manual.
Your power chair is a state-of-the-art life-enhancement device designed
to increase mobility. We provide an extensive variety of products to best fit
the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be
used is the responsibility of the power chair user, who is capable of making
such a decision, and his/her healthcare professional (i.e., medical doctor,
physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility
device expert has properly fitted the power chair to the user and has
assisted the prescribing healthcare professional and/or the Quantum
Rehab Provider in the instruction process for the use of the product.
There are certain situations, including some medical conditions, where
the power chair user will need to practice operating the power chair in the
presence of a trained attendant. A trained attendant can be defined as a
family member or care professional specially trained in assisting a power
chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably
encounter situations in which you will need some practice. Simply take your
time and you will soon be in full and confident control as you maneuver
through doorways, on and off of elevators, up and down ramps, and over
moderate terrain.
Below are some precautions, tips, and other safety considerations that will
help you become accustomed to operating your power chair safely.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities.We recommend
that you perform a safety check before each use to make sure your power
chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
Check for proper tire inflation. Maintain but do not exceed the psi/bar/kPa
air pressure rating indicated on each tire if equipped with pneumatic tires.
Check all electrical connections. Make sure they are tight and not cor-
roded.


Check all controller connections to the power base. Make sure they are
secured properly.
Check the brakes. See “Care and Maintenance.”
Check battery charge. See “Batteries and Charging.”
Ensure the manual freewheel levers are in drive mode before sitting on
the power chair.
NOTE: If you discover a problem, contact your Quantum Rehab
Provider for assistance.

 Your Power Chair

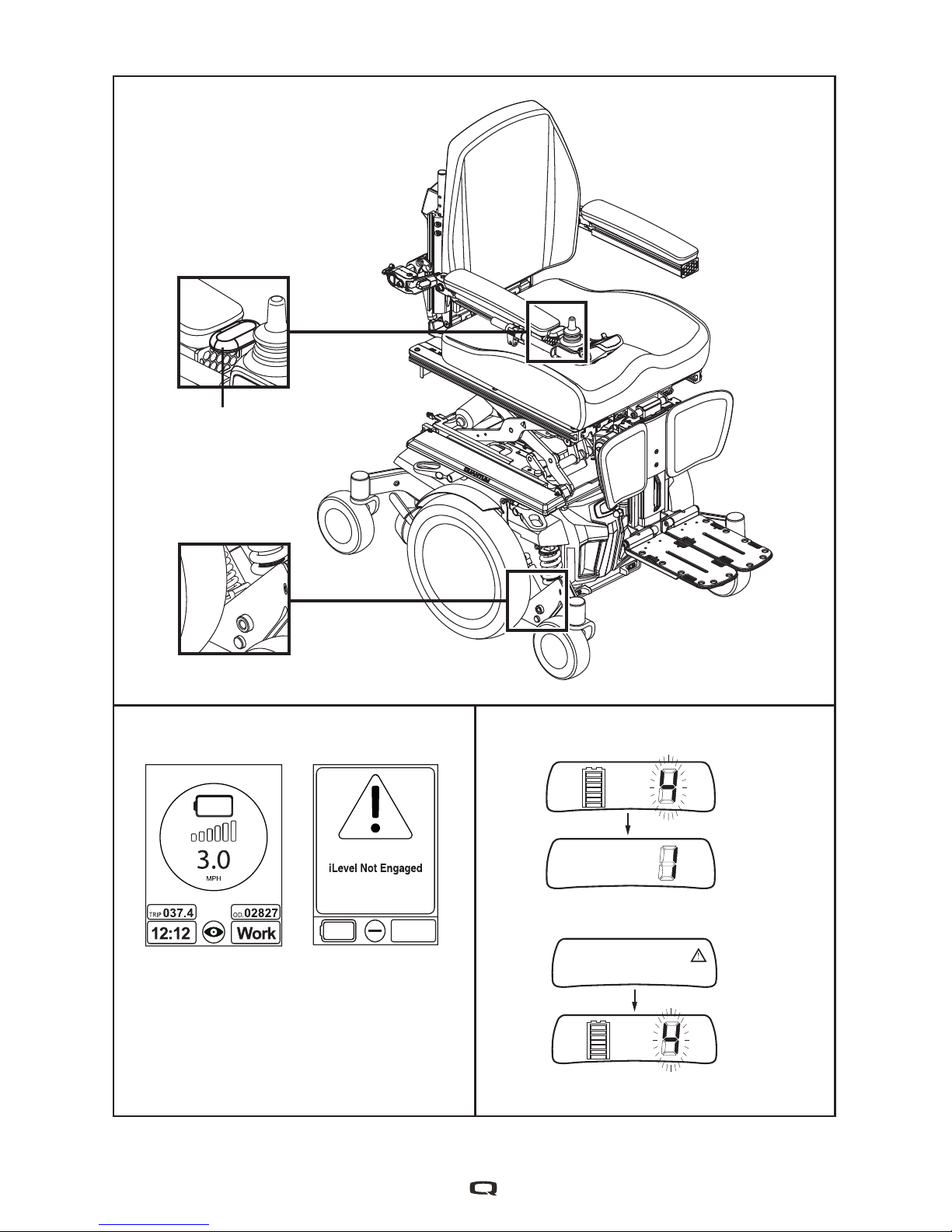

The Q6 Edge 2.0 Power Chair
Your power chair has two main assemblies: the seat assembly and the
power base assembly. Typically, the seat assembly includes the armrests,
seatback, and seat base. The power base assembly includes two motor/
brake assemblies, two drive wheels, four caster wheels, two batteries, and
wiring harnesses. See Identification Key (pages 4-5) and figure 1.
PROHIBITED! The spring tension on your power chair was factory set
to meet the needs of the demographic majority of users. Do not adjust
the tension of any spring on your power chair.
Electrical Components
The electrical components consist of the controller assembly, the batteries,
and the motors. The batteries, motors, and controller power module
(if equipped) are located on the power base assembly. The controller is
located on the seat assembly. Connectivity between the controller and the
motors, batteries, and the battery charger is provided by one or more wiring
harnesses. See figure 1.
Controller Harness Connector: The controller harness connector is where
the controller plugs into the power base. Each controller uses a different
type of harness. Regardless of which type of controller is used, the harness
must be secured to the seat assembly and not allowed to drag on the floor.
Motor Connectors: This is where the controller connects to the motors.
Battery Connector: This is where the controller connects to the batteries.
Controller Power Module: This enables the controller to communicate
with the batteries and the motors.
Main Circuit Breaker (located on the rear main frame): The main circuit
breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main
circuit breaker trips to prevent damage to the motors and the electronics.
If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker button, turn on the controller, and
continue normal operation. If the main circuit breaker continues to trip
repeatedly, contact your Quantum Rehab Provider.
Manual Freewheel Levers
For your convenience, your power chair is equipped with a manual freewheel
lever mounted on each motor. The levers allow you to disengage the drive
motors and maneuver the chair manually.


Figure 2. Manual Freewheel Lever Operation
Figure 1. Q6 Edge 2.0 Electrical Components
Identification Key
1. To Motor Connector
2. Controller Power Module
3. Controller Connector
4. To Battery Connectors
5. To Motor Connector
6. Main Circuit Breaker
7. Quick Release Battery
Connectors
8. Suspension Spring
9. Fender Light Connector
(Optional)
1
23
4
5
8
6
7
9
Freewheel Mode Drive Mode


WARNING! Do not use the power chair while the drive motors
are disengaged! Do not disengage the drive motors when the
power chair is on an incline, as the unit could roll on its own!
Only engage the freewheel mode when on a level surface.
WARNING! It is important to remember that when your power
chair is in freewheel mode, the braking system is disengaged.
To operate the manual freewheel levers:
1. Push down both manual freewheel levers for freewheel mode (drive
motor disengaged). See figure 2.
2. Pull up both manual freewheel levers for drive mode (drive motor
engaged). See figure 2.
MANDATORY! You must turn off the power before disengaging the
drive motors; otherwise, you may get an error code on the controller.
To clear this code, turn off the controller and place the power chair in
drive mode. Then, turn on the controller. The error message should be
cleared. If it is not, contact your Quantum Rehab Provider.
NOTE: The power chair will be significantly easier to push with the
power off.
WARNING! Avoid applying excessive force to the manual freewheel
levers.
WARNING! Do not use your foot to operate the manual freewheel levers.
Do not stand on the manual freewheel levers. Applying excessive force
to the manual freewheel levers may result in damage to the freewheel
levers, motors, and brakes.
WARNING! Do not use the freewheel lever handles as tie-down points
to secure this product.
iLevel® Feature (Optional)
Your power chair may be equipped with the iLevel® feature that will be used
in conjunction with your TRU-Balance® 3 Power Positioning System. The
iLevel® feature is mounted on a Quantum power base for maximum stabil-
ity when the seating system is elevated. See figure 3.
NOTE: If your power chair is equipped with a TRU-Balance® 3 Power
Positioning System, refer to the information provided in the operation
manual included in your owner’s package.


iLevel®
engaged
Figure 3. Q6 Edge 2.0 with iLevel® Feature and Controller Indicators
iLevel® Boot (1 of 2 shown)
Q-Logic 2 Controller NE+ Controller
iLevel® not
engaged
iLevel® engaged
iLevel® not engaged
Single Switch


MANDATORY! Before operating the iLevel® feature, read the following.
These guidelines are provided for your benefit and will aid you in the
safe operation of the iLevel® feature.
Turn off the power before you are seated in your power chair.
Always have assistance when you are being seated in or transferring
to your power chair.
Follow all of the procedures and heed the warnings as explained
in this owner’s manual, supplemental manuals, and the Consumer
Safety Guide.
WARNING! The center of gravity of your power chair was factory set to
a position that meets the needs of the demographic majority of users.
Your Quantum Rehab Provider has evaluated your power chair and
made any necessary adjustments to suit your specific requirements.
Do not change your seating configuration without first contacting
Quantum Rehab or your Quantum Rehab Provider.
WARNING! Some power chair components are heavy. You may need
assistance to lift or carry them. Please refer to the specifications table
for specific component weights before you disassemble the power chair.
WARNING! Remove the occupant from the power chair before making
any adjustments.
NOTE: The iLevel® feature is automatically engaged when the power
elevating seat is activated and the iLevel® indicator is displayed on
your controller.
The iLevel® feature is accessed through the controller or a single switch,
and the power chair must be on a flat, level surface to activate iLevel®.
Once the seating system actuator is started, the iLevel® boots (see fig-
ure 3) inhibit movement of the front caster wheels and restrict the power
chair to 1 in.–1.5 in. (2.54 cm–3.81 cm) of climbing ability. The seating sys-
tem can be reclined or tilted up to 20° while the iLevel® feature is activated.
NOTE: For more information on the iLevel® warning displays, refer to
the basic operation instructions for your controller.
The iLevel® feature should be used only on flat, level, indoor surfaces,
such as in malls, offices, and/or medical facilities, and only on limited, flat,
level, hardscape, outdoor surfaces.
While the iLevel® feature is in use, the power chair can drive at a predeter-
mined, safe speed. Refer to the specifications table for more information on
reduction of the maximum speed.
WARNING!The iLevel® feature should be used only on flat, level, indoor
surface, such as in malls, offices, and/or medical facilities. Never raise
the seat from its lowest position on an inclined surface. Failure to heed
this warning can result in the power chair tipping over.


WARNING! The iLevel® feature is intended for limited outdoor use
on only flat, level, hardscape surfaces. If you are unsure of your
environment, do not use iLevel® outdoors.
PROHIBITED! Never use the iLevel® outdoors on uneven terrain
(gravel, hills or other uneven, non-compact terrain) or in fields.
WARNING! Never raise the seat into iLevel® when operating your
power chair on bumpy or uneven surfaces. Failure to heed this warning
can result in the power chair tipping over.
WARNING! Always fasten the positioning belt when operating the
power chair.
WARNING! Do not operate the iLevel® or change the seat height in any
way while your power chair is positioned under a fixed object, such as
a table or desk. Keep area clear prior to and during movement.
NOTE: The iLevel® feature is equipped with a system that allows the
power chair to drive at a predetermined, safe speed when the seat is
elevated. Always check to be sure this system is operating properly
before using your power chair.
NOTE: If a warning or visual indicator appears on your controller
stating that iLevel® is not engaged, the power chair’s speed will be
reduced to 25% when elevated. If this warning appears while on level
ground, please discontinue use of iLevel® feature and consult your
Quantum Rehab Provider for assistance.
Fender Lights (Optional)
Your power chair may be equipped with fender lights. The lights are com-
posed of three white LEDs in the front and three red LEDs in the rear and
are mounted on the fenders of your power base. See figure 4.
NOTE: Prior to initial use, ensure that the fender light switch is
connected. See figure 1.
NOTE: If your power chair is equipped with an attendant control,
the fender lights will activate using the controller/single switch
combination when the controller is turned on.
The fender lights are available in two versions:
Operating through the controller/single switch combination
Operating through only a single switch


Figure 4. Q6 Edge 2.0 with Single Switch to operate Fender Lights
To activate the fender lights using the controller/single switch com-
bination:
1. Turn on the power to the controller.
2. Deflect the joystick in any direction.
To deactivate the fender lights using the controller/single switch com-
bination:
1. Turn off the power to the controller OR press the single switch.
NOTE: If the single switch is used to turn off the lights, the single
switch must be used to turn the lights back on before the lights will
operate through the controller.
When the power chair is turned off, the fender lights will reset to the auto-
matic on/off feature, if your power chair is so equipped.
Single Switch
Fender Light (1 of 2 shown)


If operated through the controller/single switch combination, the fender
lights will turn on when the power chair is turned on and the joystick is de-
flected in any direction. The power chair must remain powered on for the
lights to stay illuminated. When the power chair is turned off, the lights will
turn off.
NOTE: Turn off fender lights when the power chair is not in use to
optimize power chair performance per charge.
To operate the fender lights using only a single switch version:
1. Press the single switch once to activate the fender lights.
2. Press the single switch again to deactivate the fender lights.
NOTE:The single switch is mounted using the provided fabric fastener.
The location of the single switch should be convenient and functional
for the power chair user. Possible locations include on an armrest, the
side rail, the controller, or the headrest.
NOTE: Placing the single switch on the outside of the power chair, for
example, on the side rail, may increase the overall width of the power
chair.
WARNING! The single switch should be mounted in a location that is
convenient for the power chair user and where the switch harness will
not be caught in drive tires or running gear, pinched in the seat frame,
or damaged when passing through doorways.


Initial Assembly
Your power chair may require some assembly either before initial use
or after transportation. It may also require disassembly to make some
comfort adjustments. Figure 5 details those parts of the power chair that
are designed to be disassembled and assembled by an end user or by a
qualified caregiver before using the product or making comfort adjustments.
NOTE: Any nylon insert lock nut removed during the disassembly
or adjustment of the power chair must be replaced with a new nut.
Nylon insert lock nuts should not be reused as it may cause damage
to the nylon insert, resulting in a less secure fit. Replacement nylon
insert lock nuts are available at local hardware stores or through your
Quantum Rehab Provider.
Seat Installation
It may be necessary to install the seat either prior to initial operation or after
transporting your power chair. Contour seats are attached to the power
base with the Universal Mounting System (UMS). The UMS consists of
universal parts that may be attached to the seat, regardless of seat width or
seat depth. The two main components are aluminum extrusions mounted
to the seat base. These extrusions attach to a pair of trapeze bars that are
mounted to the power base. See figure 6.
NOTE: If your power chair is equipped with a Synergy Seat or a TRU-
Balance Power Positioning System, refer to the information provided
in separate manuals.
WARNING! Do not pick up the seat frame by the armrests.They are free
to pivot, and you may lose control of the seat if they do so.
To install the seat:
1. Tilt the seat back and slide the rear extrusion onto the rear trapeze bar.
See figure 6.
2. Lower the front extrusion onto the front trapeze bar until the seat latches
into place.
3. Flip the seat latch safety down.
WARNING! Make sure the seat latch safety is flipped down before
using your power chair.
4. Install the controller and route the harness to the back of the power
base. See figure 7 or 8.
Assembly


MANDATORY! Prevent controller harness damage! Avoid routing
the controller harness on the outside of the armrest pad. Route the
harness under the armrest or toward the inside of the armrest pad. Use
correct tie-down points for controller harness to prevent the harness
from getting caught in the drive tires, pinched in the seat frame, or
damaged when passing through doorways.
5. Plug the controller connector into the rear of the power base. See
figure 1.
6. Secure the controller harness to the armrest receiver with wire ties. See
figure 8.
Power Elevating Seat Option
Your power chair may be equipped with a power elevating seat option.
While the seat itself may be any one of the styles offered for this model, the
way the seat base attaches to the power base is different.
To install the power elevating seat:
1. Place the seat plate interface bracket onto the actuator. See figure 9.
2. Insert the supplied hardware into the actuator and tighten the hardware.
3. Place the seating system onto the seat plate and secure.
4. Plug in the power seat toggle switch harness, if equipped.
Transit Securement System
If your power chair is equipped with a transit securement system, it is
equipped with manufacturer-installed front and rear securement brackets
and may be equipped with positioning belt anchoring brackets. See fig-
ure 10. Refer to the supplement provided with your power chair for informa-
tion on how to use the transit securement system.


3
1
4
2
Figure 5. Q6 Edge 2.0 Assembly View
Figure 6. Universal Mounting System and Contour Seat
Identification Key
Identification Key
1. Armrest Angle Adjustment
2. Controller Position
3. Foot Platform Angle Adjustment
4. Foot Platform Height/Depth
Adjustment
1. Rear Extrusion
2. Seat Latch Safety
3. Front Extrusion
4. Trapeze Bars
1
2
4
3
