Quantum 1121 User manual

REHAB POWER CHAIRS
Quantum®1121
Quantum®
1103 Ultra

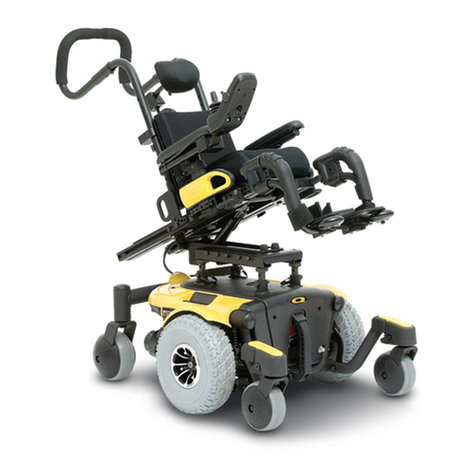

Quantum®Mid-Wheel Drive Power Chairs deliver
exceptional maneuverability, high performance
operation and superb rehab capability. Compatible
with a wide range of rehab electronic and seating
options including TRU-Balance®2 Power Positioning
systems, Quantum Mid-Wheel Drive Power Chairs
are designed to meet the diverse needs of the
active rehab client.
Exceptional
Maneuverability

10”
8” solid
5” solid, adjustable, front-mounted
Active-Trac®Suspension
Up to 4 mph
Intelligent Braking
(electronic, regenerative disc brakes)
2.5”
20.75”
Length: 35.5” Width: 23”
Synergy®Seat
Adjustable Width: 10”-20”
Adjustable Depth: 10”-18”
TRU-Balance®2 Power Positioning System
Adjustable Width: 14”-20”
Adjustable Depth: 14”-20”
Contoured seating (max. size: 20” x 20”)
Manual recliner
Solid seat pan option
2 motor, mid-wheel drive
Two 12 volt, U-1
Up to 15 miles
5A, off-board
50A, PG VSI controller
70A, PG Remote Plus controller
300 lbs.3maximum (user weight)
92 lbs.
24.5 lbs. (each)
Lifetime limited warranty on frame
2-year warranty on electronics
18-month warranty on drive motor
Q1103 Ultra 2SP - SS (Code: K0835)
Q1103 Ultra 2SP - C (Code: K0836)
DRIVE WHEELS
REAR CASTERS:
ANTI-TIPS:
SUSPENSION
MAXIMUM SPEED 1
BRAKES
GROUND CLEARANCE
TURNING RADIUS 2
OVERALL SIZE 2
SEATING
DRIVE TRAIN
BATTERIES
RANGE PER CHARGE 1
STANDARD BATTERY CHARGER
AVAILABLE
ELECTRONICS
WEIGHT CAPACITY
BASE WEIGHT
BATTERY WEIGHT
WARRANTY
CODE COVERAGE
1103 Ultra
QMWD-7-7-08
Shroud Colors
Candy
Apple Red
Viper
Blue
Onyx
Black
Champagne Sunburst
Orange
14”
8” solid
6” solid, adjustable, front-mounted
Active-Trac®Suspension
Up to 5 mph
Intelligent Braking
(electronic, regenerative disc brakes)
3.5”
22.5”
Length: 38.125” Width: 23.8”
Synergy®Seat
Adjustable Width: 10”-20”
Adjustable Depth: 10”-20”
TRU-Balance®2 Power Positioning System
Adjustable Width: 14”-20”
Adjustable Depth: 14”-20”
Contoured seating (max. size: 20” x 22”)
Manual recliner
Solid seat pan option
2 motor, mid-wheel drive
Two 12 volt, NF-22
Up to 20 miles
8A, off-board
70A, PG VSI controller
70A, PG Remote Plus controller
300 lbs. maximum (user weight)
140 lbs.
38 lbs. (each)
Lifetime limited warranty on frame
2-year warranty on electronics
18-month warranty on drive motor
Q1121 3SP - SS (Code: K0856)
Q1121 3SP - C (Code: K0857)
Q1121 3MP - SS (Code: K0861)
1121
1) Range and speed vary with user weight, terrain type, battery charge/condition and tire pressure.
2) Due to manufacturing tolerances and continual product improvement, this specification
can be subject to variance of + or – 3 %.
3) 200 lbs. with TRU-Balance 2 power positioning systems
(US) 866-800-2002 .(Canada) 888-570-1113 .www.quantumrehab.com
