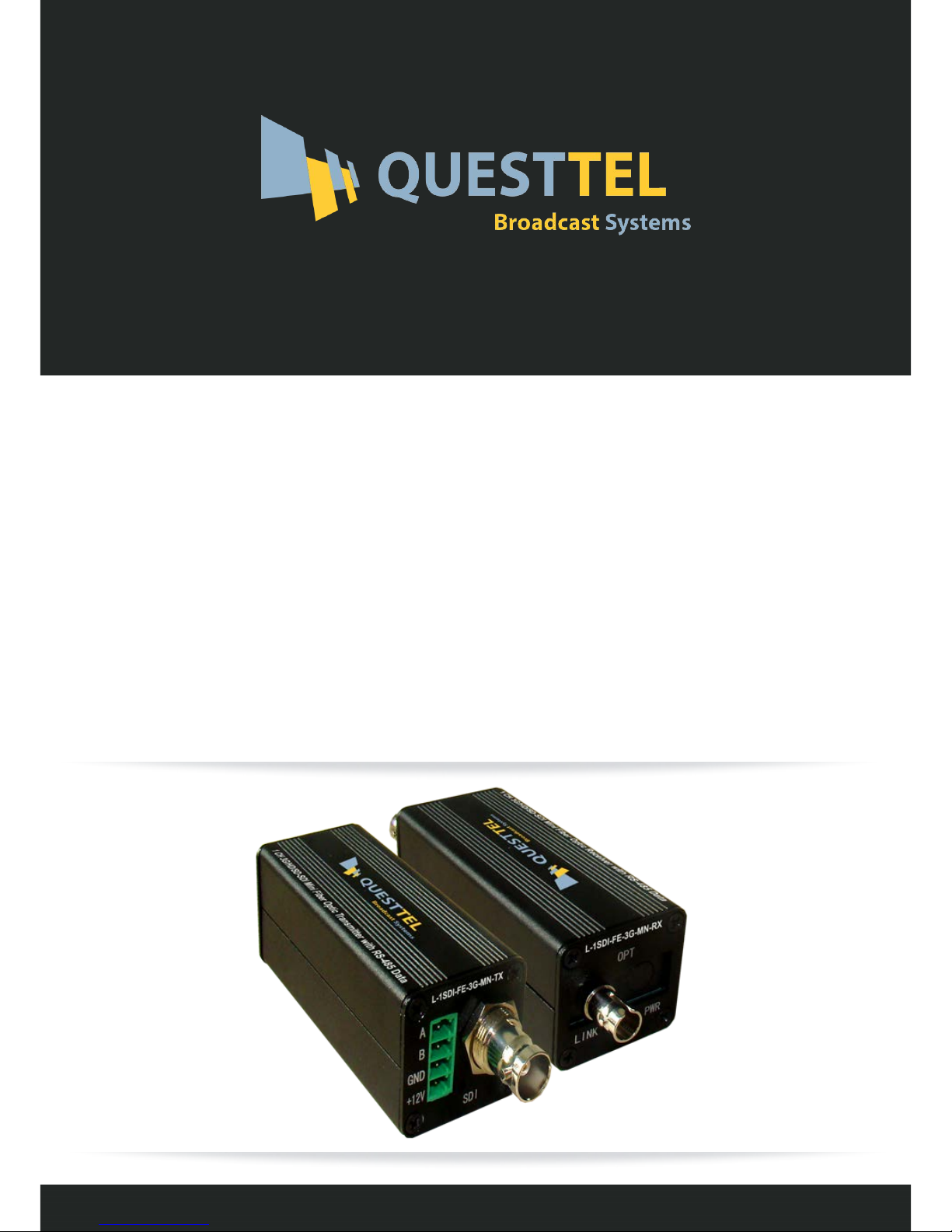

Questtel L-1SDI-FE-3G-MN-TX User manual

3G/HD/SD-SDI Over Fiber Mini
Transmitter and Receiver Extender
User Manual
L-1SDI-FE-3G-MN-TX/RX
www.questtel.com [email protected]

1
Contents
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
L-1SDI-FE-3G-MN-TX-RX
1INTRODUCTION..............................................................................................................................................2
1.1OVERVIEW...................................................................................................................................................2
1.2FEATURE .....................................................................................................................................................2
1.3APPLICATION................................................................................................................................................2
2 PANEL DESCRIPTION...................................................................................................................................3
3TECHNICAL SPECIFICATION........................................................................................................................3
4 DEVICE DIMENSION......................................................................................................................................5

2
1Introduction

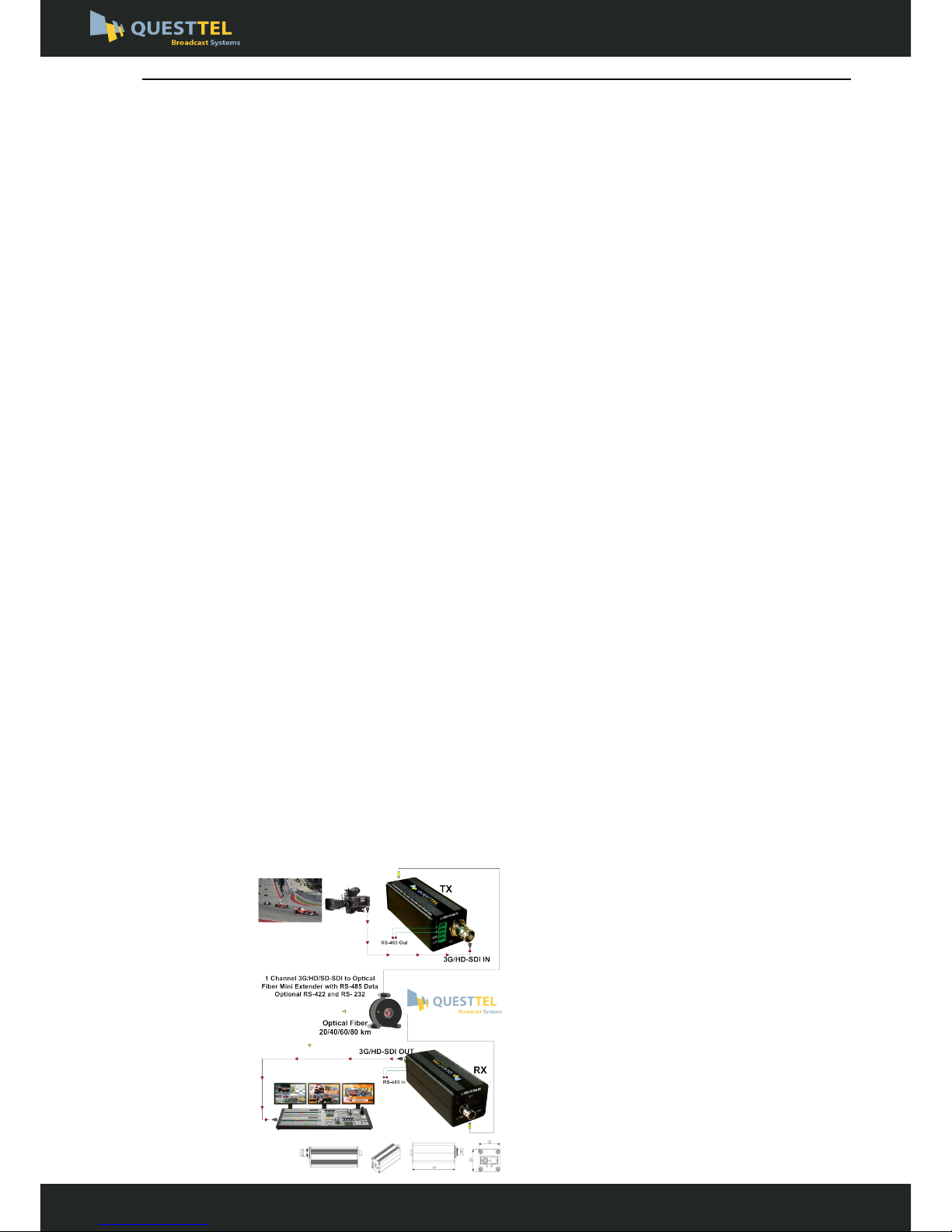

1.3Application
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
L-1SDI-FE-3G-MN-TX-RX
1.1Overview
The L-1SDI-FE-3G-MN-TX-RX is a thumb type 3G/HD/SD-SDI video optical transceiver, including a transmitter and
a receiver, which achieves optical transmission of one HD/SD-SDI signal (audio signal embedded) and provides
one reversed RS485 data channel, and can be widely used in high-definition video conference, high-definition
video monitoring, intelligent transportation system and public security system.
1.2Feature
Adopts high-definition transmission without compression technology to realize real-time, loss-free and
high-quality video transmission
Comply with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s
l3G-SDI compliant to SMPTE 424M standard, with bit rate of 2.97Gb/s
Transmitter: one 3G/HD/SD-SDI input (BNC)
Receiver: one 3G/HD/SDHD-SDI output (BNC)
1080P@60, 50, 1080P@30, 29.97, 25, 24, 23.98, 1080I@60, 59.94, 50, 720P@60, 59.94, 50, 30, 29.97,
25, 24, 23.98, and 625i, 525i , supports DVB-ASI signal
With integrated HD-SDI reclocker and cable equalizer
One reversed RS485 channel, up to 115.2Kb/s baud rate
12V DC power supply
Equipment size: 80mm ×32mm ×29 mm

3
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
L-1SDI-FE-3G-MN-TX-RX
2 Panel Description
OPT
PWRLINK
SDI
A
B
GND
+12V
Figure 2-1 Front panel Figure 2-2 Rear panel
Table 2-1 Front panel
Interface Description
OPT Optical interface, bi-directional, ST-PCconnector
LINK
Optical port status indicator, Green.
ON: Normal
OFF: No optical signal.
PWR
Power supply indicator, Green.
ON: Power works normally.
OFF: Power is abnormal or absence.
Table 2-2 Rear Panel
Interface Description
RS485 A RS485 positive terminal
B RS485 negative terminal
SDI interface
SD/HD/3G-SDI video input/output(BNC)
Transmitter: SDI input
Receiver: SDI output
SDI indicator SDI input/output lock indicator, Green.
ON: SDI input/output normal.
OFF: SDI input/output abnormal.
GND Ground
+12V 12V DC power input
3Technical Specification
Item Description
Transmitter optical interface
Wavelength(nm) Tx1310FP
/Rx1550
Tx1310FP
/Rx1550 Tx1550DFB /Rx1310 Tx1550DFB /Rx1310 Tx1550DFB /Rx1310

4
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
L-1SDI-FE-3G-MN-TX-RX
Transmission distance (Km) 10 20 40 60 80
launched power (dBm) -9~-3 -6~-1 -7~-2 -5~0 -2~+3
Maximum receive sensitivity (dBm) -32 -32 -33 -36 -37
Receiver optical interface
Wavelength(nm) Tx1550FP
/Rx1310
Tx1550FP
/Rx1310
Tx1310FP
/Rx1550
Tx1310FP
/Rx1550
Tx1310FP
/Rx1550
Transmission distance (Km) 10 20 40 60 80
launched power (dBm) -14~-7 -14~-7 -8~-3 -5~0 0~+5
Maximum receive sensitivity (dBm) -21 -21 -24 -24 -26
SDI Interface
Connector BNC
Bit rate 2.97Gb/s,1.485Gb/s and 270Mb/s auto adaptive
Impedance 75Ω
Return loss >15dB
Level 800mVp-p±10%
Rise and fall time (3G-SDI) ≤135ps
Rise and fall time（HD-SDI）≤270ps
Rise and fall time（SD-SDI）≤1.50ns
SD-SDI Alignment jitter (1KHz) ≤0.2UI
SD-SDI Timing jitter (10Hz) ≤0.2UI
HD-SDI Alignment jitter (100KHz) ≤0.2UI
HD-SDI timing jitter (10Hz) <1.0UI
3G-SDI alignment jitter(100KHz) ≤0.3UI
3G-SDI timing jitter(10Hz) ≤2.0UI
Standard Comply to SMPTE 424M 3G-SDI, SMPTE-292M
HD-SDI and SMPTE-259M SD-SDI standard
RS485 Interface
Connector PHOENIX connector
Baud rate 0~115.2Kb/s
Bit error rate <10-9
Work mode Unidirectional transmission from Receiver to Transmitter
Power and Consumption
Power supply DC 12V
Range 8V~14V
Power consumption 1.5W±10%
Environment Requirements
Working temperature -30～+60℃
Relative Humidity ≤95％, no condensation
Storage temperature -40～85℃
Equipment dimension

5
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
L-1SDI-FE-3G-MN-TX-RX
4 Device Dimension

Read before operating equipment.
1. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
2. Power Sources - Use supplied or equivalent UL/CSA approved low voltage DC plug-in transformer.
3. Outdoor Antenna Grounding - If you connect an outside antenna or cable system to the product, be sure the antenna or cable
system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the
National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
4. Lightning - Avoid installation or reconfiguration of wiring during lightning activity.
5. Power Lines - Do not locate an outside antenna system near overhead power lines or other electric light or power circuits or where
it can fall into such power lines or circuits. When installing an outside antenna system, refrain from touching such power lines or
circuits, as contact with them might be fatal.
6. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
7. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage
points or short out parts, resulting in a fire or electric shock. Never spill liquid of any kind on the product.
8. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
9. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
When the power supply cord or plug is damaged.
If liquid spills or objects fall into the product.
If the product is exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions. An improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the product to its normal operation.
If the video product is dropped or the cabinet is damaged.
When the video product exhibits a distinct change in performance, this indicates a need for service.
Safety Instructions
www.questtel.com [email protected]
This unit outputs continuous invisible light, which may be harmful to
the eyes; use with caution. For additional safety, plug the attached
dust caps into the optical transceivers when the fiber optic cable is
unplugged. Direct viewing into optical connectors should be avoided at all
times!
WARNING!
