Questtel L-1SDI-FE-HD-TX User manual

HD/SD-SDI Over Fiber Transmitter
and Receiver Extender
User Manual
L-1SDI-FE-HD-TX/RX
www.questtel.com [email protected]

1
Contents
1INTRODUCTION................................................................................................................................... 2
1.1OVERVIEW........................................................................................................................................ 2
1.2FEATURE .......................................................................................................................................... 2
1.3APPLICATION..................................................................................................................................... 2
2 PANEL DESCRIPTION........................................................................................................................ 3
2.1 FRONT PANEL .................................................................................................................................. 3
2.2 REAR PANEL.................................................................................................................................... 3
3TECHNICAL SPECIFICATION............................................................................................................. 4
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
User Handbook
L-1SDI-FE-HD-TX-RX

2
1Introduction
1.1Overview
The L-1SDI-FE-HD-TX/RX is a SD/HD-SDI over fiber transmitter and receiver extender kit. This unit
provides optical transmission of one SD/HD-SDI signal as well as audio signal and has reversed RS485
data channel for camera control. L-1SDI-FE-HD-TX/RX kit can be used in HD video conference, as well as
HD video monitoring, intelligent transportation system and public security system.
1.2Feature
Adopts high-definition transmission without compression technology to realize real-time, loss-free and
high-quality video transmission
Comply with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s
Optional 3G-SDI compliant to SMPTE 424M standard, with bit rate of 2.97Gb/s
L-1SDI-FE-HD-TX: one SD/HD-SDI input (BNC)
L-1SDI-FE-HD-RX: one SD/HD-SDI output (BNC)
8 audio channels embedded
1080P@60, 50(declared before order) , 1080P@30, 29.97, 25, 24, 23.98, 1080I@60, 59.94, 50, 720P@60,
59.94, 50, 30, 29.97, 25, 24, 23.98, and 625i, 525i
With integrated HD-SDI reclocker and cable equalizer
With NOP (No optical signal) alarm indications, output status indicator and input lock indicator
One reversed RS485 channel, half duplex, up to 115.2Kb/s baud rate
12V DC power supply
Equipment size: 93.2mm ×46.2mm ×29.6mm

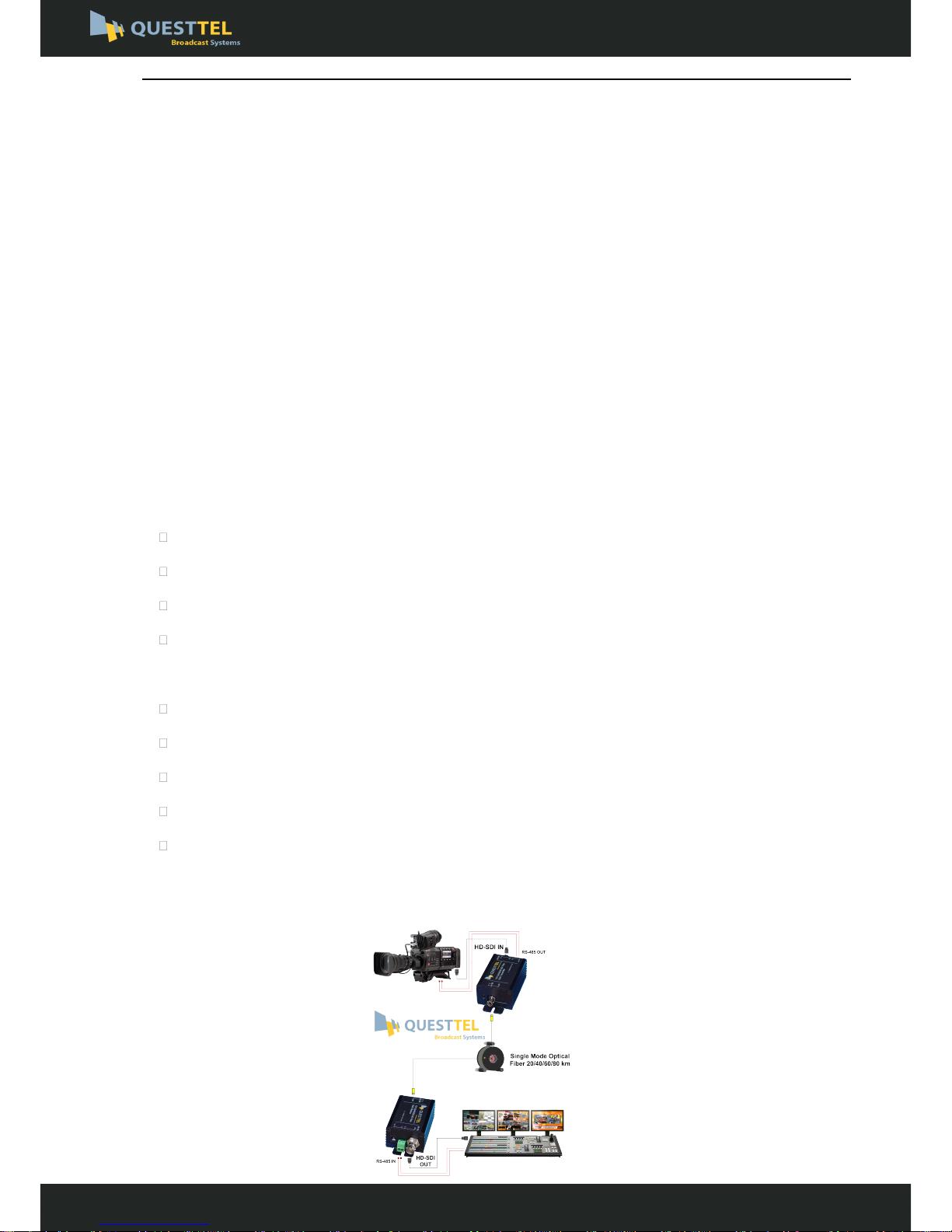

1.3Application
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
User Handbook
L-1SDI-FE-HD-TX-RX

3
2 Panel Description
2.1 Front Panel
OPT
NOP
LOCK
OPT
NOP
VOUT
Transmitter front panel Receiver front panel
Transmitter/Receiver front panel
Interface
Description
OPT
Optical interface, bi-directional, adopts FC connector
NOP
Optical signal loss alarm indicator, red.
ON: Optical signal loss is detected at the port.
OFF: the optical port receive normal signal.
LOCK
The HD-SDI input lock indicator, green.
ON: connect normally.
OFF: connect abnormally.
VOUT
The HD-SDI output status indicator, green.
ON: output normally.
OFF: output abnormally.
2.2 Rear Panel
AB
RS485 HD-SDI
IN
POWER
AB
RS485 HD-SDI
OUT
POWER
Transmitter rear panel Receiver rear panel
Transmitter Rear Panel
Interface
Description
POWER
12V DC power input
RS485
A
RS485 positive terminal
B
RS485 negative terminal
HD-SDI IN
SD/HD-SDI video input
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
User Handbook
L-1SDI-FE-HD-TX-RX

4
Receiver Rear Panel
Interface
Description
POWER
12V DC power input
RS485
A
RS485 positive terminal
B
RS485 negative terminal
HD-SDI OUT
SD/HD-SDI video output
3Technical Specification
Technical Specification
Item
Description
Transmitter optical interface
Wavelength(nm)
Tx1310FP
/Rx1550
Tx1310FP
/Rx1550
Tx1550DFB
/Rx1310
Tx1550DFB
/Rx1310
Tx1550DFB
/Rx1310
Transmission distance (Km)
10
20
40
60
80
launched power (dBm)
-9~-3
-6~-1
-7~-2
-5~0
-2~+3
Connector
FC
FC
FC
FC
FC
Maximum receive sensitivity (dBm)
-32
-32
-33
-36
-37
Receiver optical interface
Wavelength(nm)
Tx1550FP
/Rx1310
Tx1550FP
/Rx1310
Tx1310FP
/Rx1550
Tx1310FP
/Rx1550
Tx1310FP
/Rx1550
Transmission distance (Km)
10
20
40
60
80
launched power (dBm)
-14~-7
-14~-7
-8~-3
-5~0
0~+5
Connector
FC
FC
FC
FC
FC
Maximum receive sensitivity (dBm)
-21
-21
-24
-24
-26
SDI Interface
Connector
BNC
Bit rate
2.97Gb/s,1.485Gb/s and 270Mb/s auto adaptive
Impedance
75Ω
Return loss
>15dB
level
800mVp-p±10%
Rise and fall time（HD-SDI）
≤270ps
Rise and fall time（SD-SDI）
≤1.50ns
SD-SDI Alignment jitter (1KHz)
≤0.2UI
SD-SDI Timing jitter (10Hz)
≤0.2UI
HD-SDI Alignment jitter (100KHz)
≤0.2UI
Standard
Comply to SMPTE 424M 3G-SDI, SMPTE-292M
HD-SDI and SMPTE-259M SD-SDI standard
RS485 Interface
Connector
PHOENIX connector
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
User Handbook
L-1SDI-FE-HD-TX-RX

5
User Handbook
Baud rate
0~115.2Kb/s
Bit error ratio
<10-9
Work mode
Half-duplex
Power and Consumption
Power supply
DC 12V
range
8V~14V
Power consumption
1.5W±10%
Environment Requirements
Working temperature
-30～+60℃
Relative Humidity
≤95％, no condensation
Storage temperature
-40～85℃
Equipment dimension
Equipment dimension
93.2mm×46.2mm×29.6mm
Note: The optical module is optional for users, the default is 20Km, other long distance needs to be declared when
ordering.
www.questtel.com [email protected]
HD/SD-SDI Over Fiber User Manual
L-1SDI-FE-HD-TX-RX

Read before operating equipment.
1. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
2. Power Sources - Use supplied or equivalent UL/CSA approved low voltage DC plug-in transformer.
3. Outdoor Antenna Grounding - If you connect an outside antenna or cable system to the product, be sure the antenna or cable
system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the
National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
4. Lightning - Avoid installation or reconfiguration of wiring during lightning activity.
5. Power Lines - Do not locate an outside antenna system near overhead power lines or other electric light or power circuits or where
it can fall into such power lines or circuits. When installing an outside antenna system, refrain from touching such power lines or
circuits, as contact with them might be fatal.
6. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
7. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage
points or short out parts, resulting in a fire or electric shock. Never spill liquid of any kind on the product.
8. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
9. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
When the power supply cord or plug is damaged.
If liquid spills or objects fall into the product.
If the product is exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions. An improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the product to its normal operation.
If the video product is dropped or the cabinet is damaged.
When the video product exhibits a distinct change in performance, this indicates a need for service.
Safety Instructions
www.questtel.com [email protected]
This unit outputs continuous invisible light, which may be harmful to
the eyes; use with caution. For additional safety, plug the attached
dust caps into the optical transceivers when the fiber optic cable is
unplugged. Direct viewing into optical connectors should be avoided at all
times!
WARNING!
