Quickie Sedeo Lite Q700M User manual

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 1 of 9
Customer service: [phone]
or visit www.SunriseMedical.com
Please read these instructions carefully before beginning the assembly. Failure to understand and
follow assembly instructions may result in injury to technician and/or end user and may void the
warranty. If you have any questions call Sunrise Medical Technical Support at [phone].
Parts:
1. 4 ea Adapter plate screws (A)
2. 4 ea Seat screws (B)
3. 1 ea Adapter plate RH (C)
4. 1 ea Adapter plate LH (D)
5. 6 ea Interface screws (E)
6. 1 ea SEDEO Lite Seat (F)
7. 1 ea Module (Tilt, Lift, Tilt Lift Combo,
Filler) (G)
8. 1 ea Interface (H)

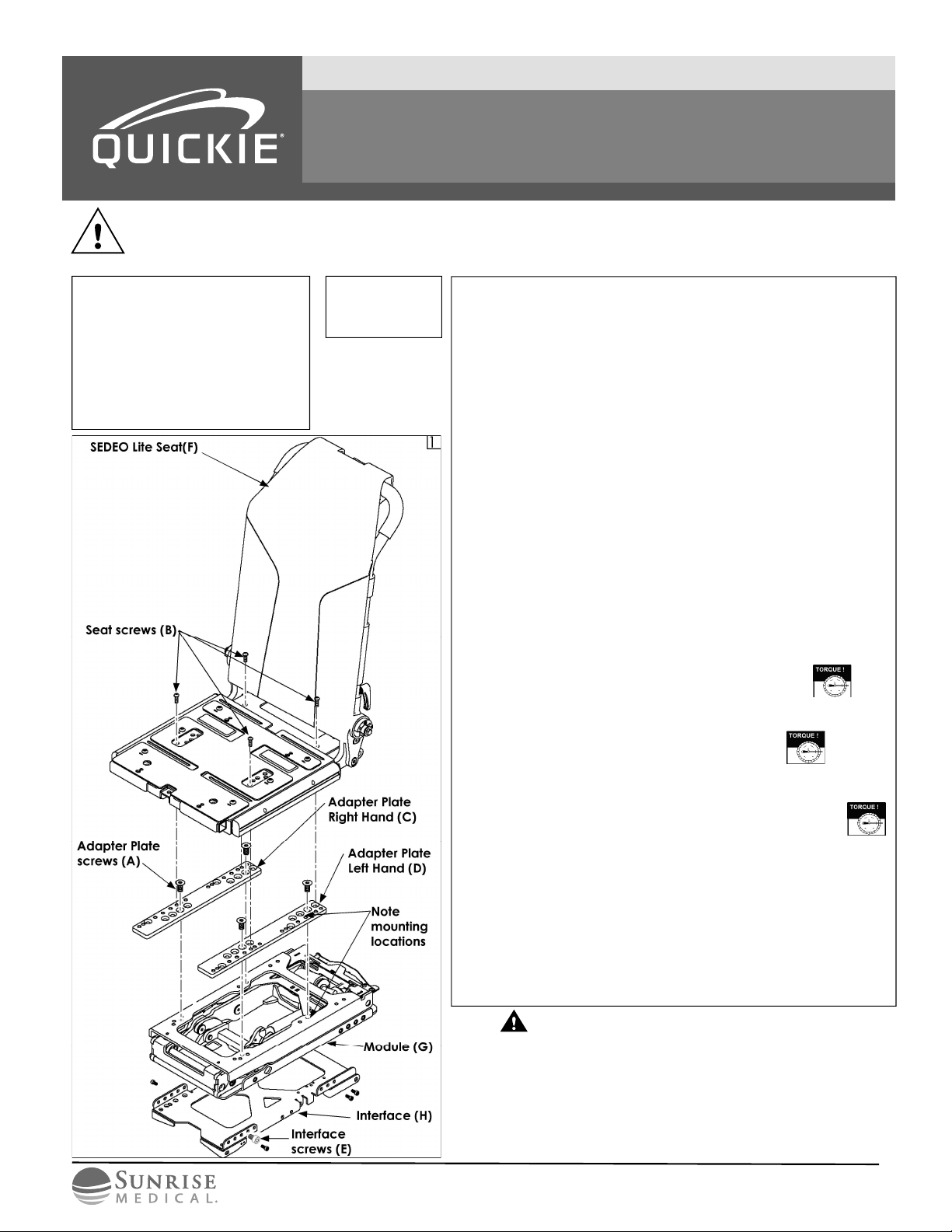

A. REMOVE SEAT/ADAPTER PLATES/ MODULE
1. Remove Seat (F): Note position of seat screws (B) on the
seat (F) as well as the position to the adapter plates (C, D).
Remove the 4 seat screws (B) holding the seat to the
adapter (C, D) and remove the seat (F) (Fig 1). (Use 5mm
hex key)
2. Remove adapter plates (C and D): If your chair does not
have adapter plates (C, D) skip this step, move on to step 3.
Note the position of the adapter screws (A) to the plates (C,
D) as well as to the module (G). Remove the 4 screws (A)
holding the adapter (C, D) to the module (G) and remove
the adapter plates (C, D) (Fig 1). (Use 5mm hex key)
Note- tilt module is shown, but directions apply to all
modules (lift, tilt, tilt lift combo, or  ller).
3. Remove module (G): Note the position of the interface
screws (E) to the interface (H) as well as to the module (G).
Remove the 6 screws (E) holding the module (G) to the
interface (H) and remove the module (G) (Fig 1). (Use 6mm
hex key)
4. Note position of all mounting locations if the seat depth is
not changing. If the seat depth is changing, see pages 3-8.
B. ASSEMBLE SEAT/ADAPTER PLATES/ MODULE
1. Assemble module (G) to the interface (H) using the
interface screws (E). See page 2 for mounting
location. Torque to 13.6-14.9Nm [120-132 in-lbs].
2. Assemble adapter plates (C, D) to module (G). If adapter
plates (C, D) are not used, skip this step and move on to
step 3. See pages 3-8 for mounting location.
Torque to 13.6-14.9Nm [120-132 in-lbs].
3. Assemble seat (F) to the adapter plates (C, D) or the
module (G) using the seat screws (B). See pages 3-8 for
mounting location, and page 9 for seat depth detail.
Torque to 13.6-14.9Nm [120-132 in-lbs].
C. INSPECT:
1. All torque values with a torque wrench.
2. Ensure that all the wire harnesses are out of the way and
are not being pinched.
3. Verify that the harnesses are not put under tension in any
position.
4. Ensure the screws are mounted in the same location as they
were before removal or are mounted to new seat depth
locations as speci ed in Mounting Matrices below.
Required tools:
1. 5mm hex key
2. 6mm hex key
3. Torque wrench
DEALER/TECHNICIAN WARNING
Attention dealers and quali ed technicians, do not operate or service
this device without  rst reading the owners manual. If you do not
understand the instructions and warnings in the owners manual please
contact the Quickie Technical Service Department before operating
and/or servicing the Quickie device. Failure to do so may result in
damage and/or injury.
Find more information and important warnings see the wheelchair
owner’s manual or at: www.SunriseMedical.com
Interface
screws (E)
SEDEO Lite Seat(F) 1
Seat screws (B)
Adapter Plate
screws (A)
Adapter Plate
Right Hand (C)
Adapter Plate
Left Hand (D)
Note
mounting
locations
Module (G)
Interface (H)

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 2 of 9
Customer service: [phone]
or visit www.SunriseMedical.com
Q700M SEDEO Lite Seat Mounting Matrix
Module to Interface
Tilt TLC Lift
with Adapter
Plates
1 - C 1 - E 1 - E
4 - F 2 - G 2 - G
5 - H 3 - H 3 - H
no Adapter
Plates
1 - C 1 - D 1 - E
4 - F 2 - F 2 - G
5 - H 4 - H 3 - H
Lift/ Tilt Lift Combo (TLC)
Tilt

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 3 of 9
Customer service: [phone]
or visit www.SunriseMedical.com

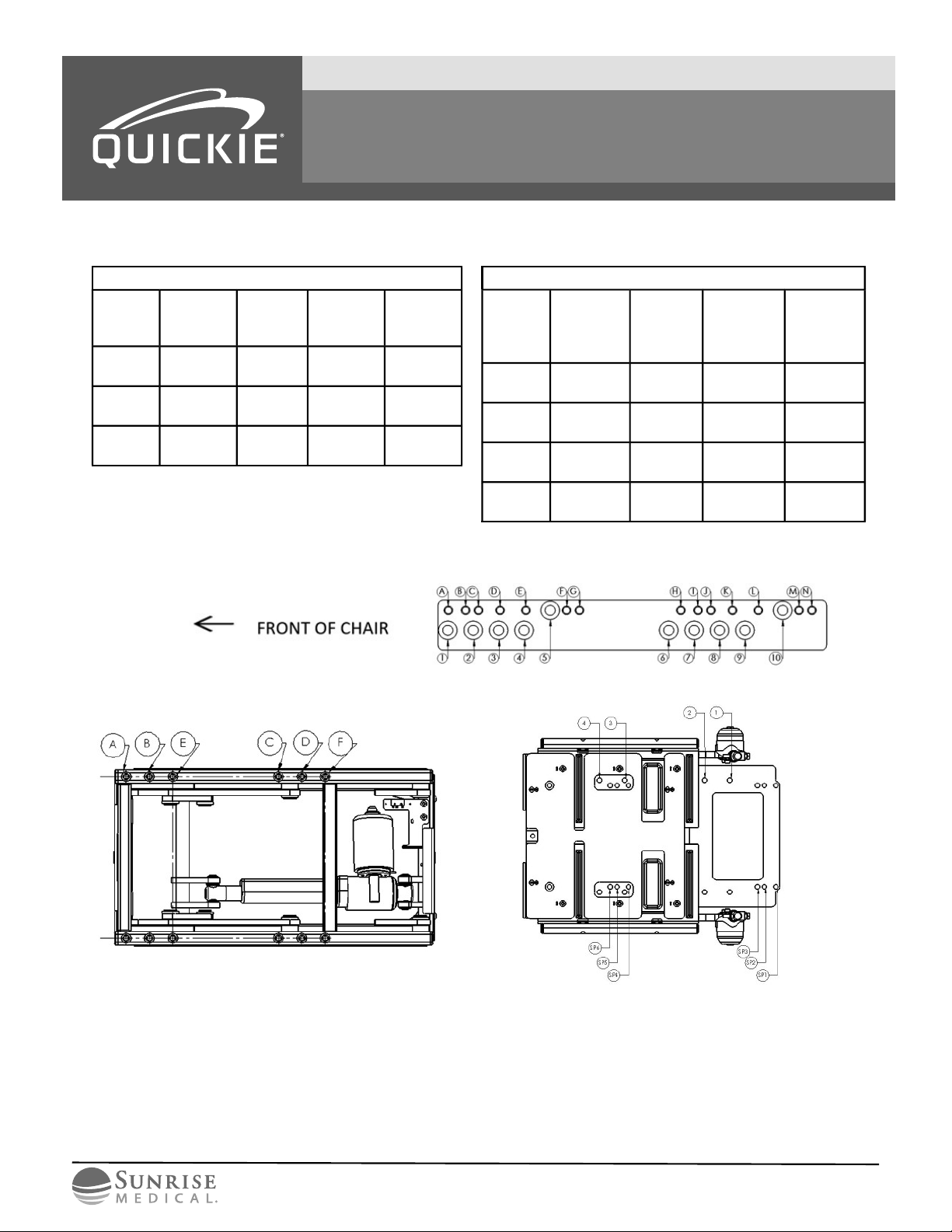

Q700M SEDEO Lite Seat Mounting Matrix
Tilt Power Module
Adapter Plate - Mount Holes
Tilt Power Module – Mount Holes
SEDEO Lite Seat Pan - Mount Holes
Tilt - no Adapter Plates
Seat
Depth
Backrest
Position Module
Adapter
Plate to
Module
Seat Pan
to
Module
16 1 Tilt N/A 4 - B
2 - D
17 3 Tilt N/A 4 - B
2 - D
18 5 Tilt N/A 4 - B
2 - D
Tilt - with Adapter Plates
Seat
Depth
Backrest
Position Module
Adapter
Plate to
Module
Seat
Pan to
Adapter
Plate
19 7 Tilt 5 - B
10 - D
3 - E
1 - L
20 9 Tilt 5 - B
10 - D
3 - D
1 - K
21 11 Tilt 5 - B
10 - D
3 - E
1 - L
22 13 Tilt 5 - B
10 - D
3 - D
1 - K

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 4 of 9
Customer service: [phone]
or visit www.SunriseMedical.com
Tilt Lift Combo (TLC)
Adapter Plate - Mount Holes
TLC Power Module – Mount Holes
SEDEO Lite Seat Pan - Mount Holes
Q700M SEDEO Lite Seat Mounting Matrix
Tilt Lift Combo (TLC) - no Adapter Plates
Seat
Depth
Backrest
Position Module
Adapter
Plate to
Module
Seat Pan
to
Module
16 1 TLC N/A SP6 - D
SP3 - H
17 3 TLC N/A SP6 - D
SP3 - H
18 5 TLC N/A SP6 - D
SP3 - H
Tilt Lift Combo (TLC) - with Adapter Plates
Seat
Depth
Backrest
Position Module
Adapter
Plate to
Module
Seat Pan
to
Module
19 7 TLC 7 - A
2 - E
3 - H
1 - A
20 9 TLC 7 - A
2 - E
3 - I
1 - B
21 11 TLC 7 - A
2 - E
3 - K
1 - D
22 13 TLC 7 - A
2 - E
4 - N
2 - G

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 5 of 9
Customer service: [phone]
or visit www.SunriseMedical.com

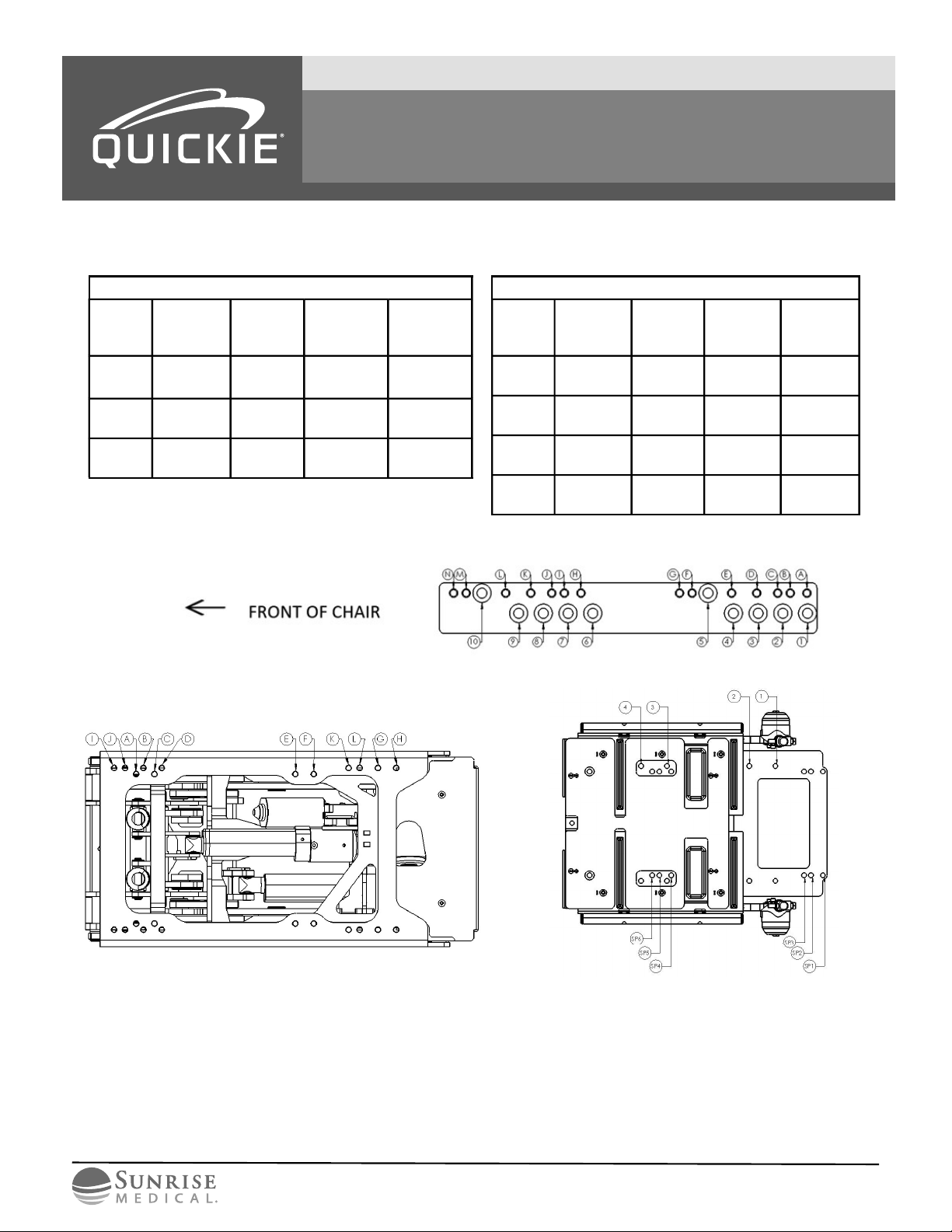

Lift Power Module
Adapter Plate - Mount Holes
TLC Power Module – Mount Holes
SEDEO Lite Seat Pan - Mount Holes
Q700M SEDEO Lite Seat Mounting Matrix
Lift - no Adapter Plates
Seat
Depth
Backrest
Position Module
Adapter
Plate to
Module
Seat Pan
to
Module
16 1 Lift N/A SP6 - D
SP3 - H
17 3 Lift N/A SP6 - D
SP3 - H
18 5 Lift N/A SP6 - D
SP3 - H
Lift - with Adapter Plates
Seat
Depth
Backrest
Position Module
Adapter
Plate to
Module
Seat Pan
to
Module
19 7 Lift 9 - A
4 - E
3 -J
1 - C
20 9 Lift 9 - A
4 - E
3 - J
1 - C
21 11 Lift 9 - A
4 - E
3 - K
1 - D
22 13 Lift 9 - A
4 - E
3 - L
1 - E

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 6 of 9
Customer service: [phone]
or visit www.SunriseMedical.com
Tilt
Q500M SEDEO Lite Seat Mounting Matrix
Tilt Power Module
Adapter Plate - Mount Holes
Tilt Power Module – Mount Holes
SEDEO Lite Seat Pan - Mount Holes
Tilt - no Adapter Plates
Seat
Depth
Backrest
Position Module Module to Interface
Seat Pan
to
Module
16 1 Tilt
1 - B
5 - G
6 - H
4 - B
2 - D
17 3 Tilt
1 - B
5 - G
6 - H
4 - B
2 - D
18 5 Tilt
1 - B
5 - G
6 - H
4 - B
2 - D
Tilt - with Adapter Plates
Seat
Depth
Backrest
Position Module
Module
to
Interface
Adapter
Plate to
Module
Seat
Pan to
Adapter
Plate
19 7 Tilt
1 - B
5 - G
6 - H
5 - B
10 - D
3 - G
1 - N
20 9 Tilt
1 - B
5 - G
6 - H
5 - B
10 - D
4 - D
2 - K
21 11 Tilt
1 - B
5 - G
6 - H
5 - B
10 - D
4 - B
2 - I
22 13 Tilt
1 - B
5 - G
6 - H
5 - B
10 - D
3 - D
1 - K

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 7 of 9
Customer service: [phone]
or visit www.SunriseMedical.com
Tilt Lift Combo (TLC) and Lift Only Power Module
Adapter Plate - Mount Holes
TLC Power Module – Mount Holes
SEDEO Lite Seat Pan - Mount Holes
Q500M SEDEO Lite Seat Mounting Matrix
Tilt Lift Combo (TLC) and Lift Only - no Adapter Plates
Seat
Depth
Backrest
Position Module Module to Interface
Seat Pan
to Module
16 1 Lift/TLC
1 - E
2 - G
3 - H
SP6 - D
SP3 - H
17 3 Lift/TLC
1 - D
2 - F
4 - H
SP6 - D
SP3 - H
18 5 Lift/TLC
1 - D
2 - F
4 - H
SP6 - D
SP3 - H
Tilt Lift Combo (TLC) and Lift Only - with Adapter Plates
Seat
Depth
Backrest
Position Module
Module
to
Interface
Adapter
Plate to
Module
Seat Pan
to Adapter
Plate
19 7 Lift/TLC
1 - E
2 - G
3 - H
7 - A
2 - E
3 - I
1 - B
20 9 Lift/TLC
1 - E
2 - G
3 - H
7 - A
2 - E
3 - J
1 - C
21 11 Lift/TLC
1 - E
2 - G
3 - H
7 - A
2 - E
4 - M
2 - F
22 13 Lift/TLC
1 - E
2 - G
3 - H
7 - A
2 - E
3 - L
1 - E
Lift/ Tilt Lift Combo (TLC)

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 8 of 9
Customer service: [phone]
or visit www.SunriseMedical.com
Q700M/Q500M SEDEO Lite Seat Mounting Matrix
Filler Module
Filler Module
Interface
SEDEO Lite Seat Pan - Mount Holes
Filler Module - No Adapter Plates
Seat
Depth
Backrest
Position Module
Filler
Module to
Interface
Seat Pan to
Filler
Module
16 1 Filler E - 1
H - 2
SP3 - B
SP6 - A
17 3 Filler E - 1
H - 2
SP3 - B
SP6 - A
18 5 Filler E - 1
H - 2
SP2 - B
SP5 - A
19 7 Filler E - 1
H - 2
SP1 - B
SP4 - A
20 9 Filler D - 1
G - 2
SP1 - B
SP4 - A
21 11 Filler C - 1
F - 2
SP1 - B
SP4 - A
22 13 Filler C - 1
F - 2
SP1 - B
SP4 - A

Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 9 of 9
Customer service: [phone]
or visit www.SunriseMedical.com
SEDEO Lite Backrest Seat Depth Adjustment
Seat Depth Detail
DEALER/TECHNICIAN WARNING
Attention dealers and quali ed technicians, do not operate or service this device without  rst reading the owners manual. If you
do not understand the instructions and warnings in the owners manual please contact the Quickie Technical Service Department
before operating and/or servicing the Quickie device. Failure to do so may result in damage and/or injury.
Find more information and important warnings see the wheelchair owner’s manual or at: www.Sunrisemedical.com.
Seat Depth adjustment hardware
