QuietCool GA ES-1500 User manual

DO NOT THROW AWAY!
SERIAL NUMBER FOR FAN IS LOCATED ON THE BACK COVER OF THE OWNER’S GUIDE.
LEAVE WITH HOMEOWNER
OWNER’S GUIDE
GARAGE FANS
!
GA ES-1500
GX ES-1100

1-888-QUIETCOOL
2
CONTENTS
1. SYSTEM OVERVIEW .......................................3
1.1 Introduction .........................................3
1.2 Features ............................................3
1.3 System Venting Requirements...........................4
2. INSTALLATION ...........................................5
2.1 Installing GA ES-1500 .................................5
2.2 Installing GX ES-1100..................................6
3. WIRING .................................................8
3.1 Wiring GX ES-1100 with Thermostat......................8
3.1 Wiring GA ES-1500 with RF Control ......................9
3.2 Fan Hub LED Indicators...............................10
3.3 Pairing the Wall Switch ...............................11
3.4 Finding a Location for the Wall Switch ...................11
3.5 Installing the Wall Switch ..............................12
4. SYSTEM OPERATING INSTRUCTIONS .......................12
4.1 Operating the Wall Switch.............................12
4.2 Frequently Asked Questions ...........................13
WARRANTY...............................................15
QC MANUFACTURING, INC.
26040 YNEZ ROAD
TEMECULA, CA 92591
PHONE 1-888-QUIETCOOL
WEBSITE WWW.QUIETCOOLSYSTEMS.COM
WARNINGS
CAUTION: This unit has an unguarded impeller. Do not use in locations readily
accessible to people or animals.
CAUTION: Do not operate any fan with a damaged cord or plug. Discard fan
or return to an authorized service facility for examination and/or repair.
CAUTION: Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Do not route cord under furniture or
appliances. Arrange cord away from trafc area and where it will not be
tripped over.
!
!
!
!
!
!

QUIETCOOLSYSTEMS.COM
3
1. SYSTEM OVERVIEW
1.1 INTRODUCTION
CONGRATULATIONS
on the purchase of your new QuietCool Garage Fan!

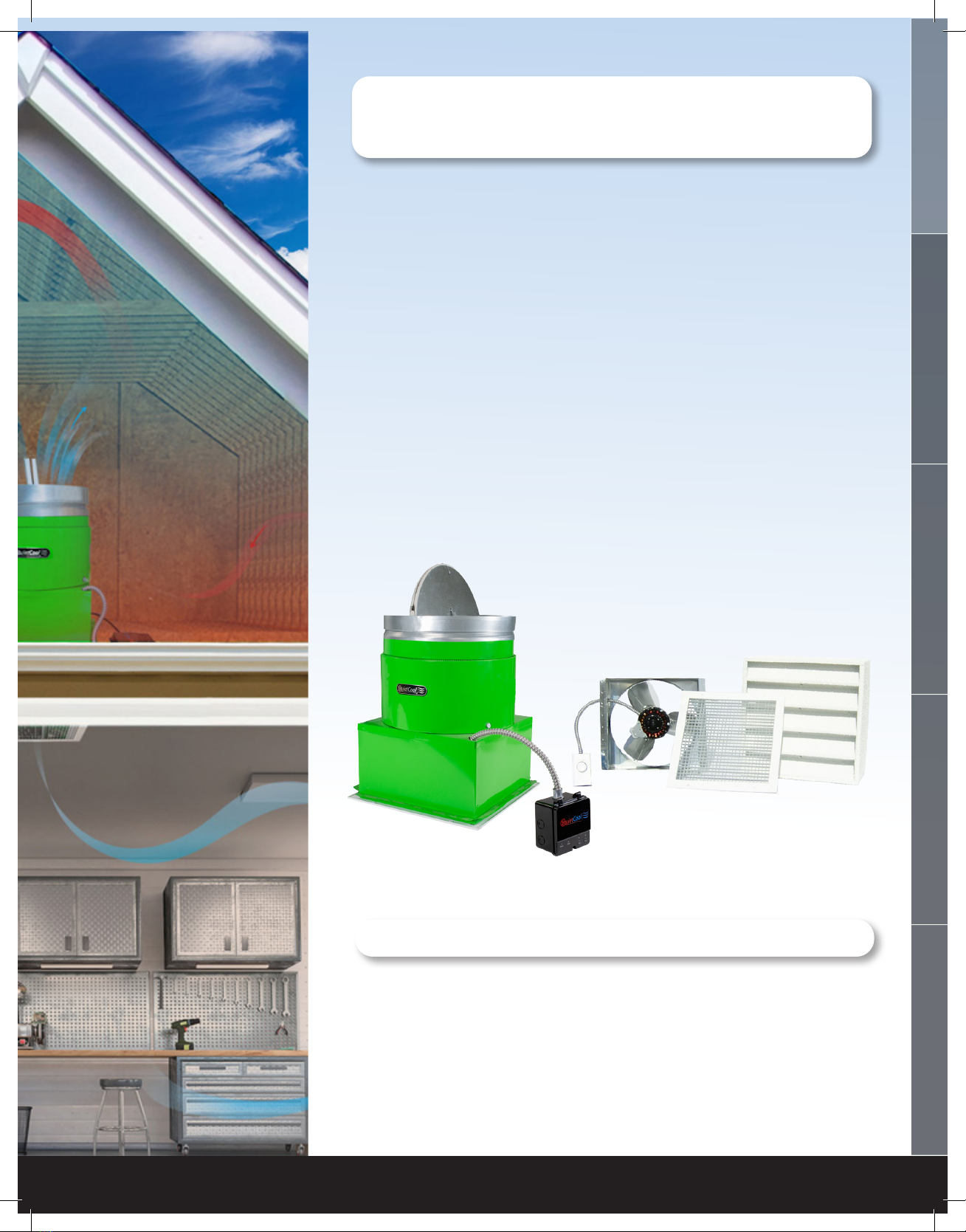

The QuietCool Garage Fans offer great ventilation options for your
garage, man cave, or workshop.
We offer the GA ES-1500 Garage Whole House Fan to ventilate
both your garage and attic
We also offer the GX ES-1100 to ventilate your garage only, with a
wall mount design.
1.2 FEATURES
+ Ultra-Energy Efcient Electronically Commutated Motor (ECM)
+Built in USA
+15-Year Warranty
+ Included RF WIreless Control Kit (GA)
+ Included Adjustable Thermostat (GX)
WELCOME INSTALLATION WIRING OPERATION WARRANTY

1-888-QUIETCOOL
4
1.3 SYSTEM VENTING REQUIREMENTS
VERY IMPORTANT: 1 SQUARE FOOT OF NET FREE VENT AREA PER 750 CFM
RECOMMENDED: 2 TO 4 SQUARE FEET OF INLET VENTS PER FAN
Venting plays a very signicant role in the performace of QuietCool fans. QuietCool recommends a mini-
mum of 1 SQ. FT. of venting for every 750 CFM in the QuietCool system. If an attic has at least 1:750 attic
venting, the QuietCool system will operate efciently and effectively. If an attic has less than 1:750 attic
venting, the system may not operate as efciently, or effectively, as it could with 1:750 attic venting. But
don’t worry, the system will still operate if there is not enough venting.
Insufcient venting is a very simple problem to x. Roong contractors can add extra venting to most
homes simply and easily. The most common types of venting is shown in the chart below.

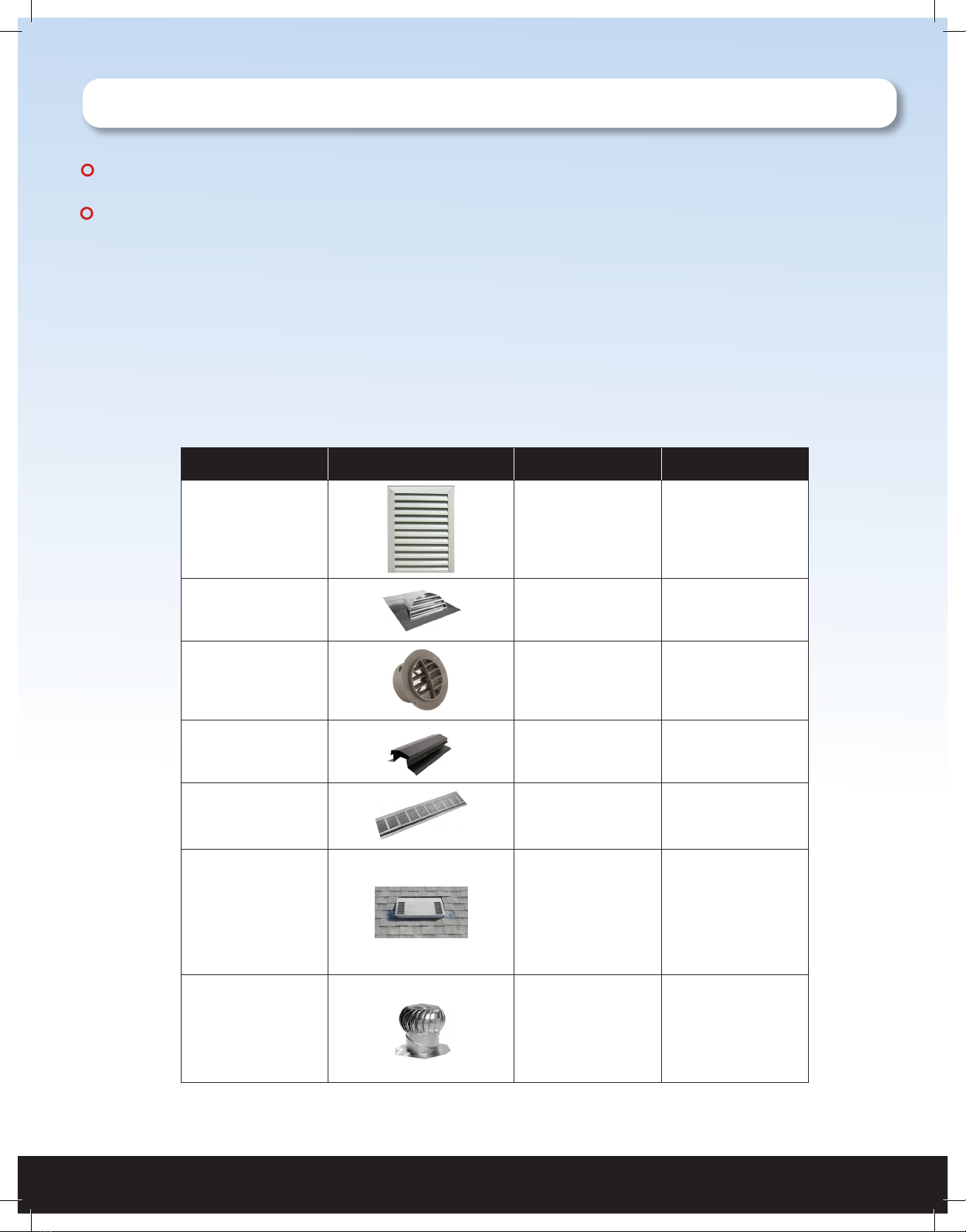

Vent Type Model Type Average Size Venting Sq. Ft.
Gable vent 12” x 19.5” 1.20
Dormer Vent 14” x 8” 0.70
Eave Vent
4”
5”
6”
0.03
0.04
0.07
Ridge Vent 4’ - 12’ 0.125 per ft
Soft Vent
16” x 4”
16” x 6”
16” x 8”
0.19
0.29
0.39
O’Hagin Vent
Low/Medium
Prole
Tapered Low
Prole
Low Prole Flat
High Prole
0.5
0.6
0.68
0.68
Turbine Vent
8”
12”
14”
.35
.79
1.1
*Note: This table is only a guideline and is not a guarantee of venting capacity.
!
!
!
!

QUIETCOOLSYSTEMS.COM
5
WELCOME INSTALLATION WIRING OPERATION WARRANTY
Installation Video:
Watch the video by scanning the QR
code or visit
www.QuietCoolSystems.com/support
2. INSTALLATION
2.1 INSTALLING THE GA ES-1500
VERY IMPORTANT: MINIMUM OF 26” CLEARANCE REQUIRED
ABOVE CEILING FOR INSTALLATION OF GA MODEL FANS.
ALWAYS FOLLOW LOCAL BUILDING CODES.
1. Determine in which area you would like to install your QuietCool
Garage Attic Fan.
2. Now it’s time to nd the exact location using a stud nder or by
going up into the attic and nding the location. Locate the ceiling
studs and mark the location for the fan to be installed.
3. One side of the cut out should be directly next to a wood member
for proper fan mounting and support.
NOTE: The QuietCool Damper Box includes removable anges
in the case that you are installing the damper box between
studs that are exactly 16” on center. To remove the anges,
simply take a screwdriver and pry between the ange surface
and the damper box. Do this along the entire edge of the ange
and it will pop off.
4. When you nd the location, from down below mark a square using
the template. Make sure you have 2” of clearance all the way around
it so the grille ts with no obstructions. (see Figure 2.1A)
5. Starting at one corner of the square using a drywall saw, cut out
the opening. Remove the drywall cutout and clear away insulation (if
applicable). (see Figure 2.1B)
6. Take the GA fan model into the attic and place it over the ceiling cut
out. (see Figure 2.1C). If needed, you can remove the ceiling anges
and pass the fan directly through the ceiling cut-out.
7. Attach the fan using screws into the ceiling joists. (see Figure 2.1D).
8. Install the ceiling grille. (see Figure 2.1E)
VERY IMPORTANT: Check to make sure fan blade spins freely
and the re damper closes easily. Make sure to secure the clip
in the open position.
!
!
!

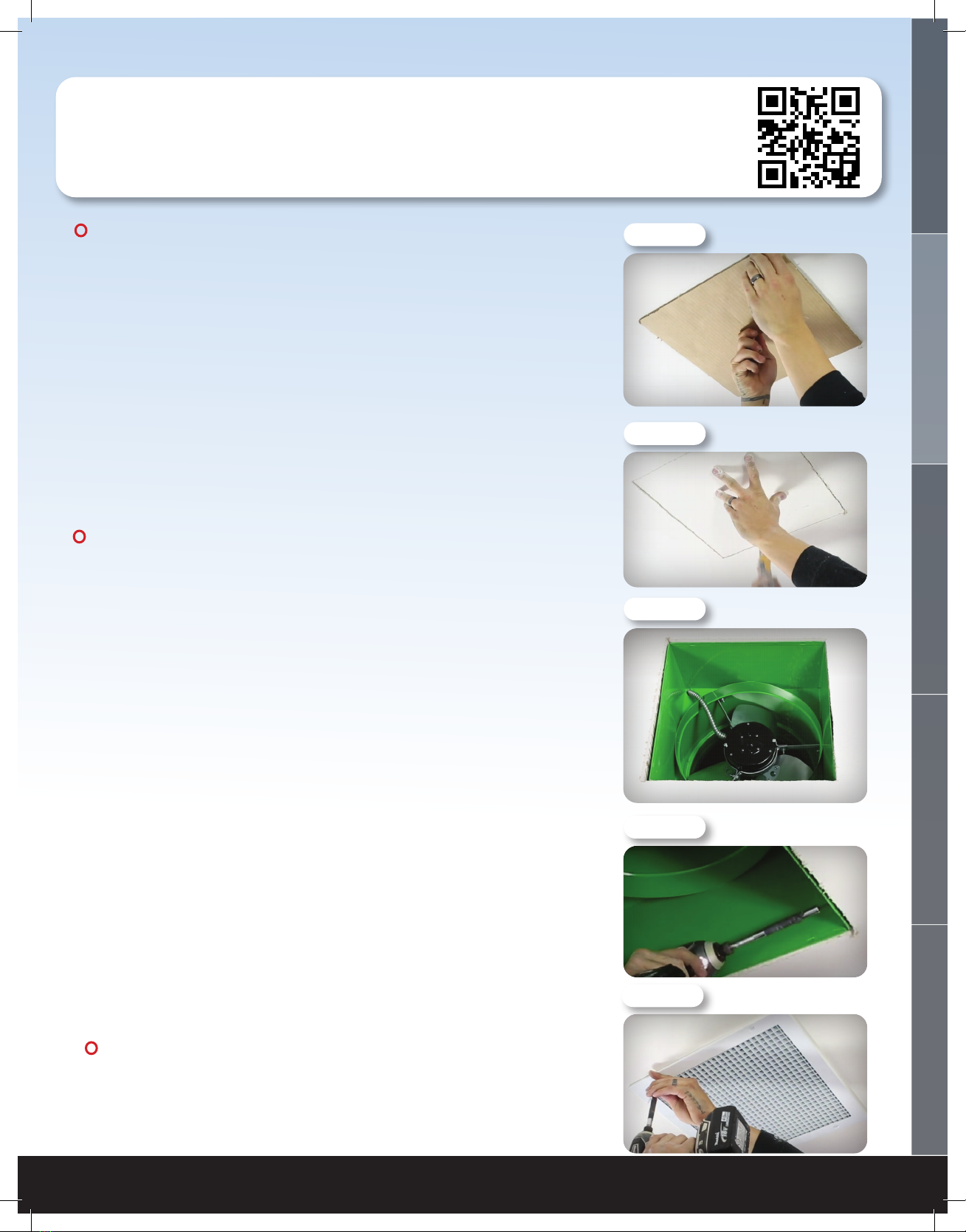

!Figure 2.1A
Figure 2.1B
Figure 2.1C
Figure 2.1D
Figure 2.1E
!
!

1-888-QUIETCOOL
6
2.2 INSTALLING THE GX ES-1100
1. Determine in which area you would like to install your QuietCool Garage Exterior Mount Fan.
2. Now it’s time to nd the exact location using a stud nder. Locate the wall studs and mark
the location for the fan to be installed (see Figure 2.2A). One side of the cut out should be
directly next to a wood member for proper fan mounting and support.
3. When you nd the location, mark a 14 1/4” square using a framing square or template. Make
sure you have 2” of clearance all the way around it. The grille that will be installed later is a
16” square (see Figure 2.2B).
4. Starting at one corner of the square using a drywall saw, cut out the opening. Remove the
drywall cutout and clear away insulation (if applicable).
5. From the interior, drill a hole through the exterior at the four corners of the cut out (see
Figure 2.2C).
6. Go to the exterior and place the square wall mounting bracket aligned to the 4 drilled holes.
7. Using a level, mark the inside of the bracket with a pencil (see Figure 2.2D).
8. Using a saw or angle grinder, cut out the marked area of stucco or siding (see Figure 2.2E).
9. Remove cut out of exterior stucco or siding. Then cut out any applicable sheathing.
10. Now install the exterior cover frame. Make sure the frame is level and then attach the four
corners with long enough screws to penetrate the wood studs. Note: Predrilling may be
required (see Figure 2.2F).
11. Place fan into the cut out area. Fasten the fan in each 4 corners to the vertical wood studs
(see Figure 2.2G).
12. Caulk exterior around frame (see Figure 2.2H).
13. Attach the exterior cover to mounting frame using 4 sheet metal screws (see Figure 2.2I).
14. Mount inside wall grille (see Figure 2.2J).

QUIETCOOLSYSTEMS.COM
7
WELCOME INSTALLATION WIRING OPERATION WARRANTY

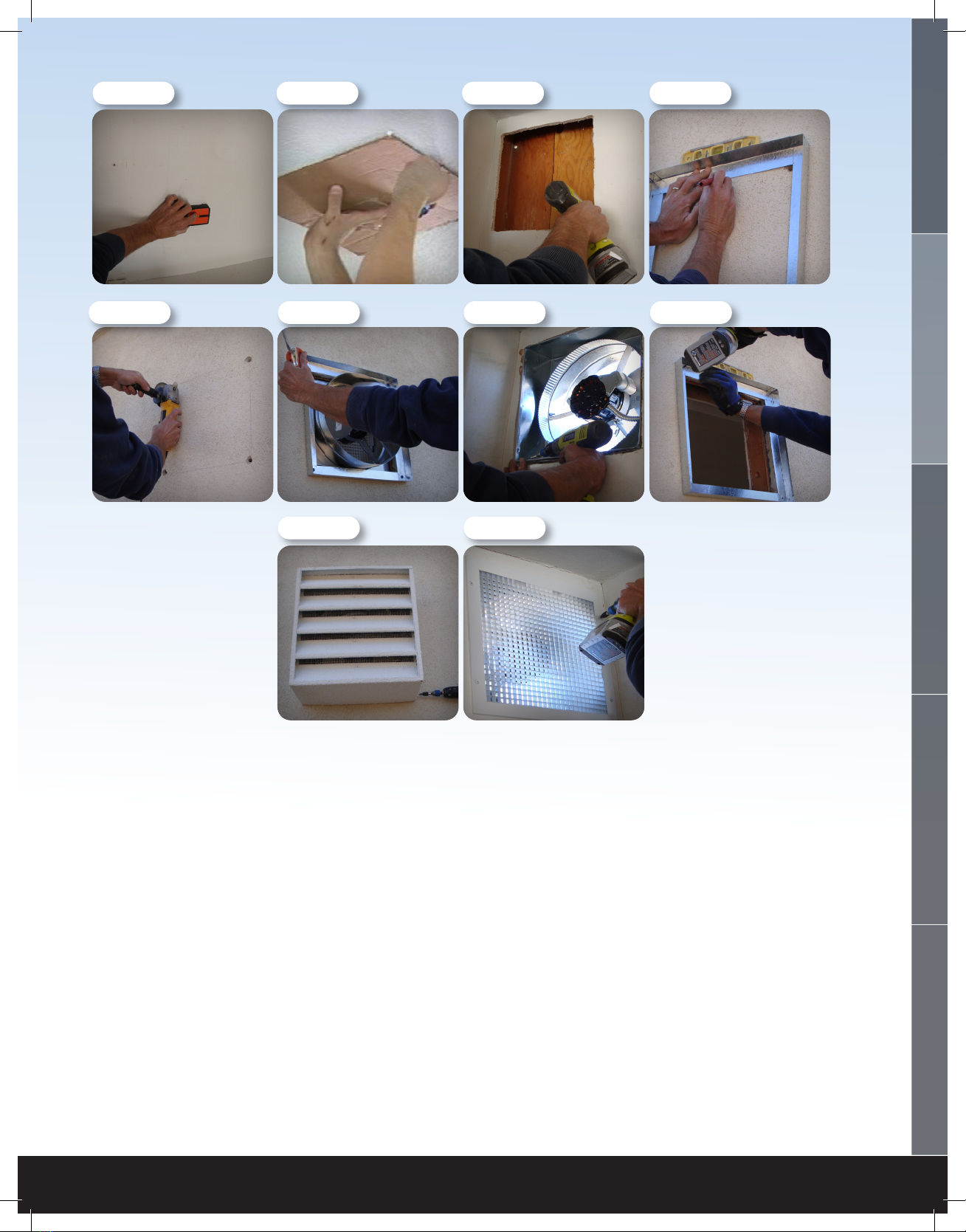

Figure 2.2A Figure 2.2B Figure 2.2C Figure 2.2D
Figure 2.2HFigure 2.2GFigure 2.2FFigure 2.2E
Figure 2.2JFigure 2.2I

1-888-QUIETCOOL
8
3. WIRING
NOTE: Wiring Diagrams are for examples ONLY. Wiring should be done by an
experienced electrician.
NOTE: Your fan may have come with the RF Hub or Thermostat pre-wired to a power cord for
testing purposes before installation. The power cord can be used when installed inside of an attic.
DO NOT USE THE POWER CORD OUTDOORS. If you would like to hard-wire the fan, or it is
required by your local building codes, please follow the wiring instructions below.
!
!
!
!
3.1 GX ES-1100 WIRING WITH THERMOSTAT
1. Mount a junction box for your thermostat in the best location for thermostat readings which is
usually on the wall next to the light switch or garage door opener in the garage. Begin wiring the
thermostat.
2. With a 3 wire Romex, tie the black wire to the black wire from the thermostat.
3. Tape the white common wire on both sides of the 3 wire Romex because we will be using this as our
switch leg.
4. Tie the red wire and the taped white wire together.
5. Attach the ground wire to the ground screw on the timer.
6. In the fan’s junction box, tie the black wire from the fan to the taped white wire.
7. Tie the two remaining black wires together. Then, tie the remaining copper wires together.
Figure 3.1A
Ground the fan to the junction box
using the green ground screw
Junction
Box
Power
Source
14-2 Wire
OFF
55
65
75
85
50 60 70 80 90
14-2 Wire
14-2 Wire

QUIETCOOLSYSTEMS.COM
9
WELCOME INSTALLATION WIRING OPERATION WARRANTY
3.2 GA ES-1500 WIRING WITH RF CONTROL
1. Using a wire nut, connect the black wire from the power source to the black wire from the Hub.
2. Connect the white wire from the power source and the white wire on the fan to the white wire
from the Hub.
3. Cap the red wire on the Hub
4. Cap the yellow wire on the Hub
5. Connect the black wire from the fan to the blue wire on the Hub
6. Ground the green wire from the fan and the ground wire from the power source to the ground
screw in the Hub.
7. Set the dip switch positions inside the Hub as shown in the diagram.
Power
Cord
Attach green ground wires to ground screw
All White Common Wires Together
POWER TIMER PAIRTEST
Set dip switches:
1 - ON
2 - OFF
3 - OFF
Attic Fan
ON
1 2 3
Figure 3.2A
8. Power-on the Hub. The Power LED indicator will be lit.
9. Press the Test button to make sure the fan works. The Test LED indicator will blink three times
every two seconds indicating 1-speed and the fan will be on. Press the Test button again and the fan
should shut off and the LED will be off.
10. If the fan doesn’t operate as described in step 9, please check the dip switch postion.
11. You can connect up to 20 switches to a single hub.

1-888-QUIETCOOL
10

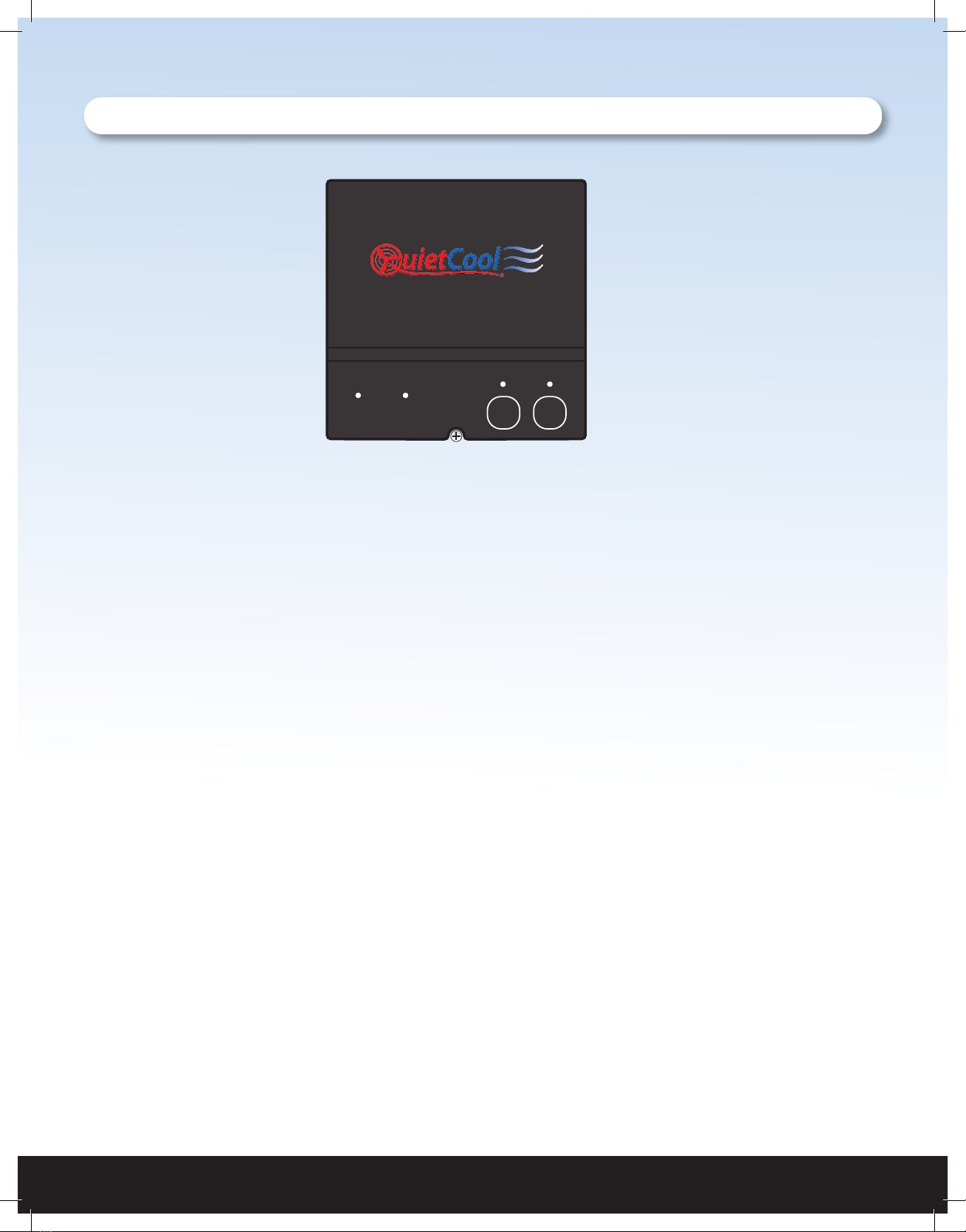

POWER TIMER PAIRTEST
POWER INDICATOR
• The Power LED
indicator will always
be lit when the Hub
is connected to
Power.
• If this LED is not lit,
check the power
source
TIMER INDICATOR
• The Timer LED
indicator will light up as
shown below:
• 1 Hour: 1 Blink
• 2 Hours: 2 Blinks
• 4 Hours: 4 Blinks
• 8 Hours: 8 Blinks
• 12 Hours: 12 Blinks
• Continuous On: Off
TEST INDICATOR
• The Test LED indicator will
light up as shown below when
the Test button is pressed and
when the fan is turned on via
the Wall Switch:
• High Speed: LED indicator will
blink three times every two
seconds
PAIR INDICATOR
• The Pair LED indicator will
light up when making pair
operations. Please see
below for details on pairing.
NOTES ON OPERATION
• If the Dip Switch is not congured correctly, all the indicators on the Hub will stay solid
when the Hub is powered on. Please switch off power and re-congure the Dip Switch as
shown in Figure 3.2A on pg. 9.
3.2 FAN HUB LED INDICATORS

QUIETCOOLSYSTEMS.COM
11
WELCOME INSTALLATION WIRING OPERATION WARRANTY
3.3 PAIRING THE WALL SWITCH
1. Using a at-head screwdriver, remove the front cover off the wall switch.
2. Install the included AAA batteries into the switch. All the LED indicators will light up
indicating that the switch has power. Replace the front cover.
3. Press and hold the Pair button on the Hub. The Pair LED indicator will be on for three
seconds then turn off. This clears all previous pairings out of the Hub,
4. Press the Pair button on the Hub twice. The Pair LED indicator will blink once every second
indicating the Hub is in pairing mode.
5. Press either one of the buttons on the Wall Switch to wake it up. Now hold one of the
buttons on the switch. The Pair LED indicator on the Hub will go out and the Wall Switch
speed indicators will be blinking indicating successful pairing. Press the Wall Switch button
again, the speed indicators will go out, and it will display the current fan status.
Press the Timer button to test the Wall Switch to make sure it is communicating with
the Hub.
NOTE: If a button on the Wall Switch is not pressed within three minutes of pressing the
Pair button on the Hub, the LED indicator on the Hub will go out, indicating unsuccessful
pairing. You will need to go back and repeat steps 4 and 5.
3.4 FINDING A LOCATION FOR THE WALL SWITCH
1. It is very important to nd the correct location to install the Wall Switch that will allow
the Wall Switch to communicate with the Hub.
2. Find the location you would like to install the Wall Switch and test that it properly
communicates with the fan to turn the fan on and off.
3. If the fan comes on, this is a good location.
4. If all the LED indicators turn on, the Wall Switch is not communicating with the Hub
and you will need to nd a location closer to the fan.
!
!

1-888-QUIETCOOL
12
3.5 INSTALLING THE WALL SWITCH
1. Using your hands, slide the Wall Switch off the
mounting plate.
2. If you have an existing Wall Switch with a junction
box installed, install the mounting plate over the junction
box using the oblong holes on the mounting plate. Make
sure you install the mounting plate with the arrow
facing upwards.
3. If you do not have an existing junction box, simply
install the mounting plate to the drywall. Using the
included drywall anchors and screws, mount the plate
onto the drywall through the four mounting holes.
1 2 4 8 12
H
M
L
1 2 4 8 12
H
M
L
4. SYSTEM OPERATING INSTRUCTIONS
4.1 OPERATING THE WALL SWITCH
TIMER BUTTON
• The top button on the switch controls the Timer functionality of the
fan.
• This button must be pressed for the fan to turn on.
• To turn the fan off, you must cycle through the time settings until
the lights turn off.
SPEED BUTTON
• The bottom button on the switch controls the speed functionality of
the fan.
WALL SWITCH SLEEP MODE
• If no button press is detected for 10 seconds, the Wall Switch will
enter sleep mode. Pressing either button will wake the switch and
display the current status.
• In Sleep Mode, all LED indicators will be off.

QUIETCOOLSYSTEMS.COM
13
LED STATUS INDICATORS OF WALL SWITCH
• If all LED indicators on the Wall Switch come on after three seconds of pressing one of the buttons,
this means the Wall Switch is failing to connect to the Hub. You will need to move the switch closer
to the Hub to ensure proper communication.
• If all the Timer LED indicators are off and one of the Speed LED indicators are on, this means you
have not set the time for the fan to run and the fan will not operate. Simply press the Timer button
to turn the fan on and set the fan runtime.
• If only one of the Timer LED indicators is on and only one of the Speed LED indicators is on, the fan
is running at the indicated speed and timer level.
• If all the Timer LED indicators are on and only one of the Speed LED indicators are on, the fan is
running in Continuous On mode at the indicated speed level. The fan will continue to run until you
press the Timer button to turn it off.
NOTE ON OPERATION
• In order for the fan to run, a Timer selection MUST be made. When the Timer status is off (no LED
indicators lit), you can still change the Speed setting. The Speed setting will take effect once the
Timer selection is made.
4.2 FREQUENTLY ASKED QUESTIONS
WHAT DOES RF MEAN?
“RF” Stands for Radio Frequency.
HOW DOES RF WORK?
A small electronic device is used to transmit and/or receive radio signals between two devices. In an
embedded system, it often communicates with another device wirelessly. This wireless communication may
be accomplished through optical communication or through radio frequency (RF) communication.
WILL RF INTERFERE WITH OTHER DEVICES IN MY HOME?
The RF will not interfere with other wireless or RF devices in your house. It produces its own unique RF signal
that can only communicate with our RF Switch.
HOW MANY SWITCHES CAN YOU CONNECT TO A SINGLE HUB?
You can connect up to 20 switches to a single hub.
WILL MY NEIGHBOR BE ABLE TO CONTROL MY FAN IF THEY HAVE THE SAME
SET UP AS ME?
They will not because you need to physically activate the pairing process between the RF Switch and the
RF Hub.
WELCOME INSTALLATION WIRING OPERATION WARRANTY

1-888-QUIETCOOL
14
WHAT IS THE RANGE?
The RF Switch and RF Hub have a range restriction of 100ft.
WHAT HAPPENS IF I LOSE THE RF SWITCH?
If you lose or damage an RF Switch you will need to purchase another and re-pair the new one to the
RF Hub.
CAN YOU CONTROL MULTIPLE FANS WITH A SINGLE SWITCH?
No. You can only control one RF Hub per switch.
HOW LONG DO THE BATTERIES LAST?
Up-to one year.
WHY ARE ALL MY LIGHTS SOLID ON THE HUB AND NOTHING IS WORKING?
If you’re experiencing solid lights on the hub then it is an indication that your DIP switches are not in the
correct position. Disconnect power, adjust your DIP switches, and the only light that should be lit is your
RED power light.
HOW DO I CHANGE THE DIP SWITCH TO THE CORRECT SPEED OF MY FAN?
You will need to disconnect power, make your adjustment inside the hub, and then reconnect power. Refer
to page 9 for more information.
CAN YOU CONNECT THE RF CONTROL TO A SMART HOME SYSTEM LIKE ALEXA,
GOOGLE HOME, OR APPLE HOMEKIT?
No, in the current conguration the RF Control cannot connect to a smart home system. There are
systems on the market that take RF signal and translate them to a smart home system, but they have
not been tested and may not work reliably.

QUIETCOOLSYSTEMS.COM
15
WELCOME INSTALLATION WIRING OPERATION WARRANTY
GARAGE FAN LIMITED WARRANTY
QC Manufacturing Inc. extends this warranty to the original purchaser of the following
QuietCool Specialty Series Fans - GA ES-1500 and GX ES-1100 - installed and used in a
residence under normal conditions within the United States:
A. Fifteen year coverage applies to the QuietCool motor fan assembly. At our
option we will repair or replace any part of the assembly should it fail to
operate during the rst fteen years from the date of original purchase.
B. One year coverage for all other components including grilles, housings,
controls and accessories furnished by QC Manufacturing, Inc. At our option
we will repair or replace any part which fails as a result of defective material
or workmanship during the rst year from the original date of purchase.
C. This warranty does not cover any of the following:
1. Accidental or consequential damage resulting from the operation of
our equipment or any malfunction thereof.
2. Cost of service calls to diagnose the cause of problems or the labor
charge to un-install any components.
3. Product failure or damage due to faulty installation, abuse, misuse,
unauthorized alteration to factory specs, lack of maintenance, or
transportation damage.
4. Shipping or postage for warranty claims.
D. To obtain service under this warranty, rst contact the dealer where you
purchased the equipment. If you are unable to nd or reach your dealer,
contact Customer Service at QC Manufacturing, Inc. at the number below.
E. Registration is no longer required for QuietCool fans. If service is required
under this warranty, you must retain your proof or purchase.
This warranty is the only warranty extended by QC Manufacturing, Inc. to purchasers or suppliers of our equipment. QC
Manufacturing Inc. disclaims all other warranties, express or implied, that arise by operation of the law. Where consumer may
have additional warranty rights in accordance with federal and state law, such rights shall supersede those stated herein.
QC Manufacturing, Inc. Customer Service
26040 Ynez Rd.
Temecula, CA 92591
www.QuietCoolSystems.com
951-325-6340

FAN SERIAL NUMBER INFORMATION
RETAIN FOR YOUR RECORDS.
SERIAL NUMBER IS REQUIRED FOR WARRANTY PURPOSES.
1-888-QUIETCOOL | WWW.QUIETCOOLSYSTEMS.COM
Rev. 10/5/20
