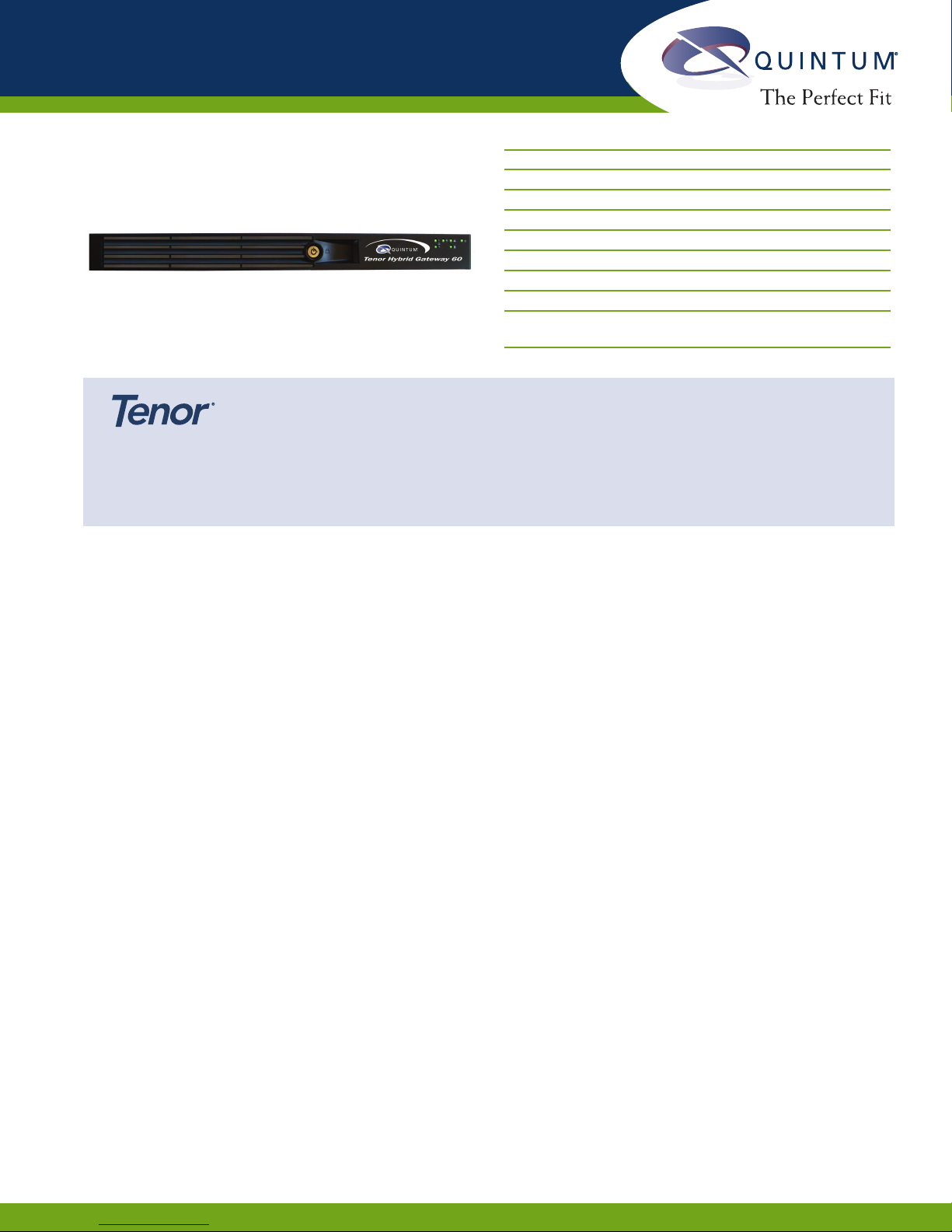

Tenor Hybrid Gateway 60
More intelligence means greater flexibility
With its MultiPath Call Routing, the Tenor can intelligently
switch calls between the PBX, the PSTN, and Microsoft Office
Communications Server 2007, allowing it to be adaptable to
various configurations. The Tenor can also route calls over IP
to reduce costs, and then transparently "hop off" to the PSTN,
to reach off-net locations.
More intelligence means easier installation
With its MultiPath architecture, the Tenor is the only VoIP
solution that can be installed with minimum modification to the
existing voice network. Tenor connects to the data network
through a 10/100 Ethernet interface, and to the enterprise and
public voice network through a T1, E1, or PRI interface. Tenors
have a customized Microsoft Configuration Wizard that steps
you through the configuration process for all your Tenors,
offering a simple and easy implementation.
More intelligence means lower total cost of ownership
The Tenor Hybrid Gateway is integrated on an enterprise-
class Intel (R) SR-1500 (1U) server with Intel Quad-Core
Xeon processors. This single box solution contains a Tenor
DXi VoIP gateway, and is ready for your Microsoft Unified
Communications mediation server software to be installed.
More intelligence means 'any to any' connectivity
The Tenor Hybrid Gateway 60 provides a unique Unified
Communications (UC) Proxy that enables the Tenor gateway
to access a full range of telephony endpoints to connect to the
unified communications cloud. Tenor’s UC Proxy also offers
the ability to deploy multiple gateways off of one server, and to
connect branch offices, IP PBXs, IP phones, and legacy VoIP
equipment. The UC Proxy also recognizes fax calls and sends
them directly to fax machines. Tenor integrates them all into
the enterprise UC environment.
Field-proven reliability for integrated applications
Based on field-proven Quintum technology, the Tenor Hybrid
Gateway provides a powerful, reliable integrated solution to
bridge the gap between Microsoft Office Communications
Server 2007 and the legacy telephony world. The Tenor Hybrid
Gateway continues Quintum's commitment to excellence in
VoIP technology and customer support.
The Tenor Hybrid Gateway supports a Microsoft Mediation Server with Quintum’s award-winning Tenor VoIP Gateway.
This single box solution simplifies VoIP deployments for Microsoft Unified Communications, and reduces the total cost
of ownership.
The new UC Proxy enables 'any to any' connectivity of SIP and legacy telephony analog endpoints to the unified
communications cloud, and supports branch office survivability for standard SIP endpoints.
* Available for an additional cost
The Robust VoIP Switching Solution For Microsoft Unified Communications
Quintum's Tenor switching/gateway solutions are deployed worldwide to provide highly reliable, easy-to-implement Microsoft Office
Communications Server 2007 connectivity in a full range of enterprise and service provider environments. This highly adaptable solution
integrates traditional PBXs, IP PBXs, and other SIP-based communications environments. Tenor is the Perfect Fit for Microsoft Office
Communications Server 2007!
• Available with 1 or 2 T1/E1/PRI Spans
• Up to 60 VoIP channels
• Configurable for MultiPath or Gateway Applications
• Unified Communications Proxy
• Universal Dial Plan
• Microsoft Mediation Server Ready
• Supports Remote Gateways
• Supported by Remote Management Tools*
• Perfect for Deployments with Microsoft Office
Communications Server 2007 and Exchange 2007

CALL MANAGEMENT FEATURES
• Automatic call type detection: Voice/Modem/Fax
• Answer and Disconnect Supervision
• Trunk group support
• Public and private dial plan support
• User programmable dial plan support
• Forced routing
• Pass-through support for calls to Toll Free, local and special
service numbers (emergency services, etc.)
• Automatic appending and stripping of digits to dialed numbers
• Call Detail Records
• Least Cost Routing with external Quintum VoIP Call Routing Server*
• Caller ID Name and Number
TECHNICAL SPECIFICATIONS
Telephony Specifications
• Voice algorithms: G.723.1 and G.729ab, G.711
• Auto codec negotiation
• Fax Support: Group III at 2.4, 4.8, 7.2, 9.6, 14.4 Kbps,
using industry standard T.38; Super G3 compatible up
to 33.6 Kbps
• Modem support with G.711
• Choice of 1 or 2 T1/E1/PRI Spans
• Standard RJ-45 Connectors
• Coding: A-law, µ-law
• Enhanced (Carrier Grade) Echo Cancellation:
ITU Rec. G 168, up to 128 msec tailsize
• PRI Signaling Protocols: National ISDN-2, Euro ISDN
NET5, Japan INS-NET1500, KDD, 4ESS, 5ESS, DMS100
• T1 CAS (E&M, Loop Start, Feature Group-D, DTMF, MF)
• E1 CAS (R2 MF)
• DASS2
• Tandem/TDM switching
• Maximum Call Rate: 7,200 calls/hour
• VoIP to circuit, and circuit to circuit (Tandem/TDM) switching
IP Network Specifications
• LAN Interface: Fast Ethernet port (10/100Base-T)
• Standard RJ-45 Interface (IEEE 802.3) for 10Base-T or
100Base-TX connections
• QoS Support: IP TOS, DiffServ
VoIP Network Specifications
• Support for multiple SIP User Agents (RFC3261 compliant endpoint)
• DTMF Signaling via RFC 2833 or SIP Info
• SIP Supplementary Services
• Message Waiting Indicator
• SIP Refer Method support
• IVR/RADIUS server support for AAA with integrated multi-lingual IVR+
• Adaptive Voice Activity Detection (VAD) with Comfort Noise
Generation (CNG)
• Adaptive Jitter Buffer
• Packet Loss Concealment
• NATAccess™ - NAT/Firewall
• Security: IP Filtering
• Up to 60 simultaneous VoIP calls
• Support for DNS-SRV
Configuration / Management
• Auto-provisioning
• Quintum Tenor Configuration Manager (GUI) for configuration of
remote individual Tenors
• Quintum Tenor Monitor (GUI) for alarm monitoring, call monitoring
and CDR monitoring
• Remote access with external Remote Management Session Server
for gateway management
• Intel Remote Management Module 2 for remote server management
• SNMPv2 Agent
• Command Line Interface
* Quintum product purchased separately
+ Original Quintum Tenor Only
Tenor Hybrid Gateway 60
Rev. 3
71 James Way, Eatontown, New Jersey 07724
1-877-SPEAK-IP .Tel [phone] .Fax [phone]
www.Quintum.com
TENOR HYBRID GATEWAY
SR 1500
Dimensions:
Chassis Height: (1U) 1.70” (4.33 cm.)
Chassis Width (19” rack mounting): 16.93” (43 cm.)
Chassis Depth: 33” (83.8 cm.)
• Weight: 31 lbs. (14.1 kg.)
•Intel family of Xeon processors
•Raid I mirroring with hot-swappable drives
• Ethernet (IEEE 802.3): 10/1000 Mb Auto-sensing
• LAN connector: 2 x RJ45
• Power Supply: 100 – 240 Vac, 50/60 Hz
• Power Consumption: 600 Watts max
• Operating Temperature: 50º F (10º c.) – 90º F (35º c.)
• Storage Temperature: -40º F (-40º c.) – 158º F (70º c.)
• Non-Operating Humidity: 90% non-condensing @ 82.4º F (28º c.)
• EMC Certification:
FCC Part 15, EN55022 1994, EN55024 1998
• Safety Certification: UL 60950-1, CSA C22.2 NO. 60950-1,
IEC 60950-1, EN6950:99
• System Cooling Requirement: 2901 BTU/Hour
Integrated PCI Express Card
• Telco: FCC Part 68
• EMC: FCC Part 15, EN55022 1994, EN55024 1998
• Safety: UL60950, EN60950
