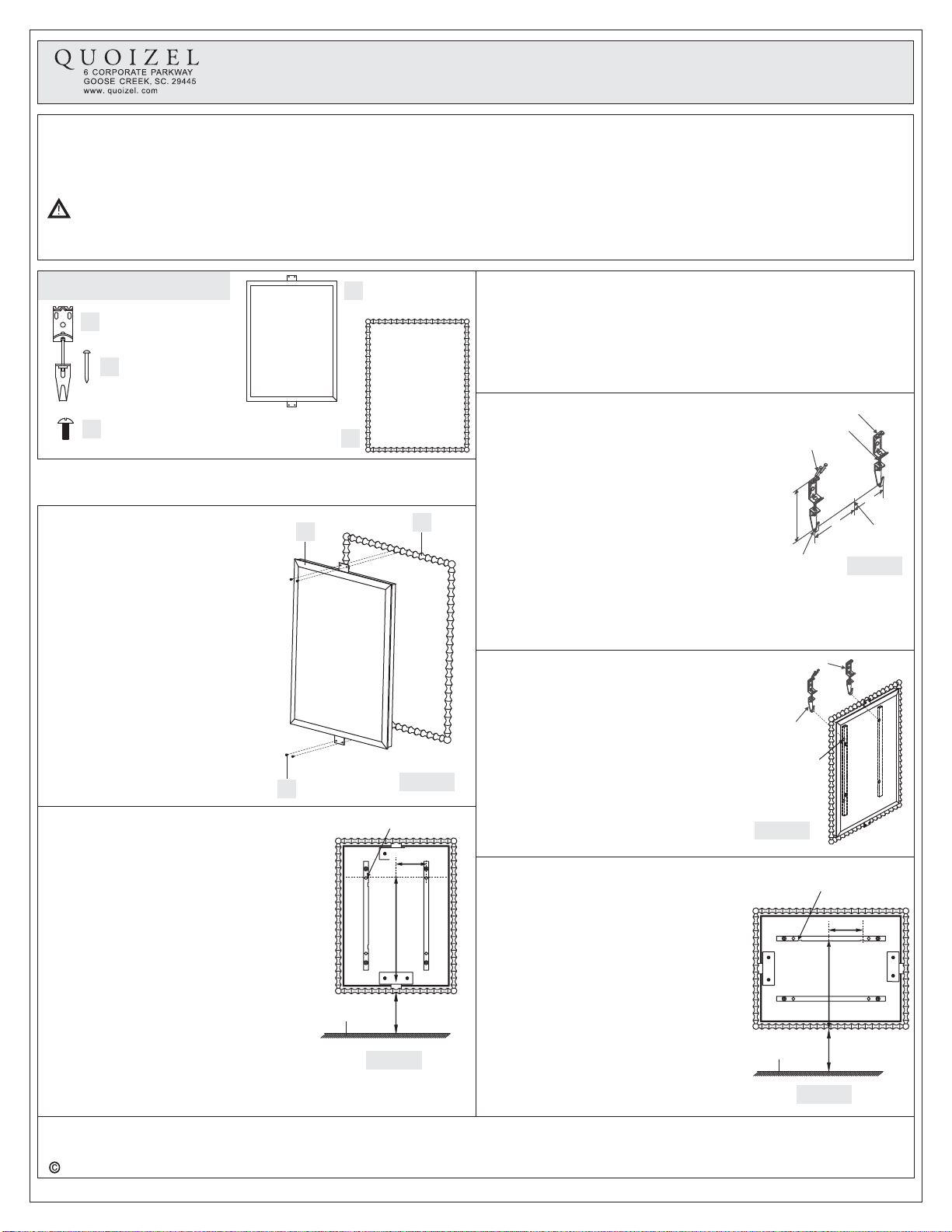

Quoizel QR1864C Mounting instructions

1of2
Assembly Instruction Sheet #IS-QR1864C
For Style QR1864C
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc. October2014
Package Contents
AMirror Hanger
x2
Mirror Frame
x1
BHanger Nail
x4
STEP 2 Identify the Points for
mounting the Mirror Hangers
-
A. Determine where the mirror will be
placed on the wall and hold the mirror on
the wall in the position you wish. Mark
the wall at the bottom center of the mirror
with a pencil lightly. This will be
MeasurementA, the distance from the
floor to the bottom of the mirror.
B. Place the mirror on a flat surface again
and measure from the bottom of the
mirror to the top quarter of Hanging
Holes that will be used to hang the
mirror, this is measurement B.
C.Add measurementAfrom stepAabove
and measurement B together and mark
this spot on the wall where the mirror will
be hung. Measurement B is straight up
from MeasurementAyou marked on the
wall in stepAabove.
Figure 2
Hanging Hole
"A”
Floor
Surface
"B”
"C”
BACK
STEP 3 Installing the 2 Mirror Hangers
Please note the Mirror Hangers are
adjustable allowing for easy leveling
-
A. To determine where the Mirror Hangers
(A) will be fastened to the wall, measure
up from Measurement C 3”. Do this in
two locations as illustrated and mark
the wall.
B. Using the Nails (B) provided with the
Mirror Hangers (A) attach the 2 Mirror
Hangers (A) to the wall at the position
just marked 3” above Measurement C. Figure 3
C
Hanger Nail
Mirror Hanger
Adjustment Screw
Hook
Mark "B"
3” C
STEP 4 Hanging the Mirror-
A. With the help of another person place
the mirror onto the mirror hanger
hooks. Making sure each hook is
securely hooked into the hangers
before letting go of the mirror.
B. If needed you June remove the mirror
and adjust the mirror hanger hooks to
level the mirror and replace the mirror.
Clean glass with household glass
cleaner. Retain this sheet for future
reference. Figure 4
Mirror Hanger
Bracket
Catch
Hanging
Hole
ToolsRequired:
EstimatedAssemblyTime:
Preparation:
Flatheadscrewdriver,Phillipsscrewdriver,pliers,gloves,safetyglasses.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethemirror.Contactcustomerserviceforreplacement
parts.
Warnings and Cautions
These instructions are provided for your safety. It is very important you read them completely before installing the mirror. We strongly
recommend that a licensed, professional electrician perform the installation. Quoizel recommends 2 people for each step during assembly.
of the mirror as needed.
C. Once you have both Mirror Hangers (A) securely nailed in place,
adjust as the length of the Mirror Hangers (A) so that each Mirror
Hanger (A) is the same length.
E
Mirror
x1
C
D
Lock Screw
x4
STEP 1 Assemble Mirror-
A.Attach the Mirror (D) onto the Mirror
Frame (E).Align the holes on the
Tabs to mounting holes on the
Mirror Frame. Thread Lock Screws
(C) into mounting holes on the
Mirror Frame (E) to secure them
together. Hand tighten until snug.
Figure 1
To hang the mirror go to Step 2.
To hang the mirror go to Step 5.
Vertically
Horizontally
E
C
D
D. Measure the distance between the centerline of each Hanging Hole
and then divide this measurement by 2, this is Measurement C. In
order to locate the exact hanger location on the wall, from
Measurement B go to the right the distance of Measurement C and
mark the wall. Do this going to the left of Measurement B as well and
mark the wall. These two marks are the center of the hangers,
Measurement C. The two marks you just made on the wall are the
same distance apart as the two hangers.
STEP 5 Identify the Points for
mounting the Mirror Hangers
-
A. Determine where the mirror will be
placed on the wall and hold the mirror on
the wall in the position you wish. Mark
the wall at the bottom center of the mirror
with a pencil lightly. This will be
MeasurementA, the distance from the
floor to the bottom of the mirror.
B. Place the mirror on a flat surface again
and measure from the bottom of the
mirror to the bottom edge of the crossbar
with 3 holes that will be used to hang the
mirror, this is measurement B.
C.Add measurementAfrom stepAabove
and measurement B together and mark Figure 5
Hanging Hole
"A”
Floor
Surface
"B”
"C”
BACK

2of2
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2014 QuoizelInc. October2014
this spot on the wall where the mirror will be hung. Measurement B
is straight up from MeasurementAyou marked on the wall in stepA
above.
D. Measure the distance between the centerline of each Hanging Hole
and then divide this measurement by 2, this is Measurement C. In
order to locate the exact hanger location on the wall, from
Measurement B go to the right the distance of Measurement C and
mark the wall. Do this going to the left of Measurement B as well and
mark the wall. These two marks are the center of the hangers,
Measurement C. The two marks you just made on the wall are the
same distance apart as the two hangers.
STEP 6 Installing the 2 Mirror Hangers
Please note the Mirror Hangers are
-
A. To determine where the Mirror Hangers
(A) will be fastened to the wall, measure
up from Measurement C 3”. Do this in two
locations as illustrated and mark the
wall.
B. Using the Nails (B) provided with the
Mirror Hangers (A) attach the 2 Mirror
Hangers (A) to the wall at the position
just marked 3” above Measurement C. Figure 6
C
Hanger Nail
Mirror Hanger
Adjustment Screw
Hook
Mark "B"
3” C
STEP 7 Hanging the Mirror-
A. With the help of another person
place the mirror onto the mirror
hanger hooks. Making sure each
hook is securely hooked into the
hangers before letting go of the
mirror.
B. If needed you June remove the
mirror and adjust the mirror hanger
hooks to level the mirror and
replace the mirror.
Clean glass with household glass
cleaner. Retain this sheet for future
reference. Figure 7
Mirror Hanger Bracket
Catch
Hanging
Hole
adjustable allowing for easy leveling of the mirror as needed.
C. Once you have both Mirror Hangers (A) securely nailed in place,
adjust as the length of the Mirror Hangers (A) so that each Mirror
Hanger (A) is the same length.
QR1864C
PARTNUMBER
G123MR
NOTE: ALLDIMENSIONSARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENTPARTDESCRIPTION
MIRROR
REQ.
1
NO.
1
33”
25.5”
1
FINISH:POLISHED CHROME
