Qviart Undro User manual

1
!
!Safety Precaution
This STB has been designed and manufactured to satisfy the international safety
standards. Please read the following safety precautions carefully before operating this
receiver.
!Main Supply:
Before operating, please check the units operating voltage is 90~250V AC 50/60Hz.
!Overload:
Do not overload a wall outlet, extension cord or adapter, neither use damaged power
cord or touch it with wet hand as this may result in electric shock.
!Liquid:
The receiver shall not be exposed to dripping or splashing water, and that no objects
filled with liquids, such as base, shall be placed on the apparatus.
!Ventilation:
laiunit. Do not put the receiver on soft furnishings or carpets. Do not expose the
receiver to direct light or do not place it near a heater or in humid conditions. Do not
stack other electronic equipments on top of the receiver.
!Cleaning:
Plug out the receiver from the wall outlet before cleaning. Clean the receiver by a soft
cloth or mild solution of washing-up liquid(no solvents).
!Connection:
Disconnect the receiver from the mains when you connect it to satellite LNB or
disconnect it from LNB. Failure would possibly cause damage to the LNB.
!Location:
Put the receiver indoor in order to avoid lightening, raining or sunlight.
!Uncover:
Do not remove the cover, to reduce the risk of electric shock. Contact qualified and
licensed service personnel to repair the receiver, or contact your dealer.

2
Contents
Reference
..............................................................................................................................
3
General
Features
..........................................................................................................
3
Product
Overview
................................................................................................................
4
!
Front
Panel
............................................................................................................
4
!
Rear
Panel
.............................................................................................................
4
!
Remote
control
Unit(RCU)
.................................................................................
5
1
.
Connection
with
Other
Device
.......................................................................................
7
1.1
Connecting
to
TV
..................................................................................................
7
1.2
Connecting
the
Antenna
.....................................................................................
7
2.Installation
.........................................................................................................................
9
2.1
Antenna
Setting
......................................................................................................
9
2.1.1
Antenna
Setting
for
Satellite
.....................................................................
9
2.1.2
Antenna
Setting
for
Transponder
...........................................................
10
2
.
1
.
3
Antenna
Setting
for
Motor
......................................................................
10
2.2
Search
Channels
from
Satellite
..........................................................................
11
2.2.1
Satellite
Search
........................................................................................
11
2.2.2
TP
Search
.................................................................................................
11
2.2.3
Blind
Search
.............................................................................................
12
2.3
Manual
Search
.....................................................................................................
12
3.
Channel
............................................................................................................................
12
3.1
Edit
Channels
.......................................................................................................
12
3.2
Edit
Favorite
........................................................................................................
13
3.3
OK
List
.................................................................................................................
13
3.4
User
Channel
List
................................................................................................
14
4.Setting
..............................................................................................................................
15
4.1
Factory
Default
....................................................................................................
15
4.2
Parental
control
....................................................................................................
16
4.3
Language
Setting
.................................................................................................
17
4.4
OSD
Setting
.........................................................................................................
17
4.5
System
Time
Setting
...........................................................................................
17
4.6
Output
Setting
......................................................................................................
18
4.7
Other
setting
........................................................................................................
18
4.8
Record
Setting
.....................................................................................................
18
4.9
Area
Setting
.........................................................................................................
19
5.Android
............................................................................................................................
20
5.1
Application
List
...................................................................................................
20
5.2
File
Manager
APK
..............................................................................................
21
5.3
Wallpaper
Setting
................................................................................................
21
6.
Expansion
.......................................................................................................................
22
6.1
Network
Setting
...................................................................................................
22
6.1.1
LAN
..........................................................................................................
22
6.1.2
Wireless
....................................................................................................
23
6.1.3
3G
Setting
.................................................................................................
23
6.1.4
VPN
Setting
.............................................................................................
23
6.2.
USB
Update
........................................................................................................
24
6.3.
CA
Menu
.........................................................................................................
24
7.
Basic
Operation
..............................................................................................................
24
Additional
Information
......................................................................................................
27
!
Trouble
Shooting
................................................................................................
27
!
Glossary
..............................................................................................................
28

3
Reference
General Features
DVB-S/DVB-S2 Satellite Compliant (MPEG-II/ MPEG-IV/ H.264)
SCPC & MCPC receivable from Ku and C band satellites
Universal, Single, Single S & C Band Wideband LNB
Sensitive Tuner with Loop-Through
DiSEqC1.0/1.1/1.2/1.3 (USALS)
Unicable Supported
Blind search supported
Auto DiSEqC Search
PAL/NTSC/SECAM Conversion
True full Color (32 bits) on screen display (OSD)
32 favorite group and parental lock supported
Multi-language menu supported
Multi-language audio supported
Multi-language DVB Subtitle output
7 days Electronic Program Guide (EPG)
Teletext output through VBI and OSD
Multi-Picture supported
USB 2.0 Interface
Support many network functions

4
Product Overview
!Front Panel
Figure 1. Front Panel
POWER˖Power switch
!Rear Panel
Figure 2. Rear Panel
1. LNB IN Connect the satellite antenna cable.
2. AV Connect to the TV using an RCA cable.
3. S/PDIF Digital Audio output.
4. HDMI Connect to the TV using an HDMI cable.
5. LAN Connect to the internet using Ethernet cable.
6. USB2.0 USB Port
7. DC==12V Power Supply Cable

5
!Remote control Unit(RCU)
1. POWER: Control the on-off of the TV and the Reboot/Standby mode.
2. TV/R:SwitchbetweenTVandRADIO.
3. MUTE:Mutetheaudio.
4. NUMERIC KEY (0~9): Change the TV channel or Radio
channel.
5. FAV: Display favorite channel list you set before.
6. SAT: Show the scanned satellite list.
7. PAGE+/PAGE-:Changeviewbypage.
8. TIMER: Setup timer.
9. SUB: Display the subtitle language list
10. VOL+/VOL-: Change volume in viewing mode.
11. DISPLAY: Change HDMI mode.
12. RECALL: Display the previous viewed channel list or switch to
the channel watched last time.
13. MODE: Set the screen mode.
14. MENU: Activate main menu.
15. EXIT:Exitcurrentmenustepbystep.
16. ▲/▼:Changeprogramme.
17. ◄/►: Change volume in viewing mode.
18. OK: Confirm the selected operation or display the channel list
while watching a programme.
19. BACK: Backspace when you input information.
20. HELP: You can view the help info by pressing the HELP button
at any time.
21. AUDIO: Display the audio list.
22. PAUSE: Freeze the picture.
23. ZOOM: Picture zooming function.
24. INFO: Display the programme information.
25. MOUSE: Enable or disable the simulated mouse.
26. EPG: Display the programme guide.
27. PIP: Display the picture in picture.
28. FIND: Quickly find channels which you want.
29. F1:Accessorial function.

6
30. Screenshot: Get the picture of the screen into your storage device.
31. TXT: Display the teletext.
32. ◄◄:Fastrewind.
33. ►►: Fast forward.
34. ►:Play.
35. I◄◄:Previous.
36. ►►I: Next.
37. II:Pause/Timeshift.
38. Ƶ
Ƶ
:Stop recording and playing.
39. USB: Enter into the USB device interface.
40. ƽ:Record

7
1. Connection with Other Device
The following diagram shows you the connections among receiver, TV, LNB and
other equipment, please read this first if you are not sure about the connection, and it
will guide you to the correct connection.

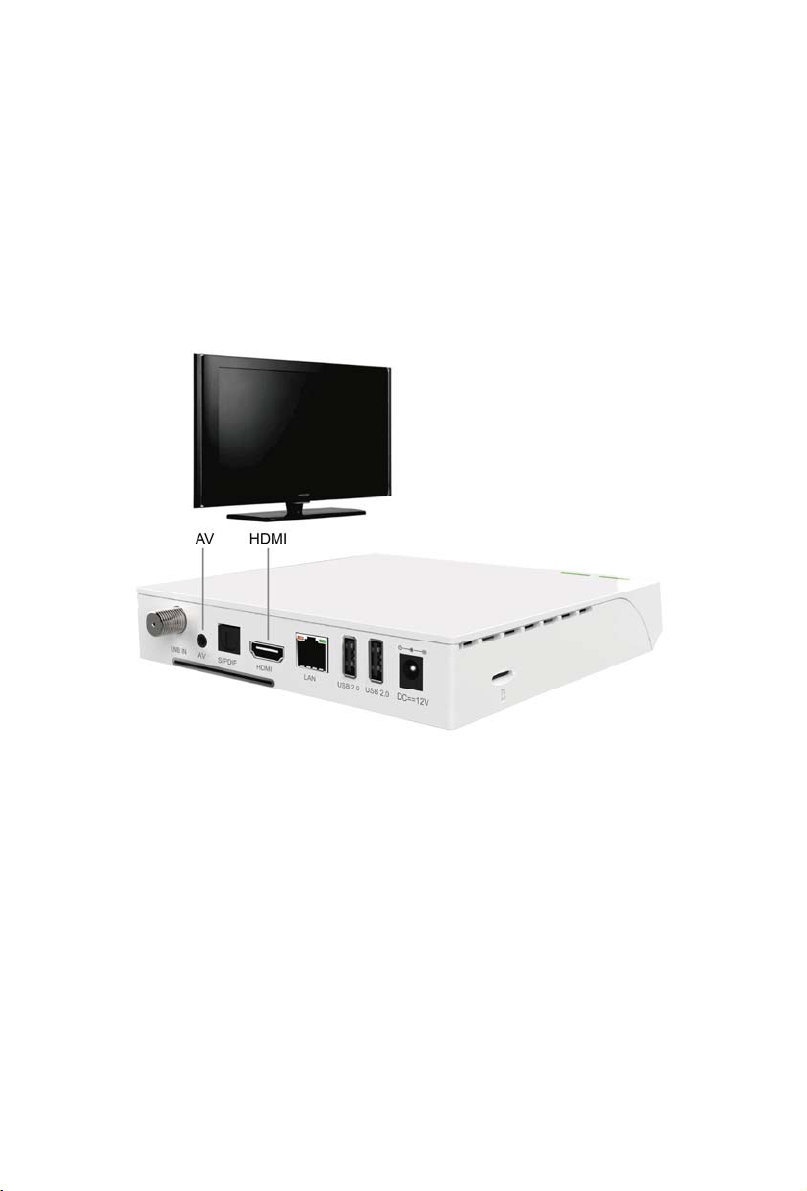

1.1 Connecting to TV
Figure 3. Connecting to TV & AMPLIFIER
1.2 Connecting the Antenna
You can connect one fixed dish LNB directly to the LNB IN, or connect at least
two dish LNB by DiSEqC Switch.

8
Figure 4. Connecting to Dish LNB
Figure 5. Connecting to Dish LNB

9
2.Installation
When powering on your product for the first time after purchase, you should get
the wiring connection first.
Tip: The default password is 0000. If you have forgotten your password, please
contact your local product distributor.
2.1Antenna Setting
Menu->Installation->Antenna Setting
1ˊSatellite: Press the OK button to display the satellite list, then use the Up/
Down button to highlight the satellite you want use to search, at last press the OK
button to choose the the satellite. (You can use the F1 button to choose more
satellite at the same time, then use the SAT button to do the Multi-Sat search )
2ˊTransponder: Press the Left/Right button to change the TP or press OK
button to display transponder list. (You can use the F1 button to choose more
transponder at the same time, then use the SAT button to do the
Multi-Transponder search)
3ˊLNB Frequency: Press the Left/Right button to change the LNB frequency.
4ˊLNB Power: Press the Left/Right button to select the required LNB power.
5ˊDiSEqC 1.0: Press the Left/Right button to select the required DiSEqC1.0
input.
6ˊDiSEqC 1.1: Press the Left/Right button to select the required DiSEqC1.1
input.
7ˊ22kHz: Press the Left/Right button to select ON, OFF or Auto.
8ˊNetwork Search: You can implement network search if you set YES.
9ˊFAT Only: Only allows free TV programme if you set YES.
2.1.1 Antenna Setting for Satellite
Press the Left/Right button or OK button you can see the pre-stored Satellite list.
You can select, Add, Move, Delete, Rename Satellites in this menu.

10
2.1.2 Antenna Setting for Transponder
In this menu, Press the Left/Right button or OK button you can see the pre-stored
Transponder list, and you can Select, Add, Delete, Edit Transponders.
2.1.3 Antenna Setting for Motor
Menu->Installation->Antenna Setting->blue button
1) Satellite: Select the satellite which you want to setup.
2) Transponder: Select one TP which has signal.
3) motor type:
DiSEqC 1.2: General motor antenna using DiSEqC 1.2.
USALS: Motor antenna using USALS.
4) Position Index: It can store up to 64 position
5) Position auto: Press the Left/Right button, the motor will drive automatically
until it gets the signal.
6) Continuously move: The motor can drive only when you hold on pressing
the Left/Right button.
7) Step size: Set the driving step.
8) Move steps : Press the Left/Right button, the motor will drive several steps
according to the Step Size.
9) Limit set : You can set the maximum motor limit for both East and West to
prevent damage to the antenna. When you set Disable the Motor limit setting is
released.
10) Save position: Save current position of Motor.
11) Go to position: Drive Motor to the position which you saved previous.
12) Go to reference: Drive Motor to zero point.
13) Go to X.X: Drive Motor according to the USALS Setup.
Red button: USALS Setup

11
Longitude Angle (0~180.0): set the longitude angel of the USALS.
Longitude Direction: choose the direction of the USALS.
Latitude Angel (0~90.0): set the latitude of the USALS.
Latitude Direction: set the latitude direction of the USALS.
Rotating Speed: set the rotating speed of the USALS.
2.2 Search Channels from Satellite
2.2.1 Satellite Search
1. Highlight the satellite and press the OK button.
2. Complete the antenna setting of this satellite.
3. Press the RED button to start search.
Tip: You can select multi satellites to search at the same time. And you can
execute Delete or Add functions in this menu according to the help information.
2.2.2 TP Search
1. Highlight the satellite and press the OK button.
2. Complete the antenna setting of this satellite.
3. Highlight the Transponder and press the OK button to enter TP Setup menu.
4. According to the help information, and then press the Green button to start TP
search.

12
Tip: You can select multi transponders to search at the same time. And you can
execute Delete, Add or Edit PID functions in this menu according to the help
information.
2.2.3 Blind Search
1. Highlight the satellite or add a new satellite and press the OK button.
2. Press the YELLOW button to start blind search.
3. After searching, it will save all the transponders automatically.
2.3 Manual Search
Menu->Installation->Manual search
1ˊSatellite: Press Left/Right button to switch the Satellite or press the OK
button to display the satellite list, then use the Up/Down button to highlight the
satellite you want use to search, at last press the OK button to choose the satellite.
2ˊFrequency: Input the Frequency you want to use.
3ˊPolarity: Press the Left/Right button to select HOR or VER.
4ˊSymbol Rate: Input the Symbol rate you want to use.
5ˊFEC: Press the Left/Right button to select the FEC you want to use.
6ˊNetwork Search: You can implement network search if you set YES.
7ˊFAT Only: Only allows free TV programme if you set YES.
You can press the Red Button to Start the TP Search , and press the Green
Button to do the Antenna Setting, also you can press Yellow Button to edit PID.

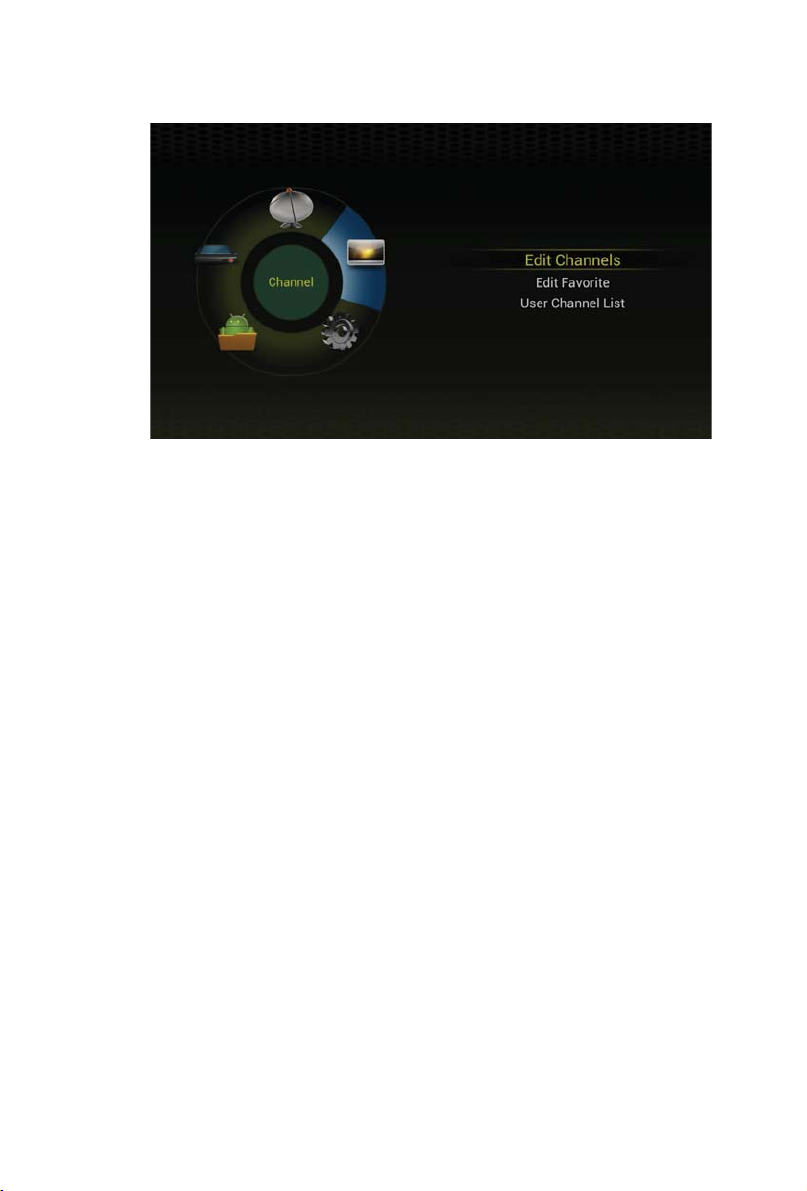

3.Channel
3.1 Edit Channels
Menu->Channel->Edit Channels

13
Edit Channels enables you to move, delete, sort, lock/unlock, rename, and swap
the channels in the channel list conveniently. Highlight the channel you want to
operationˈthen select the function and press OK.
Tip: Radio Channels operation similar to the TV Channels.
3.2 Edit Favorite
You can do the different operations by color buttons, such as move channel
position/delete fav channel/rename the favorite group.
1. Highlight the channels you want to add or remove from the favorite channel
list.
2. Press the Left /Right button to change the favorite group and press the OK
button to add the channel to the corresponding favorite group.
3.Press the EXIT button to exit the menu and save it.
4.Press the Red button to play the channel in the selected label.
5.Press the Green button to delete the FAV group.
6.Press the Yellow button to add FAV group.
7. Press the Blue button to rename the FAV group.
3.3 OK List
1) Press the OK button to enter the channel list while watching a programme.
2) Press the RED button to edit favorite channel.

14
3) Press the GREEN button to edit the channel.
4) Press the YELLOW button can help you quickly find the channel you want.
5) Press the BLUE button to display the information of the channel.

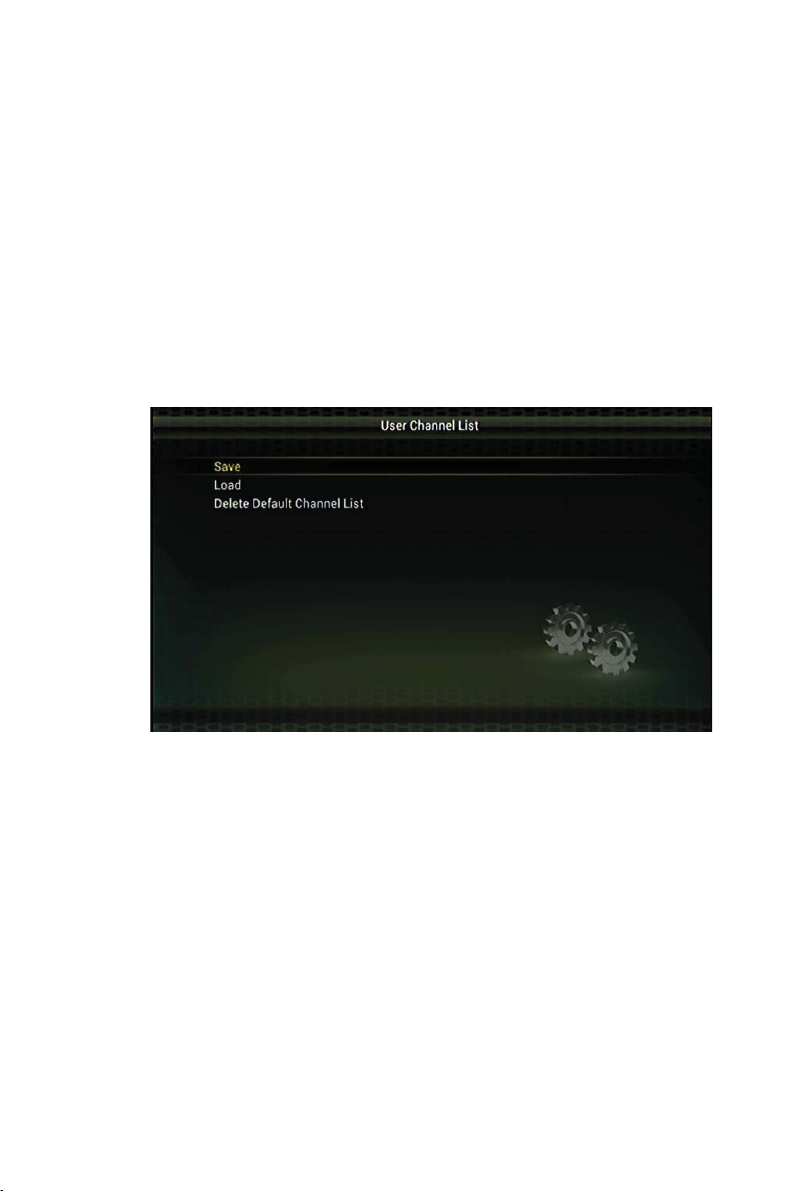

3.4 User Channel List
Menu->Channel-> User Channel List
You can save or load the channel list you want. First, you can save the satellite
channels you want, after you restore the product to the factory default, you can enter
this menu to load the channels you have save before.

15
4.Setting
4.1 Factory Default
Menu->setting->Factory Default.
You can restore the product to the factory default and you can also setup it
according to the wizard.
Highlight the option you want and press the OK button to execute it.
1. Reset All:Alldataandsettingswillbedeleted.
2. Reset All Channels: All channels data will be deleted
3. Reset All Radio Channels: All radio channels data will be deleted.

16
4. Reset All Scramble Channels: All scramble channels data will be deleted.
5. Delete Satellite Channels: Delete the satellite Channels you select.
Tip: Please note that once you perform Reset All, all data and settings will be
deleted.
4.2 Parental control
Parental Control allows you to set limits for each programme or change your
previous password. You can also lock the changes you have made using Service Lock,
Installation Lock, Channel manager Lock, System Lock and you can also Change PIN
Code.

17
4.3 Language Setting
1. Menu Language: Set the menu language.
2. Audio Language: Set the preferred audio language.
3. EPG Language: Set the preferred EPG language.
4. Subtitle Language: Set the preferred Subtitle language.
4.4 OSD Setting
1. OSD Transparency: Set the transparency of all menus.
2. Teletext Transparency: Set the transparency of teletext.
3. Info Display Time: Set the display time of the programme information.
4. OSD Animation: set the on-off of the OSD animation.
5. Font Size: Set the OSD font size.
4.5 System Time Setting
You can setup the system time.
1. Time Zone: Set the time zone according to your city.
2. Summer Time: Display the summer time on or off according to the time
zone.
3. Sync Source: if you set TDT, the system time will be got from the stream
signal, if you set Network, the system time will be got from the network.

18
4.6 Output Setting
TV System: Set the TV system mode.
HDMI Mode: Set the HDMI output mode.
TV Screen ratio: Set the TV Screen ratio.
TV Screen Format: Set the display format according to the screen ratio.
4.7 Other setting
Auto Channel Selection: If you set ON, in the channel list when you highlight the
channel, it will play automatically. If you set OFF, in the channel list when you
highlight the channel, you should press the OK button to play it.
Recall List: If you set ON, when you press the RECALL button, it will display
the channel list you watched previous. If you set OFF, when you press the RECALL
button, it will directly back to the channel you watched last time.
Volume Per Channel: If you set ON, you can set different volume for each
channel. If you set OFF, all channels can only have one volume.
Change Channel Option: If you select Freeze, when you switch channels, it will
display the last frame of the previous channel. If you select Blank, when you switch
channels it will display blank screen.
Auto Check G-Net Update: Set the time frequency to detect new software for
G-Net Update.
APD: If you set On, STB will auto standby without RCU operation for 3 hours. If
you set Off, STB will not auto standby without RCU operation.
4.8 Record Setting
Auto Timeshift: When you use a storage device, if you set on, you can playback
the programme you are watching according to the live buffer size, if set off, you can
not playback the programme.
Live Buffer Size: Set the time limit to manage the live buffer size.
Record lcon display interval time: You can set the interval time of the record icon
showing.

19
4.9 Area Setting
Left Position: You can set the left boundary of the OSD area.
Top Position: You can set the top boundary of the OSD area.
Right Position: You can set the right boundary of the OSD area.
Bottom Position: You can set the bottom boundary of the OSD area.
