Rühle AR 20 User manual

Rühle GmbH, Beim Signauer Schachen 10, D-79865 Grafenhausen
Tel.: [phone], Fax: [phone]
www.original-ruehle.de
⑳
⑩
⑪
⑫
⑬
⑭
①
②
③
④
⑤
⑥
⑦
⑧
⑨
1) Tool hood
2) Grid halfs
3) Grid frame
4) Stabiliser
5) Steering castor with brake
6) Workbench
7) Cutting board
8) Plunger
9) Chamber
10) Slider (closure food chamber)
11) Cutting knife
12) Handle nut
13) Hygiene bottom
14) Fixed castor
15) Ejector hood
16) Coupling rod
17) Forward feed (Cutting
length)
18) Pre-compacting
19) Main switch
20) Knife protection box
21) Product scraper bar
22) Grid half (Outer - "O")
23) Grid half (Under - "U")
24) Type plate
25) Supply cable
26) Side panel
⑮
⑯
⑰
⑱
⑲
Single cut
Double cut
Cutting
Intermittently
Grating
Continuously
Quick installation guide AR 20
•Installing the machine
I
•Operation
II
•Control system
III •Forward feed
⑰•Pre-compacting ⑱•Main switch ⑲
•Safety functions / Emergency stop
IV •Box reception E1 / E2 / E3 V

AR 20
Copyright © 2022 by Rühle GmbH
04 / July / 2022 (Version 1.0)
Open!
close!
1.
2.
3.
•Setting the machine
VI
•Grid / Grid set-up
VII
•Initial operation
VIII
•Setting the machine
VI
•Cleaning (preparation)
IX •Cleaning X

Lebensmitteltechnik
Translation of the original instructions
- Cutting machine
Type: AR 20
Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen
Germany
Phone: [phone]; fax: [phone]
www.original-ruehle.de

Cutting machine AR 20
2
Table of contents
1 Safety instructions............................................................................. 3
1.1 Safety instructions ................................................................... 3
1.2 Remaining risk of accidents .................................................. 6
1.3 Intended use ............................................................................... 7
2 Installation instructions.................................................................... 8
2.1 Machine transport and setup ............................................... 8
2.2 Workplace description............................................................. 9
2.3 Connecting the machine .......................................................10
3 Operating instructions ....................................................................11
4 Cleaning instructions.......................................................................12
4.1 Safety instructions .................................................................12
4.2 Cleaning agents and disinfectants....................................13
4.3 Cleaning procedure.................................................................14
5 Service: care, maintenance, repair .............................................14
5.1 Regular care..............................................................................16
5.2 Regular maintenance.............................................................17
5.3 Repairs and spare parts........................................................18
6 Disposal................................................................................................18
7 Technical documentation ..............................................................18
7.1 Technical data..........................................................................18
7.2 Electrical circuit diagram ......................................................20
8 EC Declaration of Conformity according to Directive
2006/42/EC........................................................................................21
Version: 05 December 2022 (Version 1.2)
Subject to change

Cutting machine AR 20
3
1Safety instructions
!!! Observe the safety instructions during the installation, operation,
cleaning and maintenance of the Rühle cutting machine!
Hazard potentially causing irreversible injuries if disre-
garded.
Warning potentially causing serious injuries if disre-
garded.
Note
Warning of electrical power.
Pull the mains plug!
Warning of sharp object. (Risk of cutting)
Hazard from bursting hoses.
Warning of slipping hazard.
Warning of hot surface.
Warning of non-ionising radiation.
Non-ionising radiation is not specifically generated, but is only
emitted by the electrical equipment (e.g. electric motors, power
lines or solenoid coils) for technical reasons. In addition, the
machine has no strong permanent magnets. If a safety dis-
tance (distance field source to implant) of 30 cm is maintained,
the influence on active implants (e.g. cardiac pacemakers, de-
fibrillators) can be excluded with a high degree of probability.
1.1 Safety instructions
!!! A supervisor (responsible person) must be assigned to the machine!
This person must:

Cutting machine AR 20
4
a) Completely read and understand these operating instructions
before transport, commissioning, setup, operation, cleaning,
decommissioning, care/maintenance as well as disman-
tling/disposal!
b) Prepare work instructions for intended and safe transport,
commissioning, setup, operation, cleaning, decommissioning,
care/maintenance as well as dismantling/disposal!
c) Ensure that the qualified workers have completely read and
understood the respective work instructions according to sec-
tion 1.1b!
d) Proper functioning of the protective devices must be checked
at least once a year by a Rühle service engineer!
e) Provide personal protective equipment!
All life cycle phases:
Use foot protection according to EN ISO 20345!
(e.g. recommended for butcher stores, dairies, meat and fish
processing: safety boots S4 with steel cap)
Use hand protection according to EN ISO 388!
(e.g. gloves with high cutting/puncture resistance)
Wear protective clothing according to EN ISO
13688! (E.g. appropriate aprons/coats/overalls)
Cleaning; care/maintenance; dismantling:
Use eye protection according to EN ISO 166!
(e.g. tightly closing safety goggles)
Use light breathing masks according to EN ISO
149!
(e.g. simple breathing mask protection class FFP1)
Use hand protection according to EN ISO 374!
(Acid-resistant, butyl rubber, Viton)
Wear protective clothing according to EN ISO
13688, EN ISO 17491!
(E.g. appropriate coats/overalls)
[The information on the proposed personal protective equip-
ment has only an advisory function. A full risk assessment
should be carried out before using the product to assess
whether the indicated personal protective equipment is
suitable for local conditions. Personal protective equipment
should conform to the relevant EU standards.]

Cutting machine AR 20
5
!!! The operator must operate the machine according to the intended
use and strictly observe all points listed in the “Operation” work in-
structions prepared by the supervisor.
!!! Before putting the machine into operation for the first time and on
each working day, the operator must check the functionality of the
following safety devices:
a) Visual check for changes or damages on all machine sides
and accessible machine parts, e.g. the cut-off knife, locking
mechanism of knife protection box. The machine must be
shut down in the event of any damage or changes!
b) Check the safety switches as follows:
Install the grid frame and product stripper bar (ejection hood),
close the knife protection box, insert the slider and close the
chamber with it.
•Start the machine. –Open knife protection box 20 mm
wide. –If the machine does not switched off, it must be
shut down immediately!
•Start the machine. –Open the slider of the chamber 20 mm
wide. –If the machine does not switched off, it must be
shut down immediately!
•Remove the grid frame. –Insert the slider. –Start the ma-
chine. –If it should start, it must be shut down immedi-
ately!
!!! To shut down the machine the main switch must be turned to “0 –
OFF” and the power plug pulled out of the socket! Secure the machine
against further use!
!!! The supervisor must arrange for the repair of the non-functional
safety device by a Rühle service technician. Until the corresponding
parts have been repaired, the supervisor must ensure that the ma-
chine or parts of the machine are not put into operation under any cir-
cumstances!
This applies also to leaking hydraulic systems!

Cutting machine AR 20
6
!!! The cleaning personnel must observe the work procedures from the
“Cleaning” work instructions prepared by the supervisor.
!!! The maintenance personnel may only carry out work specified as
“Regular maintenance” unless any other authorisation has been is-
sued in writing by the manufacturer of the machine. The maintenance
personnel must observe the work procedures from the “Maintenance”
work instructions prepared by the supervisor.
Disconnect the power plug for maintenance work!
!!! Do not modify the machine.
!!! Only Rühle spare parts and accessories may be used.
!!! The operating instructions as well as all other technical documents
included must be supplied completely when reselling the machine.
1.2 Remaining risk of accidents
!!! All life cycles phases
Damaged knife elements must be replaced!
Cut protection gloves must be worn when working:
•on the open knife protection box,
•on the cut-off knife,
•on the grid knives of the knife levels,
•in the chamber , e.g. to remove product.
Reaching into the machine or the chamber during operation
is strictly prohibited!
Any manipulation and bypassing of the safety devices is
strictly prohibited!
Risk of slipping and falling due to spilled hydraulic oil!
Make sure the floor under and around the machine is free
from oil!

Cutting machine AR 20
7
When a machine is unattended, the knife protection box
must be closed before leaving the workplace!
When processing very watery products, spraying form the
chamber may occur in spite of installed slider! With such
product it is recommended to stand to the side of the cham-
ber when the machine starts.

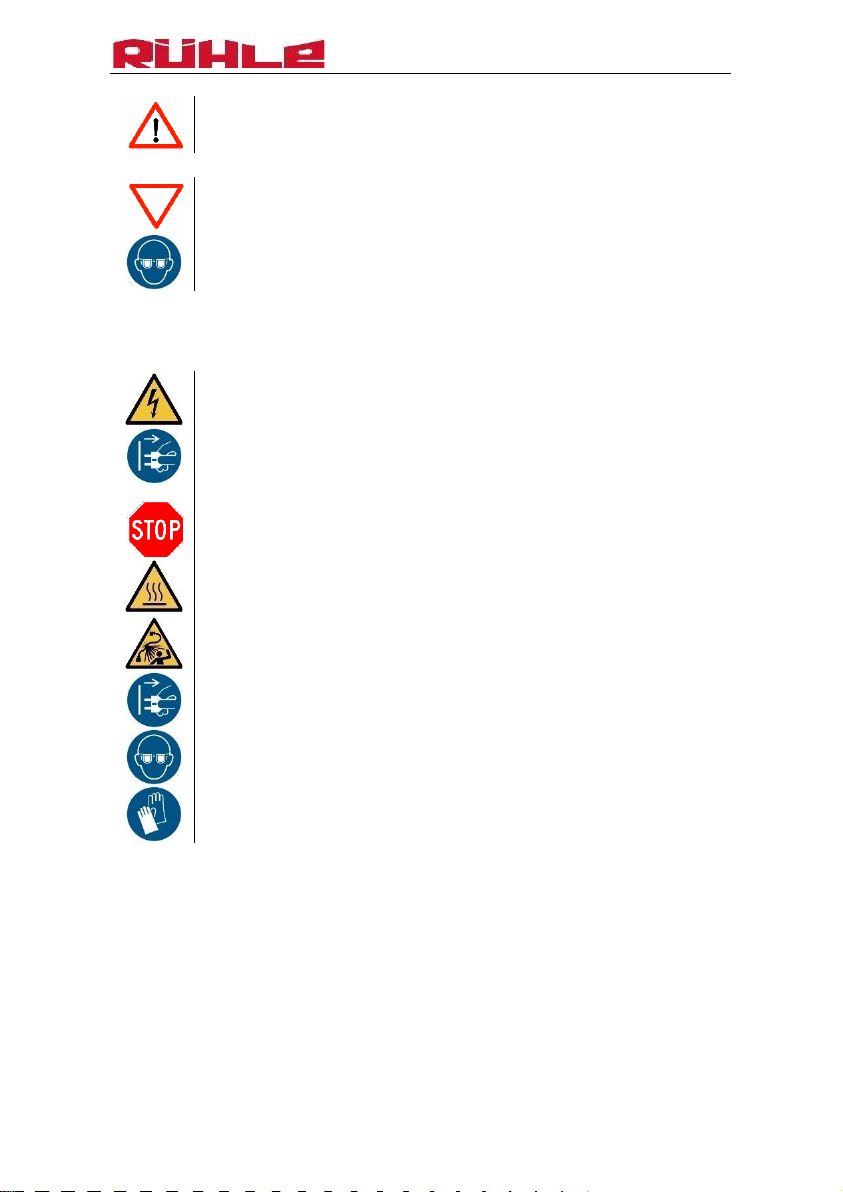

!!! Maintenance
Touching electrical components may cause serious inju-
ries or death.
Work on electrical equipment of the machine may only be
carried out by qualified technicians! Always disconnect
machine from the mains during this process!
The protective covers (lids on rear, etc.) may be removed
only while performing maintenance!
Beware of hot surfaces, e.g. drives, hydraulic unit, etc.
during maintenance work!
Danger from pressurised and/or escaping hydraulic oil!
Work on the hydraulic system of the machine may only be
carried out by qualified technicians!
Always disconnect machine from the mains during this
process!
Depressurise the complete hydraulic system! !
Excessive contact with the hydraulic oil may cause skin ir-
ritation and eye injuries!
1.3 Intended use
The cutting machine may only be used to cut foodstuff that is not fro-
zen (-5 °C to +80 °C) into cubes, strips and slices or grated in different
sizes. The room temperature must not exceed 12 °C for reasons of
food hygiene!

Cutting machine AR 20
8
This machine is intended:
•for use during work
•for use by persons over 18
•for use by instructed persons
Claims of any type for damage caused by use other than
the intended use are excluded!
Misuse:
•Any use other than the use listed above is strictly prohibited
and is considered misuse!
•Operating the machine in explosive atmospheres is prohib-
ited!
•Handling/processing products and materials which are not
foodstuffs is prohibited!
•Handling / processing of products containing bones is prohib-
ited!
•The worktable may only be loaded with max. 30 kg!
2Installation instructions
Installation and commissioning of the machine may only be carried
out in the presence of a Rühle service technician or by persons au-
thorised by Rühle.
Rühle GmbH Lebensmitteltechnik accepts no liability for any damage
resulting from failure to comply with these operating instructions.
2.1 Machine transport and setup
Please refer to the short instructions supplied with the machine re-
garding transport and setup of the cutting machine.
The machine and machine parts must be transported by 2
persons (1 person to operate the floor truck/1 person to
supervise transport).
