Rühle MKR 300 User manual

Rühle GmbH, Beim Signauer Schachen 10, D-79865 Grafenhausen
Tel.: [phone], Fax: [phone]
www.original-ruehle.de
Wooden board
Forklift
⑪
⑩
⑨
⑧
⑦
①
②
③
④
⑤
⑥
⑫
⑬
⑭
⑮
1) Operation panel
2) Main switch
3) Lateral machine
foot
4) Side panel
5) Type plate
6) Power supply
7) Wheel
8) Trolley
9) Lift system
10) Drum
11) Lid
12) Tumbling arm
13) Ring
14) Blank plug
15) Mixing arm
(Quick help)
(Manual control)
(recipe start)
Push button scroll recipes
(Welcome screen)
(Recipe selection)
(Recipe)

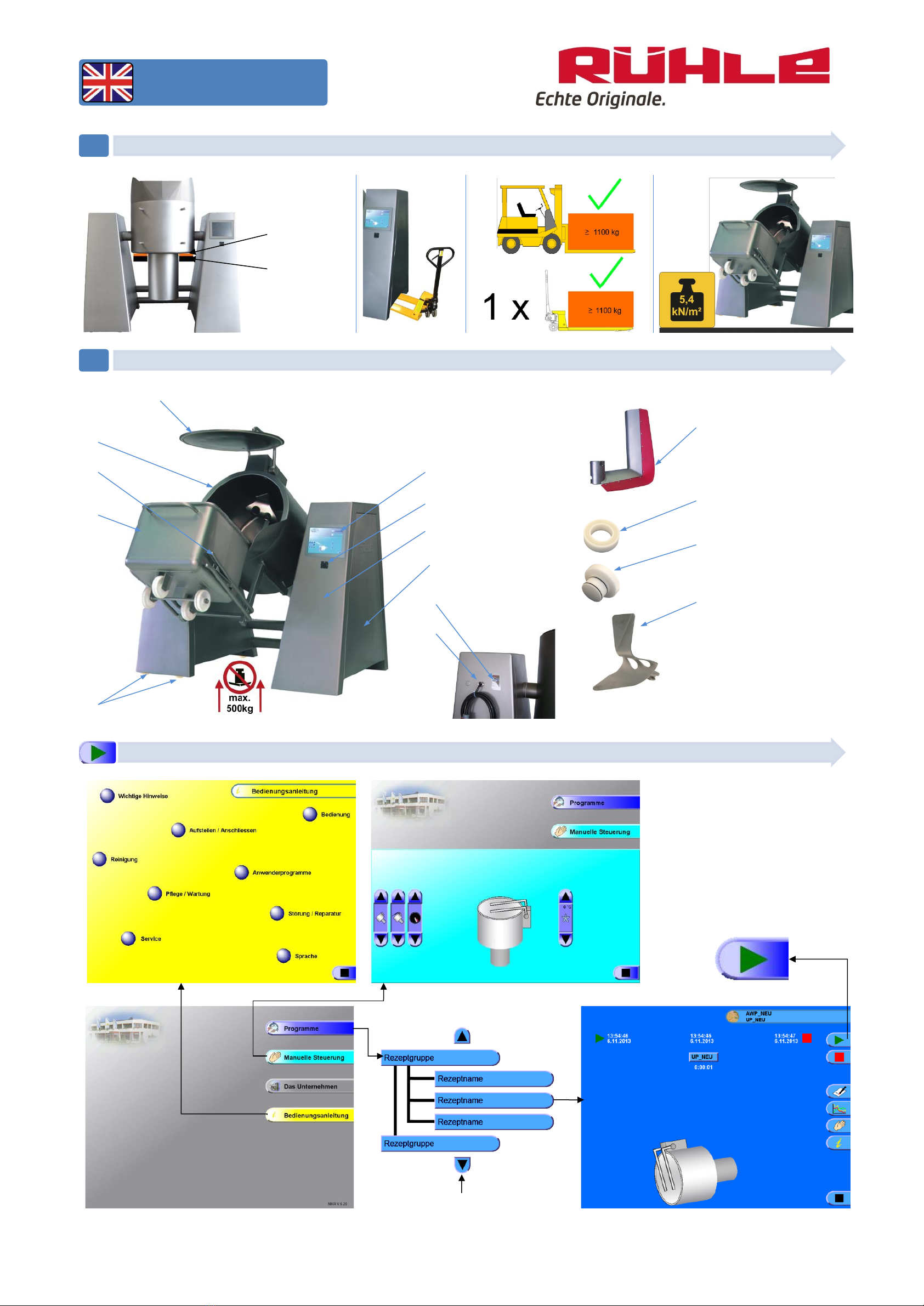

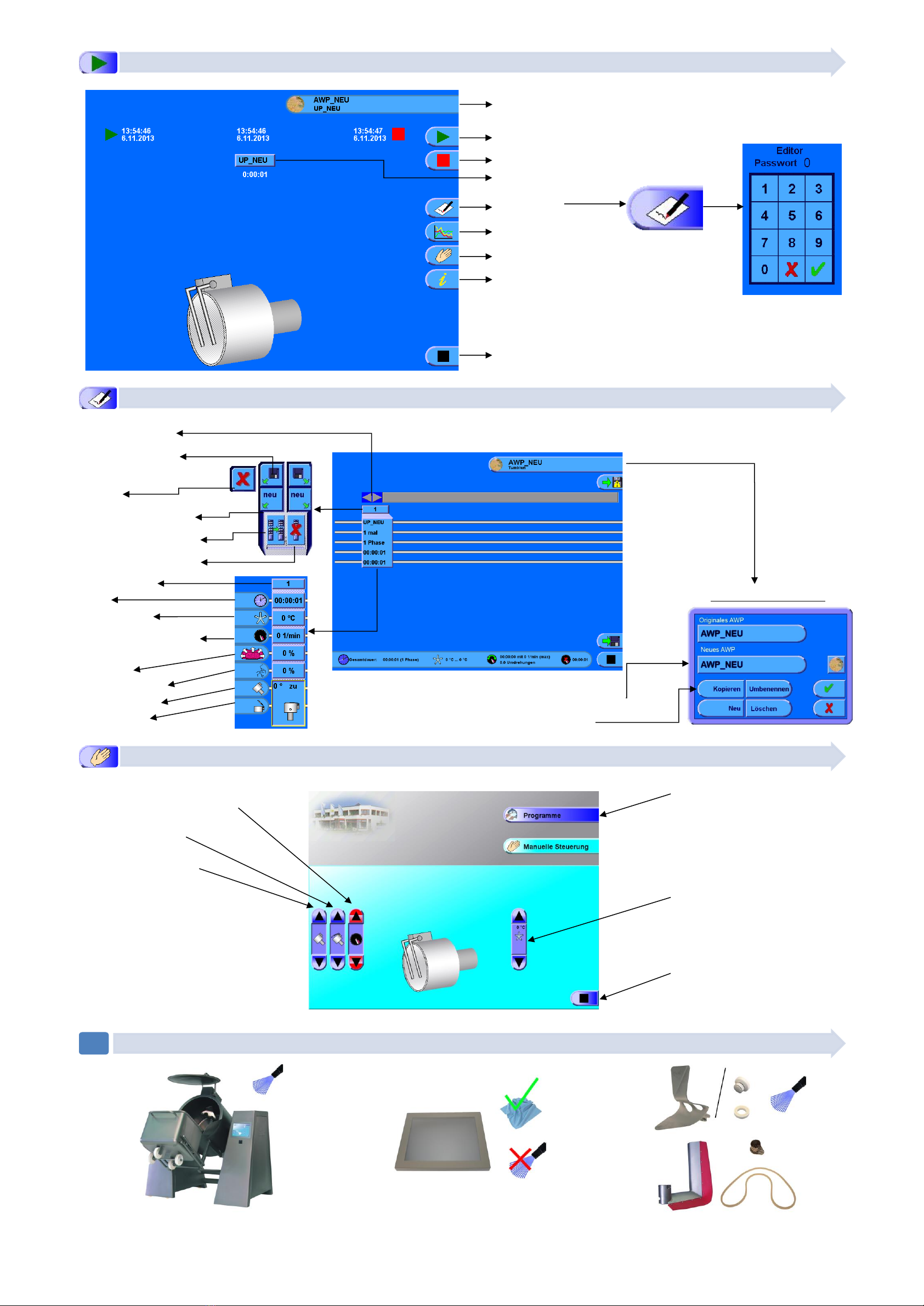

Quick installation guide MKR 300
•Installing the machine
I
•Operation
II
•Recipe selection / recipe start

MKR 300
Copyright © 2021 by Rühle GmbH
01.25.2021 (v. 2.0)
Recipe name
Start / Pause
Stop
Phases
Recipe editor
Statistic
Manual control
Information on/off
Back
(Programming
recipes)
Factory setting
password "0"
Phases overview
Inserting existing
phases
Back
Inserting new phase
Copying active phase
Deleting active phase
1) Name "new recipe"
2) Press copy
Programming recipes:
Phase header
Time
Temperature
Revolutions tumbling
arm
Vacuum
Degermination
Drum position
Lid position
Button tumbling arm
Clockwise/Counterclockwise
Button lid position
Button drum position
Recipe selection
Start button refrigeration
Back
•Recipe selection / recipe start
•Programming recipes
•Manual settings
•Cleaning
III

Lebensmitteltechnik
Translation of the original instructions
- Tumbler
Type: MKR 300
Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen
Germany
Tel.: [phone], Fax: [phone]
www.original-ruehle.de

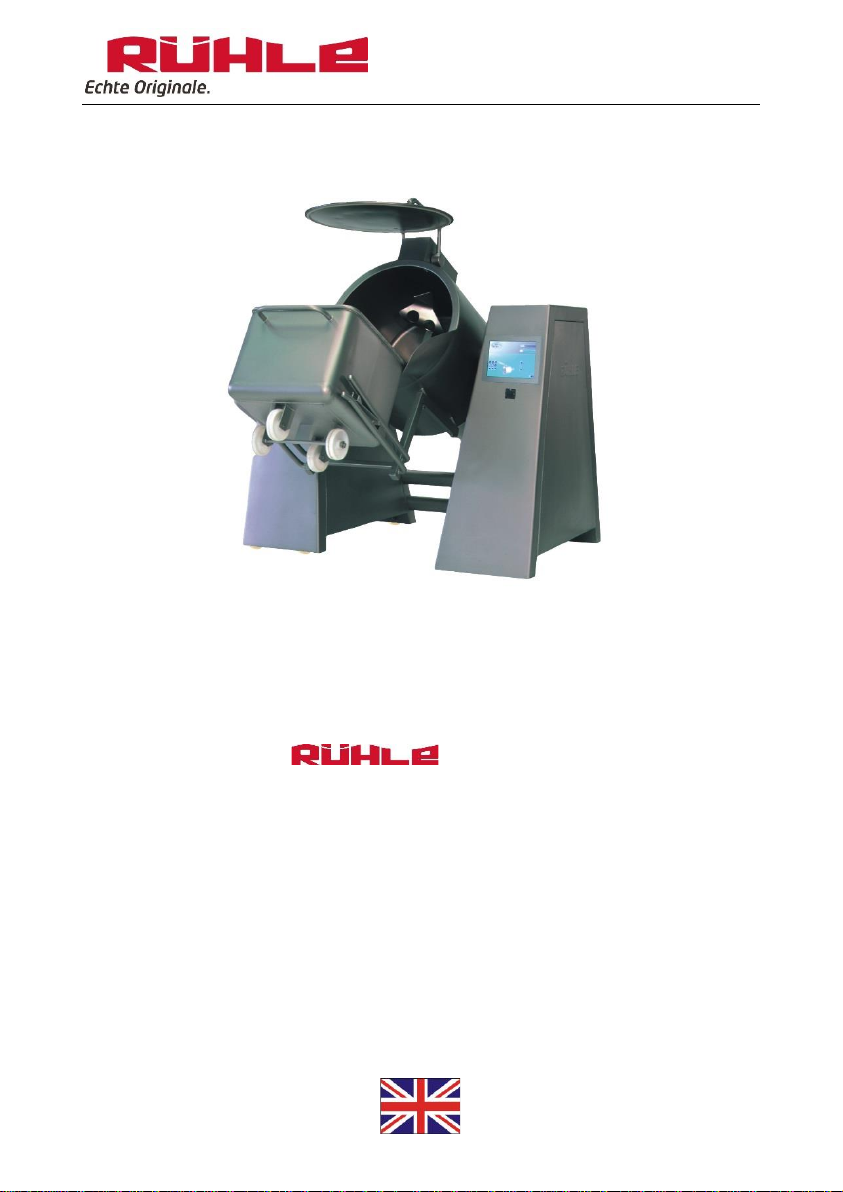

Tumbler MKR 300
2
Table of Contents
1 Safety Instructions............................................................................. 3
1.1 Safety instructions ................................................................... 3
1.2 Remaining risk of accidents .................................................. 6
1.3 Intended Use............................................................................... 6
2 Installation instructions ................................................................... 7
2.1 Machine transport and setup ............................................... 7
2.2 Workplace description............................................................. 8
2.3 Connecting the machine ......................................................... 9
3 Operating instructions....................................................................10
4 Cleaning instructions.......................................................................12
4.1 Safety instructions .................................................................12
4.2 Cleaning agents and disinfectants....................................13
4.3 Cleaning procedure.................................................................13
5 Service: Care, maintenance, repair.............................................15
5.1 Regular care..............................................................................15
5.2 Regular maintenance.............................................................16
5.3 Repair and spare parts..........................................................17
6 Disposal................................................................................................17
7 Technical documentation ..............................................................17
7.1 Technical data..........................................................................17
7.2 Electrical circuit diagram ......................................................18
8 EC Declaration of Conformity according to Directive
2006/42/EC........................................................................................19
Status: 05 December 2022 (Version 2.2)
Changes reserved

Tumbler MKR 300
3

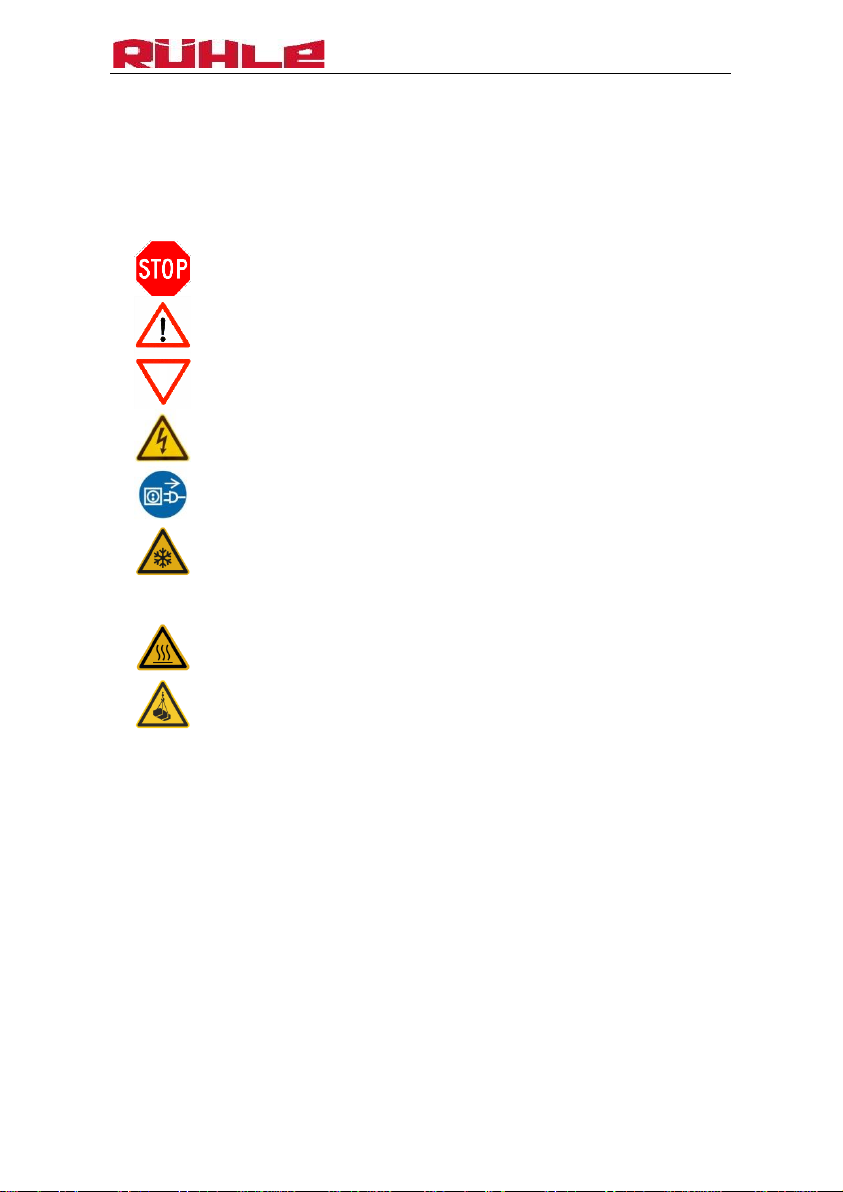

1Safety Instructions
!!! Observe the safety instructions during the installation, operation,
cleaning and maintenance of the Rühle Tumbler!
Hazard potentially causing irreversible injuries if disre-
garded.
Warning, potentially causing serious injuries if disre-
garded.
Note
Work on electrical equipment of the machine may only
be carried out by qualified technicians!
Always disconnect machine from the mains during this
process!

Refrigeration installer
These work activities may be carried out only by a re-
frigeration installer! Disregard may result in injuries.
Warning of hot surface.
Warning of suspended load.
1.1 Safety instructions
!!! A supervisor (responsible person) must be appointed for the ma-
chine!
This person must:
a) Completely read and understand these operating instructions
before transport, commissioning, setup, operation, cleaning,
decommissioning, care / maintenance as well as dismantling /
disposal!
b) Prepare work instructions for the intended and safe
transport, commissioning, setup, operation, cleaning, decom-

Tumbler MKR 300
4
missioning, care / maintenance as well as dismantling / dis-
posal!
c) Make sure that the qualified workers have completely read
and understood the respective work instructions according to
section 1.1b!
d) Proper functioning of the protective devices must be checked
at least once a year by a Rühle service technician!
e) Provide personal protective equipment!
All life cycles phases:
Wear foot protection!
Wear hand protection!
Wear protective clothing!
Cleaning; care / maintenance; dismantling:
Wear eye protection!
Use light breathing mask!
!!! The operator must operate the machine according to the intended
use and strictly observe all points listed in the “Operation” work in-
structions prepared by the supervisor.
!!! Before putting the machine into operation for the first time and on
each working day, the operator must check the functionality of the
following safety devices:
a) Visual check for changes or damages on all machine sides
and accessible machine parts, e.g. tumbling arm; lifting aid.
The machine must be shut down in the event of any damages
or changes!
b) Check the safety switch on the lid drive; to this end: Open lid
all the way. - When reaching the “Open” end position the lid

Tumbler MKR 300
5
and indication must remain on the display. - Now close the lid
fully. - When reaching the “Closed” end position the lid and in-
dication must remain on the display. If the lid or indication on
the display do not remain, the machine must be shut down
immediately! Error messages of the control system must be
heeded!
!!! To shut down the machine the main switch must be turned to “0” -
OFF" and the power plug pulled from the outlet! The machine must be
secured against further use!
!!! The supervisor must arrange for the repair of the non-functional
safety device by a Rühle service technician. Until the corresponding
parts have been repaired, the supervisor must ensure that the ma-
chine or parts of the machine are under no circumstances put into op-
eration!
!!! The cleaning personnel must observe the work procedures from the
“Cleaning” work instructions prepared by the supervisor.
!!! The maintenance personnel may only carry out work specified as
“Regular care”, unless any other authorisation has been issued in
writing by the manufacturer of the machine. The maintenance per-
sonnel must observe the work procedures from the “Maintenance”
work instructions prepared by the supervisor.
The power plug must be disconnected for maintenance work!
!!! The machine may not be modified.
!!! Only Rühle spare parts and accessories may be used.
!!! The operating instructions as well as all other technical documents
included must be supplied completely when reselling the machine.

Tumbler MKR 300
6

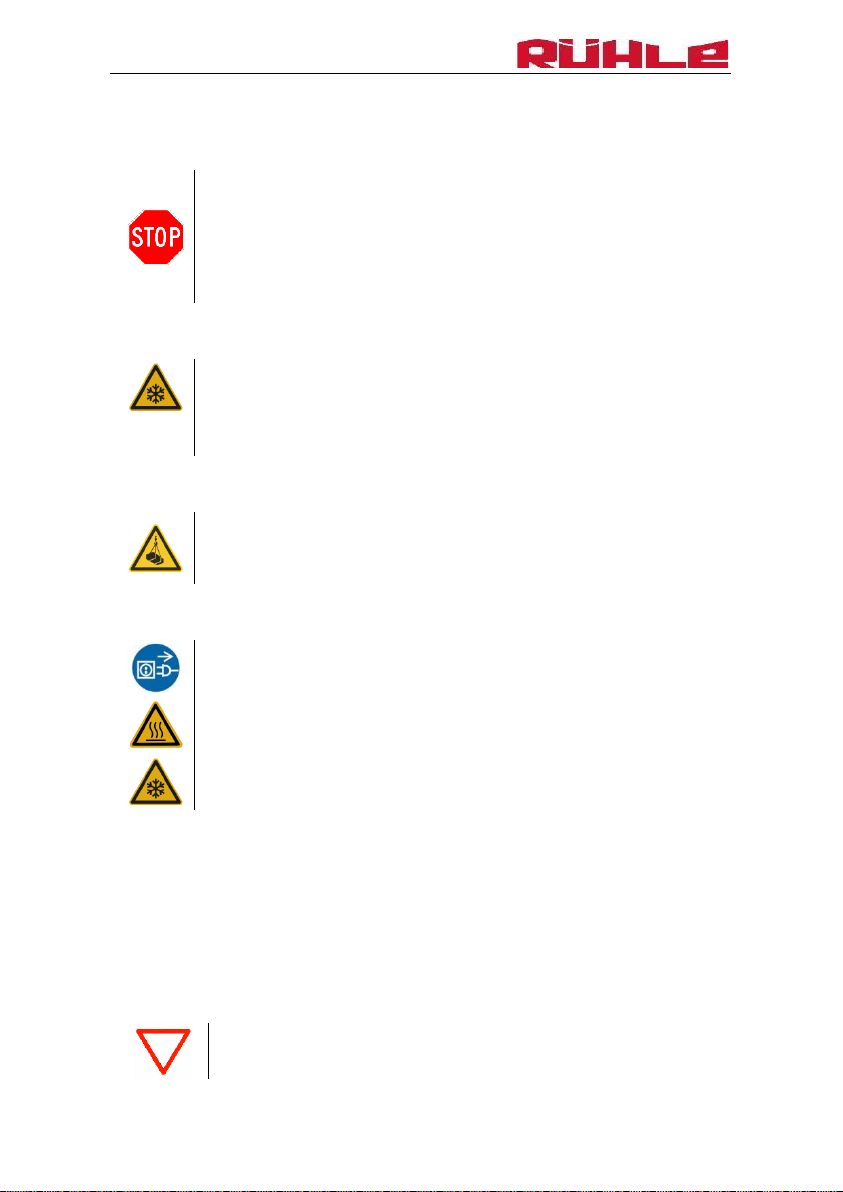

1.2 Remaining risk of accidents
!!! All life cycles phases
Error messages of the operating system must be heeded!
Non-compliance is strictly prohibited!
No person or object may be present or located in the
working area of the machine while the program is run-
ning!
!!! All life cycles phases

Work on the cooling unit and cooling system may only be
carried out by a refrigeration installer!
!!! All life cycles phases
Staying under the lifting aid (standard trolley support) is
strictly prohibited, and the standard trolleys provided
must be used!
!!! Maintenance
The machine must be disconnected from the mains when
performing maintenance work!
The protective covers may be removed only while per-
forming maintenance (control cabinet, side cover)!
Beware of hot or cold surfaces, e.g. drives, cooling, unit,
etc., during maintenance work!
1.3 Intended Use
The Tumbler has been solely designed for mixing, salting/seasoning,
marinating and tumbling meat products and salads. The max. room
temperature may be 12 °C for reasons of food hygiene! This machine
may not be operated by persons under the age of 18!
Claims of any type because of damages due to non-in-
tended use are ruled out!

Tumbler MKR 300
7
Misuse:
•Any use other than the one listed above is strictly prohibited
and is considered misuse!
•Operating the machine in explosion hazard areas is prohib-
ited!
•Handling / processing products and materials not belonging
to food products is prohibited!
•The lifting aid may be used only for the standard trolleys pro-
vided and must not be overloaded! Lifting of persons is
strictly prohibited!
2Installation instructions
Installation and commissioning of the machine may only be carried
out in the presence of a Rühle service technician or by persons au-
thorised by Rühle.
Rühle GmbH Lebensmitteltechnik shall not be liable for any damage
resulting from non-compliance with these operating instructions.
2.1 Machine transport and setup
Please refer to the short instructions supplied with the machine re-
garding transport and setup of the Tumbler.
The machine and machine parts must be transported by 2
persons (1x operator of floor conveyor / 1x transport su-
pervision).
The power supply line must not be damaged by driving
over or pinching it!
The machine must be decommissioned until a damaged
power supply line has been repaired!
Make sure the machine is stable!

Tumbler MKR 300
8
Observe the maximum filling quantity of 225 kg per
standard trolley (corresponds to the max. filling capacity
of the drum)!
Foundation load: 5,4 kN/m²!
Set up the machine on a solid level floor with sufficient
load bearing capacity!

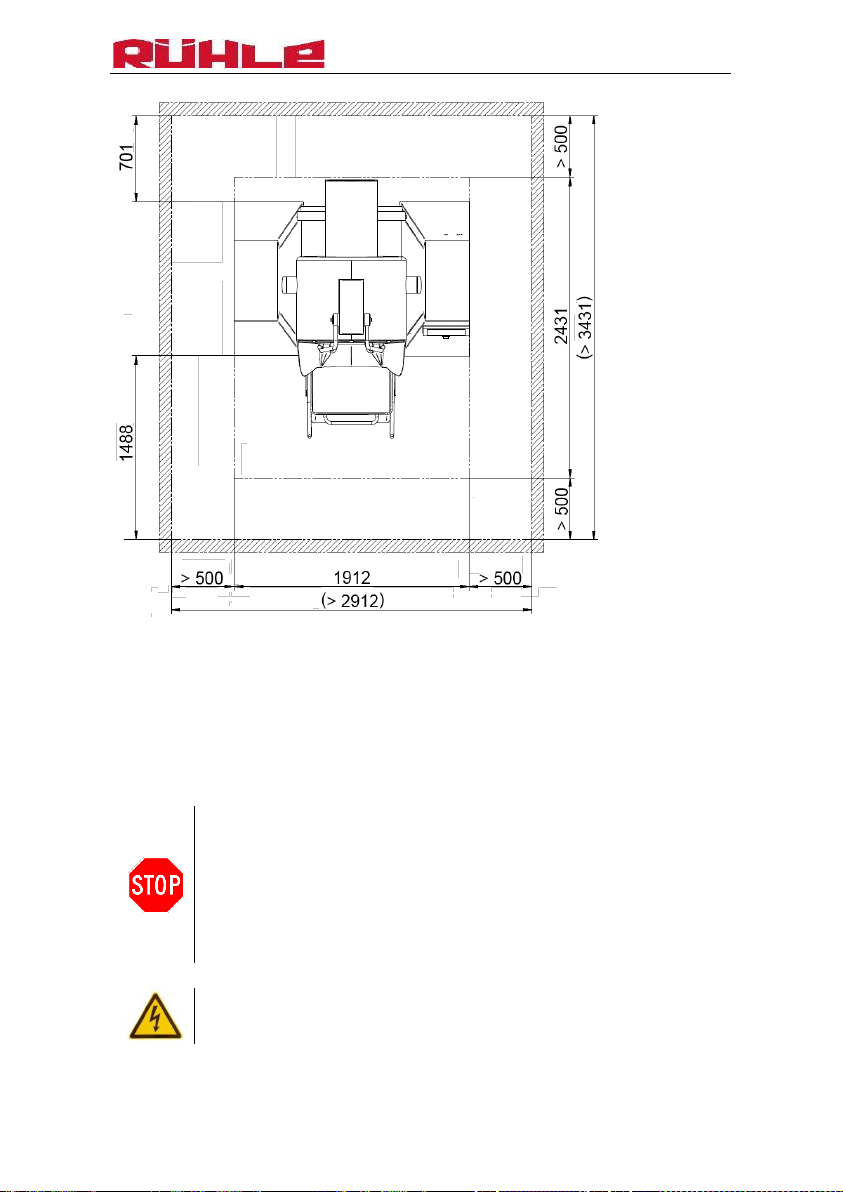

2.2 Workplace description
The work area around the machine is at least 0.5 m on all sides; for
maintenance work it is at least 1 m; if used as passage way, it is at
least 1.2 m.
Swivel range of
drum, lid and lifting
unit

Tumbler MKR 300
9
2.3 Connecting the machine
The machine is connected to a three-phase current outlet; its data
(voltage, amperage) must agree with the specifications on the type
plate of the machine.
The machine must be decommissioned until a damaged
power supply line has been repaired!
The power supply line must be regularly checked!
Check the correct rotational direction of the machine by
starting it. The machine cannot be started if the rotational
field is wrong.
•In such a case, an electrician must change the direc-
tion of rotation inside the mains plug.

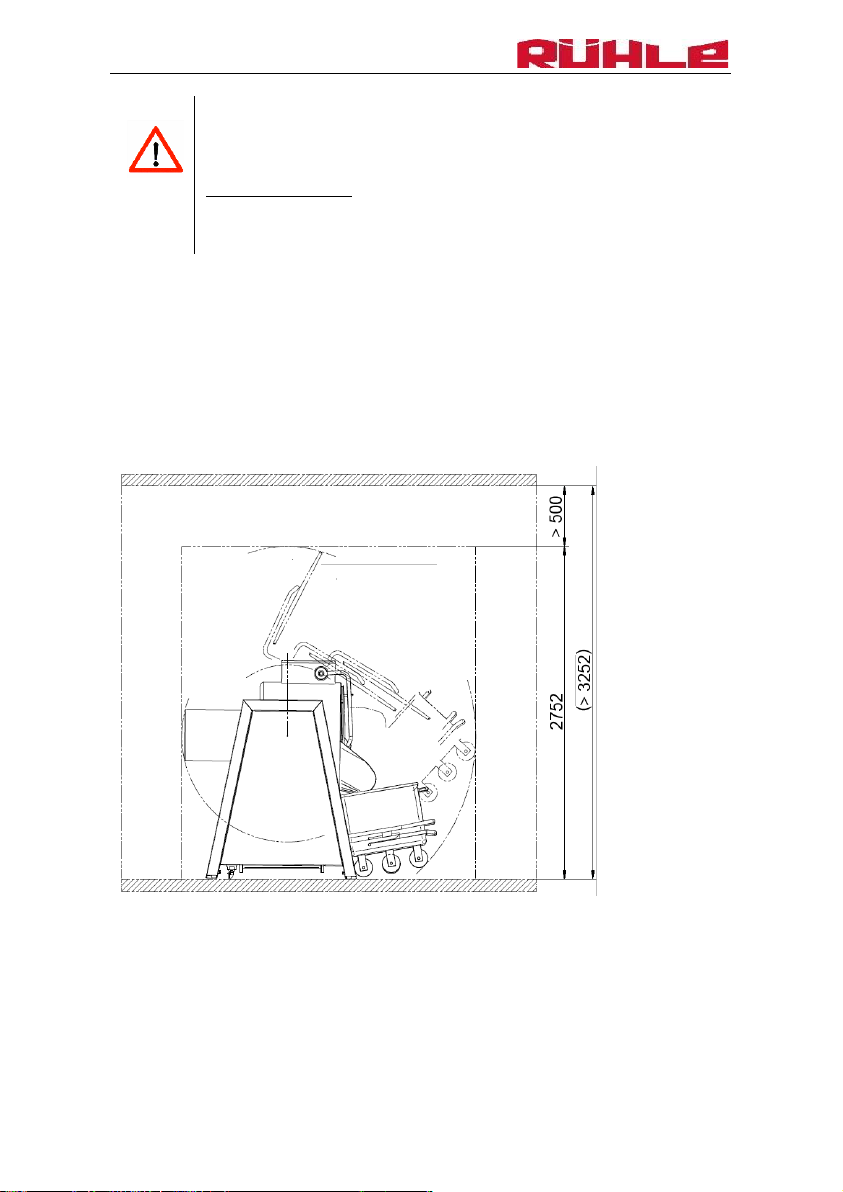

Swivel range of drum, lid and
lifting unit

Tumbler MKR 300
10
•The power supply to the machine must be fuse-pro-
tected with 16A secured with an AC/DC sensitive
ground-fault circuit interrupter (type B).
3Operating instructions
Please refer to the short instructions supplied with your machine for
the operation of your Tumbler.
Follow also the safety instructions in Chapter 1.1!
Depending on the user programs, the lid and drum are
moved automatically. While the program is running, no
person or object may stand or be located within the work-
ing range of the machine (front distance at least 1.2 m
over the entire machine width).
If the power fails when a user program is being executed
the machine will react as follows when the power supply
is reinstated: it will start up again automatically and the
program will continue from that point at which it was in-
terrupted by the power failure.
In its respective life cycle phases (transport, commission-
ing, setup, operation, cleaning, decommissioning, care /
maintenance, dismantling / disposal) this machine is de-
signed for 1-person operation!
When using this machine, no other person may be present
near the machine. The exception (2-man operation):
•Installation and removal of drum lid
•Installation and removal of drum lid arms
•Installation and removal of tumbling arm
•Installation and removal of mixing arm
•Installation and removal of protective gearbox cover
•Transport of machine and machine parts

Tumbler MKR 300
11
Depending on the user programs, temperatures down to -
10 C may be generated in the drum. Take the correspond-
ing precautions.
Do not touch the tumbling arm / mixing arm with your
hands or any object when they are moving! Their rota-
tional speed while the lid is open is restricted for safety
reasons!
Make sure before each lifting operation that the standard
trolley sits correctly in the standard trolley support of the
lifting aid!
No persons or objects may be present in the swivel range
of the drum!
When emptying the drum corresponding appropriate pre-
cautions must be taken to ensure that no person stands in
the discharge area of the machine!
Make sure when mounting (or adjusting) the tumbling arm
as well as the mixing arm (alternative blind plug) that
they are correctly locked!
No persons or interfering objects may be present in the
swivel range of the lid!
The operator must make sure that no persons, who do not
know the hazards of the machine or cannot anticipate
them, are about in the area of the machine!
If the drum is inclined downwards and you aerate the
drum or even open the lid, the goods will fall out of the
machine.
Each time before you start working, make sure that the
drum lid seal has been inserted correctly. For this, check
during program start whether a pressure loss is indicated
on the pressure display (if the machine can create a vac-
uum). If this is the case, the gasket has been mounted cor-
rectly. Otherwise check the gasket.
The lid cannot be opened when there is a vacuum in the
machine or if it has not yet been fully aerated.

Tumbler MKR 300
12
If you interrupt a program by pressing “Pause”, you will be
prompted to aerate when “Open lid” is actuated. Only af-
ter the drum has been evacuated will you be able to open
the lid by actuating it again.
Within a program you may aerate the machine before the
lid shall be opened.
The drum can be set to any position between
-10° and 100° (= discharging position) so that it can be
used for any operating process.
The control panel may only be operated by touching it
with the fingers. Using any objects (e.g. blade) is prohib-
ited!
4Cleaning instructions
The Tumbler has been designed to allow for complete cleaning of all
parts that come into contact with the food product.
4.1 Safety instructions
•Follow also the safety instructions in Chapter 1.1!
•The cleaning staff must notify the supervisor immediately of any
defects on the machine!
•The cleaning staff must use the specified cleaning agents and
disinfectants!
•Germ reduction is achieved only by correct cleaning and subse-
quent disinfection!
•Appropriate material (e.g. brushes, rags, ...) is required and must
be provided for the proper procedures of the above!
•Cleaning products and disinfectants approved for the food prod-
uct area and suitable against contamination (e.g. protein, lime-
scale, ...) must be used!
•The cleaning agents and disinfectants must be prepared to a so-
lution as described in the product data sheet of the manufac-
turer!
•Personal protective equipment must be worn!

Tumbler MKR 300
13
Cleaning with high-pressure cleaners
is permitted only for:
•all outside surfaces,
•drum,
•drum lid + seal
•intake filter and air intake pipe,
•tumbling arm,
•mixing arm and
•blind plug
The control panel must be cleaned manually and may not
be exposed to a water jet!
All other parts and surfaces may be cleaned only with
normal water pressure!
4.2 Cleaning agents and disinfectants
Recommended cleaning agents and disinfectants:
Art.
No.
Product name
Description
pH
value
Concen-
tration
for appli-
cation
[%]
Expo-
sure
times
[min]
Temper-
atures
[°C]
15207
FINK –Spül ASS
Alkaline foam
cleaner, mild
alkaline
1.0 –5.0
5 –15
20 –50
daily
19402
FINK - Superfet-
tlöser
Alkaline foam
cleaner
0.5 –5.0
5 –20
20 –50
10030
FINK –FC 30
Cleaning and disin-
fection, combined
1.0 –3.0
5 –15
20 –50
18556
FINK –FC Power-
foam A2
Alkaline foam
cleaner
1.5 –3.0
5 –20
20 –50
13308
*)
FINK –Antisept G
Disinfectant for
spray application,
QAC
0.5 –3.0
5 –15
20 –40
17107
FT 107 DES
Disinfection
2.0 –5.0
15 –30
20 –40
13302
FINK –Antisept A
Alcohol-based disin-
fectant
neutral
100
5
RT
daily
13304
FINK –Antisept E
Alcohol-based disin-
fectant
100
5
RT

Tumbler MKR 300
14
18803
FINK –Alu-Rei-
niger
Acid foam cleaner
acid
2.0 –5.0
5 –15
20 –50
Once in 2 weeks
17043
FT 43 SR
Acid foam cleaner
1.0 –5.0
5 –15
20 –50
18550
FINK –FC Power-
foam S1
Acid foam cleaner
1.0 –2.0
5 –20
20 –50
17310
Ökoron® 10
Disinfectant, acid
0.3 –1.0
20 –30
5 –70
17307
Ökoron® 7S
Disinfectant, acid
0.5 –2.0
1 –20
5 –60
17312
Ökoron® 12
Acid disinfection
0.5 –3.0
5
Cold
17313
Ökoron® 13
Acid disinfection,
foamable
0.1 –1.0
5
45
17900
Ökoron® SR
Ecological cleaner
acid
1.0 –5.0
15 –20
20 –55
daily
*)
13308, FINK –
Antisept G
Because of customer-specific application prohibitions, QAC-containing
products are sometimes not used since the IFS standard must be met.
Possible alternative products would be, for example, FT 107 DES.
Supplier:
FINK TEC GmbH, Oberster Kamp 23, 59069 Hamm, Germany
Tel. [phone] / [email protected] / www.finktec.com
4.3 Cleaning procedure
Please refer to the short instructions supplied with your machine for
carrying out the cleaning procedure.
Cleaning preparations:
•To ensure optimum cleaning, some components of the machine
must be removed.
•Remove the mixing arm as well as the tumbling arm from the
drum!
•Simply pull off the stripper rubber at the tumbling arm from the
outside to the inside.
•Pull the drum lid seal off the inside of the drum lid!
•Remove the intake filter at the upper lid edge out of the bracket.

Tumbler MKR 300
15
5Service: Care, maintenance, repair
Any work related in any way with service may be carried out only by
Rühle service technicians and by persons authorised by Rühle in writ-
ing. In this regard, a distinction is made between regular care and
maintenance and repair. The respective qualification certificate must
be issued explicitly for the corresponding work.
Follow also the safety instructions in Chapter 1.1!

Only qualified technicians may carry out repairs on the
cooling system of the machine!
Notify and obtain permission from Rühle customer ser-
vice if welding or cutting work is required on the ma-
chine!
Make sure when working on the electrical equipment of
the machine that
•this is only done by qualified personnel!
•the machine is always disconnected from power!
•a waiting time of at least 10 minutes is observed af-
ter switching off the machine to allow the capaci-
tors of the frequency converters to discharge to a
harmless voltage level!
5.1 Regular care
Regular care of the machine must be carried out at least once per
week. This prevents malfunctions and signs of wear.
Any abnormalities detected during regular care must be reported to
the supervisor! He must immediately initiate correction or mainte-
nance or notify Rühle Service!

Tumbler MKR 300
16
Care schedule:
a) Disassemble the machine according to the cleaning instruc-
tions. Check for any parts moving with difficulty, material
abrasion or other signs of wear and tear.
b) Check hygienic condition and function of drum lid seal!
c) Check the lock / seat of the tumbling arm and mixing arm (or
blind plug) for functioning and firm seating!
d) Check hygienic condition of the stripper rubber on the tum-
bling arm!
e) Clean air intake pipe thoroughly!
f) Check the drum positioning; contact Rühle service if neces-
sary!
g) Check the lifting aid (standard trolley support)!
h) Check the drum lid holder!
5.2 Regular maintenance
Regular maintenance of the machine must be carried out every 2000
hours of operation but at least once per year.
Maintenance schedule:
a) Inspect the safety devices as outlined in Chapter 1.1 Safety
Instructions!
b) Test run with open machine (caution: moving parts)!
c) Check air filter and air oil separator of the vacuum pump and
replace, if necessary!
d) Change oil of the vacuum pump!
e) Check cooling performance of the refrigeration unit; service, if
necessary, and clean condenser!
f) Check function of pressure transmitters and temperature sen-
sors!
g) Inspect the hoses (vacuum system)!
h) Check radial shaft seals for leak tightness; replace otherwise!
i) Read the error memory (frequency converter)!

Tumbler MKR 300
17
5.3 Repair and spare parts
As a damaged part on a machine is usually damaged due to causes
unrelated to the part, always carry out a fault diagnosis.
For this reason, contact our Service Hotline at [phone] for
spare parts or technical faults. Please keep the machine type and
number ready.
6Disposal
All materials and operating fuels must be separated and
disposed of in accordance with nationally applicable regu-
lations!
1. The machine contains a cooling system filled with the refrig-
erant R404A. It must be pumped off by a refrigeration in-
staller and must then disposed of correctly!
2. The following components contain oil:
a. Lid drive
b. Tumbling arm drive
c. Slewing gear
d. Vacuum pump
e. Compressor (cooling unit)
All gears/motors except for the compressor are equipped with
oil draining screws. The compressor must be drilled open for
draining the oil.
7Technical documentation
7.1 Technical data
Connection voltage: 400 V 50/60 Hz 3-phase AC / N / PE
Power consumption: 6.5 kW
Full-load current: 14 A
Back-up fuse max.: 16 A

Tumbler MKR 300
18
Protection class: IP54
Protection class: 1
Ambient temperature: +2 to 40 °C
Dimensions, W x H x D: 1912 x 2752 x 2431 mm
Machine weight: 1100 kg
Transport weight: 1500 kg
Container size: 300 litres
Max. filling: 225 litres
Refrigerant: R404A, 0.76 kg
Speed of mixing and
tumbling arm: 0 to 30 rpm
Vacuum: 0 –95 %
Lifting aid, load capacity: 500 kg
Foundation load: 5,4 kN/m²
Emission sound pressure level: LpA 68.9 dB(A) averaged, when idling,
as per DIN EN ISO 11204, accuracy
class 2, as per EN ISO 3744
Measuring instrument: Brüel & Kjær Type 2240
The data on the type plate principally applies; it is located at the rear
of the machine next to the power supply line. In case of deviations
contact the manufacturer for a written confirmation of the data!
If your country requires a ground fault circuit interrupting device as
protective measure, a ground fault circuit interrupting device (type B),
AC/DC sensitive, must be used.
7.2 Electrical circuit diagram
The electrical circuit diagram of your machine is located in the electri-
cal control cabinet and must be supplied when reselling the machine!
