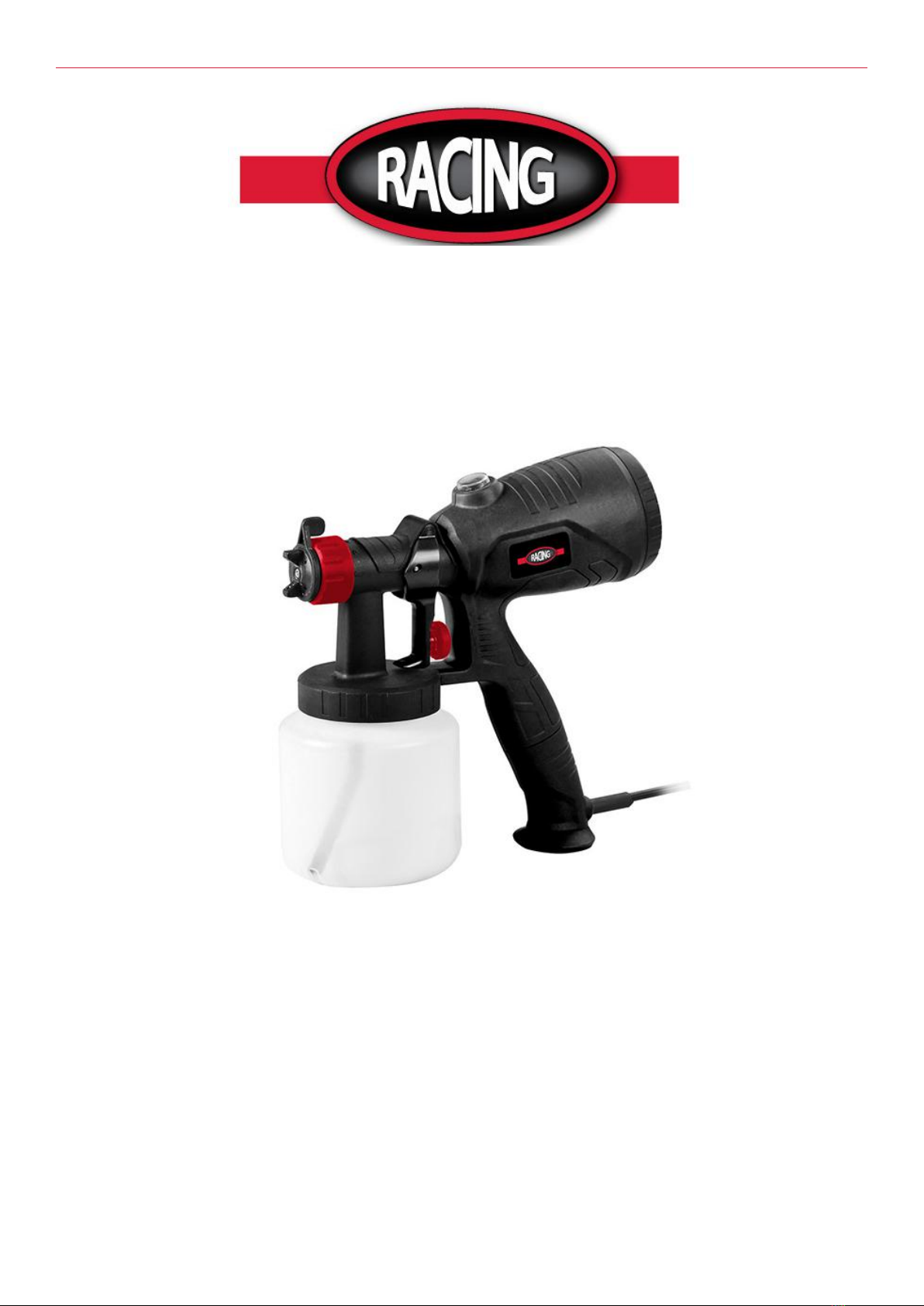

Racing RACSP450PW User manual

ORIGINAL INSTRUCTIONS
PAINT SPRAYER
RACSP450PW
USER GUIDE
CAUTION Read the instructions before using the machine
BUILDER SAS
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
Made in PRC 2022

CONTENT
1. GENERAL POWER TOOL SAFETY WARNINGS..........................................3
2. PAINT SPPRAYER SAFETY WARNINGS......................................................5
3. INTENDED USE..............................................................................................6
4. SYMBOLS.......................................................................................................7
5. KNOW YOUR PRODUCT..............................................................................8
6. USING THE DEVICE......................................................................................9
7. SPRAYING TECHNIQUE .............................................................................10
8. CLEANING THE DEVICE..............................................................................11
9. DISPOSAL ....................................................................................................11
10. DECLARATION OF CONFORMITY……………………………………...……..12
11. WARRANTY...................................................................................................15
12. PRODUCT FAILURE ....................................................................................16
13. WARRANTY EXCLUSIONS ..........................................................................17
02

1. GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on invites accidents.
03

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have
the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
04

2. PAINT SPRAYER SAFETY WARNINGS
NOTE: Learn to know your tool. Please read the operator’s manual. Learn the applications and limitations as
well as the specific potential hazards.
WARNING: TO AVOID THE RISK OF FIRE OR EXPLOSION:
• DO NOT spray flammable or combustible materials near a flame or sources of ignition such as Cigarettes,
motors, and electrical equipment.
• The units are intended to be used with materials to base of water or mineral type with a minimum of flash
point of 60o C. DO NOT spray or clean with liquids with a flash point of less than 60o C.
• The paint or solvent flowing through the equipment can produce static electricity, which creates a risk of fire
or explosion in the presence of fumes from paint or solvents.
• DO NOT use paint or solvent containing halogenated hydrocarbons.
• Spray ONLY at well ventilated areas. Keeps adequate fresh air moving through the area. Keep the pump
assembly in a well-ventilated area.
• DO NOT smoke in the spray area.
• DO NOT use the tool close to motors or similar products that produce sparks.
• Keep the spray area clean and free of containers of paint or solvents, rags, and other flammable materials.
• Be aware of the contents of the paints and solvents which are sprayed. Read all the data sheets and
container labels provided with the paints and solvents. Follow the paint manufacturer’s safety instructions and
solvents.
• The firefighting equipment shall be available at site and working.
WARNING TO AVOID THE RISK OF SKIN INJECTION:
• DO NOT point the nozzle or spray to any person or animal.
• Keep hands and other parts of the body away from the discharge. For example, do not attempt to stop the
leak with any part of the body.
• ALWAYS use spray gun with tip. NEVER use a spray gun without tip.
• USE ONLY a tip of spray gun specified by the manufacturer.
• Use caution when cleaning and changing spray tips. In the event of spray tip is obstructed while spraying,
follow the manufacturer’s instructions to turn off the unit before removing the spray tip for cleaning.
• Do not leave the unit energized while it is unattended. When the unit is not in use, shut it down in
accordance with the manufacturer’s instruction.
• High pressure spray is able to inject toxins into the body and cause serious injury. In the event of the
injection, seek medical attention immediately.
• Check for signs of damage. Replace any damaged parts.
• This system is capable of producing pressure of 30PSI. ONLY use spare parts or accessories specified by
the manufacturer and with a minimum working pressure of 30PSI.
• Know how to stop the unit quickly. Familiarize yourself with the controls.
• Check that all connections are secure before operating this unit.
05

If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in
order to avoid a safety hazard.
Do not to spray any material where the hazard is not known.
Use appropriate personal protective equipment, such as dust mask.
Do not to clean guns with flammable solvents.
3. INTENDED USE
1) The unit is for household use only. Intended for
Painting inside and outside;
Staining covers;
Painting outdoor furniture, fences and walls
The device may only be used for its intended purpose be used. Any further about it use beyond that is not as
intended. For evoked from it any kind of damage or injury is liable User / operator and not the manufacturer
2) KINDS OF MATERIALS
The spray gun is suitable for water-based paints and oil-based paints, and the viscosity of these paints or
paints must be tested before use. Put the paint or paint into the viscosity measuring cup, and then compare
the following requirements:
Water based paints and emulsions：25-50s
Varnishes：No Dilution
Aluminium Paints：No Dilution
Oil Based Paints：30 -50s
Wood Stains：No Dilution
Wood preservatives：No Dilution
Primers：45 -50 s
06

4. SYMBOLS
The labels on your tools and manual may show symbols. These represent important information about the
product or instruction on its use.
Read the instruction before use
Wear eye protection
Wear eyes protection
Wear ear protection
Conforms to relevant safety standards
Double insulation
Do not dispose of old appliances with domestic rubbish
07

5. KNOW YOUR PRODUCT
a) Machine components
1) Nozzle
2) Paint Container
3) Handle
4) Spray adjuster
5) Holder ring of spray adjuster
6) Gun Body
7) ON/OFF switch
8) Motor housing
9) Trigger
10) Fluid Adjusting Screw
11) Cable
12) Plug
13) Nozzle cleaning needle
14) Viscosity cup
08

b) Technical data
1) Voltage: ...............................................220-240V~ 50/60Hz
2) Power: ..................................................450W
3) Rotation speed : ..................................30000/min
4) Technology : .....HVLP (High Volume Low Pressure)
5) Flow : .................................................500 ml/min
6) Pressure : ..........................................0.3-040 bar
7) Nozzle diameter : ..............................1.8 mm
8) Sound pressure level: ........................80dB(A), K=3dB(A)
9) Sound power level: ............................91dB(A), K=3dB(A)
10) Vibration: .........................................0.4 m/s2, K=1.5m/s2
Information:
- The declared vibration total value has been measured in accordance with a standard test method and
may be used for comparing one tool with another;
- The declared vibration total value may also be used in a preliminary assessment of exposure.
Warning:
- The vibration emission during actual use of the power tool can differ from the declared total value
depending on the ways in which the tool is used;
- need to identify safety measures to protect the operator that are based on an estimation of exposure in
the actual conditions of use (taking account of all parts of the operating cycle such as the times when
the tool is switched off and when it is running idle in addition to the trigger time).
6. USING THE DEVICE
Before plugging the device into the mains, make sure that the voltage of the power outlet
corresponds to the voltage on the label with the technical characteristics of the tool
1) Unscrew the container from the spray gun.
2) Set the container on a sheet of paper and fill with the prepared coating material.
3) Screw the container on the spray gun.
4) Point the spray gun at the surface to be sprayed.
5) To determine the volume of material and the spray pattern, test the spray on a piece of cardboard or any
surface similar to the one you wish to spray.
6) Press the ON/OFF switch to "I" position to begin using the sprayer.
7) Press the ON/OFF switch to "O" position to stop the sprayer.
Spray Settings
There are three spray settings:
09

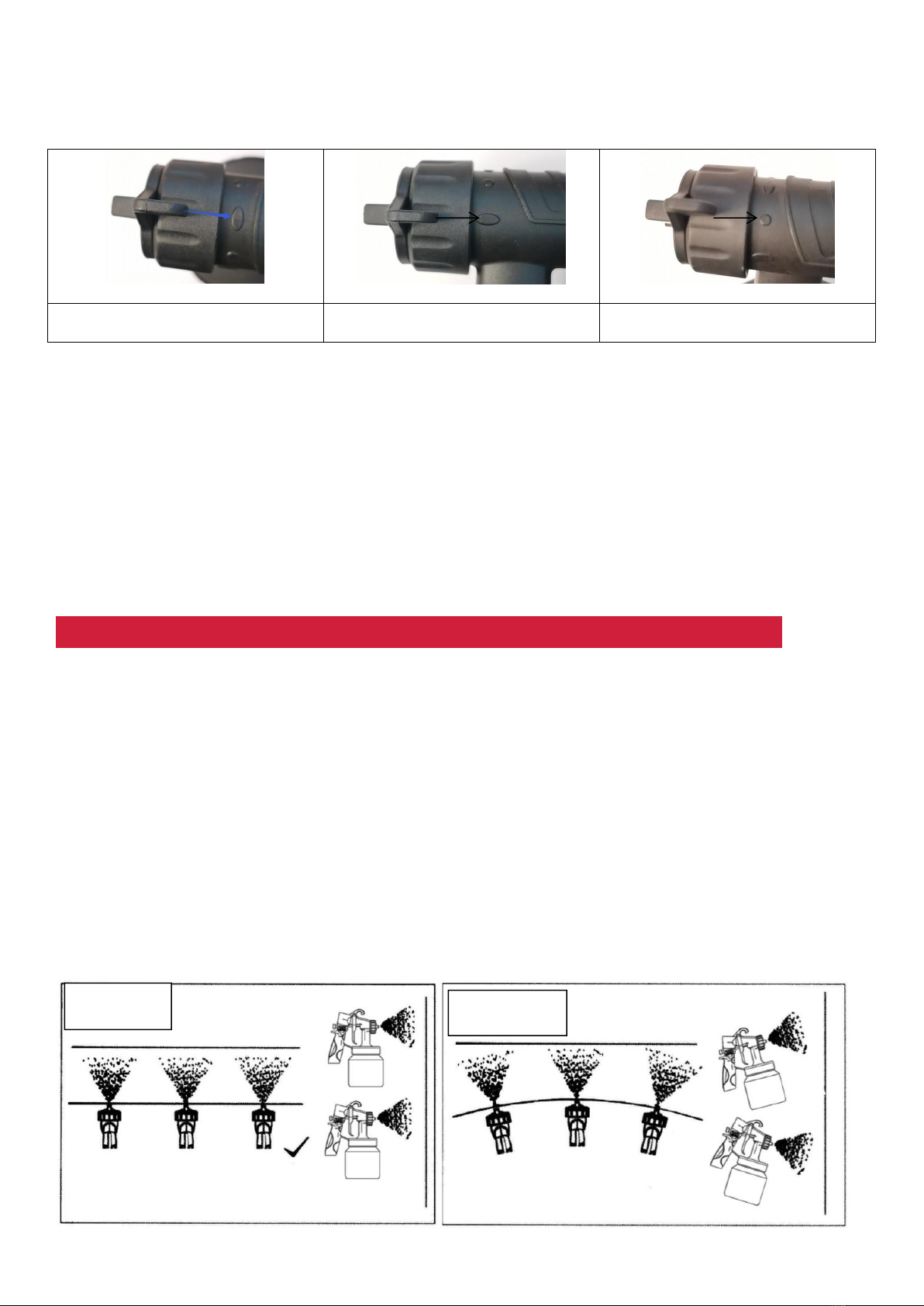

1. Vertical flat jet for horizontal surfaces (Figure A)
2. Horizontal flat jet for vertical surfaces (Figure B)
3. Circular jet for corners, edges and hard-to-reach areas (Figure C)
Figure A
Figure B
Figure C
Adjusting the Spray Setting
Move the spray adjuster (4) to point the settings you want.
Adjusting the Amount of Material
To adjust the volume of material, turn the Fluid Adjusting Screw(10) on the trigger of the spray gun:
- For a lower amount, turn to the left
- For a greater amount, turn to the right
7. SPRAYING TECHNIQUE
- For best results, make sure that the surface is completely clean and level before spraying. Carefully pre-
treat the surface if necessary.
Cover at surfaces that you do not want to spray, including screws and screw threads.
- To determine the amount of material and the spray pattern, test the spray on a piece of cardboard or any
surface similar to the one you wish to spray. Always start spraying outside the target area. Avoid
Interruptions within the target area.
- Make the spray movement with your aim and not your wrist. This ensures that a uniform distance is
maintained between the spray gun and the spray surface Select a distance of 5cm to 15cm, depending on
the desired width of the spray jet. Figure D shows the correct position, where there is a uniform distance
from the spray surface. Figure E shows the incorrect position, where there is an irregular distance from the
spray surface.
Figure D
Figure E
10

- Point the spray gun at a uniform distance from the spray surface. Spray horizontally or from top to bottom,
depending on the selected spray setting.
- Move the spray gun evenly to get an even coating.
6) - If the coating material accumulates in the nozzle(1) and Holder ring of spray adjuster(4), clean it with
the needle(13) or solvent.
PAUSING THE DEVICE
Do the following if you need to stop using the device for a period of no more than 4 hours:
- Turn off the sprayer.
- Put the sprayer out of the reach of children.
- When using 2-component varnishes, clean the device immediately.
8. CLEANING THE DEVICE
Clean the sprayer carefully to keep it working properly.
- Unplug the device from the mains. Before long pauses and alter finishing the paint job, flush the air in the
container.
Do these by keeping the container open for short period of time and closing it again or by pulling the trigger
of the spray gun and pouring all the remaining material back into its original container.
- Unscrew the container(2). Pour all the remaining coaling material back Into Its original ‘container.
- Clean the container and suction tube with a brush. Clean the air vent
- Pour solvent or water into the container and screw it back on. Only use solvents with a flash point over
21°C.
- Plug the sprayer into the mains, turn on the device and spray the solvent or water on a container or cloth.
• Turn off the sprayer and unplug it from the mains.
- Unscrew the container and empty it. Remove the suction tube
• Unscrew the holder ring(5), remove and clean the air cap, nozzle joint and nozzle with a brush and water
or solvent.
- Clean the outside of the spray gun with a cloth and solvent or water.
- Reassemble the parts.
9. DISPOSAL
Electric power tools, as well as their accessories and packaging, must each be able to
follow an appropriate recycling pathway. Only for the countries of the European Union:
Do not throw away your electrical appliance with the household waste! In accordance
with the European Directive 2012/19/EU on waste electrical and electronic equipment and its
implementation in national laws, power tools that can no longer be used must be separated and
follow an appropriate recycling pathway.
11

10. DECLARATION OF CONFORMITY
BUILDER SAS
ZI, 32 rue Aristide Bergès- 31270 Cugnaux-France
Tel: + 33 (0) 5.34.502.502 Fax: + 33 (0) 5.34.502.50
Declares that the machinery designated below:
PAINT SPRAYER
RACSP450PW
Complies with the provisions of the Directive « Machine » 2006/42/CE and national laws transposing it:
Also complies with the following European directives:
EMC DIRECTIVE 2014/30/UE
Also complies with European standards, with national standards and the following technical provisions:
EN 60745-1:2009/A11：2010
EN 50580:2012+A1:2013
EN55014-1:2017; EN55014-2:2015
EN 61000-3-2:2019; EN 61000-3-3:2013+A1:2019
Responsible for the technical file: Mr. Olivier Patriarca
Philippe MARIE / PDG
Serial number: 20220211965-20220213464
RoHS DIRECTIVE (EU)2015/863 amending 2011/65/UE
Done at Cugnaux, le 01/01/2022
12

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identied as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insu󰀩cient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specications
without notice. Consequently, the product may be di󰀨erent from the information contained therein, but a
modication will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can nd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these les: invoice or sales receipt, photo
of the identication plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
11. WARRANTY
13

WHAT TO DO IF MY MACHINE BREAKS DOWN?
If you bought your product in a store:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
If you bought your product on a website:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping o󰀨 the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
• http://www.briggsandstratton.com/eu/fr
• http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
• https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].
12. PRODUCT FAILURE
14

THE WARRANTY DOES NOT COVER:
• Start-up and setting up of the product.
• Damage resulting from normal wear and tear of the product.
• Damage resulting from improper use of the product.
• Damage resulting from assembly or start-up not in accordance with the user manual.
• Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
• Periodic and standard maintenance events.
• Actions of modication and dismantling that directly void the warranty.
• Products whose original authentication marking (brand, serial number) has been degraded, altered or
withdrawn.
• Replacement of consumables.
• The use of non-original parts.
• Breakage of parts following impacts or projections.
• Accessories breakdowns.
• Defects and their consequences linked to any external cause.
• Loss of components and loss due to insu󰀩cient screwing.
• Cutting components and any damage related to the loosening of parts.
• Overload or overheating.
• Poor power supply quality: faulty voltage, voltage error, etc.
• Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs
and more generally the costs related to the immobilization of the product.
• The costs of a second opinion established by a third party following an estimate by a SWAP-Europe repair
station
• The use of a product which would show a defect or a breakage which was not the subject of an immediate
report and/or repair with the services of SWAP-Europe.
• Deterioration linked to transport and storage*.
• Launchers beyond 90 days.
• Oil, petrol, grease.
• Damages related to the use of non-compliant fuels or lubricants.
* In accordance with transport legislation, damage related to transport must be declared to carriers within 48
hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by the
delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notication by registered letter with acknowledgement within 72
hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site). Batteries must
be charged before being stored.
13. WARRANTY EXCLUSIONS
15
