Radiant Innovation TH809 User manual

** Replace the probe cover after each use to
ensure an accurate reading and avoid cross
contamination.

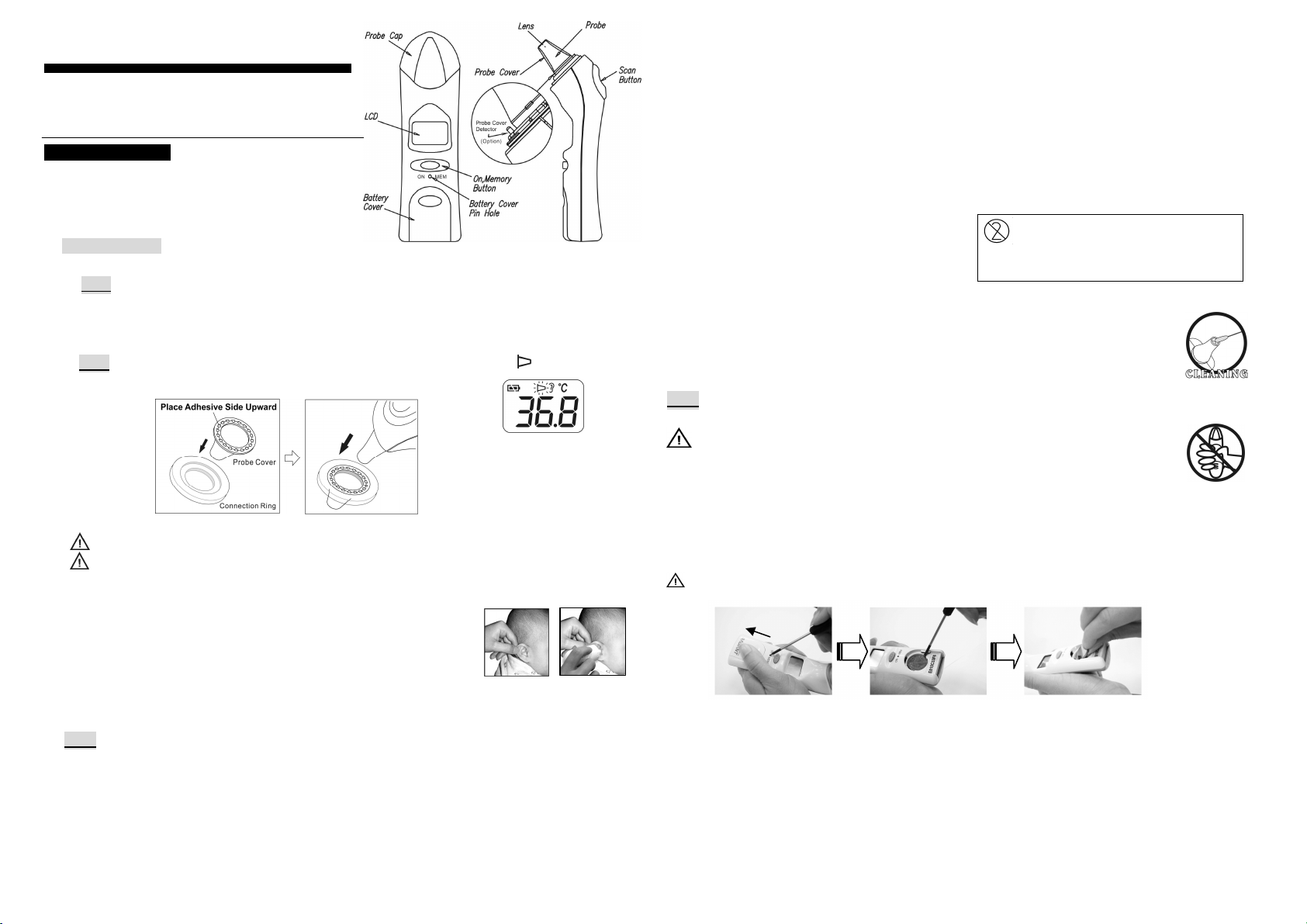

TH809 Ear-Type Thermometer
Thank you for purchasing the thermometer. This thermometer is
designed with an advanced infrared and ambient temperature
compensation technology for instantaneous self-diagnosis and
accurate temperature measurements.
Operating Instructions:
1. Gently squeeze the opposite ends of the thermometer to
pull off the probe cap. Do not use force to remove the cap.
2. Always use a new and undamaged probe cover.
Make sure the ear canal is clean.
3. Install Probe Cover
1) Place a new probe cover on the connection ring. (See Figure 1)
NOTE：Make sure to place the “Adhesive Side” of probe cover “Upward.”
2) Align the probe with the center of probe cover. Insert the probe into the probe cover on the connection ring.
(See Figure 2)
3) Push the connection ring until the “Click” sound. This means the probe cover has been installed successfully.
NOTE：The probe cover detector is optional. If the probe cover did not connect firmly, the “ ” icon
will flash on the LCD screen. Please check the setting of the probe cover again.
Proper installation of the probe cover ensures accurate measurements.
Warning：Keep the probe covers and connection ring away from children.
4. Press “ON/MEM” button to power on. The thermometer is ready for use after the ear icon stop flashing and two short
beep sound.
5. Gently pull the ear back to straighten the ear canal and snugly position the
probe into the ear canal, aiming towards the membrane of the eardrum to obtain
an accurate reading. ( Fig.4-1)
6. Measuring the ear temperature：Use the index finger to trigger. Press the “Scan”
button until you hear a long beep. ( Fig.4-2 ).
7. Power off：This device will automatically shut down after 1 minute pending to extend battery life.
NOTE：
a. It is recommended that you measure 3 times with the same ear. If the 3 measurements are different, select the
highest temperature.
b. To avoid the risk of cross contamination, please clean the probe according to “Cleaning and Storage” section after
each use.
c. Clinical repeatability: 0.20°C (＜1 year old), 0.14°C (1~5 years old), 0.14°C (＞5 years old)
Switching between Fahrenheit(°F) and Celsius(°C):
In “Power Off” mode, press and hold the “SCAN” button, then press the “ON/MEM” button for 3 seconds, icon “°C”
will be switched to icon “°F”. You can also use the same process to change the LCD display from °F to °C.
Memory Function:
If the reading of the thermometer is within normal temperature range between 34oC to 42.2 oC (93.2 oF to 108.0oF),
when the thermometer is off, the last measurement data is saved into memory. Press the “ON/MEM” button
again to see the temperature stored.
Cleaning and Storage:
The probe is the most delicate part of the thermometer.
Use with care when cleaning the lens to avoid damage.
Storage temperature Range: It should be stored at room temperature between -20~+50°C, RH≦85%
Keep the unit dry and away from any liquids and direct sunlight.
The Probe should not submerge into any liquids.
** If device is accidentally used without probe cover, clean the probe as follows:
a. Please use the cotton swab with Alcohol (70% concentration) to clean the lens( on the inside of the probe).
b. Allow the probe to fully dry for at least 1 minute.
NOTE：Please check the device if damaged once it falls. If you can’t make sure of it, please send the
complete device to the nearest retailer for recalibration.
Holding the thermometer too long may cause a higher ambient temperature reading of the
probe. This could make the body temperature measurement lower than usual.
Changing the Battery:
This device is supplied with one lithium cell (CR2032 x 1).
○
1Open the battery cover: Insert a pointed object into the battery cover pick hole. At the same time, use thumb to remove battery
cover. (See Figure 1) ○
2Flip the battery out with a small screw driver (See Figure 2) ○ 3Insert the new battery under the metal hook
on the left side and press the right side of the battery down until you hear a “click”. (See Figure 3) ○
4Replace the battery cover
The positive (+) side Up and the negative (-) side pointed Down.
Specifications:
;Temperature measurement range: 34~42.2°C (93.2~108°F)
;Operating temperature range: 10~40°C (50~104°F)
;Storage temperature Range: It should be stored at room temperature between -20~+50°C , RH≦85%
Transportation temperature shall be less than 70°C, RH≦95%
;Compliance with ASTM E1965-98, EN12470-5:2003 Clinical thermometers-Part 5:Performance of infra-red ear
thermometers(with maximum device),IEC/EN60601-1-2(EMC),IEC/EN60601-1(Safety) standards.
;Accuracy:+/-0.2 oC (0.4 oF) during 35.5~42°C (95.9~107.6°F), +/-0.3oC (0.5 oF) for other range.
;This mode converts the ear temperature to display its “oral equivalent.” (according to the result of the clinical evaluation)
Figure 4-1 Figure 4-2
Figure 1 Figure 2
Figure1 Figure2 Figure3

Ref No.：022010
Troubleshooting:
Error Message Problem Solution
Device stabilization is in process. Wait until stops flashing.
Battery is low and no more measurements
are possible. Replace the battery.
Measurement before device stabilization. Wait until stops flashing.
The device shows a rapid ambient
temperature change.
Allow the thermometer to rest in a room for at
least 30 minutes at room temperature:
10 oC and 40 oC (50 oF ~104 oF).
The ambient temperature is not within the
normal temperature range between 10 oC and
40 oC (50 oF ~104 oF).
Allow the thermometer to rest in a room at least
30 minutes at room temperature: 10 oC and 40
oC (50 oF ~104 oF).
Error 5~9, the system is not functioning
properly.
Unload the battery, wait for 1 minute and
repower it. If the message reappears, contact
the retailer for service.
Temperature taken is higher than 42.2 oC
(108.0 oF).
Check the integrity of the probe cover and take a
new temperature measurement.
Temperature taken is lower than 34 oC
(93.2 oF).
Make sure the probe cover is clean and take a
new temperature measurement.
Device can not be powered on to the ready
stage. Change with a new battery.
*Note: Suggest that the device is performed the re-test for accuracy after 3 years. Please send the complete
device to the dealers or nearest service address. However, if this device is used according to the
operation instruction, periodic re-calibration is not required.
Please read the instructions for use BF type applied part
Medical Technology Promedt Consulting GmbH
Add: Altenhofstrasse 80, D-66386 St. Ingbert, Germany
Radiant Innovation Inc.
Tel: [phone] Fax: [phone]
E-mail:servi[email protected].tw Http://www.radiantek.com.tw
Add: 1F, No.3, Industrial East 9th Road, Science-Based Industrial Park, HsinChu, Taiwan 300.

Symbol Descriptions
The CE mark and
Notified Body
Registration
Numbers, the
requirement of Annex
II from Medical
Device Directive
93/42/EEC are met.
Indicates this
device is subject to
the Waste
Electrical and
Electronic
Equipment
Directive in the
European Union.
Do not reuse
Please read the
instructions for use
Paper Recycling
Manufacturer
BF type applied part
Battery Recycling
Authorised
representative
in the
European
community
