USER GUIDE & INSTRUCTIONS
VK-Blue(표지) -01_레이아웃 1 17. 3. 15. 오후 4:05 페이지 1

Table of Contents
Safety Instructions ······················································· 1
Operation Instructions ·················································· 4
Key Parts and Components ··········································· 5
VirusKiller Functions ···················································· 6
Cleaning and Maintenance ·········································· 15
Error Messages ························································· 18
Troubleshooting ························································ 19
Customer Service ······················································ 21
Specifications ··························································· 22
Limited Warranty Card
Important Safety Instructions
The following instructions are provided to ensure your safety
and to protect the unit from accidental damage.
• Rea these instructions – All the safety and
operating instructions should be read before this
product is operated.
• Keep these instructions – The safety and
operating instructions should be retained for
future reference.
• Hee all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
• Follow all instructions – All instructions for use
and operation should be followed.
• Warranty – included inside.
1
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 1

Warning – This symbol indicates important safety
instructions that must be followed to avoid injury.
Caution – This symbol is to bring important information
to your attention to avoid the risk of injury or damage to
the unit.
Prohibite – This symbol indicates a forbidden action.
Adhere to these to reduce the risk of injury or damage to
the unit.
Electrical Safety
• The unit should only be connected to a properly grounded
mains power supply with voltage that matches that
specified.
• To prevent overload, do not share the
same power supply socket with too
many other electronic components.
• Do not place the power cord where it
could be stepped on or tripped over.
• Do not place heavy items on the power cord, they could
damage the wire.
• Do not allow water or moisture to enter the unit or power
adapter.
• Do not use in wet, moist areas such
as bathrooms, steamy kitchens or
near swimming pools.
• Pull the plug out immediately and seek professional help
if the plug or power cord is damaged, liquid is spilled onto
the unit, if it is accidentally exposed to moisture or the
unit is not working normally.
2
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 2

Operation Safety
• Keep the product away from flammable gases and
liquids, candles and open flames.
• Do not install near any heat sources
such as radiators, stoves, or other
apparatus that produce heat.
• Do not attempt to repair or replace
any part of this equipment unless it
is specifically recommended in the
user guide. All other services should
be referred to a qualified technician.
• Make sure the power cord is plugged
firmly and completely into the outlet.
• Hold the main plug, not the wires, when
removing from a socket.
• During a thunderstorm switch off the unit and unplug from
the socket.
• Do not handle the unit with wet hands.
• Only clean with a soft, dry cloth. Do not use solvents or
petroleum based fluids.
• Do not place heavy objects on the unit.
• Do not shake, knock or move the product while in
operation, you may damage the internal circuits.
• If a strange smell, noise, or smoke is emitted, turn off
immediately and contact customer services.
3
Benzene
Thinner
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 3

Operation Instructions
• Switch off while cleaning the room
After cleaning, it is important to properly
ventilate the room before using VirusKiller
again.
• Switch off while cooking
Oils released while cooking may reduce the
lifespan of the sterilizing module. After
cooking, the room should be ventilated to
remove oils. VirusKiller can then be used to
remove the remaining smell.
• Ensure airflow is not restricte
Do not position VirusKiller so that airflow to
and from the unit is restricted by large items
such as furniture, electronic items or
curtains.
• Position at least 3 metres from the be
To avoid excessive cooling caused from
sleeping in direct airflow, we recommend
positioning VirusKiller at least 3 metres
away from the bed.
• Maintain proper ventilation – 30 minutes per ay
VirusKIller is designed to purify and sterilize
your indoor air, and will do this very
effectively if used correctly. Good indoor air
quality also requires proper ventilation. We
recommend opening windows or doors, or
operating A/C units, for at least 30 minutes a day.
• Maintain regular servicing an maintenance
4
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 4

Caution
• The appliance is not to be used by children or persons
with reduced physical, sensory or mental capabilities.
This appliance is not a toy. Children should be supervised
at all times.
• ever look directly at a burning ultra-violet light – this
may permanently damage your eyes. Switch off and
unplug before performing maintenance.
Key Parts an Components
1. Air Inflow
2. Santized and Purified Air Outflow
3. Fan
4. Dual Reactor Module (Left and Right)
5. 8 x UVC Lamps and Multiple ano Tube Filters
6. Indoor Air Quality Sensor
7. Pre Filter
8. HEPA Filter
9. Carbon Filter (Left and Right)
5
Air oulet
IAQ sensor
Control Part
Filter Part
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 5

Key Parts an Components
1. Air Inflow
2. Santized and Purified Air Outflow
3. Fan
4. Dual Reactor Module (Left and Right)
5. 8 x UVC Lamps and Multiple ano Tube Filters
6. Indoor Air Quality Sensor
7. Pre Filter
8. HEPA Filter
9. Carbon Filter (Left and Right)
The Reactor Mo ule
6
Screw or Screw
on anchor bolts
Screw or Screw
on anchor bolts
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 6

Control Panel an Display
Remote Control
VirusKiller Functions
Automatic Operation Mo e
When the unit is switched on, either by the power button on
the body or the Power on/off button on the remote control,
the product is in automatic mode. Blue LED lights are
displayed and the fan speed is normal. If small amounts of
dust or VOC’s are detected by the sensor, the LED changes
to yellow. If high levels of dust or VOC’s are detected the LED
changes to red and the fan switches to full power. When the
dust, germ or VOC levels return to healthy levels, the unit
automatically returns to 20% fan speed and displays the blue
color.
7
Display and Indicator
Power On/Off
Power On/Off
Fan speed
Fan speed
Mode(Mood lamp)
Mood lamp On/Off
Mood
Timer
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 7

• Blue LED – Air quality is GOOD
• Yellow LED – Air quality is ORMAL
• Red LED – Air quality is POOR
Note - When the unit is switched on the Indoor Air Quality
(IAQ) sensor takes 2 minutes to calibrate.
When the power button is
pressed, the unit emits a
beep sounds and begins to
operate. If the product does
not operate, ensure the socket is plugged securely into a live,
properly grounded outlet of the correct voltage.
Manual Operation Mo e
To stop automatic mode, and manually operate the unit, press
any button on the body or remote control.
• Increasing the Fan Spee
8
To increase Fan Spee
Press UP button of main body.
①
Press ▲ button of remote controller. ②①①②VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 8

• Fan speed increases when
the UP button is pressed.
Quiet Mode
ormal Mode
High Speed Mode
• Re ucing the Fan Spee
• Pressing the DOW button
decreases the fan speed.
Quiet Mode
ormal Mode
High Speed Mode
FA 1
FA 2
FA 3
FA 1
FA 1
FA 1
9
To re uce Fan Spee
Press DOW button of main body.
①
Press ▼ button of remote controller. ②①②②VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 9

Operating the LED Lamp
Setting the Timer
1. Press TIMER button on
the remote controller.
2. Press MODE button on
main body.
Press either TIMER or
MODE to toggle between
the timer preset options. The unit will automatically switch off
when the programme time has passed.
3 hours preset
6 hours preset
9 hours preset
Pr - 3
Pr - 6
Pr - 9
10
Turn on /off Moo lamp
Keep pressing LAMP button of
main body for few seconds.
①
Press LAMP button of remote
controller.
②①①②VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 10

Mo e In icator
Repeatedly pressing the MODE button on either the unit or
the remote control changes the display in the following order:
Operation time (in hours) of Sterilizing
Module
Current temperature
Fan Speed
0001
_27d
FA 3
11
State in ication mo e
Press MODE button of main body briefly.
①
Press MODE button of remote controller. ②
①②VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 11

To Switch the Unit Off
To switch the unit off, press the POWER button on the unit or
on the remote control.
Turn the product off and unplug power cord when it is not in
use for an extended period of time.
12
Stop operation of the pro uct
Press POWER off swich of main body.
①
Press POWER off swich of remote controller. ②
①②VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 12

Cleaning an Maintenance

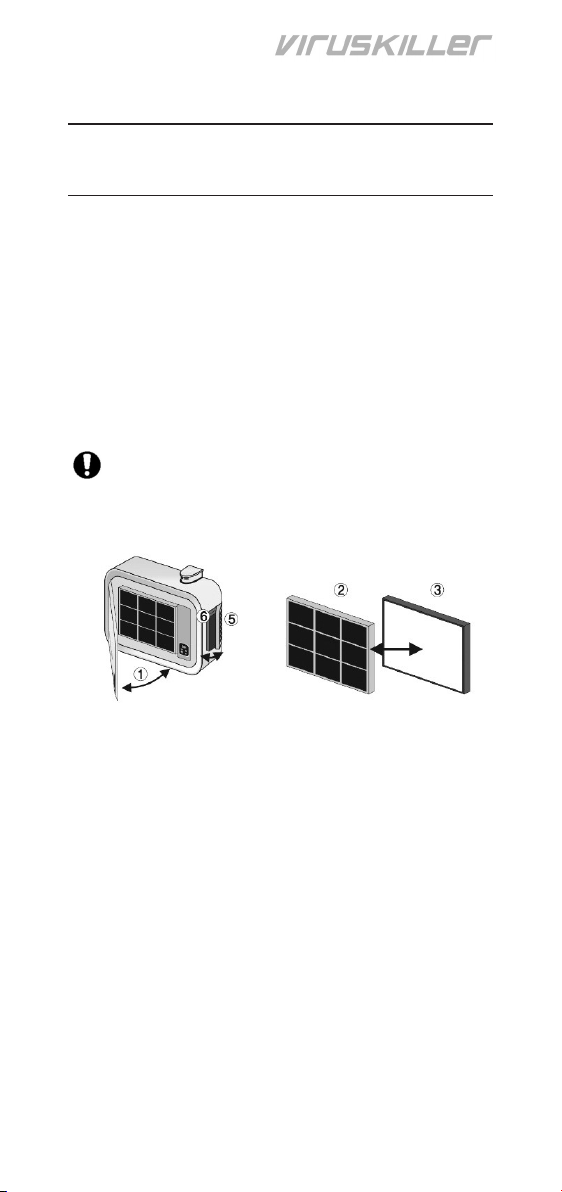

Cleaning the Pre-Filter
The plastic pre-filter is reusable. To clean it follow this
procedure:
1. Open front cover ① .
2. Remove pre-filter case from unit ② and separate
from HEPA filter ③ .
3. Clean the pre-filter with plain water.
4. Allow to dry completely out of direct sunlight.
5. Replace
Ensure you have remove the HEPA filter before
washing the pre-filter
We recommend you check the pre-filter regularly and clean
it as often as necessary, depending on the levels of pollution.
13
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 13

Replacing the HEPA Filter
When the display shows ‘FILT’ at 2 minute intervals, it is time
to replace the HEPA filter (2000 hours). After replacing the
HEPA filter ③ , press and hold the UP switch ④ for at least 14
seconds to reset the HEPA timer to zero.
Changing the Si e Carbon Filters
After switching off the power, open side filter door ⑤ and
replace carbon filter
⑥ , then close the door.
The HEPA and carbon filters are not reusable and should be
replaced.
Depending on the levels of pollution the lifetime of the HEPA
may be longer or shorter than the recommended 2000 hours
use time.
Please contact your local customer service center or
distributor to purchase replacement HEPA and carbon filters.
14 ④VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 14

Cleaning the In oor Air Quality (IAQ) Sensor
The IAQ sensor is a very delicate instrument that uses light
scattering to detect pollution. It therefore needs a clean lens
to work effectively. Regular maintenance (every 6 months)
should be carried out to keep the lens clean.
Important - Only use pure water and allow to dry completely
before replacing. To avoid damage to the plastic lens do not
use chemicals such as benzene or alcohol etc.
Procedure to maintain and clean the IAQ Sensor:
1. Open the lid of the sensor module
2. Clean lens with a clean cotton swab dampened
with pure water as shown below.
3. Allow lens to dry completely.
4. Close lid.
CAUTION
1. Do not place in direct sunlight.
2. Do not spray water or perfume near the sensor.
15
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 15

Error Messages
When to Replace the Sterilizing Mo ule
The lifespan of the Sterilizing Module is 8000 hours. When
the unit has been operated for 8000 hours, the operation
time (displayed by pressing MODE) will be a minus figure, as
shown below.
The Sterilizing Module should be replaced when
recommended, otherwise the sterilizing power and the
lifespan of the unit will be reduced.
Circuit overheat error
The below error message is displayed when the circuit is
overheated.
Switch off the unit and contact the customer service center.
Door Open
If the door is open the unit will not switch on. It will emit 3
rapid descending beeps. Check the magnet connections in
the door are properly aligned with those on the body.
16
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 16

Troubleshooting
Before you call for service, review this list. It may save you
time and expense. This list includes common occurrences
that are not the result of defect in workmanship or materials.
• Problem : Product will not turn on.
Possible causes
Is power cord correctly connected to outlet?
Solutions
Put power plug into AC outlet and DC jack again.
Check remote controller?
Change / reinstall batteries correctly according to the
polarity.
Check the outlet
This product should be plugged into a properly grounded
outlet with the correct voltage (as shown on the back of
the unit)
• Problem : Weak wind volume or unusual noise from the
product.
Possible Causes
Check if dust has accumulated in the filter?
Solutions
Filters should be replaced or cleaned at appropriate time.
• Problem : The air purifying function is not effective.
Possible Causes
Is the air in the room seriously contaminated?
Solutions
Use only after sufficient ventilation, minimum 30 minutes.
Possible Causes
Check if the pre-filter is heavily contaminated.
Solutions
Clean the pre-filter
Possible Causes
Check if the HEPA filter is heavily contaminated.
Solutions
Replace HEPA filter.
17
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 17

Possible Causes
Check the room size compared to the product
specifications.
Solutions
Select the appropriate model of VirusKiller to suit the
space to be covered.
Possible Causes
Check if airflow is restricted?
Solutions
Make sure there is sufficient clearance around the product
and that the air inlet and outlet are not blocked by furniture,
curtains, etc.
• Problem : The unit is emitting a strange smell
Possible causes
Is this a ‘new product’ smell?
Solutions
It may be an antimicrobial smell emitted by the sterilizing
module or filters and will disappear over a short period of
operation (1-2 weeks). It is completely harmless to
humans and animals.
Possible causes
Is the washable pre-filter completely dry?
Solutions
This may be from the pre-filter if replaced before dry.
Remove, wash again, and allow to dry completely before
further operation.
Possible causes
Has the unit been used during or shortly after cooking?
Solutions
Some food odors can permeate into the filter or sterilizing
module. Only switch on the unit after sufficient ventilation.
Possible causes
Has the unit been used where there are heavy emissions
of smoke or odors?
Solutions
In areas emitting smoke or odors, the performance of the
air purifying function may be affected. Use after ventilation.
18
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 18

Customer Services
In this manual, you will find a card containing details of your
limited warranty and contact details for your local customer
services center, to whom all enquiries and warranty claims
should be directed.
All warranties are rendered void and the cost of repair will be
payable by the user in the case of:
1. Damages caused by putting foreign objects
(such as water, soft drink, coffee, fragrance oils
or toy etc.) in or on the unit.
2. Damages caused by transportation or handling.
3. Damages caused by use of products such as
benzene or thinner.
4. Damages caused by using incorrect power
supply or output voltage.
5. Breakdown or loss of parts caused by
unauthorized disassembling or modification.
6. Repair or replacement undertaken by unauthorized
persons.
7. Damages caused by non-adherence to the
instructions provided in this user guide, and as
given by the local customer service center.
8. Damages caused by careless or improper use.
9. Damages caused by operating the product in a
corrosive or moist environment.
19
VK-Blue -02_레이아웃 1 17. 3. 15. 오후 4:18 페이지 19
